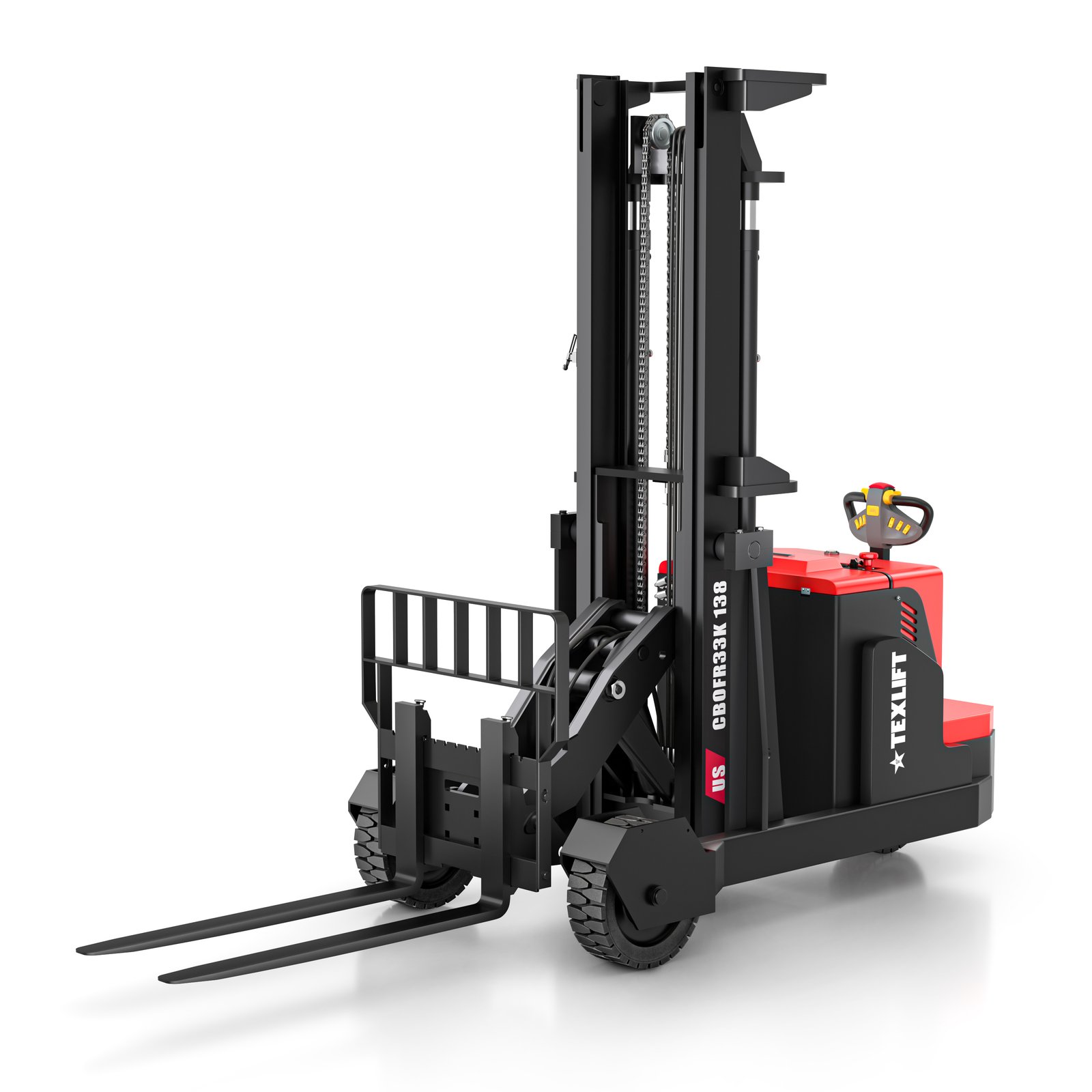

The US-CBOFR33K 138 Rough Terrain Electric Reach Stacker is a heavy-duty, full-electric material-handling machine designed for lifting, transporting, and stacking palletized loads. Featuring a 3,300 lb rated lifting capacity and a 12 ft lift height class, this walk-behind reach stacker combines a counterbalanced chassis, hydraulic forward reach, and powered lifting for professional warehouse and industrial applications.
Built for versatile pallet handling, the US-CBOFR33K 138 features an actual maximum fork lift height of 138 in, approximately 18 in of hydraulic forward reach, adjustable 42 in steel forks, and hydraulic fork tilt. Its counterbalanced design eliminates conventional front straddle legs, allowing more direct access to compatible pallets, loading platforms, and designated storage positions.
Powered by a rechargeable 24V / 135Ah lead-acid battery, the machine uses a 1.8 kW AC drive motor and a 3.0 kW hydraulic lift motor for powered travel and load handling. With approximately 6 in of ground clearance, up to 4 hours of working time, and a 12-Month Warranty, this Rough Terrain Electric Reach Stacker is designed for professional use on suitable indoor and outdoor industrial surfaces.
The US-CBOFR33K 138 provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center, supporting compatible palletized materials, industrial supplies, manufacturing components, and commercial inventory.
Its heavy-duty counterbalanced construction provides stable material-handling capability when operated within the manufacturer’s specified limits. The design is suitable for pallet transportation, elevated stacking, and controlled load positioning.
Actual allowable capacity depends on the load center, lifting height, forward reach position, and load distribution. Operators must follow the manufacturer’s rated load chart and never exceed the approved capacity.
This Rough Terrain Electric Reach Stacker belongs to the 12 ft lift height class, with an actual maximum fork lifting height of 138 in for compatible elevated pallet stacking and retrieval.
The hydraulic mast supports controlled lifting and lowering for warehouses, distribution centers, manufacturing facilities, and other designated industrial storage environments.
The mast measures approximately 95 in when lowered and 189 in when fully extended. Operators must verify doorway access, ceiling height, overhead obstacles, and load capacity before lifting.
The US-CBOFR33K 138 features approximately 18 in of hydraulic forward reach, allowing the fork carriage to extend and retract for more flexible pallet positioning.
Its single-scissor hydraulic reach mechanism helps operators approach, retrieve, and place compatible loads without repeatedly repositioning the entire machine.
This feature is useful for loading platforms, storage locations, and industrial material-handling applications. Extending the load changes its position and may reduce allowable lifting capacity.
The Rough Terrain Electric Reach Stacker uses a heavy-duty counterbalanced chassis instead of conventional front straddle legs extending beneath the pallet.
This design provides more direct access to compatible pallets and allows operators to approach certain loading positions that may be difficult for conventional straddle-leg stackers.
The counterbalanced configuration supports flexible pallet handling in warehouses, industrial facilities, and loading areas. Proper load distribution and compliance with the rated load chart remain essential.
The US-CBOFR33K 138 is equipped with heavy-duty steel forks measuring approximately 42 in long, 5 in wide each, and 1.6 in thick.
Fork spacing can be adjusted from approximately 9–28 in to accommodate different compatible pallet widths and load configurations.
This adjustable design provides flexibility for pallet pickup, transportation, and elevated positioning. Operators must ensure both forks properly support the load and maintain the required load center.
The Rough Terrain Electric Reach Stacker features hydraulic fork tilt with approximately 2° forward and 6° backward adjustment for controlled load positioning.
Forward and backward tilt provide additional flexibility when engaging, transporting, and placing compatible palletized materials.
Combined with the 18 in hydraulic forward reach, this function supports more precise handling during loading and unloading. Fork tilt must always be used within the manufacturer’s stability limits.
The US-CBOFR33K 138 is powered by a rechargeable 24V / 135Ah lead-acid traction battery, providing approximately 3.24 kWh of nominal energy for electric travel and hydraulic operation.
Lead-acid batteries are an established industrial power solution that use lead-based electrodes and an electrolyte to store and deliver electrical energy. They provide rechargeable power for material-handling equipment without tailpipe exhaust emissions during operation.
The battery supports up to approximately 4 hours of working time, with an estimated charging time of 8 hours. Actual performance varies with workload and battery condition. Use a compatible lead-acid charger and follow the maintenance requirements for the installed battery type.
The US-CBOFR33K 138 features full-electric Walkie operation, allowing the operator to control travel and hydraulic functions while walking behind the machine.
A 1.8 kW AC electric drive motor powers travel, while a 3.0 kW hydraulic motor supports lifting, forward reach, and compatible fork-positioning functions.
Travel speeds are approximately 2.7 mph loaded and 2.5 mph unloaded. The electric drive system supports controlled material transportation without the manual effort required by non-powered equipment.
The Rough Terrain Electric Reach Stacker provides approximately 6 in of ground clearance for compatible industrial yards, loading areas, and suitable uneven operating surfaces.
Its heavy-duty construction and powered electric drive support material transportation on firm, stable, adequately supported ground where conventional low-clearance warehouse stackers may be unsuitable.
The machine is not intended for deep mud, loose gravel, unstable soil, severe potholes, or excessive slopes. Specified travel gradeability is 5% loaded and 8% unloaded; lifting and reaching must be performed on suitable level surfaces.
The US-CBOFR33K 138 features a counterbalanced industrial chassis measuring approximately 81 in long and 50 in wide, with a 64 in wheelbase.
An approximately 74 in turning radius provides maneuverability for compatible warehouses, industrial facilities, loading areas, and designated outdoor work environments.
The machine has an approximate listed operating weight of 4,500 lb, including the 200 lb battery. Facilities must verify floor capacity, access clearance, transportation requirements, and ground support before operation.
The US-CBOFR33K 138 Rough Terrain Electric Reach Stacker supports pallet transportation, elevated stacking, loading, unloading, and inventory positioning in compatible industrial environments.
Typical applications include warehouses, distribution centers, manufacturing facilities, agricultural supply operations, industrial yards, and commercial loading areas.
Its counterbalanced chassis, hydraulic forward reach, adjustable forks, and electric travel provide flexibility for handling compatible palletized goods. All applications must remain within the equipment’s rated capacity and operating limits.
The US-CBOFR33K 138 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.
Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and compatible replacement parts identification.
Proper operation, routine inspections, correct charging procedures, and compliance with the manufacturer’s instructions help maintain equipment performance and reliability.
Stop operating the US-CBOFR33K 138 when the battery charge reaches 20% or below. Recharge the lead-acid battery using the correct compatible charger before returning the machine to service. Follow the manufacturer’s charging, inspection, and maintenance instructions.
Operate only on firm, stable, adequately supported surfaces. Avoid deep mud, loose gravel, severe potholes, unstable ground, unsupported edges, and conditions that could compromise traction or machine stability.
The specified 5% loaded and 8% unloaded gradeability ratings apply to travel only. Perform lifting, stacking, hydraulic forward reach, and fork-tilting operations on suitable level surfaces.
Always follow the manufacturer’s rated load chart, load-center requirements, reach-position restrictions, and operating instructions. Never exceed the allowable lifting capacity or operate outside the machine’s approved conditions.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-CBOFR33K 138 | Heavy-duty rough terrain electric reach stacker with counterbalanced design and hydraulic forward reach. |
| Equipment Type | Rough Terrain Electric Reach Stacker | Full-electric walk-behind equipment for professional industrial material handling. |
| Load Capacity | 3,300 lb | Maximum rated capacity at a 20 in load center, subject to the manufacturer's load chart. |
| Load Center | 20 in | Rated load-center distance used to determine allowable lifting capacity. |
| Maximum Lift Height | 138 in | Actual maximum fork lifting height for elevated pallet stacking and positioning. |
| Lift Height Class | 12 ft | Advertised lift height class; actual maximum fork height is 138 in. |
| Mast Type | Electric Hydraulic | Powered hydraulic mast for controlled lifting and lowering. |
| Lowered Mast Height | 95 in | Approximate overall mast height in the fully lowered position. |
| Extended Mast Height | 189 in | Approximate overall mast height when fully extended. |
| Forward Reach | 18 in | Hydraulic forward and backward movement of the fork carriage using a single-scissor reach mechanism. |
| Fork Tilt | 2° Forward / 6° Backward | Hydraulic fork tilt for controlled pallet pickup and positioning. |
| Fork Length | 42 in | Heavy-duty steel forks for compatible palletized materials. |
| Fork Width | 5 in Each | Approximate width of each individual fork. |
| Fork Thickness | 1.6 in | Approximate thickness of each steel fork. |
| Fork Spread | 9–28 in | Adjustable spacing for compatible pallet widths and load configurations. |
| Overall Length | 81 in | Approximate overall machine length. |
| Overall Width | 50 in | Approximate overall machine width. |
| Wheelbase | 64 in | Approximate distance between front and rear axle centers. |
| Turning Radius | 74 in | Approximate turning radius for maneuvering in industrial work areas. |
| Ground Clearance | 6 in | Clearance for suitable uneven industrial surfaces and approved outdoor applications. |
| Operating Weight | 4,500 lb | Approximate listed total machine weight including the battery. |
| Battery | 24V / 135Ah | Rechargeable industrial traction battery supplying electric travel and hydraulic power. |
| Battery Type | Lead-Acid | Rechargeable lead-acid battery requiring compatible charging and appropriate maintenance. |
| Battery Capacity | 3.24 kWh | Nominal battery energy calculated from 24V × 135Ah. |
| Battery Weight | 200 lb | Approximate battery weight included in the total operating weight. |
| Runtime | Up to 4 Hours | Estimated working time per full charge under suitable operating conditions. |
| Charging Time | Approx. 8 Hours | Estimated charging time using a compatible lead-acid battery charger. |
| Drive Motor | 1.8 kW AC | Electric traction motor providing powered travel. |
| Lift Motor | 3.0 kW | Electric hydraulic motor supporting lifting, forward reach, and compatible fork-positioning functions. |
| Travel Speed, Loaded | 2.7 mph | Approximate travel speed while carrying a compatible load. |
| Travel Speed, Unloaded | 2.5 mph | Approximate travel speed without a load. |
| Lifting Speed, Loaded | 2.8 in/sec | Approximate fork lifting speed with a compatible load. |
| Lifting Speed, Unloaded | 4.2 in/sec | Approximate fork lifting speed without a load. |
| Lowering Speed, Loaded | 4.9 in/sec | Approximate fork lowering speed with a compatible load. |
| Lowering Speed, Unloaded | 2.1 in/sec | Approximate fork lowering speed without a load. |
| Gradeability, Loaded | 5% | Specified travel gradeability with a load; not a lifting-on-slope rating. |
| Gradeability, Unloaded | 8% | Specified travel gradeability without a load; not a lifting-on-slope rating. |
| Operation | Walkie | Walk-behind operation with powered electric travel and hydraulic load-handling functions. |
| Power System | Full-Electric | Battery-powered travel, lifting, forward reach, and fork tilt. |
| Counterbalance Design | Yes | Counterweighted chassis allows access to compatible pallets without conventional front straddle legs. |
| Terrain Type | Rough Terrain | Designed for firm, stable, adequately supported industrial and uneven surfaces. |
| Operating Environment | Indoor & Suitable Outdoor Areas | Compatible warehouses, manufacturing facilities, loading areas, and approved industrial yards. |
| Primary Applications | Industrial Material Handling | Pallet transportation, elevated stacking, loading, unloading, and material positioning. |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under applicable Texlift warranty terms. |
| Technical Support | Included | Assistance with operation, troubleshooting, maintenance guidance, and compatible replacement parts. |
| Battery Protection Notice | Stop at 20% Charge | Stop operation at 20% charge or below and recharge using compatible equipment. |
| Rough Terrain Safety Notice | Stable Surfaces Required | Operate on firm, stable, adequately supported surfaces within manufacturer load and stability limits. |
Watch the equipment in operation and get a closer look at its design, controls, lifting performance, maneuverability, and real-world use.
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
US-CBOFR33K 138 | Rough terrain full-electric counterbalance reach stacker with single-scissor hydraulic forward reach.
Full-Electric Counterbalance Reach Stacker | Walk-behind industrial material-handling equipment with powered electric travel, hydraulic lifting, forward reach, and fork tilt.
3,300 lb | Maximum rated lifting capacity at the specified 20 in load center, subject to the manufacturer's load chart and approved operating conditions.
3,300 lb | Nominal lifting capacity under the manufacturer's specified load-center, reach-position, and operating limits.
20 in | Rated load-center distance used to determine allowable lifting capacity and stability.
138 in | Maximum fork lifting height for compatible elevated pallet stacking and positioning.
12 ft | Advertised lift height class; actual maximum fork lifting height is 138 in.
Electric Hydraulic Mast | Powered hydraulic mast designed for elevated pallet lifting and positioning.
95 in | Approximate overall mast height when fully lowered, based on the manufacturer's 2,424 mm measurement.
189 in | Approximate overall mast height when fully extended, based on the manufacturer's 4,813 mm measurement.
18 in | Approximate horizontal extension and retraction of the hydraulic fork carriage.
Single-Scissor Hydraulic Reach | Hydraulic single-scissor mechanism provides controlled forward and backward fork positioning.
2° Forward / 6° Backward | Hydraulic fork tilt supports controlled pallet pickup, positioning, and material handling.
42 in | Heavy-duty steel forks designed for handling compatible palletized materials.
5 in | Approximate width of each individual fork.
1.6 in | Approximate thickness of each steel fork.
9–28 in | Adjustable fork spacing for compatible pallet widths and load configurations.
9–28 in | Fork adjustment range for positioning compatible palletized loads.
81 in | Approximate overall equipment length.
50 in | Approximate overall equipment width.
64 in | Approximate distance between front and rear wheel axle centers.
50 in | Approximate front overhang measurement.
74 in | Approximate turning radius for maneuvering in designated industrial work areas.
6 in | Approximate ground clearance for compatible rough terrain and industrial yard applications.
4,500 lb | Approximate total machine operating weight including the 200 lb battery.
24V / 135Ah | Rechargeable industrial battery system powering electric travel and hydraulic functions.
Rechargeable Industrial Battery | Battery chemistry should be confirmed using the installed battery identification label.
24V | Nominal operating voltage of the electric power system.
3.24 kWh | Nominal battery energy calculated from 24V × 135Ah, standardized for the product comparison table.
135Ah | Rated electrical charge capacity of the rechargeable industrial battery.
3.24 kWh | Approximate nominal energy of the rechargeable battery system.
200 lb | Approximate battery weight included in the 4,500 lb total operating weight.
Up to 4 Hours | Estimated operating time per full battery charge under suitable operating conditions.
Up to 4 Hours | Actual runtime varies with load weight, travel distance, lifting frequency, hydraulic reach operation, terrain, temperature, and battery condition.
Approx. 8 Hours | Estimated battery recharge time using compatible charging equipment under suitable conditions.
1.8 kW AC | AC electric traction motor provides powered travel and maneuverability.
3.0 kW | Electric hydraulic motor powers lifting and compatible hydraulic material-handling functions.
3.0 kW | Hydraulic power system supports lifting, forward reach, and compatible fork-positioning functions.
2.7 mph | Approximate travel speed while carrying a compatible load.
2.5 mph | Approximate travel speed without a load.
Approx. 3 mph | Rounded maximum travel-speed designation for general product comparison.
2.8 in/sec | Approximate fork lifting speed while carrying a compatible load.
4.2 in/sec | Approximate fork lifting speed without a load.
4.9 in/sec | Approximate fork lowering speed with a compatible load.
2.1 in/sec | Approximate fork lowering speed without a load.
5% | Listed travel gradeability under suitable loaded conditions; not a rating for lifting on slopes.
8% | Listed travel gradeability without a load; not a rating for lifting or reaching on slopes.
Full-Electric | Powered electric travel controlled by the walk-behind operator.
Electric Hydraulic | Powered hydraulic lifting and lowering for compatible palletized loads.
Hydraulic | Hydraulic forward and backward fork carriage movement for pallet positioning.
Hydraulic | Powered hydraulic fork tilt for compatible load-handling applications.
Walk-Behind | Pedestrian-operated equipment designed for professional industrial material handling.
Yes | Counterbalanced chassis allows pallet access without conventional front straddle legs extending beneath the load.
Yes | Designed for compatible firm, stable, adequately supported uneven and industrial surfaces.
Yes | Suitable for compatible warehouses, manufacturing facilities, distribution centers, and commercial storage environments.
Compatible Surfaces Only | Suitable for approved industrial yards, loading areas, and other firm, stable operating surfaces.
Warehouse & Industrial Material Handling | Pallet transportation, stacking, loading, unloading, elevated positioning, inventory movement, and industrial yard operations.
Zero During Operation | Electric-powered equipment produces no tailpipe exhaust emissions during use.
12-Month Warranty | Covers eligible manufacturing defects under applicable Texlift warranty terms and conditions.
Included | Assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and compatible parts identification.
Stop at 20% Charge | Stop operating when the battery charge reaches 20% or below and recharge using compatible charging equipment before returning the machine to service.
Stable Surfaces Required | Operate only on firm, stable, adequately supported surfaces and follow all manufacturer load, traction, gradeability, ground-support, and stability limits.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The US-CBOFR33K 138 electric counterbalance reach stacker supports pallet lifting, transportation, elevated stacking, and positioning in warehouses, commercial storage facilities, and professional material-handling environments.
This counterbalance reach stacker supports pallet transportation, inventory organization, shipment staging, receiving, and shipping operations in distribution centers and logistics facilities.
With a maximum lift height of 138 in, the US-CBOFR33K 138 supports compatible elevated pallet placement, retrieval, and storage organization within the manufacturer's rated load limits.
The 138 in maximum fork lifting height provides additional vertical reach for compatible elevated storage positions and industrial pallet-handling applications.
The rough terrain counterbalance reach stacker supports transportation and positioning of compatible palletized loads on firm, stable, adequately supported industrial yard surfaces.
The counterbalance design, hydraulic lifting system, and 18 in forward reach support compatible loading, unloading, pallet staging, and material positioning in designated industrial loading areas.
The 18 in hydraulic forward reach allows controlled extension and retraction of the fork carriage for compatible pallet placement, retrieval, and positioning without repeatedly moving the entire machine.
The electric counterbalance reach stacker supports transportation of palletized raw materials, industrial components, production supplies, and finished goods between manufacturing departments and storage areas.
The single-scissor hydraulic reach mechanism, adjustable forks, and hydraulic tilt provide flexibility when aligning, retrieving, and positioning compatible palletized loads.
The US-CBOFR33K 138 rough terrain counterbalance reach stacker supports compatible outdoor pallet movement on approved paved loading areas and other firm, stable industrial surfaces.
This electric counterbalance reach stacker supports pallet organization, material transportation, and elevated load positioning in commercial storage environments with adequate floor capacity and operating clearance.
Transport compatible palletized tools, machinery components, packaged industrial supplies, and commercial materials within the machine's rated capacity and approved load-center limits.
The counterbalance reach stacker helps operators move and organize palletized inventory between receiving departments, storage locations, production areas, and shipping zones.
Deliver compatible palletized raw materials, manufacturing components, and production supplies to designated assembly and manufacturing work areas.
The counterbalanced chassis allows operators to approach compatible palletized loads without conventional front straddle legs extending beneath the pallet.
The 9–28 in adjustable fork spread supports handling of compatible pallet widths and load configurations while maintaining appropriate fork positioning and load support.
The hydraulic fork tilt system provides approximately 2° forward and 6° backward adjustment for controlled positioning of compatible palletized materials.
Support pallet receiving, shipment preparation, loading-area staging, inventory transfers, and material movement in commercial and industrial facilities.
The US-CBOFR33K 138 counterbalance reach stacker supports movement of compatible palletized loads weighing up to 3,300 lb at the specified 20 in load center, subject to the manufacturer's rated load chart.
The combination of powered electric travel, hydraulic lifting, 18 in forward reach, and adjustable forks supports controlled pallet positioning in approved industrial operating environments.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-CBOFR33K 138 Rough Terrain Electric Counterbalance Reach Stacker includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.
Warranty coverage applies to qualifying manufacturing defects identified during the applicable warranty period, provided the counterbalance reach stacker has been operated, inspected, maintained, and serviced according to the manufacturer's instructions.
Damage resulting from misuse, overloading, accidents, improper operation, inadequate maintenance, unauthorized modifications, normal wear, or operation outside the manufacturer's specified conditions is not covered.
The counterbalance reach stacker's 24V / 135Ah rechargeable battery must be charged, inspected, stored, and maintained according to the manufacturer's instructions. Stop operation when the battery charge reaches 20% or below and recharge using compatible charging equipment.
The US-CBOFR33K 138 must be operated on firm, stable, adequately supported surfaces. Damage caused by operating outside the manufacturer's ground-condition, traction, gradeability, load-capacity, reach-position, or stability limits is not covered.
The hydraulic lifting, forward reach, and fork tilt systems must be operated within the manufacturer's specified capacity and stability limits. Damage caused by excessive loads, improper load positioning, unsafe lifting conditions, or unauthorized hydraulic modifications is not covered.
Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, hydraulic system operation, and identifying compatible replacement parts.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
Explore additional equipment selected to complement your material handling operation.
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
Reviews
There are no reviews yet
