7 ft Rough Terrain Electric Counterbalance Reach Stacker โ€“ 3,300 lb Capacity | US-CBOFR33K 78

Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.

Requested Quantity *
PRE-ORDER REQUEST

Request Product Availability

7 ft Rough Terrain Electric Counterbalance Reach Stacker โ€“ 3,300 lb Capacity | US-CBOFR33K 78

Submit your request and our team will contact you with availability, estimated lead time, and ordering information.

Requested Quantity *

Description

PRODUCT OVERVIEW

Built for Professional Material Handling

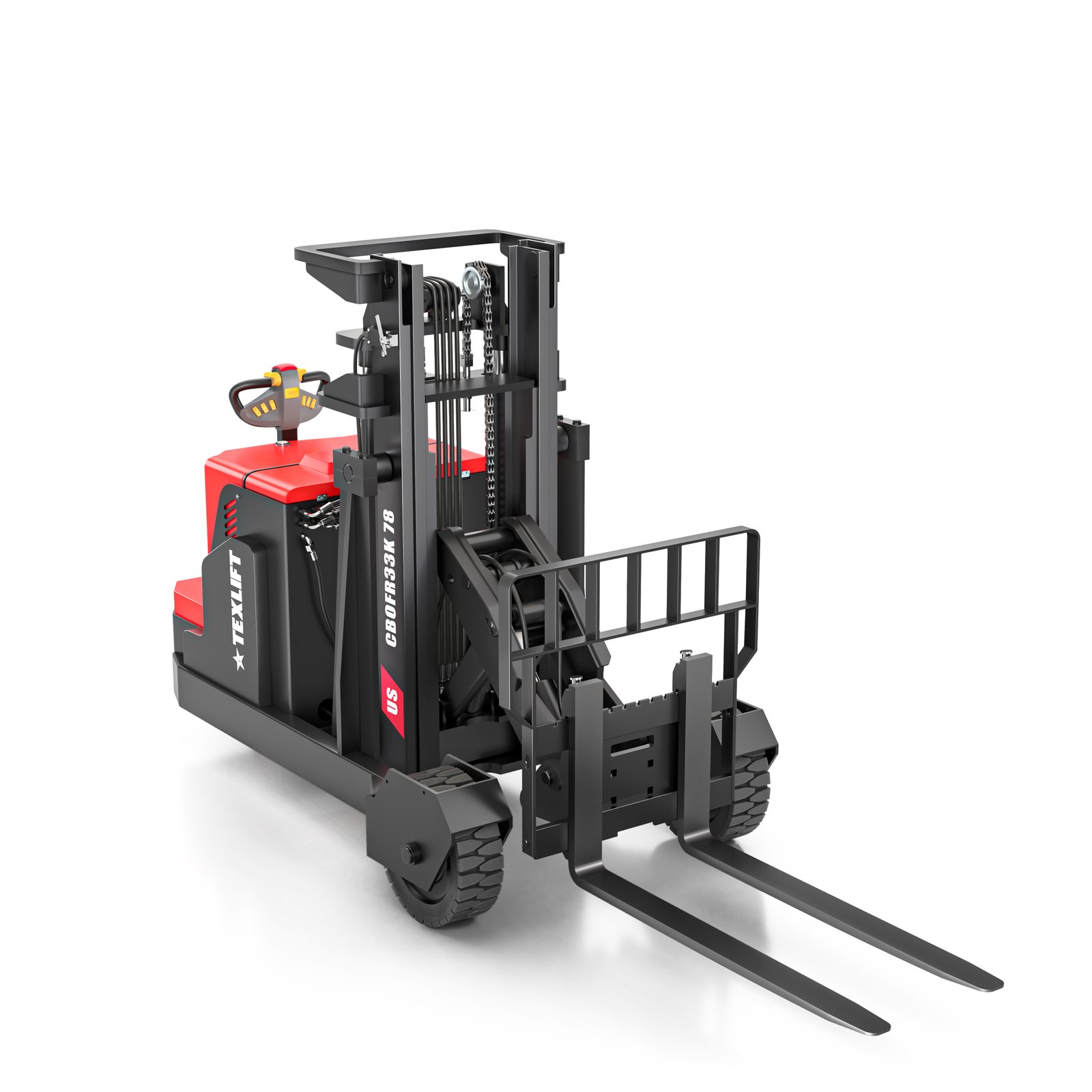

The US-CBOFR33K 78 Rough Terrain Electric Reach Stacker is a heavy-duty, full-electric material-handling machine designed for lifting, transporting, and stacking palletized loads. With a 3,300 lb rated lifting capacity and a 7 ft lift height class, this walk-behind reach stacker combines a counterbalanced chassis, hydraulic forward reach, and powered lifting for professional warehouse and industrial applications.

Designed for versatile pallet handling, the US-CBOFR33K 78 features a maximum fork lift height of 78 in, approximately 18 in of hydraulic forward reach, adjustable 42 in steel forks, and hydraulic fork tilt. Its counterbalanced design eliminates conventional front straddle legs, providing direct access to compatible pallets, loading platforms, and designated storage positions.

Powered by a rechargeable 24V / 135Ah lead-acid battery, the machine features a 1.8 kW AC drive motor and a 3.0 kW hydraulic lift motor for powered travel and load handling. With approximately 6 in of ground clearance, up to 4 hours of working time, and a 12-Month Warranty, this Rough Terrain Electric Reach Stacker supports professional material handling on suitable indoor and outdoor industrial surfaces.

3,300 lb
Load Capacity
78 in
Max Lift Height
24V / 135Ah
Battery
Up to 4 Hours
Runtime

3,300 lb Heavy-Duty Lifting Capacity

The US-CBOFR33K 78 provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center, supporting compatible palletized materials, industrial supplies, manufacturing components, and commercial inventory.

Its heavy-duty counterbalanced construction supports pallet transportation, stacking, and controlled load positioning in designated industrial environments.

Actual allowable capacity depends on the load center, lifting height, forward reach position, and load distribution. Always follow the rated load chart and approved lifting limits.

7 ft Lift Height โ€“ 78 in Maximum

The US-CBOFR33K 78 belongs to the 7 ft lift height class, with an actual maximum fork lifting height of 78 in for compatible pallet stacking and elevated material positioning.

The hydraulic mast provides controlled lifting and lowering for warehouses, distribution centers, manufacturing facilities, and commercial storage operations.

The mast measures approximately 66 in when lowered and 130 in when fully extended, supporting access planning for doorways, storage areas, and overhead clearance.

18 in Hydraulic Forward Reach

The US-CBOFR33K 78 features approximately 18 in of hydraulic forward reach, allowing the fork carriage to extend and retract for flexible pallet positioning.

Its single-scissor hydraulic reach mechanism helps operators approach, retrieve, and place compatible loads without repeatedly repositioning the entire machine.

This function is particularly useful near loading platforms, storage positions, and industrial workstations. Extending the load forward can affect stability and allowable lifting capacity.

Counterbalanced Design Without Straddle Legs

The Rough Terrain Electric Reach Stacker features a counterbalanced chassis that supports pallet handling without conventional front straddle legs extending beneath the load.

This configuration provides more direct access to compatible pallets, loading platforms, machinery, and designated material-handling positions.

Its heavy-duty construction supports versatile industrial applications while maintaining a compact walk-behind operating configuration. All loads must remain within the approved capacity and stability limits.

Adjustable 42 in Heavy-Duty Forks

The US-CBOFR33K 78 is equipped with heavy-duty steel forks measuring approximately 42 in long, 5 in wide each, and 1.6 in thick.

Fork spacing adjusts from approximately 9โ€“28 in to accommodate different compatible pallet widths and load configurations.

The adjustable fork arrangement supports pallet pickup, transportation, and elevated positioning. Proper fork engagement and balanced load distribution are essential for safe operation.

Hydraulic Fork Tilt โ€“ 2ยฐ Forward / 6ยฐ Backward

The Rough Terrain Electric Reach Stacker includes hydraulic fork tilt with approximately 2ยฐ forward and 6ยฐ backward adjustment for controlled pallet positioning.

The tilt function helps operators align compatible loads during pickup, transportation, loading, and unloading operations.

Combined with the 18 in hydraulic forward reach, fork tilt provides additional flexibility when positioning pallets in designated industrial work areas.

24V / 135Ah Lead-Acid Battery

The US-CBOFR33K 78 is powered by a rechargeable 24V / 135Ah lead-acid traction battery, providing approximately 3.24 kWh of nominal energy for electric travel and hydraulic operation.

Lead-acid battery technology provides rechargeable industrial power using lead-based electrodes and an electrolyte, making it a practical energy solution for professional material-handling equipment.

The battery supports up to approximately 4 hours of working time, with an estimated charging time of 8 hours. Actual performance depends on workload, operating conditions, and battery maintenance.

Full-Electric Walkie Operation

The US-CBOFR33K 78 features full-electric Walkie operation, allowing the operator to control powered travel and hydraulic functions while walking behind the equipment.

A 1.8 kW AC electric drive motor powers travel, while a 3.0 kW hydraulic motor supports lifting, forward reach, and fork-positioning functions.

Travel speeds reach approximately 2.7 mph loaded and 2.5 mph unloaded. Battery-powered operation provides controlled material transportation without tailpipe exhaust emissions.

Rough Terrain Capability โ€“ 6 in Ground Clearance

The Rough Terrain Electric Reach Stacker provides approximately 6 in of ground clearance for compatible industrial yards, loading areas, and suitable uneven operating surfaces.

Its heavy-duty chassis and electric drive support material transportation on firm, stable, adequately supported ground where additional undercarriage clearance is beneficial.

Travel gradeability is approximately 5% loaded and 8% unloaded. The machine is not intended for deep mud, unstable soil, severe potholes, loose gravel, or lifting operations on slopes.

Heavy-Duty Construction & Dimensions

The US-CBOFR33K 78 features a counterbalanced industrial chassis measuring approximately 81 in long and 50 in wide, with a 64 in wheelbase.

An approximately 74 in turning radius supports maneuvering in compatible warehouses, loading areas, and designated industrial workspaces.

The machine has an approximate operating weight of 4,365 lb, including its 200 lb battery. Floor capacity, ground support, and access clearance must be evaluated before operation.

Warehouse & Industrial Applications

The US-CBOFR33K 78 Rough Terrain Electric Reach Stacker supports pallet transportation, stacking, loading, unloading, and material positioning in commercial and industrial environments.

Typical applications include warehouses, distribution centers, manufacturing facilities, agricultural supply operations, industrial yards, and commercial loading areas.

Its hydraulic forward reach, adjustable forks, counterbalanced chassis, and powered travel provide flexibility for handling compatible palletized goods within approved operating conditions.

12-Month Warranty & Technical Support

The US-CBOFR33K 78 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.

Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and compatible replacement parts identification.

Routine inspections, correct charging practices, and proper equipment operation help maintain performance and long-term reliability.

Important Battery & Rough Terrain Operation Notice

Stop operating the US-CBOFR33K 78 when the lead-acid battery charge reaches 20% or below. Recharge the battery using a compatible lead-acid charger before returning the equipment to service. Follow the batteryโ€™s charging and maintenance instructions.

Operate only on firm, stable, adequately supported surfaces. Avoid deep mud, loose gravel, unstable ground, severe potholes, unsupported edges, and conditions that could compromise traction or stability.

The specified 5% loaded and 8% unloaded gradeability ratings apply to travel only. Perform lifting, stacking, hydraulic forward reach, and fork-tilting operations on suitable level surfaces.

Always follow the rated load chart, load-center requirements, reach-position restrictions, and operating instructions. Never exceed the machineโ€™s approved lifting capacity or stability limits.

EQUIPMENT SUPPORT

Need Help Choosing the Right Equipment?

Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

โœ“ Product Selection โœ“ Application Support โœ“ Shipping Assistance
SPEAK WITH OUR TEAM
Get Expert Equipment Guidance
Contact Our Team
โš™
PRODUCT SPECIFICATIONS

Technical Specifications

Review the key dimensions, performance data, power information, fitment details, and product configuration.

Specification Value Description
Model US-CBOFR33K 78 Heavy-duty rough terrain electric reach stacker with counterbalanced design and hydraulic forward reach.
Equipment Type Rough Terrain Electric Reach Stacker Full-electric walk-behind equipment for professional pallet handling and stacking.
Load Capacity 3,300 lb Heavy-duty lifting capacity for compatible pallets, industrial materials, and commercial loads.
Load Center 20 in Rated load center for balanced and controlled material handling.
Maximum Lift Height 78 in Maximum fork height for pallet stacking and elevated material positioning.
Lift Height Class 7 ft Lift height class with a maximum fork lifting height of 78 in.
Mast Type Electric Hydraulic Powered lifting mast for smooth and controlled pallet elevation.
Lowered Mast Height 66 in Compact mast height for storage, transportation, and suitable doorway access.
Extended Mast Height 130 in Overall mast height at maximum extension for elevated lifting operations.
Forward Reach 18 in Hydraulic forward reach for flexible pallet access and precise load positioning.
Reach Mechanism Single-Scissor Hydraulic Hydraulic reach system for controlled extension and retraction of the fork carriage.
Fork Tilt 2ยฐ Forward / 6ยฐ Backward Hydraulic tilt adjustment for controlled pallet handling.
Fork Length 42 in Heavy-duty steel forks for compatible palletized loads.
Fork Width 5 in Each Width of each steel fork for pallet support and load handling.
Fork Thickness 1.6 in Heavy-duty fork construction for professional industrial applications.
Fork Spread 9โ€“28 in Adjustable fork spacing for different compatible pallet sizes.
Overall Length 81 in Overall equipment length for workspace and storage planning.
Overall Width 50 in Overall machine width for evaluating access and maneuvering clearance.
Wheelbase 64 in Wheelbase supporting machine stability and controlled travel.
Front Overhang 50 in Front chassis dimension for equipment clearance planning.
Turning Radius 74 in Maneuverability for warehouses, loading areas, and industrial workspaces.
Ground Clearance 6 in Increased clearance for suitable uneven industrial surfaces.
Operating Weight 4,365 lb Total machine weight including the battery.
Battery 24V / 135Ah Rechargeable lead-acid traction battery powering electric travel and hydraulic functions.
Battery Type Lead-Acid Industrial rechargeable battery for electric material-handling operations.
Battery Capacity 3.24 kWh Nominal battery energy for powered travel and hydraulic operation.
Battery Weight 200 lb Battery weight included in the machine's operating weight.
Runtime Up to 4 Hours Estimated working time per charge, depending on workload and operating conditions.
Charging Time Approx. 8 Hours Battery charging time using compatible lead-acid charging equipment.
Drive Motor 1.8 kW AC Electric drive motor for powered travel and maneuvering.
Lift Motor 3.0 kW Electric hydraulic motor for lifting, forward reach, and fork positioning.
Travel Speed, Loaded 2.7 mph Travel speed while carrying a compatible load.
Travel Speed, Unloaded 2.5 mph Travel speed without a load.
Lifting Speed, Loaded 2.8 in/sec Fork lifting speed while carrying a compatible load.
Lifting Speed, Unloaded 4.2 in/sec Fork lifting speed without a load.
Lowering Speed, Loaded 4.9 in/sec Fork lowering speed while carrying a compatible load.
Lowering Speed, Unloaded 2.1 in/sec Fork lowering speed without a load.
Gradeability, Loaded 5% Travel capability on suitable inclines while carrying a compatible load.
Gradeability, Unloaded 8% Travel capability on suitable inclines without a load.
Operation Walkie Walk-behind electric operation with powered travel and hydraulic controls.
Power System Full-Electric Battery-powered travel, lifting, forward reach, and fork tilt.
Counterbalance Design Yes Counterweighted chassis allows pallet access without conventional front straddle legs.
Terrain Type Rough Terrain Designed for firm, stable, and adequately supported industrial surfaces.
Operating Environment Indoor & Suitable Outdoor Areas Suitable for warehouses, manufacturing facilities, loading areas, and approved industrial yards.
Primary Applications Industrial Material Handling Pallet transportation, stacking, loading, unloading, and material positioning.
Warranty 12-Month Warranty Coverage for eligible manufacturing defects in materials and workmanship.
Technical Support Included Assistance with equipment operation, troubleshooting, maintenance, and compatible parts.
Battery Protection Notice Stop at 20% Charge Stop operation at 20% battery charge or below and recharge before continued use.
Rough Terrain Safety Notice Stable Surfaces Required Operate on firm, stable surfaces and follow rated load and operating limits.

See It in Action

Watch the equipment in operation and get a closer look at its design, controls, lifting performance, maneuverability, and real-world use.

โ–ถ
Real Performance See the equipment operating in a real material handling environment.
โ—Ž
Operator View Get a closer look at controls, maneuverability, and operation.
โ†—
Working Performance See how the machine handles lifting, positioning, and material movement.
โœ“
Commercial Design Built for professional warehouse, logistics, and industrial operations.
Product Demonstration Review the equipment design and operating characteristics before placing your order.
โœ“ Real Product Video โœ“ Commercial Equipment โœ“ Product Support Available
FREQUENTLY ASKED QUESTIONS

Product Questions & Answers

Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.

36 Product FAQs Quick answers to help you evaluate and operate this equipment.
01 What is the maximum load capacity of the US-CBOFR33K 78?

The US-CBOFR33K 78 Rough Terrain Electric Counterbalance Reach Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center under the manufacturer's specified operating conditions. Actual allowable capacity may vary with lift height, forward reach, and load position.

02 What is the maximum lift height?

The US-CBOFR33K 78 has a maximum lift height of 78 in. It is marketed as a 7 ft class electric counterbalance reach stacker, although the actual rated lifting height is 78 in.

03 What type of equipment is the US-CBOFR33K 78?

It is a full-electric, walk-behind rough terrain counterbalance reach stacker featuring powered travel, hydraulic lifting, hydraulic forward reach, adjustable forks, and fork tilting.

04 What is the advantage of the counterbalance design?

The counterbalance design allows the machine to handle compatible pallets without conventional front straddle legs extending beneath the load. This provides additional flexibility when approaching pallets, loading platforms, storage locations, and compatible material-handling areas.

05 Does this electric stacker have a hydraulic reach function?

Yes. The US-CBOFR33K 78 features approximately 18 in of hydraulic forward reach, allowing the fork assembly to extend and retract for more flexible pallet positioning, loading, unloading, and retrieval.

06 What is the single-scissor reach mechanism?

The single-scissor hydraulic reach mechanism provides controlled forward and backward movement of the fork carriage. It allows operators to position compatible palletized loads without repeatedly repositioning the entire stacker.

07 Does forward reach affect lifting capacity?

Yes. Extending the load forward changes the load position and can affect stability and allowable lifting capacity. Always follow the manufacturer's load chart and operating instructions for the selected reach position, load center, and lift height.

08 Does the US-CBOFR33K 78 have adjustable forks?

Yes. The stacker features adjustable fork positioning with an approximately 9โ€“28 in adjustment range for handling compatible pallet widths and load configurations.

09 What is the fork length?

The US-CBOFR33K 78 is equipped with approximately 42 in long forks. Each fork is approximately 5 in wide and 1.6 in thick.

10 Does the stacker have hydraulic fork tilt?

Yes. The US-CBOFR33K 78 provides approximately 2ยฐ forward tilt and 6ยฐ backward tilt to support controlled pallet positioning and compatible material-handling operations.

11 What battery does the US-CBOFR33K 78 use?

The stacker uses a rechargeable 24V / 135Ah industrial battery system with approximately 3.24 kWh of nominal battery energy. Battery chemistry should be verified against the installed battery identification label.

12 How long does the battery last per charge?

The US-CBOFR33K 78 provides up to approximately 4 hours of working time per full charge under suitable operating conditions. Actual runtime depends on load weight, travel distance, lifting frequency, reach operation, terrain conditions, temperature, and battery condition.

13 How long does the battery take to charge?

The battery has an approximate charging time of 8 hours when using compatible charging equipment under suitable conditions. Actual charging time depends on remaining battery charge, charger performance, battery condition, and temperature.

14 How much does the battery weigh?

The battery weighs approximately 200 lb and is included in the machine's operating weight.

15 When should the battery be recharged?

Stop operating the stacker when the battery charge reaches 20% or below. Recharge it using a compatible charger, or replace it with a properly charged compatible battery where battery replacement is supported. Follow the manufacturer's battery-care instructions.

16 Is the US-CBOFR33K 78 fully electric?

Yes. The machine features powered electric travel and electrically powered hydraulic lifting, reach, and fork-positioning functions. It does not require manual pushing for normal powered travel.

17 What is the electric drive motor power?

The US-CBOFR33K 78 uses a 1.8 kW AC electric drive motor for powered travel, maneuvering, and pallet transportation.

18 What is the hydraulic lift motor power?

The stacker features a 3.0 kW hydraulic motor supporting lifting and compatible hydraulic material-handling functions.

19 What is the maximum travel speed?

The US-CBOFR33K 78 has a maximum listed travel speed of approximately 3 mph. Actual speed varies with load weight, battery condition, operating surface, and working conditions.

20 What are the lifting and lowering speeds?

Approximate lifting speeds are 2.8 in/sec loaded and 4.2 in/sec unloaded. Approximate lowering speeds are 4.9 in/sec loaded and 2.1 in/sec unloaded. Actual performance varies with load and operating conditions.

21 What is the turning radius?

The US-CBOFR33K 78 has an approximate turning radius of 74 in, supporting maneuverability in compatible warehouse aisles, industrial yards, loading areas, and material-handling environments.

22 What are the overall machine dimensions?

The stacker measures approximately 81 in long and 50 in wide, with a lowered mast height of approximately 66 in. The extended mast height is approximately 130 in. Always verify available clearance before operation.

23 What is the machine's operating weight?

The US-CBOFR33K 78 weighs approximately 4,365 lb including the battery. Floor capacity, loading platforms, ramps, and transportation equipment must be suitable for the machine and its load.

24 What is the ground clearance?

The stacker provides approximately 6 in of ground clearance, supporting operation on compatible industrial and outdoor surfaces where additional undercarriage clearance is beneficial.

25 Can this electric counterbalance stacker operate outdoors?

Yes. The US-CBOFR33K 78 is designed for compatible outdoor material-handling applications on firm, stable, adequately supported surfaces. Avoid unstable soil, deep potholes, excessive mud, loose surfaces, and conditions outside the manufacturer's operating limits.

26 Can it operate on rough terrain?

The stacker is designed for compatible rough-terrain applications, but rough-terrain capability does not mean it can safely travel on every surface. Operators must evaluate traction, surface stability, slope, ground support, and load conditions before use.

27 What is the maximum gradeability?

The listed travel gradeability is approximately 5% when loaded and 8% when unloaded under suitable conditions. These ratings apply to travel and do not authorize lifting, stacking, or extending the load on slopes.

28 Can the stacker lift loads while positioned on a slope?

No. Lifting, stacking, hydraulic reach, and fork-tilting operations should be performed only on suitable level surfaces in accordance with the manufacturer's operating instructions. Travel gradeability is not a lifting-on-slope rating.

29 Is the US-CBOFR33K 78 suitable for indoor warehouses?

Yes. The full-electric design is suitable for compatible indoor warehouses, manufacturing facilities, distribution centers, and commercial storage environments with adequate floor capacity, ventilation, and operating clearance.

30 Does the electric stacker produce exhaust emissions?

No. The electric drive and hydraulic power systems produce zero tailpipe exhaust emissions during operation, making the machine suitable for compatible indoor and outdoor material-handling environments.

31 What types of pallets can the US-CBOFR33K 78 handle?

The stacker can handle compatible pallets and palletized loads that fit its fork dimensions, adjustment range, rated capacity, and load-center requirements. Pallet construction, entry clearance, load distribution, and stability must be verified before lifting.

32 Can the stacker be used for loading and unloading?

Yes. The US-CBOFR33K 78 supports compatible loading, unloading, staging, and pallet positioning. Its counterbalance design, adjustable forks, hydraulic forward reach, and fork tilt provide flexibility for professional material handling.

33 What are the main applications of this rough terrain electric stacker?

Common applications include warehouse pallet handling, industrial yard operations, manufacturing material movement, distribution center staging, pallet stacking, loading, unloading, inventory positioning, and compatible outdoor material handling.

34 What warranty is included?

The US-CBOFR33K 78 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.

35 Is technical support available?

Yes. Texlift provides technical assistance for equipment operation, troubleshooting, maintenance guidance, battery care, and identifying compatible replacement parts.

36 What safety precautions are required during operation?

Operate only on firm, stable, adequately supported surfaces. Follow the manufacturer's rated load chart, load-center limits, reach-position restrictions, travel gradeability, and stability requirements. Keep loads properly positioned, avoid unsafe slopes, and stop operation when battery charge reaches 20% or below.

NEED MORE INFORMATION? Still have a product question?

Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.

Contact Our Team
MODEL COMPARISON

Compare Similar Equipment

Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

Compare up to 4 models The current product is highlighted for easier side-by-side comparison.
Swipe left or right to compare models
โ‡„
Compare Models Review key differences side by side
US-ESN33K 138 Narrow Electric Pallet Stacker 3,300 lb 12 ft lift
3,300 lb Narrow Electric Pallet Stacker โ€“ 12 ft (138 in) Lift | US-ESN33K 138
Original price was: $5,900.00.Current price is: $4,700.00.
Load Capacity
3,300 lb
3,300 lb
3,300 lb
3,300 lb
Lift Height
78 in
18 ft (216 in)
8 ft (98 in)
12 ft (138 in)
Lowered Mast Height
66 in
96 in
73 in
89 in
Fork Spread
9โ€“28 in
8โ€“27 in
5.5โ€“27 in Adjustable
5.5โ€“27 in Adjustable
Battery
24V / 135Ah
24V / 208Ah Lithium
48V / 32Ah Lead-Acid
48V / 32Ah Lead-Acid
Battery Capacity
3.24 kWh
4.99 kWh
1.54 kWh
1.54 kWh
Runtime
Up to 4 Hours
Up to 5 Hours
Approx. 3โ€“4 Hours
Approx. 5โ€“6 Hours
Charging Time
Approx. 8 Hours
Approx. 5 Hours
Approx. 6โ€“7 Hours
Approx. 6โ€“7 Hours
Turning Radius
74 in
69 in
55 in
55 in
Drive Motor
1.8 kW AC
1.5 kW DC
0.8 kW
0.8 kW DC
Lift Motor
3.0 kW
2.2 kW DC
2.2 kW
2.2 kW DC
Operation
Walkie
Rider
Walkie
Walkie
Availability
In Stock
In Stock
In Stock
In Stock
Product
โœ“ Selected Model
Need help choosing the right model? Tell us your required load capacity, lift height, application, and working environment. Our equipment team can help you compare the available options.
Contact Our Team
PRODUCT APPLICATIONS

Built for Demanding Material Handling Applications

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.

01

Warehouse Material Handling

Transport, lift, position, and stack compatible palletized goods throughout warehouses, storage facilities, and commercial distribution operations.

02

Industrial Yard Operations

Move and position palletized materials across compatible firm, stable, adequately supported industrial yard surfaces where additional ground clearance is beneficial.

03

Loading & Unloading

Handle compatible palletized loads in designated loading and unloading areas using the counterbalance design, hydraulic forward reach, and adjustable forks.

04

Pallet Stacking & Storage

Lift and position compatible pallets up to the machine's 78 in maximum lift height while observing rated capacity, load-center, and stability requirements.

05

Manufacturing Facilities

Transport raw materials, components, production supplies, and finished goods between manufacturing departments, storage locations, and staging areas.

06

Distribution Centers

Support daily pallet transportation, inventory organization, order staging, and material movement in compatible distribution and logistics facilities.

07

Hydraulic Reach Applications

Use the approximately 18 in hydraulic forward reach to position and retrieve compatible loads where additional horizontal fork movement is required.

08

Pallet Positioning & Retrieval

Align, extend, retract, and position compatible palletized loads using the single-scissor reach mechanism and hydraulic fork tilt.

09

Outdoor Material Handling

Handle compatible loads in approved outdoor loading areas, paved industrial yards, and other stable surfaces within the manufacturer's operating limits.

10

Industrial Equipment & Supply Handling

Transport compatible palletized tools, machinery components, packaged supplies, and industrial materials within the 3,300 lb rated capacity.

11

Inventory Organization

Move and position palletized inventory between receiving areas, storage locations, production zones, and shipping departments.

12

Receiving & Shipping Departments

Support pallet receiving, shipment preparation, loading-area staging, and material transportation in commercial and industrial facilities.

13

Commercial Storage Facilities

Lift, transport, and organize compatible palletized goods in storage buildings and facilities with adequate floor capacity and operating clearance.

14

Production Line Material Supply

Deliver compatible palletized components and materials to designated manufacturing and assembly areas.

15

Heavy-Duty Pallet Transportation

Move compatible palletized loads weighing up to 3,300 lb at the specified 20 in load center, subject to the manufacturer's load chart and operating conditions.

โœ“
Not sure if this model fits your application? Contact our equipment team with your load, lift height, pallet, and operating requirements and we can help you evaluate the right model.
Contact Our Team

Reviews

There are no reviews yet

Add a review
7 ft Rough Terrain Electric Counterbalance Reach Stacker โ€“ 3,300 lb Capacity | US-CBOFR33K 78 7 ft Rough Terrain Electric Counterbalance Reach Stacker โ€“ 3,300 lb Capacity | US-CBOFR33K 78
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
* Please tick the checkbox to proceed
WARRANTY & SUPPORT

Confidence Beyond the Purchase

Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.

Product-Specific Coverage The warranty and support information below applies specifically to this product.
01

12-Month Warranty

The US-CBOFR33K 78 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.

02

Warranty Coverage

Warranty coverage applies to qualifying manufacturing defects identified during the applicable warranty period, provided the equipment has been operated, maintained, and serviced according to the manufacturer's instructions.

03

Warranty Exclusions

Damage resulting from misuse, overloading, accidents, improper operation, inadequate maintenance, unauthorized modifications, normal wear, or operation outside the manufacturer's specified conditions is not covered.

04

Battery Care & Maintenance

Proper battery charging, inspection, storage, and maintenance are required. Stop operating the equipment when the battery charge reaches 20% or below and recharge it using compatible charging equipment.

05

Rough Terrain Operation

The equipment must be operated on suitable firm, stable, adequately supported surfaces. Damage caused by operating outside the manufacturer's ground-condition, gradeability, load-capacity, or stability limits is not covered.

06

Technical Support

Texlift provides assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and identifying compatible replacement parts.

CUSTOMER SUPPORT Need warranty, parts, or technical support?

Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.

Contact Support

TEXLIFT IN NUMBERS

Equipment That Keeps Business Moving

From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.

4,200+

Equipment Orders Delivered Nationwide

50+

Equipment Models

12-Month

Warranty Coverage

Nationwide

Continental U.S. Shipping

Dallas, TX

Operations & Pickup

โœ“ Financing Availableย  ย

โœ“ Fast Parts Support

โœ“ Commercial Equipment Experts

โœ“ Secure Online Ordering
