Built for high-reach pallet handling in space-restricted warehouse environments, the US-ESN33K 138 Narrow Electric Pallet Stacker combines a 3,300 lb rated load capacity with a 12 ft (138 in) maximum lift height. Its compact 33 in overall width provides practical maneuverability for warehouse aisles, storage areas, production environments, and other indoor applications where a wider pallet stacker may be difficult to operate.

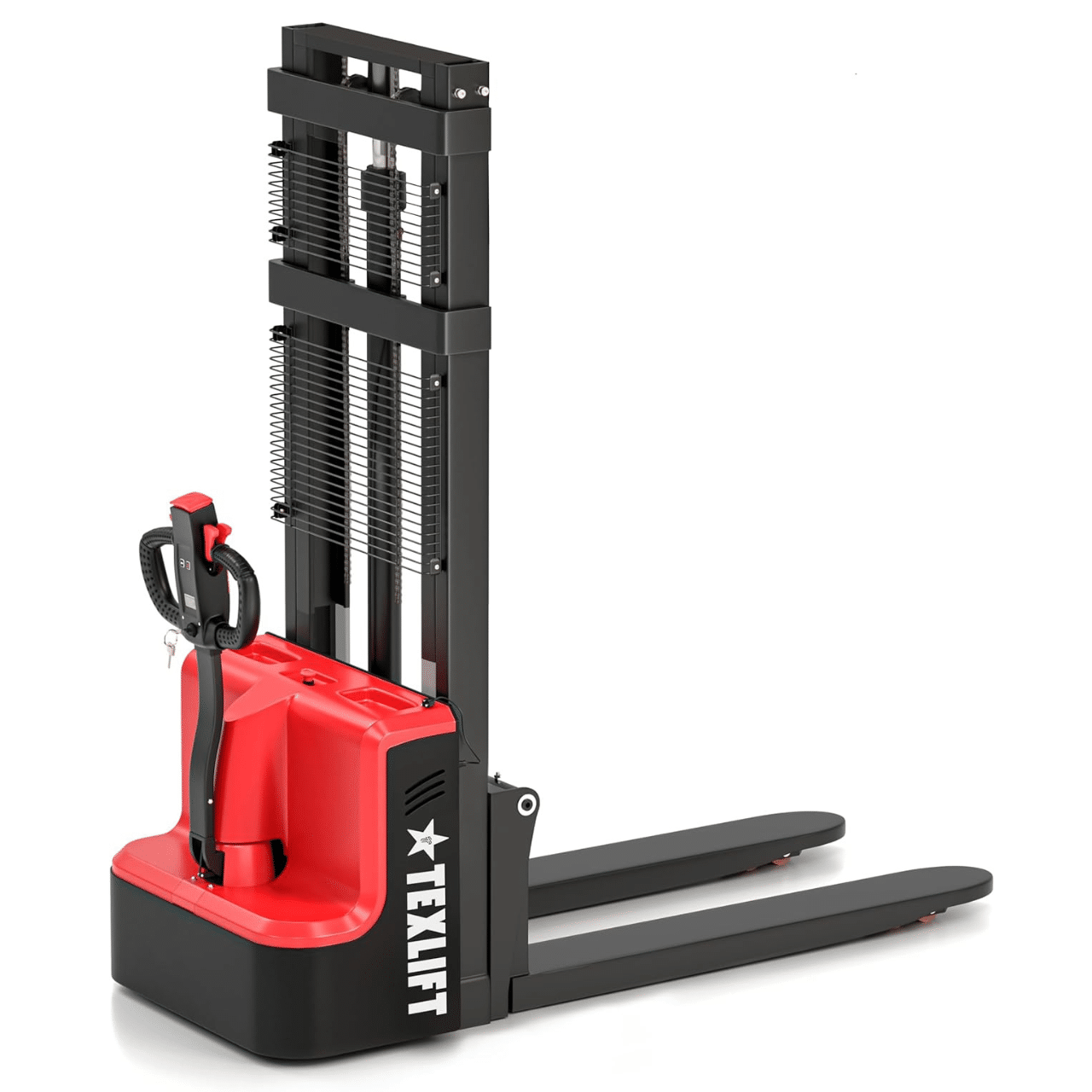

The US-ESN33K 138 Narrow Electric Pallet Stacker features fixed 27 in narrow legs designed for compatible EU-style and single-deck pallets, along with 45 in forks with an adjustable 5.5–27 in fork spread. Full-electric travel, hydraulic lifting, Walkie operation, a compact 55 in turning radius, and a 48V / 32Ah lead-acid battery system provide a practical solution for pallet transportation, elevated warehouse racking, inventory movement, and professional material handling.
The US-ESN33K 138 Narrow Electric Pallet Stacker provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
This capacity supports pallet transportation, positioning, lifting, elevated stacking, staging, replenishment, and inventory movement throughout warehouses, distribution centers, manufacturing facilities, and commercial storage operations.
The 12 ft (138 in) maximum fork lift height provides substantial vertical reach for elevated warehouse racking, pallet stacking, inventory storage, replenishment, and material positioning.
Combining this high-reach capability with a compact 33 in machine width makes the Narrow Electric Pallet Stacker particularly useful for facilities requiring elevated pallet placement without a wider straddle configuration.
The mast measures approximately 89 in high when fully lowered, helping operators evaluate doorway and overhead clearance requirements before moving the machine between work areas.
Maximum overall height with the mast fully extended is approximately 154 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
At approximately 33 in wide, the US-ESN33K 138 provides a compact machine footprint for compatible space-restricted warehouse environments.
The narrow overall width supports maneuverability through warehouse aisles, storage areas, staging zones, production spaces, and other locations where equipment width is an important consideration.
The fixed 27 in narrow-leg configuration is designed primarily for compatible EU-style, open-bottom, and single-deck pallets.
This specialized configuration allows the Narrow Electric Pallet Stacker to maintain a compact footprint while providing full-electric pallet transportation and high-reach stacking capability.
The 45 in heavy-duty steel forks provide an adjustable spread ranging from approximately 5.5–27 in for different compatible pallet and load arrangements.
Adjustable fork positioning provides additional pallet-handling flexibility while retaining the compact narrow-leg configuration of the US-ESN33K 138.
An approximately 55 in turning radius provides practical maneuverability for pallet approach, transportation, turning, and precise load positioning.
Combined with its compact 33 in overall width, the turning configuration helps the Narrow Electric Pallet Stacker maneuver throughout compatible warehouse aisles, storage areas, and staging environments.
The US-ESN33K 138 measures approximately 70 in in overall length and uses an approximately 49 in wheelbase.
These dimensions provide a practical combination of maneuverability, machine stability, and high-reach pallet stacking capability for professional indoor material handling.
The Narrow Electric Pallet Stacker provides powered electric travel and electric hydraulic lifting, reducing manual effort during repetitive pallet-handling operations.
Walkie operation gives the operator direct control during pallet approach, transportation, maneuvering, lifting, lowering, elevated stacking, and precise load positioning.
The US-ESN33K 138 uses a 48V / 32Ah lead-acid battery system providing approximately 1.54 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting, allowing the Narrow Electric Pallet Stacker to provide full-electric material handling throughout compatible indoor warehouse and industrial environments.
Typical operating time is approximately 5–6 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, charger performance, temperature, and charging conditions.
A 0.8 kW DC electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout suitable indoor warehouse and industrial environments.
A 2.2 kW DC electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated positioning, and warehouse stacking.
The electromagnetic braking system provides controlled stopping during pallet transportation, maneuvering, positioning, and stacking operations.
Durable polyurethane wheels provide smooth and controlled travel across firm, level, and adequately supported indoor warehouse and industrial floors.
The US-ESN33K 138 Narrow Electric Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, fulfillment centers, retail stockrooms, commercial storage operations, production environments, receiving areas, and other indoor material-handling locations.
Its 3,300 lb rated capacity, 12 ft lift height, compact 33 in overall width, fixed 27 in narrow legs, and full-electric Walkie operation make this Narrow Electric Pallet Stacker particularly useful for facilities requiring compact pallet handling combined with elevated warehouse stacking.
The US-ESN33K 138 is ideal for compatible EU-style and single-deck pallet handling, elevated warehouse racking, pallet stacking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, and commercial storage.
The 12 ft (138 in) maximum lift height provides substantial vertical reach, while the compact 33 in overall width supports maneuverability in compatible space-restricted warehouse environments.
The compact 33 in overall width makes this Narrow Electric Pallet Stacker particularly useful where equipment width and available operating space are important considerations.
Combined with a 55 in turning radius and Walkie controls, the narrow configuration supports pallet approach, maneuvering, transportation, and positioning throughout compatible warehouse aisles, storage areas, staging zones, and production environments.
The US-ESN33K 138 combines a 3,300 lb rated capacity with a 12 ft maximum lift height for elevated pallet storage, warehouse replenishment, inventory positioning, and high-reach stacking.
This combination allows facilities to use a compact Narrow Electric Pallet Stacker while retaining the vertical reach required for elevated warehouse racking and storage applications.
The fixed 27 in narrow legs are designed primarily for compatible EU-style, open-bottom, and single-deck pallet configurations. The 45 in forks provide an adjustable 5.5–27 in spread for compatible pallet and load arrangements.
Because pallet construction and dimensions vary, operators should verify compatibility before use. The legs, forks, pallet, and load must have adequate clearance and proper positioning for safe material handling.
The US-ESN33K 138 Narrow Electric Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
Its compact 33 in overall width, 55 in turning radius, polyurethane wheels, and full-electric Walkie operation support controlled pallet transportation and positioning throughout compatible warehouse aisles, storage areas, staging zones, receiving areas, and production environments.
The US-ESN33K 138 Narrow Electric Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 5–6 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.8 kW DC electric drive motor provides powered travel, while a 2.2 kW DC electric lift motor powers the hydraulic lifting system for pallet transportation, lifting, lowering, positioning, and elevated stacking.
Do not operate the US-ESN33K 138 Narrow Electric Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ESN33K 138 | Full-electric Narrow Electric Pallet Stacker with Walkie operation |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for stable pallet handling |
| Lift Height | 12 ft (138 in) | Maximum vertical fork lift height for elevated pallet stacking and warehouse racking |
| Lowered Mast Height | 89 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 154 in | Maximum overall mast height when fully extended |
| Fork Length | 45 in | Heavy-duty steel forks for compatible palletized loads |
| Fork Spread | 5.5–27 in Adjustable | Adjustable distance between forks for different compatible pallet and load configurations |
| Narrow Leg Width | 27 in | Fixed narrow-leg configuration designed for compatible EU-style and single-deck pallets |
| Overall Length | 70 in | Overall machine length |
| Overall Width | 33 in | Compact overall machine width for narrow warehouse environments |
| Wheelbase | 49 in | Distance between wheel centers for stability and maneuverability |
| Turning Radius | 55 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Wheel Type | Polyurethane | Durable wheels designed primarily for smooth indoor industrial floors |
| Battery | 48V / 32Ah Lead-Acid | Electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system |
| Runtime | Approx. 5–6 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible lead-acid battery charger |
| Drive Motor | 0.8 kW DC | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW DC | Electric hydraulic lift motor for pallet lifting, lowering, positioning, and elevated stacking |
| Brake System | Electromagnetic | Electromagnetic braking system for controlled stopping |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for controlled pallet transport, maneuvering, lifting, stacking, and positioning |
| Pallet Compatibility | EU & Compatible Single-Deck Pallets | Fixed narrow-leg configuration intended for compatible open-bottom and single-deck pallet designs |
| Narrow Configuration | 33 in Overall Width | Compact machine footprint designed for compatible narrow warehouse and material-handling environments |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | Narrow-Space High-Reach Pallet Handling | Designed for facilities requiring a compact machine footprint combined with a 12 ft maximum lift height |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for compatible EU and single-deck pallet handling, elevated warehouse racking, pallet stacking, transport, staging, inventory movement, replenishment, and narrow-space material handling |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESN33K 138 Narrow Electric Pallet Stacker has a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
The US-ESN33K 138 provides a maximum fork lift height of 12 ft (138 in), making it suitable for elevated warehouse racking, pallet stacking, replenishment, storage, and material positioning.
The mast measures approximately 89 in high when fully lowered. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The US-ESN33K 138 reaches approximately 154 in overall when the mast is fully extended.
The US-ESN33K 138 has a rated 20 in load center for stable handling of compatible palletized loads.
The stacker measures approximately 33 in in overall width, providing a compact footprint for compatible narrow warehouse and material-handling environments.
The US-ESN33K 138 uses a fixed 27 in narrow-leg configuration designed for compatible EU-style and single-deck pallets.
The narrow-leg configuration is designed primarily for compatible EU-style, open-bottom, and single-deck pallet configurations. Pallet dimensions and construction should always be verified before operation.
Yes. The 45 in forks provide an adjustable fork spread ranging from approximately 5.5–27 in for different compatible pallet and load configurations.
The US-ESN33K 138 uses 45 in heavy-duty steel forks designed for compatible palletized loads.
Compatibility depends on the pallet construction and dimensions. The fixed 27 in narrow-leg configuration is primarily intended for compatible EU-style, open-bottom, and single-deck pallets. Verify that the legs and forks have adequate clearance before operation.
The US-ESN33K 138 measures approximately 70 in in overall length.
The US-ESN33K 138 has an approximately 55 in turning radius for maneuvering, pallet approach, turning, and load positioning.
The stacker has an approximately 49 in wheelbase designed to provide stability and practical maneuverability during material-handling operations.
The stacker uses durable polyurethane wheels designed primarily for smooth, firm, level, and adequately supported indoor industrial floors.
The stacker uses a 48V / 32Ah lead-acid battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah lead-acid battery provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 5–6 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
No. Stop operating the US-ESN33K 138 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the stacker to service, or replace it with a properly charged compatible battery when applicable.
A 0.8 kW DC electric traction motor provides powered travel for pallet transportation and positioning.
A 2.2 kW DC electric hydraulic lift motor provides power for pallet lifting, lowering, elevated positioning, and stacking.
Yes. The US-ESN33K 138 provides powered electric travel and electric hydraulic lifting for full-electric material handling.
Yes. It is a Walkie Narrow Electric Pallet Stacker designed for walk-behind operation during pallet transportation, maneuvering, lifting, stacking, and positioning.
No ride-on operator platform is specified for the US-ESN33K 138. This model is configured for Walkie, or walk-behind, operation.
The stacker uses an electromagnetic braking system for controlled stopping during travel, pallet positioning, and stacking operations.
Yes. Its compact 33 in overall width, 55 in turning radius, and Walkie configuration make it particularly suitable for compatible space-restricted warehouse environments. Required operating aisle width still depends on the pallet dimensions, load, turning requirements, and facility layout.
The stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
No. The US-ESN33K 138 is intended primarily for suitable indoor industrial floors and is not designed for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-ESN33K 138 is well suited for warehouses, distribution centers, manufacturing facilities, fulfillment operations, commercial storage areas, receiving areas, staging zones, and other indoor environments requiring compact high-reach pallet handling.
Typical applications include compatible EU and single-deck pallet handling, elevated warehouse racking, pallet stacking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, commercial storage, and narrow-space material handling.
The US-ESN33K 138 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The fixed 27 in narrow-leg configuration is designed for compatible EU-style pallets, providing controlled transport, lifting, positioning, and elevated stacking in professional warehouse environments.
The US-ESN33K 138 is suitable for compatible single-deck and open-bottom pallet configurations where the narrow legs and forks have adequate clearance for proper load handling.
The compact 33 in overall width makes the Narrow Electric Pallet Stacker particularly useful for compatible warehouse areas where wider straddle stackers may be difficult to maneuver.
The 12 ft (138 in) maximum lift height supports elevated pallet stacking, storage, replenishment, and material positioning throughout compatible warehouse environments.
Position compatible palletized loads within elevated warehouse racking using the 138 in maximum lift height and controlled electric hydraulic lifting system.
Full-electric travel supports efficient movement of compatible palletized loads weighing up to 3,300 lb between receiving, staging, storage, production, and inventory areas.
Move palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas while maintaining a compact machine footprint.
Transport and position compatible palletized raw materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, organization, replenishment, storage, retrieval, and pallet positioning throughout compatible warehouse and industrial environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Use the 12 ft lift height to position compatible palletized inventory for elevated storage, warehouse replenishment, and organized material flow.
Transport compatible palletized materials, components, supplies, and finished products between production areas, warehouse storage, inventory locations, and staging zones.
Support pallet organization, elevated stacking, transportation, replenishment, and inventory positioning throughout compatible commercial storage facilities.
Walk-behind operation provides direct operator control for pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
The combination of a 33 in overall width and 55 in turning radius provides practical maneuverability for compatible aisles, storage areas, production spaces, and other space-restricted indoor environments.
The 138 in maximum lift height provides substantial vertical reach for facilities requiring higher pallet placement while retaining the compact footprint of a narrow-leg pallet stacker.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ESN33K 138 Narrow Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electric travel, hydraulic lifting, Walkie controls, electromagnetic braking, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, narrow-leg, battery, control, and other service components for the US-ESN33K 138.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 48V / 32Ah lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, narrow-leg configuration, mast, hydraulic system, battery system, electric drive system, Walkie controls, wheels, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
