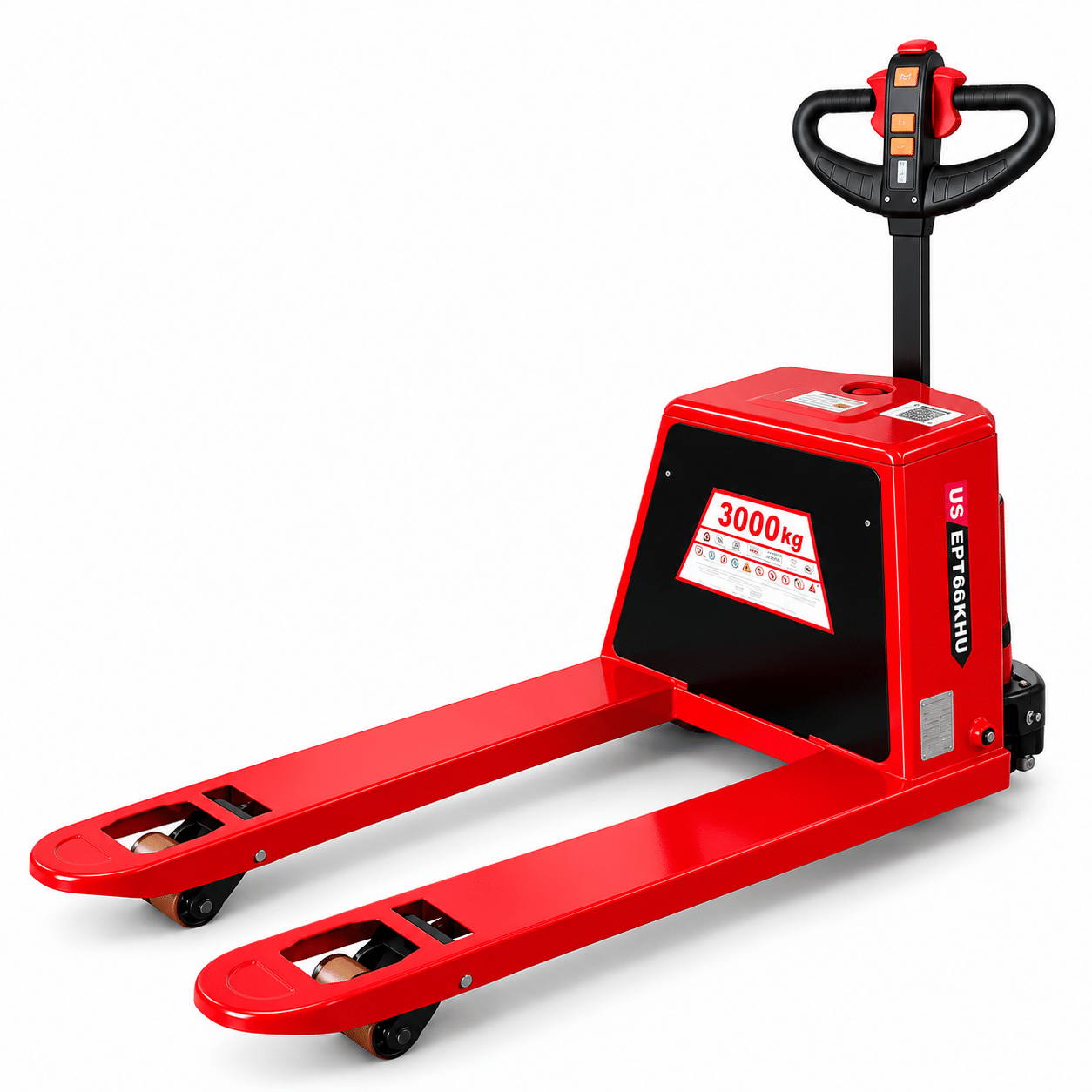

The US-EPT66KHU Lead Acid Electric Pallet Jack is a heavy-duty full-electric pallet truck designed for professional warehouse, distribution center, manufacturing, and industrial material handling. With a 6,600 lb load capacity, 48 in heavy-duty steel forks, and a 27 in overall fork width, this electric pallet jack provides an efficient solution for transporting heavy palletized loads across suitable industrial floors.
Powered by a rechargeable 48V / 40Ah lead-acid battery, the US-EPT66KHU combines a 1.2 kW electric drive motor with a 0.8 kW hydraulic lifting motor for fully powered travel and pallet lifting. The manufacturer specifies at least 4 hours of working time under suitable conditions, approximately 2.5 / 2.8 mph loaded and unloaded travel speeds, and an electromagnetic braking system for controlled operation.
Designed for demanding daily material-handling tasks, this Lead Acid Electric Pallet Jack features an approximately 59 in turning radius, 3.2 in lowered fork height, and 6% / 20% loaded and unloaded gradeability. Its reinforced steel chassis, walk-behind controls, and industrial wheel configuration make it a practical choice for commercial operations requiring dependable pallet transportation. Includes a 12-Month Warranty and Texlift technical support.
The US-EPT66KHU Lead Acid Electric Pallet Jack provides a maximum rated lifting capacity of 6,600 lb for transporting compatible heavy palletized materials.
This capacity supports industrial inventory, packaged products, manufacturing supplies, and warehouse goods within the manufacturer’s approved operating limits.
A rated load center of approximately 20 in helps define the correct positioning of loads during lifting and transportation.
Operators must verify pallet condition, load distribution, and equipment capacity before moving heavy materials.
The US-EPT66KHU features powered electric travel and hydraulic lifting, eliminating the need for manual pushing and hydraulic pumping during normal operation.
Its 1.2 kW electric drive motor provides traction for moving loaded and unloaded pallets across compatible warehouse surfaces.
The 0.8 kW hydraulic pump motor powers fork lifting and lowering for convenient pallet pickup and positioning.
This full-electric configuration helps reduce physical effort during repetitive material-handling operations.
The Lead Acid Electric Pallet Jack features 48 in long heavy-duty steel forks designed for compatible industrial pallet handling.
A 27 in overall outside fork width provides a wide configuration suitable for appropriately sized pallet openings.
The reinforced fork construction supports heavy palletized loads when correctly positioned and operated within the rated capacity.
Customers should confirm pallet opening dimensions and fork compatibility before purchasing or operating the equipment.
The US-EPT66KHU features an approximately 3.2 in lowered fork height for entry into compatible pallet openings.
The manufacturer’s PT30 specification lists approximately 4.1 in of lifting travel, providing an estimated raised fork height of 7.3 in for that configuration.
The powered hydraulic lifting mechanism raises palletized loads sufficiently for suitable ground-level transportation.
This equipment is intended for pallet movement and positioning, not elevated stacking or personnel lifting.
The US-EPT66KHU Lead Acid Electric Pallet Jack uses a rechargeable 48V / 40Ah lead-acid battery system with approximately 1.92 kWh of nominal electrical energy.
The battery supplies power to the electric drive and hydraulic lifting systems during normal operation.
Lead-acid battery technology provides a practical rechargeable power source for industrial material-handling applications.
Actual performance depends on battery condition, load weight, travel distance, operating temperature, and charging practices.
The manufacturer lists at least 4 hours of working time under specified operating conditions for the applicable PT30 configuration.
This operating-time reference supports planning for routine warehouse transportation, receiving, shipping, and inventory movement.
Actual working time varies depending on pallet weight, travel distance, lifting frequency, floor conditions, and battery condition.
Operators should monitor the battery charge and recharge the equipment according to the installed battery manufacturer’s instructions.
The US-EPT66KHU provides approximately 2.5 mph loaded travel speed and 2.8 mph unloaded travel speed.
These values correspond to the manufacturer’s listed travel speeds of 4 km/h loaded and 4.5 km/h unloaded.
Powered travel supports efficient movement between receiving areas, storage locations, production facilities, and shipping zones.
Operators should adjust speed to match floor conditions, load stability, pedestrian traffic, and available visibility.
The US-EPT66KHU Lead Acid Electric Pallet Jack has a specified gradeability of 6% when loaded and 20% when unloaded.
These values describe travel capability under suitable operating conditions and within applicable equipment limits.
Actual performance depends on traction, load weight, load distribution, battery condition, and surface characteristics.
Gradeability does not authorize unsafe slope operation, lifting on inclines, or parking on slopes.
The US-EPT66KHU features an approximately 59 in turning radius based on the manufacturer’s 1,508 mm specification.
This turning radius supports maneuvering in compatible warehouse aisles, loading areas, and industrial storage environments.
The walk-behind operating configuration provides direct pedestrian control when transporting and positioning pallets.
Operators must allow additional clearance for pallet dimensions, surrounding obstacles, and safe maneuvering.
The Lead Acid Electric Pallet Jack features an ergonomic walk-behind control handle designed for practical everyday operation.
The handle provides access to powered travel and hydraulic lifting controls during pallet transportation.
Its pedestrian-operated design supports material positioning in warehouse, logistics, and industrial environments.
Operators should become familiar with all controls, safety functions, and operating procedures before using the equipment.
The US-EPT66KHU incorporates an electromagnetic braking system as part of its electric drive configuration.
This system supports controlled equipment operation during normal pallet transportation.
Braking performance depends on floor traction, equipment condition, load weight, and appropriate operating procedures.
Operators should verify correct brake operation during routine pre-use equipment inspections.
The US-EPT66KHU features a heavy-duty steel chassis designed for professional industrial pallet handling.
Its reinforced construction supports the equipment’s rated load capacity when operated according to manufacturer requirements.
The machine’s compact industrial design combines its electric drive, hydraulic lifting system, and battery within a practical walk-behind configuration.
Regular inspection and maintenance help preserve structural integrity and dependable equipment performance.
The Lead Acid Electric Pallet Jack features a polyurethane drive wheel and integrated load wheels for compatible warehouse flooring.
The manufacturer lists an approximately 8.3 in diameter drive wheel and 3.1 in diameter load wheels.
This wheel arrangement supports powered pallet transportation on firm, smooth, adequately supported surfaces.
Operators should inspect wheels and rollers for damage, excessive wear, debris, and other conditions that may affect operation.
The US-EPT66KHU is designed for moving heavy palletized inventory within warehouses, fulfillment facilities, and distribution centers.
Its full-electric drive and lifting systems support transportation between receiving, storage, staging, and shipping locations.
The 48 in forks accommodate compatible pallets used in commercial and industrial material-handling operations.
Facilities should verify aisle clearance, pallet compatibility, floor capacity, and safe operating conditions before use.
The Lead Acid Electric Pallet Jack supports transportation of compatible raw materials, manufacturing components, industrial supplies, and finished goods.
Its 6,600 lb rated capacity provides a practical solution for moving heavy palletized materials within approved operating environments.
Electric travel reduces the manual effort associated with transporting heavy loads across suitable industrial floors.
Operators must ensure proper load positioning, stable surfaces, and sufficient clearance throughout material movement.
The US-EPT66KHU supports compatible pallet loading, unloading, staging, and ground-level positioning operations.
Powered hydraulic lifting allows operators to raise and lower pallets without manually pumping the handle.
Electric travel supports controlled movement between loading areas, storage locations, and designated work zones.
All operations must follow manufacturer instructions, approved floor conditions, and applicable workplace safety procedures.
The US-EPT66KHU operates using rechargeable electric power rather than a gasoline or diesel engine.
Its full-electric drive produces zero tailpipe exhaust emissions during normal equipment operation.
This configuration is suitable for compatible indoor industrial environments where electric material-handling equipment is permitted.
Lead-acid battery charging still requires proper ventilation and compliance with battery manufacturer safety instructions.
Routine inspection helps maintain the performance, safety, and reliability of the US-EPT66KHU Lead Acid Electric Pallet Jack.
Operators should inspect the forks, drive wheel, load rollers, hydraulic components, control handle, braking system, and battery connections.
Damaged components, abnormal noises, hydraulic leaks, or unusual operating behavior should be addressed before the equipment returns to service.
Maintenance and replacement parts should follow the manufacturer’s technical requirements and recommended service procedures.
Proper battery charging and maintenance help maintain the performance and service life of the 48V / 40Ah lead-acid battery system.
Use only a compatible charger and follow the battery manufacturer’s instructions regarding charging cycles, ventilation, and electrical safety.
Inspect accessible battery connections and maintain electrolyte levels only where applicable and according to the battery manufacturer’s approved procedures.
Avoid deep discharge, improper charging, and prolonged storage in a discharged condition to help preserve battery performance.
The US-EPT66KHU Lead Acid Electric Pallet Jack includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.
Warranty coverage is subject to applicable Texlift warranty terms, operating requirements, and maintenance conditions.
Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and compatible replacement parts identification.
Proper operation, routine inspection, and compliance with the manufacturer’s instructions help maintain equipment performance and reliability.
Stop operating the US-EPT66KHU Lead Acid Electric Pallet Jack when the battery charge reaches the minimum level specified by the installed battery manufacturer. Avoid deep discharge and recharge the battery using compatible charging equipment before returning the machine to service.
Charge the lead-acid battery only in a properly ventilated area and follow all applicable battery and charger safety instructions. Use appropriate precautions when inspecting or maintaining battery connections and electrolyte systems, where applicable.
Operate the Lead Acid Electric Pallet Jack only on firm, stable, adequately supported surfaces. Avoid excessive slopes, potholes, loose gravel, unstable ground, and other conditions that may compromise traction, load stability, or equipment operation.
Always follow the manufacturer’s rated load capacity, pallet compatibility requirements, operating instructions, and applicable safety regulations. Never exceed the approved 6,600 lb capacity, transport unstable loads, or use the pallet jack for lifting personnel.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-EPT66KHU | Heavy-duty lead acid electric pallet jack designed for professional warehouse, logistics, and industrial material handling. |
| Equipment Type | Full-Electric Pallet Jack | Walk-behind electric pallet truck with powered travel and hydraulic lifting. |
| Load Capacity | 6,600 lb | Maximum rated load capacity for compatible palletized loads under approved operating conditions. |
| Load Center | 20 in | Rated load-center distance based on the manufacturer's 500 mm specification. |
| Fork Length | 48 in | Heavy-duty steel forks designed for compatible warehouse and industrial pallets. |
| Fork Width | 27 in | Overall outside width across both forks for the selected wide-fork configuration. |
| Individual Fork Width | Approx. 6.3 in | Manufacturer-listed individual fork width of 160 mm; verify against the supplied machine. |
| Inside Fork Clearance | Approx. 14 in | Calculated clearance between the forks using manufacturer-listed dimensions. |
| Lowered Height | 3.3 in | Confirmed lowered fork height for pallet entry and ground-level material handling. |
| Maximum Fork Height | Approx. 7.4 in | Estimated raised fork height based on the 3.3 in lowered height and 4.1 in lifting travel. |
| Lifting Travel | Approx. 4.1 in | Manufacturer-listed vertical lifting movement of approximately 105 mm. |
| Ground Clearance | Approx. 0.9 in | Minimum ground clearance based on the manufacturer's 24 mm specification. |
| Overall Length | Approx. 67 in | Overall machine length based on the manufacturer's 1,700 mm specification. |
| Overall Width | Approx. 27 in | Approximate width across the selected wide-fork configuration. |
| Wheelbase | Approx. 53 in | Distance between wheel axles based on the manufacturer's 1,357 mm measurement. |
| Front Overhang | Approx. 40 in | Manufacturer-listed front overhang of approximately 1,007 mm. |
| Turning Radius | Approx. 59 in | Manufacturer-listed turning radius of approximately 1,508 mm. |
| Operating Weight | 500 lb | Approximate machine weight, rounded from the manufacturer's 225 kg specification. |
| Drive Wheel Material | Polyurethane (PU) | Industrial drive-wheel material designed for compatible warehouse flooring. |
| Drive Wheel Size | Approx. 8.3 × 2.8 in | Manufacturer-listed drive-wheel dimensions of 210 × 70 mm. |
| Load Wheel Size | Approx. 3.1 × 3.1 in | Manufacturer-listed load-wheel dimensions of 80 × 80 mm. |
| Battery | 48V / 40Ah Lead-Acid | Rechargeable battery system providing power for electric travel and hydraulic lifting. |
| Battery Energy | 1.92 kWh | Nominal battery energy calculated from the 48V / 40Ah configuration. |
| Working Time | 4+ Hours | Manufacturer-stated operating time under specified conditions; actual runtime varies with usage. |
| Drive Motor | 1.2 kW | Electric traction motor providing powered travel and maneuverability. |
| Lift Motor | 0.8 kW | Electric hydraulic pump motor for powered fork lifting and lowering. |
| Travel Speed | 2.5 / 2.8 mph | Approximate loaded and unloaded travel speeds. |
| Lifting Speed | 0.8 / 1.0 in/sec | Approximate loaded and unloaded fork lifting speeds. |
| Lowering Speed | 2.2 / 1.8 in/sec | Approximate loaded and unloaded fork lowering speeds. |
| Gradeability | 6% / 20% | Loaded and unloaded travel gradeability under suitable operating conditions. |
| Brake System | Electromagnetic | Electric braking system supporting controlled travel and operation. |
| Noise Level | 70 dB or Less | Manufacturer-listed operating noise level. |
| Operation | Walkie | Pedestrian-operated equipment controlled through an electric handle. |
| Chassis Construction | Heavy-Duty Steel | Reinforced construction designed for professional pallet transportation. |
| Rough Terrain Capability | No | Intended primarily for firm, stable warehouse and industrial surfaces. |
| Indoor Operation | Yes | Suitable for compatible warehouses, manufacturing facilities, and distribution centers. |
| Outdoor Operation | Compatible Surfaces Only | Use only on firm, stable, adequately supported surfaces within approved operating limits. |
| Primary Applications | Warehouse & Industrial Material Handling | Pallet transportation, loading, unloading, inventory movement, staging, and logistics. |
| Tailpipe Emissions | Zero During Operation | Electric-powered equipment produces no tailpipe exhaust emissions during operation. |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under applicable Texlift warranty terms. |
| Technical Support | Included | Assistance with operation, troubleshooting, maintenance guidance, and compatible replacement parts. |
| Battery Protection Notice | Avoid Deep Discharge | Recharge the lead-acid battery before reaching the battery manufacturer's minimum permitted charge level. |
| Operating Safety Notice | Stable Surfaces Required | Follow approved load limits, gradeability requirements, and safe operating procedures. |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-EPT66KHU has a maximum rated load capacity of 6,600 lb (3,000 kg), making it suitable for heavy-duty pallet transportation in warehouses, distribution centers, manufacturing facilities, and industrial operations. Actual allowable capacity depends on proper load distribution, pallet compatibility, and the manufacturer's operating requirements.
Yes. The US-EPT66KHU is a full-electric pallet jack featuring powered electric travel and electric hydraulic lifting. Operators can transport, raise, and lower compatible palletized loads using the electric controls without manually pushing heavy loads or pumping the lifting mechanism.
The US-EPT66KHU features 48 in long heavy-duty steel forks with a 27 in overall outside fork width. Each individual fork measures 7 in wide, providing approximately 13 in of inside clearance between the forks.
The US-EPT66KHU has an estimated maximum raised fork height of approximately 8 in, based on the supplied 3.3 in lowered height and 4.5 in lifting travel. This pallet jack is designed for ground-level pallet transportation rather than elevated stacking.
The lowered fork height is approximately 3.3 in, based on the supplied fork thickness and ground-clearance measurements. Customers should verify that their pallet openings provide sufficient clearance before operating the equipment.
The US-EPT66KHU uses a rechargeable 48V / 40Ah lead-acid battery system with approximately 1.92 kWh of nominal battery energy. The battery powers both electric travel and hydraulic lifting functions.
The US-EPT66KHU is equipped with a lead-acid battery system, not a lithium battery. Follow the installed battery manufacturer's instructions for charging, maintenance, ventilation, and battery care.
Actual working time depends on load weight, travel distance, lifting frequency, floor conditions, temperature, and battery condition. A verified model-specific runtime is not currently available, so a fixed operating duration should not be assumed.
Charging time depends on the compatible charger's output, the battery's state of charge, temperature, and battery condition. Always use the specified charger and follow the manufacturer's charging instructions.
No. The US-EPT66KHU features electric hydraulic lifting, allowing operators to raise and lower compatible palletized loads using powered controls instead of manually pumping the handle.
Yes. The US-EPT66KHU is a walk-behind, or Walkie, electric pallet jack. The operator walks with the equipment while controlling powered travel and hydraulic lifting through the control handle.
The 48 in forks and 27 in overall outside fork width are designed for compatible warehouse pallet configurations. Customers should verify pallet entry dimensions, fork clearance, pallet construction, and load distribution before use.
The inside clearance between the two forks is approximately 13 in, calculated from the 27 in overall outside fork width and two individual forks measuring 7 in wide.
Yes. The US-EPT66KHU features an electric drive system that provides powered movement, reducing the physical effort required to transport heavy palletized loads across suitable industrial floors.
The US-EPT66KHU may be used on compatible firm, stable, adequately supported outdoor industrial surfaces when permitted by the manufacturer's operating instructions. It is not designed for rough terrain, loose gravel, mud, deep potholes, or unstable ground.
No. This lead acid electric pallet jack is designed primarily for suitable warehouse, commercial, and industrial flooring. It should not be operated on rough terrain or surfaces that compromise traction, ground clearance, or load stability.
Yes. Its full-electric operation and zero tailpipe exhaust emissions during use make it suitable for compatible indoor warehouses, distribution centers, manufacturing facilities, and commercial storage environments.
No. The US-EPT66KHU is designed for ground-level pallet lifting, transportation, and positioning. It is not a pallet stacker and should not be used for elevated rack loading or personnel lifting.
Routine maintenance includes inspecting the forks, rollers, drive wheel, control handle, hydraulic components, battery connections, and visible equipment condition. Lead-acid battery care must follow the installed battery manufacturer's instructions, including applicable charging, ventilation, and maintenance procedures.
Recharge the battery before it reaches the manufacturer's specified minimum charge level. Avoid excessive discharge, use compatible charging equipment, and follow the battery manufacturer's instructions to help maintain battery performance and service life.
No. The US-EPT66KHU operates using rechargeable electric power and produces zero tailpipe exhaust emissions during normal operation. Appropriate ventilation is still required during lead-acid battery charging.
The US-EPT66KHU is designed for heavy-duty pallet transportation, warehouse inventory movement, loading and unloading, distribution center operations, manufacturing material handling, commercial storage, and industrial logistics.
Yes. The US-EPT66KHU Lead Acid Electric Pallet Jack includes a 12-Month Warranty covering eligible manufacturing defects under applicable Texlift warranty terms. Proper use and maintenance are required, and damage caused by misuse or improper operation is not covered.
Yes. Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, and identification of compatible replacement parts. Customers can contact office@texlift.com for assistance.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Move compatible heavy palletized inventory, packaged goods, and warehouse supplies with a 6,600 lb capacity, powered electric travel, and hydraulic lifting.
Transport palletized shipments between receiving docks, storage areas, order-processing zones, and shipping departments for efficient daily logistics operations.
Move compatible palletized raw materials, production components, industrial supplies, and finished products between designated manufacturing and storage areas.
Support pallet transportation during loading and unloading operations on suitable stable warehouse floors, loading docks, and approved industrial surfaces.
Transport compatible palletized loads weighing up to 6,600 lb within the manufacturer's rated capacity and operating requirements.
Reposition palletized inventory between warehouse storage locations, staging areas, and designated material-handling zones.
Move incoming and outgoing palletized goods through receiving departments, inspection areas, shipping stations, and loading zones.
Transport compatible palletized merchandise, supplies, and packaged products in commercial warehouses and storage environments.
Support routine movement of palletized industrial materials between production departments, storage locations, and distribution areas.
Raise, transport, and position compatible pallets for order preparation, shipment organization, and warehouse material flow.
Move compatible palletized retail inventory, packaged merchandise, and bulk products throughout distribution and storage facilities.
Transport palletized packaging materials, finished goods, and production supplies between designated work areas.
Handle compatible heavy palletized shipments, packaged industrial products, and bulk inventory within the equipment's approved load capacity.
Provide full-electric pallet transportation in compatible indoor facilities without producing tailpipe exhaust emissions during operation.
Transport palletized loads across firm, level, adequately supported industrial flooring while maintaining safe operating clearance and load stability.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-EPT66KHU Lead Acid Electric Pallet Jack includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms.
Warranty protection applies to eligible manufacturing defects affecting covered equipment components during the applicable warranty period. Coverage is subject to proper operation, maintenance, and manufacturer requirements.
Eligible replacement parts supplied by Texlift include a 90-day warranty against manufacturing defects, subject to applicable warranty terms. Wheels, rollers, and other consumable components are excluded.
Texlift provides technical assistance with equipment operation, troubleshooting, routine maintenance, lead-acid battery care, and compatible replacement parts identification.
The 48V / 40Ah lead-acid battery must be charged and maintained according to the installed battery manufacturer's instructions. Avoid excessive discharge, use compatible charging equipment, and follow applicable ventilation and battery safety requirements.
Damage caused by misuse, overloading, collisions, improper operation, unauthorized modifications, neglected maintenance, or operation outside manufacturer specifications is not covered. Normal wear and consumable components are also excluded.
Texlift can assist customers with identifying compatible replacement parts for the US-EPT66KHU, including applicable electrical, hydraulic, control, and mechanical components.
Customers requesting warranty service should contact Texlift with their order information, equipment model, a description of the issue, and clear photos or videos when applicable. Additional inspection or troubleshooting may be required to determine coverage.
For warranty questions, technical assistance, replacement parts, or service guidance, contact Texlift at office@texlift.com.
Always follow the manufacturer's 6,600 lb rated capacity, pallet compatibility requirements, battery maintenance instructions, and approved operating conditions. Proper operation and routine maintenance help protect equipment reliability and warranty eligibility.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
Explore additional equipment selected to complement your material handling operation.
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
Reviews
There are no reviews yet
