Built for everyday pallet transportation, lifting, positioning, and warehouse stacking, the US-ES33K 98 Electric Walkie Pallet Stacker combines a 3,300 lb rated load capacity with an 8 ft (98 in) maximum lift height. This full-electric warehouse stacker provides practical vertical reach for warehouse racking, inventory movement, pallet storage, staging, and professional indoor material-handling operations.

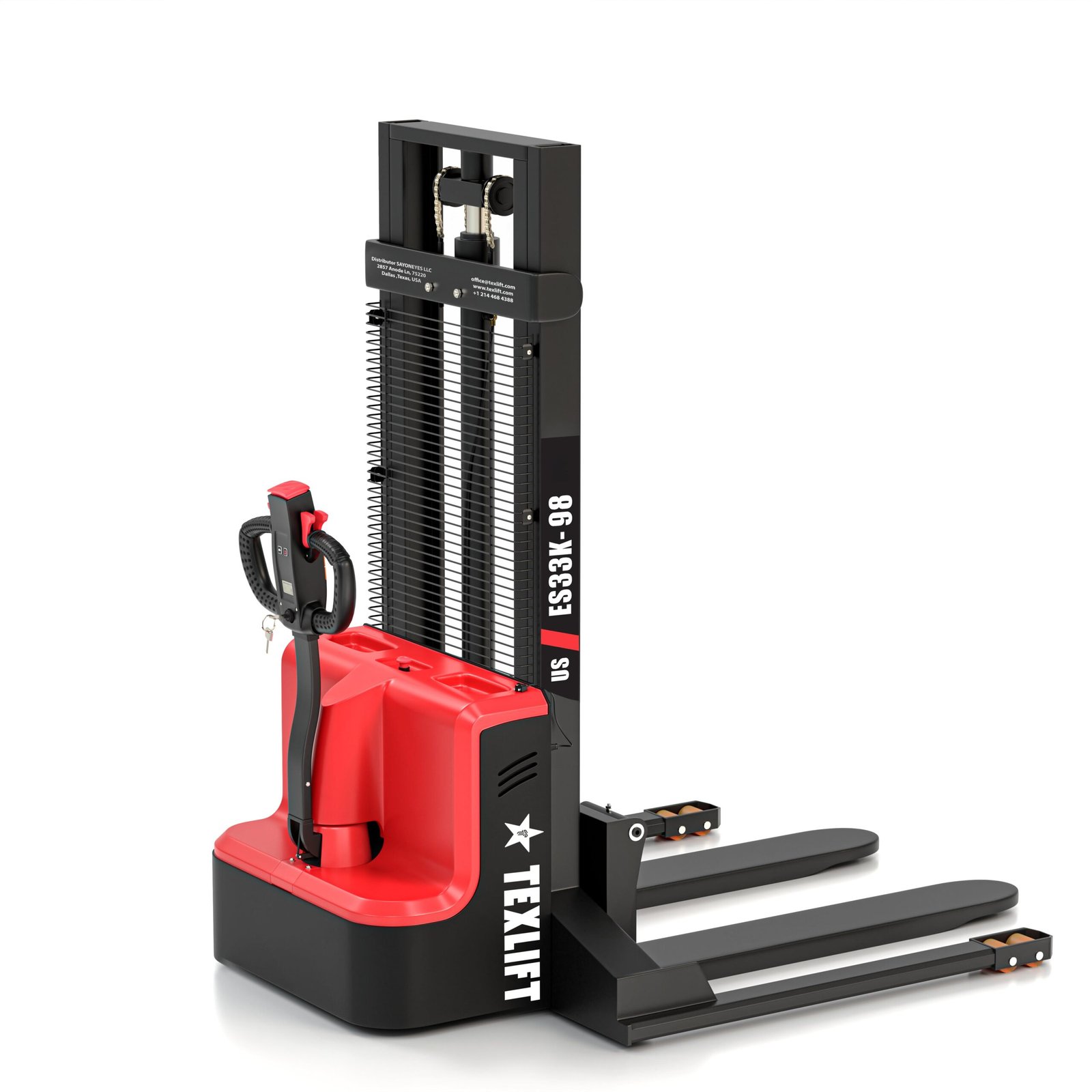

The US-ES33K 98 Electric Walkie Pallet Stacker features a fixed straddle-leg configuration for stable pallet handling, 46 in heavy-duty steel forks with an adjustable 5.5–27 in fork spread, and a compact 55 in turning radius. Full-electric travel, hydraulic lifting, Walkie operation, and a 48V / 32Ah lead-acid battery system provide controlled performance for warehouses, distribution centers, manufacturing facilities, fulfillment operations, and commercial storage environments.
The US-ES33K 98 Electric Walkie Pallet Stacker provides a maximum rated lifting capacity of 3,300 lb for compatible palletized loads.
Its industrial configuration supports routine pallet transportation, positioning, lifting, stacking, staging, replenishment, and inventory movement throughout professional warehouse and material-handling environments.
The 8 ft (98 in) maximum fork lift height provides practical vertical reach for warehouse racking, elevated pallet storage, inventory positioning, replenishment, and everyday pallet stacking.
This lift range makes the Electric Walkie Pallet Stacker a practical option for facilities requiring routine elevated pallet handling without the additional mast height of higher-reach stacker models.
The mast measures approximately 73 in high when fully lowered, providing a compact travel profile for a stacker with a 98 in maximum fork lift height.
Maximum overall height during maximum-height operation is approximately 128 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The fixed straddle-leg configuration provides a stable machine base around compatible palletized loads during transportation, lifting, positioning, and stacking.
With an approximately 60 in overall machine width, the straddle configuration is designed to provide stable pallet handling while working with compatible pallet and load arrangements.
The US-ES33K 98 is equipped with 46 in heavy-duty steel forks designed to support compatible palletized loads within the machine’s rated capacity.
The fork configuration provides practical support for everyday pallet transportation, lifting, positioning, warehouse racking, and storage operations.
The fork spread can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
Adjustable fork positioning provides additional flexibility when configuring the Electric Walkie Pallet Stacker for compatible palletized materials.
An approximately 55 in turning radius provides practical maneuverability for pallet approach, transportation, turning, and precise load positioning.
Combined with Walkie operation, the turning configuration supports controlled maneuvering throughout compatible warehouse aisles, storage areas, staging zones, receiving areas, and production environments.
The US-ES33K 98 measures approximately 74 in in overall length, combining pallet stacking capability with practical warehouse maneuverability.
The Walkie configuration helps operators approach compatible pallets and accurately position loads during transportation, storage, retrieval, staging, and stacking operations.
The US-ES33K 98 Electric Walkie Pallet Stacker provides powered electric travel and electric hydraulic lifting, reducing manual effort during repetitive warehouse material handling.
Walk-behind controls provide direct operator control during pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
The US-ES33K 98 uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to both electric travel and hydraulic lifting, providing full-electric material handling throughout compatible indoor warehouse and industrial environments.
Typical operating time is approximately 3–4 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, charger performance, temperature, and charging conditions.
A 0.8 kW electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout suitable warehouse and industrial environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, positioning, and warehouse stacking.
The braking system supports controlled stopping during travel and helps operators maintain predictable machine control when transporting, maneuvering, and positioning compatible palletized loads.
Durable polyurethane wheels provide smooth and controlled travel across firm, level, and adequately supported indoor warehouse and industrial floors.
The US-ES33K 98 Electric Walkie Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, fulfillment operations, retail stockrooms, commercial storage facilities, receiving areas, production environments, and other professional indoor material-handling locations.
Its 3,300 lb rated capacity, 8 ft lift height, fixed straddle-leg configuration, and full-electric Walkie operation make this Electric Walkie Pallet Stacker particularly useful for routine pallet handling and warehouse stacking.
The US-ES33K 98 is ideal for warehouse racking, pallet stacking, pallet transportation, inventory movement, receiving and staging, warehouse replenishment, production material handling, commercial storage, and positioning compatible palletized loads.
The 8 ft (98 in) maximum lift height provides practical vertical reach for everyday warehouse storage and pallet-positioning operations.
The combination of a 3,300 lb rated capacity and 8 ft maximum lift height supports routine pallet storage, warehouse replenishment, inventory positioning, and elevated stacking.
The Electric Walkie Pallet Stacker provides controlled walk-behind maneuvering when approaching compatible warehouse racks, transporting pallets, and positioning loads for storage or retrieval.
The fixed straddle-leg configuration provides a stable machine footprint for compatible pallet transportation, lifting, positioning, and stacking.
Operators should verify pallet dimensions, load configuration, fork positioning, straddle-leg clearance, and available operating space before handling a load to confirm compatibility with the US-ES33K 98.
The approximately 74 in overall length and 55 in turning radius provide practical maneuverability for everyday warehouse pallet handling.
These dimensions support controlled pallet approach and positioning throughout compatible warehouse aisles, storage areas, staging zones, receiving departments, and production environments.
The US-ES33K 98 Electric Walkie Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
Its polyurethane wheels, full-electric drive system, Walkie controls, and braking system support controlled pallet transportation and positioning throughout compatible indoor material-handling environments.
The US-ES33K 98 Electric Walkie Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.8 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for pallet transportation, lifting, lowering, positioning, and stacking.
Do not operate the US-ES33K 98 Electric Walkie Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ES33K 98 | Full-electric Walkie pallet stacker with fixed straddle legs |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for stable pallet handling |
| Lift Height | 8 ft (98 in) | Maximum vertical fork lift height for pallet stacking and warehouse racking |
| Lowered Mast Height | 73 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 128 in | Maximum overall mast height during operation |
| Minimum Fork Height | ≤3.6 in | Minimum lowered fork height for compatible pallet entry |
| Fork Length | 46 in | Heavy-duty steel forks for compatible palletized loads |
| Fork Spread | 5.5–27 in Adjustable | Adjustable distance between forks for different compatible pallet and load configurations |
| Straddle Legs | Fixed | Fixed straddle-leg configuration for stable pallet handling |
| Overall Length | 74 in | Overall machine length |
| Overall Width | 60 in | Overall width across the fixed straddle-leg configuration |
| Turning Radius | 55 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Wheel Type | Polyurethane | Durable wheels designed primarily for smooth indoor industrial floors |
| Battery | 48V / 32Ah Lead-Acid | Electric battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions |
| Drive Motor | 0.8 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, positioning, and stacking |
| Brake System | Automatic Braking System | Designed to support controlled stopping during travel and pallet-handling operations |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for controlled pallet transport, maneuvering, lifting, stacking, and positioning |
| Machine Weight | 1,190 lb | Net machine weight including battery |
| Pallet Handling | Fixed Straddle Configuration | Designed for compatible palletized loads that provide proper clearance for the fixed straddle legs and forks |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | Everyday Warehouse Stacking | Combines a 3,300 lb rated capacity with an 8 ft maximum lift height for routine pallet handling and elevated storage |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, warehouse racking, stacking, staging, replenishment, inventory movement, and production material handling |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ES33K 98 Electric Walkie Pallet Stacker has a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
The US-ES33K 98 provides a maximum fork lift height of 8 ft (98 in), making it suitable for warehouse racking, pallet stacking, replenishment, elevated storage, and inventory positioning.
The mast measures approximately 73 in high when fully lowered. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The US-ES33K 98 reaches approximately 128 in overall during maximum-height operation.
The US-ES33K 98 has a rated 20 in load center for stable handling of compatible palletized loads.
The forks lower to approximately 3.6 in or less for entry into compatible pallet configurations.
The US-ES33K 98 is equipped with 46 in heavy-duty steel forks for compatible palletized loads.
Yes. The fork spread can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
No. The US-ES33K 98 uses a fixed straddle-leg configuration. Operators should verify pallet dimensions and straddle-leg clearance before operation.
The stacker measures approximately 60 in wide across the fixed straddle-leg configuration.
The US-ES33K 98 measures approximately 74 in in overall length.
The stacker has an approximately 55 in turning radius for pallet approach, maneuvering, turning, and precise load positioning.
The stacker uses durable polyurethane wheels designed primarily for smooth, firm, level, and adequately supported indoor industrial floors.
The US-ES33K 98 uses a 48V / 32Ah lead-acid battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah lead-acid battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger.
No. Stop operating the US-ES33K 98 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
A 0.8 kW electric traction motor provides powered travel for pallet transportation, maneuvering, and positioning.
A 2.2 kW electric hydraulic lift motor provides power for pallet lifting, lowering, positioning, and stacking.
Yes. The US-ES33K 98 provides powered electric travel and electric hydraulic lifting, eliminating manual pumping during normal material-handling operations.
Yes. The US-ES33K 98 is an Electric Walkie Pallet Stacker designed for walk-behind operation during pallet transportation, maneuvering, lifting, stacking, and positioning.
No ride-on operator platform is specified for the US-ES33K 98. This model is designed for Walkie, or walk-behind, operation.
The stacker uses an automatic braking system designed to support controlled stopping during travel and pallet-handling operations.
The US-ES33K 98 has a net machine weight of approximately 1,190 lb including the battery.
The fixed straddle configuration is intended for compatible palletized loads that provide proper clearance for the straddle legs and forks. Pallet dimensions, construction, and clearance should be verified before operation.
The US-ES33K 98 Electric Walkie Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
No. The US-ES33K 98 is intended primarily for suitable indoor industrial floors and is not designed for rough terrain, loose gravel, mud, soft ground, or other unstable surfaces.
The Electric Walkie Pallet Stacker works well in warehouses, distribution centers, manufacturing facilities, fulfillment operations, retail stockrooms, commercial storage facilities, receiving areas, staging zones, and other professional indoor material-handling environments.
Typical applications include warehouse racking, pallet stacking, pallet transportation, inventory movement, receiving and staging, warehouse replenishment, production material handling, and commercial storage.
The US-ES33K 98 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 8 ft (98 in) maximum lift height allows the US-ES33K 98 Electric Walkie Pallet Stacker to position compatible palletized loads within warehouse racking and elevated storage locations.
Combine the 3,300 lb rated capacity with a 98 in maximum lift height for routine pallet stacking, storage, retrieval, and inventory-positioning operations.
Full-electric travel supports efficient movement of compatible palletized loads between receiving, staging, storage, production, inventory, and shipping areas.
The fixed straddle-leg configuration provides a stable machine footprint for transporting, lifting, positioning, and stacking compatible palletized loads.
Move palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas using full-electric Walkie operation.
Transport and position compatible palletized raw materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, organization, replenishment, storage, retrieval, and pallet positioning throughout compatible warehouse and industrial environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Use the 8 ft lift height to position compatible palletized inventory for rack replenishment, elevated storage, and organized warehouse material flow.
Transport compatible palletized materials, components, supplies, and finished products between production areas, warehouse storage, inventory locations, and staging zones.
Support pallet organization, stacking, transportation, replenishment, retrieval, and inventory positioning throughout compatible commercial storage facilities.
The 5.5–27 in adjustable fork spread allows operators to configure the 46 in forks for different compatible pallet and load arrangements.
Walk-behind operation provides direct operator control for pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
Full-electric operation and polyurethane wheels make the US-ES33K 98 suitable for compatible indoor operations on smooth, firm, level, and adequately supported floors.
The 74 in overall length and 55 in turning radius provide practical maneuverability for pallet approach, turning, positioning, and movement throughout compatible warehouse environments.
The combination of a 3,300 lb capacity, 8 ft lift height, full-electric operation, and fixed straddle design makes the US-ES33K 98 suitable for routine professional warehouse material handling.
The 98 in maximum lift height helps facilities make better use of available vertical storage space for compatible palletized inventory.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ES33K 98 Electric Walkie Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electric travel, hydraulic lifting, Walkie controls, braking system, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, straddle-leg, battery, control, and other service components for the US-ES33K 98.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 48V / 32Ah lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, fixed straddle legs, mast, hydraulic system, battery system, electric drive system, Walkie controls, polyurethane wheels, braking system, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
