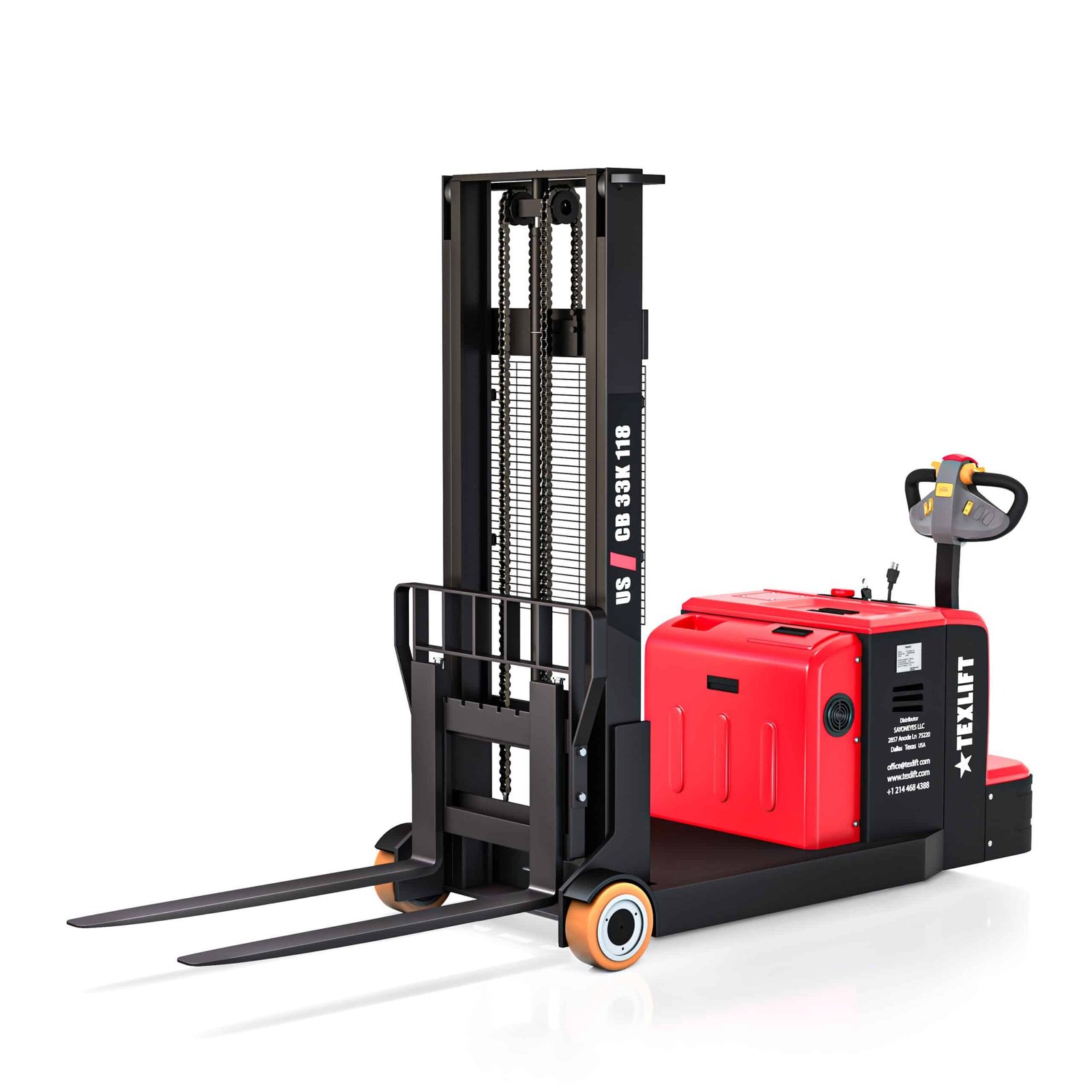

Built for professional pallet handling where conventional straddle legs can limit access, this Electric Counterbalance Stacker combines a 3,300 lb rated load capacity, 10 ft (118 in) maximum lift height, compact walkie operation, and direct fork access in one versatile material-handling machine. Its counterbalanced design allows the forks to approach compatible open and closed-bottom pallets without front support legs surrounding the load, making it a practical solution for warehouse racking, inventory positioning, manufacturing, shipping and receiving, and commercial material handling.
The US-CB33K 118 features an adjustable 8–28 in fork spread, 2.6 in lowered fork height, compact 38 in overall width, and 67 in turning radius for maneuverability in compatible warehouse aisles and restricted work areas. A 48V / 92Ah lead-acid battery powers the electric travel and hydraulic lifting systems, providing up to approximately 3 hours of operation per charge.
Handle compatible palletized loads up to 3,300 lb at the rated 20 in load center. This Electric Counterbalance Stacker provides dependable capacity for warehouse storage, manufacturing, distribution, shipping and receiving, and everyday commercial material-handling operations.
Actual allowable capacity can vary with lift height, load center, load distribution, and operating conditions.
Reach a maximum fork lift height of 10 ft (118 in) for pallet racking, elevated storage, inventory positioning, stacking, and retrieval.
The combination of a 3,300 lb rated capacity and 118 in lift height provides practical lifting performance for professional pallet-handling operations.
Unlike conventional straddle stackers, the counterbalanced chassis does not require front support legs extending alongside the pallet.
This allows the forks to approach compatible open and closed-bottom pallets directly, providing greater flexibility where conventional straddle legs would interfere with pallet or rack access.
The walkie configuration combines powered electric travel and hydraulic lifting with compact operator-controlled maneuverability.
The operator controls the machine from the walk-behind tiller while the electric drive system powers travel, reducing manual handling effort during pallet transportation and positioning.
The adjustable fork system provides an approximately 8–28 in fork spread for different compatible pallet and load dimensions.
Adjustable positioning increases flexibility across warehouse, manufacturing, distribution, storage, shipping, receiving, and commercial material-handling applications.
The forks lower to approximately 2.6 in to provide low entry into compatible pallets for pickup, transportation, positioning, and stacking.
Always verify pallet opening dimensions, fork clearance, load distribution, and capacity requirements before operation.
An approximately 38 in overall width gives this Electric Counterbalance Stacker a compact footprint while retaining the pallet-access advantages of a counterbalanced chassis.
The narrow profile supports maneuverability in compatible warehouse aisles, production areas, storage facilities, and shipping departments.
An approximately 67 in turning radius supports maneuvering when approaching pallets, navigating compatible aisles, turning in work areas, and positioning loads.
Always maintain sufficient operating clearance for the machine, forks, load, operator, and surrounding equipment.
A rechargeable 48V / 92Ah lead-acid battery provides approximately 4.42 kWh of nominal battery energy for powered travel and hydraulic lifting.
Electric operation provides efficient professional material handling with no tailpipe exhaust emissions at the machine during operation.
The battery system provides up to approximately 3 hours of operating time per charge.
Actual runtime varies with load weight, travel distance, lifting frequency, lift height, floor conditions, battery condition, temperature, and operating intensity.
The 48V / 92Ah lead-acid battery requires approximately 6 hours to recharge under suitable conditions using the correct compatible charger.
Actual charging time can vary with remaining charge, battery condition, temperature, and charger performance.
An electromagnetic braking system provides controlled stopping during normal operation and supports predictable machine handling while transporting and positioning compatible palletized loads.
The braking system complements the powered walkie configuration for professional warehouse and commercial material-handling applications.
A 0.75 kW electric drive motor provides powered travel for pallet transportation and machine positioning.
Powered travel reduces manual handling effort and supports efficient movement of compatible palletized loads throughout warehouses and commercial facilities.
A 2.2 kW electric lift motor powers the hydraulic lifting system for controlled pallet pickup, lifting, lowering, stacking, positioning, and retrieval.
Together, the electric drive and lift systems provide powered material handling while maintaining a compact walkie configuration.
The counterbalanced design provides direct fork access to compatible open and closed-bottom pallets without requiring front straddle legs around the load.
This makes the stacker especially useful for pallet and rack configurations where conventional straddle legs could restrict access.
This Electric Counterbalance Stacker is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Texlift provides technical support and replacement-parts assistance. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Designed primarily for warehouses, distribution centers, manufacturing facilities, logistics operations, shipping and receiving departments, commercial storage buildings, production facilities, and other professional material-handling environments with firm, level, adequately supported working surfaces.
Ideal for compatible open and closed-bottom pallet handling, pallet transportation, warehouse racking, elevated storage, inventory positioning, shipping and receiving, production material movement, and applications where conventional front straddle legs would restrict access to the load.
Its combination of 3,300 lb rated capacity, 10 ft lift height, adjustable forks, compact chassis, counterbalance design, and walkie operation provides a versatile solution for professional pallet handling.
48V / 92Ah lead-acid battery • 4.42 kWh nominal battery energy • Up to approximately 3 hours runtime • Approx. 6 hours charging • 0.75 kW electric drive motor • 2.2 kW lift motor • Powered electric travel • Hydraulic lifting • Walkie operation
Avoid operating the Electric Counterbalance Stacker with a deeply discharged battery. Stop operation and recharge the 48V / 92Ah lead-acid battery using the correct compatible charger before returning the machine to service.
Proper charging and routine battery maintenance are important for dependable performance and battery service life. Follow the operating manual for battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-CB33K 118 | Electric counterbalance walkie stacker designed for professional pallet handling, warehouse racking, elevated storage, and commercial material-handling applications. |
| Load Capacity | 3,300 lb | Rated load capacity at a 20 in load center. Actual allowable capacity may vary with lift height, load center, load distribution, and operating conditions. |
| Load Center | 20 in | Rated load center used for the stated 3,300 lb capacity. |
| Maximum Lift Height | 10 ft (118 in) | Maximum fork lift height for pallet racking, elevated storage, inventory positioning, stacking, and retrieval. |
| Lowered Fork Height | 2.6 in | Low fork height supports efficient entry into compatible pallets for pickup, transport, positioning, and stacking. |
| Fork Spread | 8–28 in Adjustable | Adjustable fork positioning accommodates different compatible pallet and load dimensions. |
| Counterbalance Design | Yes | Counterbalanced chassis eliminates front straddle legs around the load, providing direct fork access to compatible open and closed-bottom pallets. |
| Overall Width | 38 in | Compact overall width supports maneuverability in compatible warehouse aisles, storage areas, and restricted commercial workspaces. |
| Turning Radius | 67 in | Compact turning radius supports maneuvering, pallet approach, turning, and load positioning in suitable working areas. |
| Battery | 48V / 92Ah Lead-Acid | Rechargeable lead-acid battery supplies power to the electric travel and hydraulic lifting systems. |
| Battery Voltage | 48V | Nominal voltage of the electric stacker's battery system. |
| Battery Capacity | 92Ah | Rated battery capacity for professional electric pallet-handling operations. |
| Battery Energy | 4.42 kWh | Nominal battery energy calculated from the 48V / 92Ah battery configuration. |
| Runtime | Up to 3 Hours | Actual operating time varies with load weight, travel distance, lifting frequency, lift height, floor conditions, battery condition, temperature, and operating intensity. |
| Charging Time | Approx. 6 Hours | Approximate recharge time under suitable conditions using the correct compatible charger. |
| Drive Motor | 0.75 kW | Electric drive motor provides powered travel for pallet transportation and machine positioning. |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor powers fork lifting and lowering for pallet pickup, stacking, positioning, and retrieval. |
| Braking System | Electromagnetic Brake | Electromagnetic braking provides controlled stopping during normal travel and pallet-handling operations. |
| Operation | Walkie | Walk-behind operation with powered electric travel and hydraulic lifting provides compact maneuverability and reduces manual handling effort. |
| Power Type | Electric | Rechargeable battery-powered travel and hydraulic lifting provide electric material-handling performance with no tailpipe exhaust emissions at the machine during operation. |
| Pallet Compatibility | Open & Closed-Bottom Pallets | Counterbalance design provides direct fork access to compatible open and closed-bottom pallets without front straddle legs surrounding the load. |
| Recommended Surface | Firm, Level & Adequately Supported | Designed primarily for compatible indoor commercial surfaces such as warehouse, manufacturing, distribution, and storage floors. |
| Recommended Environment | Indoor Commercial | Suitable for warehouses, distribution centers, manufacturing facilities, logistics operations, shipping and receiving areas, and commercial storage facilities. |
| Best Use | Pallet Stacking & Material Handling | Designed for pallet transport, warehouse racking, elevated storage, inventory positioning, stacking, and production material movement. |
| Typical Applications | Warehouses, Distribution Centers, Manufacturing, Logistics & Commercial Storage | Counterbalance design and compact walkie operation support professional pallet-handling applications where conventional straddle legs may restrict load access. |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels, tires, and other normal wear or consumable components are excluded. |
Watch the equipment in operation and get a closer look at its design, controls, lifting performance, maneuverability, and real-world use.
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-CB33K 118 has a rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load center, load distribution, and operating conditions.
This Electric Counterbalance Stacker provides a maximum fork lift height of 10 ft (118 in), making it suitable for pallet racking, elevated storage, inventory positioning, stacking, and retrieval.
Yes. The US-CB33K 118 uses a walkie configuration. The operator controls the machine from the walk-behind tiller while powered electric travel and hydraulic lifting reduce manual material-handling effort.
The counterbalanced chassis eliminates the need for front straddle legs around the load, providing direct fork access to compatible pallets where conventional straddle legs could interfere.
Yes. The counterbalance design provides direct fork access to compatible open and closed-bottom pallets without front straddle legs surrounding the load. Always verify pallet dimensions, fork clearance, load distribution, and capacity requirements before operation.
The forks lower to approximately 2.6 in, providing low entry for compatible pallets during pickup, transportation, positioning, and stacking.
The US-CB33K 118 has an adjustable fork spread of approximately 8–28 in, allowing the forks to be positioned for different compatible pallet and load dimensions.
The Electric Counterbalance Stacker has an overall width of approximately 38 in, providing a compact footprint for maneuvering in compatible warehouse aisles, storage areas, production facilities, and commercial workspaces.
The US-CB33K 118 has an approximately 67 in turning radius, supporting maneuverability when approaching pallets, turning in compatible aisles, and positioning loads.
The stacker uses a rechargeable 48V / 92Ah lead-acid battery with approximately 4.42 kWh of nominal battery energy.
The battery provides up to approximately 3 hours of operating time per charge. Actual runtime varies with load weight, travel distance, lifting frequency, lift height, floor conditions, battery condition, temperature, and operating intensity.
Approximate charging time is 6 hours under suitable conditions using the correct compatible charger. Actual charging time can vary depending on remaining charge, battery condition, temperature, and charger performance.
The stacker uses a 0.75 kW electric drive motor that provides powered travel for pallet transportation and machine positioning.
A 2.2 kW electric lift motor powers the hydraulic lifting system for pallet pickup, lifting, lowering, stacking, positioning, and retrieval.
The US-CB33K 118 uses an electromagnetic braking system for controlled stopping during normal travel and pallet-handling operations.
It is designed primarily for professional indoor material-handling environments with firm, level, adequately supported surfaces, including warehouses, distribution centers, manufacturing facilities, logistics operations, shipping and receiving areas, and commercial storage facilities.
It is well suited for pallet transportation, warehouse racking, elevated storage, inventory positioning, shipping and receiving, production material movement, and applications where conventional front straddle legs would restrict pallet access.
No. The battery-powered electric travel and hydraulic lifting systems produce no tailpipe exhaust emissions at the machine during operation.
The Electric Counterbalance Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Counterbalance design provides direct fork access for pallet transportation, stacking, retrieval, and inventory positioning in professional warehouse environments.
Suitable for repetitive pallet movement, storage, order staging, shipping, receiving, and elevated pallet positioning.
Supports movement of palletized materials, components, supplies, and finished goods between production, storage, and shipping areas.
10 ft (118 in) maximum lift height supports pallet placement and retrieval from compatible warehouse racking systems.
Counterbalanced chassis eliminates front straddle legs around the load, allowing direct fork access to compatible closed-bottom pallets.
Adjustable 8–28 in fork spread provides flexible positioning for compatible open pallet configurations and load dimensions.
Powered electric travel and hydraulic lifting support pallet movement between receiving areas, staging zones, storage locations, and shipping departments.
Compact walkie operation and a 67 in turning radius support controlled pallet positioning in compatible aisles and storage areas.
118 in maximum fork lift height provides vertical reach for compatible elevated pallet storage and material-positioning applications.
Suitable for transporting palletized raw materials, components, supplies, and finished products within manufacturing and production facilities.
Compact 38 in overall width supports pallet handling in compatible commercial storage buildings and material-handling areas.
Counterbalance design is especially useful in applications where conventional front straddle legs would interfere with pallet or rack access.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-CB33K 118 Electric Counterbalance Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded.
Texlift provides technical support to assist with equipment operation, troubleshooting, maintenance questions, and general product guidance.
Replacement-parts assistance is available to help identify and source compatible components for service and maintenance.
Customers receive support from the Texlift team for product questions, troubleshooting, parts assistance, and warranty-related requests.
Video calls may be used when appropriate to help inspect the equipment, identify components, demonstrate an issue, or assist with troubleshooting.
Customers may request a video inspection of the equipment before pickup or an arranged facility visit.
Equipment pickup is available from our Dallas, Texas facility Monday through Friday, 9:00 AM–5:00 PM.
Freight shipping is available within the continental United States, with tracking information provided when available from the carrier.
Texlift can provide product-specific guidance for routine maintenance, compatible replacement parts, and equipment care to help support dependable operation.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
