Description
Built for Professional Material Handling

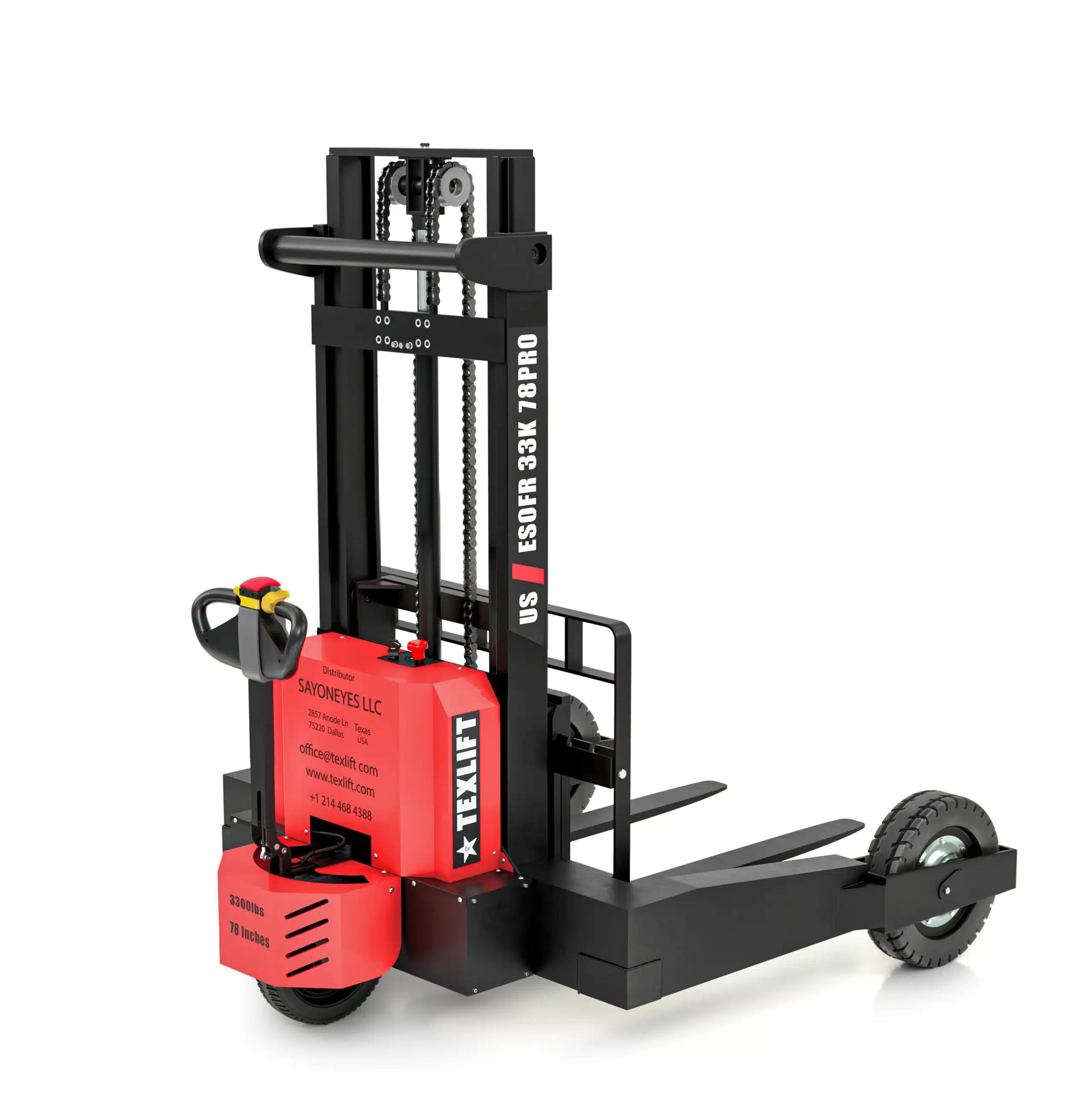

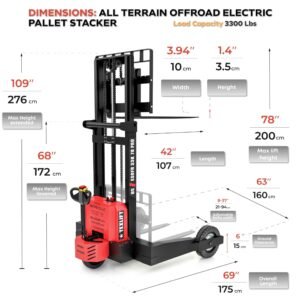

The US-ESOFR33K 78 PRO Lithium Rough Terrain Electric Stacker combines a 3,300 LB rated lifting capacity with a maximum lift height of 78 IN (7 FT), 6 IN ground clearance, and heavy-duty solid rough-terrain tires. Designed for demanding indoor and outdoor material handling, this full-electric stacker provides dependable pallet transportation, lifting, positioning, and elevated stacking across firm, stable, and adequately supported commercial working surfaces.
Powered by a rechargeable 24V/90Ah LiFePO₄ lithium battery, the US-ESOFR33K 78 PRO features a 1.2 kW AC electric drive motor and a dedicated 2.2 kW DC hydraulic lift motor. Its walk-behind operating configuration provides powered travel and hydraulic lifting without manual pumping. The 2.16 kWh nominal battery capacity supports approximately 3–4 hours of typical operation per charge, with an approximate 6-hour recharge time using the included 24V/15A smart lithium charger.
Built for professional use, this rough-terrain electric stacker features 42 IN heavy-duty steel forks with an adjustable 8–37 IN fork spread and a compact 54 IN turning radius. Its combination of 7 FT vertical lifting capability, durable solid tires, and full-electric operation makes it suitable for construction yards, agricultural facilities, landscaping businesses, nurseries, warehouses, building-material suppliers, and commercial storage operations.
3,300 LB Heavy-Duty Load Capacity
The US-ESOFR33K 78 PRO provides a maximum rated lifting capacity of 3,300 LB at a 20 IN load center. This capacity supports transporting, lifting, and stacking compatible palletized construction materials, agricultural supplies, warehouse inventory, and industrial products. Operators must follow the rated capacity and load-center requirements during all material-handling operations.
78 IN / 7 FT Maximum Lift Height
The electric hydraulic lifting system raises compatible palletized loads to a maximum height of 78 IN (7 FT). This vertical reach supports elevated pallet storage, warehouse racking, material positioning, and commercial stacking. The 7 FT configuration is suitable for operations that require rough-terrain capability without the taller lifting mast of higher-reach models. Always verify overhead clearance, load stability, and the capacity of receiving storage structures before lifting.
Heavy-Duty Rough-Terrain Construction
The stacker features a rugged commercial configuration designed for compatible indoor and outdoor working environments. Its construction supports material handling across compacted gravel, firm dirt, maintained grass, concrete, asphalt, and supported industrial yards. Operators must avoid unstable terrain, deep mud, loose sand, and surfaces that cannot adequately support the machine and its load.
24V/90Ah LiFePO₄ Lithium Battery
A rechargeable 24V/90Ah LiFePO₄ lithium battery supplies electrical power for machine travel, hydraulic lifting, and operating controls. The battery provides approximately 2.16 kWh of nominal energy and supports full-electric operation without gasoline or diesel exhaust emissions during use. Proper charging, inspection, and storage practices help maintain dependable battery performance.
Up to 3–4 Hours of Typical Runtime
The lithium battery provides approximately 3–4 hours of typical operation per charge under suitable working conditions. Actual runtime depends on load weight, travel distance, terrain, lifting frequency, lift height, temperature, battery condition, and operating intensity.
Approx. 6-Hour Battery Charging
The included 24V/15A smart lithium charger provides an approximate 6-hour full recharge time under normal charging conditions. Actual charging duration may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging environment.
Fully Electric Walkie Operation
The US-ESOFR33K 78 PRO combines powered electric travel with hydraulic lifting in a walk-behind operating configuration. Operators can transport, raise, lower, and position compatible palletized loads using the machine’s controls. This arrangement reduces manual handling effort and supports efficient daily commercial operations.
1.2 kW AC Electric Drive Motor
A 1.2 kW AC electric drive motor provides powered forward and reverse travel for transporting compatible palletized materials. The electric drivetrain supports controlled movement around warehouses, agricultural facilities, construction yards, and commercial storage areas. Travel performance depends on payload, surface traction, terrain, and battery charge.
2.2 kW DC Hydraulic Lift Motor
The dedicated 2.2 kW DC electric motor powers the hydraulic lifting system for raising and lowering compatible palletized materials. This system supports repetitive pallet handling, elevated stacking, material positioning, and commercial storage operations without manual hydraulic pumping.
42 IN Heavy-Duty Steel Forks
The US-ESOFR33K 78 PRO features 42 IN heavy-duty steel forks designed to support compatible palletized loads within the machine’s rated capacity. Their durable construction provides dependable support during pallet transportation, lifting, positioning, and elevated stacking in commercial and industrial environments.

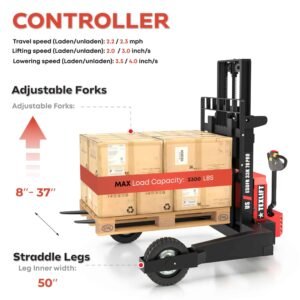

Adjustable 8–37 IN Fork Spread
The adjustable fork spread ranges from approximately 8–37 IN, providing flexibility for different compatible pallet and load configurations. Operators can position the forks to match suitable pallet dimensions while maintaining balanced load placement and adequate fork support.
Heavy-Duty Solid Rough-Terrain Tires
Heavy-duty solid rough-terrain tires provide durable rolling performance, dependable traction, and resistance to punctures when operating across compatible firm indoor and outdoor surfaces. Unlike pneumatic tires, solid tires do not require air inflation or routine tire-pressure maintenance. This configuration supports material handling in maintained commercial yards and moderately uneven working areas where conventional polyurethane warehouse wheels may not be suitable.
6 IN Ground Clearance
Approximately 6 IN of ground clearance provides additional undercarriage space for movement across maintained outdoor surfaces and moderately uneven commercial areas. This clearance supports operation on suitable compacted gravel, firm dirt, maintained grass, concrete, asphalt, and supported industrial yards.
54 IN Turning Radius
A compact 54 IN turning radius supports controlled maneuverability during pallet approach, positioning, and transportation. This capability helps operators navigate compatible warehouse aisles, storage areas, construction yards, and agricultural facilities while accounting for pallet dimensions and surrounding obstacles.
Commercial Travel & Lifting Performance
The stacker provides powered travel and hydraulic lifting for professional pallet-handling operations. Its electric drivetrain supports controlled movement, while the hydraulic system allows operators to raise and lower compatible loads for storage, stacking, and material positioning.
Construction & Building Material Handling
The 3,300 LB rated lifting capacity makes the US-ESOFR33K 78 PRO suitable for transporting compatible palletized building supplies, packaged construction materials, industrial components, and other commercial products. Its solid-tire rough-terrain configuration supports material movement across firm construction yards, building-material facilities, and maintained outdoor staging areas.
Agricultural & Landscaping Applications
Farms, nurseries, agricultural suppliers, and landscaping businesses can use this electric stacker to handle compatible palletized feed, fertilizer, nursery products, landscaping materials, and packaged supplies. Its solid rough-terrain tires, adjustable forks, and powered hydraulic lifting provide practical versatility for suitable indoor and outdoor operations.
Warehouse & Industrial Operations
The US-ESOFR33K 78 PRO supports pallet transportation, inventory organization, material staging, and elevated positioning within compatible warehouses, distribution facilities, industrial storage areas, and commercial yards. Its 78 IN lift height provides vertical reach for compatible elevated storage applications.
Shipping, Receiving & Material Staging
This rough-terrain electric stacker can assist with moving compatible palletized shipments between receiving areas, storage locations, loading zones, and designated outdoor staging areas. Operators must verify loading-dock capacity, ramp suitability, surface stability, and available clearance before transporting heavy loads.
12-Month Equipment Warranty & Support
The US-ESOFR33K 78 PRO includes a 12-Month Equipment Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use. Coverage is subject to Texlift warranty terms and excludes normal wear, consumables, misuse, overloading, accidental damage, improper maintenance, and unauthorized modifications. Texlift provides technical assistance, troubleshooting guidance, and compatible replacement-parts support.
Important Terrain & Lithium Battery Notice
Operate only on firm, stable, adequately supported surfaces. Heavy-duty solid tires provide puncture resistance but do not make the equipment suitable for all-terrain operation. Avoid deep mud, loose sand, and unsafe slopes. Never exceed the 3,300 LB rated capacity. Do not operate at or below 20% battery charge or store the battery discharged. Recharge using the correct compatible lithium charger.
Need Help Choosing the Right Equipment?
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
