High-Rack Pallet Storage
Positioning compatible palletized loads in elevated warehouse racking using the 18 ft (216 in) maximum fork lift height.

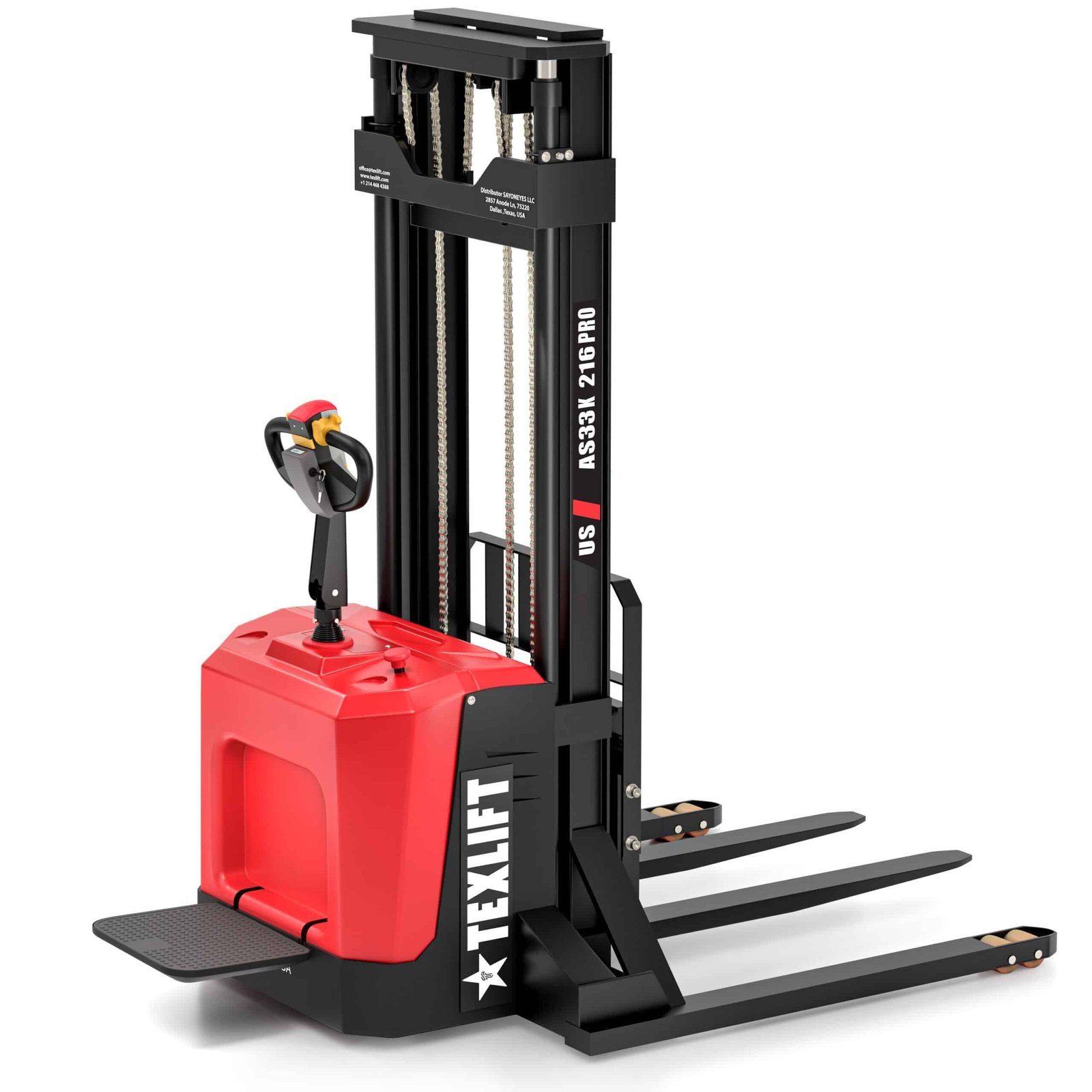

Lithium Electric Rider Stacker – 3,300 lb Capacity, 18 ft Lift Height – US-AS33K 216 PRO
$10,900.00
Last Unit Available
Only 1 unit left
SPECIAL SAVINGS
Save More on Your Order
Volume pricing and wire-transfer savings available on eligible orders.
2 Savings Options
Volume Pricing
Save more when ordering multiple units
2–4
Units
Save 2%
5–9
Units
Save 3%
10+
Units
Save 5%
Buy More & Save
DELIVERY & PICKUP
Order Fulfillment
Pickup and nationwide freight shipping available from our Texas warehouse.
Nationwide Delivery
Ships from Texas. Estimated delivery: 3–14 business days.
Shipping charges are calculated at checkout.
Dallas Pickup
Most in-stock equipment is ready for pickup within 24 hours.
Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout
Protected payment
Product Support
Real equipment help
12-Month Warranty
Equipment coverage
WIRE DISCOUNT REQUEST
3% Wire-Transfer Discount
Lithium Electric Rider Stacker – 3,300 lb Capacity, 18 ft Lift Height – US-AS33K 216 PRO
Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.
PRE-ORDER REQUEST
Request Product Availability
Lithium Electric Rider Stacker – 3,300 lb Capacity, 18 ft Lift Height – US-AS33K 216 PRO
Submit your request and our team will contact you with availability, estimated lead time, and ordering information.
Description
PRODUCT OVERVIEW
Built for Professional Material Handling
The Lithium Electric Rider Stacker is designed for high-level pallet handling in warehouses, distribution centers, manufacturing facilities, and commercial storage operations. With a 3,300 lb rated capacity and an impressive 18 ft (216 in) maximum lift height, it provides the vertical reach required for tall warehouse racking, elevated pallet positioning, and high-density storage.
The US-AS33K 216 PRO combines full-electric travel, hydraulic lifting, stand-on rider operation, adjustable forks, straddle legs, and electromagnetic braking. A 24V / 208Ah lithium battery provides 4.99 kWh of nominal energy and up to approximately 5 hours of runtime, making this Lithium Electric Rider Stacker a powerful solution for demanding indoor warehouse operations.
3,300 lb
Load Capacity
18 ft (216 in)
Max Lift Height
24V / 208Ah Lithium
Battery
Up to 5 Hours
Runtime
Lithium Electric Rider Stacker – 3,300 lb Capacity
This Lithium Electric Rider Stacker provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center. It is built for pallet transportation, lifting, positioning, and high-level stacking in commercial and industrial environments.
18 ft (216 in) Maximum Lift Height
The 18 ft (216 in) maximum fork lift height provides substantial vertical reach for high-rack pallet storage. This Lithium Electric Rider Stacker is ideal for facilities requiring elevated pallet positioning and efficient use of vertical storage space.
High-Reach Mast System
The mast measures approximately 96 in when fully lowered and reaches approximately 240 in overall when fully extended. The high-reach design supports tall warehouse racking while maintaining a practical lowered configuration for indoor travel.
Heavy-Duty Straddle Design
The straddle-leg configuration provides a stable base for compatible pallet handling and high-level stacking. This Lithium Electric Rider Stacker is designed for compatible pallets and racking systems on flat, dry, firm, and level industrial floors.
Adjustable 8–27 in Fork Spread
The adjustable fork spread ranges from approximately 8–27 in for different compatible pallet configurations. Operators can adjust the forks according to the load while maintaining appropriate pallet placement and support.
High-Level Pallet Positioning
With a 3,300 lb rated capacity and 216 in maximum lift height, the Lithium Electric Rider Stacker supports elevated pallet storage, warehouse replenishment, inventory positioning, and high-rack applications.
Stand-On Rider Operation
The integrated rider platform allows the operator to travel with the machine instead of walking behind it. This Lithium Electric Rider Stacker configuration improves efficiency when moving pallets across larger warehouses and distribution facilities.
69 in Turning Radius
A 69 in turning radius supports controlled maneuvering, pallet approach, turning, and positioning within compatible warehouse aisles. The design balances high-lift capability with practical indoor maneuverability.
Full-Electric Travel
A 1.5 kW DC traction motor provides powered travel for pallet transportation and positioning. Full-electric operation makes the Lithium Electric Rider Stacker efficient for inventory movement, staging, replenishment, and warehouse transportation.
Electric Hydraulic Lifting
A 2.2 kW DC hydraulic lift motor provides powered lifting and lowering. The electric hydraulic system supports controlled pallet positioning and high-level stacking without manual pumping.
24V / 208Ah Lithium Battery
The Lithium Electric Rider Stacker uses a high-capacity 24V / 208Ah lithium battery with approximately 4.99 kWh of nominal energy. The battery powers both electric travel and hydraulic lifting throughout daily material-handling operations.
Up to Approx. 5 Hours Runtime
The lithium battery provides up to approximately 5 hours of operating time per charge. Actual runtime varies depending on load, travel distance, lifting frequency, lift height, battery condition, temperature, and operating intensity.
24V / 50A Lithium Charger
A 24V / 50A lithium-compatible charger is included with the Lithium Electric Rider Stacker. The charger is matched to the machine’s high-capacity 24V / 208Ah lithium battery system.
Approx. 5-Hour Recharge Time
Approximate full recharge time is 5 hours under suitable charging conditions. Charging time can vary depending on remaining battery level, battery condition, temperature, and charging conditions.
Electromagnetic Braking
The electromagnetic braking system supports controlled stopping during travel and pallet positioning. It helps maintain controlled operation throughout routine warehouse material handling.
Indoor Warehouse Operation
The Lithium Electric Rider Stacker is designed primarily for flat, dry, firm, level, and adequately supported indoor floors. It is well suited for warehouses, distribution centers, manufacturing facilities, logistics centers, and commercial storage buildings.
High-Rack Warehouse Storage
With an 18 ft maximum lift height, this Lithium Electric Rider Stacker provides the reach required for compatible high-rack storage systems. It supports elevated pallet placement, inventory replenishment, and storage organization.
Distribution & Fulfillment Operations
The Lithium Electric Rider Stacker supports pallet transportation, inventory movement, replenishment, staging, and elevated storage in distribution and fulfillment facilities. Rider operation is especially useful for longer travel distances within large buildings.
Manufacturing & Logistics Operations
Manufacturing and logistics facilities can use this Lithium Electric Rider Stacker for palletized raw materials, components, supplies, work-in-process materials, and finished products between production, storage, staging, and shipping areas.
High-Density Storage & Replenishment
The Lithium Electric Rider Stacker combines a 3,300 lb capacity, 18 ft lift height, rider operation, adjustable forks, and lithium power for high-density storage. It supports warehouse replenishment, elevated inventory positioning, pallet transportation, and high-rack storage.
Important Lithium Battery Notice
Do not operate the US-AS33K 216 PRO when the lithium battery reaches 20% charge or below. At 20% charge, stop operation and recharge the battery using the compatible lithium charger before returning the machine to service.
Always follow the operating manual for proper battery charging, inspection, storage, maintenance, load handling, and operating procedures. Use compatible charging equipment and operate the machine within its specified capacity and intended indoor operating conditions.
EQUIPMENT SUPPORT
Need Help Choosing the Right Equipment?
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
✓ Product Selection
✓ Application Support
✓ Shipping Assistance
PRODUCT SPECIFICATIONS
Technical Specifications
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-AS33K 216 PRO | Full-electric lithium rider pallet stacker for high-level material handling |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity |
| Load Center | 20 in | Standard rated load center for compatible palletized loads |
| Lift Height | 18 ft (216 in) | Maximum fork lift height for high-rack pallet stacking |
| Lowered Mast Height | 96 in | Mast height with the mast fully lowered |
| Extended Mast Height | 240 in | Maximum mast height when fully extended |
| Fork Spread | 8–27 in | Adjustable distance between forks for compatible pallet configurations |
| Overall Length | 79 in | Overall machine length |
| Overall Width | 58 in | Overall machine width |
| Wheelbase | 44 in | Distance between front and rear wheel centers |
| Turning Radius | 69 in | Minimum turning radius for maneuvering and pallet positioning |
| Driving Speed | 2.5 / 3.1 mph | Loaded / unloaded travel speed |
| Lifting Speed | 5.5 / 5.3 in/s | Loaded / unloaded lifting speed |
| Descending Speed | 5.9 / 6.1 in/s | Loaded / unloaded lowering speed |
| Gradeability | 8% / 5% | Rated climbing capability |
| Battery | 24V / 208Ah Lithium | High-capacity lithium battery system for electric travel and hydraulic lifting |
| Battery Capacity | 4.99 kWh | Nominal battery energy capacity |
| Runtime | Up to 5 Hours | Typical operating time per charge depending on load, travel, lifting frequency, battery condition, and operating conditions |
| Charging Time | Approx. 5 Hours | Approximate full recharge time under suitable charging conditions |
| Charger | 24V / 50A | Lithium-compatible battery charger included with the machine |
| Drive Motor | 1.5 kW DC | Electric traction motor for powered travel |
| Lift Motor | 2.2 kW DC | Electric hydraulic motor for pallet lifting, lowering, positioning, and stacking |
| Brake Type | Electromagnetic | Electromagnetic braking system for controlled stopping |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Rider | Stand-on rider platform for efficient pallet transportation and stacking |
| Machine Weight | 2,750 lb | Operating weight including battery |
| Recommended Surface | Flat, Dry Indoor Floors | Designed primarily for firm, level, adequately supported commercial and industrial floors |
| Operating Environment | Indoor | Suitable for warehouses, distribution centers, manufacturing facilities, logistics centers, and commercial storage operations |
| Typical Applications | High-Rack Storage & Warehouse Material Handling | Suitable for 18 ft pallet stacking, inventory movement, warehouse replenishment, staging, shipping and receiving, and elevated pallet positioning |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
FREQUENTLY ASKED QUESTIONS
Product Questions & Answers
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
32 Product FAQs
Quick answers to help you evaluate
and operate this equipment.
01
What is the maximum load capacity of the US-AS33K 216 PRO?
The US-AS33K 216 PRO has a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
02
What is the maximum lift height?
The US-AS33K 216 PRO provides a maximum fork lift height of 18 ft (216 in), making it suitable for high-rack pallet storage and elevated material positioning.
03
What is the lowered mast height?
The mast measures approximately 96 in high when fully lowered.
04
What is the maximum extended mast height?
The mast reaches approximately 240 in overall when fully extended.
05
What is the rated load center?
The US-AS33K 216 PRO has a standard rated load center of 20 in.
06
Are the forks adjustable?
Yes. The fork spread adjusts from approximately 8–27 in to accommodate different compatible pallet configurations.
07
What is the overall length?
The US-AS33K 216 PRO measures approximately 79 in in overall length.
08
What is the overall width?
The machine measures approximately 58 in in overall width.
09
What is the wheelbase?
The US-AS33K 216 PRO has an approximately 44 in wheelbase.
10
What is the turning radius?
The stacker has an approximately 69 in turning radius for maneuvering and pallet positioning in compatible warehouse environments.
11
What is the travel speed?
Travel speed is approximately 2.5 mph loaded and 3.1 mph unloaded.
12
What is the lifting speed?
Lifting speed is approximately 5.5 in/s loaded and 5.3 in/s unloaded.
13
What is the lowering speed?
Descending speed is approximately 5.9 in/s loaded and 6.1 in/s unloaded.
14
What is the gradeability?
The rated gradeability is approximately 8% / 5% under the specified operating conditions.
15
What battery does the US-AS33K 216 PRO use?
The US-AS33K 216 PRO uses a high-capacity 24V / 208Ah lithium battery for electric travel and hydraulic lifting.
16
What is the battery capacity?
The 24V / 208Ah lithium battery provides approximately 4.99 kWh of nominal battery energy.
17
How long does the battery last per charge?
The lithium battery provides up to approximately 5 hours of runtime per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, floor conditions, temperature, battery condition, and operating intensity.
18
How long does the battery take to recharge?
Approximate full recharge time is 5 hours under suitable charging conditions.
19
Is the battery charger included?
Yes. A 24V / 50A lithium-compatible battery charger is included with the machine.
20
Should I continue operating when the battery reaches 20% charge?
No. Stop operating the machine when the lithium battery reaches 20% charge or below. Recharge the battery using the compatible charger before returning the stacker to service.
21
What drive motor does the US-AS33K 216 PRO use?
A 1.5 kW DC electric traction motor provides powered travel.
22
What lift motor does the stacker use?
A 2.2 kW DC electric hydraulic lift motor provides powered lifting and lowering for pallet positioning and stacking.
23
Is the US-AS33K 216 PRO fully electric?
Yes. It provides powered electric travel and electric hydraulic lifting for full-electric material handling.
24
Is this a Walkie or rider stacker?
The US-AS33K 216 PRO is a rider stacker with an integrated stand-on platform, allowing the operator to ride with the machine during travel.
25
What type of braking system does it use?
The stacker uses an electromagnetic braking system designed to provide controlled stopping during operation.
26
How much does the US-AS33K 216 PRO weigh?
The machine has an operating weight of approximately 2,750 lb including the battery.
27
Can the US-AS33K 216 PRO be used outdoors?
The US-AS33K 216 PRO is designed primarily for indoor operation on flat, dry, firm, level, and adequately supported commercial or industrial floors.
28
What type of floor is recommended?
Flat, dry, firm, level, and adequately supported warehouse or industrial flooring is recommended for normal operation.
29
Where does this Lithium Electric Rider Stacker work best?
It is well suited for warehouses, distribution centers, manufacturing facilities, logistics centers, fulfillment operations, and commercial storage facilities requiring high-level pallet handling.
30
Is the US-AS33K 216 PRO suitable for high warehouse racking?
Yes. Its 18 ft (216 in) maximum fork lift height is designed for high-rack pallet storage and elevated material positioning within compatible racking systems.
31
What are the best applications for this stacker?
Typical applications include high-rack pallet storage, warehouse replenishment, pallet transportation, elevated pallet positioning, inventory movement, staging, manufacturing material handling, shipping and receiving, and high-density storage.
32
What warranty is included with the US-AS33K 216 PRO?
The US-AS33K 216 PRO includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
NEED MORE INFORMATION?
Still have a product question?
Contact Our Team
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
MODEL COMPARISON
Compare Similar Equipment
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Compare up to 4 models
The current product is highlighted for
easier side-by-side comparison.
Swipe left or right to compare models
Compare Models
Review key differences side by side
CURRENT MODEL
Load Capacity
3,300 lb
3,300 lb
3,300 lb
3,300 lb
Lift Height
18 ft (216 in)
10 ft (118 in)
7 ft (78 in)
8 ft (98 in)
Lowered Mast Height
96 in
87 in
76 in
76 in
Fork Spread
8–27 in
8–37 in
8–37 in
8–37 in Adjustable
Battery
24V / 208Ah Lithium
24V / 90Ah LiFePO₄ Lithium
24V / 90Ah LiFePO₄ Lithium
24V / 90Ah LiFePO₄ Lithium
Battery Capacity
4.99 kWh
2.16 kWh
2.16 kWh
2.16 kWh
Runtime
Up to 5 Hours
Approx. 3–4 Hours
Approx. 3–4 Hours
Approx. 3–4 Hours
Charging Time
Approx. 5 Hours
Approx. 6 Hours
Approx. 6 Hours
Approx. 6 Hours
Turning Radius
69 in
54 in
54 in
54 in
Drive Motor
1.5 kW DC
1.2 kW AC
1.2 kW AC
1.2 kW AC
Lift Motor
2.2 kW DC
2.2 kW DC
2.2 kW DC
2.2 kW DC
Operation
Rider
Walkie
Walkie
Walkie
Availability
In Stock
In Stock
In Stock
In Stock
Product
✓ Selected Model
Need help choosing the right model?
Tell us your required load capacity,
lift height, application, and working
environment. Our equipment team can help
you compare the available options.
Contact Our Team
PRODUCT APPLICATIONS
Built for Demanding Material Handling Applications
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
02
Warehouses
Transporting, lifting, positioning, and stacking palletized inventory throughout commercial warehouse operations.
03
Distribution Centers
Moving compatible palletized goods between receiving, storage, staging, picking, replenishment, and shipping areas.
04
Fulfillment Centers
Supporting pallet movement, inventory replenishment, elevated storage, staging, and material flow throughout fulfillment operations.
05
Manufacturing Facilities
Transporting palletized raw materials, components, supplies, work-in-process materials, and finished products between production and storage areas.
06
Logistics Centers
Moving and positioning palletized freight throughout high-volume logistics, storage, staging, and distribution operations.
07
Warehouse Replenishment
Placing and retrieving compatible palletized inventory at elevated rack positions for routine stock replenishment.
08
High-Density Storage
Using the 18 ft lift height to maximize available vertical storage space within compatible warehouse racking systems.
09
Inventory Movement
Transporting palletized inventory between warehouse locations using full-electric travel and stand-on rider operation.
10
Elevated Pallet Positioning
Lifting and positioning compatible palletized loads at elevated storage locations up to the 216 in maximum fork height.
11
Shipping & Receiving
Moving palletized loads between receiving departments, warehouse storage, staging areas, and shipping locations.
12
Pallet Staging
Positioning and organizing compatible palletized loads in temporary storage, production, receiving, and shipping areas.
13
Production Material Handling
Supplying compatible palletized materials to production areas and moving finished products to storage or staging locations.
14
Commercial Storage Facilities
Supporting pallet transportation, elevated storage, inventory organization, and high-level stacking in commercial storage operations.
15
Long-Distance Warehouse Travel
Stand-on rider operation improves efficiency when palletized loads must be transported across larger warehouse and industrial facilities.
16
Tall Warehouse Racking
Providing substantial vertical reach for compatible racking systems requiring pallet placement at higher storage levels.
17
Indoor Material Handling
Full-electric operation supports pallet transportation and high-level stacking on flat, dry, firm, level, and adequately supported indoor floors.
18
Commercial High-Lift Operations
Combining a 3,300 lb rated capacity, 18 ft lift height, lithium power, and rider operation for demanding indoor material-handling applications.
Not sure if this model fits your application?
Contact our equipment team with your load,
lift height, pallet, and operating requirements
and we can help you evaluate the right model.
Contact Our Team
Add a review
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
* Please tick the checkbox to proceed
WARRANTY & SUPPORT
Confidence Beyond the Purchase
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
Product-Specific Coverage
The warranty and support information below
applies specifically to this product.
01
12-Month Warranty
The US-AS33K 216 PRO includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use. Texlift technical and warranty support is available throughout the applicable coverage period.
02
Electrical Components
Qualifying factory-installed electrical components are covered against eligible manufacturing defects during the applicable warranty period.
03
Hydraulic Components
Qualifying factory-installed hydraulic components are covered against eligible manufacturing defects under normal intended operating conditions.
04
Structural Components
Qualifying factory-installed structural components are covered against eligible manufacturing defects under normal intended use.
05
Lithium Battery System
The factory-installed lithium battery system is covered against eligible manufacturing defects according to the applicable warranty terms and proper operating, charging, and storage requirements.
06
Replacement Parts
Eligible replacement parts supplied under warranty include 90-day warranty coverage against qualifying manufacturing defects.
07
Wheels & Wear Items
Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
08
Proper Use Required
Warranty coverage requires operation within the rated 3,300 lb capacity, specified 20 in load center, approved indoor operating conditions, and other limitations described in the operating manual.
09
Battery Care Required
Do not operate the machine when the lithium battery reaches 20% charge or below. At 20%, stop operation and recharge the battery using the compatible lithium charger before returning the stacker to service.
10
Operating Conditions
The stacker must be operated on flat, dry, firm, level, and adequately supported indoor surfaces. Damage resulting from misuse, unsuitable surfaces, overloading, improper operation, or use outside intended operating conditions is not covered.
CUSTOMER SUPPORT
Need warranty, parts, or technical support?
Contact Support
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
More Texlift Products
Related Products
Explore additional equipment selected to complement your material handling operation.
Texlift Product
Electric Walkie Pallet Stacker 3,300 lb – 13 ft Lift | US-ES33K 158
$5,400.00
View Product
Texlift Product
12V/10A Replacement Battery Charger for TEXLIFT US-ZTS11K SE Self-Stacker
Original price was: $160.00.$140.00Current price is: $140.00.
View Product
Texlift Product
3,300 lb Electric Walkie Pallet Stacker – 10 ft (118 in) Lift | US-ES33K 118
Original price was: $4,700.00.$4,500.00Current price is: $4,500.00.
View Product
Texlift Product
Commercial 16" Walk-Behind Floor Scrubber Machine | US-TX SC16
Original price was: $1,699.00.$1,545.00Current price is: $1,545.00.
View Product
Texlift Product
3,300 lb Rider / Walkie Electric Pallet Stacker – 12 ft (138 in) Lift | US-DS33K 138
Original price was: $5,500.00.$4,999.00Current price is: $4,999.00.
View Product
Texlift Product
Plug-in 48V/15Ah Lithium Battery for Electric Pallet Jack Truck - High-Capacity, Long-Lasting Power
Original price was: $550.00.$300.00Current price is: $300.00.
View Product
Texlift Product
Manual Pallet Jack with Scale & Printer – US-PTSCP55K (5,500 lbs Capacity)
$1,240.00
View Product
Texlift Product
US-EPT44K CR Cold Room Electric Pallet Jack – 4,400 lb Capacity, 0°F Rated
$2,150.00
View Product
Texlift Product
Texlift Contactor for Electric Pallet Jack – Reliable Power Control
$35.00
View Product
Texlift Product
Heavy-Duty Manure Scraper Attachment for TXL140 Electric Wheel Loaders
Original price was: $3,290.00.$2,650.00Current price is: $2,650.00.
View Product
TEXLIFT IN NUMBERS
Equipment That Keeps Business Moving
From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.
4,200+
Equipment Orders Delivered Nationwide
50+
Equipment Models
12-Month
Warranty Coverage
Nationwide
Continental U.S. Shipping
Dallas, TX
Operations & Pickup
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
Reviews
There are no reviews yet
