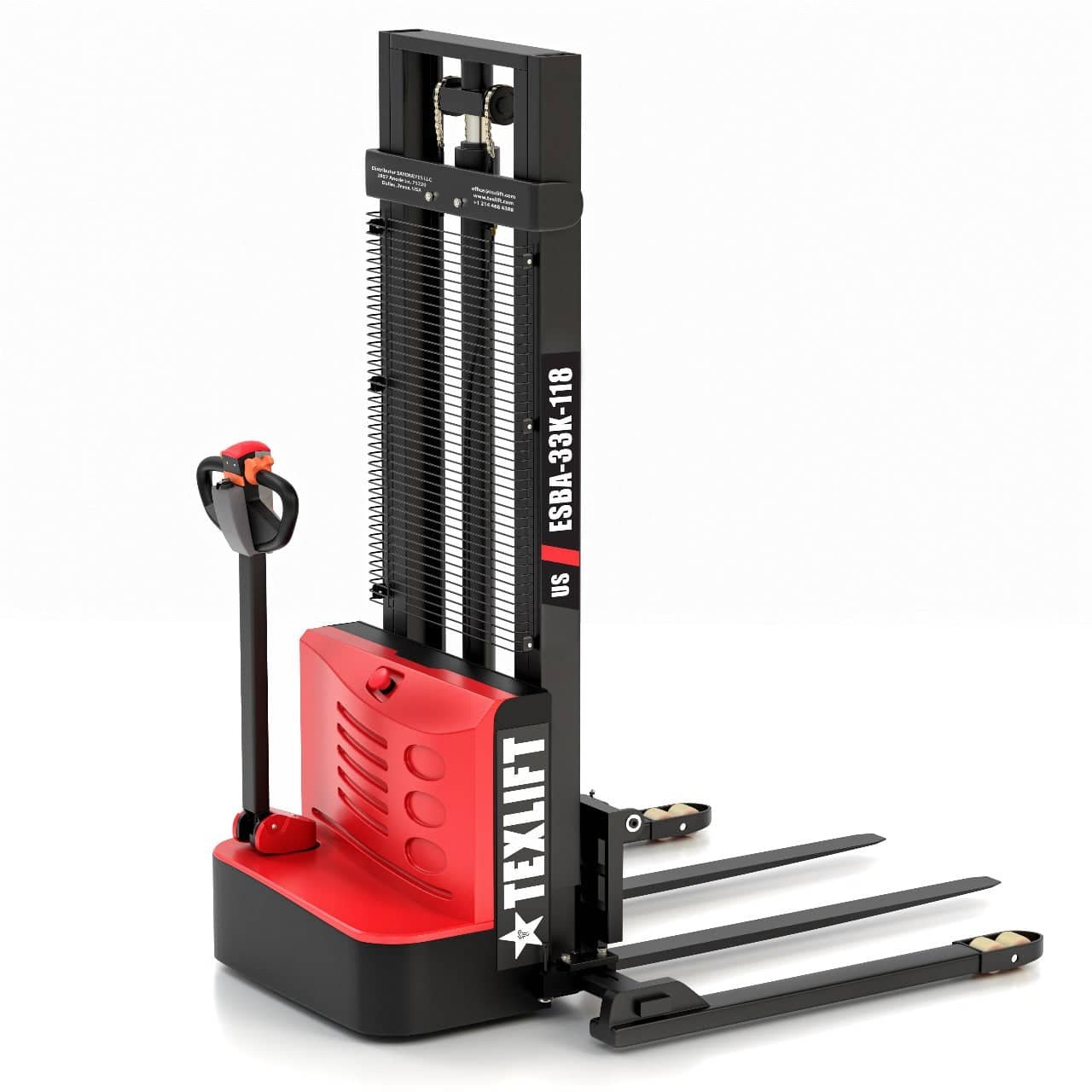

Built for flexible pallet handling and higher warehouse racking, the US-ESBA33K 118 is an Adjustable Straddle Pallet Stacker combining a 3,300 lb rated load capacity with a 10 ft (118 in) maximum lift height. The increased vertical reach supports elevated pallet stacking, warehouse storage, inventory positioning, and everyday professional material-handling operations.
The straddle legs adjust from approximately 45–61 in wide, while the 45 in forks provide an adjustable 0–27.5 in fork spread. Full-electric travel, hydraulic lifting, Walkie operation, and a 24V / 100Ah lead-acid battery system make the US-ESBA33K 118 Adjustable Straddle Pallet Stacker a versatile solution for facilities handling different compatible pallet widths and load configurations.
The US-ESBA33K 118 provides a maximum rated lifting capacity of 3,300 lb for compatible palletized loads.
This capacity supports pallet transportation, positioning, lifting, stacking, staging, replenishment, and inventory movement throughout warehouses, distribution centers, manufacturing facilities, commercial storage operations, and other professional indoor material-handling environments.
The 10 ft (118 in) maximum fork lift height provides increased vertical reach for warehouse racking, elevated pallet stacking, storage, replenishment, and material positioning.
Compared with the 98 in version, this configuration provides additional vertical reach for facilities requiring higher pallet placement while retaining the flexibility of an Adjustable Straddle Pallet Stacker.
The mast measures approximately 82 in high when fully lowered and reaches approximately 140 in overall when fully extended.
Always verify doorway, ceiling, warehouse rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
A major advantage of the US-ESBA33K 118 is its adjustable straddle-leg configuration. The straddle legs can be positioned from approximately 45–61 in wide to accommodate different compatible pallet widths and load configurations.
This adjustable design provides greater flexibility than a fixed-width straddle stacker for facilities that regularly work with different compatible pallet configurations.

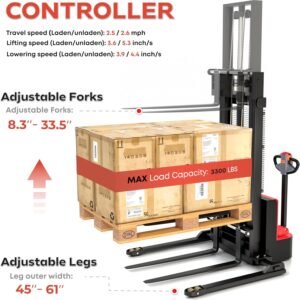

The 45 in forks provide an adjustable fork spread ranging from approximately 0–27.5 in for different compatible pallet and load arrangements.
Combined with the adjustable 45–61 in straddle legs, this configuration gives the US-ESBA33K 118 increased flexibility when handling different compatible pallet sizes.
The Adjustable Straddle Pallet Stacker is particularly useful for facilities where different compatible pallet widths and load configurations are handled with the same machine.
Operators can adjust both the straddle-leg width and fork positioning while retaining powered electric travel and controlled hydraulic lifting.
An approximately 55 in turning radius provides practical maneuverability for pallet approach, transportation, turning, and positioning throughout compatible indoor warehouse environments.
The Walkie configuration supports controlled operation in warehouse aisles, storage areas, staging zones, receiving areas, production facilities, and other professional material-handling locations.

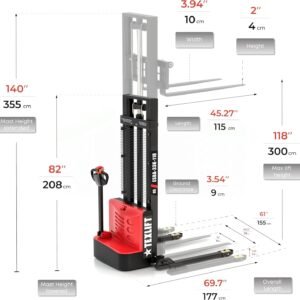

The US-ESBA33K 118 measures approximately 70 in in overall length and has a 46 in wheelbase.
These dimensions combine with the 55 in turning radius to provide practical maneuverability for an Adjustable Straddle Pallet Stacker offering a 10 ft maximum lift height.

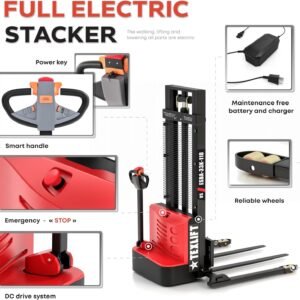

The US-ESBA33K 118 Adjustable Straddle Pallet Stacker uses a 24V / 100Ah lead-acid battery system with approximately 2.4 kWh of nominal battery energy.
The battery supplies power to both electric travel and hydraulic lifting, providing full-electric material handling with no tailpipe exhaust emissions at the machine during operation.
Powered electric travel reduces the manual effort required to transport palletized loads, while electric hydraulic lifting provides controlled pallet raising, lowering, and positioning.
Walk-behind operation gives the operator direct control during pallet approach, transportation, maneuvering, stacking, and precise load positioning.
A 0.75 kW electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout suitable indoor warehouse and industrial environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated positioning, and warehouse stacking.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation, positioning, and stacking operations.
The 45 in steel forks provide practical support for compatible palletized loads, while the adjustable 0–27.5 in fork spread provides flexibility for different compatible pallet configurations.
The US-ESBA33K 118 Adjustable Straddle Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, fulfillment centers, commercial storage operations, retail stockrooms, receiving areas, staging zones, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb capacity, 10 ft lift height, adjustable straddle legs, adjustable forks, and full-electric operation make it particularly useful for facilities requiring flexible pallet handling combined with increased vertical reach.
The US-ESBA33K 118 is ideal for warehouse racking, elevated pallet stacking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, commercial storage, and positioning compatible palletized loads weighing up to 3,300 lb.
The 10 ft (118 in) maximum lift height provides increased vertical reach for elevated storage and warehouse racking applications.

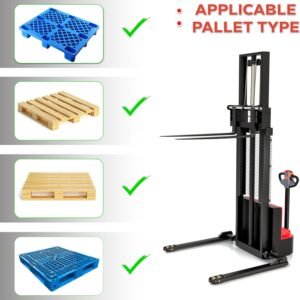

Facilities working with different compatible pallet dimensions can benefit from the adjustable configuration of the US-ESBA33K 118.
The approximately 45–61 in adjustable straddle-leg range and 0–27.5 in adjustable fork spread allow the machine to be configured for different compatible pallet widths and load arrangements instead of restricting operation to one fixed-width setup.
The 118 in maximum lift height makes this Adjustable Straddle Pallet Stacker particularly suitable for facilities requiring elevated pallet placement while maintaining a flexible adjustable-leg configuration.
It supports warehouse replenishment, elevated storage, pallet positioning, and stacking applications where the additional vertical reach of the 10 ft configuration is beneficial.
The US-ESBA33K 118 Adjustable Straddle Pallet Stacker uses a 24V / 100Ah lead-acid battery system with approximately 2.4 kWh of nominal battery energy.
A 0.75 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for pallet transportation, lifting, lowering, positioning, and elevated stacking.
Do not operate the US-ESBA33K 118 Adjustable Straddle Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ESBA33K 118 | Full-electric Adjustable Straddle Pallet Stacker with Walkie operation |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 24 in | Rated load center for stable pallet handling |
| Lift Height | 10 ft (118 in) | Maximum vertical fork lift height for elevated pallet stacking and warehouse racking |
| Lowered Mast Height | 82 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 140 in | Maximum overall mast height when fully extended |
| Fork Length | 45 in | Heavy-duty steel forks for compatible palletized loads |
| Fork Spread | 0–27.5 in Adjustable | Adjustable distance between forks for different compatible pallet and load configurations |
| Straddle Leg Width | 45–61 in Adjustable | Adjustable straddle-leg width for different compatible pallet configurations |
| Overall Length | 70 in | Overall machine length |
| Overall Width | 45–61 in Adjustable | Overall width varies according to straddle-leg position |
| Wheelbase | 46 in | Distance between wheel centers for stability and maneuverability |
| Turning Radius | 55 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Travel Speed | Up to 2.6 mph | Maximum rated travel speed under specified operating conditions |
| Lifting Speed | Up to 5.3 in/s | Maximum rated lifting speed under specified operating conditions |
| Battery | 24V / 100Ah Lead-Acid | Industrial electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 2.4 kWh | Total nominal energy capacity of the 24V / 100Ah battery system |
| Runtime | Approx. 4–5 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible lead-acid battery charger |
| Drive Motor | 0.75 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, positioning, and stacking |
| Brake System | Electromagnetic | Electromagnetic braking system for controlled stopping |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for controlled pallet transport, maneuvering, lifting, and positioning |
| Machine Weight | Approx. 1,455 lb | Approximate operating weight including battery |
| Adjustable Configuration | Forks & Straddle Legs | 0–27.5 in adjustable fork spread and 45–61 in adjustable straddle legs provide flexibility for different compatible pallet configurations |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | Flexible Elevated Pallet Handling | Designed for facilities requiring adjustable pallet handling combined with a 10 ft maximum lift height |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for warehouse racking, elevated pallet stacking, pallet transport, staging, inventory movement, receiving, replenishment, production material handling, and different compatible pallet sizes |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESBA33K 118 Adjustable Straddle Pallet Stacker has a maximum rated lifting capacity of 3,300 lb at a 24 in load center for compatible palletized loads.
The US-ESBA33K 118 provides a maximum fork lift height of 10 ft (118 in), making it suitable for warehouse racking, elevated pallet stacking, replenishment, storage, and material positioning.
The mast measures approximately 82 in high when fully lowered. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operating the stacker.
The US-ESBA33K 118 reaches approximately 140 in overall when the mast is fully extended.
The US-ESBA33K 118 has a rated 24 in load center for stable handling of compatible palletized loads.
The machine combines 45–61 in adjustable straddle legs with an adjustable 0–27.5 in fork spread, providing flexibility for facilities handling different compatible pallet widths and load configurations.
The straddle legs can be adjusted from approximately 45–61 in wide to accommodate different compatible pallet configurations.
Yes. The 45 in forks provide an adjustable fork spread ranging from approximately 0–27.5 in for different compatible pallet and load configurations.
The US-ESBA33K 118 uses 45 in heavy-duty steel forks designed for compatible palletized loads.
Yes, when the pallet dimensions and configuration are compatible with the machine. The adjustable forks and 45–61 in adjustable straddle legs provide greater flexibility than a fixed-width straddle configuration.
Overall width is adjustable from approximately 45–61 in depending on the selected straddle-leg position.
The US-ESBA33K 118 measures approximately 70 in in overall length.
The US-ESBA33K 118 has an approximately 55 in turning radius for maneuvering, pallet approach, turning, and load positioning.
The stacker has an approximately 46 in wheelbase for stability and maneuverability during material-handling operations.
Maximum rated travel speed is up to approximately 2.6 mph under specified operating conditions.
The US-ESBA33K 118 provides a rated lifting speed of up to approximately 5.3 in/s under specified operating conditions.
The stacker uses a 24V / 100Ah lead-acid traction battery system that supplies power to electric travel and hydraulic lifting.
The 24V / 100Ah lead-acid battery provides approximately 2.4 kWh of nominal battery energy.
Typical operating time is approximately 4–5 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions. Actual charging time may vary depending on remaining charge, battery condition, temperature, charger performance, and charging conditions.
No. Stop operating the US-ESBA33K 118 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the stacker to service, or replace it with a properly charged compatible battery when applicable.
A 0.75 kW electric traction motor provides powered travel for pallet transportation and positioning.
A 2.2 kW electric hydraulic lift motor provides power for pallet lifting, lowering, elevated positioning, and stacking.
Yes. The US-ESBA33K 118 provides powered electric travel and electric hydraulic lifting for full-electric material handling.
Yes. It is a Walkie Adjustable Straddle Pallet Stacker designed for walk-behind operation during pallet transportation, maneuvering, lifting, stacking, and positioning.
No ride-on operator platform is specified for the US-ESBA33K 118. This model is configured for Walkie, or walk-behind, operation.
The US-ESBA33K 118 uses an electromagnetic braking system for controlled stopping during travel and pallet-handling operations.
Approximate machine operating weight is 1,455 lb including the battery.
The stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
No. This Adjustable Straddle Pallet Stacker is intended primarily for suitable indoor floors and is not designed for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
It is well suited for warehouses, distribution centers, manufacturing facilities, fulfillment centers, commercial storage operations, receiving areas, staging zones, and other professional indoor material-handling environments.
Typical applications include warehouse racking, elevated pallet stacking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, commercial storage, and handling different compatible pallet sizes.
The US-ESBA33K 118 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

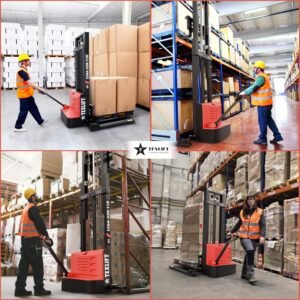

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 45–61 in adjustable straddle legs and 0–27.5 in adjustable fork spread allow the US-ESBA33K 118 Adjustable Straddle Pallet Stacker to accommodate different compatible pallet widths and load configurations.
Adjustable straddle legs and 45 in adjustable forks provide flexibility for facilities that regularly handle different compatible pallet sizes and load arrangements.
The 10 ft (118 in) maximum lift height supports elevated pallet stacking, storage, replenishment, and material positioning throughout compatible warehouse environments.
Position compatible palletized loads within warehouse racking using the 118 in maximum lift height, adjustable straddle configuration, and controlled electric hydraulic lifting system.
Full-electric travel supports efficient movement of compatible palletized loads weighing up to 3,300 lb between receiving, staging, storage, production, and inventory areas.
Move palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas while accommodating different compatible pallet configurations.
Transport and position palletized raw materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, organization, replenishment, storage, retrieval, and pallet positioning throughout compatible warehouse and industrial environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Use the 10 ft lift height to position compatible palletized inventory for warehouse replenishment, elevated storage, and organized material flow.
Transport compatible palletized materials, components, supplies, and finished products between production areas, warehouse storage, inventory locations, and staging zones.
Support pallet organization, elevated stacking, transportation, replenishment, and material positioning throughout compatible commercial storage facilities.
Walk-behind operation provides direct operator control for pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
Full-electric travel and hydraulic lifting support repetitive pallet movement and stacking applications where powered material handling can reduce manual effort.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ESBA33K 118 Adjustable Straddle Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electric travel, hydraulic lifting, Walkie controls, adjustable straddle-leg operation, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, straddle-leg, battery, control, and other service components for the US-ESBA33K 118.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 24V / 100Ah lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the adjustable forks, adjustable straddle legs, mast, hydraulic system, battery system, electric drive system, Walkie controls, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
