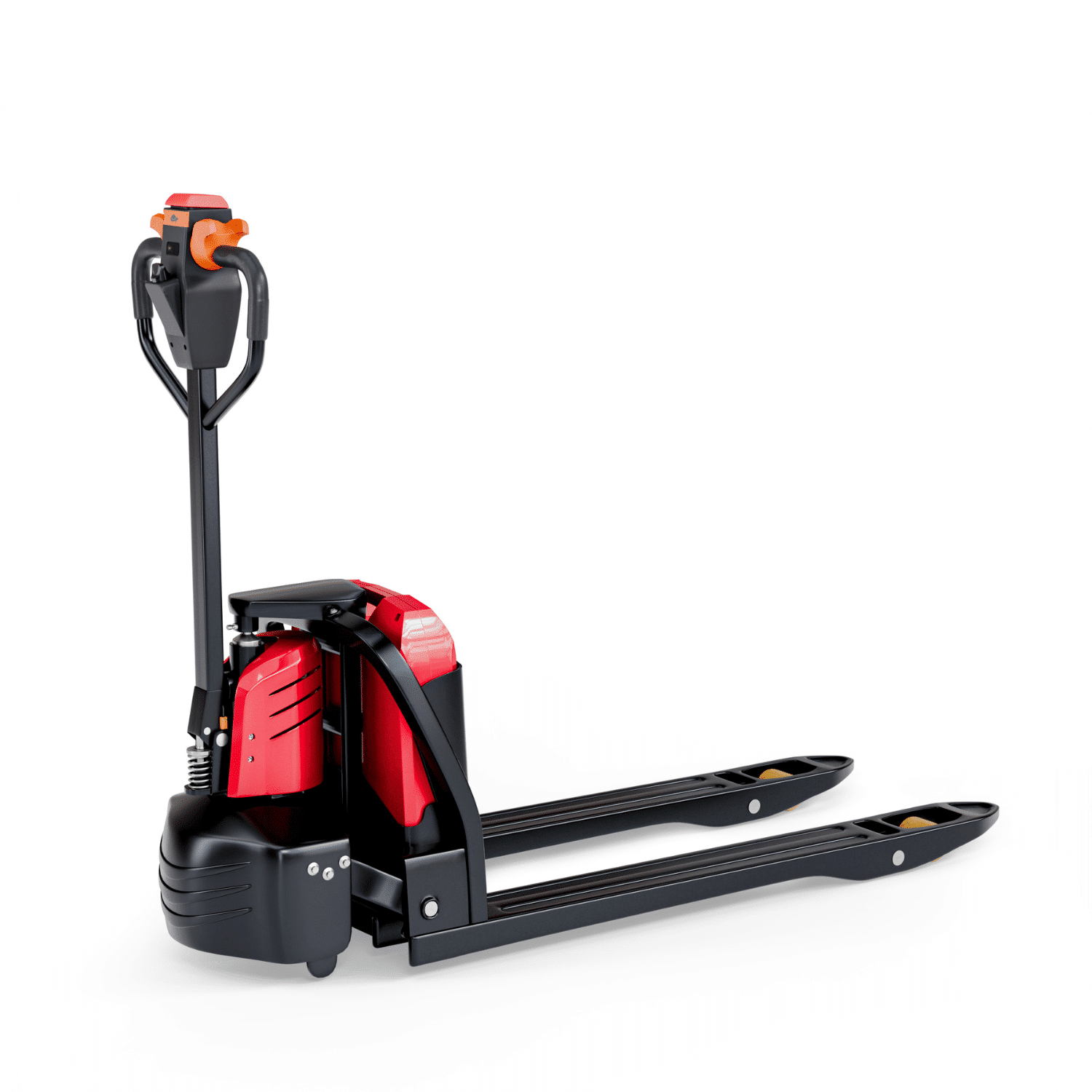

A compact electric pallet jack designed for efficient everyday material handling, the Texlift US-EPT33K DN combines a 3,300 lb rated load capacity with powered travel, electric lifting, and a 24V / 30Ah lithium-ion battery. Designed for warehouses, distribution centers, manufacturing facilities, shipping and receiving departments, trailers, commercial storage areas, and other professional environments, it provides a practical electric alternative to manual pallet handling for repetitive commercial operations.
The US-EPT33K DN compact electric pallet jack features 45 × 27 in forks, a 3.35 in minimum fork height, an 8 in maximum fork height, and a compact 55 in turning radius. A 0.75 kW drive motor and 0.8 kW lift motor provide powered travel and lifting, while electromagnetic braking, emergency-stop functionality, responsive DC drive control, and battery monitoring support controlled everyday operation.
The US-EPT33K DN provides a maximum rated load capacity of 3,300 lbs at a 23.6 in load center for compatible palletized loads.
Its rated capacity makes this compact electric pallet jack suitable for transporting inventory, packaged products, supplies, components, production materials, and palletized shipments throughout warehouses, distribution centers, manufacturing facilities, and other commercial operations.
Always operate within the rated capacity and ensure loads are stable, correctly positioned, and properly supported before lifting or transportation.
Powered electric travel and electric lifting reduce the physical effort required for repetitive pallet movement compared with a conventional manual pallet jack.
A 0.75 kW electric traction motor powers machine travel, while the 0.8 kW lift motor provides powered lifting and lowering.
This full electric configuration eliminates manual hydraulic pumping and supports efficient pallet transportation, positioning, loading, and unloading throughout everyday commercial operations.
The US-EPT33K DN is powered by a rechargeable 24V / 30Ah lithium-ion battery with approximately 0.72 kWh of nominal energy capacity.
The lithium power system supplies energy to both the powered travel and electric lifting systems, providing a convenient rechargeable power source for routine warehouse and commercial material handling.
The compatible battery charger is included with the machine.
The 24V / 30Ah lithium-ion battery provides approximately 3–4 hours of stated continuous operating time per charge.
Actual runtime varies depending on load weight, travel distance, lifting frequency, floor conditions, operating intensity, temperature, battery condition, battery age, and operator practices.
Frequent lifting, longer travel distances, or operation with heavier loads can reduce operating time per charge.
Stated battery recharge time is approximately 5 hours under suitable charging conditions.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charging environment, and other operating factors.
Always use the compatible charger supplied with the machine and follow the recommended charging procedures.
The US-EPT33K DN features 45 in long forks with a 27 in overall fork width for handling compatible palletized loads.
The forks lower to approximately 3.35 in for pallet entry and raise to approximately 8 in for pallet pickup, transportation, and positioning.
Because pallet dimensions, fork openings, bottom-board configurations, and entry clearances vary, customers should verify pallet compatibility before ordering or operating the machine.
An approximately 55 in turning radius helps the US-EPT33K DN maneuver through suitable warehouse aisles, trailers, storage areas, staging zones, shipping departments, and other commercial working environments.
With an approximately 63 in overall length and 27 in overall width, this compact electric pallet jack provides a practical footprint for everyday pallet transportation.
Always verify available aisle, doorway, trailer, and turning clearance before operation.
Maximum travel speed is approximately 2.6 mph with a full load and approximately 2.8 mph without a load.
Powered travel reduces the manual pulling effort associated with conventional pallet jacks and supports efficient transportation of compatible palletized loads.
Operators should always select a safe travel speed based on load weight, floor conditions, available clearance, surrounding traffic, and the operating environment.
Rated gradeability is approximately 5% with a full load and approximately 10% without a load under suitable operating conditions.
This provides limited incline capability for appropriate ramps and working areas.
The US-EPT33K DN is not an off-road or all-terrain pallet jack and should not be operated on gravel, soft ground, highly uneven surfaces, or unsuitable slopes.
A 0.75 kW electric traction motor provides powered travel for moving compatible palletized loads.
Powered travel reduces the pulling effort associated with a conventional manual pallet jack and supports repetitive material movement throughout suitable commercial and industrial environments.
The 0.8 kW electric lift motor powers the lifting system, eliminating the need for repetitive manual hydraulic pumping.
Electric lifting helps operators raise and position compatible palletized loads during routine warehouse, shipping, receiving, staging, distribution, and production operations.
An ergonomic control handle provides convenient access to powered travel, lifting, lowering, and maneuvering functions during normal walk-behind operation.
The control configuration is designed to support responsive everyday operation while allowing the operator to maintain direct control of pallet movement and positioning.
The US-EPT33K DN uses an electromagnetic braking system to support controlled stopping during normal operation.
The braking system works together with the electric drive and operator controls to provide controlled walk-behind material handling when the machine is operated correctly and within its rated limitations.
Responsive DC drive control manages powered travel during normal pallet-handling operations.
Combined with the ergonomic control handle and electromagnetic braking system, it supports controlled maneuvering and positioning in suitable warehouse and commercial material-handling environments.
The US-EPT33K DN includes an emergency-stop function as an additional operator safety control.
A battery monitoring feature helps the operator monitor available battery power during operation and determine when charging is required.
Operators should always follow the equipment instructions, rated operating limitations, and applicable workplace safety procedures.
The US-EPT33K DN measures approximately 63 in long, 27 in wide, and 46 in high, with a total operating weight of approximately 320 lbs including the battery.
Its compact walk-behind configuration and approximately 55 in turning radius provide practical maneuverability for suitable warehouse aisles, staging areas, shipping departments, trailers, storage environments, and other commercial workplaces.
The combination of compact dimensions, powered travel, electric lifting, and a 3,300 lb rated capacity makes the machine particularly useful for repetitive everyday pallet handling.
The US-EPT33K DN is designed primarily for firm, smooth, and relatively level warehouse and commercial industrial surfaces.
Suitable environments include warehouses, distribution centers, manufacturing facilities, shipping and receiving departments, trailers, storage facilities, wholesale operations, and other protected commercial workspaces.
The machine is not designed for gravel, soft ground, rough terrain, or off-road operation.
The US-EPT33K DN includes the complete compact electric pallet jack with 45 × 27 in forks, 24V / 30Ah lithium-ion battery, compatible battery charger, and standard product documentation.
The supplied lithium-ion battery and charger are matched to the machine for normal operation and charging.
Optional accessories, replacement parts, and other items not specifically listed as included are sold separately unless otherwise stated on the order or invoice.
Every US-EPT33K DN compact electric pallet jack is inspected and tested before shipment to help verify basic travel, lifting, braking, controls, battery operation, and general equipment condition before leaving our facility.
Customers should perform the recommended receiving inspection and review the operating and safety instructions before placing the pallet jack into service.
Use only the appropriate charging equipment for the installed 24V / 30Ah lithium-ion battery and follow the recommended charging procedures.
Do not store the machine for extended periods with a deeply discharged battery.
During longer storage periods, maintain an appropriate battery charge level and follow the recommended battery inspection, charging, and storage procedures.
The US-EPT33K DN compact electric pallet jack is best suited for warehouses, distribution centers, shipping and receiving departments, manufacturing facilities, trailers, commercial storage areas, wholesale operations, production environments, and businesses requiring frequent pallet transportation in compact working areas.
Its combination of powered travel, electric lifting, compact maneuverability, and 3,300 lb rated capacity makes it practical for everyday commercial pallet handling.
Typical applications include warehouse pallet movement, shipping and receiving, inventory transportation, trailer loading and unloading, order staging, manufacturing material handling, production supply movement, distribution operations, inventory replenishment, wholesale inventory handling, and repetitive commercial pallet transportation.
The compact 55 in turning radius can be particularly useful in suitable working environments where maneuvering space is more restricted.
Recharge the 24V / 30Ah lithium-ion battery according to the recommended charging procedures to help maintain battery performance and service life.
Avoid leaving the battery deeply discharged or storing the machine for extended periods at a very low state of charge.
Battery capacity and runtime naturally change over time and may be affected by battery age, frequency of use, temperature, charging practices, storage conditions, load demands, and operating conditions.
Do not allow the battery charge level to drop below 20%.
Recharge the battery before it reaches 20%. Avoid continued operation at a very low state of charge and do not store the machine with a deeply discharged battery.
Battery damage or performance issues resulting from deep discharge, improper charging, improper storage, misuse, or failure to follow recommended battery-care procedures are not considered manufacturing defects and may not qualify for warranty coverage.
For extended storage, maintain an appropriate battery charge level and follow the recommended charging and storage procedures provided with the equipment.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-EPT33K DN | Compact full electric lithium-powered pallet jack designed for warehouse and commercial material handling |
| Load Capacity | 3,300 lbs | Maximum rated load capacity for compatible palletized loads |
| Load Center | 23.6 in | Rated load center for proper load positioning and stability |
| Fork Length | 45 in | Fork length for handling compatible pallets |
| Overall Fork Width | 27 in | Outside width across the forks |
| Minimum Fork Height | 3.35 in | Lowered fork height for entering compatible pallets |
| Maximum Fork Height | 8 in | Maximum raised fork height for pallet transportation and positioning |
| Overall Length | 63 in | Total machine length |
| Overall Width | 27 in | Total machine width |
| Overall Height | 46 in | Overall height including the operating handle |
| Turning Radius | 55 in | Compact turning radius for maneuvering in suitable warehouse aisles and working areas |
| Travel Speed (Full / No Load) | 2.6 / 2.8 mph | Maximum travel speed loaded / unloaded |
| Gradeability (Full / No Load) | 5% / 10% | Rated gradeability loaded / unloaded under suitable operating conditions |
| Drive Motor | 0.75 kW | Electric traction motor providing powered travel |
| Lift Motor | 0.8 kW | Electric motor powering the lifting system |
| Power Source | Full Electric | Powered electric travel and electric lifting |
| Battery Type | Lithium-Ion | Rechargeable lithium battery system designed for commercial material handling |
| Battery | 24V / 30Ah Lithium | Battery voltage and rated capacity |
| Battery Energy | 0.72 kWh | Nominal energy calculated from 24V × 30Ah |
| Runtime | Approx. 3–4 Hours | Stated continuous operating time; actual runtime varies with load, travel distance, lifting frequency, floor conditions, temperature, battery condition, and usage |
| Charging Time | Approx. 5 Hours | Stated recharge time under suitable charging conditions; actual charging time varies with remaining charge level, battery condition, temperature, and charging environment |
| Brake Type | Electromagnetic | Electromagnetic braking system for controlled stopping and operation |
| Controller | DC Drive Control | DC control system providing responsive electric travel control |
| Smart Handle | Ergonomic Control Handle | Convenient operator controls for powered travel, lifting, lowering, and maneuvering |
| Emergency Stop | Yes | Emergency-stop function provides an additional operator safety control |
| Battery Alert | Yes | Battery monitoring feature helps the operator monitor available battery power |
| Truck Weight | 320 lbs | Total operating weight including battery |
| Operation Type | Walk-Behind Full Electric | Pedestrian-operated electric pallet jack with powered travel and electric lifting |
| Recommended Surface | Firm, Smooth & Relatively Level | Designed primarily for warehouse and commercial industrial flooring; not an all-terrain pallet jack |
| Operating Environment | Indoor / Covered Areas | Best suited for warehouses, distribution centers, manufacturing facilities, trailers, shipping and receiving areas, and protected commercial environments |
| Warranty | 12-Month Equipment Warranty | Warranty coverage for eligible manufacturing defects under normal intended use, subject to Texlift warranty terms and conditions |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-EPT33K DN has a maximum rated load capacity of 3,300 lbs at a 23.6 in load center for compatible palletized loads.
Yes. The US-EPT33K DN provides powered electric travel and electric lifting, reducing the manual effort required for repetitive pallet transportation and positioning.
The US-EPT33K DN features 45 in long forks with a 27 in overall fork width for handling compatible palletized loads.
The forks lower to approximately 3.35 in for entering compatible pallets and raise to approximately 8 in for pallet pickup, transportation, and positioning.
The pallet jack uses a rechargeable 24V / 30Ah lithium-ion battery with approximately 0.72 kWh of nominal energy capacity.
Stated continuous operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, floor conditions, temperature, battery condition, and operating intensity.
Stated charging time is approximately 5 hours under suitable charging conditions. Actual charging time may vary depending on remaining charge level, battery condition, temperature, and charging environment.
No. Recharge the battery before the charge level drops below 20%. Repeated deep discharge can reduce battery performance, shorten battery service life, and may cause battery damage.
Yes. The US-EPT33K DN includes the 24V / 30Ah lithium-ion battery and a compatible battery charger.
The pallet jack uses a 0.75 kW electric drive motor for powered travel and a 0.8 kW electric lift motor for powered lifting.
Maximum travel speed is approximately 2.6 mph with a full load and approximately 2.8 mph without a load.
Rated gradeability is approximately 5% with a full load and approximately 10% without a load under suitable operating conditions.
The US-EPT33K DN has an approximately 55 in turning radius for maneuvering in suitable warehouse aisles, trailers, staging areas, and commercial working environments.
The US-EPT33K DN measures approximately 63 in long, 27 in wide, and 46 in high.
The pallet jack uses an electromagnetic braking system designed to support controlled stopping during normal operation.
Yes. The machine includes an emergency-stop function as an additional operator safety control.
Yes. The pallet jack includes a battery monitoring feature that helps the operator monitor available battery power during operation.
The pallet jack uses a DC drive control system designed to provide responsive control of powered travel.
Total operating weight is approximately 320 lbs including the installed battery.
Yes. Its approximately 55 in turning radius, 63 in overall length, and 27 in overall width provide practical maneuverability in suitable warehouse aisles, staging areas, trailers, and other commercial working environments. Available clearance should always be verified before operation.
Yes. It can be used in compatible trailers when floor capacity, pallet dimensions, available clearance, ramp conditions, and operating space are suitable. Trailer compatibility should always be verified before operation.
The pallet jack is designed primarily for indoor and covered environments on firm, smooth, and relatively level surfaces. It is not an all-terrain pallet jack and is not intended for gravel, soft ground, rough terrain, or unsuitable outdoor surfaces.
No. Pallet dimensions and entry configurations vary. Customers should verify compatibility with the 45 in fork length, 27 in overall fork width, and 3.35 in minimum fork height before ordering.
It is well suited for warehouses, distribution centers, manufacturing facilities, shipping and receiving departments, trailers, commercial storage facilities, wholesale operations, production areas, and other protected material-handling environments.
The package includes the complete full electric pallet jack, 24V / 30Ah lithium-ion battery, compatible battery charger, and standard product documentation.
Yes. The US-EPT33K DN includes a 12-month equipment warranty covering eligible manufacturing defects under normal intended use, subject to Texlift warranty terms and conditions.
Yes. Every US-EPT33K DN is inspected and tested before shipment to help verify basic travel, lifting, braking, controls, battery operation, and general equipment condition before leaving our facility.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Move compatible palletized inventory efficiently throughout warehouses and distribution centers using powered travel and electric lifting for repetitive material-handling operations.
Transport incoming and outgoing palletized shipments between receiving areas, inspection zones, storage locations, staging areas, and shipping departments.
Maneuver compatible palletized loads inside trailers and suitable loading areas where the compact 55 in turning radius, 27 in overall width, and full electric operation provide practical maneuverability.
Transport compatible palletized raw materials, components, supplies, work-in-process inventory, and finished products between production, storage, staging, and shipping areas.
Move palletized orders between inventory locations, picking areas, staging zones, packing operations, and outbound shipping areas for efficient order preparation and fulfillment.
Transport palletized merchandise, components, and supplies from storage areas to active picking, production, assembly, or replenishment locations.
Move compatible palletized merchandise throughout stockrooms, warehouses, wholesale facilities, receiving areas, and commercial storage environments.
Supply production areas with palletized materials and move completed products to storage, staging, distribution, or shipping locations.
Handle palletized inventory in commercial storage environments where the compact dimensions, 55 in turning radius, and full electric operation help simplify repetitive material movement.
The approximately 63 in overall length, 27 in overall width, and 55 in turning radius provide practical maneuverability in suitable aisles, staging areas, trailers, and other working environments where space may be restricted.
Ideal for frequent transportation of compatible palletized loads up to 3,300 lbs using powered travel and electric lifting on firm, smooth, and relatively level commercial surfaces.
Designed primarily for warehouses, distribution facilities, manufacturing environments, trailers, shipping areas, and other indoor or covered workplaces with suitable flooring; not designed for gravel, soft ground, rough terrain, or off-road applications.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-EPT33K DN is backed by a 12-month equipment warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
The included 24V / 30Ah lithium-ion battery is covered by a 90-day warranty for eligible manufacturing defects. Normal capacity reduction, normal wear, improper charging, deep discharge, improper storage, misuse, or damage resulting from failure to follow battery-care requirements is not covered.
Texlift technical assistance is available for machine operation, troubleshooting, controls, powered travel, electric lifting, braking, charging, routine maintenance, and general product questions.
Assistance is available for the 24V / 30Ah lithium-ion battery, compatible charger, charging procedures, battery connections, storage, inspection, and battery-performance troubleshooting.
Technical assistance is available for the 0.75 kW electric drive motor, powered travel system, DC drive control, electromagnetic braking system, and related electrical components.
Support is available for the 0.8 kW electric lifting system, hydraulic components, lift controls, and troubleshooting related to pallet lifting and lowering performance.
Assistance is available for the ergonomic control handle, emergency-stop function, battery monitoring system, electromagnetic braking, DC drive control, and related operating components.
Assistance is available for confirming compatibility with the 45 in fork length, 27 in overall fork width, 3.35 in minimum fork height, and specific pallet dimensions or entry configurations.
Assistance is available for identifying compatible replacement parts and service items, including wheels, rollers, electrical components, controls, battery-related components, hydraulic components, handle components, drive-system parts, lift-system parts, and other machine components.
Regular inspection of the forks, wheels, load rollers, hydraulic system, controls, braking system, battery, charger, electrical connections, drive system, lifting system, and safety components is recommended to help maintain reliable operation.
Do not allow the battery charge level to drop below 20%. Recharge the battery before it reaches 20%, and do not operate or store the machine with a deeply discharged battery. Recommended charging and storage procedures must be followed.
Normal wear, wheels and other consumable or wear items, misuse, overloading, accidents, improper operation, improper charging, deep battery discharge, improper storage, inadequate maintenance, unauthorized modifications or repairs, water damage, and damage caused by failure to follow operating or battery-care requirements are not covered.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
Explore additional equipment selected to complement your material handling operation.
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
Game changer for my truck! Makes my days easier and saving on the wear and tear of my body.
