Built for professional pallet transport, lifting, and elevated warehouse stacking, the US-ES33K 118 is a full-electric Walkie Electric Pallet Stacker combining a 3,300 lb rated load capacity with a 10 ft (118 in) maximum lift height. This Electric Pallet Stacker provides practical vertical reach for warehouse racking, elevated storage, inventory positioning, and everyday material handling in warehouses, distribution centers, manufacturing facilities, and other indoor commercial environments.
The fixed straddle-leg configuration provides a stable base for compatible palletized loads, while 45 in forks with an adjustable 5.5–27 in fork spread provide flexibility for different compatible pallet configurations. Full-electric travel, hydraulic lifting, a compact 55 in turning radius, and a 48V / 32Ah lead-acid battery system make the US-ES33K 118 Electric Pallet Stacker a practical solution for repetitive indoor pallet handling.

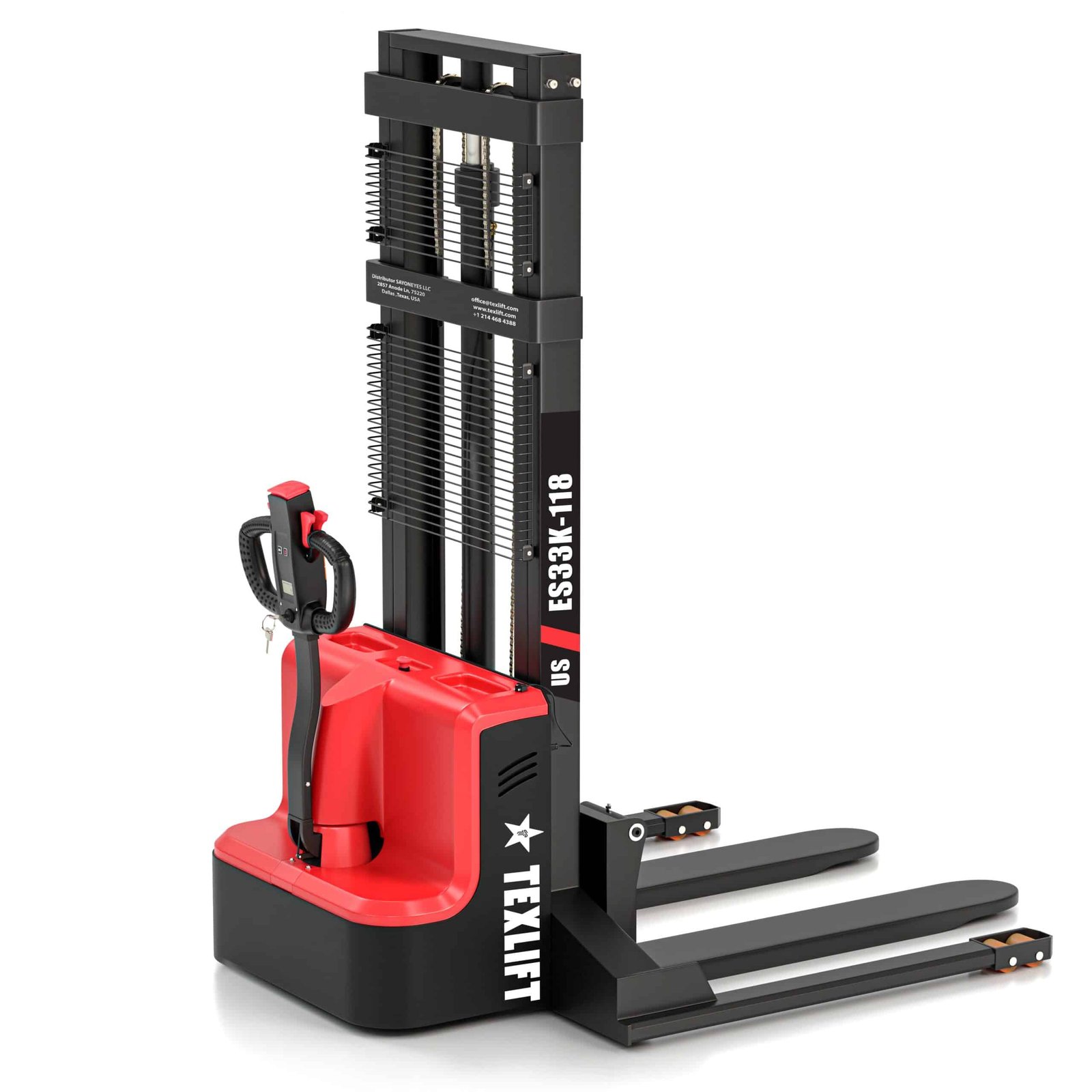

The US-ES33K 118 Electric Pallet Stacker handles compatible palletized loads up to 3,300 lb at the rated 20 in load center.
Its lifting capacity supports pallet transportation, positioning, lifting, and elevated stacking throughout warehouses, distribution centers, manufacturing facilities, storage areas, and other professional indoor material-handling environments.
The 10 ft (118 in) maximum fork lift height provides increased vertical reach for elevated pallet stacking, warehouse racking, storage, retrieval, and material positioning.
This lift height makes the Electric Pallet Stacker suitable for facilities requiring higher pallet placement while maintaining convenient walk-behind operation and practical warehouse maneuverability.
The mast measures approximately 82 in high when fully lowered, providing a practical travel profile for this 10 ft Electric Pallet Stacker configuration.
Maximum overall height with the mast fully extended is approximately 147 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The 45 in forks can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
The adjustable fork configuration provides flexibility for professional pallet handling while supporting proper fork positioning beneath compatible palletized loads.
Fixed straddle legs provide a stable machine base around compatible palletized loads during transportation, lifting, positioning, and elevated stacking.
The US-ES33K 118 Electric Pallet Stacker measures approximately 60 in wide across the straddle-leg configuration, providing a stable platform for professional warehouse and industrial pallet-handling applications.
The walk-behind configuration provides direct operator control of powered travel, steering, lifting, lowering, and pallet positioning without requiring an onboard operator platform.
Walkie operation makes the US-ES33K 118 particularly practical for warehouse applications where controlled pallet approach, positioning, stacking, and maneuverability are important.
A compact 55 in turning radius and approximately 70 in overall machine length provide practical maneuverability for pallet approach, transportation, turning, and load positioning.
The Electric Pallet Stacker is designed for controlled movement throughout compatible warehouse aisles, storage areas, staging zones, receiving areas, production facilities, and distribution environments.
The US-ES33K 118 Electric Pallet Stacker uses a 48V / 32Ah lead-acid traction battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting, providing full-electric material handling with no tailpipe exhaust emissions at the machine during operation.
Typical operating time for the US-ES33K 118 Electric Pallet Stacker is approximately 3–4 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
The 2-stage wide-view mast provides the vertical reach required for elevated pallet stacking while supporting operator visibility during professional material-handling operations.
A 0.8 kW electric traction motor provides powered travel for efficient pallet transportation and positioning throughout compatible indoor warehouse environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated stacking, and controlled load positioning.
Durable polyurethane wheels provide smooth and controlled travel across firm, level, and adequately supported warehouse and industrial floors.
The US-ES33K 118 Electric Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, retail stockrooms, commercial storage facilities, production environments, receiving areas, loading areas, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb rated capacity, 10 ft lift height, fixed straddle-leg configuration, compact turning radius, and full-electric operation make this Electric Pallet Stacker particularly useful for facilities requiring frequent pallet transportation combined with elevated stacking and warehouse racking.
The US-ES33K 118 is ideal for elevated pallet stacking, warehouse racking, pallet transportation, inventory movement, receiving and staging, production-line material handling, storage organization, replenishment, and positioning compatible palletized loads weighing up to 3,300 lb.
The 10 ft (118 in) maximum lift height provides practical vertical reach for elevated storage, while the walk-behind configuration supports controlled maneuvering and pallet positioning throughout compatible indoor facilities.
The US-ES33K 118 Electric Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.8 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for full-electric pallet transportation, lifting, lowering, and elevated stacking.
Do not operate the US-ES33K 118 Electric Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ES33K 118 | Full-electric walkie pallet stacker with fixed straddle legs |
| UPC | 810166850124 | Universal Product Code for the US-ES33K 118 |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for the stated 3,300 lb capacity |
| Lift Height | 10 ft (118 in) | Maximum vertical fork lift height for elevated pallet stacking and material positioning |
| Lowered Mast Height | 82 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 147 in | Maximum overall machine height with the mast fully extended |
| Mast Type | 2-Stage Wide-View | Two-stage mast designed for elevated pallet stacking while supporting operator visibility |
| Fork Length | 45 in | Fork length for compatible palletized loads |
| Fork Spread | 5.5–27 in Adjustable | Adjustable fork positioning for different compatible pallet and load configurations |
| Minimum Fork Height | ≤3.6 in | Minimum lowered fork height for compatible pallet entry |
| Straddle Legs | Fixed | Fixed straddle-leg configuration for stable pallet handling |
| Overall Length | 70 in | Overall machine length |
| Overall Width | 60 in | Overall width across the fixed straddle-leg configuration |
| Turning Radius | 55 in | Minimum turning radius for warehouse maneuvering and pallet positioning |
| Wheel Type | Polyurethane | Durable polyurethane wheels designed for smooth indoor industrial floors |
| Battery | 48V / 32Ah Lead-Acid | Electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible charger |
| Charger Type | 48V Lead-Acid Battery Charger | Compatible charger designed for the installed 48V lead-acid battery system |
| Drive Motor | 0.8 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, elevated stacking, and positioning |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for powered travel, lifting, lowering, and pallet positioning |
| Machine Weight | Approx. 1,240 lb | Approximate machine operating weight including the battery system |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed primarily for warehouses and firm, level, adequately supported industrial floors |
| Best Use | Indoor Pallet Transport & Elevated Stacking | Designed for pallet transportation, warehouse racking, elevated stacking, storage, and load positioning |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, elevated stacking, warehouse racking, staging, inventory movement, production material handling, and indoor pallet positioning |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ES33K 118 Electric Pallet Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-ES33K 118 provides a maximum fork lift height of 10 ft (118 in) for elevated pallet stacking, warehouse racking, storage, and material positioning.
The US-ES33K 118 has an approximately 82 in lowered mast height, providing a practical travel profile for this 10 ft Electric Pallet Stacker configuration.
The US-ES33K 118 reaches approximately 147 in in maximum overall height when the mast is fully extended. Always verify ceiling, doorway, rack, sprinkler, lighting, and other overhead clearances before operation.
The US-ES33K 118 uses a 2-stage wide-view mast designed to provide the vertical reach required for elevated pallet stacking while supporting operator visibility during material-handling operations.
The US-ES33K 118 is equipped with 45 in forks designed for handling compatible palletized loads within the machine's rated capacity.
The forks provide an adjustable spread of approximately 5.5–27 in, allowing the operator to position them for different compatible pallet and load configurations.
The minimum lowered fork height is approximately 3.6 in or less for entry into compatible pallet configurations.
Yes. The US-ES33K 118 uses a fixed straddle-leg configuration that provides a stable base around compatible palletized loads during transportation, lifting, positioning, and elevated stacking.
The Electric Pallet Stacker measures approximately 70 in long and 60 in wide across the fixed straddle-leg configuration. The mast measures approximately 82 in high when fully lowered.
The US-ES33K 118 has an approximately 55 in turning radius for warehouse maneuvering, pallet approach, and load positioning.
The US-ES33K 118 has an approximate operating weight of 1,240 lb including the battery system.
The Electric Pallet Stacker uses durable polyurethane wheels designed for smooth, firm, level, and adequately supported indoor industrial floors.
The US-ES33K 118 uses a 48V / 32Ah lead-acid traction battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, and charging conditions.
The US-ES33K 118 uses a compatible 48V lead-acid battery charger designed for the installed battery system.
No. Stop operating the US-ES33K 118 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the Electric Pallet Stacker to service, or replace it with a properly charged compatible battery when applicable.
The US-ES33K 118 uses a 0.8 kW electric traction motor to provide powered travel for professional indoor material-handling operations.
A 2.2 kW electric hydraulic lift motor powers pallet pickup, lifting, lowering, elevated stacking, and load-positioning functions.
Yes. The US-ES33K 118 Electric Pallet Stacker provides powered electric travel and electric hydraulic lifting for full-electric material-handling operation.
Yes. The US-ES33K 118 uses a walk-behind operator configuration that provides direct control of powered travel, steering, lifting, lowering, and pallet positioning.
No. The US-ES33K 118 is a Walkie Electric Pallet Stacker and does not use the integrated Rider / Walkie operator platform found on the US-DS33K series.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The Electric Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and similar commercial environments.
No. The US-ES33K 118 uses polyurethane wheels and is designed primarily for indoor industrial floors. It is not intended for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-ES33K 118 is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, retail stockrooms, production environments, receiving areas, and other professional indoor material-handling operations.
Typical applications include elevated pallet stacking, warehouse racking, pallet transportation, inventory movement, receiving and staging, production-line material handling, storage organization, replenishment, and indoor pallet positioning.
The US-ES33K 118 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 10 ft (118 in) maximum lift height provides practical vertical reach for stacking and positioning compatible palletized loads in elevated indoor storage locations.
Position compatible palletized inventory within warehouse racking using the 3,300 lb rated capacity, adjustable 45 in forks, and controlled electric hydraulic lifting.
Transport, lift, position, and stack compatible palletized loads throughout warehouses with smooth, firm, level, and adequately supported indoor floors.
Move compatible palletized inventory between receiving, storage, staging, picking, replenishment, and shipping areas within professional distribution operations.
Transport and position palletized materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, replenishment, organization, elevated storage, and pallet positioning throughout warehouse and commercial storage environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Supply compatible palletized materials and components to production areas and transport finished products to staging, inventory, storage, or other compatible locations.
Support pallet transportation, elevated stacking, inventory organization, storage, and material positioning throughout compatible commercial storage environments.
Position and organize compatible palletized loads within indoor shipping, receiving, staging, and loading areas with suitable floor conditions.
The walk-behind configuration provides direct operator control for pallet transport, lifting, lowering, stacking, and precise load positioning without an onboard operator platform.
Full-electric travel and hydraulic lifting make the US-ES33K 118 suitable for repetitive indoor pallet handling with no tailpipe exhaust emissions at the machine during operation.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ES33K 118 Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electrical functions, hydraulic systems, walkie controls, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, wheel, braking, battery, and other service components for the US-ES33K 118.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 48V lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, 2-stage mast, hydraulic system, polyurethane wheels, battery system, electrical controls, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
