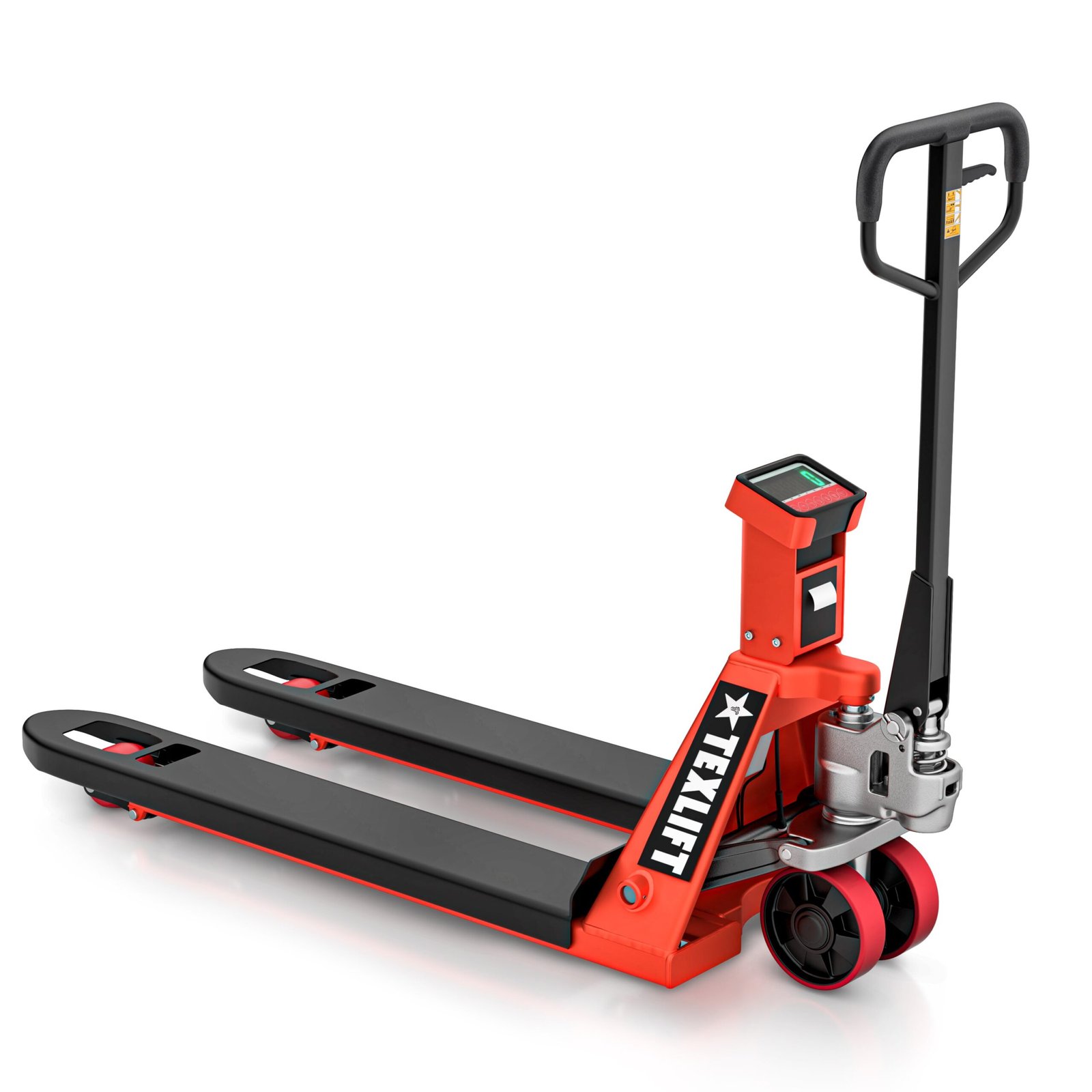

A manual pallet jack with scale and built-in printer, the Texlift US-PTSCP55K combines pallet transportation, weighing, and weight documentation in one professional material-handling machine. With a 5,500 lb rated load capacity, operators can move and weigh compatible palletized loads without transferring them to a separate stationary floor scale.
The US-PTSCP55K pallet jack with scale features 45 in forks, a 27 in overall fork width, approximately 14 in inside fork spacing, a 3.15 in lowered fork height, and an 8 in maximum fork height. Manual hydraulic lifting, an integrated digital scale, built-in weight printer, approximately 48 in turning radius, and 230 lb service weight make it a practical solution for warehouses, shipping and receiving departments, distribution centers, freight operations, manufacturing facilities, and inventory-control applications.
The US-PTSCP55K provides a maximum rated load capacity of 5,500 lbs for compatible palletized loads.
Its heavy-duty capacity makes this manual pallet jack with scale suitable for moving and weighing palletized inventory, packaged goods, materials, components, and shipments in commercial and industrial environments.
Always operate within the rated capacity and ensure loads are stable, correctly positioned, and properly supported before lifting or transportation.
The integrated digital scale allows operators to weigh compatible palletized loads directly on the pallet jack.
Combining pallet transportation and weighing can reduce unnecessary load transfers to a separate stationary floor scale and improve efficiency during receiving, shipping, inventory verification, production, and material movement.
Proper scale calibration and routine inspection are important for maintaining consistent weighing performance.
The integrated printer allows weight information to be printed directly during pallet-handling and weighing operations.
Printed weight information can provide convenient physical documentation for shipping and receiving, freight preparation, inventory records, production tracking, and other applications where pallet weight needs to be recorded or referenced.
Printer supplies and routine printer maintenance should be managed according to the equipment requirements.
The US-PTSCP55K features 45 in long forks with a 27 in overall fork width and approximately 14 in inside fork spacing.
The forks lower to approximately 3.15 in for entry into compatible pallets and raise to approximately 8 in for pallet pickup and transportation.
Because pallet dimensions and entry configurations vary, customers should verify compatibility before ordering or operating the machine.
A manual hydraulic system provides controlled lifting without requiring an electric traction or lift motor.
Operators use the pallet jack handle and hydraulic pump to raise compatible palletized loads, providing straightforward pallet handling without the charging requirements associated with fully electric pallet jacks.
The US-PTSCP55K has an approximately 48 in turning radius for practical maneuverability in suitable commercial material-handling areas.
Combined with an approximately 60 in overall length, the machine can be maneuvered through suitable warehouse aisles, shipping areas, receiving zones, staging areas, and commercial storage environments.
Available operating clearance should always be verified before use.
The US-PTSCP55K has an approximate service weight of 230 lbs.
Its substantial construction provides a stable platform for the manual pallet-handling, integrated weighing, and printing systems while maintaining practical walk-behind operation.
The integrated weighing system allows operators to check pallet weight as part of the normal material-handling process.
This can help streamline workflows where loads must be transported and weighed during receiving, shipping preparation, inventory verification, production, or internal material movement.
The built-in printer adds documentation capability directly to the pallet jack with scale.
Operators can obtain weight information and produce a physical record at the point of handling, helping simplify operations where documented pallet weights are required for internal records or workflow purposes.
The pallet-handling system uses manual travel and hydraulic lifting, so no traction battery, electric drive motor, or electric lift motor is required.
This eliminates charging requirements for pallet movement and lifting while retaining the convenience of an integrated digital scale and printer.
The scale and printer are separate electronic components and should be operated and maintained according to their applicable requirements.
The US-PTSCP55K is designed primarily for firm, smooth, and relatively level warehouse and commercial industrial flooring.
It is best suited for indoor and protected environments such as warehouses, distribution centers, manufacturing facilities, shipping areas, receiving departments, and commercial storage facilities.
The machine is not designed as an off-road or all-terrain pallet jack.
Routine inspection, proper scale calibration, and appropriate printer maintenance are recommended to help maintain reliable weighing and printing performance.
Keep the weighing and printer components protected from unnecessary impact, excessive contamination, moisture, and other operating conditions that could affect electronic components.
Follow the applicable operating and maintenance procedures for calibration, printing, and routine inspection.
The US-PTSCP55K features 45 in forks, a 27 in overall fork width, approximately 14 in inside fork spacing, and a 3.15 in minimum fork height.
Because pallet dimensions, fork openings, bottom-board configurations, and entry clearances vary, the machine may not be compatible with every pallet.
Verify pallet dimensions and entry requirements before ordering or operation.
The US-PTSCP55K includes the complete manual pallet jack with integrated digital scale, built-in weight printer, and standard product documentation.
The machine is supplied as an integrated weighing pallet jack for normal pallet transportation, weighing, and printing applications.
Replacement printer supplies, replacement parts, optional accessories, and other items not specifically listed as included are sold separately unless otherwise stated on the order or invoice.
Every US-PTSCP55K is inspected and tested before shipment to help verify basic pallet jack operation, hydraulic lifting, weighing-system operation, printer function, and general equipment condition before leaving our facility.
Customers should perform the recommended receiving inspection and review the operating and safety instructions before placing the machine into service.
Never exceed the 5,500 lb rated load capacity. Loads must be stable, properly positioned, and adequately supported by the forks before lifting, weighing, or transportation.
Operate the pallet jack only on suitable surfaces and use appropriate care around slopes, loading edges, obstacles, pedestrians, and other equipment.
Never use the pallet jack to lift or transport people.
The US-PTSCP55K pallet jack with scale is particularly useful in facilities where palletized loads frequently need to be moved, weighed, and documented during the same workflow.
Ideal environments include warehouses, shipping and receiving departments, distribution centers, freight operations, manufacturing facilities, production areas, wholesale operations, and inventory-control locations.
The US-PTSCP55K is well suited for pallet weighing, shipping documentation, receiving verification, freight preparation, inventory control, order staging, warehouse pallet transportation, manufacturing material movement, production tracking, and general commercial material handling.
The combination of a manual pallet jack, integrated digital scale, and built-in printer can reduce the number of separate handling steps required for these applications.
The US-PTSCP55K is backed by a 12-month equipment warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
Damage or failure resulting from overloading, misuse, accidents, improper operation, inadequate maintenance, unauthorized modifications, abnormal impact, improper storage, or failure to follow applicable scale, printer, or pallet-jack operating requirements may not qualify for warranty coverage.
Wheels, printer consumables, and other normal wear or consumable items are not covered by the equipment warranty.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-PTSCP55K | Heavy-duty manual pallet jack with integrated digital scale and built-in printer |
| Load Capacity | 5,500 lbs | Maximum rated load capacity for palletized material handling |
| Fork Length | 45 in | Fork length designed for compatible pallet handling |
| Overall Fork Width | 27 in | Outside width across the forks |
| Inside Fork Width | 14 in | Inside spacing between the forks |
| Minimum Fork Height | 3.15 in | Lowered fork height for entering compatible pallets |
| Maximum Fork Height | 8 in | Maximum raised fork height for pallet transportation and positioning |
| Ground Clearance (Center) | 1.6 in | Center ground clearance specified for the pallet jack |
| Overall Length | 60 in | Total machine length |
| Overall Height | 48 in | Total pallet jack height |
| Turning Radius | 48 in | Compact turning radius for maneuvering in suitable warehouse and commercial working areas |
| Aisle Width (US Pallet) | 66 in | Approximate aisle width required when handling compatible U.S. pallets |
| Aisle Width (EU Pallet) | 70 in | Approximate aisle width required when handling compatible European pallets |
| Scale | Integrated Digital Scale | Allows palletized loads to be weighed directly on the pallet jack |
| Printer | Integrated Printer | Provides on-the-spot printing of weight information for documentation |
| Weighing Function | Move, Weigh & Print | Combines pallet transportation, weighing, and weight documentation in one workflow |
| Lift System | Manual Hydraulic | Manual hydraulic lifting system requiring no electric lift motor |
| Travel Operation | Manual | Pallet jack is manually propelled by the operator |
| Travel Speed | Manual | Travel speed is controlled manually by the operator; no powered drive system |
| Power Source | Manual | Manual travel and hydraulic lifting require no electric traction or lift power |
| Battery | Manual – No Battery Required | No traction or lifting battery is required for pallet jack operation |
| Gradeability | Manual Operation | No powered gradeability rating; intended primarily for firm, smooth, and relatively level surfaces |
| Brake / Load Control | Manual Operation | Load movement and positioning are controlled manually by the operator |
| Service Weight | 230 lbs | Total service weight of the pallet jack including the integrated weighing and printing system |
| Machine Weight | 230 lbs | Machine weight used for product comparison |
| Operation Type | Walk-Behind Manual | Pedestrian-operated manual pallet jack |
| Construction | Heavy-Duty Steel | Rugged construction designed for regular commercial material-handling applications |
| Recommended Surface | Firm, Smooth & Relatively Level | Designed primarily for warehouse and commercial industrial flooring; not an all-terrain pallet jack |
| Operating Environment | Indoor / Covered Areas | Best suited for warehouses, shipping departments, distribution centers, manufacturing facilities, and protected commercial environments |
| Warranty | 12-Month Warranty | Warranty coverage is subject to applicable Texlift warranty terms and conditions |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-PTSCP55K has a maximum rated load capacity of 5,500 lbs, making it suitable for heavy-duty pallet handling, weighing, and documentation in commercial and industrial operations.
Yes. The US-PTSCP55K includes an integrated digital scale that allows operators to weigh palletized loads directly on the pallet jack without moving them to a separate floor scale.
Yes. An integrated printer allows operators to print weight tickets directly during pallet handling for convenient shipping, receiving, inventory, and production documentation.
Yes. The US-PTSCP55K is designed to combine pallet transportation, weighing, and weight-ticket printing into one workflow, helping reduce unnecessary material handling.
The US-PTSCP55K features 45 in long forks with a 27 in outside fork width and approximately 14 in inside fork spacing. Always confirm pallet dimensions are compatible before use.
The minimum lowered fork height is approximately 3.15 in, allowing the forks to enter compatible pallets for lifting and transportation.
The US-PTSCP55K provides a maximum fork height of approximately 8 in for pallet pickup, transportation, positioning, loading, and unloading.
The center ground clearance is approximately 1.6 in. Ground clearance and minimum lowered fork height are separate measurements.
No. Pallet lifting and travel are manually operated using the hydraulic pallet jack system. The integrated electronic scale and printer are separate from the manual lifting function.
The US-PTSCP55K has an approximately 48 in turning radius, providing practical maneuverability in suitable warehouse aisles, shipping areas, storage facilities, and other commercial workspaces.
The stated aisle width is approximately 66 in when handling compatible U.S. pallets and approximately 70 in when handling compatible European pallets.
The US-PTSCP55K has an approximately 230 lb service weight, including its integrated weighing and printing equipment.
It is well suited for warehouses, shipping and receiving departments, freight operations, distribution centers, manufacturing facilities, production areas, inventory control, wholesale operations, and commercial storage facilities.
No. The US-PTSCP55K is designed primarily for firm, smooth, and relatively level commercial and industrial surfaces. It is not intended as an off-road or all-terrain pallet jack.
The current US-PTSCP55K product page states that a 12-month warranty is included. Warranty coverage is subject to the applicable Texlift warranty terms and conditions.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Move and weigh palletized inventory directly during warehouse operations, reducing the need to transport loads to a separate floor scale.
Weigh incoming and outgoing palletized loads and print weight information directly during shipping and receiving operations.
Check pallet weights before freight shipment and produce printed weight documentation for more efficient load preparation and recordkeeping.
Weigh palletized inventory during stock checks, receiving, transfers, and inventory management while keeping material handling and weighing in one workflow.
Transport and weigh raw materials, components, supplies, and finished products between production, storage, staging, and shipping areas.
Move materials between production areas while using the integrated digital scale to verify palletized load weights when required.
Transport, weigh, and document palletized merchandise throughout wholesale warehouses, storage areas, staging zones, and distribution operations.
Handle palletized inventory while providing convenient on-the-spot weight verification without requiring a separate stationary scale.
Weigh prepared palletized orders and print weight tickets before loads move to shipping, dispatch, or carrier pickup areas.
Designed for pallet transportation, weighing, and documentation on firm, smooth, and relatively level commercial and industrial surfaces.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-PTSCP55K includes a 12-month warranty covering eligible manufacturing defects under the applicable Texlift warranty terms and conditions.
Texlift support is available to assist with product operation, troubleshooting, weighing functions, printer operation, maintenance questions, and general technical assistance.
Assistance is available for the integrated digital scale and built-in printer, including operation, troubleshooting, weight-ticket printing, and general system questions.
Replacement-parts support is available for compatible wheels, rollers, hydraulic components, handle components, scale components, printer components, and other service parts.
Assistance is available for the manual hydraulic lifting system, including proper operation, inspection, maintenance, and troubleshooting.
Regularly inspect the forks, hydraulic pump, steering wheels, load rollers, handle, frame, scale, printer, and other components to help maintain dependable operation.
Periodic inspection and proper calibration of the integrated weighing system are recommended to help maintain consistent weight readings during regular commercial use.
Normal wear, consumable components, misuse, overloading, accidents, neglect, improper operation, unauthorized repairs or modifications, and damage caused by improper maintenance are not covered by the limited warranty.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
