Built for demanding indoor and outdoor pallet handling, this Lithium Rough Terrain Electric Stacker combines a 3,300 lb rated load capacity with an 8 ft (98 in) maximum lift height, 6 in ground clearance, and heavy-duty pneumatic tires. The rugged configuration provides increased capability across firm outdoor surfaces and moderately uneven commercial work areas where conventional warehouse stackers may not be suitable.
The US-ESOFR33K 98 PRO features full-electric Walkie operation, 45 in heavy-duty forks with an adjustable 8–37 in fork spread, and a compact 54 in turning radius. A 24V / 90Ah LiFePO₄ lithium battery provides approximately 3–4 hours of typical runtime per charge. This Lithium Rough Terrain Electric Stacker is designed for construction sites, farms, nurseries, lumber yards, building-material facilities, warehouses, storage yards, and other compatible indoor and outdoor material-handling operations.
The US-ESOFR33K 98 PRO provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
Its reinforced construction supports pallet transportation, lifting, positioning, and stacking across compatible commercial, agricultural, construction, warehouse, and industrial applications.
The 8 ft (98 in) maximum fork lift height provides practical vertical reach for pallet stacking, elevated material positioning, storage operations, and other compatible material-handling applications.
Combining a 3,300 lb rated capacity with a 98 in maximum lift height gives this Lithium Rough Terrain Electric Stacker practical capability for both pallet transportation and elevated load positioning.
Approximately 6 in of ground clearance provides increased undercarriage clearance compared with conventional indoor warehouse stackers.
This additional clearance helps the machine travel across compatible compacted gravel, firm dirt, maintained grass, asphalt, concrete, and other adequately supported moderately uneven surfaces.
Heavy-duty pneumatic tires provide improved traction and shock absorption when operating across compatible firm indoor and outdoor surfaces.
The pneumatic tire configuration provides increased capability in work areas where conventional polyurethane warehouse wheels may not be suitable.
The US-ESOFR33K 98 PRO is equipped with 45 in heavy-duty steel forks designed for handling compatible palletized loads within the machine’s rated capacity.
The fork configuration supports pallet transportation, lifting, positioning, storage, and stacking across a wide range of commercial and industrial material-handling applications.

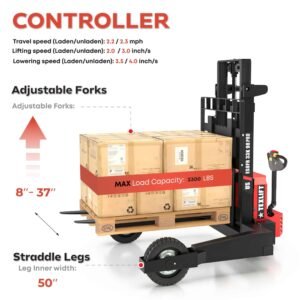

The adjustable fork spread ranges from approximately 8–37 in, providing flexibility for different compatible pallet and load configurations.
Operators can position the forks according to the compatible pallet configuration while maintaining appropriate load placement and support.
An approximately 54 in turning radius provides practical maneuverability for a Lithium Rough Terrain Electric Stacker designed for demanding indoor and outdoor material handling.
The compact turning radius supports controlled pallet approach, positioning, turning, and maneuvering around warehouses, storage areas, yards, agricultural facilities, and commercial work zones.
Full-electric travel and hydraulic lifting provide powered material handling without manual pumping.
The Walkie configuration provides direct operator control during travel, pallet approach, maneuvering, lifting, lowering, positioning, and stacking.
A 24V / 90Ah LiFePO₄ lithium battery provides approximately 2.16 kWh of nominal battery energy for electric travel and hydraulic lifting.
Lithium power makes this Lithium Rough Terrain Electric Stacker a practical full-electric solution for businesses requiring pallet handling across compatible indoor and outdoor environments.
Typical operating time is approximately 3–4 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, terrain, travel distance, lifting frequency, lift height, surface conditions, temperature, battery condition, and operating intensity.
The included 24V / 15A smart lithium charger provides an approximate 6-hour full recharge time under normal charging conditions.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
A 1.2 kW AC electric drive motor provides powered travel for transporting and positioning compatible palletized loads across suitable working surfaces.
A 2.2 kW DC electric hydraulic lift motor powers pallet pickup, lifting, lowering, positioning, and stacking.
This Lithium Rough Terrain Electric Stacker is well suited for transporting compatible palletized building materials across firm construction sites, building-supply yards, outdoor staging zones, and storage areas.
Its pneumatic tires, 6 in ground clearance, and 98 in maximum lift height provide practical capability for operations requiring both pallet transportation and elevated material positioning.
Farms, nurseries, landscaping operations, and agricultural facilities can use the US-ESOFR33K 98 PRO to transport compatible palletized feed, fertilizer, nursery products, landscaping materials, supplies, and other loads.
Pneumatic tires and increased ground clearance provide greater capability on maintained outdoor surfaces compared with conventional indoor warehouse stackers.
This Lithium Rough Terrain Electric Stacker supports pallet transport, inventory movement, staging, replenishment, and load positioning within compatible warehouses, storage yards, building-material facilities, and commercial storage operations.
Its 54 in turning radius supports controlled pallet positioning, while the rough-terrain configuration provides additional capability when operations extend beyond conventional smooth warehouse floors.
The US-ESOFR33K 98 PRO can move compatible palletized materials between receiving areas, staging zones, storage locations, warehouses, loading areas, and firm outdoor work zones.
Full-electric travel and hydraulic lifting provide powered material movement, while the 45 in forks and adjustable 8–37 in fork spread provide flexibility for different compatible pallet configurations.
This Lithium Rough Terrain Electric Stacker is designed for firm and adequately supported surfaces including compacted gravel, firm dirt, maintained grass, asphalt, concrete, and moderately uneven industrial work areas.
Surface conditions must provide adequate support and traction for both the machine and load. Always evaluate the operating area before transporting, positioning, or lifting palletized materials.
Full-electric lithium power allows the US-ESOFR33K 98 PRO to support compatible material-handling operations in both indoor and outdoor commercial environments.
Its combination of lithium power, pneumatic tires, 6 in ground clearance, adjustable forks, and Walkie controls provides a versatile solution for moving palletized materials between warehouses, yards, storage areas, and outdoor work zones.
The Lithium Rough Terrain Electric Stacker is designed for pallet transportation, elevated stacking, staging, inventory movement, receiving, replenishment, and material positioning across compatible commercial work areas.
Typical loads may include palletized building materials, agricultural supplies, landscaping products, lumber, feed, fertilizer, nursery products, industrial materials, warehouse inventory, and other compatible palletized goods.
The US-ESOFR33K 98 PRO combines rough-terrain capability with full-electric operation for businesses that require material handling across multiple compatible environments.
Construction operations, agricultural facilities, warehouses, storage yards, building-material suppliers, landscaping businesses, nurseries, and industrial facilities can use the machine for routine pallet transportation, positioning, lifting, and stacking across firm indoor and outdoor surfaces.
This Lithium Rough Terrain Electric Stacker uses a 24V / 90Ah LiFePO₄ lithium battery with approximately 2.16 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6-hour full recharge time using the included 24V / 15A smart lithium charger.
A 1.2 kW AC electric drive motor provides powered travel, while a 2.2 kW DC electric lift motor powers the hydraulic lifting system for pallet transportation, lifting, lowering, positioning, and stacking.
The US-ESOFR33K 98 PRO is a rough-terrain material-handling machine, not an all-terrain vehicle. It is designed for firm, stable, and adequately supported surfaces such as compacted gravel, firm dirt, maintained grass, asphalt, concrete, and moderately uneven industrial work areas.
Do not operate the stacker in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, unstable terrain, excessive slopes, or other conditions where the machine or load could sink, slide, lose traction, or become unstable.
Do not operate the machine when the lithium battery reaches 20% charge or below. At 20% charge, stop operation and recharge the battery using the compatible lithium charger before returning the stacker to service.
Always follow the operating manual for proper terrain limitations, load handling, LiFePO₄ battery charging, inspection, maintenance, storage, and operating procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.

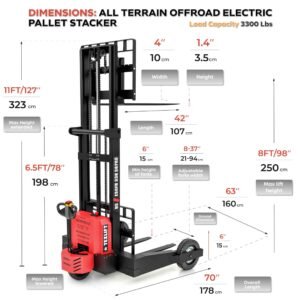

| Specification | Value | Description |
|---|---|---|
| Model | US-ESOFR33K 98 PRO | Full-electric rough-terrain Walkie pallet stacker with LiFePO₄ lithium battery |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load-center distance for stable pallet handling |
| Lift Height | 8 ft (98 in) | Maximum vertical fork lift height for pallet stacking and elevated load positioning |
| Lowered Mast Height | 76 in | Overall machine height with the mast fully lowered |
| Fork Length | 45 in | Heavy-duty steel forks for compatible palletized loads |
| Fork Spread | 8–37 in Adjustable | Adjustable distance between forks for different compatible pallet and load configurations |
| Overall Length | 70 in | Approximate overall machine length |
| Overall Width | 63 in | Wide chassis configuration designed to provide stability during compatible rough-terrain operation |
| Ground Clearance | 6 in | Increased undercarriage clearance for firm and moderately uneven surfaces |
| Turning Radius | 54 in | Compact turning radius for maneuvering, pallet approach, and load positioning |
| Tire Type | Heavy-Duty Pneumatic | Rough-terrain pneumatic tires designed for improved traction and shock absorption |
| Battery | 24V / 90Ah LiFePO₄ Lithium | Lithium battery system with integrated battery management |
| Battery Capacity | 2.16 kWh | Nominal energy capacity of the 24V / 90Ah lithium battery system |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge depending on load, terrain, travel distance, lifting frequency, surface conditions, temperature, and operating intensity |
| Charging Time | Approx. 6 Hours | Approximate full recharge time under normal charging conditions using the included smart lithium charger |
| Charger | 24V / 15A Smart Charger | Lithium-compatible smart charger included with the machine |
| Drive Motor | 1.2 kW AC | Electric AC traction motor providing powered travel |
| Lift Motor | 2.2 kW DC | Electric hydraulic lift motor for pallet lifting, lowering, positioning, and stacking |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for controlled pallet transport, maneuvering, lifting, stacking, and positioning |
| Brake System | Electric / Automatic Braking | Designed to provide controlled stopping during travel and pallet-handling operations |
| Machine Weight | Approx. 1,600 lb | Approximate machine operating weight |
| Recommended Surface | Firm Rough-Terrain Surfaces | Suitable for compacted gravel, firm dirt, maintained grass, asphalt, concrete, and adequately supported moderately uneven surfaces |
| Operating Environment | Indoor & Outdoor | Designed for commercial indoor environments and compatible firm outdoor working areas |
| Terrain Classification | Rough Terrain, Not All-Terrain | Not intended for deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, or unstable terrain |
| Typical Applications | Construction, Agriculture, Warehousing & Material Handling | Suitable for pallet transport, stacking, staging, inventory movement, building materials, agricultural supplies, landscaping products, and other compatible palletized loads |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels, tires, and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESOFR33K 98 PRO Rough Terrain Electric Pallet Stacker has a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
The US-ESOFR33K 98 PRO provides a maximum fork lift height of 8 ft (98 in) for pallet stacking, elevated material positioning, storage, and other compatible material-handling applications.
The US-ESOFR33K 98 PRO measures approximately 76 in high with the mast fully lowered.
The stacker has a rated 20 in load center for stable handling of compatible palletized loads.
The US-ESOFR33K 98 PRO is equipped with 45 in heavy-duty steel forks for compatible palletized loads.
Yes. The fork spread can be adjusted from approximately 8–37 in to accommodate different compatible pallet and load configurations.
The US-ESOFR33K 98 PRO measures approximately 63 in wide, providing a wide chassis configuration for compatible rough-terrain material handling.
The stacker measures approximately 70 in in overall length.
The US-ESOFR33K 98 PRO provides approximately 6 in of ground clearance for increased undercarriage clearance across compatible firm and moderately uneven surfaces.
The stacker has an approximately 54 in turning radius for maneuvering, pallet approach, turning, and load positioning.
The stacker uses heavy-duty pneumatic tires designed to provide improved traction and shock absorption across compatible firm and moderately uneven surfaces.
The US-ESOFR33K 98 PRO uses a 24V / 90Ah LiFePO₄ lithium battery with an integrated battery management system.
The 24V / 90Ah LiFePO₄ battery provides approximately 2.16 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, terrain, travel distance, lifting frequency, surface conditions, temperature, battery condition, and operating intensity.
Approximate full recharge time is 6 hours under normal charging conditions using the included 24V / 15A smart lithium charger.
Yes. A 24V / 15A lithium-compatible smart charger is included with the US-ESOFR33K 98 PRO.
No. Stop operating the US-ESOFR33K 98 PRO when the lithium battery reaches 20% charge or below. Recharge the battery using the included compatible lithium charger before returning the machine to service.
A 1.2 kW AC electric traction motor provides powered travel for transporting and positioning compatible palletized loads.
A 2.2 kW DC electric hydraulic lift motor provides power for pallet lifting, lowering, positioning, and stacking.
Yes. The US-ESOFR33K 98 PRO provides powered electric travel and electric hydraulic lifting for full-electric material handling.
Yes. It uses a Walkie, or walk-behind, operator configuration for controlled pallet transportation, maneuvering, lifting, stacking, and positioning.
The US-ESOFR33K 98 PRO uses an electric automatic braking system designed to provide controlled stopping during travel and pallet-handling operations.
The stacker has an approximate operating weight of 1,600 lb.
Yes. The stacker is designed for compatible indoor and outdoor commercial material-handling environments when operated on firm, stable, and adequately supported surfaces.
Suitable surfaces may include compacted gravel, firm dirt, maintained grass, asphalt, concrete, and other adequately supported moderately uneven surfaces that provide sufficient traction and stability.
No. It is a rough-terrain material-handling machine, not an all-terrain vehicle. Surface conditions must provide adequate support, traction, and stability for the machine and load.
No. Do not operate the US-ESOFR33K 98 PRO in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, unstable terrain, or other conditions where the machine or load could sink, slide, lose traction, or become unstable.
The Rough Terrain Electric Pallet Stacker is well suited for construction sites, farms, nurseries, landscaping operations, lumber yards, building-material suppliers, outdoor storage areas, warehouses, manufacturing facilities, and shipping and receiving operations.
Typical applications include compatible palletized building materials, agricultural supplies, landscaping products, lumber, feed, fertilizer, nursery products, industrial materials, warehouse inventory, and other palletized loads within the machine's rated capacity.
The US-ESOFR33K 98 PRO includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Transport, position, lift, and stack compatible palletized building materials across firm and adequately supported construction work areas where conventional indoor warehouse stackers may not be suitable.
Move compatible palletized blocks, supplies, construction materials, and other loads throughout building-material yards, storage areas, staging zones, and commercial work sites.
Transport compatible palletized feed, fertilizer, supplies, equipment materials, and other agricultural products across firm farm and agricultural work areas.
Move palletized plants, soil products, landscaping materials, fertilizer, supplies, and other compatible loads across maintained nursery and landscaping environments.
Transport and position compatible palletized lumber, building supplies, and related materials across firm and adequately supported lumber-yard surfaces.
Move palletized inventory between outdoor storage locations, staging areas, loading zones, warehouses, and other compatible commercial work areas.
The 6 in ground clearance and heavy-duty pneumatic tires support pallet transportation across compacted gravel, firm dirt, maintained grass, asphalt, concrete, and other adequately supported moderately uneven surfaces.
The 8 ft (98 in) maximum lift height supports compatible pallet stacking, elevated material positioning, storage, and retrieval operations.
Full-electric Walkie operation allows the US-ESOFR33K 98 PRO to transport, position, lift, and stack compatible palletized inventory within suitable warehouse and industrial environments.
Transport compatible palletized raw materials, components, supplies, and finished products between production areas, storage locations, staging zones, and outdoor work areas.
Move incoming and outgoing palletized materials between receiving areas, loading zones, staging locations, warehouses, storage yards, and other compatible operating areas.
Support routine inventory transportation, relocation, organization, staging, replenishment, storage, and positioning across compatible indoor and outdoor commercial environments.
Transport compatible palletized feed, fertilizer, nursery products, agricultural supplies, and other materials across firm and adequately supported operating surfaces.
Move compatible palletized industrial materials and supplies across warehouses, manufacturing facilities, storage yards, staging areas, and other commercial environments.
The adjustable 8–37 in fork spread and 45 in forks provide flexibility for handling different compatible pallet and load configurations.
Lithium electric power, pneumatic tires, 6 in ground clearance, and Walkie controls provide versatile pallet handling across compatible indoor facilities and firm outdoor work areas.
The rough-terrain configuration is designed for compacted gravel, firm dirt, maintained grass, asphalt, concrete, and other stable surfaces that provide adequate support and traction for the machine and load.
Use the US-ESOFR33K 98 PRO for operations that require palletized materials to move between smooth indoor warehouse floors and compatible firm outdoor storage or work areas.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ESOFR33K 98 PRO Rough Terrain Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels, pneumatic tires, and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical guidance for the 24V / 90Ah LiFePO₄ lithium battery system, battery management system, charging procedures, inspection, care, and proper operation.
Texlift provides technical assistance for equipment operation, troubleshooting, electric travel, hydraulic lifting, Walkie controls, braking system, lithium battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, battery, charger, control, pneumatic tire, and other service components for the US-ESOFR33K 98 PRO.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper use, charging, inspection, care, and storage of the 24V / 90Ah LiFePO₄ battery and included 24V / 15A smart lithium charger.
Routine inspection and maintenance guidance is available for the forks, mast, hydraulic system, lithium battery system, electric drive system, Walkie controls, braking system, pneumatic tires, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
