Built for high-reach pallet handling and elevated warehouse storage, the US-ES33K 158 Electric Walkie Pallet Stacker combines a 3,300 lb rated load capacity with a 13 ft (158 in) maximum lift height. This full-electric warehouse stacker provides substantial vertical reach for pallet transportation, elevated racking, inventory positioning, replenishment, and professional indoor material-handling operations.

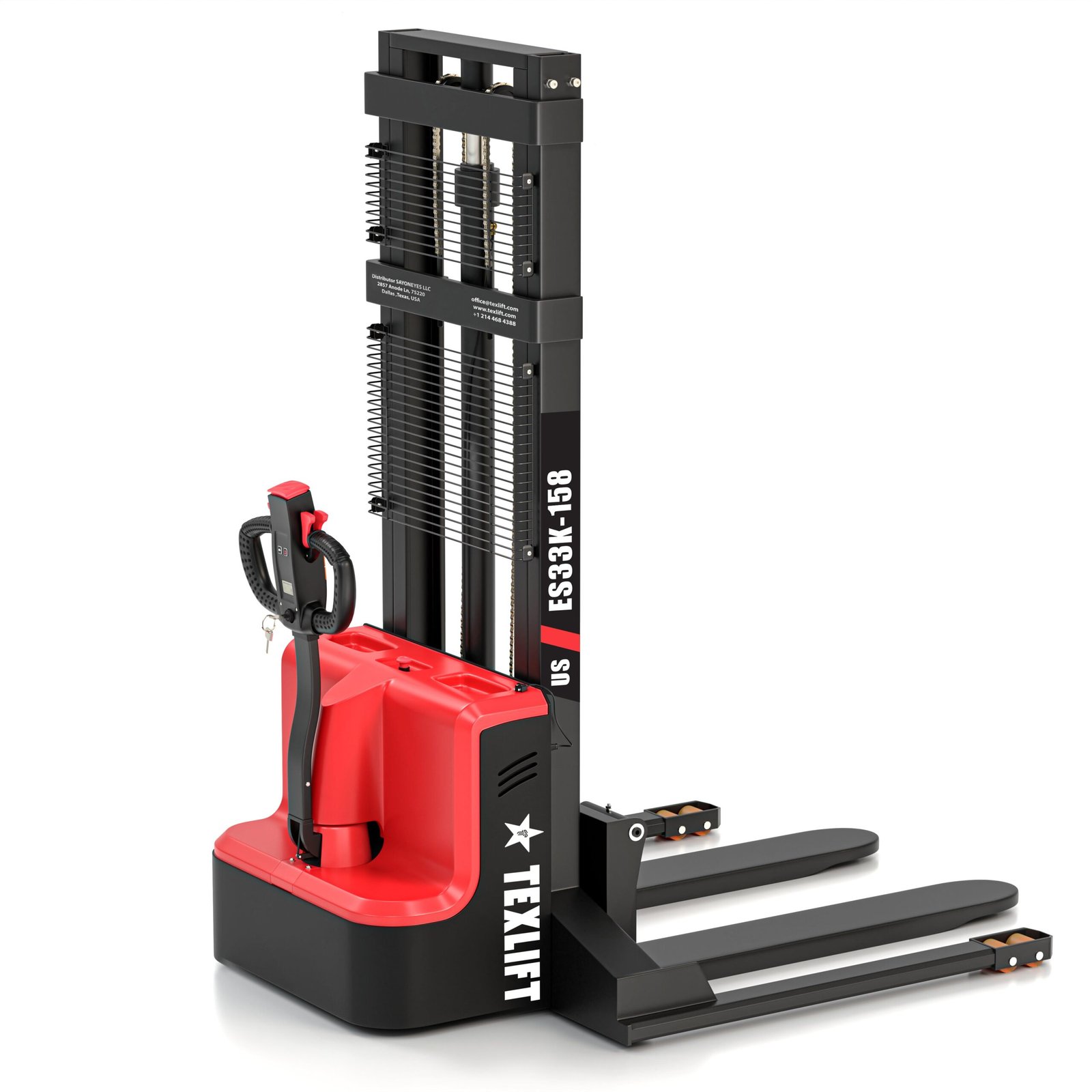

The US-ES33K 158 Electric Walkie Pallet Stacker features a fixed straddle-leg configuration for stable pallet handling, 46 in forks with an adjustable 5.5–27 in fork spread, and a compact 55 in turning radius. Full-electric travel, hydraulic lifting, Walkie operation, and a 48V / 32Ah lead-acid battery system provide controlled performance for warehouses, distribution centers, manufacturing facilities, fulfillment operations, and commercial storage environments.
The US-ES33K 158 Electric Walkie Pallet Stacker provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
Its industrial configuration supports pallet transportation, positioning, lifting, elevated stacking, staging, replenishment, and inventory movement throughout professional warehouse and material-handling environments.
The 13 ft (158 in) maximum fork lift height provides substantial vertical reach for elevated warehouse racking, pallet storage, inventory positioning, replenishment, and high-level stacking.
This increased vertical reach makes the Electric Walkie Pallet Stacker particularly useful for facilities looking to maximize available vertical warehouse storage space without moving to larger rider equipment.
The mast measures approximately 99 in high when fully lowered, providing the travel profile required for the 158 in high-lift configuration.
Maximum overall height during maximum-height operation is approximately 164 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The fixed straddle-leg configuration provides a stable machine base around compatible palletized loads during transportation, lifting, positioning, and elevated stacking.
The approximately 60 in overall width across the straddle-leg configuration supports stable pallet handling while working with compatible pallet and load arrangements.
The US-ES33K 158 is equipped with 46 in heavy-duty steel forks designed to support compatible palletized loads within the machine’s rated capacity.
The fork configuration provides practical support for routine pallet transportation, lifting, positioning, warehouse racking, and elevated storage operations.
The fork spread can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
Adjustable fork positioning provides additional flexibility when configuring the Electric Walkie Pallet Stacker for compatible palletized materials.
An approximately 55 in turning radius provides practical maneuverability for pallet approach, transportation, turning, and precise load positioning.
Combined with Walkie operation, the compact turning radius supports controlled maneuvering throughout compatible warehouse aisles, storage areas, staging zones, receiving areas, and production environments.
The US-ES33K 158 measures approximately 74 in in overall length, combining high-reach pallet stacking capability with practical warehouse maneuverability.
The compact Walkie configuration helps operators approach compatible pallets and accurately position loads during transportation, storage, retrieval, and stacking operations.
The US-ES33K 158 Electric Walkie Pallet Stacker provides powered electric travel and electric hydraulic lifting, reducing manual effort during repetitive warehouse material handling.
Walk-behind controls provide direct operator control during pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
The US-ES33K 158 uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to both electric travel and hydraulic lifting, providing full-electric material handling throughout compatible indoor warehouse and industrial environments.
Typical operating time is approximately 3–4 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, charger performance, temperature, and charging conditions.
A 0.8 kW electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout suitable warehouse and industrial environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated positioning, and high-reach warehouse stacking.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation, maneuvering, positioning, and stacking operations.
Durable polyurethane wheels provide smooth and controlled travel across firm, level, and adequately supported indoor warehouse and industrial floors.
The US-ES33K 158 Electric Walkie Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, fulfillment operations, retail stockrooms, commercial storage facilities, receiving areas, production environments, and other professional indoor material-handling locations.
Its 3,300 lb rated capacity, 13 ft lift height, fixed straddle-leg configuration, and full-electric Walkie operation make this Electric Walkie Pallet Stacker particularly useful for facilities requiring elevated pallet storage and repetitive warehouse material handling.
The US-ES33K 158 is ideal for elevated warehouse racking, high-level pallet stacking, pallet transportation, inventory movement, receiving and staging, warehouse replenishment, production material handling, commercial storage, and positioning compatible palletized loads weighing up to 3,300 lb.
The 13 ft (158 in) maximum lift height provides substantial vertical reach for facilities looking to maximize available warehouse racking and vertical storage space.
The combination of a 3,300 lb rated capacity and 13 ft maximum lift height supports elevated pallet storage, warehouse replenishment, inventory positioning, and high-reach stacking.
The Electric Walkie Pallet Stacker provides controlled walk-behind maneuvering when approaching warehouse racks, transporting compatible pallets, and positioning loads at elevated storage locations.
The fixed straddle-leg configuration provides a stable machine footprint for compatible pallet transportation, lifting, positioning, and stacking.
Operators should verify pallet dimensions, load configuration, fork positioning, straddle-leg clearance, and available operating space before handling a load to confirm compatibility with the US-ES33K 158.
The approximately 74 in overall length and 55 in turning radius provide practical maneuverability for a 13 ft Electric Walkie Pallet Stacker.
These dimensions support controlled pallet approach and positioning throughout compatible warehouse aisles, storage areas, staging zones, receiving departments, and production environments.
The US-ES33K 158 Electric Walkie Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
Its polyurethane wheels, full-electric drive system, Walkie controls, and electromagnetic braking support controlled pallet transportation and positioning throughout compatible indoor material-handling environments.
The US-ES33K 158 Electric Walkie Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.8 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for pallet transportation, lifting, lowering, positioning, and elevated stacking.
Do not operate the US-ES33K 158 Electric Walkie Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ES33K 158 | Full-electric Walkie pallet stacker with fixed straddle legs |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for stable pallet handling |
| Lift Height | 13 ft (158 in) | Maximum vertical fork lift height for elevated pallet stacking and warehouse racking |
| Lowered Mast Height | 99 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 164 in | Maximum overall mast height during operation |
| Minimum Fork Height | ≤3.6 in | Minimum lowered fork height for compatible pallet entry |
| Fork Length | 46 in | Heavy-duty steel forks for compatible palletized loads |
| Fork Spread | 5.5–27 in Adjustable | Adjustable distance between forks for different compatible pallet and load configurations |
| Straddle Legs | Fixed | Fixed straddle-leg configuration for stable pallet handling |
| Overall Length | 74 in | Overall machine length |
| Overall Width | 60 in | Overall width across the fixed straddle-leg configuration |
| Turning Radius | 55 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Wheel Type | Polyurethane | Durable wheels designed primarily for smooth indoor industrial floors |
| Battery | 48V / 32Ah Lead-Acid | Electric battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible lead-acid battery charger |
| Drive Motor | 0.8 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, positioning, and elevated stacking |
| Brake System | Electromagnetic | Electromagnetic braking system for controlled stopping |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for controlled pallet transport, maneuvering, lifting, stacking, and positioning |
| Machine Weight | 1,300 lb | Net machine weight including battery |
| Pallet Handling | Fixed Straddle Configuration | Designed for compatible palletized loads that provide proper clearance for the fixed straddle legs and forks |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | High-Reach Warehouse Stacking | Combines a 3,300 lb rated capacity with a 13 ft maximum lift height for elevated pallet handling |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transportation, high-level stacking, warehouse racking, staging, replenishment, inventory movement, and production material handling |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ES33K 158 Electric Walkie Pallet Stacker has a maximum rated lifting capacity of 3,300 lb at a 20 in load center for compatible palletized loads.
The US-ES33K 158 provides a maximum fork lift height of 13 ft (158 in), making it suitable for elevated warehouse racking, high-level pallet stacking, replenishment, storage, and inventory positioning.
The mast measures approximately 99 in high when fully lowered. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The US-ES33K 158 reaches approximately 164 in overall during maximum-height operation.
The US-ES33K 158 has a rated 20 in load center for stable handling of compatible palletized loads.
The forks lower to approximately 3.6 in or less for entry into compatible pallet configurations.
The US-ES33K 158 is equipped with 46 in heavy-duty steel forks for compatible palletized loads.
Yes. The fork spread can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
No. The US-ES33K 158 uses a fixed straddle-leg configuration. Operators should verify pallet dimensions and straddle-leg clearance before operation.
The stacker measures approximately 60 in wide across the fixed straddle-leg configuration.
The US-ES33K 158 measures approximately 74 in in overall length.
The stacker has an approximately 55 in turning radius for pallet approach, maneuvering, turning, and load positioning.
The stacker uses durable polyurethane wheels designed primarily for smooth, firm, level, and adequately supported indoor industrial floors.
The US-ES33K 158 uses a 48V / 32Ah lead-acid battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah lead-acid battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger.
No. Stop operating the US-ES33K 158 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
A 0.8 kW electric traction motor provides powered travel for pallet transportation, maneuvering, and positioning.
A 2.2 kW electric hydraulic lift motor provides power for pallet lifting, lowering, positioning, and elevated stacking.
Yes. The US-ES33K 158 provides powered electric travel and electric hydraulic lifting, eliminating manual pumping during normal material-handling operations.
Yes. The US-ES33K 158 is an Electric Walkie Pallet Stacker designed for walk-behind operation during pallet transportation, maneuvering, lifting, stacking, and positioning.
No ride-on operator platform is specified for the US-ES33K 158. This model is designed for Walkie, or walk-behind, operation.
The stacker uses an electromagnetic braking system for controlled stopping during travel, positioning, and pallet-handling operations.
The US-ES33K 158 has a net machine weight of approximately 1,300 lb including the battery.
The Electric Walkie Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors.
No. The US-ES33K 158 is intended primarily for suitable indoor industrial floors and is not designed for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-ES33K 158 works well in warehouses, distribution centers, manufacturing facilities, fulfillment operations, commercial storage facilities, receiving areas, staging zones, and other professional indoor material-handling environments.
Typical applications include high-level pallet stacking, elevated warehouse racking, pallet transportation, inventory movement, receiving and staging, warehouse replenishment, production material handling, and commercial storage.
The US-ES33K 158 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 13 ft (158 in) maximum lift height allows the US-ES33K 158 Electric Walkie Pallet Stacker to position compatible palletized loads in elevated warehouse storage and racking applications.
Use the 158 in maximum lift height for placing, retrieving, and positioning compatible palletized loads within elevated warehouse racking systems.
Full-electric travel supports efficient movement of compatible palletized loads weighing up to 3,300 lb between receiving, staging, storage, production, and inventory areas.
Move palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas using full-electric Walkie operation.
Transport and position compatible palletized raw materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, organization, replenishment, storage, retrieval, and pallet positioning throughout compatible warehouse and industrial environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Use the 13 ft lift height to position compatible palletized inventory for elevated storage, rack replenishment, and organized warehouse material flow.
Transport compatible palletized materials, components, supplies, and finished products between production areas, warehouse storage, inventory locations, and staging zones.
Support pallet organization, elevated stacking, transportation, replenishment, retrieval, and inventory positioning throughout compatible commercial storage facilities.
The fixed straddle-leg configuration provides a stable machine footprint for transporting, lifting, positioning, and stacking compatible palletized loads.
The 5.5–27 in adjustable fork spread allows the Electric Walkie Pallet Stacker to accommodate different compatible pallet and load configurations.
Walk-behind operation provides direct operator control for pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
The combination of a 3,300 lb rated capacity and 13 ft maximum lift height supports facilities requiring substantial vertical reach for pallet storage and inventory positioning.
Full-electric operation, polyurethane wheels, and electromagnetic braking make the US-ES33K 158 suitable for compatible indoor operations on smooth, firm, level, and adequately supported floors.
The 158 in maximum lift height helps warehouses make greater use of available vertical storage space for compatible palletized inventory.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ES33K 158 Electric Walkie Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electric travel, hydraulic lifting, Walkie controls, electromagnetic braking, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, straddle-leg, battery, control, and other service components for the US-ES33K 158.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 48V / 32Ah lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, fixed straddle legs, mast, hydraulic system, battery system, electric drive system, Walkie controls, polyurethane wheels, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
