Built for elevated pallet handling and repetitive warehouse operations, the US-DS33K 138 is a Rider / Walkie Electric Pallet Stacker combining a 3,300 lb rated load capacity with a 12 ft (138 in) maximum lift height. This Electric Pallet Stacker provides increased vertical reach for warehouse racking, elevated storage, inventory positioning, and professional pallet handling in warehouses, distribution centers, manufacturing facilities, and other indoor commercial environments.
An integrated operator platform supports ride-on travel for repetitive pallet movement and longer warehouse distances while retaining walk-behind operation for controlled maneuvering and pallet positioning. Fixed straddle legs, 45 in forks with an adjustable 5.5–27 in fork spread, full-electric travel and hydraulic lifting, and a 48V / 32Ah lead-acid battery system make the US-DS33K 138 Electric Pallet Stacker a practical solution for professional indoor material handling.

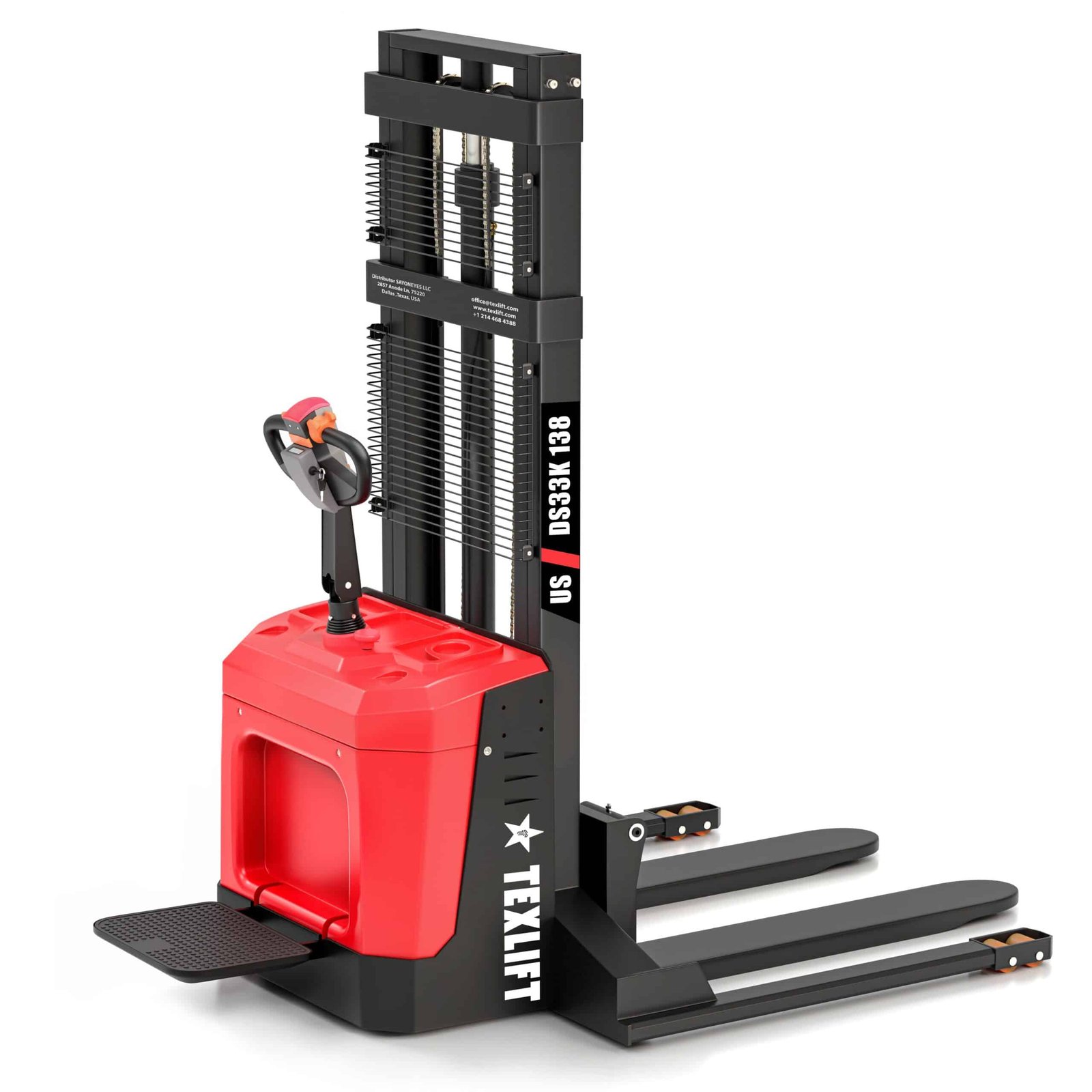

The US-DS33K 138 Electric Pallet Stacker handles compatible palletized loads up to 3,300 lb at the rated 20 in load center.
Its rated capacity supports pallet transportation, positioning, lifting, and elevated stacking throughout warehouses, distribution centers, manufacturing facilities, storage areas, and other professional indoor material-handling environments.
The 12 ft (138 in) maximum fork lift height provides increased vertical reach for elevated pallet stacking, warehouse racking, storage, retrieval, and material positioning.
This lift height makes the Rider / Walkie Electric Pallet Stacker particularly useful for facilities requiring higher pallet placement while maintaining convenient ride-on travel and controlled walk-behind operation.
The mast measures approximately 89 in high when fully lowered, providing the travel profile required for this 12 ft Electric Pallet Stacker configuration.
Maximum overall height with the mast fully extended is approximately 154 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.

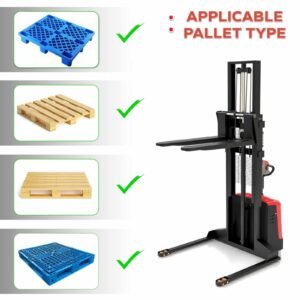

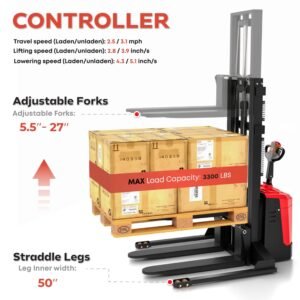

The 45 in forks can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
The adjustable fork configuration provides flexibility for professional pallet handling while supporting proper fork positioning beneath compatible palletized loads.
Fixed straddle legs provide a stable machine base around compatible palletized loads during transportation, lifting, positioning, and elevated stacking.
The US-DS33K 138 Electric Pallet Stacker measures approximately 60 in wide across the straddle-leg configuration, providing a stable platform for professional warehouse and industrial pallet handling.

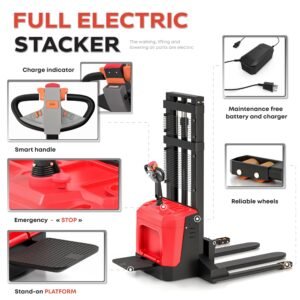

The integrated operator platform allows the operator to ride on the Electric Pallet Stacker during longer warehouse travel while retaining walk-behind operation for controlled maneuvering and precise pallet positioning.
This Rider / Walkie configuration helps reduce unnecessary walking during repetitive material-handling operations while maintaining convenient operator control when approaching, transporting, lifting, and stacking palletized loads.
A 61 in turning radius and approximately 74 in overall machine length provide practical maneuverability for pallet approach, transportation, turning, and load positioning.
The US-DS33K 138 is designed for controlled movement throughout compatible warehouse aisles, storage areas, staging zones, receiving areas, production facilities, and distribution environments.
The US-DS33K 138 Electric Pallet Stacker uses a 48V / 32Ah lead-acid traction battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting, providing full-electric material handling with no tailpipe exhaust emissions at the machine during operation.
Typical operating time for the US-DS33K 138 Electric Pallet Stacker is approximately 3–4 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
A 0.8 kW electric traction motor provides powered travel for efficient pallet transportation and positioning throughout compatible indoor warehouse and industrial environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated stacking, and controlled load positioning.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation, positioning, and elevated stacking operations.
The integrated stand-on platform supports ride-on travel during longer warehouse movements while retaining walk-behind operation when controlled maneuvering and precise pallet positioning are required.
The US-DS33K 138 Rider / Walkie Electric Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, production environments, receiving areas, loading areas, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb rated capacity, 12 ft lift height, fixed straddle-leg configuration, integrated operator platform, and full-electric operation make this Electric Pallet Stacker particularly useful for facilities requiring repetitive pallet transportation combined with elevated stacking.
The US-DS33K 138 is ideal for elevated pallet stacking, warehouse racking, pallet transportation, inventory movement, receiving and staging, production-line material handling, storage organization, replenishment, and positioning compatible palletized loads weighing up to 3,300 lb.
The 12 ft (138 in) maximum lift height provides increased vertical reach, while Rider / Walkie operation supports both longer travel distances and controlled pallet positioning.
The 12 ft maximum lift height makes the US-DS33K 138 Electric Pallet Stacker well suited for compatible warehouse racking and elevated pallet-storage applications.
Its combination of adjustable 45 in forks, fixed straddle legs, controlled hydraulic lifting, and a 3,300 lb rated capacity supports pallet placement, retrieval, replenishment, and inventory organization throughout compatible indoor storage locations.
The Rider / Walkie configuration provides flexibility for facilities requiring frequent pallet movement between receiving, staging, production, inventory, storage, and loading areas.
Ride-on travel helps reduce unnecessary walking during longer movements, while walk-behind operation provides controlled maneuvering when approaching pallets, racking, storage positions, and other working areas.
The US-DS33K 138 Electric Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.8 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for full-electric pallet transportation, lifting, lowering, positioning, and elevated stacking.
Do not operate the US-DS33K 138 Electric Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

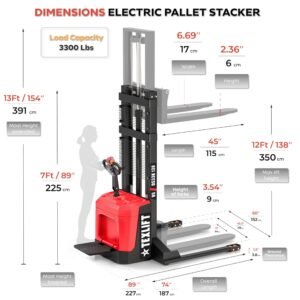

Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-DS33K 138 | Full-electric Rider / Walkie pallet stacker with fixed straddle legs |
| UPC | 810166850162 | Universal Product Code for this Texlift model |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for the stated 3,300 lb capacity |
| Lift Height | 12 ft (138 in) | Maximum vertical fork lift height for elevated pallet stacking and warehouse racking |
| Lowered Mast Height | 89 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 154 in | Maximum overall machine height with the mast fully extended |
| Fork Length | 45 in | Fork length for compatible palletized loads |
| Fork Spread | 5.5–27 in Adjustable | Adjustable fork positioning for different compatible pallet and load configurations |
| Minimum Fork Height | ≤3.5 in | Minimum lowered fork height for entry into compatible pallet configurations |
| Straddle Legs | Fixed | Fixed straddle-leg configuration providing a stable base around compatible palletized loads |
| Overall Length | 74 in | Overall machine length including the integrated operator platform |
| Overall Width | 60 in | Overall width across the fixed straddle-leg configuration |
| Wheelbase | 53 in | Distance between front and rear wheel centers |
| Turning Radius | 61 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Wheel Type | Polyurethane | Durable wheels designed for smooth, firm indoor industrial floors |
| Battery | 48V / 32Ah Lead-Acid | Electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible charger |
| Charger Type | 48V Lead-Acid Battery Charger | Compatible charging system for the installed 48V lead-acid battery |
| Drive Motor | 0.8 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, elevated stacking, and positioning |
| Brake System | Electromagnetic | Electromagnetic braking system for controlled stopping during travel and pallet positioning |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Rider / Walkie | Integrated operator platform supports stand-on ride-on travel and walk-behind operation |
| Machine Weight | Approx. 1,356 lb | Approximate machine operating weight including the battery system |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | Elevated Indoor Pallet Handling | Designed for pallet transportation, warehouse racking, elevated stacking, replenishment, and repetitive material handling |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, elevated stacking, warehouse racking, staging, inventory movement, receiving, production material handling, and repetitive pallet positioning |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-DS33K 138 Rider / Walkie Electric Pallet Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-DS33K 138 provides a maximum fork lift height of 12 ft (138 in) for elevated pallet stacking, warehouse racking, storage, replenishment, and material positioning.
The US-DS33K 138 has an approximately 89 in lowered mast height, providing the travel profile required for this 12 ft Electric Pallet Stacker configuration.
The US-DS33K 138 reaches approximately 154 in in maximum overall height when the mast is fully extended. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.
The US-DS33K 138 is equipped with 45 in forks designed for handling compatible palletized loads within the machine's rated capacity.
The forks provide an adjustable spread of approximately 5.5–27 in, allowing the operator to position them for different compatible pallet and load configurations.
The minimum lowered fork height is approximately 3.5 in or less for entry into compatible pallet configurations.
Yes. The US-DS33K 138 uses fixed straddle legs that provide a stable machine base around compatible palletized loads during transportation, lifting, positioning, and elevated stacking.
The US-DS33K 138 measures approximately 74 in long, including the operator platform, and 60 in wide across the fixed straddle-leg configuration. The mast is approximately 89 in high when fully lowered.
The US-DS33K 138 has an approximately 53 in wheelbase, measured between the front and rear wheel centers.
The US-DS33K 138 has an approximately 61 in turning radius for warehouse maneuvering, pallet approach, turning, and load positioning.
The US-DS33K 138 has an approximate operating weight of 1,356 lb including the battery system.
The Electric Pallet Stacker uses durable polyurethane wheels designed for smooth, firm, level, and adequately supported indoor industrial floors.
The US-DS33K 138 uses a 48V / 32Ah lead-acid traction battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah lead-acid battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
The US-DS33K 138 uses a compatible 48V lead-acid battery charger designed for the installed battery system.
No. Stop operating the US-DS33K 138 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the Electric Pallet Stacker to service, or replace it with a properly charged compatible battery when applicable.
The US-DS33K 138 uses a 0.8 kW electric traction motor to provide powered travel for professional indoor material-handling operations.
A 2.2 kW electric hydraulic lift motor powers pallet pickup, lifting, lowering, elevated stacking, and controlled load positioning.
The US-DS33K 138 uses an electromagnetic braking system designed to provide controlled stopping during travel, pallet transportation, positioning, and stacking operations.
Yes. The US-DS33K 138 provides powered electric travel and electric hydraulic lifting for full-electric pallet handling.
Yes. The US-DS33K 138 is a Rider / Walkie Electric Pallet Stacker with an integrated operator platform that supports stand-on ride-on travel as well as walk-behind operation.
Yes. The integrated rear operator platform allows the operator to stand and ride behind the stacker during travel, helping reduce walking during repetitive pallet movement and longer warehouse travel distances.
Yes. In addition to ride-on operation, the Rider / Walkie configuration supports walk-behind operation for controlled maneuvering, pallet approach, positioning, lifting, and stacking.
The integrated operator platform helps reduce unnecessary walking during repetitive pallet transportation and longer warehouse movements while retaining convenient walk-behind operation when precise maneuvering is required.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The US-DS33K 138 is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and similar commercial environments.
No. The US-DS33K 138 uses polyurethane wheels and is designed primarily for indoor industrial floors. It is not intended for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-DS33K 138 is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, production environments, receiving areas, staging zones, and other professional indoor material-handling operations.
Typical applications include elevated pallet stacking, warehouse racking, pallet transportation, inventory movement, receiving and staging, replenishment, production-line material handling, storage organization, and repetitive indoor pallet positioning.
The US-DS33K 138 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

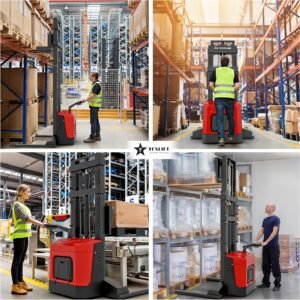

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 12 ft (138 in) maximum lift height provides increased vertical reach for stacking and positioning compatible palletized loads in elevated indoor storage locations.
Position compatible palletized inventory within warehouse racking using the 3,300 lb rated capacity, adjustable 45 in forks, and controlled electric hydraulic lifting.
The integrated operator platform supports stand-on ride-on travel for longer warehouse distances while walk-behind operation provides controlled maneuvering and precise pallet positioning.
Transport, lift, position, and stack compatible palletized loads throughout warehouses with smooth, firm, level, and adequately supported indoor floors.
Move compatible palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas within professional distribution operations.
Transport and position palletized materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, replenishment, organization, elevated storage, and pallet positioning throughout warehouse and commercial storage environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Supply compatible palletized materials and components to production areas and transport finished products to staging, inventory, storage, or other compatible locations.
Support pallet transportation, elevated stacking, inventory organization, storage, and material positioning throughout compatible commercial storage environments.
Rider operation helps reduce unnecessary walking during repetitive pallet movement, while walk-behind control supports precise pallet approach, lifting, stacking, and positioning.
Full-electric travel and hydraulic lifting make the US-DS33K 138 suitable for repetitive indoor pallet handling with no tailpipe exhaust emissions at the machine during operation.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-DS33K 138 Rider / Walkie Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electrical functions, hydraulic systems, Rider / Walkie controls, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, wheel, braking, battery, operator-platform, and other service components for the US-DS33K 138.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 48V lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, mast, hydraulic system, polyurethane wheels, battery system, electromagnetic braking system, operator platform, electrical controls, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
