Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
$4,580.00
Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
Built for Efficient Warehouse Stacking
The Texlift US-ES33K 138 is a full electric walkie stacker featuring a 3,300 lb load capacity, a 13 ft (138") maximum lift height, and fixed straddle legs for stable pallet lifting. Powered by a 48V / 30Ah battery, it delivers approximately 3–4 hours of runtime and recharges in about 6–7 hours. With adjustable forks, smooth electric drive and lift controls, and a compact walkie design, it is ideal for warehouses, distribution centers, retail stockrooms, and manufacturing facilities.
3,300 lb Capacity 13 ft Lift Height Fixed Straddle Legs 48V / 30Ah Battery 3–4 Hours Runtime 6–7 Hour Recharge
Order Fulfillment
Pickup and nationwide freight shipping available from our Texas warehouse.
Fast Nationwide Delivery
Ships from Texas. Estimated delivery: 3–14 business days.
Freight shipping charges are calculated at checkout.
Local Pickup Available
Usually ready within 24 hours at our Dallas Distribution Center.
2857 Anode Ln, Dallas, TX 75220
Quantity Discounts
Automatic volume pricing for bulk orders.
Buy 2–4 Units
Save 2%
Buy 5–9 Units
Save 3%
Best Value
Buy 10+ Units
Save 5%
✓ Volume discounts are automatically applied at checkout.
Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
Sale price$4,580.00
Regular price$5,300.00
PRODUCT DETAILS
Product Overview
Product Overview
Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
The Texlift US-ES33K 138 is a full electric walkie stacker featuring a 3,300 lb load capacity, 13 ft (138") lift height, durable 2-stage mast, 48V lead-acid battery, adjustable 5.5–27 in forks, fixed straddle legs, and full electric drive and lift controls for efficient warehouse pallet handling and stacking.
Performance Features
3,300 lb Lifting Capacity
13 ft (138") Lift Height
2-Stage Wide-View Mast
48V Lead-Acid Battery
3–4 Hours Runtime
6–7 Hour Recharge
Built-In Charger
0.8 kW Drive Motor
2.2 kW Lift Motor
Adjustable Fork Width
55" Turning Radius
Built for Daily Warehouse Operations
13 ft (138") Lift Height
2-Stage Wide-View Mast
48V Lead-Acid Battery
3–4 Hours Runtime
6–7 Hour Recharge
Built-In Charger
0.8 kW Drive Motor
2.2 kW Lift Motor
Adjustable Fork Width
55" Turning Radius
Built for Daily Warehouse Operations
Power System
48V Lead-Acid Battery
Maintenance-Friendly Battery System
3–4 Hours Runtime
Approx. 6–7 Hour Recharge
Integrated Built-In Charger
0.8 kW AC Drive Motor
2.2 kW Lift Motor
Energy-Efficient Electric Performance
Quiet Zero-Emission Operation
Low Maintenance Design
Reliable Daily Commercial Use
Reduced Operator Fatigue
Maintenance-Friendly Battery System
3–4 Hours Runtime
Approx. 6–7 Hour Recharge
Integrated Built-In Charger
0.8 kW AC Drive Motor
2.2 kW Lift Motor
Energy-Efficient Electric Performance
Quiet Zero-Emission Operation
Low Maintenance Design
Reliable Daily Commercial Use
Reduced Operator Fatigue
Best Applications
Warehouses
Distribution Centers
Manufacturing Facilities
Retail Stockrooms
Loading Docks
Wholesale Warehouses
Commercial Storage Facilities
Pallet Stacking
Inventory Management
Daily Material Handling
Distribution Centers
Manufacturing Facilities
Retail Stockrooms
Loading Docks
Wholesale Warehouses
Commercial Storage Facilities
Pallet Stacking
Inventory Management
Daily Material Handling
Support & Warranty
12-Month Manufacturer Warranty
U.S.-Based Customer Support
Fast Nationwide Freight Shipping
Dallas, TX Local Pickup Available
Replacement Parts Available
Technical Assistance Before & After Purchase
Operator Manual Included
Commercial Equipment Specialists
Reliable After-Sales Service
Professional Sales Assistance
U.S.-Based Customer Support
Fast Nationwide Freight Shipping
Dallas, TX Local Pickup Available
Replacement Parts Available
Technical Assistance Before & After Purchase
Operator Manual Included
Commercial Equipment Specialists
Reliable After-Sales Service
Professional Sales Assistance
Additional Product Details
The Texlift US-ES33K 138 Full Electric Walkie Stacker is engineered for warehouses, distribution centers, manufacturing facilities, retail stockrooms, and commercial material handling applications requiring safe, efficient pallet lifting and stacking. With a 3,300 lb load capacity, a 13 ft (138") maximum lift height, and a durable 2-stage wide-view mast, it delivers dependable performance for loading, unloading, transporting, and stacking palletized goods in warehouses and narrow aisle environments.
Powered by a 48V lead-acid battery, the US-ES33K 138 provides approximately 3–4 hours of continuous operation under normal working conditions and recharges in about 6–7 hours using the included 48V lead-acid battery charger. The full electric drive and lift system, powered by a 0.8 kW drive motor and a 2.2 kW lift motor, helps reduce operator fatigue while improving productivity throughout the workday while delivering smooth, precise lifting and travel performance.
Designed with fixed straddle legs, adjustable forks ranging from 5.5 to 27 inches, polyurethane wheels, a compact 55-inch turning radius, and a durable steel chassis, this walkie stacker offers outstanding stability, maneuverability, and precise load handling. Its maintenance-friendly design and reliable electric power system make it an ideal solution for demanding daily warehouse operations.
Texlift proudly supports every purchase with fast nationwide freight shipping, local pickup from our Dallas, Texas warehouse, replacement parts availability, U.S.-based technical support, and a 12-month manufacturer warranty.
Powered by a 48V lead-acid battery, the US-ES33K 138 provides approximately 3–4 hours of continuous operation under normal working conditions and recharges in about 6–7 hours using the included 48V lead-acid battery charger. The full electric drive and lift system, powered by a 0.8 kW drive motor and a 2.2 kW lift motor, helps reduce operator fatigue while improving productivity throughout the workday while delivering smooth, precise lifting and travel performance.
Designed with fixed straddle legs, adjustable forks ranging from 5.5 to 27 inches, polyurethane wheels, a compact 55-inch turning radius, and a durable steel chassis, this walkie stacker offers outstanding stability, maneuverability, and precise load handling. Its maintenance-friendly design and reliable electric power system make it an ideal solution for demanding daily warehouse operations.
Texlift proudly supports every purchase with fast nationwide freight shipping, local pickup from our Dallas, Texas warehouse, replacement parts availability, U.S.-based technical support, and a 12-month manufacturer warranty.

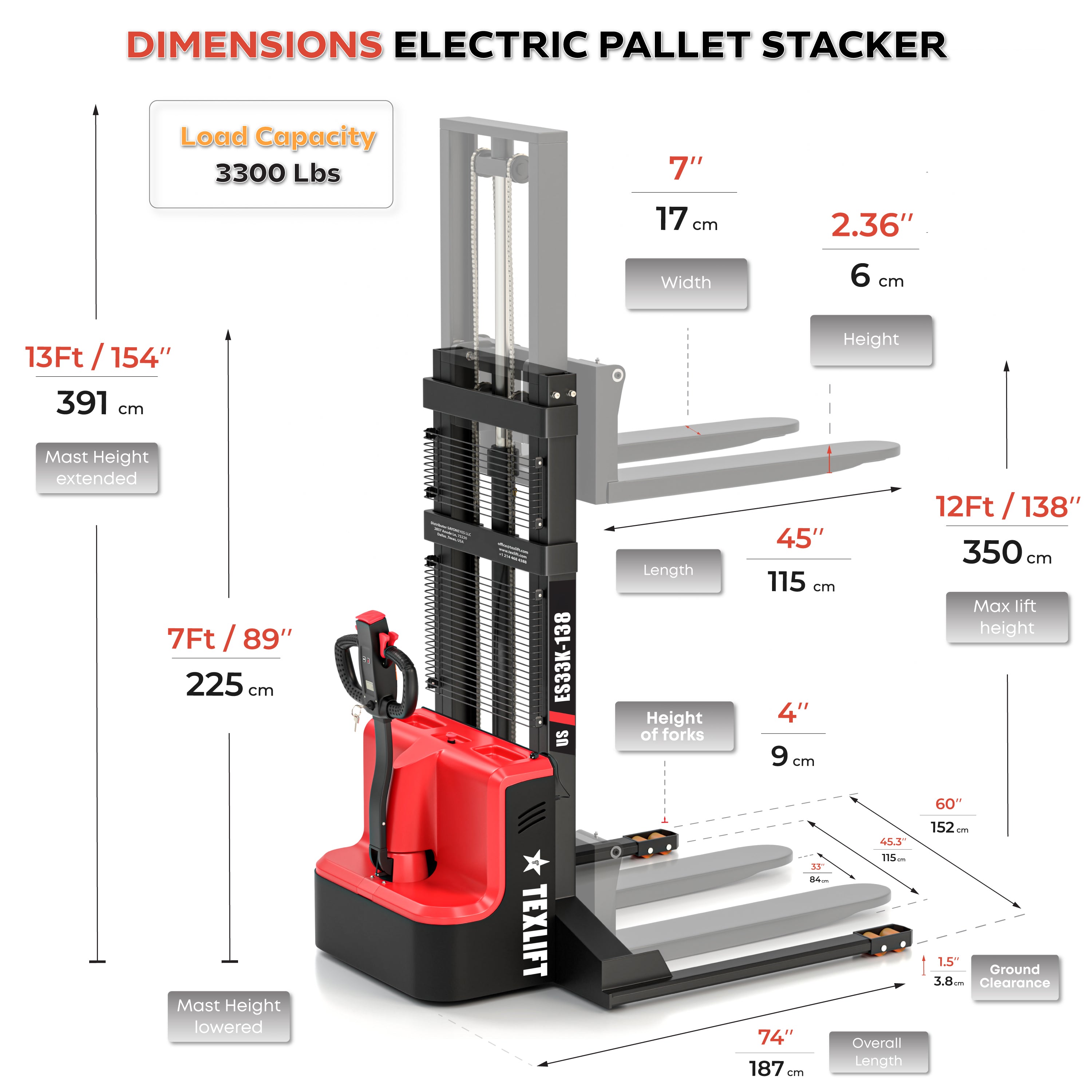

Technical details Product Specifications
Review the main specifications, dimensions, power system, and working details for this Texlift product.
Specification
Value
Description
Model
US-ES33K 138
Full electric walkie pallet stacker.
Load Capacity
3,300 lbs
Maximum rated lifting capacity.
Lift Height
13 ft (138")
Maximum pallet stacking height.
Mast Type
2-Stage Wide-View
Heavy-duty steel mast.
Power Type
Full Electric
Battery-powered operation.
Battery
48V Lead-Acid
Reliable industrial battery system.
Runtime
Up to 3–4 Hours
Normal operating conditions.
Charging Time
Approx. 6–7 Hours
Full battery recharge.
Charger Type
48V Lead-Acid Battery Charger
Compatible with US-ES33K & US-DS33K.
Load Center
20 in
Standard industrial load center.
Fork Length
45 in
Heavy-duty forged steel forks.
Fork Width
Adjustable 5.5–27 in
Fits most pallet sizes.
Minimum Fork Height
≤3.6 in
Easy pallet entry.
Drive Motor
0.8 kW
Efficient electric drive motor.
Lift Motor
2.2 kW
Powerful hydraulic lift motor.
Travel Speed
0.14 / 0.16 mph
Loaded / unloaded.
Lift Speed
5 / 4 in/sec
Loaded / unloaded.
Turning Radius
55 in
Excellent warehouse maneuverability.
Straddle Legs
Fixed
Stable pallet handling.
Wheel Type
Polyurethane
Durable industrial wheels.
Overall Length
70 in
Compact warehouse footprint.
Overall Width
60 in
Stable straddle-leg design.
Lowered Mast Height
89 in
Fits through standard warehouse doors.
Maximum Overall Height
154 in
Mast fully extended.
Truck Weight
1,260 lbs
Includes battery.
Warranty
12 Months
Texlift manufacturer warranty.
Best used for Product Applications
Texlift equipment is designed for practical commercial use across warehouses, loading docks, retail spaces, distribution centers, and industrial facilities.
Distribution Centers
Efficiently move and stack palletized goods during shipping and receiving.
Retail Stockrooms
Compact design for backroom inventory management and pallet handling.
Manufacturing Facilities
Transport raw materials, finished goods, and production inventory.
Loading Docks
Load, unload, and organize palletized freight with ease.
Wholesale Warehouses
Improve warehouse productivity and maximize storage capacity.
Commercial Storage Facilities
Safely stack and retrieve palletized inventory.
Inventory Management
Perfect for organizing warehouse inventory and narrow aisle storage.
Pallet Stacking
Designed for repetitive lifting and stacking throughout the workday.
Daily Material Handling
Built for continuous commercial warehouse operations.
Compare models Product Comparison
Compare this Texlift model with similar products to choose the right equipment for your operation.
| Specification |
Current
Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
View product
|

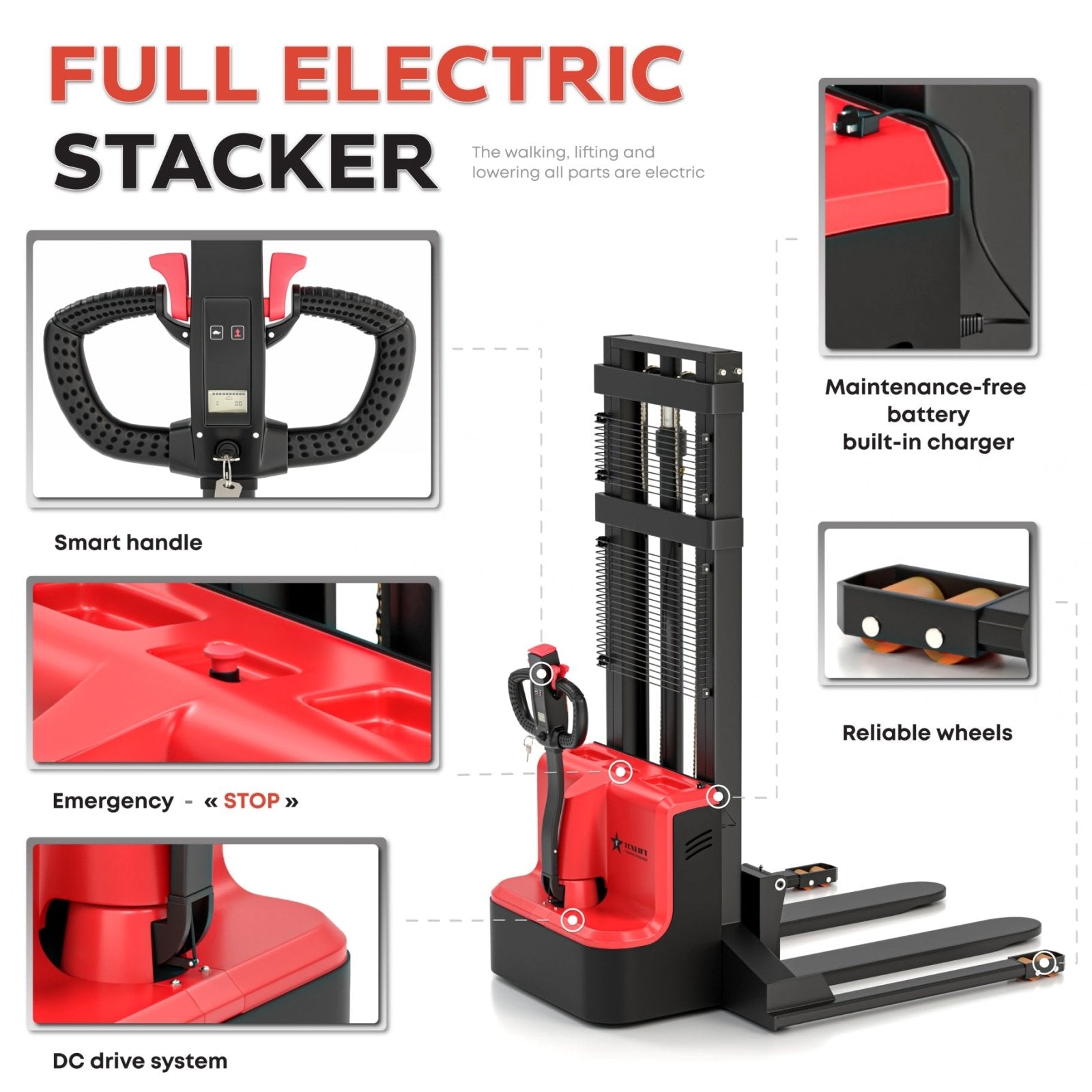

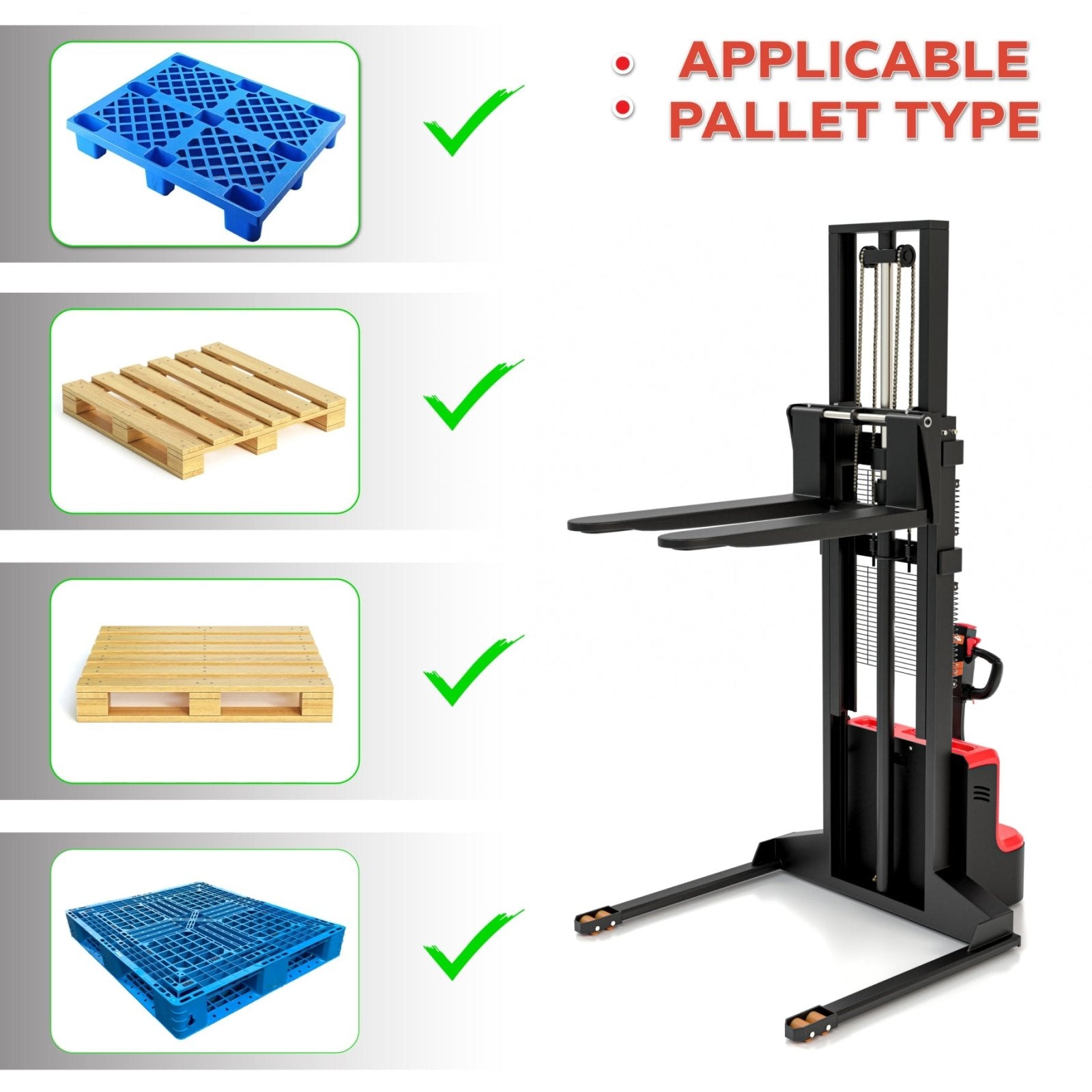

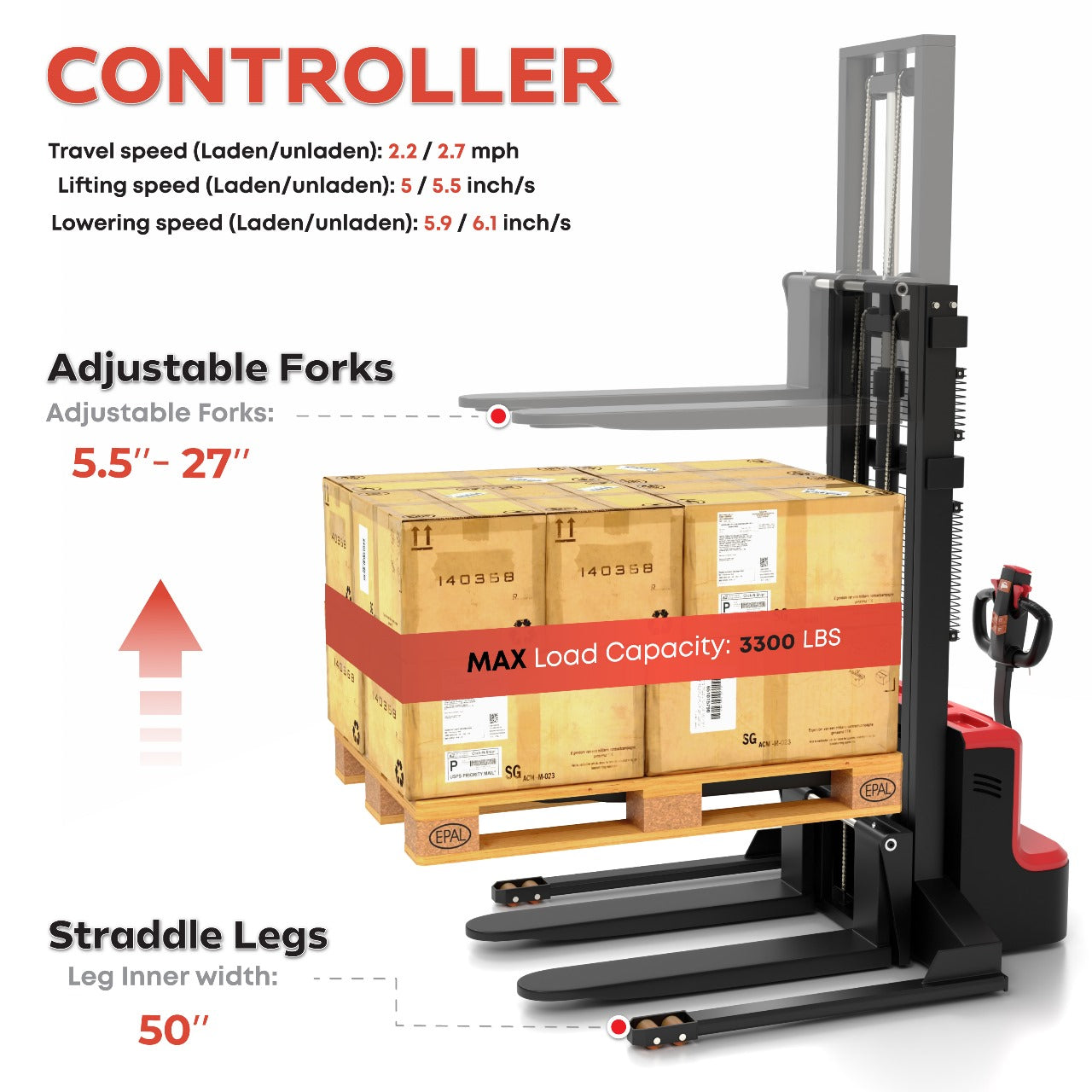

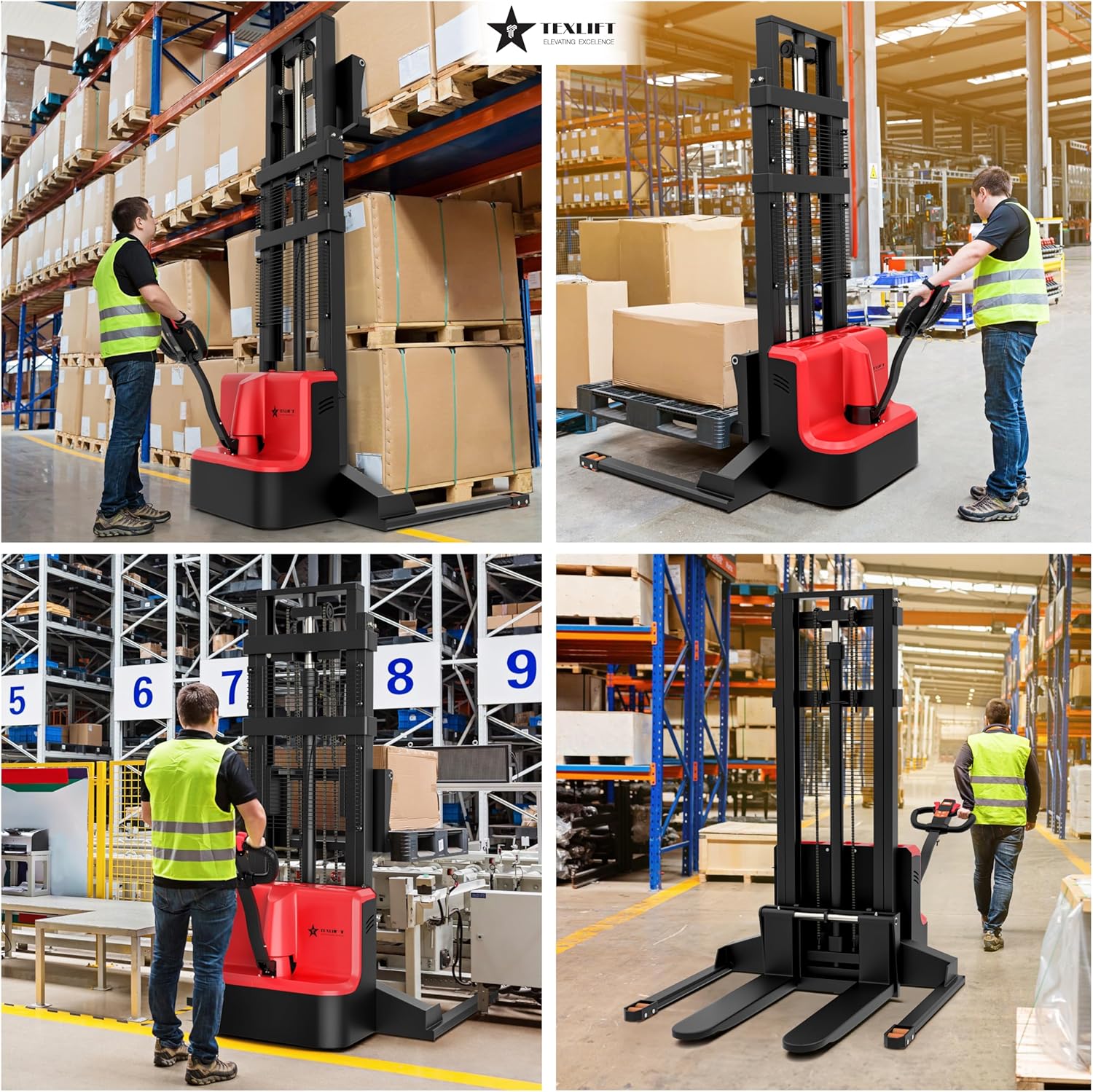

Electric Walkie Pallet Stacker – 10ft (118 inch) Lift, 3300 lbs Capacity, Fixed Straddle Legs
View product
|
Full Electric Rider Stacker – 10ft (118 inch) Lift Height, 3300 lb Load, Fixed Straddle Legs
View product
|
Electric Pallet Stacker – Rider Type, 3300 LBS, 12ft (138 inch) Lift, with Straddle Legs
View product
|
|---|---|---|---|---|
| Model | US-ES33K 138 | US-ES33K 118 | — | — |
| Load Capacity | 3,300 lbs | 3,300 lbs | — | — |
| Lift Height | 13 ft (138") | 10 ft (118") | — | — |
| Load Center | 20 in | 20 in | — | — |
| Fork Length | 45 in | 45 in | — | — |
| Fork Width | Adjustable 5.5–27 in | Adjustable 5.5–27 in | — | — |
| Overall Length | 70 in | 70 in | — | — |
| Overall Width | 60 in | 60 in | — | — |
| Turning Radius | 55 in | 55 in | — | — |
| Battery | 48V Lead-Acid | 48V Lead-Acid | — | — |
| Drive Motor | 0.8 kW | 0.8 kW | — | — |
| Lift Motor | 2.2 kW | 2.2 kW | — | — |
| Truck Weight | 1,260 lbs | 1,240 lbs | — | — |
| Warranty | 12 Months | 12 Months | — | — |
