Built for professional warehouse pallet handling and elevated stacking, the US-ES33K 138 Electric Walkie Pallet Stacker combines a 3,300 lb rated load capacity with a 12 ft (138 in) maximum lift height. Designed for warehouses, distribution centers, manufacturing facilities, storage areas, and other indoor commercial environments, this Electric Walkie Pallet Stacker provides increased vertical reach for warehouse racking, inventory positioning, and elevated storage applications.
The fixed straddle-leg configuration provides stable pallet handling, while 45 in forks with an adjustable 5.5–27 in fork spread accommodate different compatible pallet and load configurations. A 2-stage wide-view mast, 55 in turning radius, full-electric travel and hydraulic lifting, and a 48V / 32Ah lead-acid battery system provide practical performance for everyday professional material handling.

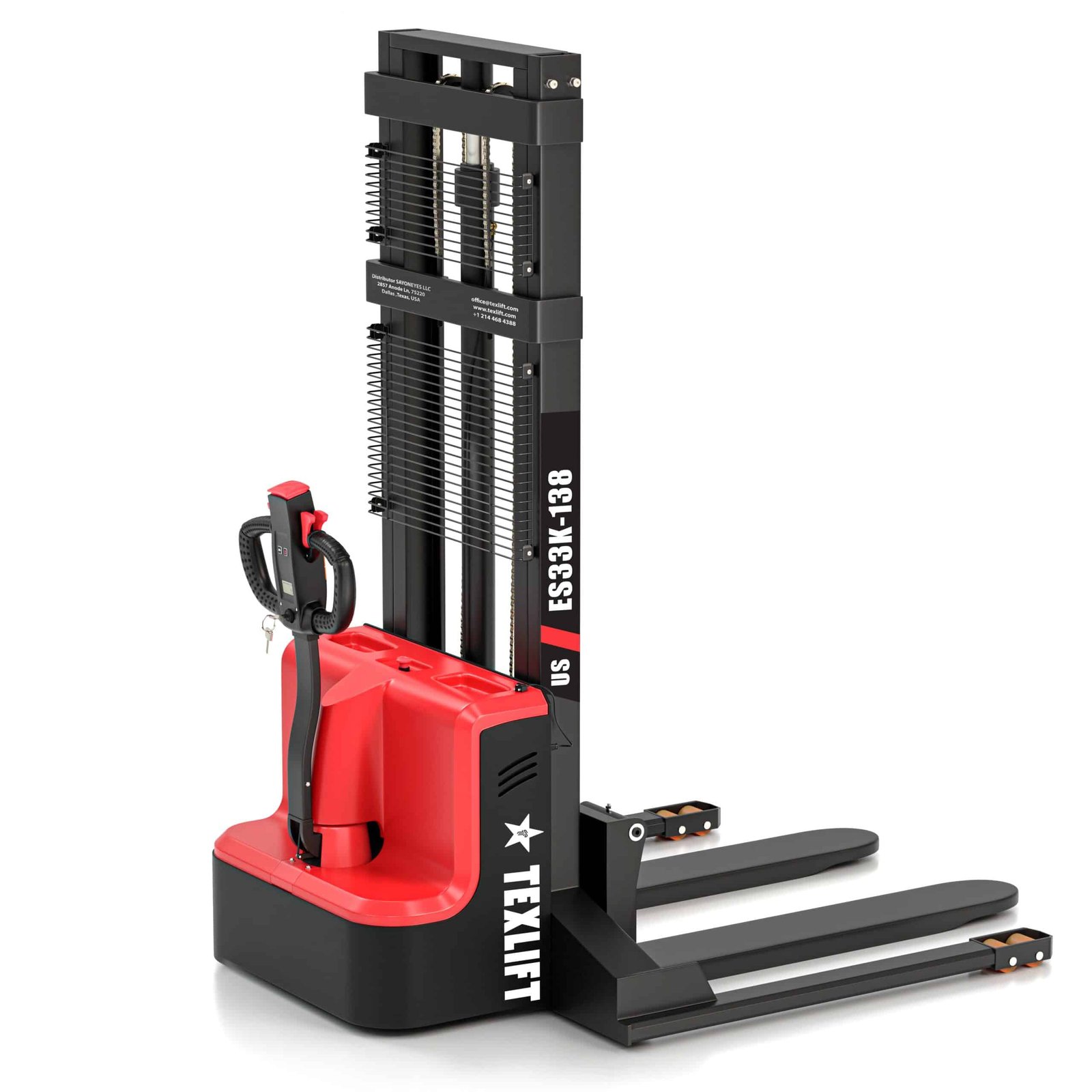

The US-ES33K 138 Electric Walkie Pallet Stacker handles compatible palletized loads up to 3,300 lb at the rated 20 in load center. This capacity supports pallet transportation, positioning, lifting, and elevated stacking throughout professional indoor material-handling environments.
Actual allowable capacity may vary with lift height, load center, load distribution, pallet configuration, and operating conditions.
The 12 ft (138 in) maximum fork lift height provides increased vertical reach for elevated pallet stacking, warehouse racking, storage, retrieval, and material positioning.
The increased reach makes this Electric Walkie Pallet Stacker particularly useful for warehouse operations requiring higher stacking capability while maintaining convenient walk-behind control.
The heavy-duty 2-stage wide-view mast provides the vertical reach required for elevated pallet stacking while supporting operator visibility during material-handling operations.
The mast measures approximately 89 in when fully lowered and reaches approximately 154 in overall height when fully extended. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.
The 45 in forks can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
Minimum lowered fork height is approximately 3.6 in or less. Always verify pallet dimensions, fork entry, load distribution, and load center before lifting or transporting a load.
Fixed straddle legs provide a stable machine base around compatible palletized loads during transportation, lifting, elevated stacking, and positioning.
The US-ES33K 138 measures approximately 60 in wide, providing a stable configuration for professional warehouse and industrial pallet-handling applications.
A 55 in turning radius and approximately 70 in overall machine length provide practical maneuverability for pallet approach, transportation, turning, and positioning.
This configuration helps the Electric Walkie Pallet Stacker operate efficiently throughout compatible warehouse aisles, storage areas, production facilities, receiving areas, and staging zones.
The US-ES33K 138 uses a 48V / 32Ah lead-acid traction battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting. Typical operating time is approximately 3–4 hours per charge, depending on load weight, travel distance, lifting frequency, battery condition, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
A 0.8 kW electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout indoor warehouse and industrial environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated stacking, and precise load positioning.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation, positioning, and stacking operations.
Durable polyurethane wheels provide smooth and controlled travel across firm, level, and adequately supported warehouse and industrial floors.
The US-ES33K 138 Electric Walkie Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, production environments, receiving areas, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb capacity, 12 ft lift height, fixed straddle-leg configuration, and compact 55 in turning radius provide a practical combination of lifting performance, stability, and maneuverability.
The Electric Walkie Pallet Stacker is ideal for elevated pallet stacking, warehouse racking, pallet transportation, inventory movement, receiving and staging, production-line material handling, storage organization, and positioning compatible palletized loads weighing up to 3,300 lb.
Its 12 ft (138 in) maximum lift height provides increased vertical reach for compatible elevated storage and warehouse racking applications.
The US-ES33K 138 Electric Walkie Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.8 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for full-electric walkie operation.
Do not operate the US-ES33K 138 when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the Electric Walkie Pallet Stacker to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ES33K 138 | Full-electric walkie pallet stacker with fixed straddle legs designed for professional indoor pallet handling and elevated stacking. |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads. |
| Load Center | 20 in | Rated load center used for the stated 3,300 lb capacity. |
| Lift Height | 12 ft (138 in) | Maximum vertical fork lift height for elevated pallet stacking, warehouse racking, and material positioning. |
| Lowered Mast Height | 89 in | Approximate mast height with the mast fully lowered. |
| Maximum Overall Height | 154 in | Approximate maximum overall machine height with the mast fully extended. |
| Mast Type | 2-Stage Wide-View | Heavy-duty wide-view mast designed for elevated pallet stacking while supporting operator visibility. |
| Fork Length | 45 in | Heavy-duty forks designed for handling compatible palletized loads. |
| Fork Spread | 5.5–27 in Adjustable | Adjustable fork positioning accommodates different compatible pallet and load configurations. |
| Minimum Fork Height | ≤3.6 in | Minimum lowered fork height for compatible pallet entry. |
| Straddle Legs | Fixed | Fixed straddle-leg configuration provides a stable base around compatible palletized loads. |
| Overall Length | 70 in | Approximate overall machine length. |
| Overall Width | 60 in | Approximate overall machine width including the fixed straddle-leg configuration. |
| Turning Radius | 55 in | Approximate minimum turning radius for warehouse maneuverability and pallet positioning. |
| Wheel Type | Polyurethane | Durable polyurethane wheels designed for smooth, firm, adequately supported indoor industrial floors. |
| Battery | 48V / 32Ah Lead-Acid | Electric traction battery system supplying power to travel and hydraulic lifting. |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system. |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge. Actual runtime varies with load weight, travel distance, lifting frequency, battery condition, floor conditions, temperature, and operating intensity. |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible charger. |
| Charger Type | 48V Lead-Acid Battery Charger | Compatible charging system designed for the stacker's 48V lead-acid battery system. |
| Drive Motor | 0.8 kW | Electric traction motor provides powered travel for indoor material-handling operations. |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor powers lifting, lowering, elevated stacking, and load-positioning functions. |
| Brake System | Electromagnetic | Electromagnetic braking system provides controlled stopping during pallet transportation and positioning. |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting provide full-electric material-handling operation. |
| Operation | Walkie | Walk-behind operator configuration with direct control of travel, steering, lifting, lowering, and pallet positioning. |
| Machine Weight | Approx. 1,260 lb | Approximate machine operating weight including the battery system. |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed primarily for warehouses and other firm, level, adequately supported indoor industrial floors. |
| Best Use | Elevated Indoor Pallet Handling & Stacking | Designed for pallet transportation, elevated stacking, warehouse racking, inventory positioning, and staging. |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, elevated stacking, staging, inventory movement, production material handling, and warehouse operations. |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels and other normal wear or consumable components are excluded. |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ES33K 138 Electric Walkie Pallet Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-ES33K 138 provides a maximum fork lift height of 12 ft (138 in) for elevated pallet stacking, warehouse racking, storage, retrieval, and material positioning.
The US-ES33K 138 has an approximately 89 in lowered mast height. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.
The US-ES33K 138 reaches approximately 154 in in maximum overall height when the mast is fully extended.
The stacker uses a 2-stage wide-view mast designed to provide the vertical reach required for elevated pallet stacking while supporting operator visibility during material-handling operations.
The US-ES33K 138 is equipped with 45 in long heavy-duty forks designed for handling compatible palletized loads within the machine's rated capacity.
The forks provide an adjustable spread of approximately 5.5–27 in, allowing the operator to position them for different compatible pallet and load configurations.
The minimum lowered fork height is approximately 3.6 in or less, supporting entry into compatible pallet configurations.
Yes. The US-ES33K 138 uses a fixed straddle-leg configuration that provides a stable base around compatible palletized loads during transportation, lifting, and positioning.
The US-ES33K 138 measures approximately 70 in long and 60 in wide, with an approximately 89 in lowered mast height. Maximum overall height with the mast fully extended is approximately 154 in.
The US-ES33K 138 has an approximately 55 in turning radius, supporting maneuverability when approaching pallets, turning, and positioning loads in compatible warehouse environments.
The US-ES33K 138 has an approximate operating weight of 1,260 lb including the battery system.
The stacker uses durable polyurethane wheels designed for smooth, firm, level, and adequately supported indoor industrial floors.
The US-ES33K 138 uses a 48V / 32Ah lead-acid electric traction battery system that supplies power to electric travel and hydraulic lifting.
The complete 48V / 32Ah battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies with load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible charger. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, and charging conditions.
The US-ES33K 138 uses a compatible 48V lead-acid battery charger designed for the stacker's battery system.
No. Stop operating the US-ES33K 138 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
A 0.8 kW electric traction motor provides powered travel for transporting and positioning compatible palletized loads.
A 2.2 kW electric hydraulic lift motor powers pallet pickup, lifting, lowering, elevated stacking, and load-positioning functions.
The stacker uses an electromagnetic braking system that provides controlled stopping during pallet transportation, positioning, and stacking operations.
Yes. The US-ES33K 138 provides powered electric travel and electric hydraulic lifting for full-electric material-handling operation.
Yes. The walk-behind operator configuration provides direct control of travel, steering, lifting, lowering, and pallet positioning without requiring an onboard operator platform.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The Electric Walkie Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and similar commercial environments.
No. The US-ES33K 138 uses polyurethane wheels and is designed primarily for indoor industrial floors. It is not intended for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-ES33K 138 is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, production environments, receiving areas, staging areas, and other indoor material-handling operations.
Typical applications include elevated pallet stacking, warehouse racking, pallet transportation, inventory movement, receiving and staging, production-line material handling, storage organization, and positioning compatible palletized loads.
The US-ES33K 138 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 12 ft (138 in) maximum lift height supports positioning and stacking compatible palletized loads at elevated storage and warehouse racking locations.
Position compatible palletized inventory within warehouse racking systems using the 3,300 lb rated capacity and increased 12 ft vertical reach.
Transport, lift, position, and stack compatible palletized loads throughout warehouses with smooth, firm, and adequately supported indoor floors.
Move compatible palletized inventory between receiving, storage, staging, picking, replenishment, and shipping areas within professional distribution operations.
Transport and position compatible palletized materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, organization, replenishment, elevated storage, and pallet positioning throughout compatible warehouse environments.
Move incoming palletized materials from receiving areas to compatible staging, storage, production, racking, or inventory locations.
Supply compatible palletized materials and components to production areas and move finished products to staging, storage, or warehouse locations.
Use the Electric Walkie Pallet Stacker for pallet transportation, elevated stacking, storage organization, and inventory positioning in compatible commercial storage environments.
Position and organize compatible palletized loads within indoor loading, shipping, receiving, and staging areas with suitable floor conditions.
The 2-stage wide-view mast and 12 ft (138 in) lift height provide increased vertical reach for compatible elevated pallet positioning and storage applications.
A 3,300 lb rated capacity, adjustable 5.5–27 in fork spread, 45 in forks, and full-electric walkie operation provide versatility for professional indoor pallet-handling applications.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ES33K 138 Electric Walkie Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, maintenance questions, battery and charging systems, electrical functions, hydraulic systems, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, wheel, braking, and other service components for the US-ES33K 138.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper battery charging, inspection, care, storage, and use of the correct compatible 48V lead-acid charging system.
Routine inspection and maintenance guidance is available for the forks, mast, hydraulic system, polyurethane wheels, battery system, electromagnetic braking system, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
