01
What is the maximum load capacity of the US-TXEFL265PRO?
The US-TXEFL265PRO has a maximum rated load capacity of 2,650 lb for compatible palletized loads and materials within the forklift's specified operating limits.
02
What is the maximum lift height?

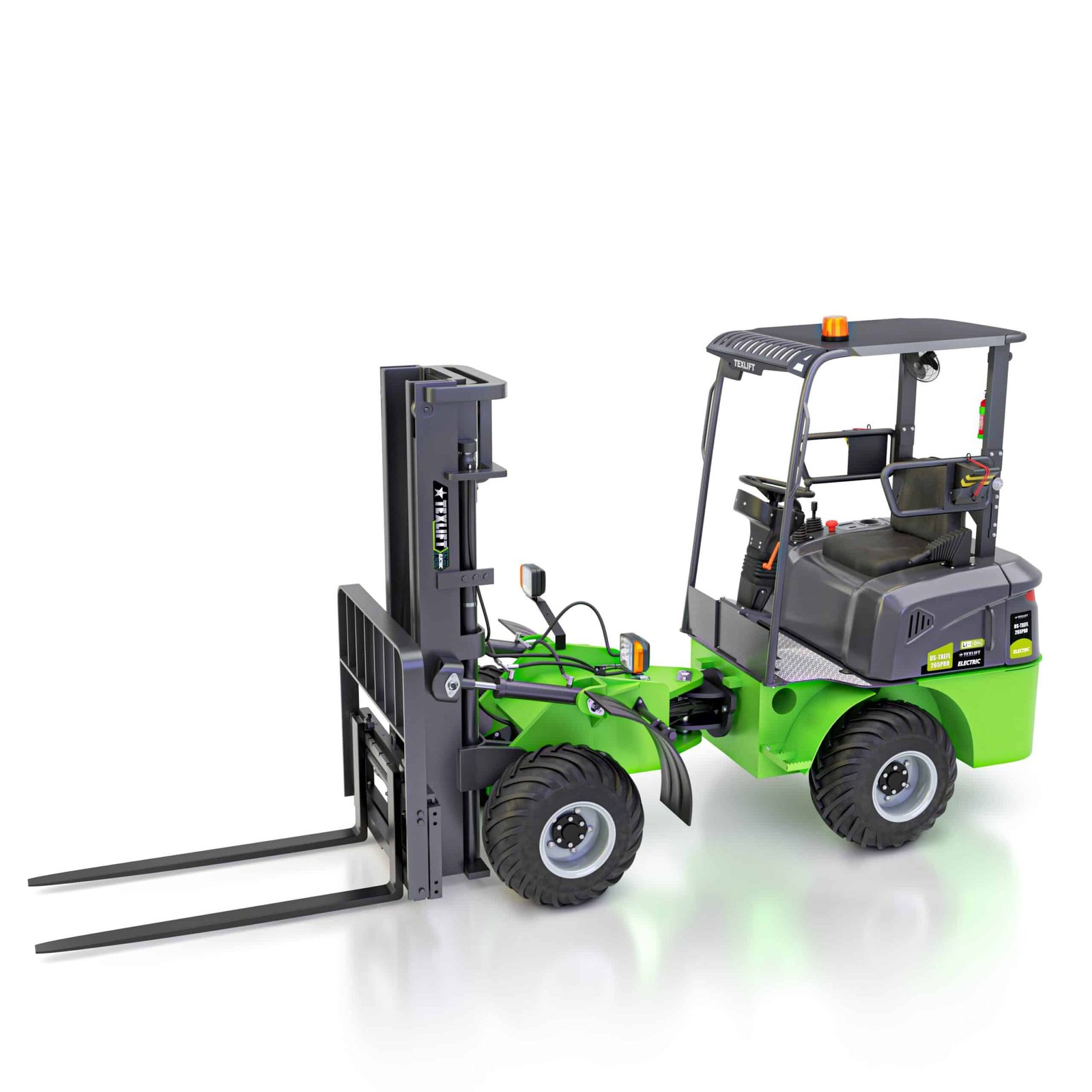

This 4WD Off-Road Electric Forklift provides a maximum fork lift height of 120 in (10 ft) for pallet stacking, loading, unloading, and elevated material positioning.
03
What type of mast does the forklift use?
The US-TXEFL265PRO uses a 2-stage mast that provides up to 120 in (10 ft) of maximum fork lift height.
04
How long are the forks?
The forklift is equipped with 48 in forks designed for compatible pallets and palletized materials.
05
Are the fork positions adjustable?
Yes. The fork position can be adjusted for compatible pallet widths and load configurations.
06
Does the US-TXEFL265PRO include side shift?
Yes. Hydraulic side shift is included and allows lateral fork movement for more precise pallet alignment and positioning.
07
Is the US-TXEFL265PRO four-wheel drive?
Yes. The US-TXEFL265PRO uses a 4WD system with dual electric drive motors to provide increased traction across compatible firm outdoor and moderately uneven surfaces.
08
What battery does the US-TXEFL265PRO use?
This 4WD Off-Road Electric Forklift uses a 73.6V / 240Ah lithium-ion battery with approximately 17.7 kWh of nominal energy.
09
How long does the battery last per charge?
The lithium battery provides up to approximately 8 hours of operation per charge. Actual runtime varies with load, terrain, travel distance, speed, lifting frequency, hydraulic use, temperature, battery condition, and operating intensity.
10
How long does the battery take to recharge?
The battery provides an approximate 5-hour full recharge time under suitable charging conditions. Actual charging time can vary depending on remaining battery level, battery condition, temperature, charger performance, and charging conditions.
11
What drive motors does the forklift use?
The US-TXEFL265PRO uses dual 4.5 kW electric drive motors providing 9 kW of combined drive power for powered travel and 4WD traction.
12
What lift motor does the forklift use?
A separate 4.5 kW electric lift motor powers the hydraulic system for lifting and load-handling functions.
13
What is the hydraulic pressure?
The hydraulic system is rated at approximately 2,320 PSI (16 MPa).
14
What is the maximum travel speed?
The forklift has listed low and high travel speeds of approximately 6.2 mph and 12.4 mph. Actual travel speed depends on load, terrain, surface conditions, and operating environment.
15
How much ground clearance does it have?
The US-TXEFL265PRO provides approximately 8 in of ground clearance for increased undercarriage clearance across compatible outdoor and moderately uneven surfaces.
16
What is the turning radius?
The forklift has an approximately 81 in turning radius for maneuvering and positioning in compatible yards, job sites, industrial facilities, and work areas.
17
What size tires does the forklift use?
The US-TXEFL265PRO uses 26 × 12.00-12 off-road tires designed to provide traction and stability across compatible outdoor working surfaces.
18
What are the overall dimensions?
The forklift measures approximately 150 in long, 50 in wide, and 89 in high.
19
How much does the US-TXEFL265PRO weigh?
The approximate operating weight of the forklift is 4,700 lb.
20
Can this 4WD Off-Road Electric Forklift be used indoors?
Yes. The US-TXEFL265PRO can be used in compatible indoor environments when machine dimensions, floor loading, surface conditions, ventilation requirements, and available operating space are suitable.
21
What outdoor surfaces can the forklift operate on?
The forklift is designed for compatible firm and adequately supported surfaces such as compacted gravel, firm dirt, maintained outdoor work areas, asphalt, concrete, and moderately uneven commercial surfaces.
22
Is the US-TXEFL265PRO an all-terrain forklift?
No. It is a 4WD Off-Road Electric Forklift, not an all-terrain vehicle. Four-wheel drive and increased ground clearance do not make the machine suitable for every terrain condition.
23
Can the forklift operate in deep mud or loose sand?
No. Do not operate the forklift in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, unstable terrain, or other conditions where the forklift or load could sink, slide, lose traction, or become unstable.
24
Where does the US-TXEFL265PRO work best?
It is well suited for compatible farms, construction sites, material yards, landscaping operations, nurseries, industrial facilities, warehouses, paved commercial yards, and other demanding material-handling environments.
25
What are the best applications for this forklift?
Typical applications include pallet transport, construction-material handling, farm supplies, landscaping products, truck loading and unloading, material-yard operations, inventory movement, pallet stacking, and elevated material positioning.
26
Does the forklift produce exhaust emissions?
The US-TXEFL265PRO uses a full-electric drivetrain and produces zero tailpipe exhaust emissions during operation.
27
Can I operate the forklift when the battery reaches 20%?
No. Stop operating the US-TXEFL265PRO when the lithium battery reaches 20% charge or below and recharge the battery using compatible charging equipment before returning the forklift to service.
28
What warranty is included with the US-TXEFL265PRO?
The US-TXEFL265PRO includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts include 90-day warranty coverage against qualifying manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
