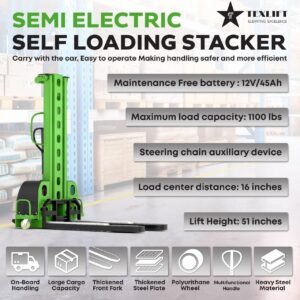

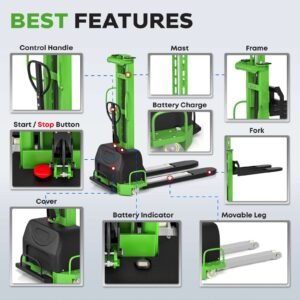

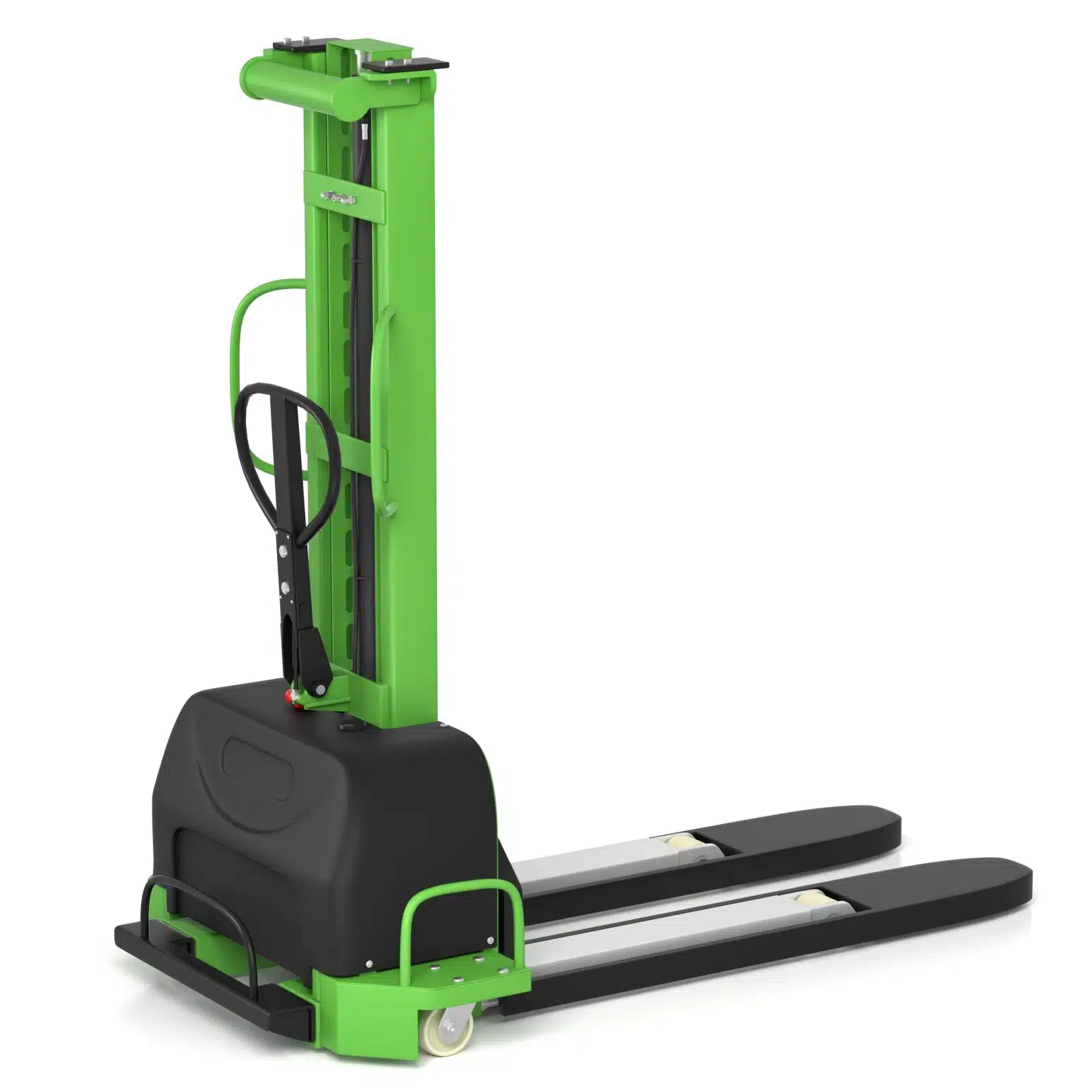

The Texlift US-ZTS11K SE is a semi-electric self-loading pallet stacker designed for professional delivery operations, cargo vans, box trucks, warehouses, distribution centers, retail receiving, and mobile commercial material handling. Featuring a 1,100 lb rated load capacity, 51 in maximum lift height, 44 in steel forks, and a compact 35 in overall width, this versatile stacker provides an efficient solution for businesses that need powered lifting and convenient pallet handling at multiple locations.
Combining electric lifting with manual travel, the US-ZTS11K SE provides a practical balance between lifting performance, operating simplicity, and equipment portability. Its rechargeable 12V / 45Ah gel battery powers the lifting system, while manual travel allows operators to move and position the stacker without a powered drivetrain. The integrated self-loading configuration supports loading and unloading the stacker with compatible delivery vehicles, reducing dependence on separate lifting equipment at each destination.
With a compact 62 in overall length, 35 in width, and 550 lb machine weight, the US-ZTS11K SE is particularly suitable for mobile delivery applications and confined commercial environments. Its simplified semi-electric design reduces drivetrain complexity while providing dependable powered lifting for daily material-handling tasks. Built for professional commercial use, the US-ZTS11K SE combines compact dimensions, convenient self-loading functionality, and practical electric lifting with the added confidence of a 12-Month Warranty.
The US-ZTS11K SE provides a 1,100 lb rated load capacity for lifting, transporting, loading, unloading, and positioning compatible pallets and commercial materials. Its practical capacity supports light-duty pallet handling within the equipmentโs rated operating limits.
A 51 in maximum lift height provides vertical reach for compatible cargo-van and delivery-vehicle loading, pallet positioning, unloading, and low-level stacking applications.
The US-ZTS11K SE combines powered electric lifting with manual travel, allowing operators to raise and lower compatible loads electrically while manually moving and positioning the equipment. This configuration provides powered lifting assistance without requiring a fully electric travel system.

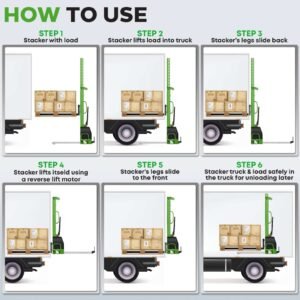

The self-loading configuration supports loading and unloading the stacker with compatible delivery vehicles. This functionality is especially useful for businesses that transport pallet-handling equipment between delivery locations where a separate forklift may not be available.
A rechargeable 12V / 45Ah gel battery supplies power to the electric lifting system. Its sealed battery design provides convenient operation and eliminates routine electrolyte refilling associated with conventional flooded lead-acid batteries.
The powered lifting system reduces the manual effort required to raise and lower compatible palletized loads. Electric hydraulic operation supports controlled pallet positioning during loading, unloading, and commercial material handling.
The manually operated travel system allows the stacker to be pushed, pulled, and positioned by the operator on suitable surfaces. This simplified configuration eliminates the need for a powered traction motor while maintaining electric lifting functionality.
With a 35 in overall width, the US-ZTS11K SE provides a practical footprint for compatible cargo vans, warehouses, loading areas, retail facilities, and confined commercial environments.
The 62 in overall length supports maneuverability and positioning in compatible delivery vehicles, loading zones, storage facilities, and commercial work areas where equipment dimensions are important.

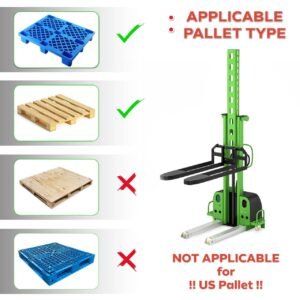

The US-ZTS11K SE features 44 in steel forks designed for handling compatible pallets and commercial loads. The fork configuration includes a 23 in outside width and 7.5 in inside spacing for suitable pallet openings.
With a machine weight of 550 lb including the battery, the US-ZTS11K SE offers a relatively lightweight configuration compared with many fully electric self-loading stackers. This supports practical transportation and mobile material-handling applications, subject to vehicle payload and loading requirements.
The integrated self-loading system is designed for use with compatible cargo vans, box trucks, and commercial delivery vehicles. Operators must verify vehicle loading height, available space, payload capacity, equipment clearance, and load distribution before use.
The compact design and self-loading functionality make the US-ZTS11K SE suitable for businesses that regularly transport palletized goods between warehouses, retail facilities, commercial properties, and customer delivery locations.
Because travel is manual rather than electrically powered, the US-ZTS11K SE eliminates powered traction-motor components from the travel system. This helps simplify routine drivetrain maintenance while retaining electric lifting capability.
The US-ZTS11K SE supports daily pallet movement, low-level material positioning, loading, unloading, and inventory handling in compatible commercial environments. Its semi-electric configuration is particularly practical for operations that require occasional powered lifting and manual pallet transport.
The US-ZTS11K SE includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use. Texlift provides technical assistance, battery and charging support, lifting-system troubleshooting, replacement-parts assistance, and warranty claim support.
The US-ZTS11K SE is well suited for cargo vans, box trucks, delivery operations, warehouses, distribution facilities, retail receiving areas, commercial storage, and businesses requiring pallet-handling equipment at multiple locations. It is primarily intended for indoor operation and smooth, firm, level commercial surfaces.
Recommended applications include last-mile delivery, cargo-van operations, pallet loading and unloading, low-level pallet positioning, retail receiving, warehouse material handling, commercial storage, distribution operations, and mobile delivery services.
The US-ZTS11K SE uses a rechargeable 12V / 45Ah gel battery to power its electric lifting system. Because travel is manually operated, battery power is dedicated to the lifting system. Charging should be performed using a compatible charger according to the manufacturerโs instructions.
Operate the US-ZTS11K SE only on firm, stable, level, and adequately supported surfaces suitable for its rated capacity. Manual travel requires appropriate operator control and suitable floor conditions. Before self-loading, verify delivery-vehicle compatibility, loading height, available clearance, payload capacity, and safe operating conditions. Do not exceed the rated load capacity or use the equipment on unsuitable slopes, unstable terrain, or unsupported loading surfaces.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

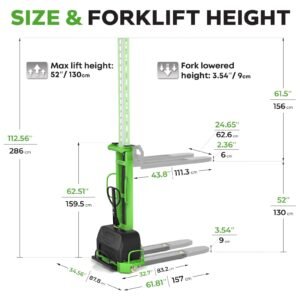

Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ZTS11K SE | Semi-electric self-loading pallet stacker designed for delivery, warehouse, and mobile material handling |
| Load Capacity | 1,100 lb | Maximum rated load capacity for handling compatible pallets and materials within the stacker's operating limits |
| Maximum Lift Height | 51 in | Maximum vertical fork lifting height for loading, unloading, positioning, and low-level pallet handling |
| Load Center | 16 in | Rated load-center distance used for the stacker's capacity specification |
| Power Type | Semi-Electric | Manual travel combined with battery-powered electric lifting |
| Travel Type | Manual | Operator manually moves and positions the stacker while electric power operates the lifting system |
| Battery | 12V / 45Ah Gel | Rechargeable sealed gel battery supplies power to the electric lifting system |
| Battery Type | Gel Lead-Acid | Sealed rechargeable gel battery technology designed for low routine maintenance |
| Battery Voltage | 12V | Nominal battery-system operating voltage |
| Battery Capacity | 45Ah | Rated battery capacity for powered lifting operations |
| Battery Energy | 0.54 kWh | Nominal battery energy calculated from the 12V / 45Ah battery system |
| Lift Motor | 0.8 kW | Dedicated electric motor powers hydraulic lifting and lowering functions |
| Fork Length | 44 in | Steel forks designed for handling compatible pallets and palletized loads |
| Fork Outside Width | 23 in | Overall outside width across the forks |
| Fork Inside Width | 7.5 in | Clear inside spacing between the forks |
| Minimum Fork Height | 3.5 in | Fork height with the lifting system fully lowered |
| Fork Position | Fixed | Fixed fork configuration designed for compatible pallet openings and loads |
| Mast Lowered Height | 63 in | Overall mast height with the lifting system fully lowered |
| Mast Raised Height | 113 in | Overall mast height with the lifting system fully raised |
| Wheelbase | 33 in | Compact wheelbase supports maneuverability and mobile material-handling applications |
| Overall Length | 62 in | Total machine length |
| Overall Width | 35 in | Compact machine width supports use in compatible delivery and commercial environments |
| Machine Weight | 550 lb | Machine weight including battery |
| Self-Loading Function | Included | Integrated self-loading design supports loading and unloading the stacker with compatible delivery vehicles |
| Recommended Environment | Indoor & Smooth Commercial Surfaces | Designed primarily for delivery operations, warehouses, loading areas, retail facilities, and firm, level commercial surfaces |
| Best Use | Delivery & Light-Duty Pallet Handling | Designed for loading, unloading, lifting, positioning, and manually transporting compatible palletized materials |
| Typical Applications | Cargo Vans, Delivery Operations, Warehouses, Retail & Commercial Storage | Suitable for mobile delivery and commercial pallet-handling applications |
| Warranty | 12 Months | Warranty coverage for eligible manufacturing defects under applicable Texlift warranty terms |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ZTS11K SE has a rated load capacity of 1,100 lb for lifting, loading, unloading, positioning, and transporting compatible pallets and materials within the stacker's rated operating limits.
The US-ZTS11K SE provides a maximum lift height of 51 in for loading, unloading, pallet positioning, and low-level material-handling applications.
No. The US-ZTS11K SE is a semi-electric stacker. Lifting and lowering are electrically powered, while travel and positioning are manual.
No. Travel is manual, so the US-ZTS11K SE does not use an electric drive motor.
The US-ZTS11K SE uses a 0.8 kW electric lift motor to power the lifting and lowering functions.
The integrated self-loading design allows the stacker to support loading and unloading operations with compatible delivery vehicles, reducing dependence on a separate forklift at each destination.
Yes. The US-ZTS11K SE is designed for self-loading applications with compatible delivery vehicles and suitable loading conditions. Vehicle height, payload capacity, access, clearance, and operating conditions must be verified before use.
The US-ZTS11K SE has a rated load center of 16 in.
The stacker is equipped with 44 in steel forks for handling compatible pallets and palletized loads.
The outside fork width is 23 in.
The inside spacing between the forks is 7.5 in.
The minimum fork height is 3.5 in when the lifting system is fully lowered.
The stacker uses a rechargeable 12V / 45Ah gel lead-acid battery that supplies power to the electric lifting system.
The 12V / 45Ah battery provides 0.54 kWh of nominal battery energy.
The mast height is 63 in when the lifting system is fully lowered.
The overall mast height is 113 in when fully raised.
The stacker is 35 in wide, providing a compact footprint for compatible delivery vehicles, warehouses, and commercial work areas.
The stacker has an overall length of 62 in.
The stacker weighs 550 lb including the battery.
Yes. Its integrated self-loading design, compact dimensions, and 550 lb machine weight make it particularly useful for delivery operations and mobile pallet handling, subject to vehicle compatibility.
Yes, with compatible delivery vehicles when vehicle dimensions, loading height, payload capacity, equipment clearance, access, and operating conditions are suitable for the stacker.
Yes. Its compact design, manual travel, and electric lifting system make it suitable for compatible warehouses, commercial storage areas, retail receiving locations, and loading zones.
The US-ZTS11K SE is primarily designed for indoor use and smooth, firm, level commercial surfaces. It is not an off-road stacker and should not be operated on rough, soft, unstable, or uneven terrain.
The
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Self-loading capability makes the US-ZTS11K SE well suited for businesses transporting lighter palletized goods to multiple customer or job locations.
Compact dimensions and a 550 lb machine weight make the stacker practical for compatible cargo vans when vehicle dimensions, loading height, and payload capacity are suitable.
Support pallet loading, unloading, and material handling with compatible box trucks and commercial delivery vehicles.
Self-loading capability helps operators handle compatible palletized goods at customer locations where a forklift may not be available.
Lift, position, and manually transport compatible pallets throughout warehouses and commercial storage facilities.
Move compatible palletized inventory between delivery vehicles, receiving areas, stockrooms, and storage locations.
Electric lifting supports controlled loading and unloading of compatible materials up to the 1,100 lb rated capacity.
The 51 in maximum lift height supports low-level pallet positioning, loading, unloading, and material-handling operations.
The self-loading design allows the stacker to travel with compatible delivery vehicles for material handling at multiple locations.
Lift, move, and position compatible inventory, supplies, equipment, and palletized materials in commercial storage environments.
Manual travel provides a simple solution for moving compatible loads over short distances on smooth, firm surfaces.
Semi-electric operation is well suited for compatible warehouses, retail facilities, loading areas, storage locations, and other indoor commercial environments.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ZTS11K SE includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.
Technical assistance is available for stacker operation, troubleshooting, controls, lifting functions, maintenance, and general product questions.
Assistance is available for the 12V / 45Ah gel battery system, charging procedures, battery connections, storage, inspection, and battery-performance troubleshooting.
Assistance is available for the 0.8 kW electric lift motor, lifting and lowering controls, hydraulic functions, mast operation, and related lifting-system components.
Technical assistance is available for the 44 in steel forks, mast system, lifting functions, load positioning, inspection, and related material-handling components.
Assistance is available for proper operation and troubleshooting of the integrated self-loading system used with compatible delivery vehicles and loading applications.
Technical assistance is available for wheels, casters, steering, braking, and other components associated with the stacker's manual travel system.
Assistance is available for identifying compatible replacement batteries, electrical components, hydraulic components, wheels, controls, and other service parts for the US-ZTS11K SE. Eligible replacement parts include a 90-Day Warranty, excluding wheels and consumable components.
For warranty review, customers may be asked to provide the order number, product model, serial number, description of the issue, and clear photos or videos showing the reported problem. Contact office@texlift.com for assistance.
Normal wear items, consumable components, misuse, overloading, accidents, neglect, improper maintenance or charging, unauthorized repairs or modifications, and operation outside the machine's intended application are excluded from warranty coverage.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
