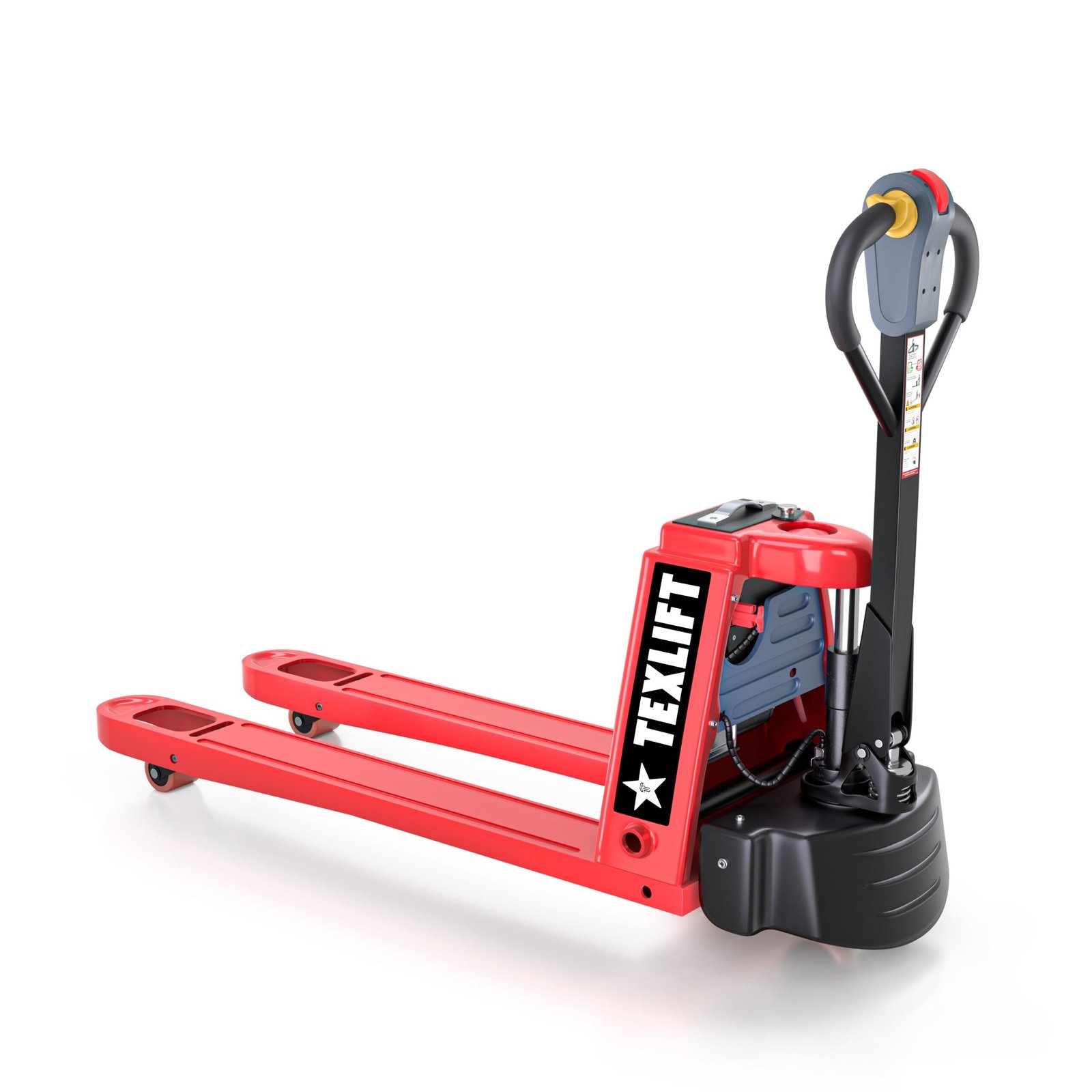

A full electric narrow pallet jack built for tight spaces, the Texlift US-EPT33K NR combines a 3,300 lb load capacity with an ultra-compact 21.5 in overall fork width. Its narrow configuration is designed for efficient pallet handling in tight warehouse aisles, trailers, stockrooms, shipping areas, and other confined commercial environments.
Powered travel and electric lifting eliminate manual pumping and help reduce operator effort during repetitive pallet handling. The US-EPT33K NR uses a rechargeable 48V / 15Ah lithium battery and provides approximately 4–5 hours of operating time under typical conditions. With 45 in forks, approximately 9 in inside fork spacing, and a compact 56 in turning radius, this narrow electric pallet jack is especially practical for compatible narrow pallets and space-restricted operations.
The US-EPT33K NR provides a maximum rated load capacity of 3,300 lbs at a 24 in load center.
This capacity makes the full electric narrow pallet jack suitable for routine movement of compatible palletized inventory, materials, supplies, and products in commercial and industrial material-handling environments.
The 21.5 in overall fork width is one of the key advantages of the US-EPT33K NR.
The machine features 45 in long forks with approximately 9 in of inside fork spacing, creating a compact configuration for compatible narrow pallets and restricted working areas.
This narrow design can provide access where a conventional wider pallet jack may not be suitable.
Because pallet dimensions and entry configurations vary, always verify pallet compatibility before ordering.
The US-EPT33K NR provides powered electric travel and powered electric lifting for efficient daily pallet handling.
A 0.75 kW drive motor powers machine travel, while a dedicated 0.5 kW lift motor handles raising and lowering the forks.
Full electric operation eliminates manual pumping and helps reduce operator effort during repetitive pallet movement, positioning, loading, and unloading.
This full electric narrow pallet jack is powered by a rechargeable 48V / 15Ah lithium battery.
The lithium battery supplies power to both the electric drive and lifting systems and has a nominal energy capacity of approximately 0.72 kWh.
The compact lithium power system is designed to support routine commercial material-handling applications while eliminating the watering requirements associated with traditional flooded lead-acid batteries.
The US-EPT33K NR provides approximately 4–5 hours of operating time per charge under typical operating conditions.
Actual runtime may vary depending on load weight, travel distance, lifting frequency, floor conditions, temperature, battery condition, battery age, and operating practices.
The 48V / 15Ah lithium battery has an approximate charging time of 3 hours under appropriate charging conditions.
Actual charging time may vary depending on remaining battery charge, battery condition, battery age, temperature, and charging environment.
The US-EPT33K NR features 45 in long forks designed for compatible pallet-handling applications.
Combined with the 21.5 in overall fork width and approximately 9 in inside fork spacing, the fork configuration helps maintain the compact footprint of this narrow electric pallet jack.
Always confirm pallet dimensions before purchasing, particularly when handling non-standard or narrow pallets.
An approximately 56 in turning radius helps the US-EPT33K NR maneuver efficiently in confined material-handling areas.
The compact turning radius is particularly useful in narrow warehouse aisles, suitable trailers, stockrooms, staging areas, and other locations where available maneuvering space is restricted.
The forks lower to approximately 3.1 in for entry into compatible pallets and raise to approximately 8 in.
This lifting range supports normal pallet pickup, transportation, positioning, and unloading.
The US-EPT33K NR travels at approximately 2.5 mph with a full load and up to approximately 3.1 mph without a load.
Its walk-behind configuration provides controlled operating speeds for commercial pallet transportation while maintaining maneuverability in tighter working areas.
Regenerative and electromagnetic braking support controlled stopping during normal operation.
Rated gradeability is approximately 6% with a full load and up to 20% without a load under suitable operating conditions.
The US-EPT33K NR is designed primarily for operation on firm, smooth, and relatively level surfaces.
This narrow electric pallet jack is not designed for gravel, soft ground, rough outdoor terrain, or off-road applications.
The compact walk-behind configuration makes the US-EPT33K NR practical for facilities where equipment size and maneuverability are important.
The machine measures approximately 65 in in overall length, 21.5 in in overall width, and 50 in in overall height including the operating handle.
Total machine weight is approximately 310 lbs including the battery.
The US-EPT33K NR includes the complete full electric narrow pallet jack, 48V / 15Ah lithium battery, compatible battery charger, and standard product documentation.
The battery and charger are matched to the machine for normal charging and operation.
Optional accessories, replacement parts, and other items not specifically listed as included are sold separately unless otherwise stated on the order or invoice.
Every US-EPT33K NR is inspected and tested before shipment to help verify basic machine operation and equipment condition before leaving our facility.
Customers should perform the recommended receiving inspection and review the operating and safety instructions before placing the pallet jack into service.
The US-EPT33K NR full electric narrow pallet jack is designed primarily for indoor and covered commercial material-handling environments.
It performs best on firm, smooth, and relatively level surfaces commonly found in warehouses, distribution centers, suitable trailers, retail stockrooms, manufacturing facilities, shipping departments, and receiving areas.
Its 21.5 in narrow configuration is particularly useful for operations handling compatible pallets where equipment width and available maneuvering space are important.
The US-EPT33K NR is well suited for narrow warehouse aisles, compatible pallet transportation, trailer loading and unloading, retail stockrooms, shipping and receiving areas, distribution centers, manufacturing facilities, logistics operations, and order-staging areas.
The combination of a 3,300 lb capacity, 21.5 in overall fork width, compact turning radius, and full electric operation provides a practical material-handling solution for confined commercial spaces.
The US-EPT33K NR uses a rechargeable 48V / 15Ah lithium battery to power both the electric drive and lifting systems.
Typical operating time is approximately 4–5 hours per charge, with an approximate charging time of 3 hours under appropriate conditions.
Actual battery performance and charging time may vary depending on load weight, travel distance, lifting frequency, floor conditions, temperature, remaining charge level, battery condition, battery age, charging practices, and operating patterns.
Recharge the lithium battery after use and follow the recommended charging and storage procedures to help maintain battery performance and service life.
Avoid leaving the battery deeply discharged or storing the pallet jack for extended periods with a low state of charge.
Battery capacity and runtime naturally change over time and may be affected by battery age, frequency of use, temperature, charging practices, storage conditions, and operating demands.
Do not allow the battery charge level to drop below 20%.
Recharge the battery before it reaches 20%. Avoid continued operation at a very low state of charge and do not store the machine with a deeply discharged battery.
Repeated deep discharge may reduce battery performance, shorten battery service life, and may cause battery damage.
For extended storage, maintain an appropriate battery charge level and follow the recommended charging and storage procedures provided with the equipment.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-EPT33K NR | Full electric narrow pallet jack designed for confined material-handling areas |
| Load Capacity | 3,300 lbs | Maximum rated load capacity |
| Load Center | 24 in | Rated load center for proper load positioning |
| Fork Length | 45 in | Fork length for compatible narrow pallet applications |
| Overall Fork Width | 21.5 in | Narrow outside fork width for compatible pallets and tight spaces |
| Inside Fork Width | 9 in | Inside spacing between the forks |
| Minimum Fork Height | 3.1 in | Lowered fork height for entering compatible pallets |
| Maximum Fork Height | 8 in | Maximum raised fork height |
| Ground Clearance | 3 in | Machine ground clearance |
| Overall Length | 65 in | Total machine length |
| Overall Width | 21.5 in | Compact overall machine width |
| Overall Height | 50 in | Overall height including operating handle |
| Turning Radius | 56 in | Minimum turning radius for maneuvering in confined areas |
| Travel Speed (Full / No Load) | 2.5 / 3.1 mph | Maximum travel speed loaded / unloaded |
| Gradeability (Full / No Load) | 6% / 20% | Rated gradeability loaded / unloaded under suitable operating conditions |
| Drive Motor | 0.75 kW | Electric traction motor for powered travel |
| Lift Motor | 0.5 kW | Electric motor for powered lifting |
| Power Source | Full Electric | Powered electric travel and electric lifting |
| Battery Type | Lithium | Rechargeable lithium battery system |
| Battery | 48V / 15Ah Lithium | Battery voltage and rated capacity |
| Battery Capacity | 0.72 kWh | Nominal energy calculated from 48V × 15Ah |
| Runtime | Approx. 4–5 Hours | Stated operating time; actual runtime varies with load, travel, lifting frequency, floor conditions, temperature, battery condition, and operating practices |
| Charging Time | Approx. 3 Hours | Stated recharge time under appropriate charging conditions |
| Brake Type | Regenerative & Electromagnetic | Electric braking system for controlled stopping and operation |
| Controller | B1501 | Electronic drive control system |
| Truck Weight | 310 lbs | Total machine weight including battery |
| Operation Type | Walk-Behind | Pedestrian-operated full electric narrow pallet jack |
| Recommended Surface | Firm, Smooth & Relatively Level | Designed primarily for warehouse, trailer, stockroom, and commercial industrial surfaces; not an all-terrain pallet jack |
| Operating Environment | Indoor / Covered Areas | Best suited for warehouses, trailers, stockrooms, distribution centers, and protected material-handling environments |
| Warranty | 12-Month Equipment Warranty | Warranty coverage for eligible manufacturing defects under normal intended use, subject to Texlift warranty terms and conditions |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-EPT33K NR has a maximum rated load capacity of 3,300 lbs at a 24 in load center.
The pallet jack has a compact 21.5 in overall width, making it especially useful for compatible narrow pallets and confined material-handling areas.
The US-EPT33K NR features 45 in long forks with a 21.5 in overall fork width and approximately 9 in inside fork spacing.
Yes. The US-EPT33K NR provides powered electric travel and electric lifting, eliminating the need for manual pumping during normal pallet handling.
The US-EPT33K NR uses a rechargeable 48V / 15Ah lithium battery with approximately 0.72 kWh of nominal energy capacity.
Typical operating time is approximately 4–5 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, floor conditions, temperature, battery condition, and operating practices.
Charging time is approximately 3 hours under appropriate conditions. Actual charging time may vary depending on the remaining charge level, battery condition, temperature, and charging environment.
No. Do not allow the battery charge level to drop below 20%. Recharge the battery before it reaches 20% and avoid operating or storing the machine with a deeply discharged battery.
Yes. The US-EPT33K NR includes the 48V / 15Ah lithium battery and a compatible battery charger.
The forks lower to approximately 3.1 in and raise to approximately 8 in for normal pallet pickup, transportation, and positioning.
The US-EPT33K NR has an approximately 56 in turning radius, helping it maneuver in narrow aisles, stockrooms, trailers, and other confined areas.
Yes. It can be suitable for compatible trailer applications where the floor is firm, smooth, relatively level, and capable of supporting the combined machine and load weight. Always verify available clearance and pallet compatibility before operation.
The machine is designed primarily for indoor and covered material-handling environments on firm, smooth, and relatively level surfaces. It is not an all-terrain pallet jack and is not intended for gravel, soft ground, or rough outdoor terrain.
Maximum travel speed is approximately 2.5 mph with a full load and approximately 3.1 mph without a load.
Rated gradeability is approximately 6% with a full load and up to 20% without a load under suitable operating conditions.
No. Pallet dimensions and entry configurations vary. Because the US-EPT33K NR uses a narrow 21.5 in overall fork configuration, customers should verify their pallet dimensions and fork-entry requirements before ordering.
The package includes the complete full electric narrow pallet jack, 48V / 15Ah lithium battery, compatible battery charger, and standard product documentation.
Yes. The US-EPT33K NR includes a 12-month equipment warranty covering eligible manufacturing defects under normal intended use, subject to Texlift warranty terms and conditions.
Yes. Every US-EPT33K NR is inspected and tested before shipment to help verify basic machine operation and equipment condition before leaving our facility.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Compact 21.5 in overall width and approximately 56 in turning radius make the US-EPT33K NR well suited for pallet movement in space-restricted warehouse aisles.
Full electric travel and lifting provide efficient pallet handling inside compatible trailers with firm, smooth, and relatively level floors.
Narrow dimensions help operators move compatible palletized inventory through compact storage and back-of-store areas.
Suitable for routine movement, staging, and positioning of palletized goods throughout commercial distribution operations.
Full electric operation supports efficient transfer of compatible palletized loads between storage, staging, loading, and receiving areas.
Compact maneuverability makes the pallet jack practical for positioning and organizing palletized orders before shipment or internal transfer.
Suitable for transporting compatible palletized materials, components, supplies, and finished goods between work and storage areas.
Full electric travel and lifting help reduce manual effort during repetitive pallet movement in logistics and material-handling environments.
The narrow 21.5 in configuration provides improved access in storage locations where wider pallet-handling equipment may have limited maneuvering space.
3,300 lb rated capacity and full electric operation provide a practical solution for everyday pallet transportation on suitable warehouse floors.
The 45 in forks, 21.5 in overall fork width, and approximately 9 in inside fork spacing are designed for compatible narrow pallet configurations.
Best suited for firm, smooth, and relatively level surfaces in indoor or protected commercial environments; not designed for rough terrain, gravel, or soft ground.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-EPT33K NR is backed by a 12-month equipment warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
The included 48V / 15Ah lithium battery is covered by a 90-day warranty for eligible manufacturing defects. Normal capacity reduction, normal wear, improper charging, deep discharge, improper storage, misuse, or damage resulting from failure to follow battery-care requirements is not covered.
Technical assistance is available for machine operation, troubleshooting, controls, electric travel, lifting performance, charging, routine maintenance, and general product questions.
Assistance is available for the 48V / 15Ah lithium battery system, compatible charger, charging procedures, battery connections, storage, inspection, and battery-performance troubleshooting.
Support is available for the 0.75 kW drive motor, 0.5 kW lift motor, electric travel system, lifting system, braking system, and related controls.
Assistance is available for confirming the 45 in fork length, 21.5 in overall fork width, approximately 9 in inside fork spacing, and compatibility with specific pallet dimensions.
Assistance is available for identifying compatible replacement parts and service items, including wheels, controls, electrical components, battery-related components, drive components, and lifting-system components.
Regular inspection of the forks, wheels, battery, electrical connections, controls, braking system, drive system, lifting system, and other operating components is recommended to help maintain reliable performance.
Do not allow the battery charge level to drop below 20%. Recharge the battery before it reaches 20%, and do not operate or store the machine with a deeply discharged battery. Proper charging and storage procedures must be followed.
Normal wear, wheels and other consumable or wear items, misuse, accidents, overloading, improper operation, improper charging, deep battery discharge, inadequate maintenance, unauthorized modifications, improper storage, and damage caused by failure to follow operating or battery-care requirements are not covered.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
