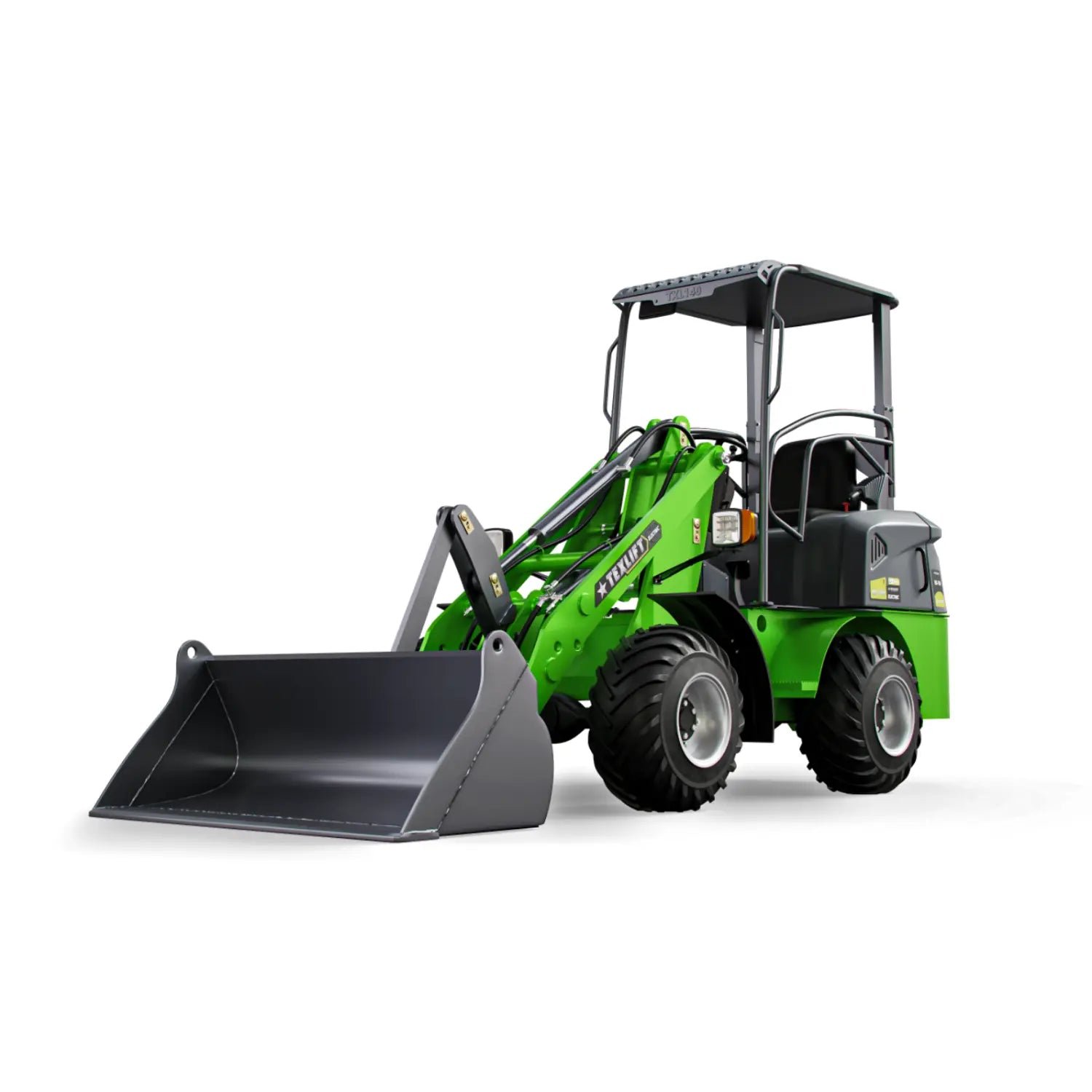

Lithium-Ion Battery Electric Wheel Loader | US-TXL140PRO | 1400 LBS Capacity | 11ft (132 inch) Lift

1,400 lb Rated Operating Capacity

The US-TXL140PRO Electric Wheel Loader provides a 1,400 lb rated operating capacity for professional loading, transporting, and material-handling applications.

It is designed for handling compatible materials such as soil, gravel, sand, mulch, feed, compost, landscaping materials, construction supplies, and other loads within the machine’s specified operating limits.

11 ft Maximum Lift Height

A maximum lift height of approximately 11 ft (132 in) provides substantial vertical reach for elevated loading, material positioning, and commercial material-handling operations.

The increased lifting height makes the US-TXL140PRO suitable for loading and positioning materials in compatible trucks, trailers, containers, bins, and other receiving areas.

7.2 ft Maximum Dump Height

The US-TXL140PRO provides a maximum dump height of approximately 7.2 ft (86 in), allowing compatible materials to be discharged into trucks, trailers, dumpsters, hoppers, containers, and material bins.

Always verify the required loading and dumping clearance for the intended application before operating the Electric Wheel Loader.

9 Cu. Ft. Bucket

The standard 9 cu. ft. bucket provides substantial capacity for handling soil, gravel, sand, mulch, compost, feed, wood chips, landscaping materials, construction supplies, and other compatible bulk materials.

The bucket and hydraulic system provide an efficient combination for loading, carrying, positioning, and dumping materials around professional job sites and commercial facilities.

73.6V / 240Ah LiFePO4 Battery

A high-capacity 73.6V / 240Ah LiFePO4 lithium battery powers the loader’s electric drive and hydraulic systems.

With approximately 17.664 kWh of nominal battery energy, the lithium power system provides dependable cordless operation without the fuel system, engine oil, or operating exhaust emissions associated with conventional internal-combustion loaders.

Up to 8 Hours Runtime

The US-TXL140PRO provides up to approximately 8 hours of operating time per charge under suitable working conditions.

Actual runtime varies depending on payload, terrain, travel distance, hydraulic usage, attachment use, operating technique, temperature, battery condition, and overall operating intensity.

Approximately 5-Hour Charging Time

A full recharge requires approximately 5 hours under suitable charging conditions when using the correct compatible charger.

Actual charging time can vary depending on remaining battery charge, battery temperature, battery condition, charger performance, and environmental conditions.

Dual 4.5 kW Electric Drive Motors

Two 4.5 kW electric drive motors provide a combined 9 kW of rated drive power for responsive travel, traction, and machine movement.

The dual-motor electric drivetrain supports demanding loading, material transport, landscaping, agricultural, construction, and commercial operations.

4.5 kW Hydraulic Motor

A dedicated 4.5 kW electric hydraulic motor powers the loader’s lifting, bucket, steering, and compatible hydraulic functions.

The dedicated hydraulic power system provides responsive operation without relying on a conventional gasoline or diesel engine.

2,320 PSI Hydraulic Pressure

The US-TXL140PRO hydraulic system operates at up to approximately 2,320 PSI, providing the working pressure required for responsive lifting, bucket positioning, dumping, and material handling.

The commercial hydraulic system is designed to support demanding professional loader operations.

10.6 GPM Hydraulic Flow

The US-TXL140PRO provides approximately 10.6 GPM of hydraulic flow for responsive lifting, bucket movement, dumping, steering, and compatible hydraulic functions.

Combined with the 4.5 kW hydraulic motor and 2,320 PSI working pressure, the hydraulic system provides dependable performance for professional material-handling applications.

Full Hydraulic Steering

Full hydraulic steering provides responsive directional control during loading, material transport, positioning, and general machine operation.

The steering system helps the operator maneuver the Electric Wheel Loader around compatible construction sites, farms, landscaping properties, material yards, warehouses, and commercial facilities.

Heavy-Duty 26 × 12.00-12 Tires

The US-TXL140PRO is equipped with 26 × 12.00-12 tires designed to provide useful traction, stability, and a substantial footprint across compatible working surfaces.

The tire configuration supports professional operation across suitable construction sites, agricultural facilities, landscaping properties, material yards, and commercial environments.

8 in Ground Clearance

Approximately 8 in of ground clearance provides useful clearance beneath the machine when operating across compatible outdoor and uneven working surfaces.

Operators should always verify that the operating surface is firm, stable, adequately supported, and suitable for the Electric Wheel Loader and the load being handled.

Heavy-Duty 4,500 lb Platform

With an approximate machine weight of 4,500 lb, the US-TXL140PRO provides a substantial operating platform for professional loading, lifting, transporting, and material-handling applications.

Its heavy-duty construction contributes to machine stability and dependable operation under appropriate commercial working conditions.

Compact 50 in Overall Width

At approximately 50 in wide, the US-TXL140PRO combines commercial wheel-loader capability with practical maneuverability for professional working environments.

The machine measures approximately 151 in long and 89 in high, with an approximately 54 in wheelbase for a balance of stability and maneuverability.

Full Electric Lithium Operation

The US-TXL140PRO operates entirely on rechargeable lithium battery power, eliminating fuel consumption during normal machine operation and producing no operating exhaust emissions at the machine.

Electric operation also eliminates conventional engine oil changes and many fuel-system maintenance requirements associated with gasoline or diesel equipment.

Operator Convenience

The US-TXL140PRO includes practical operator features such as a USB charger, phone holder, cup holder, drum braking system, and parking handbrake for everyday commercial operation.

The open operator configuration also provides useful visibility around the loader, bucket, working area, and surrounding environment.

Construction, Landscaping & Agriculture

The US-TXL140PRO Electric Wheel Loader is well suited for construction sites, landscaping and hardscaping operations, farms, ranches, nurseries, agricultural facilities, and commercial property maintenance.

Its combination of a 1,400 lb rated operating capacity, 9 cu. ft. bucket, 11 ft lift height, lithium power, and commercial hydraulic performance provides versatility across a wide range of professional applications.

Material Yards & Commercial Facilities

The US-TXL140PRO can support loading and material transport at landscape supply yards, construction-material facilities, warehouses, industrial properties, municipalities, garden centers, and other commercial operations.

Its full-electric lithium drivetrain is particularly useful for businesses seeking professional material-handling capability with reduced operating noise and no operating exhaust emissions at the machine.

Best Electric Wheel Loader Applications

Use the US-TXL140PRO for loading and transporting soil, gravel, sand, mulch, compost, feed, wood chips, landscaping materials, construction supplies, and other compatible bulk materials.

The Electric Wheel Loader can support truck and trailer loading, material-yard operations, agricultural work, landscaping, property maintenance, facility operations, and other professional material-handling applications.

Professional Electric Loader Performance

The US-TXL140PRO combines a 1,400 lb rated operating capacity, 11 ft lift height, 7.2 ft dump height, 9 cu. ft. bucket, dual 4.5 kW drive motors, and a dedicated 4.5 kW hydraulic motor in a professional full-electric platform.

With 2,320 PSI hydraulic pressure and approximately 10.6 GPM hydraulic flow, the Electric Wheel Loader is designed to provide responsive performance for demanding commercial loading and material-handling operations.

Commercial Lithium Wheel Loader

The combination of lithium power, dual-motor electric drive, commercial hydraulic performance, full hydraulic steering, heavy-duty tires, and a substantial machine platform makes the US-TXL140PRO suitable for demanding daily professional use.

Compared with the lead-acid US-TXL140, the PRO configuration provides a higher-capacity lithium power system, longer stated runtime, and faster stated charging for operations requiring increased daily productivity.

Support & 12-Month Warranty

The US-TXL140PRO Electric Wheel Loader is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.

Texlift provides technical support and replacement-parts assistance to help customers maintain and service their equipment. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

Proper operation, routine inspections, lithium-battery maintenance, correct charging practices, hydraulic-system maintenance, and scheduled service are important for dependable equipment performance and service life.
