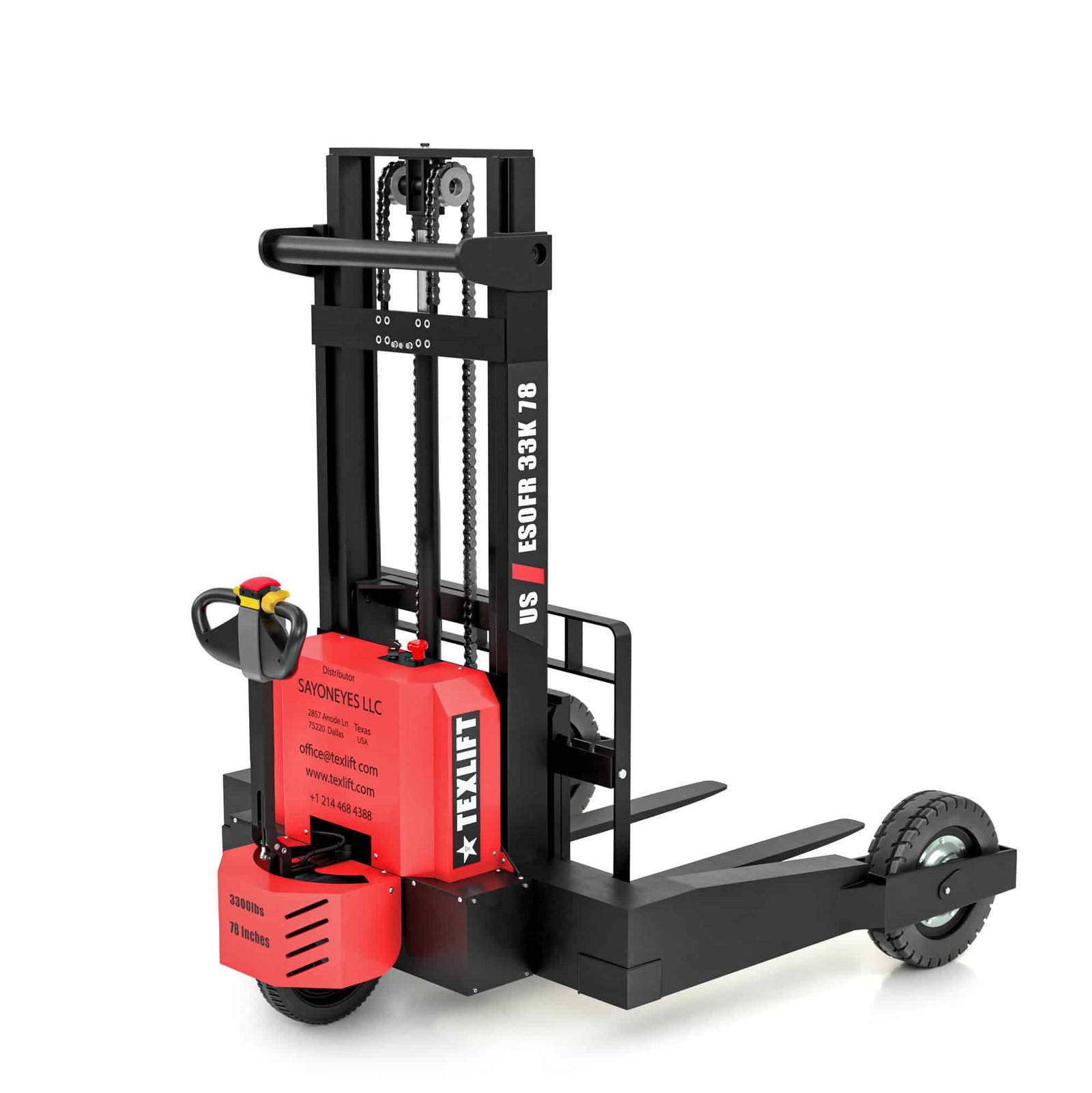

Rough Terrain Electric Stacker built for demanding professional pallet handling across firm, stable, and adequately supported outdoor and uneven working surfaces. With a 3,300 lb rated load capacity, 7 ft (78 in) maximum lift height, 6 in ground clearance, and solid rough-terrain tires, the US-ESOFR33K 78 provides a practical electric solution for farms, construction material yards, landscaping operations, nurseries, outdoor storage facilities, and commercial work sites.
This Rough Terrain Electric Stacker features full-electric walkie operation, 42 in forks with an adjustable 8–37 in fork spread, a compact 54 in turning radius, and a 24V / 100Ah maintenance-free Gel lead-acid battery system. Powered electric travel and hydraulic lifting reduce manual handling effort while providing the control and versatility required for professional outdoor pallet handling.
Handle compatible palletized loads up to 3,300 lb with dependable electric lifting performance. This Rough Terrain Electric Stacker is designed for compatible building materials, agricultural supplies, landscaping products, nursery materials, packaged goods, equipment, and other palletized loads.
Actual allowable capacity can vary with lift height, load center, load distribution, surface conditions, terrain, and operating environment.
Reach a maximum fork lift height of 7 ft (78 in) for pallet stacking, elevated material positioning, loading, unloading, and outdoor storage applications.
The combination of a 3,300 lb rated capacity and 78 in maximum fork height provides practical vertical handling capability for professional outdoor and rough-surface material-handling operations.
With approximately 6 in of ground clearance, this Rough Terrain Electric Stacker provides substantially more undercarriage clearance than conventional low-clearance warehouse stackers.
The increased clearance helps the machine travel across compatible compacted gravel, firm dirt, firm grass, asphalt, concrete, and other stable and adequately supported uneven working surfaces.
The US-ESOFR33K 78 is designed for applications where a conventional indoor warehouse stacker may not provide sufficient ground clearance or a suitable tire configuration.
Its rough-terrain chassis, increased ground clearance, solid tires, and full-electric operation provide a practical material-handling solution for compatible outdoor work environments.
Large solid rough-terrain tires support operation across firm, stable, and adequately supported uneven surfaces while eliminating the puncture concerns associated with air-filled pneumatic tires.
The tire configuration works together with the 6 in ground clearance to support professional pallet transportation and positioning across compatible outdoor working surfaces.
The 42 in forks provide an adjustable 8–37 in fork spread, allowing the operator to position the forks for different compatible pallet and load configurations.
This wide adjustment range increases versatility across agricultural, landscaping, construction, storage, nursery, and commercial material-handling applications.
Heavy-duty 42 in forks provide practical support for compatible palletized loads while maintaining maneuverability in outdoor storage areas, work yards, farms, and material-handling environments.
Always verify pallet dimensions, fork positioning, load distribution, and rated capacity before lifting or transporting a load.
An approximately 54 in turning radius supports maneuverability around material stacks, outdoor storage areas, work yards, loading zones, and other compatible operating environments.
Operators should always maintain adequate clearance for the load, forks, mast, operator, surrounding equipment, and terrain conditions when maneuvering.
Power is supplied by a 24V / 100Ah maintenance-free Gel lead-acid battery system consisting of two individual batteries.
The complete battery system provides approximately 2.4 kWh of nominal energy capacity while eliminating the routine watering requirements associated with conventional flooded lead-acid batteries.
The battery system provides approximately 5–6 hours of operating time under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, terrain, slopes, surface resistance, temperature, battery condition, and operating intensity.
A 1.5 kW electric drive motor provides powered travel for moving compatible palletized loads across suitable working surfaces.
Powered electric travel reduces manual handling effort and provides controlled machine movement during professional material-handling operations.
A 2.2 kW electric lift motor powers the hydraulic lifting system for controlled pallet pickup, lifting, lowering, stacking, positioning, and retrieval.
Together, the dedicated drive and lift motors provide full-electric material-handling performance for this Rough Terrain Electric Stacker.
The walk-behind configuration provides powered electric travel and powered hydraulic lifting without requiring an onboard operator platform.
The operator controls the machine from the walkie tiller, providing practical maneuverability for outdoor yards, farms, landscaping facilities, nurseries, and storage operations. Battery-powered operation also produces no tailpipe exhaust emissions at the machine during use.
The stacker is rated for approximately 6% gradeability when loaded and 8% when unloaded under suitable operating conditions.
Actual grade performance depends on load weight, load position, surface condition, traction, battery charge, terrain, and operating environment. Operate on slopes only within the machine’s specified operating limits.
A 24V / 15A charger is matched to the Gel lead-acid battery system and provides an approximate 5–6 hour recharge time under suitable charging conditions.
Actual charging time can vary depending on remaining battery charge, battery condition, temperature, and charger performance.
This Rough Terrain Electric Stacker is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Texlift provides technical support and replacement-parts assistance. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Designed for firm, stable, and adequately supported rough or uneven working surfaces. Suitable environments can include compacted gravel yards, firm dirt, firm grass, pavement, concrete, construction material areas, farms, landscaping yards, nurseries, outdoor storage facilities, and material yards.
The additional ground clearance and rough-terrain configuration make this Rough Terrain Electric Stacker particularly useful where conventional low-clearance warehouse stackers are unsuitable.
Ideal for transporting, positioning, and stacking compatible palletized building materials, agricultural supplies, landscaping products, nursery materials, packaged goods, equipment, and other palletized loads weighing up to 3,300 lb.
The combination of 6 in ground clearance, solid rough-terrain tires, adjustable forks, electric drive, and 7 ft (78 in) lift height provides versatile professional pallet handling across compatible outdoor and uneven working surfaces.
Powered by a 24V / 100Ah maintenance-free Gel lead-acid battery system with approximately 2.4 kWh of nominal battery energy. The two-battery system provides approximately 5–6 hours of operating time, depending on load and working conditions.
A 24V / 15A charger provides approximately 5–6 hours of charging time. The 1.5 kW electric drive motor and 2.2 kW lift motor provide powered travel and hydraulic lifting for full-electric walkie operation.
Terrain — The US-ESOFR33K 78 is a rough-terrain stacker, not an all-terrain vehicle. Operate only on firm, stable, and adequately supported surfaces where sufficient traction and machine stability can be maintained. Do not operate in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, severe surface irregularities, or other unstable terrain. Always evaluate surface condition, slope, load stability, clearance, and available traction before operation.
Battery — Do not operate the US-ESOFR33K 78 when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable. Proper charging and battery maintenance are important for dependable performance and battery service life. Follow the operating manual for battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ESOFR33K 78 | Rough Terrain Electric Stacker designed for professional pallet handling across firm, stable, and adequately supported outdoor and uneven working surfaces. |
| Load Capacity | 3,300 lb | Rated load capacity for compatible palletized loads at the stated 20 in load center. Actual allowable capacity may vary with lift height, load position, terrain, and operating conditions. |
| Load Center | 20 in | Rated load center used for the stated 3,300 lb capacity. |
| Lift Height | 7 ft (78 in) | Maximum fork lift height for pallet stacking, elevated positioning, loading, unloading, and outdoor material-handling applications. |
| Lowered Mast Height | 76 in | Approximate overall mast height with the mast fully lowered. |
| Ground Clearance | 6 in | Increased ground clearance supports operation across compatible firm, stable, and adequately supported uneven working surfaces. |
| Fork Length | 42 in | Heavy-duty forks designed for compatible palletized loads. |
| Fork Spread | 8–37 in Adjustable | Adjustable fork positioning accommodates different compatible pallet and load configurations. |
| Turning Radius | 54 in | Approximate turning radius for maneuvering around material stacks, yards, outdoor storage areas, and loading zones. |
| Battery | 24V / 100Ah Gel Lead-Acid | Maintenance-free Gel lead-acid traction battery system consisting of two individual batteries. |
| Battery Capacity | 2.4 kWh | Nominal battery energy based on the complete 24V / 100Ah battery system. |
| Runtime | Approx. 5–6 Hours | Actual operating time varies with load weight, travel distance, lifting frequency, terrain, slopes, surface resistance, temperature, battery condition, and operating intensity. |
| Charger | 24V / 15A | Compatible charger matched to the 24V / 100Ah Gel lead-acid battery system. |
| Charging Time | Approx. 5–6 Hours | Approximate recharge time under suitable conditions using the correct compatible charger. |
| Drive Motor | 1.5 kW | Electric drive motor provides powered travel for professional material-handling operations. |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor powers lifting, lowering, stacking, and load-positioning functions. |
| Gradeability – Loaded | 6% | Approximate rated gradeability while loaded under suitable surface, traction, load, and operating conditions. |
| Gradeability – Unloaded | 8% | Approximate rated gradeability without a load under suitable surface, traction, and operating conditions. |
| Operation | Walkie | Walk-behind operation with powered electric travel and hydraulic lifting. |
| Power Type | Full Electric | Battery-powered travel and hydraulic lifting reduce manual handling effort and produce no tailpipe exhaust emissions at the machine during operation. |
| Tire Type | Solid Rough-Terrain Tires | Solid tire configuration supports operation across compatible uneven surfaces while eliminating puncture concerns associated with air-filled pneumatic tires. |
| Terrain Type | Rough Terrain | Designed for firm, stable, and adequately supported rough or uneven working surfaces. |
| Recommended Surfaces | Firm Gravel, Compacted Dirt, Firm Grass, Asphalt & Concrete | Suitable only when surfaces are stable, adequately supported, and provide sufficient traction for machine operation. |
| Not Recommended For | Deep Mud, Loose Sand, Flooded Areas & Soft Ground | This rough-terrain stacker is not an all-terrain vehicle and should not be operated where adequate traction or machine stability cannot be maintained. |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels, tires, and other normal wear or consumable components are excluded. |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESOFR33K 78 Rough Terrain Electric Stacker has a rated load capacity of 3,300 lb for compatible palletized loads. Actual allowable capacity may vary with lift height, load center, load distribution, terrain, and operating conditions.
This Rough Terrain Electric Stacker provides a maximum fork lift height of 7 ft (78 in), making it suitable for pallet stacking, elevated positioning, loading, unloading, and outdoor material-handling applications.
Yes. The US-ESOFR33K 78 uses a walkie configuration with powered electric travel and hydraulic lifting. The operator controls the machine from the walk-behind tiller.
This Rough Terrain Electric Stacker is designed for firm, stable, and adequately supported rough or uneven working surfaces such as compacted gravel, firm dirt, firm grass, asphalt, and concrete.
No. The US-ESOFR33K 78 is a rough-terrain stacker, not an all-terrain vehicle. Do not operate it in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, or other unstable terrain where sufficient traction and machine stability cannot be maintained.
The US-ESOFR33K 78 provides approximately 6 in of ground clearance, giving this Rough Terrain Electric Stacker additional clearance for compatible uneven working surfaces compared with conventional low-clearance warehouse stackers.
The stacker is equipped with 42 in forks designed for handling compatible palletized loads.
The 42 in forks provide an adjustable spread of approximately 8–37 in, allowing the operator to position them for different compatible pallet and load configurations.
The US-ESOFR33K 78 has an approximately 54 in turning radius, supporting maneuverability around material stacks, outdoor storage areas, work yards, and loading zones.
This Rough Terrain Electric Stacker uses solid rough-terrain tires designed for compatible firm and uneven working surfaces. The solid construction also eliminates puncture concerns associated with air-filled pneumatic tires.
The stacker uses a 24V / 100Ah maintenance-free Gel lead-acid battery system consisting of two individual batteries and providing approximately 2.4 kWh of nominal battery energy.
No. The maintenance-free Gel lead-acid battery system does not require the routine watering associated with conventional flooded lead-acid batteries.
Typical operating time is approximately 5–6 hours per charge. Actual runtime varies with load weight, travel distance, lifting frequency, terrain, slopes, surface resistance, temperature, battery condition, and operating intensity.
Approximate charging time is 5–6 hours under suitable conditions using the correct compatible 24V / 15A charger. Actual charging time can vary depending on remaining charge, battery condition, temperature, and charger performance.
No. Stop operating the US-ESOFR33K 78 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
A 1.5 kW electric drive motor provides powered travel for transporting and positioning compatible palletized loads across suitable working surfaces.
A 2.2 kW electric lift motor powers the hydraulic lifting system for pallet pickup, lifting, lowering, stacking, positioning, and retrieval.
The stated gradeability is approximately 6% when loaded under suitable surface, traction, load, and operating conditions. Actual performance depends on load position, terrain, traction, battery charge, and other operating conditions.
The stated gradeability is approximately 8% when unloaded under suitable surface, traction, and operating conditions.
The US-ESOFR33K 78 is well suited for compatible applications at farms, landscaping yards, nurseries, construction material areas, outdoor storage facilities, material yards, and other professional work areas with firm, stable, and adequately supported surfaces.
This Rough Terrain Electric Stacker can transport and stack compatible palletized building materials, agricultural supplies, landscaping products, nursery materials, packaged goods, equipment, and other loads within the machine's rated capacity and operating limits.
Yes, when the gravel surface is firm, compacted, stable, and adequately supported. Do not operate the machine on deep or loose gravel where sufficient traction or machine stability cannot be maintained.
It can operate on compatible firm grass and compacted dirt when the surface is stable, adequately supported, and provides sufficient traction. It should not be used on extremely soft, muddy, waterlogged, or unstable ground.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The US-ESOFR33K 78 Rough Terrain Electric Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Move and stack palletized building materials, supplies, packaged products, and equipment across firm, adequately supported yard surfaces.
Handle palletized feed, seed, fertilizer, supplies, containers, and other compatible agricultural materials around barns, storage areas, and firm outdoor working surfaces.
Transport palletized landscaping materials, pavers, bagged products, supplies, and other compatible loads around landscaping and hardscaping operations.
Move palletized soil, fertilizer, containers, packaged products, and nursery supplies across firm outdoor storage and loading areas.
Provide electric pallet transport and stacking capability in outdoor or partially outdoor storage operations where suitable firm surfaces are available.
Handle palletized materials and supplies across compacted gravel, firm dirt, asphalt, concrete, and other adequately supported working surfaces.
Move, organize, and position palletized loads in outdoor staging, receiving, storage, and dispatch areas.
The 6 in ground clearance and solid rough-terrain tires make the stacker suitable for properly maintained and adequately supported compacted gravel working areas.
Can operate on firm, stable dirt and firm grass where the surface provides adequate traction and support for the machine and load.
Full-electric operation produces no tailpipe exhaust emissions during operation, allowing the stacker to transition between suitable indoor areas and firm outdoor working surfaces.
This is a rough-terrain stacker, not an all-terrain vehicle. Do not operate in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, or unstable terrain.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ESOFR33K 78 includes a 12-month Texlift warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.
Coverage includes qualifying defects involving factory-installed components, electrical systems, hydraulic systems, and structural manufacturing faults during the warranty period.
Texlift technical support is available throughout the warranty period to help diagnose eligible equipment issues and determine the appropriate next steps.
For warranty assistance, customers should provide the order number, equipment model, serial number when applicable, a clear description of the issue, and photos or videos showing the problem.
Equipment must be operated within its rated 3,300 lb capacity, intended application, terrain limitations, and operating instructions to maintain warranty eligibility.
The warranty does not cover damage caused by misuse, abuse, overloading, accidents, improper operation or maintenance, unauthorized repairs or modifications, improper storage or transport, environmental damage, or use of non-approved parts, chargers, or accessories.
Normal wear and consumable components are not covered as manufacturing defects. Coverage is subject to the complete Texlift warranty terms and conditions.
Follow the recommended charging and storage procedures for the 24V / 100Ah maintenance-free Gel lead-acid battery system. Proper battery care helps maintain performance and service life.
Texlift can assist customers with identifying compatible replacement parts and provide equipment-specific technical guidance when service or maintenance is required.
