Built for high-reach pallet handling and high-bay warehouse stacking, the US-AS35 216 is a Rider / Walkie Electric Pallet Stacker combining a 3,300 lb rated load capacity with an 18 ft (216 in) maximum lift height. This high-reach Electric Pallet Stacker provides substantial vertical reach for elevated warehouse racking, pallet storage, inventory positioning, and professional indoor material-handling operations.
An integrated operator platform supports ride-on travel for repetitive pallet movement and longer warehouse distances while retaining walk-behind operation for controlled maneuvering and pallet positioning. An adjustable 8–27 in fork spread, 20 in rated load center, full-electric travel and hydraulic lifting, and a 24V / 210Ah lead-acid battery system make the US-AS35 216 Electric Pallet Stacker a practical high-reach solution for warehouses, distribution centers, manufacturing facilities, and industrial storage operations.
The US-AS35 216 Electric Pallet Stacker provides a maximum rated load capacity of 3,300 lb at a 20 in load center.
Its rated capacity supports transportation, positioning, lifting, and elevated stacking of compatible palletized loads throughout warehouses, distribution centers, manufacturing facilities, industrial storage operations, and other professional indoor material-handling environments.
The 18 ft (216 in) maximum fork lift height provides substantial vertical reach for high-bay warehouse racking, elevated pallet storage, inventory positioning, replenishment, and high-reach stacking.
This extended lift height makes the Rider / Walkie Electric Pallet Stacker particularly useful for facilities requiring significantly greater vertical storage capability while maintaining convenient ride-on and walk-behind operation.
The mast measures approximately 96 in high when fully lowered, providing the travel profile required for this 18 ft Electric Pallet Stacker configuration.
Maximum overall height with the mast fully extended is approximately 240 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The forks can be adjusted from approximately 8–27 in to accommodate different compatible pallet and load configurations.
The adjustable fork configuration provides flexibility for professional pallet handling while supporting proper fork positioning beneath compatible palletized loads within the machine’s rated capacity.
The integrated operator platform supports stand-on ride-on travel during longer warehouse movements while retaining walk-behind operation for controlled maneuvering and precise pallet positioning.
This Rider / Walkie configuration helps reduce unnecessary walking during repetitive material-handling cycles while maintaining convenient operator control during pallet approach, transportation, lifting, and high-reach stacking.
A 69 in turning radius, approximately 79 in overall length, and 58 in overall width provide practical maneuverability for a high-reach Electric Pallet Stacker.
The US-AS35 216 is designed for controlled pallet approach, transportation, turning, positioning, and stacking throughout compatible warehouses, high-bay storage areas, manufacturing facilities, and distribution environments.
The US-AS35 216 Electric Pallet Stacker uses a 24V / 210Ah lead-acid battery system with approximately 5.04 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting, providing full-electric material handling with no tailpipe exhaust emissions at the machine during operation.
Typical operating time for the US-AS35 216 Rider / Walkie Electric Pallet Stacker is approximately 4–5 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 4–5 hours under normal charging conditions using the correct compatible 24V lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, charger performance, temperature, and charging conditions.
The US-AS35 216 combines powered electric travel with electric hydraulic lifting to reduce manual effort during repetitive pallet transportation and high-reach stacking operations.
The electric drive system supports movement between receiving, staging, production, inventory, storage, and elevated racking areas while providing controlled pallet positioning throughout compatible indoor facilities.
A 1.5 kW DC electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout professional warehouse and industrial environments.
A 2.2 kW DC electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated positioning, and high-reach stacking.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation, positioning, and elevated stacking operations.
The integrated stand-on platform supports ride-on travel during longer warehouse movements while retaining walk-behind operation when controlled maneuvering, pallet approach, and precise positioning are required.
The US-AS35 216 Rider / Walkie Electric Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, commercial storage operations, high-bay storage areas, production environments, receiving areas, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb rated capacity, 18 ft lift height, Rider / Walkie operation, adjustable fork configuration, and full-electric drive system make this Electric Pallet Stacker particularly useful for facilities requiring substantial vertical reach combined with repetitive pallet transportation.
The US-AS35 216 is ideal for high-bay pallet stacking, elevated warehouse racking, pallet transportation, inventory movement, receiving and staging, production material handling, warehouse replenishment, industrial storage, and positioning compatible palletized loads weighing up to 3,300 lb.
The 18 ft (216 in) maximum lift height provides substantial vertical reach, while Rider / Walkie operation supports both longer warehouse travel and controlled pallet positioning.
The 18 ft maximum lift height makes the US-AS35 216 Electric Pallet Stacker particularly suitable for facilities that need to use vertical warehouse space efficiently through elevated pallet storage and high-bay racking.
Its combination of a 3,300 lb rated capacity, adjustable forks, controlled hydraulic lifting, and Rider / Walkie operation supports pallet placement, retrieval, replenishment, and inventory organization across compatible elevated storage locations.
The Rider / Walkie configuration provides flexibility for operations requiring frequent pallet movement between receiving, staging, production, inventory, storage, and loading areas.
Ride-on travel helps reduce unnecessary walking during longer movements, while walk-behind operation provides controlled maneuvering when approaching pallets, racking, storage positions, and other working areas.
The US-AS35 216 Electric Pallet Stacker uses a 24V / 210Ah lead-acid battery system with approximately 5.04 kWh of nominal battery energy. Typical operating time is approximately 4–5 hours per charge, with an approximate 4–5 hour recharge time under normal charging conditions.
A 1.5 kW DC electric drive motor provides powered travel, while a 2.2 kW DC electric lift motor powers the hydraulic lifting system for full-electric pallet transportation, lifting, lowering, positioning, and high-reach stacking.
Do not operate the US-AS35 216 Electric Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.

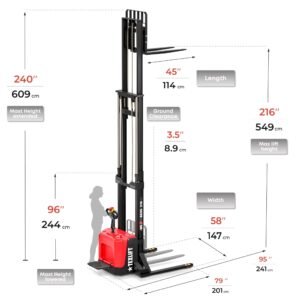

| Specification | Value | Description |
|---|---|---|
| Model | US-AS35 216 | Heavy-duty full-electric Rider / Walkie pallet stacker for high-reach material handling |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for the stated 3,300 lb capacity |
| Lift Height | 18 ft (216 in) | Maximum vertical fork lift height for high-bay pallet stacking and elevated storage |
| Lowered Mast Height | 96 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 240 in | Maximum overall machine height with the mast fully extended |
| Fork Spread | 8–27 in Adjustable | Adjustable fork positioning for different compatible pallet and load configurations |
| Overall Length | 79 in | Overall machine length including the integrated operator platform |
| Overall Width | 58 in | Overall machine width |
| Wheelbase | 44 in | Distance between front and rear wheel centers |
| Turning Radius | 69 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Travel Speed | 2.5 / 3.1 mph | Loaded / unloaded travel speed under specified operating conditions |
| Lifting Speed | 5.5 / 5.3 in/s | Loaded / unloaded fork lifting speed under specified operating conditions |
| Lowering Speed | 5.9 / 6.1 in/s | Loaded / unloaded fork lowering speed under specified operating conditions |
| Gradeability | 8% / 5% | Rated gradeability under specified operating conditions |
| Battery | 24V / 210Ah Lead-Acid | Heavy-duty electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 5.04 kWh | Total nominal energy capacity of the 24V / 210Ah battery system |
| Runtime | Approx. 4–5 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 4–5 Hours | Approximate full recharge time under normal charging conditions using the correct compatible charger |
| Drive Motor | 1.5 kW DC | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW DC | Electric hydraulic lift motor for pallet lifting, lowering, elevated positioning, and high-reach stacking |
| Brake System | Electromagnetic | Electromagnetic braking system for controlled stopping during travel and pallet positioning |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Rider / Walkie | Integrated operator platform supports stand-on ride-on travel and walk-behind operation |
| Machine Weight | Approx. 2,750 lb | Approximate machine operating weight including the battery system |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | High-Reach Indoor Pallet Handling | Designed for high-bay racking, elevated pallet stacking, pallet transportation, replenishment, and repetitive material handling |
| Typical Applications | High-Bay Warehouses, Distribution Centers & Manufacturing | Suitable for high-reach pallet stacking, elevated storage, pallet transport, staging, inventory movement, receiving, production material handling, and industrial pallet positioning |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-AS35 216 Rider / Walkie Electric Pallet Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-AS35 216 provides a maximum fork lift height of 18 ft (216 in), providing substantial vertical reach for high-bay pallet stacking, elevated warehouse racking, storage, replenishment, and material positioning.
The US-AS35 216 has an approximately 96 in lowered mast height. Always verify doorway and overhead clearances before moving the machine between working areas.
The US-AS35 216 reaches approximately 240 in in maximum overall height when the mast is fully extended. Always verify ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.
The US-AS35 216 provides an adjustable fork spread of approximately 8–27 in for different compatible pallet and load configurations.
The US-AS35 216 measures approximately 79 in long, including the operator platform, and 58 in wide. The mast measures approximately 96 in high when fully lowered.
The US-AS35 216 has an approximately 44 in wheelbase, measured between the front and rear wheel centers.
The US-AS35 216 has an approximately 69 in turning radius for maneuvering, pallet approach, turning, and load positioning.
The US-AS35 216 has an approximate operating weight of 2,750 lb including the battery system.
The US-AS35 216 has a stated travel speed specification of approximately 2.5 / 3.1 mph under specified operating conditions.
The US-AS35 216 has a stated lifting speed specification of approximately 5.5 / 5.3 in/s under specified operating conditions.
The US-AS35 216 has a stated lowering speed specification of approximately 5.9 / 6.1 in/s under specified operating conditions.
The US-AS35 216 has a stated gradeability specification of 8% / 5% under specified operating conditions. Grade capability depends on load, surface condition, traction, battery condition, and other operating factors.
The US-AS35 216 uses a 24V / 210Ah lead-acid traction battery system that supplies power to electric travel and hydraulic lifting.
The 24V / 210Ah battery system provides approximately 5.04 kWh of nominal battery energy.
Typical operating time is approximately 4–5 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 4–5 hours under normal charging conditions using the correct compatible charger. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
No. Stop operating the US-AS35 216 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the Electric Pallet Stacker to service, or replace it with a properly charged compatible battery when applicable.
The US-AS35 216 uses a 1.5 kW DC electric traction motor to provide powered travel for professional warehouse and industrial material handling.
A 2.2 kW DC electric hydraulic lift motor powers pallet pickup, lifting, lowering, elevated positioning, and high-reach stacking.
The US-AS35 216 uses an electromagnetic braking system designed to provide controlled stopping during travel, pallet transportation, positioning, and stacking operations.
Yes. The US-AS35 216 provides powered electric travel and electric hydraulic lifting for full-electric pallet handling.
Yes. The US-AS35 216 is a Rider / Walkie Electric Pallet Stacker with an integrated operator platform that supports stand-on ride-on travel as well as walk-behind operation.
Yes. The integrated rear operator platform allows the operator to stand and ride behind the stacker during travel, helping reduce walking during repetitive pallet movement and longer warehouse travel distances.
Yes. The Rider / Walkie configuration supports walk-behind operation for controlled maneuvering, pallet approach, positioning, lifting, and high-reach stacking.
The integrated operator platform helps reduce unnecessary walking during repetitive pallet transportation and longer warehouse movements while retaining walk-behind operation when controlled maneuvering and precise pallet positioning are required.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The US-AS35 216 is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and industrial storage operations.
No. The US-AS35 216 is designed primarily for indoor warehouse and industrial floor applications. It is not intended for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-AS35 216 is well suited for high-bay warehouses, distribution centers, manufacturing facilities, commercial storage operations, elevated storage areas, receiving areas, staging zones, and other professional indoor material-handling environments.
Typical applications include high-bay pallet stacking, elevated warehouse racking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, industrial storage, and repetitive indoor pallet positioning.
The US-AS35 216 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The 18 ft (216 in) maximum lift height provides substantial vertical reach for stacking and positioning compatible palletized loads in high-bay warehouse storage locations.
Position compatible palletized inventory within elevated warehouse racking using the 3,300 lb rated capacity, adjustable 8–27 in fork spread, and controlled electric hydraulic lifting.
The integrated operator platform supports stand-on ride-on travel for longer warehouse distances while walk-behind operation provides controlled maneuvering and precise pallet positioning.
Transport, lift, position, retrieve, and stack compatible palletized loads using the 18 ft lift height and full-electric travel and hydraulic lifting system.
Support pallet transportation, high-reach stacking, replenishment, elevated storage, retrieval, and inventory positioning throughout compatible high-bay warehouse environments.
Move compatible palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas within professional distribution operations.
Transport and position palletized materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support elevated pallet storage, high-reach stacking, inventory organization, pallet transportation, and material positioning throughout compatible industrial facilities.
Handle routine inventory relocation, replenishment, organization, elevated storage, retrieval, and pallet positioning throughout warehouse and industrial environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Transport compatible palletized raw materials, components, supplies, and finished products between production areas, storage locations, staging zones, and inventory areas.
Rider operation helps reduce unnecessary walking during repetitive pallet movement and longer travel distances, while walk-behind control supports precise pallet approach, lifting, stacking, and positioning.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-AS35 216 Rider / Walkie Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electrical functions, hydraulic systems, Rider / Walkie controls, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, braking, battery, operator-platform, and other service components for the US-AS35 216.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 24V lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, high-reach mast, hydraulic system, battery system, electromagnetic braking system, operator platform, electrical controls, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
