Self-loading capability makes the US-ZTS22K SL ideal for businesses that transport palletized goods to multiple customer or job locations.
SAVE 5%
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V/21Ah Battery | US-ZTS22K SL
Original price was: $6,300.00.$5,990.00Current price is: $5,990.00.
Last Unit Available
Only 1 unit left
SPECIAL SAVINGS
Save More on Your Order
Volume pricing and wire-transfer savings available on eligible orders.
2 Savings Options
Volume Pricing
Save more when ordering multiple units
2โ4
Units
Save 2%
5โ9
Units
Save 3%
10+
Units
Save 5%
Buy More & Save
DELIVERY & PICKUP
Order Fulfillment
Pickup and nationwide freight shipping available from our Texas warehouse.
Nationwide Delivery
Ships from Texas. Estimated delivery: 3โ14 business days.
Shipping charges are calculated at checkout.
Dallas Pickup
Most in-stock equipment is ready for pickup within 24 hours.
Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout
Protected payment
Product Support
Real equipment help
12-Month Warranty
Equipment coverage
WIRE DISCOUNT REQUEST
3% Wire-Transfer Discount
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V/21Ah Battery | US-ZTS22K SL
Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.
PRE-ORDER REQUEST
Request Product Availability
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V/21Ah Battery | US-ZTS22K SL
Submit your request and our team will contact you with availability, estimated lead time, and ordering information.
Description
PRODUCT OVERVIEW
Built for Professional Material Handling

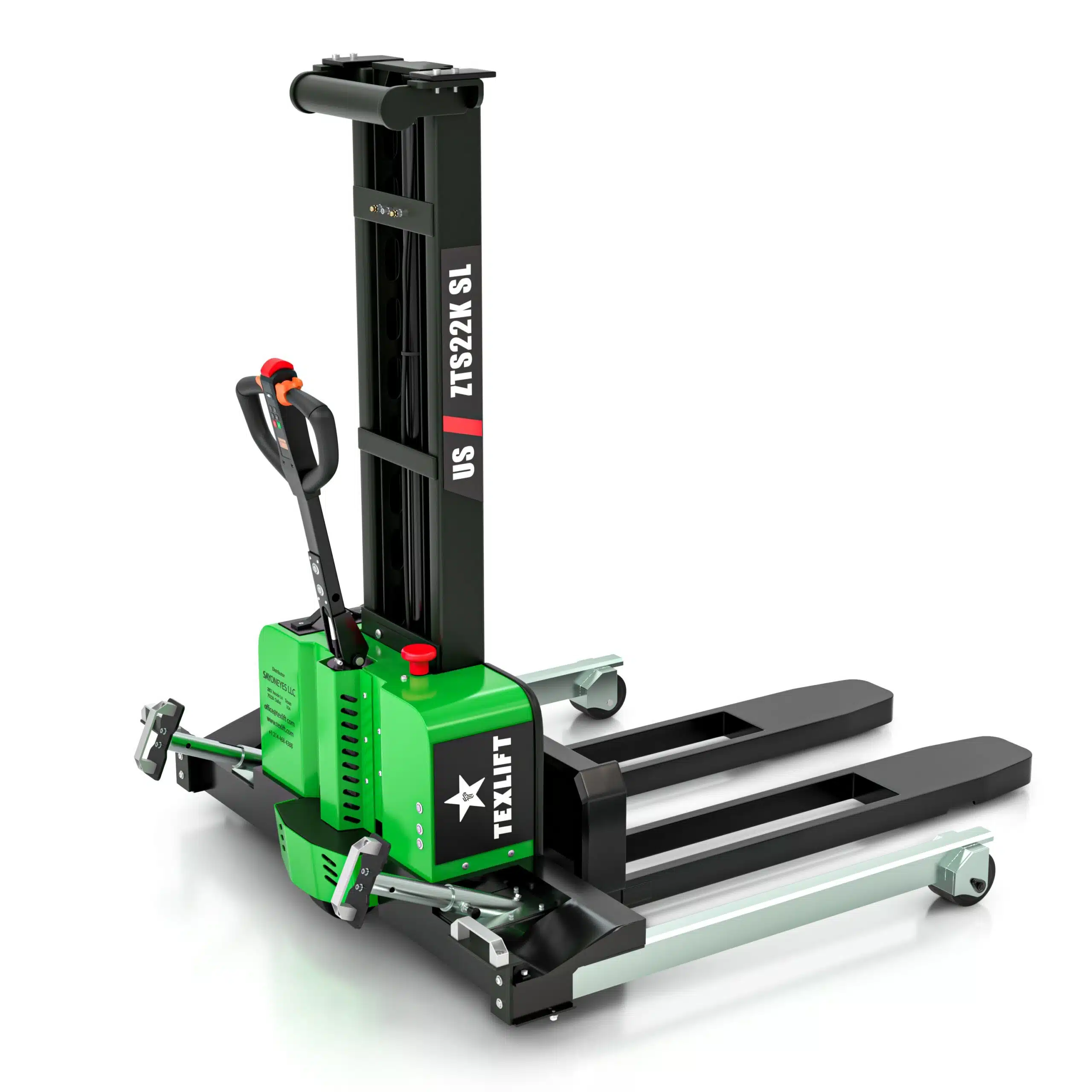

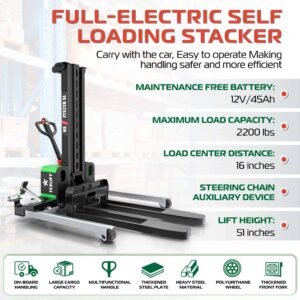

The Texlift US-ZTS22K SL is a full-electric self-loading pallet stacker designed for professional delivery operations, warehouses, distribution centers, retail facilities, loading areas, and commercial material handling. With a 2,200 lb rated load capacity, 51 in maximum lift height, and 45 in heavy-duty steel forks, this compact electric stacker provides an efficient solution for lifting, transporting, and positioning palletized loads without requiring a separate forklift at every delivery location.
Engineered for businesses handling frequent loading and unloading operations, the US-ZTS22K SL features a self-loading configuration that supports transport with compatible delivery vehicles. Its full-electric drive and hydraulic lifting systems reduce manual effort while providing controlled pallet handling in warehouses, loading areas, and commercial facilities. The compact walk-behind design makes it suitable for businesses requiring flexible material-handling equipment across multiple locations.
Powered by a 48V / 21Ah rechargeable battery, the US-ZTS22K SL delivers approximately 5โ6 hours of operating time with approximately 5โ6 hours of charging time. A 0.75 kW electric drive motor provides powered travel, while a separate 1.2 kW hydraulic lift motor supports efficient lifting and lowering. Combining dependable electric performance, practical self-loading functionality, and professional material-handling capabilities, the US-ZTS22K SL is backed by a 12-Month Warranty.
2,200 lb
Load Capacity
51 in
Max Lift Height
48V / 21Ah
Battery
5โ6 Hours
Runtime
2,200 lb Load Capacity
The US-ZTS22K SL provides a 2,200 lb rated load capacity for lifting, transporting, positioning, loading, and unloading compatible palletized materials. Its electric lifting system supports controlled material handling within the equipmentโs rated operating limits.
51 in Maximum Lift Height
A 51 in maximum lift height provides practical vertical reach for delivery-vehicle loading and unloading, low-level pallet stacking, inventory positioning, and commercial material handling. The hydraulic lifting system supports controlled placement at compatible working heights.

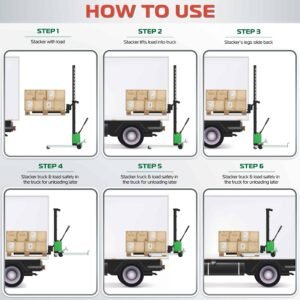

Full-Electric Self-Loading Design
The integrated self-loading configuration allows the stacker to support loading and unloading operations involving compatible delivery vehicles. This design is particularly useful for delivery businesses that require pallet-handling equipment at multiple destinations.
45 in Heavy-Duty Steel Forks
Equipped with 45 in steel forks, the US-ZTS22K SL provides dependable support for compatible pallets and commercial materials. The fork configuration supports everyday pallet transportation, lifting, positioning, and loading operations.
48V / 21Ah Rechargeable Battery
A rechargeable 48V / 21Ah battery supplies power for electric travel and hydraulic lifting. The integrated electrical system eliminates the need for manual propulsion during normal powered operation and supports efficient commercial material handling.
5โ6 Hours Operating Time
The battery system provides approximately 5โ6 hours of operation per charge under normal working conditions. Actual runtime depends on load weight, travel distance, lifting frequency, battery condition, operating practices, and working environment.
5โ6 Hours Charging Time
The rechargeable battery requires approximately 5โ6 hours for a full recharge under normal charging conditions using the compatible charger. Proper charging practices help maintain reliable equipment availability and consistent battery performance.
0.75 kW Electric Drive Motor
A dedicated 0.75 kW electric drive motor provides powered travel for transporting compatible palletized loads through warehouses, distribution centers, loading areas, and delivery environments.
1.2 kW Hydraulic Lift Motor
The separate 1.2 kW lift motor powers the hydraulic lifting system, providing controlled raising and lowering of compatible loads during loading, unloading, pallet stacking, and material-positioning operations.
Full-Electric Travel & Lifting
The US-ZTS22K SL combines powered travel with electric hydraulic lifting to reduce manual handling effort. Both functions support smoother operation during repetitive warehouse, delivery, and commercial material-handling tasks.

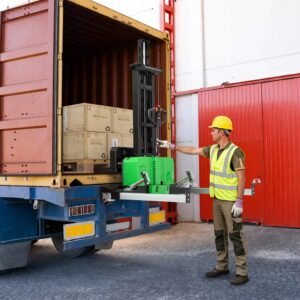

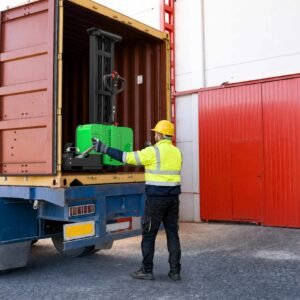

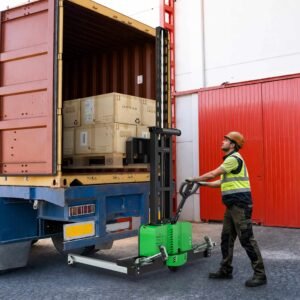

Delivery-Vehicle Compatibility
The self-loading configuration is designed to support operations with compatible delivery vehicles and loading arrangements. Vehicle compatibility must be verified based on loading height, available space, vehicle capacity, load distribution, and operating conditions.
Compact Walk-Behind Design
The compact walk-behind configuration provides practical maneuverability in warehouses, retail receiving areas, loading zones, and commercial facilities where larger forklifts may be impractical.
Warehouse & Distribution Efficiency
Designed for professional material handling, the US-ZTS22K SL helps streamline pallet transportation, receiving, inventory positioning, order fulfillment, loading, and unloading operations across commercial facilities.
Multi-Location Material Handling
The self-loading configuration supports businesses that need pallet-handling equipment at multiple delivery destinations. This functionality helps reduce dependence on separate forklifts or lifting equipment at every location.
Controlled Pallet Positioning
The electric hydraulic lifting system provides controlled raising and lowering of palletized materials, supporting accurate load placement during delivery operations, warehouse handling, and low-level stacking applications.
Warranty & Support
The Texlift US-ZTS22K SL includes a 12-Month Warranty covering eligible manufacturing defects under normal operating conditions. Texlift provides customer support, replacement-parts assistance, and warranty guidance for qualifying equipment issues.
Where It Works Best
The US-ZTS22K SL is well suited for warehouses, distribution centers, delivery services, retail receiving facilities, commercial storage areas, loading zones, and compatible delivery-vehicle applications. It is primarily designed for indoor use and smooth, firm, level, adequately supported commercial surfaces.
Best Applications
Use the US-ZTS22K SL for pallet transportation, delivery-vehicle loading and unloading, low-level stacking, inventory movement, material positioning, retail receiving, warehouse operations, distribution work, and other compatible commercial pallet-handling applications.
Power & Charging
The US-ZTS22K SL uses a 48V / 21Ah rechargeable battery to power its 0.75 kW electric drive motor and separate 1.2 kW hydraulic lift motor. The system provides approximately 5โ6 hours of operating time and approximately 5โ6 hours of charging time under normal conditions. Always use the compatible charger and follow the operating manual for proper battery maintenance.
Important Operating & Surface Notice
Operate the stacker only on firm, stable, level, and adequately supported surfaces suitable for its rated load. Before performing self-loading operations, verify delivery-vehicle compatibility, loading height, load distribution, and safe operating conditions. Never exceed the rated capacity or operate on unstable surfaces, unsuitable slopes, or unsupported loading areas.
EQUIPMENT SUPPORT
Need Help Choosing the Right Equipment?
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
โ Product Selection
โ Application Support
โ Shipping Assistance

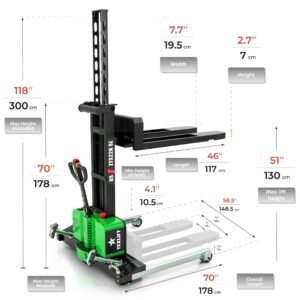

PRODUCT SPECIFICATIONS
Technical Specifications
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ZTS22K SL | Full-electric self-loading pallet stacker designed for delivery, warehouse, and commercial material handling |
| Load Capacity | 2,200 lb | Maximum rated load capacity for handling compatible pallets and materials within the stacker's operating limits |
| Maximum Lift Height | 51 in | Maximum vertical fork lifting height for loading, unloading, positioning, and low-level stacking |
| Load Center | 16 in | Rated load-center distance used for the stacker's capacity specification |
| Power Type | Full Electric | Battery-powered travel and hydraulic lifting for professional material handling |
| Battery | 48V / 21Ah | Rechargeable battery system supplies power for electric travel and lifting operations |
| Battery Voltage | 48V | Rated electrical system operating voltage |
| Battery Capacity | 21Ah | Rated battery capacity for powered travel and lifting operations |
| Battery Energy | 1.01 kWh | Nominal battery energy calculated from the 48V / 21Ah battery system |
| Runtime | 5โ6 Hours | Operating time varies with load weight, travel distance, lifting frequency, battery condition, and working environment |
| Charging Time | 5โ6 Hours | Full recharge time under normal charging conditions using a compatible charger |
| Drive Motor | 0.75 kW | Electric traction motor provides powered travel and controlled maneuvering |
| Lift Motor | 1.2 kW | Dedicated electric motor powers the hydraulic lifting and lowering system |
| Fork Length | 45 in | Heavy-duty steel forks designed for compatible pallets and palletized loads |
| Fork Outside Width | 25 in | Overall outside width measured across both forks |
| Fork Inside Width | 9 in | Clear inside spacing between the forks |
| Fork Position | Fixed | Fixed fork configuration designed for compatible pallet openings and loads |
| Mast Lowered Height | 70 in | Overall mast height with the lifting system fully lowered |
| Mast Raised Height | 118 in | Overall mast height with the lifting system fully raised |
| Turning Radius | 63 in | Turning radius for maneuvering in compatible loading areas and commercial environments |
| Overall Length | 64 in | Total machine length |
| Overall Width | 61 in | Total machine width |
| Machine Weight | 805 lb | Operating weight of the stacker |
| Self-Loading Function | Included | Integrated self-loading design supports loading and unloading the stacker with compatible delivery vehicles |
| Recommended Environment | Indoor & Smooth Commercial Surfaces | Designed primarily for warehouses, loading areas, retail facilities, and firm, level commercial surfaces |
| Best Use | Delivery & Pallet Handling | Designed for transporting, lifting, loading, unloading, and positioning compatible palletized materials |
| Typical Applications | Delivery Operations, Warehouses, Distribution, Retail & Commercial Storage | Suitable for commercial pallet handling where a compact self-loading stacker is beneficial |
| Warranty | 12 Months | Warranty coverage for eligible manufacturing defects under applicable Texlift warranty terms |
FREQUENTLY ASKED QUESTIONS
Product Questions & Answers
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
20 Product FAQs
Quick answers to help you evaluate
and operate this equipment.
01
What is the maximum load capacity of the US-ZTS22K SL?
The US-ZTS22K SL has a rated load capacity of 2,200 lb, making it suitable for lifting, transporting, loading, and unloading compatible palletized materials within its rated operating limits.
02
What is the maximum lift height?
The US-ZTS22K SL provides a maximum lift height of 51 in, supporting delivery-vehicle loading and unloading, low-level pallet stacking, and commercial material positioning.
03
What makes the US-ZTS22K SL a self-loading pallet stacker?
Its integrated self-loading design allows the stacker to support loading and unloading itself with compatible delivery vehicles, reducing the need for separate lifting equipment at every delivery location.
04
Can the US-ZTS22K SL load itself onto a delivery truck?
Yes, the self-loading configuration is designed for use with compatible delivery vehicles. Vehicle loading height, available space, weight capacity, and operating conditions must be verified before use.
05
Is the US-ZTS22K SL fully electric?
Yes, the US-ZTS22K SL features full-electric travel and hydraulic lifting, powered by a rechargeable 48V / 21Ah battery system.
06
What type of battery does the stacker use?
The US-ZTS22K SL is equipped with a rechargeable 48V / 21Ah battery that supplies power to both the electric drive motor and hydraulic lifting system.
07
How long does the battery last on a full charge?
The battery provides approximately 5โ6 hours of operating time under normal working conditions. Actual runtime varies depending on load weight, travel distance, lifting frequency, and battery condition.
08
How long does it take to recharge the battery?
A full recharge typically requires approximately 5โ6 hours using the compatible charger under normal charging conditions.
09
What is the drive motor power?
The US-ZTS22K SL uses a 0.75 kW electric drive motor to provide powered travel and controlled maneuvering during commercial pallet-handling operations.
10
What is the lifting motor power?
The stacker features a dedicated 1.2 kW hydraulic lift motor that powers the raising and lowering of compatible palletized loads.
11
How long are the forks?
The US-ZTS22K SL is equipped with 45 in steel forks, providing support for compatible pallets and commercial materials.
12
Are the forks adjustable?
No, the US-ZTS22K SL features a fixed fork configuration with a 25 in outside width and 9 in inside spacing. Pallet compatibility should be verified before operation.
13
What is the load center?
The rated load center is 16 in. Operators must follow the equipment's rated capacity and load-center requirements when handling palletized materials.
14
What is the turning radius?
The US-ZTS22K SL has a 63 in turning radius, supporting maneuverability in compatible warehouses, loading areas, and commercial facilities.
15
What are the overall dimensions?
The stacker measures 64 in in overall length and 61 in in overall width, with a 70 in lowered mast height and 118 in raised mast height.
16
How much does the US-ZTS22K SL weigh?
The US-ZTS22K SL has a machine weight of approximately 805 lb. Delivery-vehicle compatibility and loading capacity must account for the equipment's weight.
17
Can the stacker be used outdoors?
The US-ZTS22K SL is primarily designed for indoor environments and smooth, firm, level, adequately supported commercial surfaces. Outdoor use should be limited to compatible operating conditions.
18
What businesses benefit most from this stacker?
The US-ZTS22K SL is suitable for delivery companies, warehouses, distribution centers, retail receiving operations, commercial storage facilities, and businesses requiring pallet-handling equipment at multiple locations.
19
Does the US-ZTS22K SL include a warranty?
Yes, the US-ZTS22K SL includes a 12-Month Warranty covering eligible manufacturing defects under normal operating conditions, subject to applicable Texlift warranty terms.
20
Where can I get replacement parts or technical support?
Texlift provides replacement-parts assistance, product guidance, and warranty support. Contact office@texlift.com with your equipment model and details of the required assistance.
NEED MORE INFORMATION?
Still have a product question?
Contact Our Team
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
MODEL COMPARISON
Compare Similar Equipment
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Compare up to 4 models
The current product is highlighted for
easier side-by-side comparison.
Swipe left or right to compare models
Compare Models
Review key differences side by side
CURRENT MODEL
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V/21Ah Battery | US-ZTS22K SL
Original price was: $6,300.00.$5,990.00Current price is: $5,990.00.
Load Capacity
2,200 lb
2,200 lb
1,100 lb
Lift Height
51 in
51 in
51 in
Load Center
16 in
16 in
16 in
Fork Length
45 in
45 in
44 in
Battery
48V / 21Ah
48V / 21Ah Lithium
12V / 45Ah Gel
Motor
1.2 kW
1.2 kW
0.8 kW
Machine Weight
805 lb
805 lb
550 lb
Overall Length
64 in
64 in
62 in
Overall Width
61 in
35 in
35 in
Availability
In Stock
In Stock
Out of Stock
Product
โ Selected Model
Need help choosing the right model?
Tell us your required load capacity,
lift height, application, and working
environment. Our equipment team can help
you compare the available options.
Contact Our Team
PRODUCT APPLICATIONS
Built for Demanding Material Handling Applications
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
02

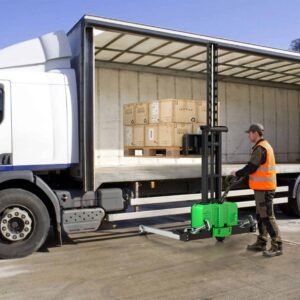

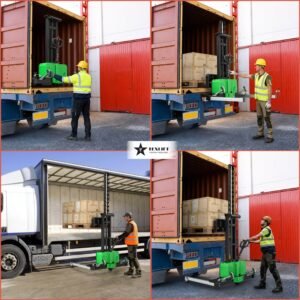

Truck & Van Loading
Load and unload compatible palletized materials while reducing dependence on a separate forklift at the destination.
03
Warehouse Operations
Transport, lift, position, and organize compatible pallets throughout warehouses and commercial storage facilities.
04
Distribution Centers
Support receiving, staging, order preparation, pallet movement, and outbound distribution operations.
05
Retail Receiving
Move palletized inventory from compatible delivery vehicles into retail receiving and storage areas.
06
Pallet Transport
The 2,200 lb rated capacity and powered travel system support efficient movement of compatible palletized materials.
07
Loading & Unloading
Handle compatible pallets during loading and unloading operations using the 51 in maximum lift height and powered lifting system.
08
Low-Level Stacking
Position and stack compatible palletized loads at heights up to 51 in.
09
Mobile Material Handling
The self-loading design allows businesses to transport the stacker between compatible work locations where material-handling equipment may not be available.
10
Commercial Storage
Move and position palletized inventory, supplies, equipment, and materials throughout compatible storage facilities.
11
Last-Mile Delivery
Well suited for commercial delivery operations requiring powered pallet handling at customer locations.
12
Indoor Material Handling
Full-electric travel and lifting provide efficient operation in compatible warehouses, distribution facilities, retail locations, and other indoor commercial environments.
Not sure if this model fits your application?
Contact our equipment team with your load,
lift height, pallet, and operating requirements
and we can help you evaluate the right model.
Contact Our Team
Add a review
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
* Please tick the checkbox to proceed
WARRANTY & SUPPORT
Confidence Beyond the Purchase
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
Product-Specific Coverage
The warranty and support information below
applies specifically to this product.
01
12-Month Warranty
The US-ZTS22K SL includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms.
02
Technical Support
Technical assistance is available for stacker operation, troubleshooting, controls, electrical systems, lifting functions, maintenance, and general product questions.
03
Battery & Charging Support
Assistance is available for the 48V / 21Ah battery system, charging procedures, battery connections, storage, inspection, and battery-performance troubleshooting.
04
Drive System Support
Support is available for the 0.75 kW electric drive motor, travel controls, electrical connections, powered movement, and related drivetrain components.
05
Lift System Support
Assistance is available for the 1.2 kW lift motor, lifting and lowering controls, hydraulic functions, mast operation, and related components.
06
Fork & Mast Support
Technical assistance is available for the 45 in forks, mast system, lifting functions, load positioning, inspection, and related material-handling components.
07
Self-Loading System Support
Assistance is available for proper operation and troubleshooting of the self-loading system used for compatible delivery-vehicle loading and unloading applications.
08
Replacement Parts Support
Assistance is available for identifying compatible replacement parts and service components for the US-ZTS22K SL. Eligible replacement parts include a 90-Day Warranty, excluding wheels and consumable components.
09
Warranty Claim Assistance
For warranty review, customers may be asked to provide the order number, model, serial number, description of the issue, and clear photos or videos showing the reported problem.
10
Warranty Exclusions
Normal wear items, consumable components, misuse, overloading, accidents, neglect, improper maintenance or charging, unauthorized repairs or modifications, and operation outside the machine's intended application are excluded from warranty coverage.
CUSTOMER SUPPORT
Need warranty, parts, or technical support?
Contact Support
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
More Texlift Products
Related Products
Explore additional equipment selected to complement your material handling operation.
Texlift Product
4,400 lb Full Electric Pallet Jack โ 48V/20Ah Lithium Battery | US-EPT44K DN
Original price was: $1,750.00.$1,720.00Current price is: $1,720.00.
View Product
Texlift Product
2-Pack 34" Red Floor Cleaning Pads for US-TX SCD34 Ride-On Floor Scrubber
$34.99
View Product
Texlift Product
US-TXL110 PRO Full Electric Wheel Loader โ 1,100 lb Capacity | 85" Lift Height | Lithium Powered
Original price was: $17,795.00.$15,795.00Current price is: $15,795.00.
View Product
Texlift Product
34 in Commercial Ride-On Floor Scrubber โ 65,000 Sq. Ft./Hr โ US-TX SCD34
Original price was: $6,899.00.$6,489.00Current price is: $6,489.00.
View Product
Texlift Product
12V 52Ah Lead Acid Deep Cycle Battery for Texlift US-TX SC16 Floor Scrubber
$125.00
View Product
Texlift Product
3,300 lb Rider / Walkie Electric Pallet Stacker โ 13 ft (158 in) Lift | US-DS33K 158
Original price was: $6,000.00.$5,800.00Current price is: $5,800.00.
View Product
Texlift Product
15 ft Semi-Electric Scissor Lift 440 lb | Lithium | US-TSE15 PRO
$4,500.00
View Product
TEXLIFT IN NUMBERS
Equipment That Keeps Business Moving
From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.
4,200+
Equipment Orders Delivered Nationwide
50+
Equipment Models
12-Month
Warranty Coverage
Nationwide
Continental U.S. Shipping
Dallas, TX
Operations & Pickup
โ Financing Availableย ย
โ Fast Parts Support
โ Commercial Equipment Experts
โ Secure Online Ordering
Reviews
There are no reviews yet
