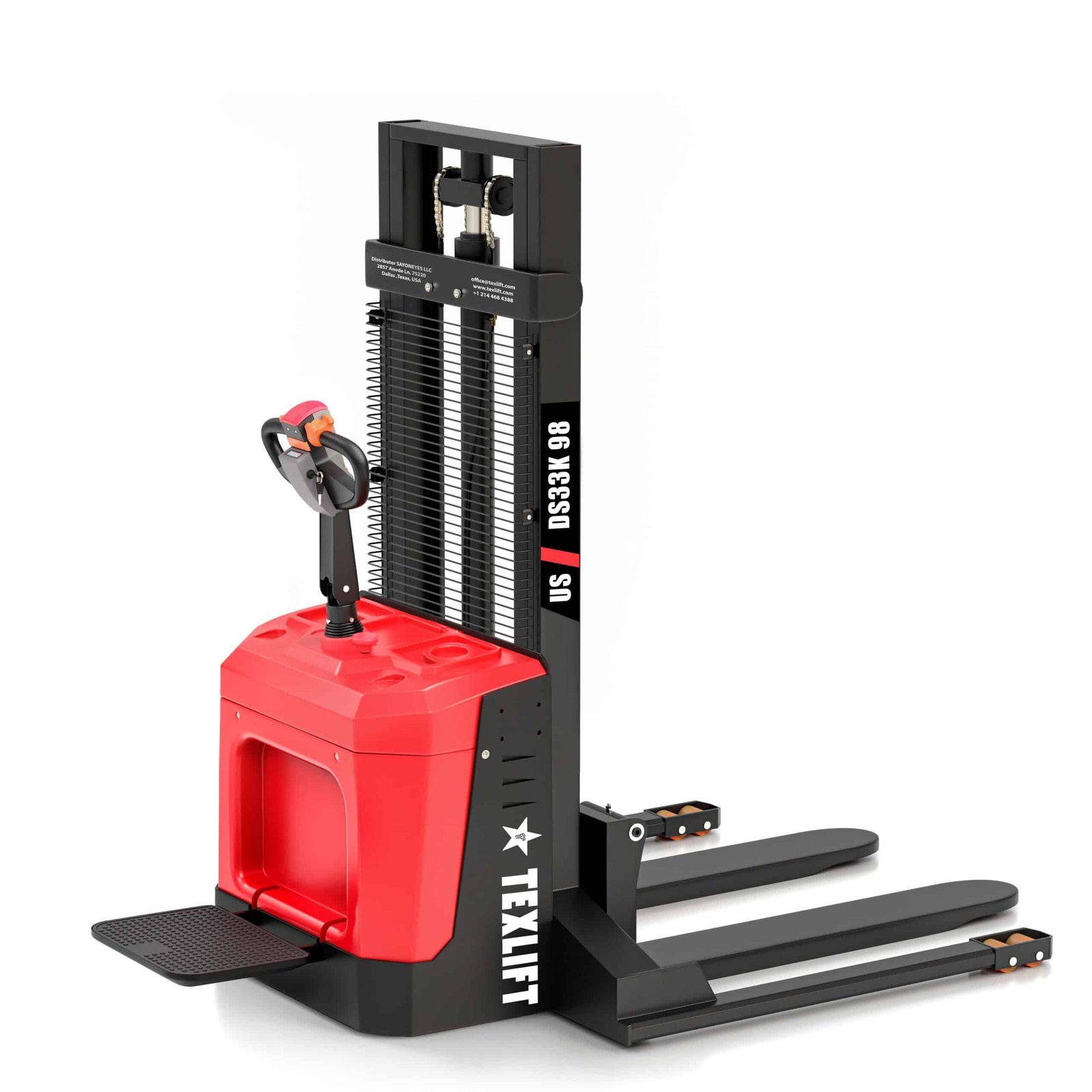

Built for efficient pallet transport, lifting, and stacking, the US-DS33K 98 Stand-On Electric Pallet Stacker combines a 3,300 lb rated load capacity with an 8 ft (98 in) maximum lift height. The integrated operator platform allows ride-on travel, making this full-electric stacker particularly practical for repetitive pallet movement and longer travel distances throughout warehouses, distribution centers, manufacturing facilities, and other indoor material-handling environments.
Fixed straddle legs provide a stable configuration around compatible palletized loads, while 45 in forks with an adjustable 5.5–27 in fork spread provide flexibility for different compatible pallet and load configurations. Full-electric travel and hydraulic lifting, a 48V / 32Ah lead-acid battery system, and a compact warehouse configuration provide efficient operation for professional indoor pallet handling.
The US-DS33K 98 Stand-On Electric Pallet Stacker handles compatible palletized loads up to 3,300 lb at the rated 20 in load center.
This capacity supports pallet transportation, positioning, lifting, and stacking throughout warehouses, distribution centers, manufacturing facilities, storage areas, and other professional indoor material-handling environments.
The 8 ft (98 in) maximum fork lift height provides practical vertical reach for pallet stacking, warehouse racking, storage, retrieval, and material positioning.
This lift height makes the Stand-On Electric Pallet Stacker suitable for everyday warehouse applications requiring efficient pallet movement combined with elevated load positioning.
The mast measures approximately 73 in when fully lowered, providing a practical profile during warehouse travel and pallet positioning.
Maximum overall height with the mast fully extended is approximately 127 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.
The 45 in forks can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
The adjustable fork configuration provides flexibility for professional pallet handling while supporting proper fork positioning under compatible palletized loads.
Fixed straddle legs provide a stable machine base around compatible palletized loads during transportation, lifting, positioning, and stacking.
The machine measures approximately 60 in wide, providing a stable configuration for professional warehouse and industrial pallet-handling applications.
The integrated operator platform allows stand-on travel throughout compatible indoor working environments, reducing the amount of walking required during repetitive pallet movement.
This makes the US-DS33K 98 particularly practical for facilities where operators regularly move palletized materials between receiving, storage, production, staging, and shipping areas.
A 61 in turning radius and approximately 74 in overall machine length provide practical maneuverability for pallet approach, transportation, turning, and load positioning.
The Stand-On Electric Pallet Stacker is designed for controlled movement throughout compatible warehouse aisles, storage areas, staging zones, production facilities, and distribution environments.
The US-DS33K 98 uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting, providing full-electric operation with no tailpipe exhaust emissions at the machine during use.
Typical operating time is approximately 3–4 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
The integrated operator platform allows the operator to ride on the stacker during travel, supporting efficient repetitive pallet movement and longer travel distances throughout compatible indoor facilities.
Powered electric travel and hydraulic lifting reduce manual material-handling effort while providing controlled pallet transportation, lifting, lowering, stacking, and positioning.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation, positioning, and stacking operations.
Durable polyurethane wheels provide smooth and controlled travel across firm, level, and adequately supported warehouse and industrial floors.
The US-DS33K 98 Stand-On Electric Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, retail stockrooms, production environments, receiving areas, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb capacity, 8 ft lift height, integrated operator platform, and full-electric operation make it particularly useful for facilities requiring frequent pallet transportation combined with stacking and load positioning.
The Stand-On Electric Pallet Stacker is ideal for pallet stacking, warehouse racking, repetitive pallet transportation, inventory movement, receiving and staging, production-line material handling, storage organization, loading-area operations, and positioning compatible palletized loads weighing up to 3,300 lb.
The integrated operator platform provides an additional advantage for applications involving frequent travel between different working areas within a warehouse or industrial facility.
The US-DS33K 98 Stand-On Electric Pallet Stacker uses a 48V / 32Ah lead-acid battery system with approximately 1.54 kWh of nominal battery energy. Typical operating time is approximately 3–4 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
The battery system powers electric travel and hydraulic lifting for full-electric stand-on operation throughout compatible indoor material-handling environments.
Do not operate the US-DS33K 98 when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the Stand-On Electric Pallet Stacker to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-DS33K 98 | Full-electric Rider / Walkie pallet stacker with fixed straddle legs |
| UPC | 810166853156 | Universal Product Code for the US-DS33K 98 |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Load Center | 20 in | Rated load center for the stated 3,300 lb capacity |
| Lift Height | 8 ft (98 in) | Maximum vertical fork lift height for pallet stacking and material positioning |
| Lowered Mast Height | 73 in | Mast height with the mast fully lowered |
| Maximum Overall Height | 127 in | Maximum overall machine height with the mast fully extended |
| Fork Length | 45 in | Fork length for compatible palletized loads |
| Fork Spread | 5.5–27 in Adjustable | Adjustable fork positioning for different compatible pallet and load configurations |
| Minimum Fork Height | ≤3.6 in | Minimum lowered fork height for compatible pallet entry |
| Straddle Legs | Fixed | Fixed straddle-leg configuration for stable pallet handling |
| Overall Length | 74 in | Overall machine length including the integrated operator platform |
| Overall Width | 60 in | Overall width across the fixed straddle-leg configuration |
| Wheelbase | 53 in | Distance between front and rear wheel centers |
| Turning Radius | 61 in | Minimum turning radius for maneuvering and pallet positioning |
| Wheel Type | Polyurethane | Durable polyurethane wheels designed for smooth indoor industrial floors |
| Battery | 48V / 32Ah Lead-Acid | Electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 1.54 kWh | Total nominal energy capacity of the 48V / 32Ah battery system |
| Runtime | Approx. 3–4 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible charger |
| Charger Type | 48V Lead-Acid Battery Charger | Compatible charger designed for the installed 48V lead-acid battery system |
| Drive Motor | 0.8 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, stacking, and positioning |
| Brake System | Electromagnetic | Electromagnetic braking system for controlled stopping during travel and pallet positioning |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Rider / Walkie | Integrated operator platform supports stand-on travel and walk-behind operation |
| Machine Weight | Approx. 1,230 lb | Approximate machine operating weight including the battery system |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed primarily for warehouses and firm, level, adequately supported industrial floors |
| Best Use | Indoor Pallet Transport & Stacking | Designed for repetitive pallet transportation, warehouse stacking, racking, staging, and load positioning |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, stacking, staging, inventory movement, production material handling, and repetitive indoor pallet movement |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-DS33K 98 Rider / Walkie Electric Pallet Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-DS33K 98 provides a maximum fork lift height of 8 ft (98 in) for pallet stacking, warehouse racking, storage, and material positioning.
The US-DS33K 98 has a 73 in lowered mast height, providing a practical profile for warehouse travel and positioning between lifting operations.
The US-DS33K 98 reaches approximately 127 in in maximum overall height when the mast is fully extended. Always verify ceiling, doorway, rack, sprinkler, lighting, and other overhead clearances before operation.
The US-DS33K 98 is equipped with 45 in forks designed for handling compatible palletized loads within the machine's rated capacity.
The forks provide an adjustable spread of approximately 5.5–27 in, allowing the operator to position them for different compatible pallet and load configurations.
The minimum lowered fork height is approximately 3.6 in or less for entry into compatible pallet configurations.
Yes. The US-DS33K 98 uses a fixed straddle-leg configuration that provides a stable base around compatible palletized loads during transportation, lifting, positioning, and stacking.
The stacker measures approximately 74 in long, including the operator platform, and 60 in wide across the fixed straddle-leg configuration. The lowered mast height is approximately 73 in.
The US-DS33K 98 has an approximately 53 in wheelbase, measured between the front and rear wheel centers.
The US-DS33K 98 has an approximately 61 in turning radius for maneuvering, pallet approach, and load positioning in compatible indoor environments.
The US-DS33K 98 has an approximate operating weight of 1,230 lb including the battery system.
The stacker uses durable polyurethane wheels designed for smooth, firm, level, and adequately supported indoor industrial floors.
The US-DS33K 98 uses a 48V / 32Ah lead-acid traction battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 3–4 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible 48V lead-acid battery charger.
The US-DS33K 98 uses a compatible 48V lead-acid battery charger designed for the installed battery system.
No. Stop operating the US-DS33K 98 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
The US-DS33K 98 uses a 0.8 kW electric traction motor to provide powered travel for professional indoor material-handling operations.
A 2.2 kW electric hydraulic lift motor powers pallet pickup, lifting, lowering, stacking, and load-positioning functions.
The stacker uses an electromagnetic braking system that provides controlled stopping during travel, pallet transportation, and positioning operations.
Yes. The US-DS33K 98 provides electric travel and electric hydraulic lifting for full-electric material-handling operation.
Yes. The integrated operator platform supports stand-on ride-on travel, while the Rider / Walkie configuration also allows walk-behind operation for pallet positioning and material handling.
The operator platform reduces walking during repetitive pallet transportation and longer travel distances within a facility, making the stacker particularly useful for frequent warehouse material movement.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The Rider / Walkie Electric Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and similar commercial environments.
No. The US-DS33K 98 uses polyurethane wheels and is designed primarily for indoor industrial floors. It is not intended for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-DS33K 98 is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage facilities, production environments, receiving areas, staging areas, and other indoor material-handling operations.
Typical applications include pallet transportation, pallet stacking, warehouse racking, inventory movement, receiving and staging, production-line material handling, storage organization, and repetitive pallet movement within a facility.
The US-DS33K 98 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Transport, lift, position, and stack compatible palletized loads throughout warehouses with smooth, firm, and adequately supported indoor floors.
The 8 ft (98 in) maximum lift height supports everyday pallet stacking, elevated positioning, and storage applications for compatible palletized loads.
Position compatible palletized inventory within warehouse racking using the 3,300 lb rated capacity, adjustable forks, and controlled electric hydraulic lifting.
The integrated operator platform supports ride-on travel, reducing walking during repetitive pallet movement and longer travel distances within compatible facilities.
Move compatible palletized inventory between receiving, storage, staging, picking, replenishment, and shipping areas within professional distribution operations.
Transport and position palletized materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, replenishment, organization, storage, and pallet positioning throughout warehouse and commercial storage environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Supply compatible palletized materials and components to production areas and transport finished products to staging, inventory, or storage locations.
Support pallet transportation, stacking, inventory organization, and material positioning throughout compatible commercial storage environments.
Position and organize compatible palletized loads within indoor shipping, receiving, staging, and loading areas with suitable floor conditions.
The Rider / Walkie configuration combines stand-on travel with walk-behind operation, providing flexibility for pallet transport, stacking, positioning, and repetitive indoor material handling.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-DS33K 98 Rider / Walkie Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electrical functions, hydraulic systems, Rider / Walkie controls, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, wheel, braking, operator-platform, and other service components for the US-DS33K 98.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 48V lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, mast, hydraulic system, polyurethane wheels, battery system, electromagnetic braking system, operator platform, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
