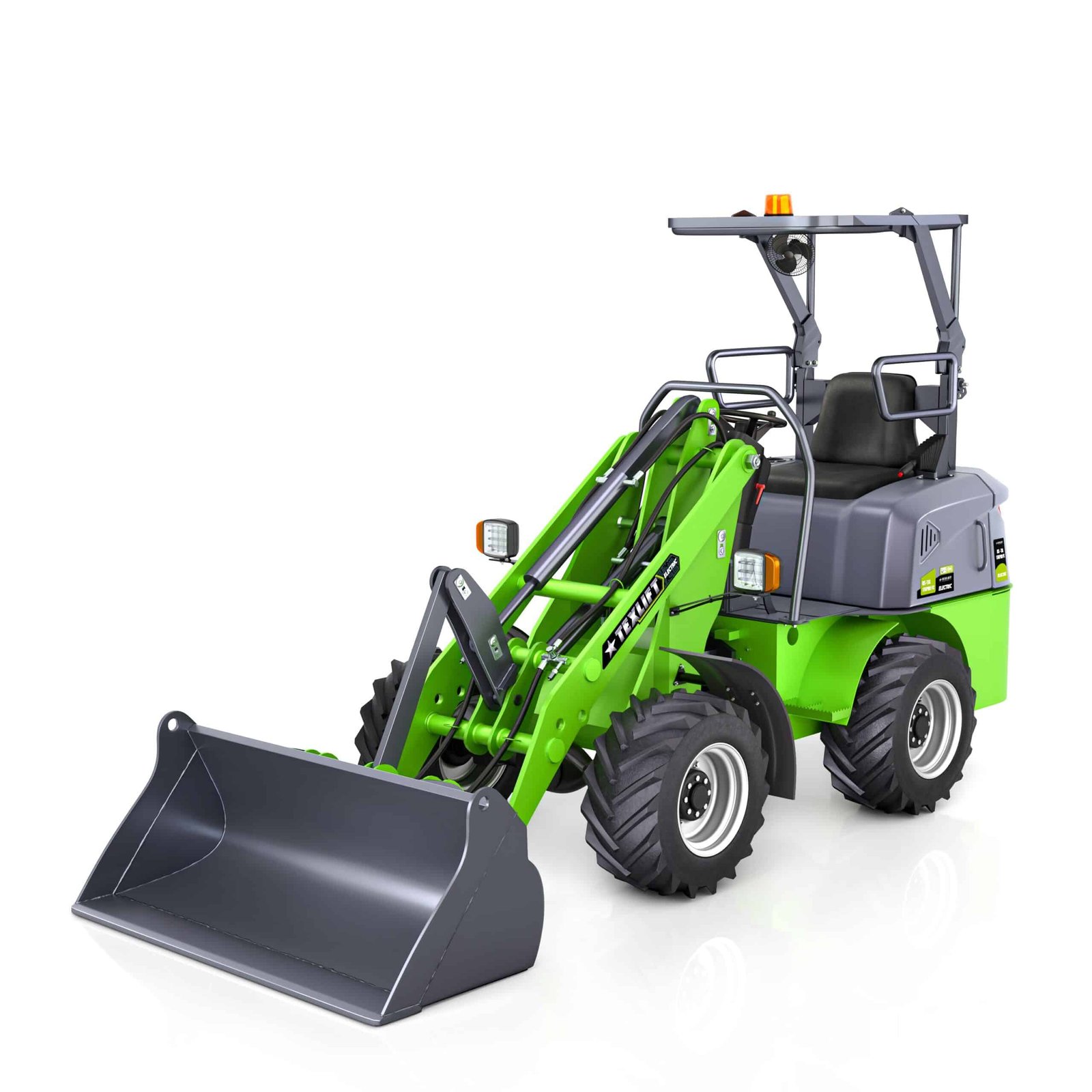

Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity - TEXLIFT

Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity

Original price was: $27,670.00.Current price is: $25,590.00.
Product Availability Contact our team for availability.
Out of Stock

Want this product when it becomes available? Send us a request and our team will contact you with availability and estimated lead time.

SPECIAL SAVINGS

Save More on Your Order

Volume pricing and wire-transfer savings available on eligible orders.

2 Savings Options
%
Volume Pricing Save more when ordering multiple units
2–4 Units Save 2%
5–9 Units Save 3%
10+ Units Save 5%
Buy More & Save
DELIVERY & PICKUP

Order Fulfillment

Pickup and nationwide freight shipping available from our Texas warehouse.

🚚
Nationwide Delivery Ships from Texas. Estimated delivery: 3–14 business days. Shipping charges are calculated at checkout.
📍
Dallas Pickup Most in-stock equipment is ready for pickup within 24 hours. Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout Protected payment
Product Support Real equipment help
12-Month Warranty Equipment coverage
WIRE DISCOUNT REQUEST

3% Wire-Transfer Discount

Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity

Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.

Requested Quantity *
PRE-ORDER REQUEST

Request Product Availability

Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity

Submit your request and our team will contact you with availability, estimated lead time, and ordering information.

Requested Quantity *

Description

PRODUCT OVERVIEW

Built for Professional Loading

Built for demanding professional loading and material handling, the US-TXL176PRO FC Electric Wheel Loader combines a 1,760 lb rated operating capacity, 11 ft (132 in) maximum lift height, 7.2 ft (86 in) maximum dump height, and 9 cu. ft. bucket with powerful full-electric performance. Designed for construction, agriculture, landscaping, municipalities, material yards, warehouses, industrial facilities, and commercial operations, this Electric Wheel Loader provides substantial loading capability in a versatile electric platform.

The FC configuration adds a heavy-duty foldable operator canopy for greater flexibility during transportation, storage, and compatible low-clearance applications. Power comes from a 73.6V / 240Ah LiFePO4 lithium battery with 17.664 kWh of nominal energy and up to 8 hours of operating time per charge. Dual 4.5 kW drive motors provide 9 kW of total drive power, while a dedicated 4.5 kW hydraulic motor, 2,320 PSI hydraulic pressure, 10.6 GPM hydraulic flow, and 29 × 12.5-15 tires give this Electric Wheel Loader the power, traction, and hydraulic performance required for professional material handling.

⚖
1,760 lbs
Rated Capacity
↕
11 ft (132 in)
Max Lift Height
↕
7.2 ft (86 in)
Dump Height
▣
73.6V LiFePO4 Lithium
Battery
✓

1,760 lb Rated Operating Capacity

The US-TXL176PRO FC Electric Wheel Loader provides a 1,760 lb rated operating capacity for demanding professional loading, transporting, positioning, and material-handling applications.

Use this Electric Wheel Loader to handle compatible soil, gravel, sand, mulch, feed, aggregate, landscaping materials, construction supplies, and other materials within the machine’s rated operating limits.

↗

11 ft (132 in) Maximum Lift Height

The US-TXL176PRO FC Electric Wheel Loader provides a maximum lift height of approximately 11 ft (132 in), delivering extended vertical reach for professional loading and material placement.

The increased lift height makes this Electric Wheel Loader practical for loading compatible trucks, trailers, containers, bins, hoppers, and elevated material-receiving areas.

✓

7.2 ft (86 in) Maximum Dump Height

A maximum dump height of approximately 7.2 ft (86 in) provides useful clearance for discharging compatible materials into trucks, trailers, containers, bins, hoppers, and other receiving areas.

Always use the exact 86 in specification when determining whether the Electric Wheel Loader provides sufficient dumping clearance for a particular application.

✓

9 Cu. Ft. Bucket

The standard 9 cu. ft. heavy-duty bucket provides substantial volume for repetitive loading and transportation of compatible bulk materials.

Use the bucket for soil, gravel, sand, mulch, feed, aggregate, compost, landscaping materials, construction supplies, and other compatible materials within the Electric Wheel Loader’s operating limits.

✓

Heavy-Duty Foldable Canopy

The FC configuration features a heavy-duty foldable operator canopy designed to provide additional clearance flexibility when transporting, storing, or positioning the Electric Wheel Loader.

Folding the canopy reduces the machine’s overall height, making the FC configuration especially useful where transport, storage, or overhead clearance may otherwise be restrictive.

✓

Flexible Low-Clearance Configuration

The foldable canopy provides greater flexibility for compatible low-clearance applications while retaining a substantial operator canopy when raised for normal operation.

Always verify actual machine height, overhead clearance, transport clearance, and operating requirements before moving or operating the Electric Wheel Loader with the canopy in either position.

✓

73.6V / 240Ah LiFePO4 Battery

The US-TXL176PRO FC Electric Wheel Loader uses a 73.6V / 240Ah LiFePO4 lithium battery designed for professional commercial operation.

Lithium iron phosphate battery technology provides dependable rechargeable electric power with low routine battery maintenance for demanding material-handling applications.

✓

17.664 kWh Battery Energy

The 73.6V / 240Ah lithium battery provides approximately 17.664 kWh of nominal energy capacity.

This high-capacity battery supplies power to the Electric Wheel Loader’s drive and hydraulic systems while eliminating gasoline or diesel fuel consumption during normal operation.

✓

Up to 8 Hours Runtime

The US-TXL176PRO FC Electric Wheel Loader provides up to approximately 8 hours of operation per charge under suitable working conditions.

Actual runtime varies depending on payload, terrain, travel distance, hydraulic demand, attachment use, temperature, operating intensity, and other working conditions.

✓

Approximately 5-Hour Charging

The lithium battery requires approximately 5 hours for a full recharge under suitable conditions when using the correct compatible charger.

Actual charging time can vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.

↗

Dual 4.5 kW Drive Motors

The US-TXL176PRO FC Electric Wheel Loader uses two 4.5 kW electric drive motors, providing 9 kW of combined rated drive power for powered travel, traction, and responsive machine movement.

The dual-motor full-electric drivetrain provides dependable travel performance while eliminating operating exhaust emissions associated with conventional gasoline or diesel-powered wheel loaders.

✓

4.5 kW Hydraulic Motor

A dedicated 4.5 kW electric hydraulic motor powers the Electric Wheel Loader’s lifting, bucket movement, steering, dumping, quick-attach operation, and compatible hydraulic functions.

The dedicated hydraulic motor provides responsive performance for repetitive professional loading, positioning, and material-handling operations.

✓

2,320 PSI Hydraulic Pressure

The US-TXL176PRO FC Electric Wheel Loader operates with approximately 2,320 PSI of hydraulic working pressure.

The hydraulic system supports responsive lifting, bucket positioning, dumping, steering, quick-attach operation, and compatible hydraulic attachment functions.

✓

10.6 GPM Hydraulic Flow

Approximately 10.6 GPM of hydraulic flow supports responsive lifting, bucket movement, dumping, steering, and compatible hydraulic attachment operation.

Combined with 2,320 PSI hydraulic pressure and the dedicated 4.5 kW hydraulic motor, the system provides strong hydraulic performance for professional applications.

✓

29 × 12.5-15 Tires

The US-TXL176PRO FC Electric Wheel Loader is equipped with 29 × 12.5-15 tires designed to provide traction, stability, and a substantial working footprint.

The tire configuration complements the loader’s 1,760 lb rated operating capacity and supports operation across compatible construction, agricultural, landscaping, material-yard, and commercial working surfaces.

✓

Universal Hydraulic Quick Attach

The universal hydraulic quick-attach system allows compatible attachments to be connected and changed efficiently, expanding the Electric Wheel Loader beyond standard bucket applications.

Attachment compatibility, hydraulic requirements, weight, dimensions, and operating limits should always be verified before installation or use.

✓

Attachment Versatility

Compatible attachments can expand the US-TXL176PRO FC Electric Wheel Loader for different loading and material-handling applications.

Depending on attachment compatibility, the machine can support bucket work, pallet handling with compatible forks, material positioning, and other professional applications.

✓

Full Electric Operation

The US-TXL176PRO FC Electric Wheel Loader operates entirely from rechargeable lithium battery power and requires no gasoline or diesel fuel during normal operation.

Full-electric operation also eliminates conventional engine oil changes and many fuel-system maintenance requirements associated with internal-combustion wheel loaders.

✓

Heavy-Duty Electric Performance

The combination of a 1,760 lb rated operating capacity, 9 kW total drive power, 4.5 kW hydraulic motor, 2,320 PSI hydraulic pressure, and 10.6 GPM hydraulic flow provides strong commercial loading capability.

This makes the US-TXL176PRO FC Electric Wheel Loader suitable for operations requiring greater capacity and hydraulic performance than smaller compact electric loaders.

✓

Operator-Focused Equipment

The operator station is designed for practical everyday commercial operation with good visibility and convenient machine controls.

Equipment includes a suspension seat, LED work light, cooling fan, and amber warning beacon to support professional loading and material-handling operations.

✓

Construction & Material Yards

The US-TXL176PRO FC Electric Wheel Loader is well suited for construction sites, material yards, landscape supply operations, industrial properties, and commercial loading areas.

Its 1,760 lb rated capacity, 9 cu. ft. bucket, 11 ft lift height, and strong hydraulic performance provide useful capability for repetitive material movement.

✓

Agriculture & Landscaping

Farms, ranches, agricultural facilities, nurseries, landscaping businesses, and commercial properties can use this Electric Wheel Loader for a wide range of compatible material-handling applications.

Typical materials include feed, soil, compost, mulch, gravel, sand, aggregate, landscaping supplies, and other compatible bulk materials.

✓

Best Electric Wheel Loader Applications

Use the US-TXL176PRO FC Electric Wheel Loader for loading, carrying, positioning, transporting, and dumping compatible soil, gravel, sand, mulch, feed, aggregate, compost, landscaping materials, and construction supplies.

Compatible pallet forks and other approved attachments can further expand the Electric Wheel Loader’s applications while remaining within the machine and attachment operating limits.

✓

Support & 12-Month Warranty

The US-TXL176PRO FC Electric Wheel Loader is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.

Texlift provides technical support and replacement-parts assistance to help customers maintain and service their Electric Wheel Loader. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are not covered under the replacement-parts warranty.

!

Important Lithium Battery Notice

Do not operate the US-TXL176PRO FC Electric Wheel Loader when the battery reaches 20% charge or below. Stop operation and recharge the battery before returning the machine to service, or replace it with a properly charged compatible battery when applicable.

Proper charging and battery maintenance are important for performance and service life. Always use the correct compatible charger and follow the operating manual for battery charging, inspection, maintenance, and storage procedures.

EQUIPMENT SUPPORT

Need Help Choosing the Right Equipment?

Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

✓ Product Selection ✓ Application Support ✓ Shipping Assistance
SPEAK WITH OUR TEAM
Get Expert Equipment Guidance
Contact Our Team
⚙
PRODUCT SPECIFICATIONS

Technical Specifications

Review the key dimensions, performance data, power information, fitment details, and product configuration.

Specification Value Description
Model US-TXL176PRO FC Heavy-duty full-electric lithium wheel loader with foldable canopy designed for professional loading, material transport, construction, agriculture, landscaping, and commercial operations
Load Capacity 1,760 lbs Rated operating capacity for lifting, loading, transporting, and handling compatible materials within the machine's specified operating limits
Bucket Capacity 9 cu. ft. Heavy-duty bucket provides substantial capacity for soil, gravel, sand, mulch, feed, aggregate, compost, landscaping materials, and other compatible bulk materials
Lift Height 11 ft (132 in) Maximum lifting height provides extended vertical reach for professional loading, material positioning, and material-handling applications
Dump Height 7.2 ft (86 in) Maximum bucket dumping height supports unloading into compatible trucks, trailers, containers, bins, hoppers, and material-receiving areas
Power Type Full Electric Battery-powered drive and hydraulic operation provides reduced operating noise with no operating exhaust emissions at the machine
Battery Type LiFePO4 Lithium Lithium iron phosphate battery technology provides dependable rechargeable electric power with low routine battery maintenance
Battery 73.6V / 240Ah LiFePO4 High-capacity lithium battery system powers the loader's electric drive and hydraulic functions
Battery Voltage 73.6V Nominal electrical system voltage of the loader's lithium battery system
Battery Capacity 240Ah Rated battery capacity supports extended professional loading and material-handling working cycles
Battery Energy 17.664 kWh Nominal battery energy based on the 73.6V / 240Ah lithium battery configuration
Runtime Up to 8 Hours Actual operating time varies with payload, terrain, travel distance, hydraulic use, attachment use, temperature, battery condition, and operating intensity
Charging Time Approx. 5 Hours Typical full recharge time under suitable conditions using the correct compatible charger; actual charging time may vary
Drive Motor Dual 4.5 kW Two electric drive motors provide powered travel, traction, and responsive machine movement
Total Drive Motor Power 9 kW Combined rated power of the dual 4.5 kW electric drive motors
Hydraulic Motor 4.5 kW Dedicated electric motor powers lifting, bucket movement, steering, dumping, quick-attach operation, and compatible hydraulic functions
Hydraulic Pressure 2,320 PSI Commercial hydraulic system provides working pressure for responsive lifting, bucket positioning, dumping, steering, and attachment operation
Hydraulic Flow 10.6 GPM High hydraulic flow supports responsive lifting, bucket movement, dumping, steering, quick-attach operation, and compatible hydraulic attachments
Quick Attach Universal Hydraulic Quick Attach Hydraulic quick-attach system supports efficient connection and changing of compatible loader attachments
Canopy Heavy-Duty Foldable Canopy Foldable operator canopy provides overhead protection while allowing reduced machine height for transportation, storage, and compatible low-clearance applications
Tire Size 29 × 12.5-15 Heavy-duty tires provide traction, stability, and a substantial working footprint across compatible commercial working surfaces
Operator Equipment Suspension Seat, LED Work Light, Cooling Fan & Amber Warning Beacon Operator-focused equipment provides comfort, visibility, and practical functionality during everyday commercial operation
Recommended Environment Indoor & Outdoor Commercial Suitable for compatible construction sites, farms, landscaping operations, municipalities, material yards, warehouses, industrial facilities, and commercial properties
Best Use Heavy-Duty Loading & Material Transport Designed for loading, carrying, transporting, positioning, and dumping compatible bulk materials in demanding professional applications
Typical Applications Construction, Agriculture, Landscaping, Material Yards, Municipalities, Warehouses & Commercial Operations Versatile electric platform supports professional loading and material-handling operations across multiple industries
Warranty 12 Months 12-Month Warranty covers eligible manufacturing defects under normal intended use, with technical support and replacement-parts assistance available
FREQUENTLY ASKED QUESTIONS

Product Questions & Answers

Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.

27 Product FAQs Quick answers to help you evaluate and operate this equipment.
01 What is the load capacity of the US-TXL176PRO FC?

The US-TXL176PRO FC Electric Wheel Loader has a 1,760 lb rated operating capacity for professional loading, transporting, positioning, and material-handling applications. Actual load capability depends on load position, attachment, terrain, operating conditions, and proper machine use.

02 What is the bucket capacity?

The US-TXL176PRO FC comes with a 9 cu. ft. bucket for handling compatible soil, gravel, sand, mulch, feed, aggregate, compost, landscaping materials, construction supplies, and other bulk materials.

03 What is the maximum lift height?

The US-TXL176PRO FC provides a maximum lift height of approximately 11 ft (132 in), providing extended vertical reach for professional loading and material placement.

04 What is the maximum dump height?

The US-TXL176PRO FC provides a maximum dump height of approximately 7.2 ft (86 in), supporting unloading into compatible trucks, trailers, containers, bins, hoppers, and other receiving areas.

05 What makes the FC model different?

The FC model features a heavy-duty foldable operator canopy that allows the machine height to be reduced for transportation, storage, and compatible applications where overhead clearance is limited.

06 What type of battery does the US-TXL176PRO FC use?

The Electric Wheel Loader uses a 73.6V / 240Ah LiFePO4 lithium battery designed for dependable professional electric operation.

07 How much battery energy does the US-TXL176PRO FC have?

The 73.6V / 240Ah LiFePO4 battery provides approximately 17.664 kWh of nominal battery energy.

08 How long can the US-TXL176PRO FC operate per charge?

The US-TXL176PRO FC provides up to approximately 8 hours of operation per charge under suitable working conditions. Actual runtime varies with payload, terrain, travel, hydraulic demand, attachment use, temperature, and operating intensity.

09 How long does the battery take to recharge?

A full recharge requires approximately 5 hours under suitable conditions using the correct compatible charger. Actual charging time can vary depending on remaining battery charge, battery condition, temperature, and charging conditions.

10 What drive motors does the US-TXL176PRO FC use?

The US-TXL176PRO FC uses two 4.5 kW electric drive motors, providing 9 kW of combined rated drive power for powered travel, traction, and responsive machine movement.

11 What is the hydraulic motor power?

A dedicated 4.5 kW electric hydraulic motor powers lifting, bucket movement, steering, dumping, quick-attach operation, and compatible hydraulic functions.

12 What is the hydraulic pressure?

The US-TXL176PRO FC hydraulic system operates at approximately 2,320 PSI to support responsive lifting, bucket positioning, dumping, steering, and compatible attachment operation.

13 What is the hydraulic flow rate?

The US-TXL176PRO FC provides approximately 10.6 GPM of hydraulic flow for lifting, bucket movement, steering, dumping, quick-attach operation, and compatible hydraulic attachments.

14 What tire size does the US-TXL176PRO FC use?

The US-TXL176PRO FC is equipped with 29 × 12.5-15 tires designed to provide traction, stability, and a substantial working footprint across compatible commercial working surfaces.

15 Does the US-TXL176PRO FC have a hydraulic quick attach?

Yes. The Electric Wheel Loader features a universal hydraulic quick-attach system designed to make changing compatible attachments more efficient.

16 Can pallet forks be used with the US-TXL176PRO FC?

Compatible pallet forks can be used when properly matched to the loader's quick-attach system and operating requirements. Always verify attachment compatibility, capacity, dimensions, load position, and operating limits before use.

17 Can other attachments be used with the loader?

Yes. The universal hydraulic quick-attach system can support compatible attachments. Attachment weight, dimensions, hydraulic requirements, compatibility, and operating limits must be verified before installation and operation.

18 Is the US-TXL176PRO FC fully electric?

Yes. The US-TXL176PRO FC is a full-electric wheel loader powered by a rechargeable LiFePO4 lithium battery and does not require gasoline or diesel fuel for normal operation.

19 Does the US-TXL176PRO FC produce exhaust emissions during operation?

The US-TXL176PRO FC produces no operating exhaust emissions at the machine because its drive and hydraulic systems are electrically powered rather than powered by a gasoline or diesel engine.

20 Can the US-TXL176PRO FC be used indoors?

The Electric Wheel Loader can be used in compatible indoor commercial and industrial environments. Always verify floor capacity, machine clearance, surface conditions, facility requirements, and other site-specific operating conditions before use.

21 Can the US-TXL176PRO FC be used outdoors?

Yes. The loader is suitable for compatible outdoor applications including construction, agriculture, landscaping, material yards, municipalities, industrial properties, and commercial material handling on appropriate working surfaces.

22 What materials can the US-TXL176PRO FC handle?

The Electric Wheel Loader can handle compatible soil, gravel, sand, mulch, feed, aggregate, compost, landscaping materials, construction supplies, and other bulk materials within the machine's rated operating limits.

23 What applications is the US-TXL176PRO FC best suited for?

The US-TXL176PRO FC is well suited for construction sites, farms, landscaping operations, material yards, municipalities, warehouses, industrial facilities, commercial properties, and professional material-handling operations.

24 What operator equipment is included?

The US-TXL176PRO FC includes a suspension seat, LED work light, cooling fan, amber warning beacon, foldable canopy, and operator-focused controls for practical everyday commercial operation.

25 When should the lithium battery be recharged?

Do not operate the US-TXL176PRO FC when the battery reaches 20% charge or below. Stop operation and recharge the battery before returning the machine to service, or replace it with a properly charged compatible battery when applicable.

26 What warranty comes with the US-TXL176PRO FC?

The US-TXL176PRO FC includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts include 90-day warranty coverage for eligible manufacturing defects, while wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

27 Does Texlift provide technical and replacement-parts support?

Yes. Texlift provides technical assistance and replacement-parts support to help customers diagnose equipment issues, maintain the US-TXL176PRO FC, and identify compatible replacement components.

NEED MORE INFORMATION? Still have a product question?

Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.

Contact Our Team
MODEL COMPARISON

Compare Similar Equipment

Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

Compare up to 4 models The current product is highlighted for easier side-by-side comparison.
Swipe left or right to compare models
⇄
Compare Models Review key differences side by side
CURRENT MODEL
Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity - TEXLIFT
Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity
Original price was: $27,670.00.Current price is: $25,590.00.
Lithium-Ion Battery Electric Wheel Loader | US-TXL140PRO | 1400 LBS Capacity | 11ft (132 inch) Lift - TEXLIFT
Lithium-Ion Battery Electric Wheel Loader | US-TXL140PRO | 1400 LBS Capacity | 11ft (132 inch) Lift
Original price was: $27,000.00.Current price is: $23,990.00.
US-TXL176 PRO Full Electric Wheel Loader – 1,760 lb Capacity | 132" Lift Height - TEXLIFT
US-TXL176 PRO Full Electric Wheel Loader – 1,760 lb Capacity | 132" Lift Height
Original price was: $27,990.00.Current price is: $24,890.00.
Lithium-Ion Electric Wheel Loader US-TXL88PRO – 880 LBS Capacity | 7ft (85 inch) Lift Height | Heavy-Duty Performance - TEXLIFT
Compact Electric Wheel Loader – 880 lb Capacity, Lithium, 7 ft Lift | US-TXL88PRO
Original price was: $17,000.00.Current price is: $14,190.00.
Rated Capacity
1,760 lbs
1,400 lbs
1,760 lbs
880 lbs
Lift Height
11 ft (132 in)
11 ft (132 in)
11 ft (132 in)
7 ft (85 in)
Dump Height
7.2 ft (86 in)
7.2 ft (86 in)
7.2 ft (86 in)
5 ft (55 in)
Bucket Capacity
9 cu. ft.
9 cu. ft.
9 cu. ft.
7 cu. ft.
Battery
73.6V / 240Ah LiFePO4
73.6V / 240Ah
73.6V / 240Ah
60.8V / 160Ah LiFePO4
Runtime
Up to 8 Hours
Up to 8 Hours
Up to 8 Hours
Up to 6 Hours
Charging Time
Approx. 5 Hours
Approx. 5 Hours
Approx. 5 Hours
—
Drive Motor
Dual 4.5 kW
Dual 4.5 kW
Dual 4.5 kW
Dual 2.5 kW
Hydraulic Motor
4.5 kW
4.5 kW
4.5 kW
3 kW
Hydraulic Pressure
2,320 PSI
2,320 PSI
2,320 PSI (16 MPa)
2,320 PSI
Tires
29 × 12.5-15
26 × 12.00-12
29 × 12.5-15
23 × 8.5-12
Availability
Out of Stock
In Stock
In Stock
In Stock
Product
✓ Selected Model
View Product
View Product
View Product
Need help choosing the right model? Tell us your required load capacity, lift height, application, and working environment. Our equipment team can help you compare the available options.
Contact Our Team
FULL-ELECTRIC POWER

Powered by Electricity. Not Diesel.

Texlift full-electric equipment uses a rechargeable battery system to power machine travel and hydraulic operation. Instead of purchasing diesel for operation, the machine can be recharged using electricity.

EXAMPLE WORK SCHEDULE 6 Hours / Day
WORKING DAYS 5 Days / Week
ESTIMATED YEARLY USE 1,560 Hours
⚡
POWER SOURCE Rechargeable
Electric Battery

Plug in, recharge and return to work.

No Diesel
OPERATING COST COMPARISON

Estimated Annual Energy & Fuel Cost

Compare estimated annual electric energy cost with diesel using the same example work schedule.

ELECTRIC
⚡
POWER SOURCE

Electric

ESTIMATED ANNUAL COST
$517 / Year*

Estimated electric energy cost based on the 17.664 kWh battery, up to 8 hours runtime and electricity at $0.15/kWh

✓ Powered by electricity
D
POWER SOURCE

Diesel

ESTIMATED ANNUAL COST
$4,680 / Year*

Illustrative example based on 0.75 gal/hour and diesel at $4.00 per gallon

$
POTENTIAL ENERGY / FUEL SAVINGS
$4,163 / YEAR*

Estimated difference between the electric energy cost and the highest fuel-cost example shown above.

APPROX. MONTHLY $347 potential savings
APPROX. WEEKLY $80 potential savings
COMPARED WITH Diesel highest example above
WHY ELECTRIC?

Electric vs. Diesel

Full-electric equipment can reduce recurring fuel expenses and remove several routine combustion-engine maintenance requirements.

⚡
FULL ELECTRIC

Texlift Electric Equipment

Rechargeable battery power for everyday operation.

✓
Rechargeable Battery Power

Recharge using electricity instead of purchasing diesel.

✓
No Engine Oil Changes

No combustion engine means no routine engine oil and engine oil filter service.

✓
No Fuel-System Service

No conventional diesel fuel system to maintain.

✓
No Tailpipe Exhaust

Full-electric operation produces no tailpipe exhaust emissions during use.

✓
Convenient Charging

Recharge overnight, during scheduled downtime or between working periods.

⛽
CONVENTIONAL POWER

Diesel

Combustion-powered equipment requires ongoing fuel.

×
Recurring Fuel Purchases

Diesel expense continues while the machine is operated.

×
Engine Oil & Filters

Combustion engines require scheduled engine oil and filter replacement.

×
Fuel-System Maintenance

Fuel-system components may require periodic inspection, maintenance and service.

×
Exhaust-System Components

Combustion-powered equipment can require additional exhaust-system maintenance.

×
Refueling & Fuel Handling

Fuel must be purchased and supplied to the machine, with handling requirements depending on the fuel type.

ADDITIONAL SAVINGS POTENTIAL

More Than Just Fuel Savings

The annual comparison above focuses on energy and fuel costs. Full-electric equipment can also reduce routine maintenance by eliminating several combustion-engine service items.

✓ No Engine Oil Changes
✓ No Engine Oil Filters
✓ No Fuel Filters
✓ No Fuel-System Service
✓ No Routine Engine Tune-Ups
✓ No Fuel Storage Required
✓ No Combustion Exhaust Service
✓ Fewer Combustion-Engine Service Items
*Illustrative operating-cost comparison: Electricity rates, fuel prices, fuel consumption, comparable machine size, workload, terrain, operator behavior and actual operating hours vary. Figures shown are estimates for comparison purposes only and are not guaranteed operating costs. Maintenance savings are not included in the annual energy/fuel comparison.
PRODUCT APPLICATIONS

Built for Demanding Material Handling Applications

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.

01

Construction & Jobsite Operations

Load, transport, position, and dump soil, gravel, sand, aggregate, construction supplies, and other compatible materials across professional construction sites and jobsites.

02

Agriculture & Farm Operations

Handle feed, soil, compost, gravel, agricultural supplies, and other compatible materials around farms, ranches, barns, agricultural facilities, and commercial growing operations.

03

Landscaping & Hardscaping

Move mulch, soil, gravel, sand, compost, landscaping materials, and supplies for professional landscaping, hardscaping, property-improvement, and grounds-maintenance operations.

04

Material Yards & Supply Facilities

Load, carry, position, and transport compatible bulk materials around landscape supply yards, aggregate facilities, construction-material yards, and other commercial material-handling operations.

05

Municipal & Property Maintenance

Support municipalities, public works operations, commercial properties, facility maintenance, groundskeeping, cleanup, and general material transport with full-electric operation.

06

Warehouses & Industrial Facilities

Support loading, material transport, facility maintenance, and general handling in compatible warehouses, distribution centers, industrial facilities, and commercial working environments.

07

Pallet & Attachment Handling

Use compatible pallet forks and other approved attachments with the universal hydraulic quick-attach system for pallet handling, material positioning, and specialized professional applications.

08

Low-Clearance & Transport Applications

The heavy-duty foldable canopy allows the US-TXL176PRO FC Electric Wheel Loader to reduce its overall height for transportation, storage, and compatible working areas where additional overhead clearance flexibility is beneficial.

✓
Not sure if this model fits your application? Contact our equipment team with your load, lift height, pallet, and operating requirements and we can help you evaluate the right model.
Contact Our Team
WARRANTY & SUPPORT

Confidence Beyond the Purchase

Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.

Product-Specific Coverage The warranty and support information below applies specifically to this product.
01

12-Month Warranty

The US-TXL176PRO FC Electric Wheel Loader is backed by a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended operating conditions.

02

Technical Support

Texlift provides troubleshooting and technical assistance to help diagnose operational, electrical, hydraulic, steering, control-system, attachment, and equipment-related issues.

03

Lithium Battery & Charging Support

Technical assistance is available for the 73.6V / 240Ah LiFePO4 lithium battery, compatible charger operation, proper charging procedures, battery maintenance, and battery-related troubleshooting.

04

Electric Drive System Support

Technical assistance is available for the dual 4.5 kW electric drive motors, 9 kW combined drive system, electrical controls, and related drivetrain functions.

05

Hydraulic System Support

Support is available for the 4.5 kW hydraulic motor, 2,320 PSI hydraulic system, 10.6 GPM hydraulic flow, steering, lifting, bucket operation, and related hydraulic components.

06

Quick-Attach & Attachment Support

Assistance is available for the universal hydraulic quick-attach system and identification of compatible attachments, including troubleshooting attachment connection and hydraulic-function concerns.

07

Foldable Canopy Support

Technical assistance is available for the heavy-duty foldable canopy, including proper operation, inspection, positioning, and related hardware or component concerns.

08

Replacement Parts Support

Texlift provides replacement-parts assistance to help identify and obtain compatible components for maintenance and eligible repairs. Replacement parts include 90-day warranty coverage for eligible manufacturing defects.

09

Warranty Claim Assistance

For warranty evaluation, customers may be asked to provide the machine serial number, order information, photos, videos, maintenance information, and other relevant details so the issue can be properly reviewed.

10

Warranty Exclusions

Coverage does not include wheels, tires, normal wear items, consumable components, misuse, overloading, accidents, operator damage, improper battery charging or maintenance, unauthorized repairs or modifications, or operation outside the machine's intended application.

CUSTOMER SUPPORT Need warranty, parts, or technical support?

Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.

Contact Support

Reviews

There are no reviews yet

Add a review
Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
* Please tick the checkbox to proceed

TEXLIFT IN NUMBERS

Equipment That Keeps Business Moving

From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.

4,200+

Equipment Orders Delivered Nationwide

50+

Equipment Models

12-Month

Warranty Coverage

Nationwide

Continental U.S. Shipping

Dallas, TX

Operations & Pickup

✓ Financing Available

✓ Fast Parts Support

✓ Commercial Equipment Experts

✓ Secure Online Ordering
