Delivery Operations
Self-loading capability makes the US-ZTS22K FE well suited for businesses transporting palletized goods to multiple customer or job locations.
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V Lithium Battery | US-ZTS22K FE
$5,300.00
Last Unit Available
Only 1 unit left
SPECIAL SAVINGS
Save More on Your Order
Volume pricing and wire-transfer savings available on eligible orders.
2 Savings Options
Volume Pricing
Save more when ordering multiple units
2โ4
Units
Save 2%
5โ9
Units
Save 3%
10+
Units
Save 5%
Buy More & Save
DELIVERY & PICKUP
Order Fulfillment
Pickup and nationwide freight shipping available from our Texas warehouse.
Nationwide Delivery
Ships from Texas. Estimated delivery: 3โ14 business days.
Shipping charges are calculated at checkout.
Dallas Pickup
Most in-stock equipment is ready for pickup within 24 hours.
Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout
Protected payment
Product Support
Real equipment help
12-Month Warranty
Equipment coverage
WIRE DISCOUNT REQUEST
3% Wire-Transfer Discount
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V Lithium Battery | US-ZTS22K FE
Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.
PRE-ORDER REQUEST
Request Product Availability
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V Lithium Battery | US-ZTS22K FE
Submit your request and our team will contact you with availability, estimated lead time, and ordering information.
Description
PRODUCT OVERVIEW
Built for Professional Material Handling

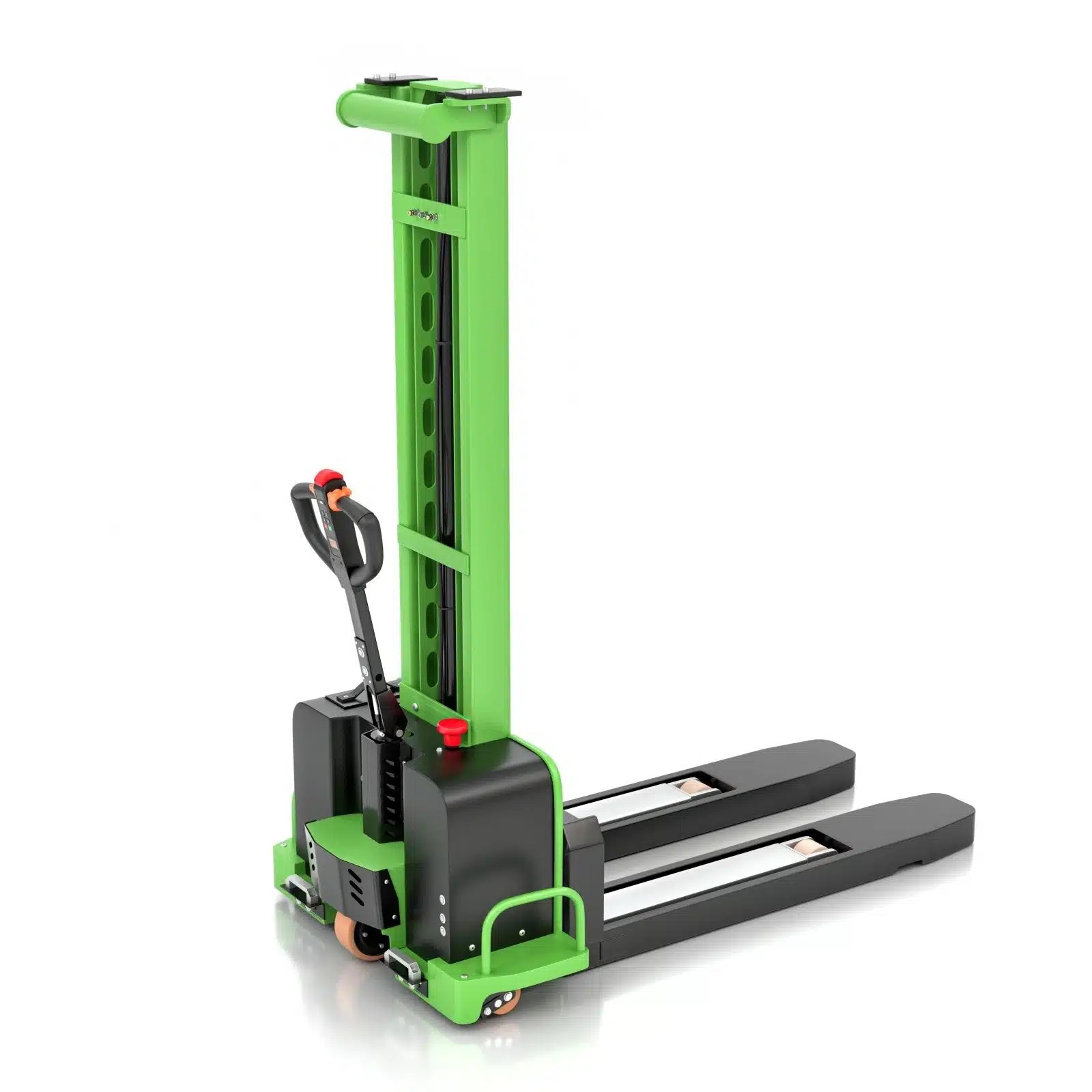

The Texlift US-ZTS22K FE is a full-electric self-loading pallet stacker engineered for professional delivery operations, warehouses, distribution centers, retail receiving, commercial storage, and vehicle-to-site material handling. Featuring a 2,200 lb rated load capacity, 51 in maximum lift height, 45 in heavy-duty steel forks, and a compact 35 in overall width, this electric stacker provides a versatile solution for businesses that need to lift, transport, and position palletized materials across multiple locations.
Designed for efficient loading and unloading operations, the US-ZTS22K FE features an integrated self-loading system that supports transportation with compatible delivery vehicles. Its compact 64 in overall length, 35 in width, and 51 in turning radius provide excellent maneuverability in warehouses, loading areas, delivery locations, and confined commercial environments. Full-electric travel and lifting reduce manual handling effort while supporting controlled pallet movement.
Powered by a 48V / 21Ah lithium battery, the US-ZTS22K FE combines rechargeable electric performance with convenient operation and reduced routine battery maintenance. Its electric lifting system provides lifting speeds of 2.5 in/s without load and 1.4 in/s with load, supporting efficient material positioning during daily commercial operations. Combining compact dimensions, self-loading functionality, and dependable electric operation, the US-ZTS22K FE is backed by a 12-Month Warranty.
2,200 lb
Load Capacity
51 in
Max Lift Height
48V Lithium
Battery
51 in
Turning Radius
2,200 lb Load Capacity
The US-ZTS22K FE provides a 2,200 lb rated load capacity for lifting, transporting, positioning, loading, and unloading compatible palletized materials. Its heavy-duty construction supports professional commercial material handling within the equipmentโs rated operating limits.
51 in Maximum Lift Height
A 51 in maximum lift height provides practical vertical reach for compatible delivery-vehicle loading and unloading, low-level pallet stacking, inventory positioning, and warehouse material handling.
Full-Electric Self-Loading Design
The integrated self-loading configuration supports loading and unloading the stacker with compatible delivery vehicles. This functionality helps businesses transport pallet-handling equipment between locations without depending on a separate forklift at every destination.
Compact 35 in Overall Width
With a 35 in overall width, the US-ZTS22K FE provides practical maneuverability through compatible warehouse aisles, loading areas, commercial facilities, and delivery environments where larger equipment may be impractical.
64 in Overall Length
The compact 64 in overall length supports efficient maneuvering, equipment positioning, and transportation in compatible commercial environments and delivery-vehicle applications.
48V / 21Ah Lithium Battery
A rechargeable 48V / 21Ah lithium battery supplies power for electric travel and lifting operations. Lithium battery technology provides convenient charging and reduced routine battery maintenance compared with conventional flooded lead-acid systems.
45 in Heavy-Duty Steel Forks
The US-ZTS22K FE features 45 in steel forks designed for lifting and transporting compatible pallets. The fork configuration provides a 22โ24 in outside width and 7 in inside spacing, supporting commercial pallet-handling applications.
Compact 51 in Turning Radius
A 51 in turning radius supports maneuverability when transporting and positioning compatible loads in warehouses, loading areas, retail receiving facilities, and confined commercial environments.
Full-Electric Travel & Lifting
The US-ZTS22K FE combines powered travel with electric hydraulic lifting to reduce manual handling effort and support efficient pallet transportation, loading, unloading, and material positioning.
Controlled Electric Lifting
The electric lifting system delivers a lifting speed of 2.5 in/s without load and 1.4 in/s with load. These controlled lifting speeds support efficient pallet positioning during warehouse, delivery, and commercial loading operations.
Delivery-Vehicle Compatibility
The self-loading configuration is designed for use with compatible vans, trucks, and delivery vehicles. Vehicle loading height, available space, weight capacity, load distribution, and operating conditions must be verified before performing self-loading operations.
Compact Walk-Behind Operation
The compact walk-behind design supports convenient equipment control and maneuverability during daily pallet transportation, loading, unloading, and commercial material-handling tasks.
Warehouse & Distribution Efficiency
Designed for professional commercial use, the US-ZTS22K FE supports pallet transportation, inventory movement, receiving, loading, unloading, and material positioning across warehouses and distribution facilities.
Multi-Location Material Handling
The integrated self-loading design makes the US-ZTS22K FE particularly useful for businesses transporting pallet-handling equipment between delivery destinations, retail facilities, warehouses, and commercial job sites.
Lithium Battery Convenience
The rechargeable lithium battery provides dependable electric operation without the routine electrolyte maintenance associated with conventional flooded lead-acid batteries. Proper charging, storage, and battery care help maintain consistent equipment performance.
Warranty & Support
The Texlift US-ZTS22K FE includes a 12-Month Warranty covering eligible manufacturing defects under normal intended operating conditions. Texlift provides technical assistance, replacement-parts support, battery and charging guidance, and warranty claim assistance for qualifying equipment issues.
Where It Works Best
The US-ZTS22K FE is ideal for delivery services, warehouses, distribution centers, retail receiving areas, commercial storage facilities, loading zones, and businesses requiring compact self-loading equipment. It is primarily designed for indoor operation and smooth, firm, level, adequately supported commercial surfaces.
Best Applications
Suitable applications include delivery-vehicle loading and unloading, pallet transportation, low-level stacking, inventory movement, warehouse operations, retail receiving, distribution work, commercial storage, and mobile material handling.
Power & Charging
The US-ZTS22K FE uses a 48V / 21Ah rechargeable lithium battery to power its full-electric travel and lifting systems. The lithium electrical system supports convenient rechargeable operation and reduced routine battery maintenance. Charging must be performed using a compatible charger according to the manufacturerโs operating instructions.
Important Operating & Surface Notice
Operate the US-ZTS22K FE only on firm, stable, level, and adequately supported surfaces suitable for its rated capacity. Before performing self-loading operations, verify delivery-vehicle compatibility, loading height, equipment clearance, load distribution, and safe operating conditions. Do not exceed the rated capacity or operate on unstable surfaces, unsuitable slopes, or unsupported loading areas.
Important Lithium Battery Notice
Do not operate the US-ZTS22K FE when the lithium battery reaches 20% charge or below. Stop operation and recharge the battery or replace it with a properly charged compatible battery before continuing. Follow the manufacturerโs charging, storage, and battery-maintenance instructions to help protect battery performance and service life.
EQUIPMENT SUPPORT
Need Help Choosing the Right Equipment?
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
โ Product Selection
โ Application Support
โ Shipping Assistance

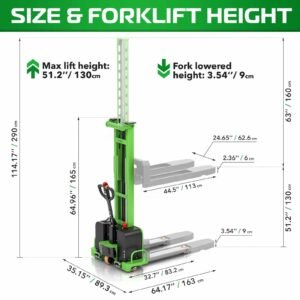

PRODUCT SPECIFICATIONS
Technical Specifications
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ZTS22K FE | Full-electric lithium self-loading pallet stacker designed for delivery, warehouse, and commercial material handling |
| Load Capacity | 2,200 lb | Maximum rated load capacity for handling compatible pallets and materials within the stacker's operating limits |
| Maximum Lift Height | 51 in | Maximum vertical fork lifting height for loading, unloading, positioning, and low-level stacking |
| Load Center | 16 in | Rated load-center distance used for the stacker's capacity specification |
| Power Type | Full Electric | Battery-powered travel and hydraulic lifting for professional commercial pallet handling |
| Battery | 48V / 21Ah Lithium | Rechargeable lithium battery supplies power for electric travel and lifting operations |
| Battery Type | Lithium | Low-maintenance rechargeable lithium battery technology |
| Battery Voltage | 48V | Rated electrical system operating voltage |
| Battery Capacity | 21Ah | Rated battery capacity for powered travel and lifting operations |
| Battery Energy | 1.01 kWh | Nominal battery energy calculated from the 48V / 21Ah lithium battery system |
| Drive Motor | 0.75 kW | Electric traction motor provides powered travel and controlled maneuvering |
| Lift Motor | 1.2 kW | Dedicated electric motor powers hydraulic lifting and lowering functions |
| Fork Length | 45 in | Heavy-duty steel forks designed for handling compatible pallets and palletized loads |
| Fork Outside Width | 22 / 24 in | Available outside fork width configurations for compatible pallet handling |
| Fork Inside Width | 7 in | Clear inside spacing between the forks |
| Fork Position | Fixed | Fixed fork configuration designed for compatible pallet openings and loads |
| Lifting Speed โ No Load | 2.5 in/s | Lifting speed without load for efficient fork positioning |
| Lifting Speed โ Loaded | 1.4 in/s | Lifting speed when handling a compatible load |
| Mast Lowered Height | 65 in | Overall mast height with the lifting system fully lowered |
| Mast Raised Height | 115 in | Overall mast height with the lifting system fully raised |
| Turning Radius | 51 in | Compact turning radius supports maneuverability in compatible loading and warehouse environments |
| Overall Length | 64 in | Total machine length |
| Overall Width | 35 in | Compact overall width supports operation in compatible confined commercial areas |
| Machine Weight | 805 lb | Operating weight of the stacker including battery |
| Self-Loading Function | Included | Integrated self-loading design supports loading and unloading the stacker with compatible delivery vehicles |
| Recommended Environment | Indoor & Smooth Commercial Surfaces | Designed primarily for warehouses, loading areas, delivery operations, retail facilities, and firm, level commercial surfaces |
| Best Use | Delivery & Pallet Handling | Designed for transporting, lifting, loading, unloading, and positioning compatible palletized materials |
| Typical Applications | Delivery Operations, Warehouses, Distribution, Retail & Commercial Storage | Suitable for professional pallet handling where a compact self-loading stacker is beneficial |
| Warranty | 12 Months | Warranty coverage for eligible manufacturing defects under applicable Texlift warranty terms |
FREQUENTLY ASKED QUESTIONS
Product Questions & Answers
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
22 Product FAQs
Quick answers to help you evaluate
and operate this equipment.
01
What is the load capacity of the US-ZTS22K FE?
The US-ZTS22K FE has a rated load capacity of 2,200 lbs for lifting, transporting, loading, unloading, and positioning compatible pallets and materials within the stacker's rated operating limits.
02
What is the maximum lift height?
The US-ZTS22K FE provides a maximum lift height of 51 in for vehicle loading and unloading, pallet positioning, and low-level stacking applications.
03

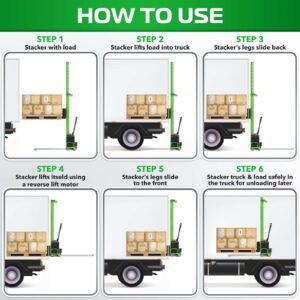

What makes the US-ZTS22K FE a self-loading stacker?
The self-loading design allows the stacker to support loading and unloading operations with compatible delivery vehicles, helping reduce dependence on a separate forklift at each destination.
04
Can the stacker load itself onto a delivery vehicle?
Yes. The US-ZTS22K FE is designed for self-loading applications with compatible delivery vehicles and loading conditions. Vehicle height, capacity, access, and operating conditions should always be verified before use.
05
What is the load center?
The US-ZTS22K FE has a rated load center of 16 in.
06
How long are the forks?
The stacker is equipped with 45 in forks for handling compatible pallets and palletized loads.
07
What is the outside fork width?
The outside fork width is approximately 22 / 24 in depending on the fork configuration.
08
What is the inside fork spacing?
The inside spacing between the forks is approximately 7 in.
09
What battery does the US-ZTS22K FE use?
The stacker uses a rechargeable 48V / 21Ah lithium battery that supplies power for electric travel and lifting operations.
10
What is the battery energy capacity?
The 48V / 21Ah battery provides approximately 1.01 kWh of nominal battery energy.
11
Is the battery lithium?
Yes. The US-ZTS22K FE uses rechargeable lithium battery technology designed for low routine maintenance and convenient electric operation.
12
What is the lifting speed?
Lifting speed is approximately 2.5 in/s without load and approximately 1.4 in/s when loaded.
13
What is the turning radius?
The US-ZTS22K FE has an approximate 51 in turning radius, supporting maneuverability in compatible warehouses, loading areas, and delivery environments.
14
What is the mast height when lowered?
The mast height is approximately 65 in when the lifting system is fully lowered.
15
What is the mast height when fully raised?
The overall mast height is approximately 115 in when the lifting system is fully raised.
16
How wide is the US-ZTS22K FE?
The stacker is approximately 35 in wide, providing a compact footprint for compatible loading areas and commercial facilities.
17
How long is the US-ZTS22K FE?
The stacker has an approximate overall length of 64 in.
18
How much does the US-ZTS22K FE weigh?
The stacker weighs approximately 805 lbs.
19
Is the US-ZTS22K FE suitable for delivery operations?
Yes. Its compact dimensions and self-loading capability make it particularly useful for businesses handling palletized materials at multiple delivery locations.
20
Can the US-ZTS22K FE be used in warehouses?
Yes. Its full-electric operation and compact design make it suitable for compatible warehouses, distribution facilities, retail receiving areas, and commercial storage locations.
21
Can this stacker be used outdoors?
The US-ZTS22K FE is primarily designed for indoor use and smooth, firm commercial surfaces. It is not an off-road stacker and should not be operated on rough, soft, or uneven terrain.
22
What warranty is included?
The US-ZTS22K FE includes a 12-month warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
NEED MORE INFORMATION?
Still have a product question?
Contact Our Team
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
MODEL COMPARISON
Compare Similar Equipment
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Compare up to 4 models
The current product is highlighted for
easier side-by-side comparison.
Swipe left or right to compare models
Compare Models
Review key differences side by side
CURRENT MODEL
2,200 lb Full Electric Self-Loading Pallet Stacker โ 51 in Lift Height, 48V/21Ah Battery | US-ZTS22K SL
Original price was: $6,300.00.$5,990.00Current price is: $5,990.00.
Load Capacity
2,200 lb
2,200 lb
1,100 lb
Lift Height
51 in
51 in
51 in
Load Center
16 in
16 in
16 in
Fork Length
45 in
45 in
44 in
Battery
48V / 21Ah Lithium
48V / 21Ah
12V / 45Ah Gel
Motor
1.2 kW
1.2 kW
0.8 kW
Machine Weight
805 lb
805 lb
550 lb
Overall Length
64 in
64 in
62 in
Overall Width
35 in
61 in
35 in
Availability
In Stock
In Stock
Out of Stock
Product
โ Selected Model
Need help choosing the right model?
Tell us your required load capacity,
lift height, application, and working
environment. Our equipment team can help
you compare the available options.
Contact Our Team
PRODUCT APPLICATIONS
Built for Demanding Material Handling Applications
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
02
Truck & Van Loading
Load and unload compatible palletized materials while reducing dependence on a separate forklift at the destination.
03
Warehouse Operations
Transport, lift, position, and organize compatible pallets throughout warehouses and commercial storage facilities.
04
Distribution Centers
Support receiving, staging, order preparation, pallet movement, and outbound distribution operations.
05
Retail Receiving
Move palletized inventory from compatible delivery vehicles into retail receiving, stockroom, and storage areas.
06
Pallet Transport
The 2,200 lb rated capacity and full-electric operation support efficient movement of compatible palletized materials.
07
Loading & Unloading
Handle compatible pallets during loading and unloading operations using the 51 in maximum lift height and powered lifting system.
08
Low-Level Stacking
Lift and position compatible palletized loads at heights up to 51 in for low-level storage and material handling.
09
Mobile Material Handling
The self-loading design allows businesses to transport the stacker between compatible work locations where material-handling equipment may not be available.
10
Commercial Storage
Move and position palletized inventory, supplies, equipment, and materials throughout compatible commercial storage facilities.
11
Last-Mile Delivery
Compact dimensions and self-loading capability make the stacker useful for commercial delivery operations requiring pallet handling at customer locations.
12
Tight Work Areas
The compact 35 in overall width and approximately 51 in turning radius support maneuverability in compatible confined commercial environments.
13
Indoor Material Handling
Full-electric operation provides efficient material handling in compatible warehouses, distribution facilities, retail locations, and other indoor commercial environments.
Not sure if this model fits your application?
Contact our equipment team with your load,
lift height, pallet, and operating requirements
and we can help you evaluate the right model.
Contact Our Team
Add a review
Your review
* Review is required
Name
* Name is required
Email
* Email is required
Add photos or video to your review
* Please tick the checkbox to proceed
WARRANTY & SUPPORT
Confidence Beyond the Purchase
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
Product-Specific Coverage
The warranty and support information below
applies specifically to this product.
01
12-Month Warranty
The US-ZTS22K FE includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.
02
Technical Support
Technical assistance is available for stacker operation, troubleshooting, controls, electrical systems, lifting functions, maintenance, and general product questions.
03
Battery & Charging Support
Assistance is available for the 48V / 21Ah lithium battery system, charging procedures, battery connections, storage, inspection, and battery-performance troubleshooting.
04
Electric Drive System Support
Support is available for the 0.75 kW electric drive motor, powered travel, drive controls, electrical connections, traction components, and related electric-drive functions.
05
Lift System Support
Assistance is available for the 1.2 kW lift motor, electric lifting and lowering functions, hydraulic components, controls, mast operation, and related lifting-system components.
06
Fork & Mast Support
Technical assistance is available for the 45 in forks, mast system, fork configuration, lifting functions, load positioning, inspection, and related material-handling components.
07
Self-Loading System Support
Assistance is available for proper operation and troubleshooting of the self-loading system used with compatible delivery vehicles and loading applications.
08
Replacement Parts Support
Assistance is available for identifying compatible replacement parts, lithium batteries, electrical components, hydraulic components, controls, wheels, and other service parts for the US-ZTS22K FE. Eligible replacement parts include a 90-Day Warranty, excluding wheels and consumable components.
09
Warranty Claim Assistance
For warranty review, customers may be asked to provide the order number, product model, serial number, description of the issue, and clear photos or videos showing the reported problem. Contact office@texlift.com for assistance.
10
Warranty Exclusions
Normal wear items, consumable components, misuse, overloading, accidents, neglect, improper maintenance or charging, unauthorized repairs or modifications, and operation outside the machine's intended application are excluded from warranty coverage.
CUSTOMER SUPPORT
Need warranty, parts, or technical support?
Contact Support
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
More Texlift Products
Related Products
Explore additional equipment selected to complement your material handling operation.
Texlift Product
18 in Commercial Walk-Behind Floor Scrubber โ 21,500 Sq. Ft./Hr โ US-TX SC18
$1,850.00
View Product
Texlift Product
3,300 lb Electric Walkie Pallet Stacker โ 12 ft (138 in) Lift | Adjustable Forks | US-ES33K 138
Original price was: $5,300.00.$4,800.00Current price is: $4,800.00.
View Product
Texlift Product
12 ft Rough Terrain Electric Counterbalance Reach Stacker โ 3,300 lb Capacity | US-CBOFR33K 138
$11,999.00
View Product
Texlift Product
3,300 lb Rider / Walkie Electric Pallet Stacker โ 12 ft (138 in) Lift | US-DS33K 138
Original price was: $5,500.00.$4,999.00Current price is: $4,999.00.
View Product
Texlift Product
Lithium Pallet Jack 3,300 lb Capacity โ Full Electric 48V / 15Ah Battery, 45 ร 27 in Forks | US-EPT33K FE
Original price was: $1,450.00.$1,250.00Current price is: $1,250.00.
View Product
Texlift Product
High-Performance 48V/20Ah Lithium-Ion Battery for US-EPT44K DN Electric Pallet Jack
$380.00
View Product
Texlift Product
Full Electric Wheel Loader US-TXL176PRO FC | Foldable Canopy | 1,760 lb Capacity
Original price was: $27,670.00.$25,590.00Current price is: $25,590.00.
View Product
Texlift Product
Replacement Squeegee Rubber Blade for US-TX SC16 Walk-Behind Floor Scrubber
$20.00
View Product
Texlift Product
Replacement Soft Cleaning Brush for US-TX SC16 Walk-Behind Floor Scrubber
$39.99
View Product
TEXLIFT IN NUMBERS
Equipment That Keeps Business Moving
From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.
4,200+
Equipment Orders Delivered Nationwide
50+
Equipment Models
12-Month
Warranty Coverage
Nationwide
Continental U.S. Shipping
Dallas, TX
Operations & Pickup
โ Financing Availableย ย
โ Fast Parts Support
โ Commercial Equipment Experts
โ Secure Online Ordering
Reviews
There are no reviews yet
