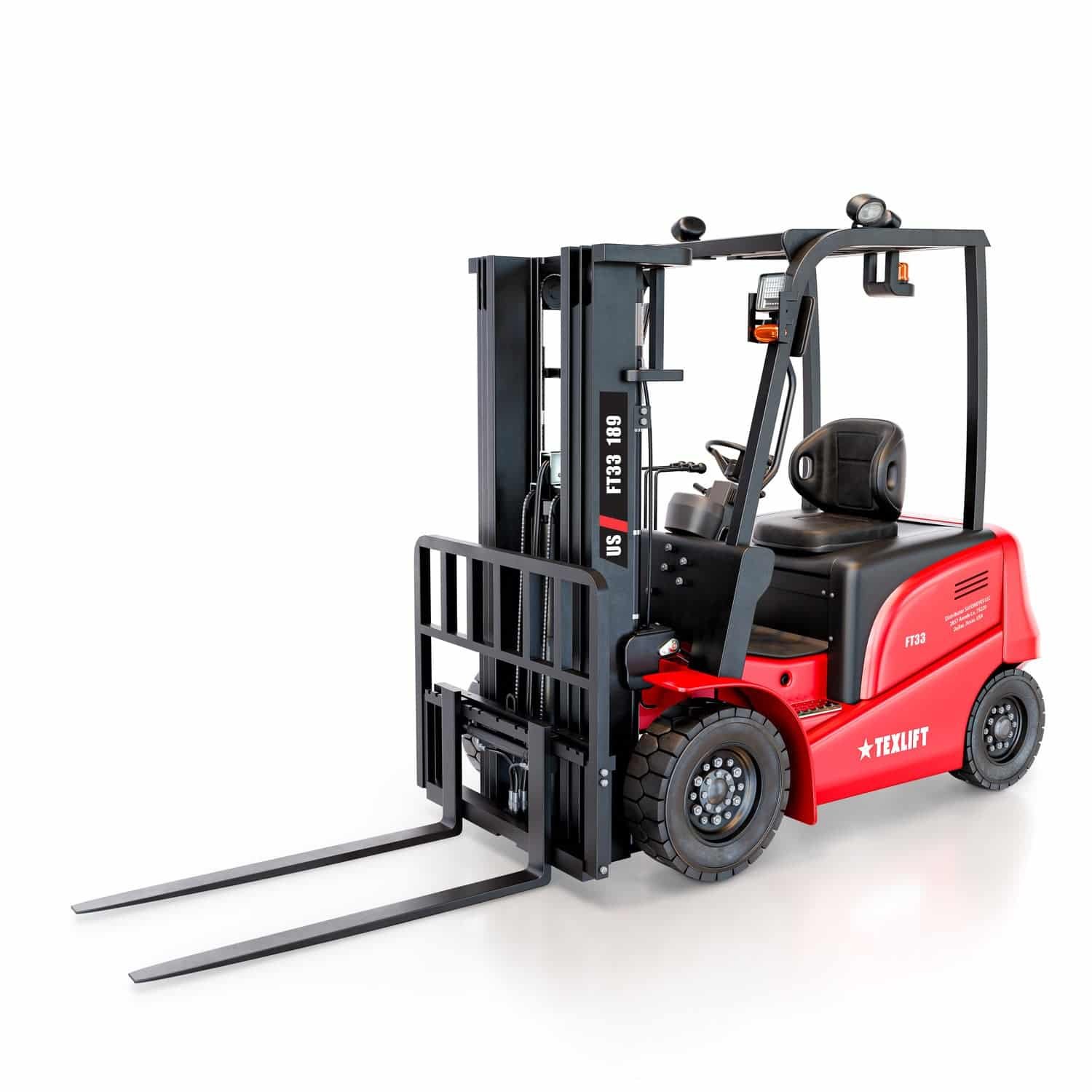

Full Electric Forklift – 3300 lbs Capacity & 16ft (189 inch) Lift Height | Model US-FT33 189 - TEXLIFT

Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189

$19,490.00
Ready to Order In stock
Other payment options
SPECIAL SAVINGS

Save More on Your Order

Volume pricing and wire-transfer savings available on eligible orders.

2 Savings Options
%
Volume Pricing Save more when ordering multiple units
2–4 Units Save 2%
5–9 Units Save 3%
10+ Units Save 5%
Buy More & Save
DELIVERY & PICKUP

Order Fulfillment

Pickup and nationwide freight shipping available from our Texas warehouse.

🚚
Nationwide Delivery Ships from Texas. Estimated delivery: 3–14 business days. Shipping charges are calculated at checkout.
📍
Dallas Pickup Most in-stock equipment is ready for pickup within 24 hours. Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout Protected payment
Product Support Real equipment help
12-Month Warranty Equipment coverage
WIRE DISCOUNT REQUEST

3% Wire-Transfer Discount

Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189

Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.

Requested Quantity *
PRE-ORDER REQUEST

Request Product Availability

Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189

Submit your request and our team will contact you with availability, estimated lead time, and ordering information.

Requested Quantity *

Description

PRODUCT OVERVIEW

Built for Professional Material Handling

The 3,300 lb Electric Forklift is built for professional pallet handling, elevated storage, loading, unloading, and material movement in warehouses, distribution centers, manufacturing facilities, logistics operations, and commercial storage environments. With a 3,300 lb rated load capacity at a 24 in load center, 16 ft (189 in) maximum lift height, 3-stage mast, 48 in forks, and integrated side shift, it combines high-level lifting capability with precise pallet positioning.

The US-FT33 189 is powered by a 48V / 230Ah lead-acid battery providing approximately 11.04 kWh of nominal battery energy. A 5.5 kW electric drive motor provides powered travel, while a dedicated 5.5 kW hydraulic motor delivers responsive lifting performance. Full-electric operation provides smooth travel, reduced operating noise, and zero tailpipe exhaust emissions during use, making this 3,300 lb Electric Forklift a practical solution for demanding commercial and industrial material handling.

⚖
3,300 lb
Load Capacity
↕
189 in (16 ft)
Max Lift Height
▣
48V Lead-Acid
Battery
◷
Not Specified
Runtime
✓

3,300 lb Load Capacity

This 3,300 lb Electric Forklift provides a maximum rated lifting capacity of 3,300 lb at the specified 24 in load center.

It is designed for transporting, lifting, stacking, positioning, loading, and unloading compatible palletized inventory, packaged goods, manufacturing materials, supplies, and other commercial loads.

↗

16 ft (189 in) Maximum Lift Height

A maximum fork lift height of 16 ft (189 in) provides substantial vertical reach for elevated pallet storage and warehouse racking.

The high-lift configuration supports pallet placement, retrieval, inventory replenishment, and storage organization at multiple compatible rack levels.

✓

3-Stage Mast

The 3-stage mast provides substantial vertical reach while maintaining a practical forklift configuration for everyday commercial material handling.

This mast design makes the 3,300 lb Electric Forklift particularly useful for facilities requiring frequent high-level pallet placement, retrieval, and warehouse replenishment.

↔

48 in Forks

The US-FT33 189 is equipped with 48 in forks for handling compatible pallets and palletized materials within the forklift’s rated operating limits.

The fork configuration supports routine pallet transport, warehouse stacking, loading, unloading, staging, retrieval, and material positioning.

✓

Integrated Side Shift

The hydraulic side-shift system allows lateral fork movement to help operators align and position compatible palletized loads more precisely.

Side shift reduces the need to repeatedly reposition the entire forklift when making small alignment corrections during rack placement, retrieval, loading, and unloading.

↔

Adjustable Fork Position

The fork position can be adjusted for compatible pallet widths and load configurations.

Combined with the integrated side shift, adjustable fork positioning gives this 3,300 lb Electric Forklift additional flexibility for routine commercial pallet-handling applications.

✓

48V / 230Ah Lead-Acid Battery

A rechargeable 48V / 230Ah industrial lead-acid battery provides power for electric travel and hydraulic operation.

The battery provides approximately 11.04 kWh of nominal energy capacity and is designed to support commercial electric-forklift operation.

✓

Full-Electric Operation

Electric travel and hydraulic lifting provide powered material handling without an internal-combustion drivetrain.

The 3,300 lb Electric Forklift produces zero tailpipe exhaust emissions during operation while providing reduced operating noise compared with conventional internal-combustion equipment.

↗

5.5 kW Electric Drive Motor

A 5.5 kW electric traction motor provides powered travel and responsive maneuverability for pallet transportation and positioning.

The electric drive system supports movement between receiving, storage, production, staging, loading, and shipping areas.

✓

5.5 kW Hydraulic Motor

A dedicated 5.5 kW hydraulic motor provides power for lifting, lowering, mast operation, and pallet positioning.

The hydraulic system supports controlled material handling for both floor-level pallet movement and elevated warehouse stacking.

✓

Up to 7.5 mph Travel Speed

The US-FT33 189 provides a maximum travel speed of up to approximately 7.5 mph under suitable operating conditions.

Actual travel performance varies depending on load weight, floor or surface conditions, battery condition, operating environment, and operator technique.

✓

Approx. 59 in Turning Radius

An approximately 59 in turning radius supports practical maneuverability within compatible warehouse aisles, staging zones, manufacturing areas, and loading locations.

This maneuverability helps the 3,300 lb Electric Forklift approach pallets, navigate work areas, and position loads efficiently.

✓

Solid Rubber Tires

Durable solid rubber tires are designed for low-maintenance commercial and industrial material handling on compatible firm surfaces.

The tire configuration is suitable for adequately supported concrete, asphalt, and other firm operating surfaces appropriate for forklift operation.

✓

3.5 in Ground Clearance

Approximately 3.5 in of ground clearance provides practical undercarriage clearance for normal operation on suitable commercial and industrial surfaces.

The forklift is not intended for rough-terrain operation, deep potholes, soft ground, mud, loose surfaces, or other unstable operating conditions.

✓

Warehouse & Distribution Operations

This 3,300 lb Electric Forklift is well suited for warehouses and distribution centers requiring frequent pallet transportation, elevated stacking, retrieval, staging, and replenishment.

Its 189 in lift height and integrated side shift support accurate pallet placement within compatible warehouse racking systems.

▦

High-Rack Pallet Storage

The 16 ft maximum lift height provides substantial vertical reach for elevated pallet placement and retrieval.

The US-FT33 189 supports high-rack storage, inventory organization, warehouse replenishment, and operations seeking to make efficient use of available vertical storage space.

✓

Loading, Unloading & Staging

The 3,300 lb Electric Forklift supports compatible loading, unloading, receiving, shipping, and pallet-staging applications.

Its 48 in forks, powered hydraulic system, adjustable fork position, and integrated side shift provide controlled pallet handling and precise load alignment.

✓

Manufacturing Material Handling

Manufacturing facilities can use the US-FT33 189 to transport palletized raw materials, components, supplies, work-in-process materials, and finished products.

Full-electric travel supports efficient movement between production areas, warehouses, storage locations, staging zones, receiving departments, and shipping areas.

✓

Indoor & Compatible Outdoor Operation

This 3,300 lb Electric Forklift is suitable for warehouses, manufacturing facilities, loading areas, paved yards, distribution operations, and other compatible commercial environments.

Operation should remain on firm, adequately supported surfaces such as suitable concrete or asphalt. The US-FT33 189 is not designed as a rough-terrain forklift.

↔

Professional Electric Forklift Performance

The US-FT33 189 combines a 3,300 lb rated capacity, 16 ft lift height, 3-stage mast, 48 in forks, side shift, solid rubber tires, and full-electric performance.

This combination makes the 3,300 lb Electric Forklift a versatile solution for pallet transportation, high-level stacking, inventory movement, loading, unloading, warehouse replenishment, manufacturing, and commercial material handling.

!

Important Lead-Acid Battery Notice

Proper charging and maintenance are important for reliable performance and battery service life. Follow the operating manual and battery manufacturer’s requirements for charging, inspection, electrolyte maintenance, ventilation, storage, and other service procedures for the 48V / 230Ah lead-acid battery system.

Use only a compatible charger designed for the specified battery system. Always charge the battery in a suitable, properly ventilated charging area and follow applicable battery-safety procedures. Do not operate, charge, service, or store the battery outside the procedures and operating conditions specified in the equipment and battery documentation.

EQUIPMENT SUPPORT

Need Help Choosing the Right Equipment?

Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

✓ Product Selection ✓ Application Support ✓ Shipping Assistance
SPEAK WITH OUR TEAM
Get Expert Equipment Guidance
Contact Our Team
⚙
PRODUCT SPECIFICATIONS

Technical Specifications

Review the key dimensions, performance data, power information, fitment details, and product configuration.

Specification Value Description
Model US-FT33 189 Full-electric forklift designed for commercial and industrial material handling
Load Capacity 3,300 lb Maximum rated lifting capacity for compatible palletized loads
Load Center 24 in Rated load-center distance used for the forklift capacity specification
Maximum Lift Height 189 in (16 ft) Maximum fork lift height for elevated pallet storage and warehouse racking
Mast Type 3-Stage Mast Multi-stage mast provides substantial vertical reach for stacking and retrieving palletized loads
Power Type Full Electric Battery-powered travel and hydraulic lifting with zero tailpipe exhaust emissions during operation
Battery 48V / 230Ah Lead-Acid Rechargeable industrial battery system for electric travel and hydraulic operation
Battery Type Lead-Acid Industrial rechargeable lead-acid battery technology
Battery Voltage 48V Electrical system operating voltage
Battery Capacity 230Ah Rated battery capacity
Battery Energy 11.04 kWh Nominal battery energy based on the 48V / 230Ah battery system
Working Time Not Specified Exact runtime is not published; actual operating time varies with load, travel, lifting frequency, battery condition, temperature, and working conditions
Charging Time Not Specified Exact charging time is not published and varies with charger output, battery condition, remaining charge, temperature, and charging conditions
Drive Motor 5.5 kW Electric traction motor for powered travel and maneuvering
Lift Motor 5.5 kW Electric hydraulic motor for lifting, lowering, and mast operation
Maximum Travel Speed Up to 7.5 mph Maximum travel speed varies with load, surface conditions, and operating environment
Fork Length 48 in Standard fork length for compatible pallets and palletized loads
Fork Width 27 in Overall fork width for the standard configuration
Fork Position Adjustable Fork positioning can be adjusted for compatible pallet widths and load configurations
Side Shift Included Hydraulic side shift provides lateral fork movement for precise pallet positioning
Turning Radius Approx. 59 in Compact turning performance for compatible warehouse, staging, and loading areas
Overall Length 85 in Overall front-to-back machine length
Overall Width 45 in Overall machine width
Overall Height 87 in Overall machine height
Ground Clearance 3.5 in Clearance between the ground and forklift undercarriage
Tire Type Solid Rubber Durable industrial tires designed for compatible commercial and industrial surfaces
Machine Weight 5,670 lb Approximate operating weight
Recommended Surface Firm, Level Commercial Surfaces Designed for adequately supported concrete, asphalt, and other compatible firm operating surfaces
Operating Environment Indoor & Compatible Outdoor Areas Suitable for warehouses, manufacturing facilities, loading areas, paved yards, and other compatible commercial environments
Best Use Pallet Handling & High Stacking Designed for transporting, lifting, stacking, retrieving, and positioning compatible palletized materials
Typical Applications Warehouses, Distribution Centers, Manufacturing & Logistics Suitable for pallet transport, high-rack stacking, loading, unloading, inventory movement, staging, and material positioning
Warranty 12-Month Warranty Covers eligible manufacturing defects in materials and workmanship under normal intended use. Eligible replacement parts include 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded
FREQUENTLY ASKED QUESTIONS

Product Questions & Answers

Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.

29 Product FAQs Quick answers to help you evaluate and operate this equipment.
01 What is the maximum load capacity of the US-FT33 189?

The US-FT33 189 has a maximum rated load capacity of 3,300 lb at a 24 in load center for compatible palletized loads.

02 What is the maximum lift height?

The US-FT33 189 provides a maximum fork lift height of 189 in (16 ft), making it suitable for elevated pallet storage, warehouse racking, and high-level stacking.

03 What type of mast does the forklift use?

The US-FT33 189 uses a 3-stage mast designed to provide substantial vertical reach for pallet stacking, retrieval, and warehouse replenishment.

04 What is the rated load center?

The forklift is rated at a 24 in load center. Loads must be properly positioned and remain within the machine's rated capacity and operating limits.

05 How long are the forks?

The US-FT33 189 is equipped with 48 in forks for handling compatible pallets and palletized loads.

06 What is the overall fork width?

The standard configuration has an approximately 27 in overall fork width.

07 Are the fork positions adjustable?

Yes. The fork position can be adjusted for compatible pallet widths and load configurations.

08 Does the US-FT33 189 include side shift?

Yes. Hydraulic side shift is included, allowing lateral fork movement for more precise pallet alignment without repeatedly repositioning the entire forklift.

09 What battery does the US-FT33 189 use?

The forklift uses a rechargeable 48V / 230Ah industrial lead-acid battery for electric travel and hydraulic operation.

10 What is the battery energy capacity?

The 48V / 230Ah lead-acid battery provides approximately 11.04 kWh of nominal battery energy.

11 How long does the battery last per charge?

An exact operating time per charge is not specified. Actual runtime varies depending on load weight, travel distance, lifting frequency, battery condition, temperature, surface conditions, and operating intensity.

12 How long does the battery take to recharge?

An exact charging time is not specified. Charging time depends on charger output, remaining battery level, battery condition, temperature, and charging conditions.

13 What drive motor does the forklift use?

A 5.5 kW electric traction motor provides powered travel and maneuverability.

14 What lift motor does the forklift use?

A dedicated 5.5 kW electric hydraulic motor provides power for lifting, lowering, and mast operation.

15 Is the US-FT33 189 fully electric?

Yes. The forklift uses battery-powered electric travel and electric hydraulic lifting, providing zero tailpipe exhaust emissions during operation.

16 What is the maximum travel speed?

The US-FT33 189 can travel at up to approximately 7.5 mph under suitable operating conditions. Actual speed varies with load, surface conditions, battery condition, and operating environment.

17 What is the turning radius?

The forklift has an approximately 59 in turning radius for maneuvering and pallet positioning in compatible warehouse, staging, and loading areas.

18 What are the overall dimensions?

The US-FT33 189 measures approximately 85 in long, 45 in wide, and 87 in high.

19 What is the ground clearance?

The forklift provides approximately 3.5 in of ground clearance and is intended primarily for firm, adequately supported commercial and industrial surfaces.

20 What type of tires does it use?

The US-FT33 189 uses solid rubber tires designed for durable, low-maintenance operation on compatible commercial and industrial surfaces.

21 How much does the forklift weigh?

The US-FT33 189 has an approximate operating weight of 5,670 lb.

22 Can the US-FT33 189 be used outdoors?

Yes, in compatible outdoor commercial areas with firm, adequately supported surfaces such as suitable pavement or asphalt. It is not designed as a rough-terrain forklift.

23 Is this forklift suitable for rough terrain?

No. The US-FT33 189 is not a rough-terrain forklift and should not be operated in deep mud, loose soil, soft ground, unstable terrain, or other unsuitable surface conditions.

24 Where does this 3,300 lb Electric Forklift work best?

It is well suited for warehouses, distribution centers, manufacturing facilities, loading areas, logistics operations, paved commercial yards, and storage facilities.

25 Is the US-FT33 189 suitable for high-rack storage?

Yes. Its 189 in (16 ft) maximum lift height and 3-stage mast provide substantial vertical reach for compatible high-rack pallet storage and warehouse replenishment.

26 What are the best applications for this forklift?

Typical applications include pallet transportation, high-rack stacking, inventory movement, loading and unloading, warehouse replenishment, manufacturing material handling, staging, shipping, receiving, and commercial pallet positioning.

27 Does an electric forklift produce exhaust emissions?

The US-FT33 189 produces zero tailpipe exhaust emissions during operation because it uses a battery-powered electric drivetrain rather than an internal-combustion engine.

28 Does the lead-acid battery require maintenance?

Yes. Follow the operating manual and battery manufacturer's requirements for charging, inspection, electrolyte maintenance, ventilation, storage, and other battery-care procedures.

29 What warranty is included with the US-FT33 189?

The US-FT33 189 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts include 90-day warranty coverage against qualifying manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

NEED MORE INFORMATION? Still have a product question?

Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.

Contact Our Team
MODEL COMPARISON

Compare Similar Equipment

Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

Compare up to 4 models The current product is highlighted for easier side-by-side comparison.
Swipe left or right to compare models
⇄
Compare Models Review key differences side by side
CURRENT MODEL
Full Electric Forklift – 3300 lbs Capacity & 16ft (189 inch) Lift Height | Model US-FT33 189 - TEXLIFT
Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189
$19,490.00
5,000 lb Electric Forklift | 189" (16 ft) Lift | Lithium Battery | Side Shift - TEXLIFT
5,000 lb Electric Forklift | 189" (16 ft) Lift | Lithium Battery | Side Shift
Original price was: $25,599.00.Current price is: $20,999.00.
Electric Wheel Offroad Forklift – US-TXEFL265PRO (2,650 lb Capacity, 4WD, Lithium Battery) - TEXLIFT
Electric Wheel Offroad Forklift – US-TXEFL265PRO (2,650 lb Capacity, 4WD, Lithium Battery)
$21,499.00
Lithium Electric Forklift 3,300 lb 16 ft Lift US-FT33PRO 189
Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189
$19,985.00
Load Capacity
3,300 lb
5,000 lbs
2,650 lbs
3,300 lb
Lift Height
189 in (16 ft)
189 in (16 ft)
120 in (10 ft)
189 in (16 ft)
Mast
3-Stage Mast
3-Stage Wide-View
2-Stage Mast
3-Stage Mast
Battery
48V / 230Ah Lead-Acid
48V / 230Ah LiFePO4
73.6V / 240Ah Lithium-Ion
48V / 200Ah Lithium-Ion
Runtime
Not Specified
Up to 5 Hours
Up to 8 Hours
Up to 6 Hours
Charging Time
Not Specified
Approx. 3.5 Hours
Approx. 5 Hours
Approx. 4 Hours
Fork Length
48 in
48 in
48 in
48 in
Turning Radius
Approx. 59 in
86 in
81 in
Approx. 59 in
Drive Motor
5.5 kW
7.5 kW AC
Dual 4.5 kW
5.5 kW
Lift Motor
5.5 kW
7.5 kW AC
4.5 kW
5.5 kW
Side Shift
Included
Hydraulic – Included
Included
Included
Availability
In Stock
In Stock
Out of Stock
Out of Stock
Product
✓ Selected Model
View Product
View Product
View Product
Need help choosing the right model? Tell us your required load capacity, lift height, application, and working environment. Our equipment team can help you compare the available options.
Contact Our Team
FULL-ELECTRIC POWER

Powered by Electricity. Not Propane / LPG or Diesel.

Texlift full-electric equipment uses a rechargeable battery system to power machine travel and hydraulic operation. Instead of purchasing propane / lpg or diesel for operation, the machine can be recharged using electricity.

EXAMPLE WORK SCHEDULE 6 Hours / Day
WORKING DAYS 5 Days / Week
ESTIMATED YEARLY USE 1,560 Hours
⚡
POWER SOURCE Rechargeable
Electric Battery

Plug in, recharge and return to work.

No Propane / LPG No Diesel
OPERATING COST COMPARISON

Estimated Annual Energy & Fuel Cost

Compare estimated annual electric energy cost with propane / lpg or diesel using the same example work schedule.

ELECTRIC
⚡
POWER SOURCE

Electric

ESTIMATED ANNUAL COST
$430 / Year*

Estimated electric energy cost based on the 48V / 230Ah (11.04 kWh) battery, 260 full-charge equivalents per year, and electricity at $0.15/kWh

✓ Powered by electricity
P
POWER SOURCE

Propane / LPG

ESTIMATED ANNUAL COST
$4,680 / Year*

Example based on approximately 1.0 gal/hour, 1,560 operating hours per year, and propane at $3.00 per gallon

D
POWER SOURCE

Diesel

ESTIMATED ANNUAL COST
$4,056 / Year*

Example based on approximately 0.65 gal/hour, 1,560 operating hours per year, and diesel at $4.00 per gallon

$
POTENTIAL ENERGY / FUEL SAVINGS
$4,250 / YEAR*

Estimated difference between the electric energy cost and the highest fuel-cost example shown above.

APPROX. MONTHLY $354 potential savings
APPROX. WEEKLY $82 potential savings
COMPARED WITH Propane / LPG highest example above
WHY ELECTRIC?

Electric vs. Propane / LPG / Diesel

Full-electric equipment can reduce recurring fuel expenses and remove several routine combustion-engine maintenance requirements.

⚡
FULL ELECTRIC

Texlift Electric Equipment

Rechargeable battery power for everyday operation.

✓
Rechargeable Battery Power

Recharge using electricity instead of purchasing propane / lpg or diesel.

✓
No Engine Oil Changes

No combustion engine means no routine engine oil and engine oil filter service.

✓
No Fuel-System Service

No conventional propane / lpg or diesel fuel system to maintain.

✓
No Tailpipe Exhaust

Full-electric operation produces no tailpipe exhaust emissions during use.

✓
Convenient Charging

Recharge overnight, during scheduled downtime or between working periods.

⛽
CONVENTIONAL POWER

Propane / LPG / Diesel

Combustion-powered equipment requires ongoing fuel.

×
Recurring Fuel Purchases

Propane / LPG or Diesel expense continues while the machine is operated.

×
Engine Oil & Filters

Combustion engines require scheduled engine oil and filter replacement.

×
Fuel-System Maintenance

Fuel-system components may require periodic inspection, maintenance and service.

×
Exhaust-System Components

Combustion-powered equipment can require additional exhaust-system maintenance.

×
Refueling & Fuel Handling

Fuel must be purchased and supplied to the machine, with handling requirements depending on the fuel type.

ADDITIONAL SAVINGS POTENTIAL

More Than Just Fuel Savings

The annual comparison above focuses on energy and fuel costs. Full-electric equipment can also reduce routine maintenance by eliminating several combustion-engine service items.

✓ No Engine Oil Changes
✓ No Engine Oil Filters
✓ No Fuel Filters
✓ No Fuel-System Service
✓ No Routine Engine Tune-Ups
✓ No Fuel Storage Required
✓ No Combustion Exhaust Service
✓ Fewer Combustion-Engine Service Items
*Illustrative operating-cost comparison: Electricity rates, fuel prices, fuel consumption, comparable machine size, workload, terrain, operator behavior and actual operating hours vary. Figures shown are estimates for comparison purposes only and are not guaranteed operating costs. Maintenance savings are not included in the annual energy/fuel comparison.
PRODUCT APPLICATIONS

Built for Demanding Material Handling Applications

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.

01

Warehouses

Transporting, lifting, positioning, and stacking compatible palletized inventory throughout commercial warehouse operations.

02

Distribution Centers

Moving palletized goods between receiving, storage, staging, picking, replenishment, and shipping areas.

03

High-Rack Pallet Storage

Positioning compatible palletized loads at elevated storage locations using the 16 ft (189 in) maximum lift height.

04

Manufacturing Facilities

Transporting palletized raw materials, components, supplies, work-in-process materials, and finished products between production and storage areas.

05

Loading & Unloading

Handling compatible palletized loads around loading docks, receiving areas, shipping zones, and other commercial loading locations.

06

Warehouse Replenishment

Placing and retrieving compatible palletized inventory within warehouse racking for routine stock replenishment and organization.

07

Inventory Movement

Transporting palletized inventory between storage, production, staging, receiving, and shipping locations using full-electric travel.

08

Shipping & Receiving

Moving incoming and outgoing palletized materials between receiving departments, warehouse storage, staging zones, and shipping areas.

09

Pallet Staging

Positioning and organizing compatible palletized loads in temporary storage, order preparation, receiving, and shipping areas.

10

Elevated Pallet Positioning

Using the 16 ft lift height and integrated side shift for accurate pallet placement within compatible elevated racking systems.

11

Logistics Operations

Supporting pallet transportation, storage, staging, replenishment, and material flow throughout commercial logistics facilities.

12

Commercial Storage Facilities

Handling palletized inventory for elevated storage, retrieval, organization, and routine material movement.

13

Production Material Handling

Supplying palletized materials to production areas and transporting finished products to storage, staging, or shipping locations.

14

High-Density Storage

Using the 189 in maximum lift height to make efficient use of available vertical storage space within compatible racking systems.

15

Side-Shift Pallet Positioning

Using the integrated hydraulic side shift to make precise lateral fork adjustments when aligning compatible palletized loads.

16

Paved Commercial Yards

Transporting compatible palletized materials across firm, level, adequately supported paved outdoor commercial surfaces.

17

Indoor Material Handling

Full-electric operation provides zero tailpipe exhaust emissions during use, making the forklift well suited for compatible indoor commercial and industrial environments.

18

Commercial & Industrial Pallet Handling

Supporting routine pallet transportation, lifting, stacking, retrieval, loading, unloading, staging, and positioning across compatible material-handling operations.

✓
Not sure if this model fits your application? Contact our equipment team with your load, lift height, pallet, and operating requirements and we can help you evaluate the right model.
Contact Our Team
WARRANTY & SUPPORT

Confidence Beyond the Purchase

Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.

Product-Specific Coverage The warranty and support information below applies specifically to this product.
01

12-Month Warranty

The US-FT33 189 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended commercial and industrial use. Texlift technical and warranty support is available throughout the applicable coverage period.

02

Electrical Components

Qualifying factory-installed electrical components are covered against eligible manufacturing defects during the applicable warranty period.

03

Hydraulic Components

Qualifying factory-installed hydraulic components are covered against eligible manufacturing defects under normal intended operating conditions.

04

Structural Components

Qualifying factory-installed structural components are covered against eligible manufacturing defects in materials and workmanship during the applicable warranty period.

05

Lead-Acid Battery System

The factory-installed 48V / 230Ah lead-acid battery system is covered against eligible manufacturing defects according to applicable warranty terms and proper charging, maintenance, storage, and operating requirements.

06

Replacement Parts

Eligible replacement parts supplied under warranty include 90-day warranty coverage against qualifying manufacturing defects.

07

Wheels & Wear Items

Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

08

Proper Use Required

Warranty coverage requires operation within the rated 3,300 lb capacity, specified 24 in load center, approved operating conditions, and other limitations described in the operating manual.

09

Battery Care Required

Proper charging, inspection, electrolyte maintenance, ventilation, and storage procedures must be followed for the 48V / 230Ah lead-acid battery system. Use only compatible charging equipment and follow the applicable operating and battery instructions.

10

Operating Conditions

Damage resulting from overloading, misuse, improper charging, unsuitable surfaces, accidents, unauthorized modifications, improper maintenance, or operation outside the forklift's intended conditions is not covered.

CUSTOMER SUPPORT Need warranty, parts, or technical support?

Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.

Contact Support

Reviews

There are no reviews yet

Add a review
Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189 Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
* Please tick the checkbox to proceed

TEXLIFT IN NUMBERS

Equipment That Keeps Business Moving

From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.

4,200+

Equipment Orders Delivered Nationwide

50+

Equipment Models

12-Month

Warranty Coverage

Nationwide

Continental U.S. Shipping

Dallas, TX

Operations & Pickup

✓ Financing Available

✓ Fast Parts Support

✓ Commercial Equipment Experts

✓ Secure Online Ordering
