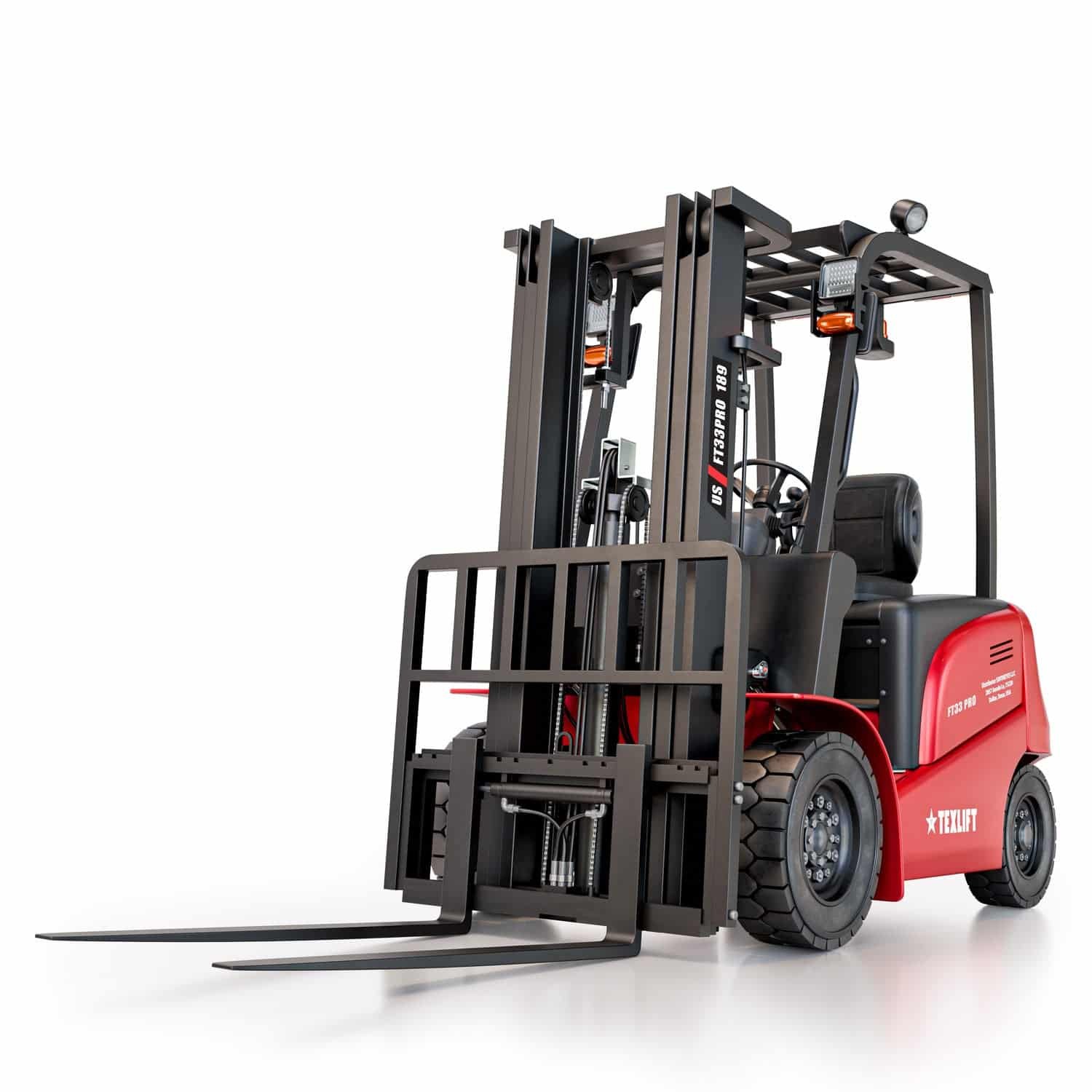

Lithium Electric Forklift 3,300 lb 16 ft Lift US-FT33PRO 189

Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189

$19,985.00
Product Availability Contact our team for availability.
Out of Stock

Want this product when it becomes available? Send us a request and our team will contact you with availability and estimated lead time.

SPECIAL SAVINGS

Save More on Your Order

Volume pricing and wire-transfer savings available on eligible orders.

2 Savings Options
%
Volume Pricing Save more when ordering multiple units
2–4 Units Save 2%
5–9 Units Save 3%
10+ Units Save 5%
Buy More & Save
DELIVERY & PICKUP

Order Fulfillment

Pickup and nationwide freight shipping available from our Texas warehouse.

🚚
Nationwide Delivery Ships from Texas. Estimated delivery: 3–14 business days. Shipping charges are calculated at checkout.
📍
Dallas Pickup Most in-stock equipment is ready for pickup within 24 hours. Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout Protected payment
Product Support Real equipment help
12-Month Warranty Equipment coverage
WIRE DISCOUNT REQUEST

3% Wire-Transfer Discount

Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189

Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.

Requested Quantity *
PRE-ORDER REQUEST

Request Product Availability

Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189

Submit your request and our team will contact you with availability, estimated lead time, and ordering information.

Requested Quantity *

Description

PRODUCT OVERVIEW

Built for Professional Material Handling

The Lithium Electric Forklift is designed for professional pallet handling, high-rack storage, loading, unloading, and material movement in warehouses, distribution centers, manufacturing facilities, logistics operations, and commercial storage environments. With a 3,300 lb rated load capacity, 16 ft (189 in) maximum lift height, 3-stage mast, 48 in forks, and integrated hydraulic side shift, it combines substantial vertical reach with precise pallet positioning.

The US-FT33PRO 189 is powered by a 48V / 200Ah lithium-ion battery providing approximately 9.6 kWh of nominal energy, up to approximately 6 hours of runtime, and an approximately 4-hour recharge time. A 5.5 kW electric drive motor provides powered travel, while a separate 5.5 kW lift motor powers the hydraulic system. This combination makes the Lithium Electric Forklift a powerful solution for demanding commercial and industrial material-handling operations.

⚖
3,300 lb
Load Capacity
↕
189 in (16 ft)
Max Lift Height
▣
48V Lithium-Ion
Battery
◷
Up to 6 Hours
Runtime
✓

3,300 lb Load Capacity

This Lithium Electric Forklift provides a maximum rated lifting capacity of 3,300 lb for compatible palletized loads within the machine’s specified operating limits.

It is designed for transporting, lifting, stacking, retrieving, loading, unloading, and positioning palletized inventory, packaged goods, manufacturing materials, supplies, and other compatible loads.

↗

16 ft (189 in) Maximum Lift Height

A maximum fork lift height of 16 ft (189 in) provides substantial vertical reach for elevated pallet storage, warehouse racking, and high-level material positioning.

The high-lift configuration supports pallet placement, retrieval, inventory replenishment, and storage organization at multiple compatible rack levels.

✓

3-Stage Mast

The 3-stage mast provides the vertical reach required for high-level pallet handling while maintaining a practical forklift configuration for everyday commercial operation.

This mast design makes the Lithium Electric Forklift particularly useful for facilities requiring frequent elevated pallet placement, retrieval, and warehouse replenishment.

↔

48 in Forks

The US-FT33PRO 189 is equipped with 48 in forks for handling compatible pallets and palletized materials within the forklift’s rated operating limits.

The fork configuration supports pallet transportation, stacking, loading, unloading, staging, retrieval, and routine material positioning.

✓

Hydraulic Side Shift

Integrated hydraulic side shift allows the forks to move laterally for more precise pallet alignment and positioning.

Operators can make small lateral adjustments when approaching warehouse racks, trucks, staging positions, and storage locations without repeatedly repositioning the entire forklift.

✓

Precise Pallet Positioning

The combination of hydraulic side shift, controlled electric travel, and powered hydraulic lifting supports accurate pallet placement and retrieval.

This makes the Lithium Electric Forklift particularly useful for high-rack storage, warehouse replenishment, loading operations, and applications where accurate fork positioning is important.

⚡

48V / 200Ah Lithium Battery

A rechargeable 48V / 200Ah lithium-ion battery provides approximately 9.6 kWh of nominal battery energy for electric travel and hydraulic lifting.

Lithium power provides low routine battery maintenance and makes the US-FT33PRO 189 well suited for demanding commercial material-handling operations.

✓

Up to Approx. 6 Hours Runtime

The Lithium Electric Forklift provides up to approximately 6 hours of operating time per charge under suitable working conditions.

Actual runtime varies depending on load weight, travel distance, lifting frequency, hydraulic use, lift height, surface conditions, temperature, battery condition, and operating intensity.

✓

Approx. 4-Hour Recharge Time

The lithium battery system provides an approximate 4-hour recharge time under suitable charging conditions.

Actual charging time may vary depending on remaining battery level, battery condition, ambient temperature, charger performance, and charging conditions.

✓

Full-Electric Operation

Electric travel and electric hydraulic lifting provide powered material handling without an internal-combustion drivetrain.

The Lithium Electric Forklift produces zero tailpipe exhaust emissions during operation while providing reduced operating noise for compatible warehouse, manufacturing, and commercial environments.

↗

5.5 kW Electric Drive Motor

A 5.5 kW electric traction motor provides powered travel and responsive maneuverability for pallet transportation and positioning.

The electric drive system supports movement between receiving, storage, production, staging, loading, and shipping areas.

↗

5.5 kW Lift Motor

A separate 5.5 kW electric lift motor powers the hydraulic system for lifting, lowering, mast operation, and pallet positioning.

The dedicated lifting system provides responsive performance for routine pallet handling and elevated warehouse storage.

✓

Approx. 59 in Turning Radius

An approximately 59 in turning radius supports practical maneuverability within compatible warehouse aisles, storage locations, staging zones, manufacturing areas, and loading environments.

The compact turning capability helps the Lithium Electric Forklift approach pallets, navigate work areas, and accurately position compatible loads.

✓

Solid Rubber Tires

Solid rubber tires provide durable, low-maintenance performance for commercial and industrial material-handling operations.

The tire configuration is designed for compatible firm and adequately supported surfaces such as suitable warehouse flooring, concrete, and paved commercial areas.

✓

Warehouse & Distribution Operations

The Lithium Electric Forklift is well suited for warehouses and distribution centers requiring frequent pallet transportation, elevated stacking, retrieval, staging, and replenishment.

Its 189 in lift height, 3-stage mast, and hydraulic side shift provide the reach and positioning capability required for compatible warehouse racking systems.

▦

High-Rack Pallet Storage

The 16 ft maximum lift height provides substantial vertical reach for elevated pallet placement and retrieval within compatible racking systems.

The US-FT33PRO 189 supports high-rack storage, inventory organization, warehouse replenishment, and operations seeking to use available vertical storage space efficiently.

✓

Loading, Unloading & Staging

This Lithium Electric Forklift supports compatible loading, unloading, receiving, shipping, and pallet-staging operations.

Its 48 in forks, powered hydraulic system, and integrated side shift provide controlled pallet handling and accurate load alignment throughout commercial material-handling operations.

✓

Manufacturing & Logistics

Manufacturing and logistics facilities can use the US-FT33PRO 189 to transport palletized raw materials, components, supplies, work-in-process materials, and finished products.

Full-electric travel and hydraulic lifting support efficient movement between production, storage, staging, receiving, loading, and shipping areas.

✓

Indoor & Compatible Outdoor Operation

The Lithium Electric Forklift is well suited for warehouses, manufacturing facilities, logistics centers, loading areas, paved commercial yards, and other compatible commercial environments.

Operation should remain on firm, adequately supported surfaces suitable for forklift use. The US-FT33PRO 189 is not designed as a rough-terrain forklift.

⚡

Professional Lithium Forklift Performance

The US-FT33PRO 189 combines a 3,300 lb rated capacity, 16 ft lift height, 3-stage mast, 48 in forks, hydraulic side shift, lithium power, and dual 5.5 kW electric motor systems.

This combination makes the Lithium Electric Forklift a versatile solution for pallet transportation, high-level stacking, inventory movement, warehouse replenishment, loading, unloading, manufacturing, logistics, and commercial material handling.

!

Important Lithium Battery Notice

Do not operate the US-FT33PRO 189 when the lithium battery reaches 20% charge or below. When the battery reaches 20%, stop operation and recharge the battery using the compatible lithium charger before returning the forklift to service.

Always follow the operating manual for proper lithium battery charging, inspection, storage, maintenance, and operating procedures. Use only compatible charging equipment and operate the forklift within its specified capacity and intended operating conditions.

EQUIPMENT SUPPORT

Need Help Choosing the Right Equipment?

Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

✓ Product Selection ✓ Application Support ✓ Shipping Assistance
SPEAK WITH OUR TEAM
Get Expert Equipment Guidance
Contact Our Team
⚙
PRODUCT SPECIFICATIONS

Technical Specifications

Review the key dimensions, performance data, power information, fitment details, and product configuration.

Specification Value Description
Model US-FT33PRO 189 Full-electric lithium forklift designed for commercial and industrial material handling
Load Capacity 3,300 lb Maximum rated lifting capacity for compatible palletized loads
Load Center 24 in Rated load-center distance used for the forklift capacity specification
Maximum Lift Height 189 in (16 ft) Maximum fork lift height for elevated pallet storage and warehouse racking
Mast Type 3-Stage Mast Multi-stage mast provides substantial vertical reach for stacking and retrieving palletized loads
Power Type Full Electric Lithium battery-powered travel and hydraulic lifting with zero tailpipe exhaust emissions during operation
Battery 48V / 200Ah Lithium-Ion Rechargeable lithium battery system for electric travel and hydraulic operation
Battery Type Lithium-Ion Low-maintenance rechargeable lithium battery technology
Battery Voltage 48V Electrical system operating voltage
Battery Capacity 200Ah Rated battery capacity
Battery Energy 9.6 kWh Nominal battery energy based on the 48V / 200Ah battery system
Runtime Up to 6 Hours Provides up to approximately 6 hours of operation per charge depending on load, travel, lifting frequency, hydraulic use, battery condition, and operating conditions
Charging Time Approx. 4 Hours Approximate full recharge time under suitable charging conditions
Drive Motor 5.5 kW Electric traction motor for powered travel and maneuverability
Lift Motor 5.5 kW Dedicated electric motor powers hydraulic lifting, lowering, mast, and load-handling functions
Maximum Travel Speed Up to 7.5 mph Maximum travel speed varies with load, surface conditions, battery condition, and operating environment
Fork Length 48 in Standard fork length for compatible pallets and palletized loads
Fork Width 27 in Listed outside fork width for the standard configuration
Fork Position Adjustable Fork positioning can be adjusted for compatible pallet widths and load configurations
Side Shift Included Hydraulic side shift provides lateral fork movement for more precise pallet positioning
Turning Radius Approx. 59 in Compact turning performance supports maneuverability in compatible warehouse, staging, and loading areas
Overall Length 85 in Overall front-to-back machine length
Overall Width 45 in Overall machine width
Overall Height 87 in Overall machine height
Ground Clearance 3.5 in Clearance between the ground and forklift undercarriage
Tire Type Solid Rubber Durable industrial tires designed for low-maintenance operation on compatible commercial surfaces
Machine Weight 6,460 lb Approximate operating weight
Recommended Surface Firm, Level Commercial Surfaces Designed for adequately supported warehouse floors, concrete, asphalt, and other compatible firm surfaces
Operating Environment Indoor & Compatible Outdoor Areas Suitable for warehouses, manufacturing facilities, loading areas, paved yards, and other compatible commercial environments
Best Use Pallet Handling & High Stacking Designed for transporting, lifting, stacking, retrieving, and positioning compatible palletized materials
Typical Applications Warehouses, Distribution Centers, Manufacturing & Logistics Suitable for high-rack storage, pallet transport, loading, unloading, inventory movement, staging, and warehouse replenishment
Warranty 12-Month Warranty Covers eligible manufacturing defects in materials and workmanship under normal intended use. Eligible replacement parts include 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded
FREQUENTLY ASKED QUESTIONS

Product Questions & Answers

Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.

30 Product FAQs Quick answers to help you evaluate and operate this equipment.
01 What is the maximum load capacity of the US-FT33PRO 189?

The US-FT33PRO 189 has a maximum rated load capacity of 3,300 lb at a 24 in load center for compatible palletized loads.

02 What is the maximum lift height?

The US-FT33PRO 189 provides a maximum fork lift height of 189 in (16 ft), making it suitable for elevated pallet storage, warehouse racking, and high-level stacking.

03 What type of mast does the forklift use?

The US-FT33PRO 189 uses a 3-stage mast designed to provide substantial vertical reach for pallet stacking, retrieval, and warehouse replenishment.

04 What is the rated load center?

The forklift is rated at a 24 in load center. Loads must be properly positioned and remain within the machine's rated capacity and operating limits.

05 How long are the forks?

The US-FT33PRO 189 is equipped with 48 in forks for handling compatible pallets and palletized loads.

06 What is the fork width?

The standard configuration has a listed outside fork width of approximately 27 in.

07 Are the fork positions adjustable?

Yes. The fork position can be adjusted for compatible pallet widths and load configurations.

08 Does the US-FT33PRO 189 include side shift?

Yes. Hydraulic side shift is included, allowing lateral fork movement for more precise pallet alignment and positioning without repeatedly repositioning the entire forklift.

09 What battery does the US-FT33PRO 189 use?

This Lithium Electric Forklift uses a rechargeable 48V / 200Ah lithium-ion battery for electric travel and hydraulic lifting.

10 What is the battery energy capacity?

The 48V / 200Ah lithium-ion battery provides approximately 9.6 kWh of nominal battery energy.

11 How long does the lithium battery last per charge?

The battery provides up to approximately 6 hours of operation per charge. Actual runtime varies depending on load, travel distance, lifting frequency, hydraulic use, battery condition, temperature, and operating conditions.

12 How long does the battery take to recharge?

The lithium battery system provides an approximate 4-hour full recharge time under suitable charging conditions. Actual charging time can vary depending on remaining battery level, battery condition, temperature, and charging conditions.

13 What drive motor does the forklift use?

A 5.5 kW electric traction motor provides powered travel and maneuverability.

14 What lift motor does the forklift use?

A separate 5.5 kW electric lift motor powers hydraulic lifting, lowering, mast operation, and load-handling functions.

15 Is the US-FT33PRO 189 fully electric?

Yes. The US-FT33PRO 189 is a full-electric Lithium Electric Forklift with battery-powered travel and electric hydraulic lifting.

16 What is the maximum travel speed?

The US-FT33PRO 189 can travel at up to approximately 7.5 mph under suitable operating conditions. Actual speed varies with load, surface conditions, battery condition, and operating environment.

17 What is the turning radius?

The forklift has an approximately 59 in turning radius for maneuvering and pallet positioning in compatible warehouse, staging, and loading areas.

18 What are the overall dimensions?

The US-FT33PRO 189 measures approximately 85 in long, 45 in wide, and 87 in high.

19 What is the ground clearance?

The forklift provides approximately 3.5 in of ground clearance and is intended for firm, adequately supported commercial and industrial surfaces.

20 What type of tires does it use?

The US-FT33PRO 189 uses solid rubber tires designed for durable, low-maintenance operation on compatible commercial and industrial surfaces.

21 How much does the forklift weigh?

The listed approximate operating weight of the US-FT33PRO 189 is 6,460 lb.

22 Can the US-FT33PRO 189 be used outdoors?

Yes, in compatible outdoor commercial areas with firm, adequately supported surfaces such as suitable concrete or asphalt. It is not designed as a rough-terrain forklift.

23 Is this forklift suitable for rough terrain?

No. The US-FT33PRO 189 is not a rough-terrain forklift and should not be operated on deep mud, loose soil, soft ground, unstable terrain, or other unsuitable surfaces.

24 Where does this Lithium Electric Forklift work best?

It is well suited for warehouses, distribution centers, manufacturing facilities, logistics operations, loading areas, paved commercial yards, and storage facilities.

25 Is the US-FT33PRO 189 suitable for high-rack storage?

Yes. Its 189 in (16 ft) maximum lift height and 3-stage mast provide substantial vertical reach for compatible high-rack pallet storage and warehouse replenishment.

26 What are the best applications for this forklift?

Typical applications include pallet transportation, high-rack stacking, inventory movement, loading and unloading, warehouse replenishment, manufacturing material handling, staging, shipping, receiving, and pallet positioning.

27 Does this Lithium Electric Forklift produce exhaust emissions?

The US-FT33PRO 189 produces zero tailpipe exhaust emissions during operation because it uses a battery-powered electric drivetrain.

28 Does the lithium battery require routine maintenance?

Lithium-ion technology requires relatively low routine battery maintenance. Operators should still follow the operating manual for proper charging, inspection, storage, and battery-care procedures.

29 Can I continue operating the forklift below 20% battery charge?

No. Stop operating the US-FT33PRO 189 when the battery reaches 20% charge or below and recharge it using compatible charging equipment before returning the forklift to service.

30 What warranty is included with the US-FT33PRO 189?

The US-FT33PRO 189 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts include 90-day warranty coverage against qualifying manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

NEED MORE INFORMATION? Still have a product question?

Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.

Contact Our Team
MODEL COMPARISON

Compare Similar Equipment

Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

Compare up to 4 models The current product is highlighted for easier side-by-side comparison.
Swipe left or right to compare models
⇄
Compare Models Review key differences side by side
CURRENT MODEL
Lithium Electric Forklift 3,300 lb 16 ft Lift US-FT33PRO 189
Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189
$19,985.00
5,000 lb Electric Forklift | 189" (16 ft) Lift | Lithium Battery | Side Shift - TEXLIFT
5,000 lb Electric Forklift | 189" (16 ft) Lift | Lithium Battery | Side Shift
Original price was: $25,599.00.Current price is: $20,999.00.
Full Electric Forklift – 3300 lbs Capacity & 16ft (189 inch) Lift Height | Model US-FT33 189 - TEXLIFT
Full-Electric Forklift 3,300 lb – 16 ft 3-Stage Mast & Side Shift – US-FT33 189
$19,490.00
Electric Wheel Offroad Forklift – US-TXEFL265PRO (2,650 lb Capacity, 4WD, Lithium Battery) - TEXLIFT
Electric Wheel Offroad Forklift – US-TXEFL265PRO (2,650 lb Capacity, 4WD, Lithium Battery)
$21,499.00
Load Capacity
3,300 lb
5,000 lbs
3,300 lb
2,650 lbs
Lift Height
189 in (16 ft)
189 in (16 ft)
189 in (16 ft)
120 in (10 ft)
Mast
3-Stage Mast
3-Stage Wide-View
3-Stage Mast
2-Stage Mast
Battery
48V / 200Ah Lithium-Ion
48V / 230Ah LiFePO4
48V / 230Ah Lead-Acid
73.6V / 240Ah Lithium-Ion
Runtime
Up to 6 Hours
Up to 5 Hours
Not Specified
Up to 8 Hours
Charging Time
Approx. 4 Hours
Approx. 3.5 Hours
Not Specified
Approx. 5 Hours
Fork Length
48 in
48 in
48 in
48 in
Turning Radius
Approx. 59 in
86 in
Approx. 59 in
81 in
Drive Motor
5.5 kW
7.5 kW AC
5.5 kW
Dual 4.5 kW
Lift Motor
5.5 kW
7.5 kW AC
5.5 kW
4.5 kW
Side Shift
Included
Hydraulic – Included
Included
Included
Availability
Out of Stock
In Stock
In Stock
Out of Stock
Product
✓ Selected Model
View Product
View Product
View Product
Need help choosing the right model? Tell us your required load capacity, lift height, application, and working environment. Our equipment team can help you compare the available options.
Contact Our Team
FULL-ELECTRIC POWER

Powered by Electricity. Not Propane / LPG or Diesel.

Texlift full-electric equipment uses a rechargeable battery system to power machine travel and hydraulic operation. Instead of purchasing propane / lpg or diesel for operation, the machine can be recharged using electricity.

EXAMPLE WORK SCHEDULE 6 Hours / Day
WORKING DAYS 5 Days / Week
ESTIMATED YEARLY USE 1,560 Hours
⚡
POWER SOURCE Rechargeable
Electric Battery

Plug in, recharge and return to work.

No Propane / LPG No Diesel
OPERATING COST COMPARISON

Estimated Annual Energy & Fuel Cost

Compare estimated annual electric energy cost with propane / lpg or diesel using the same example work schedule.

ELECTRIC
⚡
POWER SOURCE

Electric

ESTIMATED ANNUAL COST
$374 / Year*

Estimated electric energy cost based on the 48V / 200Ah (9.6 kWh) lithium battery, 260 full-charge equivalents per year, and electricity at $0.15/kWh

✓ Powered by electricity
P
POWER SOURCE

Propane / LPG

ESTIMATED ANNUAL COST
$4,680 / Year*

Example fuel cost based on approximately 1.0 gal/hour, 1,560 operating hours per year, and propane at $3.00 per gallon

D
POWER SOURCE

Diesel

ESTIMATED ANNUAL COST
$4,056 / Year*

Example fuel cost based on approximately 0.65 gal/hour, 1,560 operating hours per year, and diesel at $4.00 per gallon

$
POTENTIAL ENERGY / FUEL SAVINGS
$4,306 / YEAR*

Estimated difference between the electric energy cost and the highest fuel-cost example shown above.

APPROX. MONTHLY $359 potential savings
APPROX. WEEKLY $83 potential savings
COMPARED WITH Propane / LPG highest example above
WHY ELECTRIC?

Electric vs. Propane / LPG / Diesel

Full-electric equipment can reduce recurring fuel expenses and remove several routine combustion-engine maintenance requirements.

⚡
FULL ELECTRIC

Texlift Electric Equipment

Rechargeable battery power for everyday operation.

✓
Rechargeable Battery Power

Recharge using electricity instead of purchasing propane / lpg or diesel.

✓
No Engine Oil Changes

No combustion engine means no routine engine oil and engine oil filter service.

✓
No Fuel-System Service

No conventional propane / lpg or diesel fuel system to maintain.

✓
No Tailpipe Exhaust

Full-electric operation produces no tailpipe exhaust emissions during use.

✓
Convenient Charging

Recharge overnight, during scheduled downtime or between working periods.

⛽
CONVENTIONAL POWER

Propane / LPG / Diesel

Combustion-powered equipment requires ongoing fuel.

×
Recurring Fuel Purchases

Propane / LPG or Diesel expense continues while the machine is operated.

×
Engine Oil & Filters

Combustion engines require scheduled engine oil and filter replacement.

×
Fuel-System Maintenance

Fuel-system components may require periodic inspection, maintenance and service.

×
Exhaust-System Components

Combustion-powered equipment can require additional exhaust-system maintenance.

×
Refueling & Fuel Handling

Fuel must be purchased and supplied to the machine, with handling requirements depending on the fuel type.

ADDITIONAL SAVINGS POTENTIAL

More Than Just Fuel Savings

The annual comparison above focuses on energy and fuel costs. Full-electric equipment can also reduce routine maintenance by eliminating several combustion-engine service items.

✓ No Engine Oil Changes
✓ No Engine Oil Filters
✓ No Fuel Filters
✓ No Fuel-System Service
✓ No Routine Engine Tune-Ups
✓ No Fuel Storage Required
✓ No Combustion Exhaust Service
✓ Fewer Combustion-Engine Service Items
*Illustrative operating-cost comparison: Electricity rates, fuel prices, fuel consumption, comparable machine size, workload, terrain, operator behavior and actual operating hours vary. Figures shown are estimates for comparison purposes only and are not guaranteed operating costs. Maintenance savings are not included in the annual energy/fuel comparison.
PRODUCT APPLICATIONS

Built for Demanding Material Handling Applications

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.

01

Warehouses

Transporting, lifting, positioning, and stacking compatible palletized inventory throughout commercial warehouse operations using full-electric lithium power.

02

Distribution Centers

Moving palletized goods between receiving, storage, replenishment, staging, picking, and shipping areas.

03

High-Rack Pallet Storage

Positioning and retrieving compatible palletized loads at elevated storage locations using the 16 ft (189 in) maximum lift height.

04

Manufacturing Facilities

Transporting palletized raw materials, components, supplies, work-in-process materials, and finished products between production and storage areas.

05

Loading & Unloading

Handling compatible palletized loads around loading docks, receiving areas, shipping zones, and other commercial loading locations.

06

Warehouse Replenishment

Placing and retrieving compatible palletized inventory within warehouse racking for routine stock replenishment and organization.

07

Inventory Movement

Transporting palletized inventory between storage, production, staging, receiving, and shipping locations using full-electric travel.

08

Shipping & Receiving

Moving incoming and outgoing palletized materials between receiving departments, warehouse storage, staging zones, and shipping areas.

09

Pallet Staging

Positioning and organizing compatible palletized loads in temporary storage, order preparation, receiving, and shipping areas.

10

Elevated Pallet Positioning

Using the 16 ft lift height and hydraulic side shift for accurate pallet placement within compatible elevated racking systems.

11

Logistics Operations

Supporting pallet transportation, storage, staging, replenishment, and material flow throughout commercial logistics facilities.

12

Commercial Storage Facilities

Handling palletized inventory for elevated storage, retrieval, organization, and routine material movement.

13

Production Material Handling

Supplying palletized materials to production areas and transporting finished products to storage, staging, or shipping locations.

14

High-Density Storage

Using the 189 in maximum lift height to make efficient use of available vertical storage space within compatible warehouse racking systems.

15

Side-Shift Pallet Positioning

Using the integrated hydraulic side shift to make precise lateral fork adjustments when aligning compatible pallets with racks and storage positions.

16

Order Fulfillment

Moving and positioning palletized inventory between storage, picking, staging, packing, and outbound shipping areas.

17

Paved Commercial Yards

Transporting compatible palletized materials across firm, level, adequately supported paved outdoor commercial surfaces.

18

Indoor Material Handling

Lithium electric operation provides zero tailpipe exhaust emissions during use with reduced operating noise for compatible indoor commercial and industrial environments.

✓
Not sure if this model fits your application? Contact our equipment team with your load, lift height, pallet, and operating requirements and we can help you evaluate the right model.
Contact Our Team
WARRANTY & SUPPORT

Confidence Beyond the Purchase

Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.

Product-Specific Coverage The warranty and support information below applies specifically to this product.
01

12-Month Warranty

The US-FT33PRO 189 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended commercial and industrial use. Texlift technical and warranty support is available throughout the applicable coverage period.

02

Electrical Components

Qualifying factory-installed electrical components are covered against eligible manufacturing defects during the applicable warranty period.

03

Hydraulic Components

Qualifying factory-installed hydraulic components are covered against eligible manufacturing defects under normal intended operating conditions.

04

Structural Components

Qualifying factory-installed structural components are covered against eligible manufacturing defects in materials and workmanship during the applicable warranty period.

05

Lithium Battery System

The factory-installed 48V / 200Ah lithium-ion battery system is covered against eligible manufacturing defects according to applicable warranty terms and proper charging, storage, maintenance, and operating requirements.

06

Replacement Parts

Eligible replacement parts supplied under warranty include 90-day warranty coverage against qualifying manufacturing defects.

07

Wheels & Wear Items

Wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

08

Proper Use Required

Warranty coverage requires operation within the rated 3,300 lb capacity, specified 24 in load center, approved operating conditions, and other limitations described in the operating manual.

09

Lithium Battery Care

Proper charging, inspection, storage, and battery-care procedures must be followed. Do not operate the forklift when the lithium battery reaches 20% charge or below; stop operation and recharge it using compatible charging equipment.

10

Operating Conditions

Damage resulting from overloading, misuse, improper charging, unsuitable surfaces, accidents, unauthorized modifications, improper maintenance, or operation outside the forklift's intended conditions is not covered.

CUSTOMER SUPPORT Need warranty, parts, or technical support?

Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.

Contact Support

Reviews

There are no reviews yet

Add a review
Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189 Lithium Electric Forklift 3,300 lb – 16 ft Lift, 3-Stage Mast & Side Shift – US-FT33PRO 189
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
* Please tick the checkbox to proceed

TEXLIFT IN NUMBERS

Equipment That Keeps Business Moving

From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.

4,200+

Equipment Orders Delivered Nationwide

50+

Equipment Models

12-Month

Warranty Coverage

Nationwide

Continental U.S. Shipping

Dallas, TX

Operations & Pickup

✓ Financing Available

✓ Fast Parts Support

✓ Commercial Equipment Experts

✓ Secure Online Ordering
