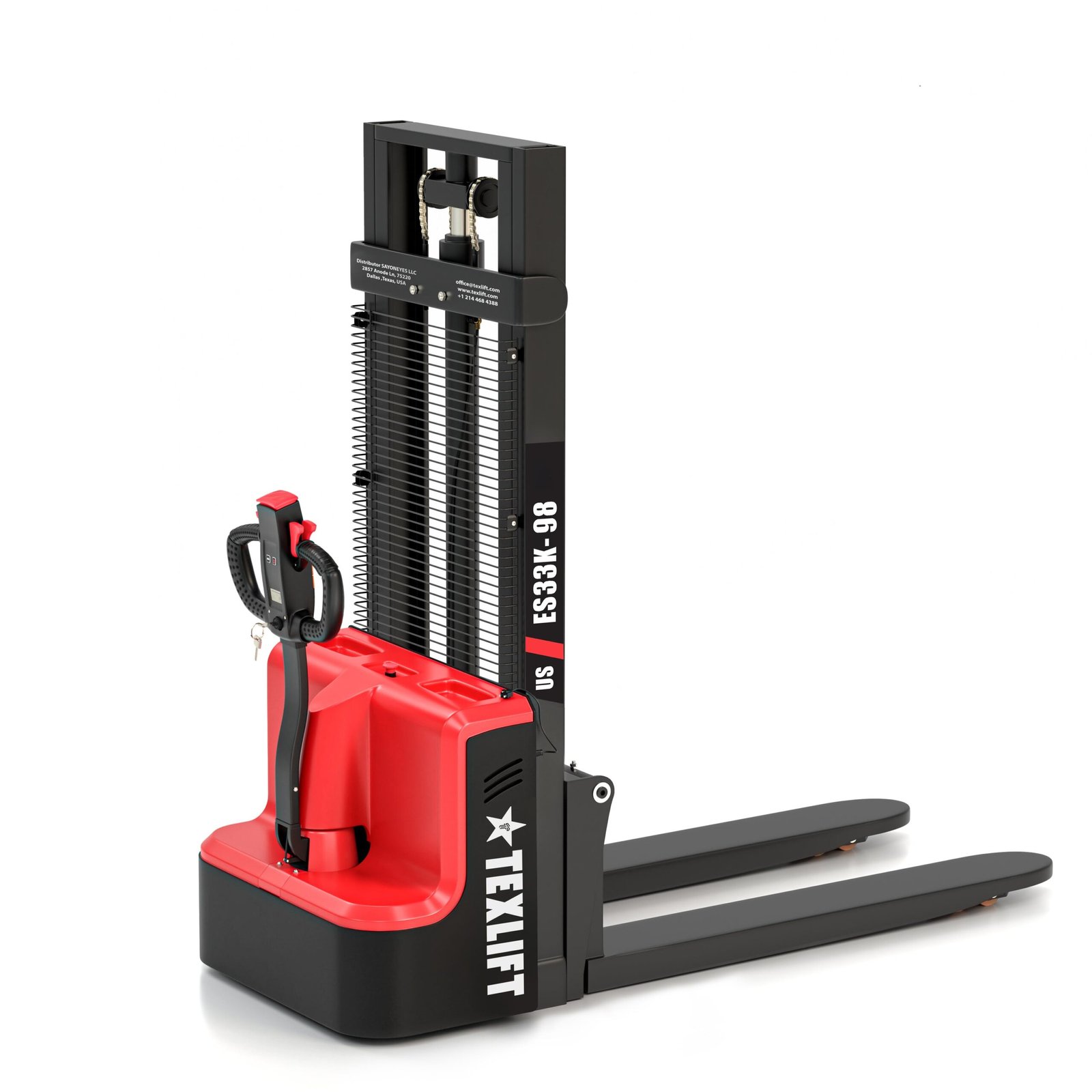

The Texlift US-ESN33K 98 Narrow Electric Pallet Stacker is a full-electric walkie stacker designed for efficient pallet transportation, positioning, and stacking in warehouses, distribution centers, manufacturing facilities, storage areas, and other indoor material-handling environments. With a 3,300 lb rated load capacity, 8 ft (98 in) maximum lift height, and compact 33 in overall width, this Narrow Electric Pallet Stacker combines professional lifting performance with excellent maneuverability for space-conscious warehouse operations.
Designed for compatible single-deck and European-style pallets, the US-ESN33K 98 features adjustable 5.5–27 in forks, 45 in fork length, a compact 55 in turning radius, and full-electric walkie operation. A 48V / 32Ah battery system provides approximately 1.54 kWh of nominal energy capacity and approximately 5–6 hours of typical operating time per charge.
The US-ESN33K 98 Narrow Electric Pallet Stacker handles compatible palletized loads up to 3,300 lb at the rated 20 in load center. This provides dependable capacity for pallet transportation, positioning, lifting, and stacking in professional warehouse and industrial applications.
Actual allowable capacity may vary with lift height, load center, load distribution, pallet configuration, and operating conditions.
The 8 ft (98 in) maximum fork lift height provides practical vertical reach for pallet stacking, warehouse racking, elevated storage, loading, and material positioning.
This lifting capability allows the Narrow Electric Pallet Stacker to combine useful vertical reach with compact dimensions for everyday warehouse and commercial material-handling operations.
The mast measures approximately 73 in high when fully lowered, providing a practical profile for travel and positioning between lifting operations.
Maximum overall height with the mast extended during lifting is approximately 127 in. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.
At approximately 33 in wide, the US-ESN33K 98 Narrow Electric Pallet Stacker provides a compact machine profile for operations where efficient use of warehouse space is important.
The narrow configuration helps the stacker maneuver through compatible warehouse aisles, storage areas, production environments, staging zones, and other space-conscious indoor work areas.
The forks can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.
This adjustable configuration provides additional flexibility for compatible single-deck and European-style pallets where correct fork positioning is important for proper load engagement and handling.
The US-ESN33K 98 features 45 in long forks designed to support compatible palletized loads within the machine’s rated capacity.
Always verify pallet dimensions, fork entry, fork positioning, load distribution, load center, and rated capacity before lifting or transporting a load.
An approximately 55 in turning radius helps the operator maneuver, approach pallets, turn, and position loads efficiently within compatible warehouse environments.
Combined with the 33 in overall width and 70 in overall length, the Narrow Electric Pallet Stacker provides practical maneuverability for space-conscious indoor material-handling operations.
The US-ESN33K 98 uses a 48V / 32Ah electric traction battery system with approximately 1.54 kWh of nominal battery energy.
The battery supplies power to both electric travel and hydraulic lifting, providing full-electric material handling with no tailpipe exhaust emissions at the machine during operation.
Typical operating time is approximately 5–6 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible charger.
Actual charging time can vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.
A 0.8 kW DC electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout indoor material-handling environments.
A 2.2 kW DC electric lift motor powers the hydraulic lifting system for pallet pickup, lifting, lowering, stacking, and load positioning.
The electromagnetic braking system provides controlled stopping and supports predictable machine handling during pallet transportation and positioning operations.
Polyurethane wheels provide smooth travel on firm indoor industrial floors and are well suited for warehouses, distribution centers, manufacturing facilities, storage areas, and similar indoor environments.
The US-ESN33K 98 Narrow Electric Pallet Stacker is best suited for warehouses, distribution centers, manufacturing facilities, storage areas, production environments, loading areas, and other indoor material-handling applications with smooth, firm, and adequately supported floors.
Its narrow 33 in overall width, 55 in turning radius, and 70 in overall length make this Narrow Electric Pallet Stacker particularly useful where machine dimensions, maneuverability, and efficient use of floor space are important.
Ideal applications include pallet transportation, rack stacking, inventory movement, receiving and staging, production-line material handling, warehouse organization, loading-area operations, and positioning compatible palletized loads weighing up to 3,300 lb.
The adjustable 5.5–27 in fork spread, 45 in forks, and narrow machine configuration make the US-ESN33K 98 particularly suitable for compatible single-deck and European-style pallet applications.
The US-ESN33K 98 Narrow Electric Pallet Stacker uses a 48V / 32Ah electric traction battery system providing approximately 1.54 kWh of nominal battery energy and approximately 5–6 hours of typical operating time per charge. Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible charger.
A 0.8 kW DC drive motor provides powered travel, while a 2.2 kW DC lift motor powers the hydraulic lifting system for full-electric walkie operation.
Do not operate the US-ESN33K 98 when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the Narrow Electric Pallet Stacker to service, or replace it with a properly charged compatible battery when applicable. Follow the operating manual for proper battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ESN33K 98 | Full-electric Narrow Electric Pallet Stacker designed for professional indoor pallet transportation, positioning, and stacking. |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity at the rated 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, and operating conditions. |
| Load Center | 20 in | Rated load center used for the stated 3,300 lb capacity. |
| Lift Height | 8 ft (98 in) | Maximum fork lift height for pallet stacking, warehouse racking, elevated storage, loading, and material positioning. |
| Lowered Mast Height | 73 in | Approximate mast height with the mast fully lowered. |
| Maximum Height During Operation | 127 in | Approximate maximum overall height with the mast extended during lifting operations. |
| Fork Length | 45 in | Fork length designed for handling compatible palletized loads. |
| Fork Spread | 5.5–27 in Adjustable | Adjustable fork positioning accommodates different compatible pallet and load configurations. |
| Overall Length | 70 in | Approximate overall machine length. |
| Overall Width | 33 in | Narrow overall machine width designed for space-conscious warehouse and indoor material-handling operations. |
| Wheelbase | 49 in | Approximate distance between the front and rear wheel centers. |
| Turning Radius | 55 in | Approximate minimum turning radius for warehouse maneuverability and pallet positioning. |
| Wheel Type | Polyurethane | Polyurethane wheels designed for smooth, firm, adequately supported indoor industrial floors. |
| Battery | 48V / 32Ah | Electric traction battery system supplying power to travel and hydraulic lifting. |
| Battery Capacity | 1.54 kWh | Nominal battery energy based on the complete 48V / 32Ah battery system. |
| Runtime | Approx. 5–6 Hours | Typical operating time per charge. Actual runtime varies with load weight, travel distance, lifting frequency, battery condition, floor conditions, temperature, and operating intensity. |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible charger. |
| Drive Motor | 0.8 kW DC | DC electric traction motor provides powered travel for professional indoor material-handling operations. |
| Lift Motor | 2.2 kW DC | DC electric hydraulic lift motor powers lifting, lowering, stacking, and load-positioning functions. |
| Brake System | Electromagnetic | Electromagnetic braking system provides controlled stopping during pallet transportation and positioning operations. |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting reduce manual material-handling effort. |
| Operation | Walkie | Walk-behind operator configuration with direct control of travel, steering, lifting, lowering, and pallet positioning. |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed primarily for warehouses and other adequately supported indoor industrial floors. |
| Pallet Compatibility | Single-Deck & EU Pallets | Narrow configuration and adjustable forks are designed for compatible single-deck and European-style pallet configurations. |
| Best Use | Indoor Pallet Handling & Stacking | Designed for pallet transportation, rack stacking, inventory positioning, staging, and general indoor material handling. |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, stacking, staging, inventory movement, production material handling, and warehouse operations. |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels and other normal wear or consumable components are excluded. |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESN33K 98 Narrow Electric Pallet Stacker has a maximum rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-ESN33K 98 provides a maximum fork lift height of 8 ft (98 in) for pallet stacking, warehouse racking, elevated storage, loading, and material positioning.
The US-ESN33K 98 has an approximately 73 in lowered mast height, providing a practical profile for travel and positioning between lifting operations.
The maximum overall height with the mast extended during lifting is approximately 127 in. Always verify ceiling, rack, sprinkler, lighting, doorway, and other overhead clearances before operation.
The US-ESN33K 98 is approximately 33 in wide. Its narrow configuration is designed for space-conscious warehouse and indoor material-handling operations.
The US-ESN33K 98 measures approximately 70 in in overall length, providing a compact footprint for professional indoor pallet handling and stacking.
The US-ESN33K 98 has an approximately 49 in wheelbase, measured between the front and rear wheel centers.
The US-ESN33K 98 has an approximately 55 in turning radius, supporting maneuverability when approaching pallets, turning, and positioning loads in compatible warehouse environments.
The US-ESN33K 98 is equipped with 45 in long forks designed for handling compatible palletized loads within the machine's rated capacity.
The forks provide an adjustable spread of approximately 5.5–27 in, allowing the operator to position them for different compatible pallet and load configurations.
The narrow configuration and adjustable 5.5–27 in fork spread are designed for compatible single-deck and European-style pallets. Always verify pallet dimensions, fork entry, load center, and load distribution before operation.
Pallet compatibility depends on the pallet's fork-entry design and dimensions. The US-ESN33K 98 is primarily configured for compatible single-deck and European-style pallets, so pallet dimensions and fork entry should be verified before purchase or operation.
The stacker uses polyurethane wheels designed for smooth travel on firm, adequately supported indoor industrial floors.
The US-ESN33K 98 uses a 48V / 32Ah electric traction battery system that supplies power to electric travel and hydraulic lifting.
The 48V / 32Ah battery system provides approximately 1.54 kWh of nominal battery energy.
Typical operating time is approximately 5–6 hours per charge. Actual runtime varies with load weight, travel distance, lifting frequency, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible charger. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, and charging conditions.
No. Stop operating the US-ESN33K 98 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
The US-ESN33K 98 uses a 0.8 kW DC electric traction motor to provide powered travel for professional indoor material-handling operations.
A 2.2 kW DC electric lift motor powers the hydraulic lifting system for pallet pickup, lifting, lowering, stacking, and load positioning.
The stacker uses an electromagnetic braking system that provides controlled stopping during pallet transportation and positioning operations.
Yes. The US-ESN33K 98 provides electric travel and electric hydraulic lifting for full-electric walkie operation.
Yes. The walk-behind operator configuration provides direct control of travel, steering, lifting, lowering, and pallet positioning without requiring an onboard operator platform.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The Narrow Electric Pallet Stacker is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and similar commercial environments.
No. The US-ESN33K 98 is an indoor narrow electric stacker with polyurethane wheels and is not designed for rough-terrain operation, loose gravel, soft ground, mud, or other unstable surfaces.
The US-ESN33K 98 is well suited for warehouses, distribution centers, manufacturing facilities, storage areas, production environments, loading areas, and other indoor material-handling operations with suitable floors.
Typical applications include pallet transportation, rack stacking, inventory movement, receiving and staging, production-line material handling, warehouse organization, loading-area operations, and positioning compatible palletized loads.
The US-ESN33K 98 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Transport, position, lift, and stack compatible palletized loads throughout warehouses with smooth, firm, and adequately supported indoor floors.
The 8 ft (98 in) maximum lift height supports pallet positioning and stacking in compatible warehouse racking and elevated storage applications.
The compact 33 in overall width and 55 in turning radius support maneuverability in compatible space-conscious warehouse aisles and storage areas.
Move compatible palletized inventory between receiving, storage, staging, picking, and shipping areas within professional distribution operations.
Transport and position compatible palletized materials, components, supplies, and finished products between production, storage, and staging areas.
Support routine inventory relocation, organization, replenishment, and positioning throughout compatible warehouse and commercial storage environments.
Move incoming palletized materials from receiving areas to compatible staging, storage, production, or inventory locations.
Supply compatible palletized materials and components to production areas and move finished products to staging or storage locations.
Adjustable 5.5–27 in fork positioning supports handling of compatible single-deck pallets when pallet dimensions and fork-entry requirements are suitable.
The narrow configuration, 45 in forks, and adjustable fork spread provide flexibility for handling compatible European-style pallet configurations.
Position and organize compatible palletized loads in indoor loading, shipping, receiving, and staging areas with suitable floor conditions.
A 3,300 lb rated capacity, 8 ft (98 in) lift height, 33 in overall width, and full-electric walkie operation provide a practical solution for professional indoor material handling where maneuverability and efficient use of space are important.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ESN33K 98 Narrow Electric Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, maintenance questions, battery and charging systems, electrical functions, hydraulic systems, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, wheel, braking, and other service components for the US-ESN33K 98.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the forks, mast, hydraulic system, polyurethane wheels, battery system, electromagnetic braking system, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
