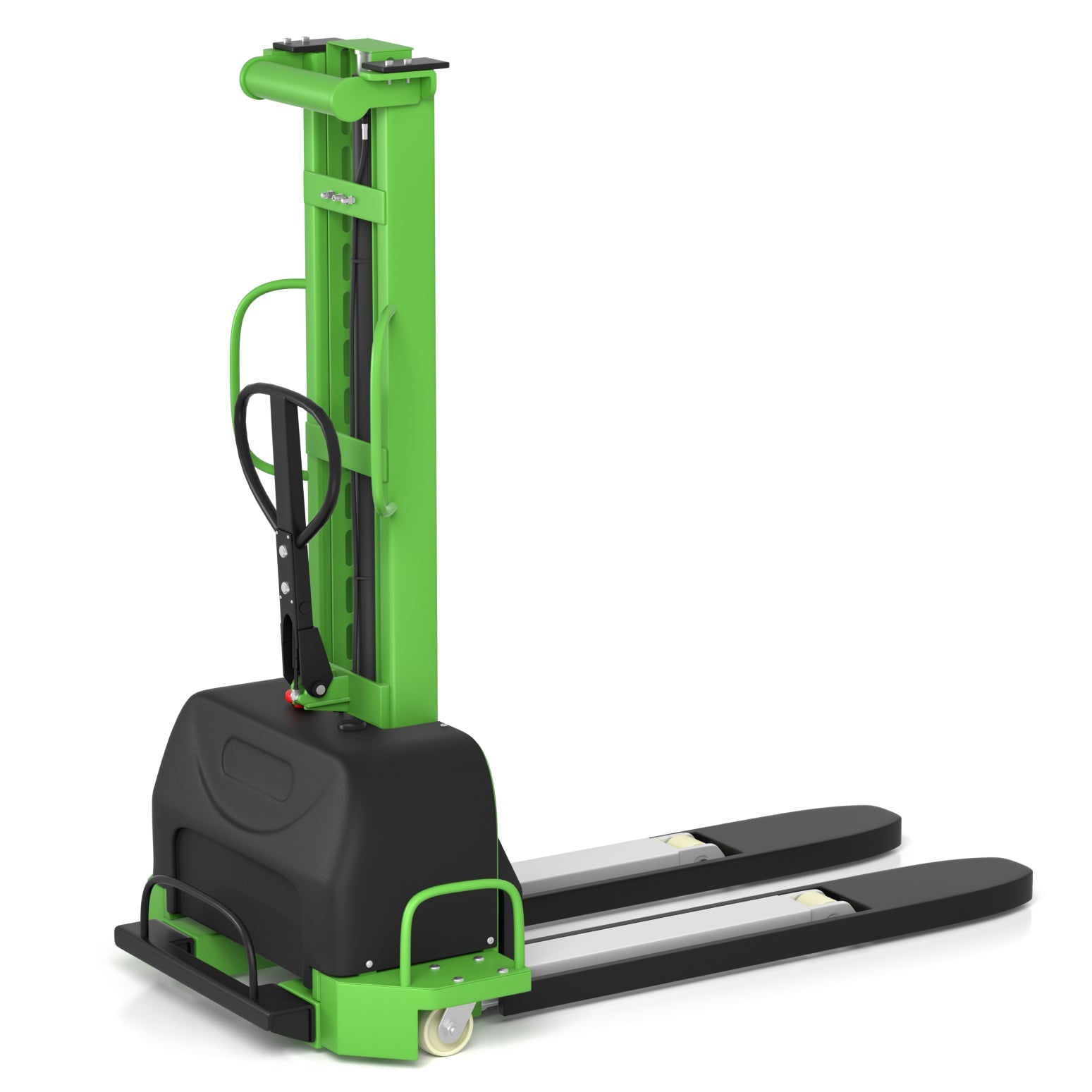

Semi-Electric Self-Loading Lifting Stacker – Model US-ZTS11K SE
The US-ZTS11K SE is a semi-electric, self-loading stacker designed for vans, box trucks, and last-mile deliveries. It lifts up to 1,100 lbs and loads both the cargo and the stacker itself into a vehicle quickly and safely.
- Maximum Load Capacity: 1,100 lbs
- Maximum Lifting Height: 4 ft (51″)
- Product Dimensions: 62″ L × 35″ W × 63″ H
- Weight (with battery): 550 lbs
- Fork Length: 45″
- External Fork Width: 21″
- Power System: 12V / 45Ah gel battery
- Lift Speed (loaded): approx. 1.77 in/sec
- Descent Speed (loaded): approx. 2.76 in/sec
- Rear Plate: Ideal for cargo vans with step bumpers
- ⚡ Semi-Electric: Electric lift with manual travel for low maintenance.
- 🔋 Durable Gel Battery: Reliable power for lifting applications.

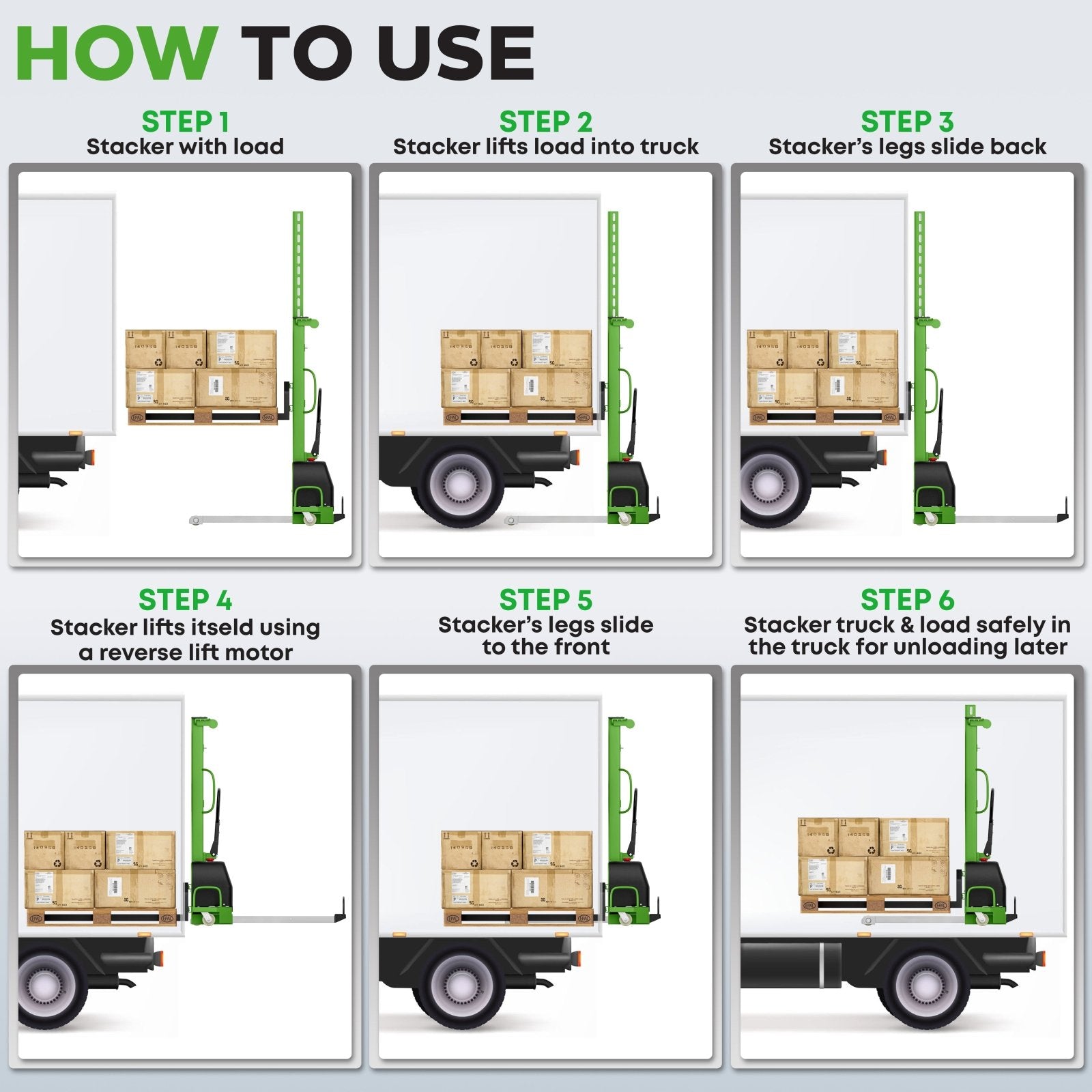

- 🚛 Self-Loading: Lift the stacker + load into vehicles directly.
- 🧭 Compact & Versatile: Excellent for vans, warehouses, mobile work.
- 🚚 Nationwide U.S. Shipping Available
- ❌ No Sales Tax outside TX
- 📞 Talk to a Specialist: +1 (214) 468-4388
- 🎖️ Military Discount available
- 💲 3% Wire-Transfer Discount: Save 3% when paying by wire transfer.
Request 3% Wire Discount
Get to know the product

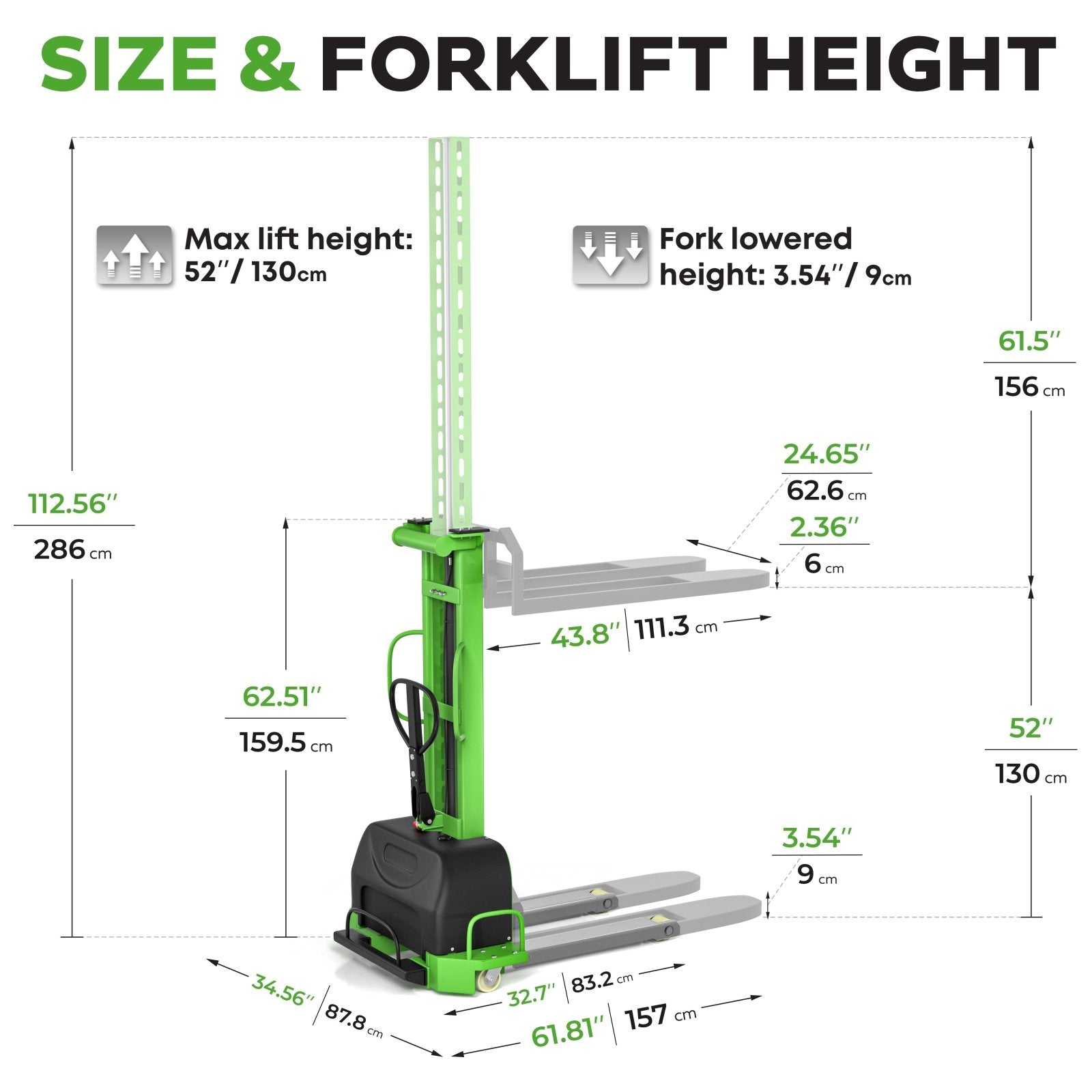

PRODUCT SPECIFICATIONS
The specification chart above for the Texlift US-ZTS-11K-SE Self Electric Stacker Semi Electric presents a snapshot of its operational and physical characteristics, highlighting its suitability for a range of material handling tasks.
US-ZTS-11K-SE
Compact and efficient semi-electric stacker for material handling.
1100 lbs
Handles up to 1100 lbs for lightweight and medium-duty applications.
16 inches
16-inch load center ensures balanced weight distribution.
550 lbs
Lightweight at 550 lbs for easy maneuverability.
51 inches
51-inch lift height for efficient stacking and storage.
5.50 inches/s
5.50 inches/s lifting speed without load for fast operation.
5.30 inches/s
5.30 inches/s lifting speed with load for controlled performance.
5.50 inches/s
5.50 inches/s lowering speed without load for quick handling.
5.70 inches/s
5.70 inches/s lowering speed with load for smooth operation.
62 inches
Compact 62-inch length for maneuvering in tight spaces.
35 inches
35-inch width ensures stability during operation.
63 inches
63-inch mast lowered height allows for storage in small spaces.
113 inches
113-inch max height (mast lifted with backrest) for high stacking.
33 inches
33-inch wheelbase ensures smooth movement.
44 inches
44-inch fork length accommodates various pallet sizes.
23 inches
23-inch fork outside width for stability and support.
7.5 inches
7.5-inch fork inside width for versatility.
3.5 inches
Minimum fork height of 3.5 inches for easy pallet entry.
12V
12V battery for consistent performance.
45Ah
45Ah battery capacity ensures long-lasting operation.
SIMPLICITY MEETS EFFICIENCY
Elevate your material handling with the Texlift US-ZTS-11K-SE, where straightforward design converges with effective performance.
ECONOMICAL PERFORMANCE
The semi-electric model provides a cost-effective solution for businesses seeking to increase productivity without a hefty investment.
MINIMAL MAINTENANCE
Requires less upkeep compared to fully electric models, thanks to its simple design and fewer electronic components.
SAFETY AND STABILITY
Equipped with safety features that include an emergency brake and stable construction, ensuring secure operation at all times.
Support Center
FAQs
Dive into the specifics of maximizing the use of your Texlift US-ZTS-11K-SE Self Electric Stacker Semi Electric. These FAQs aim to enhance your understanding, streamline your workflow, and ensure the longevity and safety of your equipment.
What is the advantage of a semi-electric stacker? +
It combines the manual ease of moving with the power of electric lifting, offering a balance of control and ease for various material handling tasks.
How should the US-ZTS-11K-SE be stored when not in use? +
Store in a dry, secure area. Ensure the battery is charged and the stacker is in a safe, stationary position to avoid unintended movement.
Can the US-ZTS-11K-SE be used by anyone in the warehouse? +
Yes, with proper training on its operation and safety protocols. Its design emphasizes ease of use, making it accessible to a wide range of operators.
What routine maintenance is required? +
Regular checks should include battery maintenance, inspection of the lifting mechanism, and ensuring all safety features are fully operational.
