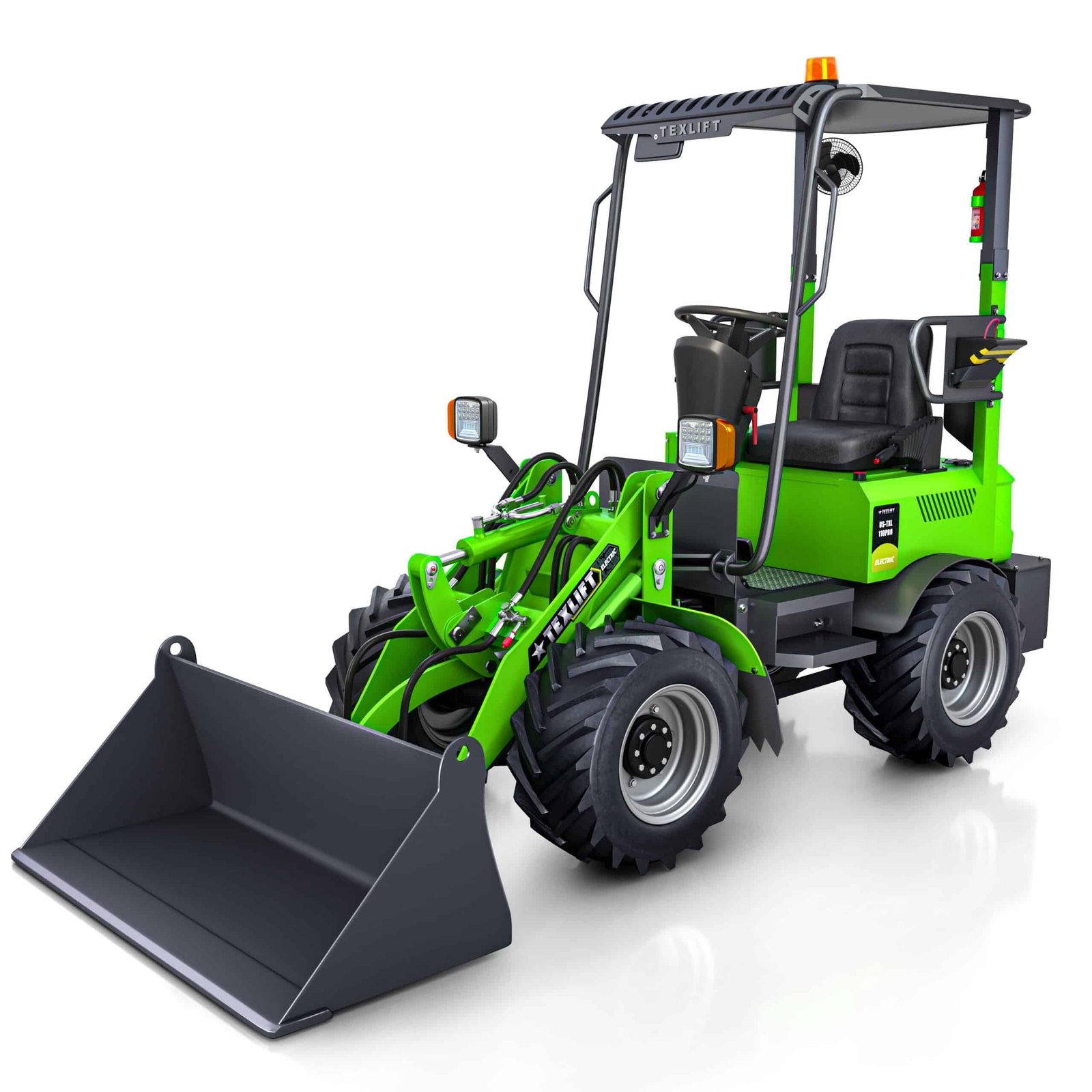

US-TXL110 PRO Full Electric Wheel Loader – 1,100 lb Capacity | 85" Lift Height | Lithium Powered

1,100 lb Rated Operating Capacity

The US-TXL110 PRO Electric Wheel Loader provides a 1,100 lb rated operating capacity for handling soil, gravel, mulch, sand, feed, compost, landscaping materials, construction supplies, and other compatible loads within the machine’s operating limits.

Actual load-handling capability depends on load position, attachment type, terrain, operating conditions, and other factors. Always follow the machine data plate and applicable operating instructions.

85 in Maximum Lift Height

With a maximum lift height of approximately 85 in, this Electric Wheel Loader provides practical vertical reach for loading, material positioning, transport, and general commercial material-handling applications.

Its compact configuration combines useful lifting capability with maneuverability for operations where working space may be limited.

65 in Maximum Dump Height

The US-TXL110 PRO Electric Wheel Loader provides a maximum dump height of approximately 65 in, allowing compatible materials to be discharged into trucks, trailers, dumpsters, containers, hoppers, bins, and other suitable receiving areas.

Always verify the required loading and dumping clearance for the intended application before operation.

7 Cu. Ft. Bucket

The standard 7 cu. ft. bucket provides useful capacity for moving soil, mulch, gravel, sand, feed, compost, wood chips, landscaping materials, and other compatible bulk materials.

Combined with the loader’s electric hydraulic system, the bucket provides an efficient solution for loading, carrying, positioning, and dumping materials around commercial job sites and facilities.

60.8V / 160Ah LiFePO4 Lithium Battery

The US-TXL110 PRO Electric Wheel Loader is powered by a high-capacity 60.8V / 160Ah LiFePO4 lithium battery that supplies energy to the machine’s electric travel and hydraulic systems.

With approximately 9.728 kWh of nominal battery energy, the lithium power system provides efficient cordless operation without the fuel system, engine oil, or operating exhaust emissions associated with conventional internal-combustion loaders.

Up to 6 Hours Runtime

The US-TXL110 PRO provides up to approximately 6 hours of operating time per charge under suitable operating conditions, making this Electric Wheel Loader suitable for a wide range of daily commercial material-handling tasks.

Actual runtime varies depending on payload, travel distance, terrain, hydraulic usage, attachment use, operating technique, temperature, battery condition, and overall operating intensity.

Approximately 6.5-Hour Charging Time

A full battery recharge requires approximately 6.5 hours under suitable charging conditions when using the correct compatible charger.

Actual charging time can vary depending on remaining battery charge, battery temperature, battery condition, charger performance, and environmental conditions.

Dual 2.5 kW Electric Drive Motors

Two 2.5 kW electric drive motors provide a combined 5 kW of electric drive power for smooth powered travel and responsive machine movement.

The dual-motor drivetrain gives this Electric Wheel Loader dependable powered travel for material transport, loading, landscaping, agricultural work, property maintenance, and other professional applications.

3 kW Hydraulic Motor

A dedicated 3 kW electric hydraulic motor powers the loader’s hydraulic functions, providing responsive operation of the lift arms, bucket, and compatible hydraulic attachments.

The dedicated hydraulic power system allows the US-TXL110 PRO to perform demanding loading and material-handling functions while maintaining a fully electric powertrain.

2,320 PSI / 6.9 GPM Hydraulic System

The US-TXL110 PRO Electric Wheel Loader delivers up to 2,320 PSI of hydraulic pressure with approximately 6.9 GPM of hydraulic flow.

Combined with the dedicated 3 kW hydraulic motor, the system provides responsive lifting, bucket operation, dumping, and hydraulic performance for professional material-handling applications and compatible hydraulic attachments.

Heavy-Duty 26 × 12.00-12 Tires

The US-TXL110 PRO is equipped with 26 × 12.00-12 tires, providing a substantial footprint and useful traction for operation across compatible construction sites, landscaping properties, agricultural facilities, yards, warehouses, material-handling areas, and other commercial surfaces.

Operators should always verify that the operating surface is firm, stable, adequately supported, and suitable for the Electric Wheel Loader and the load being handled.

Compact 45 in Overall Width

With an overall width of approximately 45 in, the US-TXL110 PRO Electric Wheel Loader combines useful loader performance with a compact footprint for improved maneuverability.

Its compact dimensions make it particularly useful in landscaping operations, commercial properties, agricultural facilities, warehouses, material yards, and other environments where working space may be restricted.

48 in Pallet Fork Attachment

The US-TXL110 PRO Electric Wheel Loader is compatible with a 48 in pallet fork attachment, expanding the machine beyond standard bucket applications for palletized materials and compatible loads.

The pallet forks provide an adjustable inside width of approximately 0–23 in with approximately 4 in wide fork tines. Actual load capability with forks depends on load center, attachment configuration, load position, terrain, and operating conditions.

Compact Full Electric Wheel Loader

Measuring approximately 140 in long, 45 in wide, and 87 in high with the open canopy, the US-TXL110 PRO combines professional loading capability with the maneuverability of a compact Electric Wheel Loader.

Its fully electric drivetrain produces no operating exhaust emissions at the machine and reduces operating noise compared with conventional fuel-powered equipment, making it suitable for outdoor operations and compatible indoor commercial environments.

Where This Electric Wheel Loader Works Best

The US-TXL110 PRO Electric Wheel Loader is well suited for construction sites, landscaping operations, farms and ranches, warehouses, garden centers, nurseries, material yards, municipalities, commercial properties, and industrial facilities.

Its combination of compact dimensions, lithium power, bucket capacity, hydraulic performance, and attachment compatibility makes it a versatile Electric Wheel Loader for professional indoor and outdoor operations on suitable surfaces.

Best Electric Wheel Loader Applications

Use the US-TXL110 PRO for moving and loading soil, mulch, gravel, sand, feed, compost, wood chips, landscaping materials, construction supplies, and other compatible bulk materials.

With suitable attachments, this Electric Wheel Loader can also support pallet handling, property maintenance, agricultural work, material transport, loading and unloading, facility maintenance, and other professional applications.

Professional Electric Material Handling

The US-TXL110 PRO Electric Wheel Loader is designed for businesses that need a compact machine for repeated loading, transporting, positioning, and dumping operations.

Its combination of lithium power, compact dimensions, bucket capacity, hydraulic performance, and attachment compatibility provides a practical solution for commercial material-handling work across landscaping, construction, agriculture, warehouses, material yards, municipalities, and property-maintenance operations.

Electric Wheel Loader Support & 12-Month Warranty

The US-TXL110 PRO Electric Wheel Loader is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.

Technical support and replacement-parts assistance are available to help customers maintain and service their equipment. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are not covered under the replacement-parts warranty.

Proper operation, routine inspection, battery maintenance, charging practices, hydraulic-system maintenance, and scheduled service are important for reliable Electric Wheel Loader performance and long equipment service life.
