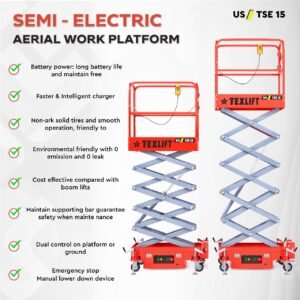

Built for compact and efficient elevated access, this 15 ft semi-electric scissor lift combines electric-powered lifting with manual travel for warehouse maintenance, commercial facilities, installation, inspection, repair, and industrial service work. With a 15 ft maximum platform height, 440 lb platform capacity, and compact 45 × 24 in working platform, the US-TSE15 provides a practical aerial work platform for everyday indoor elevated-access applications.
Powered by a 12V/105Ah rechargeable battery and 12V/0.8 kW electric lift motor, this semi-electric scissor lift provides up to approximately 6 hours of operation per charge with an approximately 6-hour charging time. Its compact 30 in overall width and approximately 47 in turning radius provide practical maneuverability throughout compatible warehouses, workshops, commercial buildings, maintenance areas, and industrial facilities with firm, stable, and level surfaces.

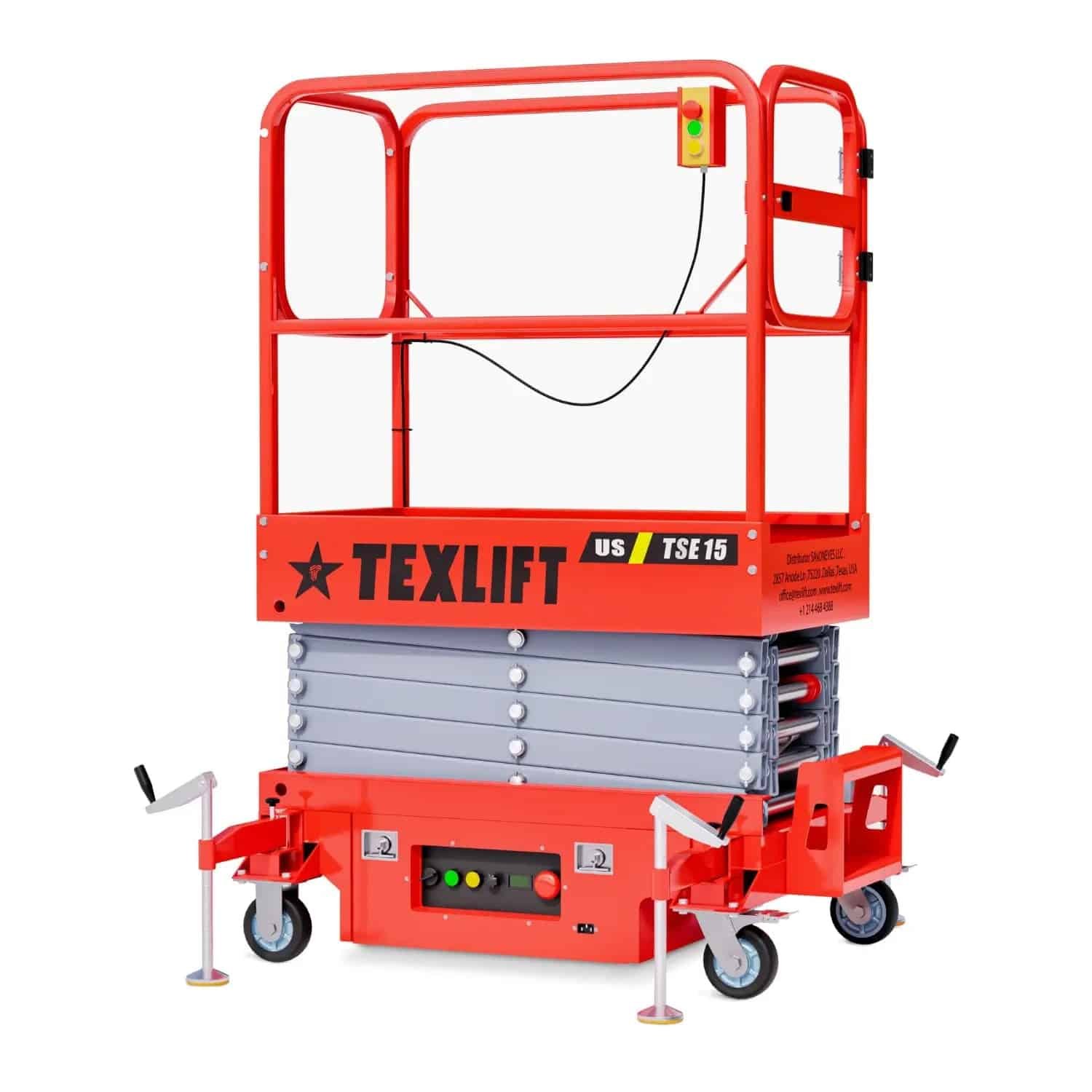

The US-TSE15 semi-electric scissor lift provides a 15 ft maximum platform height for maintenance, installation, inspection, repair, and facility-service applications.
Its compact elevated-access design provides practical access to lighting, ceilings, electrical components, HVAC-related equipment, signage, fixtures, shelving areas, and other overhead work locations within the machine’s rated operating range.
The maximum approximate working height is 22 ft, providing additional working reach for overhead commercial and industrial applications.
The 22 ft measurement represents approximate working height rather than platform height. The US-TSE15 is a 15 ft semi-electric scissor lift based on its maximum platform height.
The working platform supports up to 440 lbs, providing capacity for an operator together with compatible tools, equipment, and materials while remaining within the machine’s rated operating limits.
Always account for the combined weight of the operator, tools, equipment, and materials. Do not exceed the rated 440 lb platform capacity.
The 45 in long × 24 in wide working platform provides practical standing and working space while maintaining the compact footprint required for indoor maneuverability.
The platform provides room for an operator and compatible tools and materials required for maintenance, inspection, installation, repair, and facility-service work.
This semi-electric scissor lift combines electric-powered platform lifting with manual machine travel.
The electric hydraulic system raises and lowers the platform without manual pumping, while the machine is manually positioned between work locations.
This configuration provides a practical and cost-efficient elevated-access solution for facilities where self-propelled travel is not required.

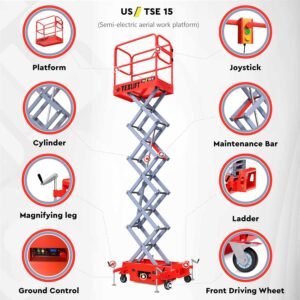

The US-TSE15 semi-electric scissor lift uses an electric hydraulic system for powered platform raising and lowering, reducing operator effort during repetitive elevated-access work.
This powered lifting system is particularly useful for maintenance and facility-service applications requiring repeated platform positioning throughout the workday.
The US-TSE15 is manually propelled and is not a self-propelled scissor lift.
The machine is manually positioned between work locations, while platform raising and lowering are electrically powered.
This configuration is best suited for firm, smooth, stable, and level surfaces where powered travel is not required.
A dedicated 12V/0.8 kW electric motor powers the hydraulic lifting system.
The lift motor provides powered platform raising and lowering for commercial maintenance, installation, inspection, repair, and facility-service applications.
Because machine travel is manual, electric power is primarily dedicated to the platform lifting system rather than traction.
The US-TSE15 uses a rechargeable 12V/105Ah battery to supply power to the electric lifting system.
The battery provides approximately 1.26 kWh of nominal battery energy and up to approximately 6 hours of operation per charge under suitable working conditions.
Actual operating time varies depending on lifting frequency, platform load, battery condition, temperature, operating intensity, and working conditions.
The US-TSE15 uses a 12V/15A charger matched to its rechargeable battery system.
Typical charging time is approximately 6 hours under suitable charging conditions. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, and charging conditions.
With an approximately 30 in overall machine width, the US-TSE15 maintains a compact footprint for maneuvering and positioning throughout compatible indoor commercial and industrial environments.
The narrow configuration is particularly useful in warehouses, workshops, maintenance areas, retail facilities, commercial buildings, and industrial facilities where larger elevated-access equipment may be more difficult to position.
Always verify doorway, aisle, elevator, floor, and other access clearances before moving the machine into a work area.
An approximately 47 in turning radius supports practical maneuverability when manually positioning the semi-electric scissor lift throughout compatible indoor work environments.
Combined with its compact 30 in overall width, the machine can be positioned throughout suitable warehouses, workshops, maintenance areas, commercial buildings, and other confined working locations.
The US-TSE15 combines a 15 ft platform height with a compact machine footprint, providing elevated access without requiring a larger self-propelled scissor lift.
Its semi-electric configuration provides powered lifting while retaining straightforward manual positioning between work areas, making it practical for businesses that require elevated access but do not require powered travel.

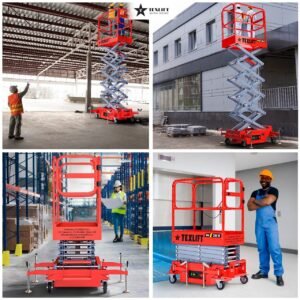

This semi-electric scissor lift provides elevated access for compatible warehouse lighting, electrical systems, ceiling components, fixtures, inspections, repairs, installation work, and routine facility maintenance.
Its compact dimensions make it particularly practical for indoor warehouse and distribution environments with firm and level floors.
The compact design makes the US-TSE15 suitable for elevated facility-service work throughout compatible commercial buildings.
Maintenance personnel can use the working platform for overhead inspections, lighting work, electrical service, fixture installation, signage, painting, maintenance, and repair tasks.
The elevated working platform provides practical access to compatible lighting fixtures, electrical components, conduit, wiring areas, and other overhead systems.
Electric-powered lifting allows operators to raise and lower the platform as required while completing maintenance, installation, inspection, and repair work.
The US-TSE15 provides elevated access for compatible HVAC-related inspections, maintenance, installation, and service tasks located within its rated operating range.
Its compact dimensions make this semi-electric scissor lift practical for many indoor commercial, warehouse, workshop, and industrial maintenance environments.
Use the working platform for compatible signage, displays, fixtures, shelving components, overhead equipment, and other installation or service work within the machine’s rated height and platform capacity.
The compact design allows the machine to be positioned in many commercial locations where larger aerial equipment may be unnecessary.
The semi-electric scissor lift provides elevated access for facility inspections, equipment checks, building-component inspections, preventive maintenance, installation, and repair work.
Electric lifting allows the platform to be raised and lowered as required while completing repetitive elevated-access tasks.
The elevated platform can be used for compatible painting, touch-up work, facility service, fixture maintenance, and other overhead tasks.
The 45 × 24 in platform provides practical working space while maintaining a compact overall machine footprint.
The US-TSE15 is designed primarily for firm, stable, level, and adequately supported surfaces.
This model is not designed as a rough-terrain or off-road scissor lift. Do not operate or elevate the machine on unstable, soft, severely uneven, or inadequately supported surfaces.
This compact semi-electric scissor lift is particularly well suited for warehouses, workshops, retail facilities, commercial buildings, maintenance departments, service centers, manufacturing facilities, and other compatible indoor commercial and industrial environments.
Before operation, always evaluate floor condition and capacity, overhead clearance, surrounding obstacles, access dimensions, working-area conditions, and other site-specific requirements.
The US-TSE15 semi-electric scissor lift works best in warehouses, commercial facilities, industrial buildings, workshops, retail environments, manufacturing facilities, maintenance departments, service centers, and other locations requiring compact elevated access on firm and level surfaces.
Its combination of 15 ft platform height, 440 lb platform capacity, 45 × 24 in working platform, compact 30 in overall width, and electric-powered lifting makes it particularly useful for routine maintenance, installation, inspection, and facility-service work.
Ideal applications include warehouse maintenance, lighting service, electrical work, ceiling access, HVAC-related service, signage installation, fixture installation, facility inspections, painting, repairs, preventive maintenance, equipment servicing, installation work, and other compatible elevated-access applications.
The US-TSE15 uses a rechargeable 12V/105Ah battery providing approximately 1.26 kWh of nominal battery energy to power its 12V/0.8 kW electric hydraulic lifting system.
The battery provides up to approximately 6 hours of operating time per charge under suitable working conditions. Actual runtime varies depending on lifting frequency, platform load, battery condition, temperature, operating intensity, and working conditions.
The 12V/15A charger provides an approximately 6-hour charging time under suitable charging conditions. Actual charging time may vary depending on remaining battery charge, battery condition, temperature, and charging conditions.
The US-TSE15 includes a 12-month warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
Warranty coverage does not include normal wear, wheels and other consumable or wear items, misuse, overloading, accidents, improper operation, improper charging, inadequate maintenance, unauthorized modifications or repairs, or damage resulting from use outside the machine’s intended operating conditions.
Do not operate the US-TSE15 when the battery reaches 20% charge or below. Stop operation and recharge the battery before continuing use. Do not continue operating the battery at or below 20% charge, as excessive discharge may reduce battery performance, shorten battery service life, and may cause battery damage. Always follow the recommended charging, operating, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-TSE15 | Semi-electric scissor lift designed for commercial and industrial elevated-access applications |
| Platform Height | 15 ft | Maximum platform height for maintenance, installation, inspection, and elevated-access work |
| Working Height | 264 in (22 ft) | Maximum approximate working height for overhead commercial and industrial applications |
| Load Capacity | 440 lbs | Maximum rated platform capacity for operator, tools, and compatible materials |
| Platform Size | 45 × 24 in | Working platform dimensions provide practical operator and tool space |
| Power Source | Semi-Electric | Electric-powered lifting combined with manual machine travel |
| Travel System | Manual | Machine is manually positioned between work locations |
| Lift System | Electric Hydraulic | Battery-powered hydraulic system raises and lowers the working platform |
| Lift Motor | 12V / 0.8 kW | Electric motor powers the hydraulic lifting system |
| Battery | 12V / 105Ah | Rechargeable battery supplies power to the electric lifting system |
| Battery Voltage | 12V | Electrical system operating voltage |
| Battery Capacity | 105Ah | Rated battery capacity for electric lifting operation |
| Battery Energy | Approx. 1.26 kWh | Nominal battery energy based on the 12V / 105Ah battery system |
| Charger | 12V / 15A | Charger matched to the 12V battery system |

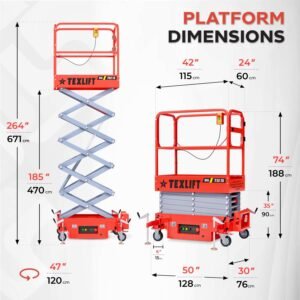

| Minimum Platform Height | 35 in (2 ft 11 in) | Lowest listed platform position for access and transport |
| Turning Radius | 47 in (3 ft 11 in) | Compact turning radius supports maneuverability in compatible indoor work areas |
| Overall Length | 50 in (4 ft 2 in) | Approximate total machine length |
| Overall Width | 30 in (2 ft 6 in) | Compact machine width supports maneuverability in tighter commercial and industrial spaces |
| Overall Height | 74 in (6 ft 2 in) | Approximate overall machine height with the platform lowered |
| Ground Clearance | 2.36 in | Low ground clearance designed for firm, smooth, and level operating surfaces |
| Wheel Diameter | 5.91 in | Wheel diameter designed for movement across compatible smooth and level surfaces |
| Machine Weight | 1,060 lbs | Approximate machine weight including battery |
| Recommended Environment | Indoor & Level-Surface Commercial | Best suited for warehouses, commercial facilities, workshops, maintenance areas, industrial facilities, and compatible job sites |
| Best Use | Elevated Access & Maintenance | Designed for maintenance, installation, inspection, repair, and overhead work |
| Typical Applications | Warehouses, Facilities, Contractors, Workshops, Retail & Industrial Maintenance | Suitable for a wide range of commercial and industrial elevated-access applications |
| Warranty | 12 Months | Warranty coverage for eligible manufacturing defects subject to applicable Texlift warranty terms and conditions |
| Important Battery Notice | Do Not Operate at 20% or Below | Stop operation and recharge the battery when the battery reaches 20% charge. Do not continue operating the battery at or below 20% charge. |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-TSE15 provides a maximum platform height of approximately 185 in (15 ft ), making it suitable for maintenance, installation, inspection, repair, and other elevated-access applications.
The maximum approximate working height is 264 in (22 ft). Working height represents the approximate overhead reach available to an operator and is different from the machine's platform height.
The US-TSE15 has a maximum rated platform capacity of 440 lbs, including the combined weight of the operator, tools, equipment, and compatible materials.
The working platform measures approximately 45 × 24 in, providing practical standing and tool space while maintaining a compact machine footprint.
Yes. The US-TSE15 uses electric-powered hydraulic lifting while machine travel is manual, making it a practical option where self-propelled travel is not required.
No. Travel is manual. The machine must be manually positioned between work locations according to the recommended operating procedures.
The platform uses an electric hydraulic lifting system powered by a 12V / 0.8 kW lift motor.
The scissor lift uses a rechargeable 12V / 105Ah battery to power the electric lifting system.
The 12V / 105Ah battery provides approximately 1.26 kWh of nominal battery energy.
The machine uses a 12V / 15A charger matched to its rechargeable 12V battery system.
No. Stop operation and recharge the battery when it reaches 20% charge. Do not continue operating the battery at or below 20% charge.
The minimum listed platform height is approximately 35 in.
The machine is approximately 30 in wide, providing a compact footprint for maneuvering through compatible commercial and industrial work areas.
The US-TSE15 is approximately 50 in long, 30 in wide, and 74 in high with the platform lowered.
The US-TSE15 has an approximately 47 in turning radius, supporting maneuverability when positioning the machine in compatible indoor work areas.
Ground clearance is approximately 2.4 in, making the machine best suited for firm, smooth, and level operating surfaces.
The wheels are approximately 6 in in diameter and are designed for movement across compatible smooth and level surfaces.
The machine weighs approximately 1,060 lbs including the battery.
Yes. The US-TSE15 is particularly well suited for indoor commercial and industrial applications on firm, stable, level, and adequately supported surfaces.
No. The US-TSE15 is designed primarily for firm, smooth, and level surfaces and is not intended as a rough-terrain or off-road scissor lift.
It is well suited for warehouses, commercial buildings, workshops, retail facilities, manufacturing facilities, maintenance departments, service centers, and other compatible commercial and industrial environments.
Typical applications include lighting maintenance, electrical work, ceiling access, HVAC-related service, signage installation, fixture installation, inspections, painting, repairs, preventive maintenance, and other compatible elevated-access work.
The US-TSE15 includes a 12-month warranty covering eligible manufacturing defects, subject to applicable Texlift warranty terms and conditions.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Access available manuals, specification sheets, warranty information, and service resources for this product.
Operating instructions, safety information, and product guidance.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Provides elevated access for lighting, electrical systems, ceiling components, fixtures, shelving areas, inspections, repairs, and routine warehouse maintenance.
Suitable for elevated maintenance and facility-service work in commercial buildings with firm, stable, and level operating surfaces.
Provides practical elevated access for replacing, installing, inspecting, and servicing compatible overhead lighting fixtures.
Supports elevated access to compatible wiring, conduit, electrical components, junction areas, and other overhead electrical systems.
Provides elevated access for compatible HVAC inspections, maintenance, installation, and service work within the machine's rated operating height.
Suitable for inspections, maintenance, repairs, and installation work involving ceilings and compatible overhead building components.
Provides a stable elevated working platform for installing, servicing, inspecting, or replacing compatible indoor signage and displays.
Suitable for installing and servicing lighting fixtures, displays, shelving components, overhead equipment, and other compatible commercial fixtures.
Provides elevated access for inspecting building components, equipment, overhead systems, fixtures, and other areas requiring elevated positioning.
Supports routine elevated inspections, servicing, adjustments, and preventive maintenance throughout commercial and industrial facilities.
Provides elevated access for compatible repairs to lighting, fixtures, building components, electrical systems, equipment, and other overhead installations.
Suitable for compatible indoor painting, touch-up, finishing, and facility-maintenance work within the machine's rated height and capacity.
Provides compact elevated access for maintenance, inspection, installation, and repair work throughout compatible manufacturing environments.
Suitable for elevated maintenance and installation tasks in workshops, service facilities, equipment areas, and other commercial workspaces.
Provides elevated access for lighting, signage, displays, fixtures, ceiling components, inspections, and maintenance in compatible retail environments.
Supports routine elevated maintenance, inspection, installation, and repair work throughout compatible industrial facilities.
Provides a compact semi-electric elevated-access solution for contractors performing compatible installation, maintenance, inspection, repair, and facility-service work.
Designed primarily for elevated work on firm, stable, level, and adequately supported indoor commercial and industrial surfaces.
The approximately 30 in overall width and 47 in turning radius support positioning in compatible indoor areas where larger access equipment may be more difficult to maneuver.
The approximately 185 in platform height provides elevated access for maintenance, installation, inspection, and repair work requiring a platform height of approximately 15 ft.
Provides an approximate 22 ft maximum working height for compatible overhead maintenance and facility-service tasks.
Supports an operator, tools, equipment, and compatible materials with a combined platform load of up to 440 lbs.
Electric-powered platform lifting combined with manual travel provides a practical solution for facilities where self-propelled machine travel is not required.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-TSE15 includes a 12-month warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
Texlift technical assistance is available for product operation, troubleshooting, electric lifting, hydraulic functions, controls, charging, routine maintenance, and general equipment questions.
Technical assistance is available for the 12V / 0.8 kW lift motor, electric hydraulic lifting system, platform raising and lowering functions, and related components.
Assistance is available for the 12V / 105Ah rechargeable battery, including charging guidance, battery inspection, maintenance, storage, and performance troubleshooting.
Technical guidance is available for the 12V / 15A charger, charging procedures, charger connections, battery condition, and charging-system troubleshooting.
Assistance is available for the hydraulic lifting system, cylinders, hoses, fittings, connections, and troubleshooting related to platform lifting and lowering.
Technical assistance is available for the working platform, scissor mechanism, structural components, platform controls, and related elevated-access components.
Assistance is available for wheels, steering, manual positioning, maneuverability, and components associated with moving the machine between work locations.
Texlift provides assistance identifying compatible replacement parts for the battery, charger, electric lift system, hydraulic components, controls, platform components, wheels, scissor mechanism, and other service parts.
Regularly inspect the platform, scissor mechanism, hydraulic system, battery, charger, controls, wheels, structural components, fasteners, safety components, and electrical connections to help maintain dependable operation.
Follow recommended charging, operating, maintenance, and storage procedures. Use compatible charging equipment and protect the battery from excessive discharge, improper charging, physical damage, moisture, extreme temperatures, and unsuitable storage conditions.
Normal wear, wheels and other consumable or wear items, misuse, overloading, accidents, improper operation, improper charging, inadequate maintenance, unauthorized modifications or repairs, and damage resulting from use outside the machine's intended operating conditions are not covered.
Do not operate the US-TSE15 when the battery reaches 20% charge or below. Stop operation and recharge the battery before continuing use. Operating the battery at or below 20% may reduce battery performance, shorten battery service life, and may cause battery damage.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
Explore additional equipment selected to complement your material handling operation.
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
The Lift arrived in excellent condition. The only issues were missing screws in the drawer slides and the spare fuse was broken. the platform gate would not latch, but works fine after some adjustments.
