Adjustable Electric Walkie Stacker – 3300Lbs Capacity, 118" Lift Height
$4,400.00
Adjustable Electric Walkie Stacker – 3300Lbs Capacity, 118" Lift Height
Versatile Electric Pallet Stacking

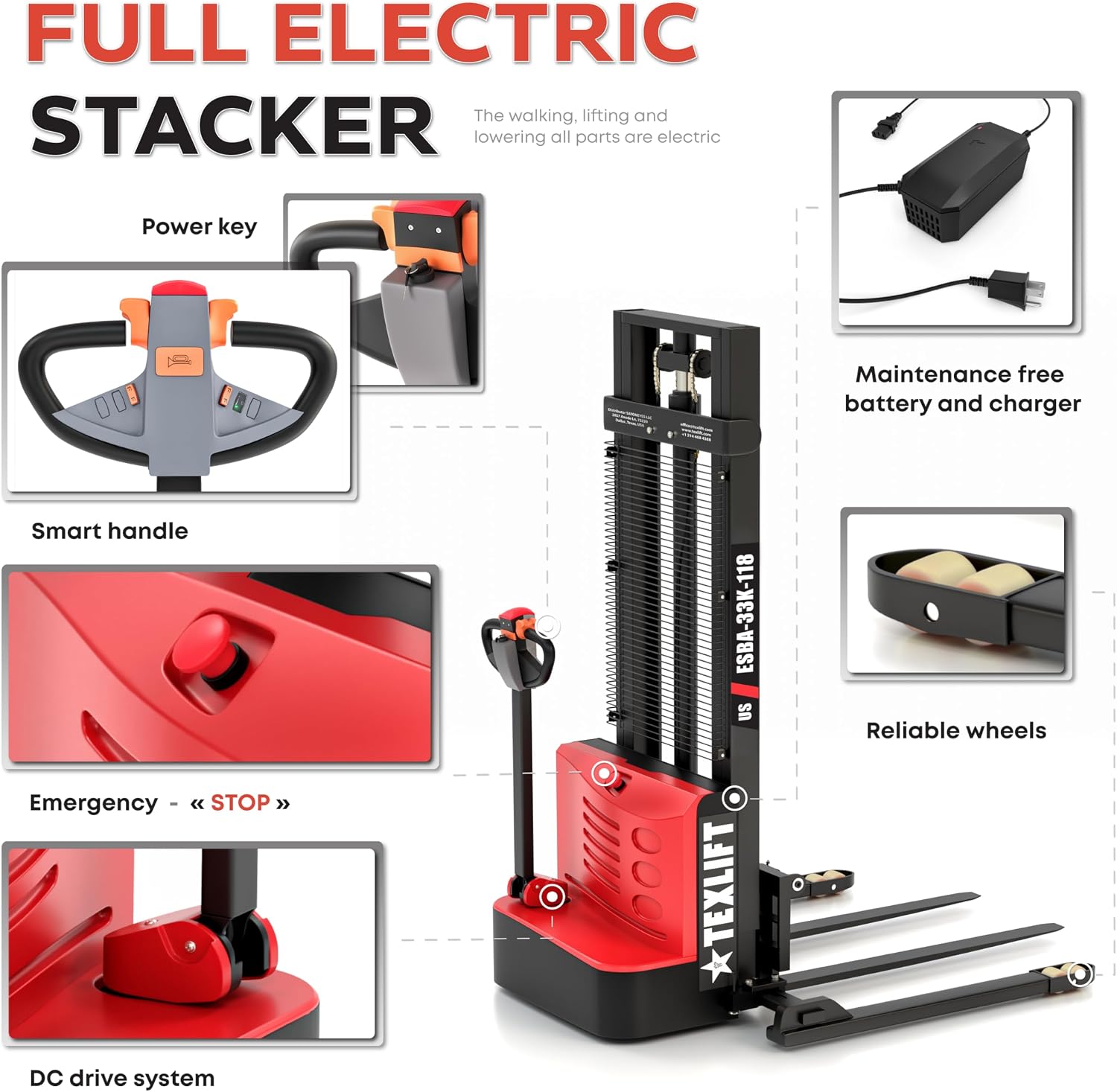

The Texlift US-ESBA33K118 is a full electric adjustable walkie stacker featuring a 3,300 lb load capacity, a 10 ft (118") maximum lift height, adjustable straddle legs (45"–61"), and adjustable forks (0"–27.5") for handling a wide variety of pallet sizes. Powered by a 24V / 100Ah lead-acid battery, a 0.75 kW drive motor, and a 2.2 kW hydraulic lift motor, it delivers smooth, zero-emission performance for warehouses, distribution centers, manufacturing facilities, retail stockrooms, and commercial material handling applications.
3,300 lb Capacity 10 ft (118") Lift Height 24V / 100Ah Battery Adjustable Forks Adjustable Straddle Legs Full Electric
Order Fulfillment
Pickup and nationwide freight shipping available from our Texas warehouse.
Fast Nationwide Delivery
Ships from Texas. Estimated delivery: 3–14 business days.
Freight shipping charges are calculated at checkout.
Local Pickup Available
Usually ready within 24 hours at our Dallas Distribution Center.
2857 Anode Ln, Dallas, TX 75220
Quantity Discounts
Automatic volume pricing for bulk orders.
Buy 2–4 Units
Save 2%
Buy 5–9 Units
Save 3%
Best Value
Buy 10+ Units
Save 5%
✓ Volume discounts are automatically applied at checkout.
Adjustable Electric Walkie Stacker – 3300Lbs Capacity, 118" Lift Height
Sale price$4,400.00
Regular price$4,800.00
PRODUCT DETAILS
Product Overview
Product Overview
Adjustable Electric Walkie Stacker – 3300Lbs Capacity, 118" Lift Height
The Texlift US-ESBA33K118 is a full electric adjustable walkie stacker engineered for versatile material handling with a 3,300 lb load capacity and a 10 ft (118") maximum lift height. Featuring adjustable straddle legs (45"–61") and adjustable forks (0"–27.5"), it easily accommodates a wide range of pallet sizes and load configurations. Powered by a dependable 24V / 100Ah lead-acid battery, a 0.75 kW drive motor, and a 2.2 kW hydraulic lift motor, the US-ESBA33K118 delivers smooth, reliable, zero-emission performance for warehouses, distribution centers, manufacturing facilities, retail stockrooms, and commercial material handling applications.
Performance Features
3,300 lb rated load capacity
10 ft (118") maximum lift height

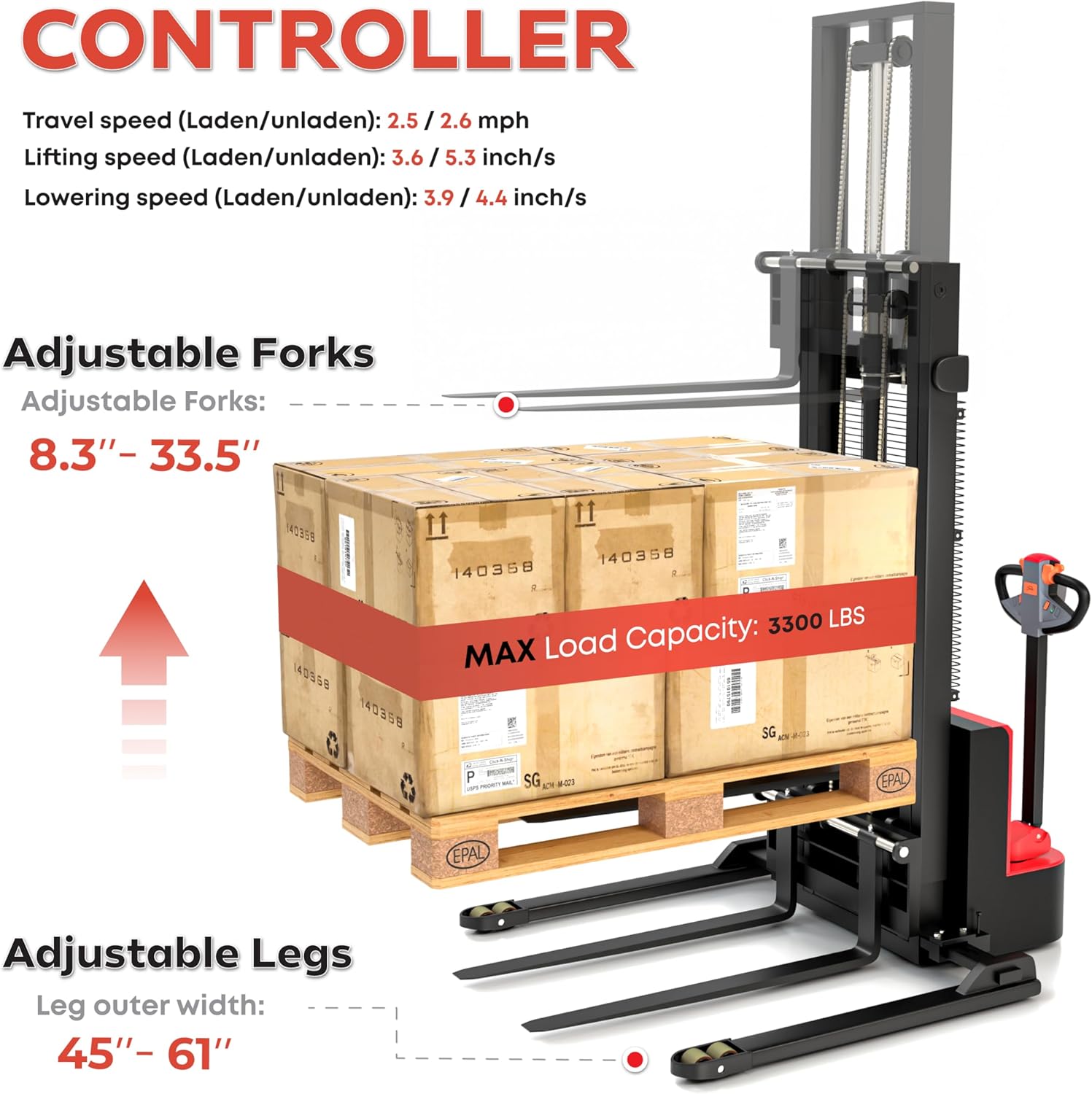

Adjustable straddle legs (45"–61")
Adjustable forks (0"–27.5")
Heavy-duty steel mast construction
24V full electric drive system
24V / 100Ah lead-acid battery
0.75 kW high-efficiency drive motor
2.2 kW powerful hydraulic lift motor
Electromagnetic braking system for enhanced safety
Travel speed up to 2.6 mph
Lifting speed up to 5.3 in/sec
Compact 70" overall length for easy maneuverability
46" wheelbase for improved stability and control
Smooth, quiet, zero-emission operation

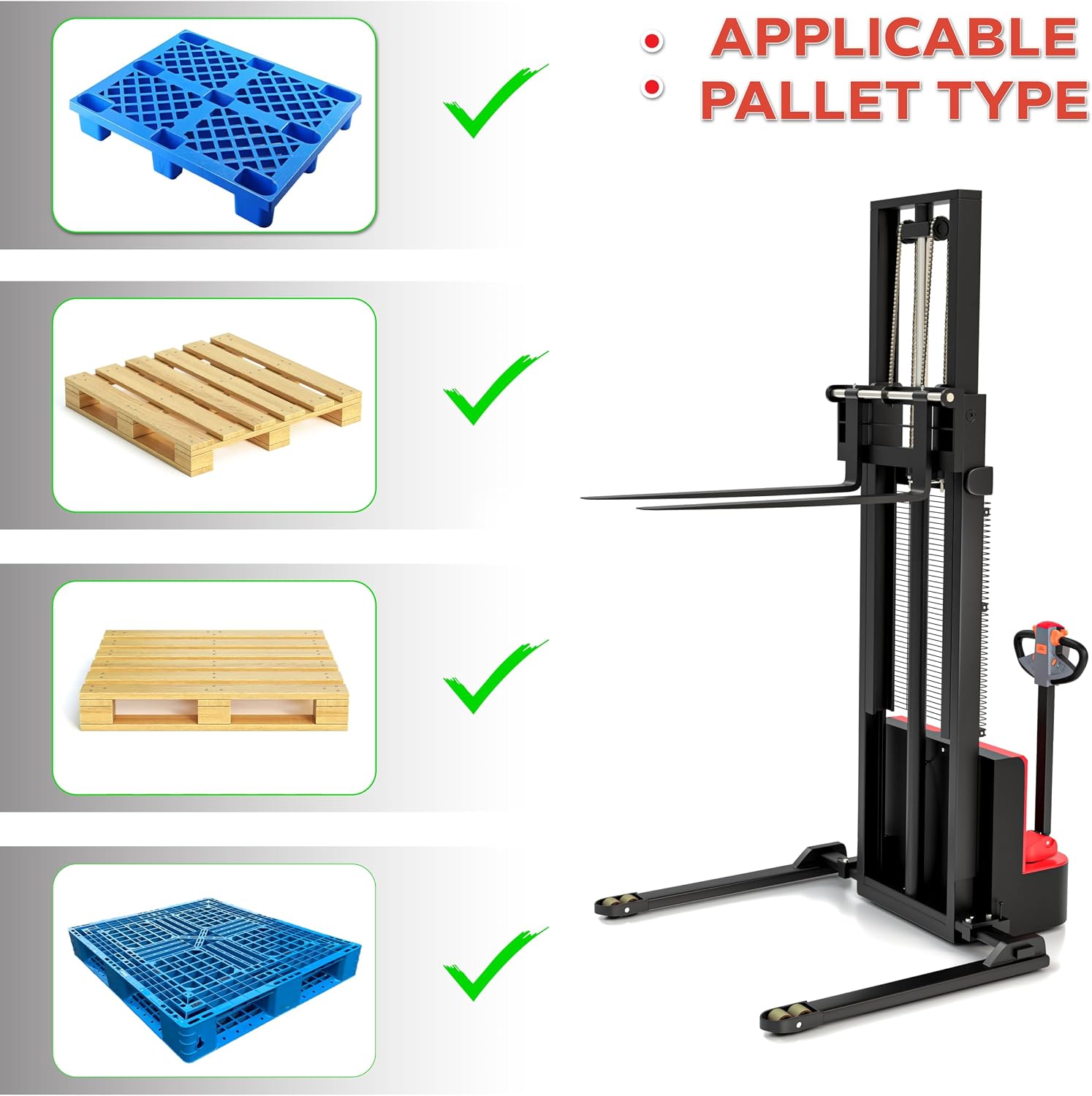

Ideal for standard, Euro, and custom pallet configurations
Built for warehouses, distribution centers, manufacturing facilities, and commercial material handling
10 ft (118") maximum lift height
Adjustable straddle legs (45"–61")
Adjustable forks (0"–27.5")
Heavy-duty steel mast construction
24V full electric drive system
24V / 100Ah lead-acid battery
0.75 kW high-efficiency drive motor
2.2 kW powerful hydraulic lift motor
Electromagnetic braking system for enhanced safety
Travel speed up to 2.6 mph
Lifting speed up to 5.3 in/sec
Compact 70" overall length for easy maneuverability
46" wheelbase for improved stability and control
Smooth, quiet, zero-emission operation
Ideal for standard, Euro, and custom pallet configurations
Built for warehouses, distribution centers, manufacturing facilities, and commercial material handling
Power System
24V / 100Ah industrial lead-acid battery
Integrated battery charging system
0.75 kW high-efficiency drive motor
2.2 kW hydraulic lift motor
Smooth electric travel and precise lifting performance
Travel speed up to 2.6 mph
Lifting speed up to 5.3 in/sec
Reliable power for continuous warehouse operation
Zero-emission indoor performance
Low-noise electric drive system
Energy-efficient hydraulic lifting system
Reduced maintenance compared to fuel-powered equipment
Commercial-grade electrical and hydraulic components
Designed for demanding warehouse and material handling applications
Integrated battery charging system
0.75 kW high-efficiency drive motor
2.2 kW hydraulic lift motor
Smooth electric travel and precise lifting performance
Travel speed up to 2.6 mph
Lifting speed up to 5.3 in/sec
Reliable power for continuous warehouse operation
Zero-emission indoor performance
Low-noise electric drive system
Energy-efficient hydraulic lifting system
Reduced maintenance compared to fuel-powered equipment
Commercial-grade electrical and hydraulic components
Designed for demanding warehouse and material handling applications

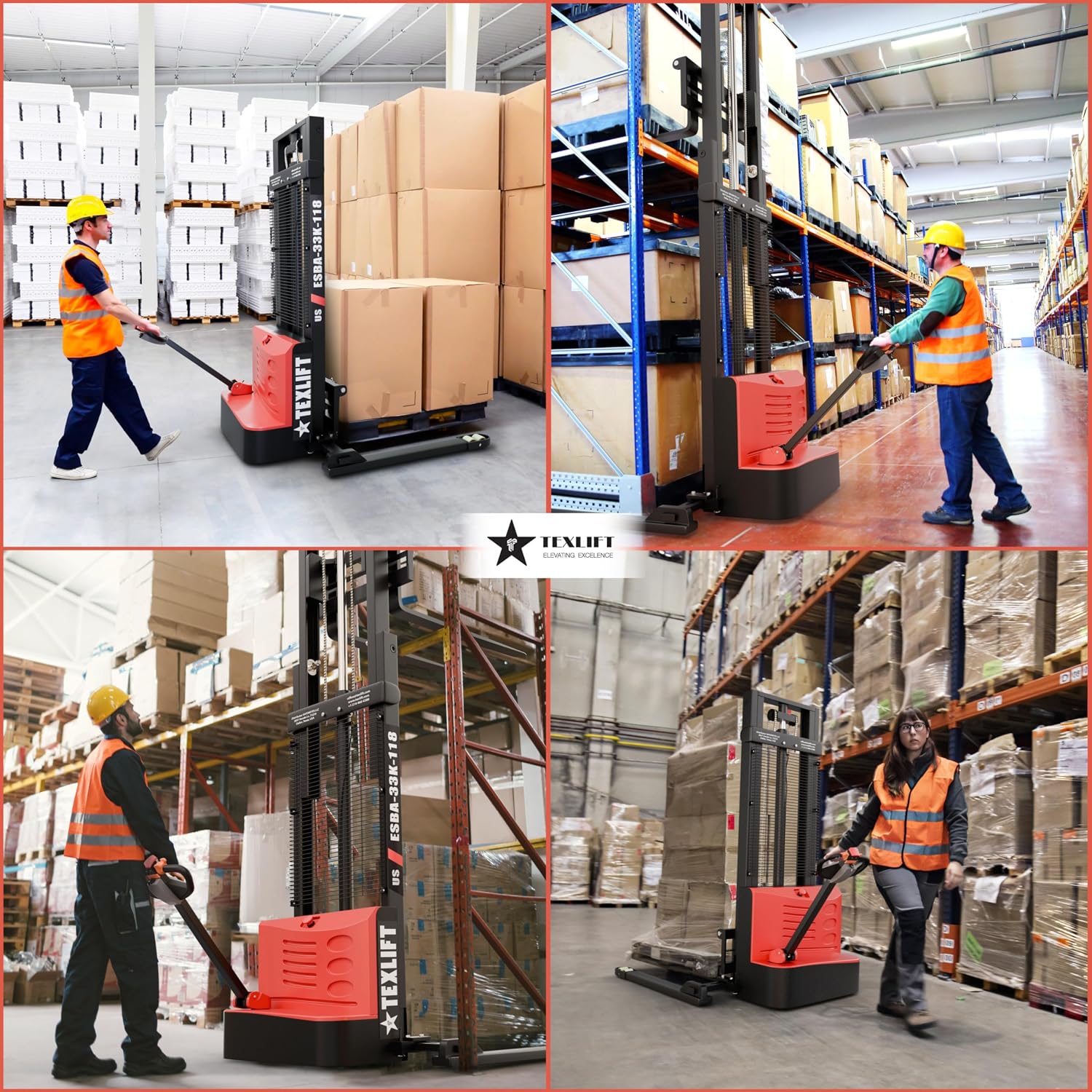

Best Applications
Warehouses and distribution centers
Manufacturing facilities and production lines
Retail stockrooms and inventory management
Shipping and receiving departments
Third-party logistics (3PL) operations
Commercial storage and fulfillment centers
Cold storage and temperature-controlled warehouses
High-density warehouse racking systems
Operations handling multiple pallet sizes
Loading, unloading, and pallet stacking applications
Daily commercial material handling tasks
Businesses requiring flexible pallet handling solutions
Manufacturing facilities and production lines
Retail stockrooms and inventory management
Shipping and receiving departments
Third-party logistics (3PL) operations
Commercial storage and fulfillment centers
Cold storage and temperature-controlled warehouses
High-density warehouse racking systems
Operations handling multiple pallet sizes
Loading, unloading, and pallet stacking applications
Daily commercial material handling tasks
Businesses requiring flexible pallet handling solutions
Support & Warranty
12-month manufacturer warranty
Coverage for manufacturing defects
Professional technical support from Texlift
Replacement parts and service assistance
Heavy-duty commercial-grade construction
Pre-delivery inspection before shipment
Integrated battery charging system
Reliable hydraulic and electrical components
Designed for daily commercial operation
Low-maintenance full electric drive system
Fast parts availability and customer support
Warranty excludes batteries, normal wear items, misuse, abuse, improper maintenance, unauthorized modifications, and accidental damage
Coverage for manufacturing defects
Professional technical support from Texlift
Replacement parts and service assistance
Heavy-duty commercial-grade construction
Pre-delivery inspection before shipment
Integrated battery charging system
Reliable hydraulic and electrical components
Designed for daily commercial operation
Low-maintenance full electric drive system
Fast parts availability and customer support
Warranty excludes batteries, normal wear items, misuse, abuse, improper maintenance, unauthorized modifications, and accidental damage
Additional Product Details
The Texlift US-ESBA33K118 is a premium full electric adjustable walkie stacker engineered to deliver exceptional versatility, dependable lifting performance, and efficient pallet handling for warehouses, distribution centers, manufacturing facilities, retail stockrooms, and commercial storage operations. With a 3,300 lb load capacity and a 10 ft (118") maximum lift height, this heavy-duty stacker is designed to maximize productivity while safely lifting, transporting, and stacking palletized loads in demanding commercial environments.
Unlike conventional walkie stackers with fixed outriggers, the US-ESBA33K118 features adjustable straddle legs that expand from 45" to 61" and adjustable forks ranging from 0" to 27.5", allowing operators to handle standard pallets, Euro pallets, oversized pallets, and custom load configurations with greater flexibility and stability. This adaptable design makes it an excellent solution for facilities that regularly work with multiple pallet sizes and changing material handling requirements.
Powered by a dependable 24V / 100Ah lead-acid battery, the stacker combines a 0.75 kW high-efficiency drive motor with a powerful 2.2 kW hydraulic lift motor to provide smooth travel, precise lifting, and reliable performance throughout the workday. The full electric drive system delivers quiet, zero-emission operation, helping reduce operating costs while providing an environmentally friendly solution for indoor material handling.
The compact 70-inch chassis, 46-inch wheelbase, and ergonomic walk-behind controls provide outstanding maneuverability in narrow warehouse aisles and confined work areas. Its heavy-duty steel mast, precision hydraulic system, and electromagnetic braking system ensure safe, controlled lifting, lowering, and transport of heavy palletized loads while improving operator confidence and reducing fatigue during extended shifts.
Built for demanding commercial applications, the Texlift US-ESBA33K118 combines heavy-duty construction, adjustable pallet handling capability, and dependable electric performance into one highly versatile material handling solution. Whether loading trailers, replenishing warehouse inventory, organizing storage racks, or transporting palletized products, this adjustable electric walkie stacker delivers the flexibility, efficiency, and reliability businesses need to maximize productivity every day.
Unlike conventional walkie stackers with fixed outriggers, the US-ESBA33K118 features adjustable straddle legs that expand from 45" to 61" and adjustable forks ranging from 0" to 27.5", allowing operators to handle standard pallets, Euro pallets, oversized pallets, and custom load configurations with greater flexibility and stability. This adaptable design makes it an excellent solution for facilities that regularly work with multiple pallet sizes and changing material handling requirements.
Powered by a dependable 24V / 100Ah lead-acid battery, the stacker combines a 0.75 kW high-efficiency drive motor with a powerful 2.2 kW hydraulic lift motor to provide smooth travel, precise lifting, and reliable performance throughout the workday. The full electric drive system delivers quiet, zero-emission operation, helping reduce operating costs while providing an environmentally friendly solution for indoor material handling.
The compact 70-inch chassis, 46-inch wheelbase, and ergonomic walk-behind controls provide outstanding maneuverability in narrow warehouse aisles and confined work areas. Its heavy-duty steel mast, precision hydraulic system, and electromagnetic braking system ensure safe, controlled lifting, lowering, and transport of heavy palletized loads while improving operator confidence and reducing fatigue during extended shifts.
Built for demanding commercial applications, the Texlift US-ESBA33K118 combines heavy-duty construction, adjustable pallet handling capability, and dependable electric performance into one highly versatile material handling solution. Whether loading trailers, replenishing warehouse inventory, organizing storage racks, or transporting palletized products, this adjustable electric walkie stacker delivers the flexibility, efficiency, and reliability businesses need to maximize productivity every day.

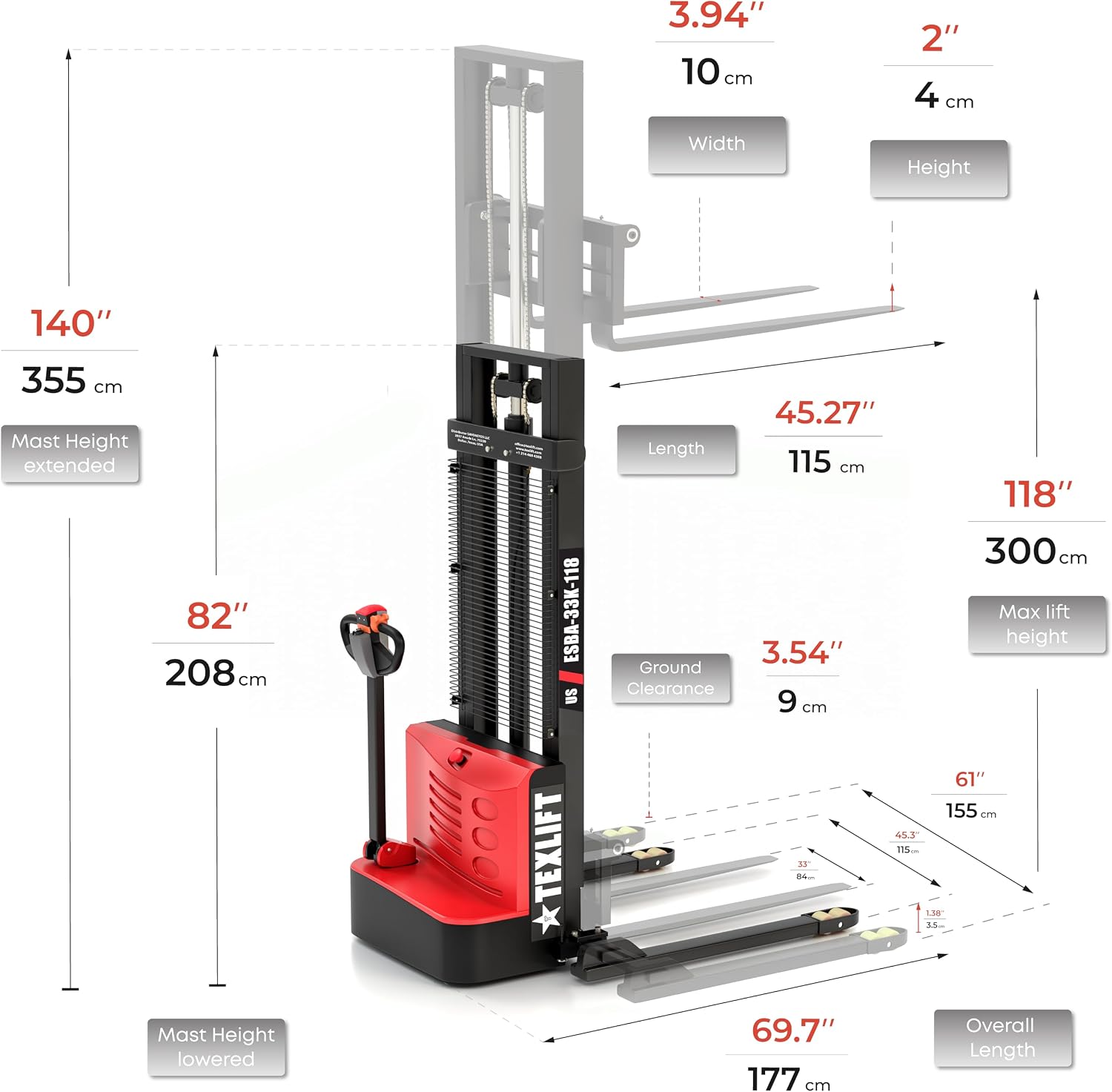

Technical details Product Specifications
Review the main specifications, dimensions, power system, and working details for this Texlift product.
Specification
Value
Description
Model
US-ESBA33K118
Full electric adjustable walkie stacker for commercial material handling.
Load Capacity
3,300 lbs
Maximum rated lifting capacity.
Lift Height
10 ft (118")
Maximum lifting height.
Load Center
24 in
Standard load center for stable lifting.
Lowered Mast Height
82 in
Compact mast height for storage and transport.
Extended Mast Height
140 in
Maximum mast height at full lift.
Fork Length
45 in
Heavy-duty steel forks.
Fork Width
0"–27.5" Adjustable
Accommodates standard, Euro, and custom pallets.
Overall Width
45"–61" Adjustable
Adjustable outriggers for enhanced stability and versatility.
Overall Length
70 in
Compact design for narrow warehouse aisles.
Wheelbase
46 in
Improves stability and maneuverability.
Turning Radius
55 in
Tight turning radius for confined warehouse spaces.
Travel Speed
Up to 2.6 mph
Efficient travel speed for warehouse operations.
Lifting Speed
Up to 5.3 in/sec
Fast lifting performance for improved productivity.
Brake System
Electromagnetic
Reliable braking for enhanced operator safety.
Battery
24V / 100Ah Lead-Acid
Industrial deep-cycle battery system.
Drive Motor
0.75 kW
High-efficiency electric drive motor.
Lift Motor
2.2 kW
Powerful hydraulic lift motor.
Truck Weight
1,455 lbs
Includes battery.
Operation
Walkie Type
Ergonomic walk-behind operation.
Warranty
12 Months
Texlift manufacturer warranty.
Best used for Product Applications
Texlift equipment is designed for practical commercial use across warehouses, loading docks, retail spaces, distribution centers, and industrial facilities.
Manufacturing Facilities
Supports production lines by moving raw materials, finished products, and heavy palletized loads safely and efficiently.
Retail Stockrooms
Simplifies inventory replenishment and pallet handling while improving organization and reducing manual labor.
Shipping & Receiving Departments
Streamlines loading, unloading, and staging of palletized goods for faster warehouse operations.
Third-Party Logistics (3PL) Operations
Increases productivity in high-volume fulfillment centers handling multiple pallet sizes and configurations.
Commercial Storage Facilities
Provides reliable material handling for organized inventory management and efficient pallet transport.
Cold Storage Warehouses
Quiet, zero-emission operation makes it ideal for refrigerated and temperature-controlled environments.
Multi-Pallet Applications
Adjustable forks and adjustable straddle legs allow safe handling of standard, Euro, and custom pallet sizes.
Warehouse Racking & Inventory Management
Lifts and positions palletized products for efficient storage, retrieval, and stock rotation.
Commercial Material Handling
Designed for daily pallet transport, stacking, and inventory movement in demanding industrial and commercial environments.
Compare models Product Comparison
Compare this Texlift model with similar products to choose the right equipment for your operation.
| Specification |
Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
View product
|
Electric Walkie Pallet Stacker – 10ft (118 inch) Lift, 3300 lbs Capacity, Fixed Straddle Legs
View product
|
Electric Pallet Stacker – Rider Type, 3300 LBS, 12ft (138 inch) Lift, with Straddle Legs
View product
|
|
|---|---|---|---|---|
| Model | US-ESBA33K118 | US-ES33K 138 | US-ES33K 118 | — |
| Load Capacity | 3,300 lbs | 3,300 lbs | 3,300 lbs | — |
| Lift Height | 10 ft (118") | 13 ft (138") | 10 ft (118") | — |
| Load Center | 24 in | 20 in | 20 in | — |
| Fork Length | 45 in | 45 in | 45 in | — |
| Fork Width | 0"–27.5" Adjustable | Adjustable 5.5–27 in | Adjustable 5.5–27 in | — |
| Overall Length | 70 in | 70 in | 70 in | — |
| Overall Width | 45"–61" Adjustable | 60 in | 60 in | — |
| Turning Radius | 55 in | 55 in | 55 in | — |
| Battery | 24V / 100Ah Lead-Acid | 48V Lead-Acid | 48V Lead-Acid | — |
| Drive Motor | 0.75 kW | 0.8 kW | 0.8 kW | — |
| Lift Motor | 2.2 kW | 2.2 kW | 2.2 kW | — |
| Truck Weight | 1,455 lbs | 1,260 lbs | 1,240 lbs | — |
| Warranty | 12 Months | 12 Months | 12 Months | — |
Flexible payment options
Get the Equipment You Need with Financing
Flexible financing options help your business get Texlift equipment without a large upfront investment.
Financing Available
Apply Online
Fast application for qualifying customers.
Warranty coverage Protected by Texlift
12
Months
Texlift warranty support
12-Month Texlift Coverage
Texlift equipment is built for warehouse, commercial, and industrial use. Eligible Texlift equipment includes 12 months of coverage for manufacturing defects in materials and workmanship under normal operating conditions.
If a covered issue appears during the coverage period, our team can help review the problem, provide troubleshooting guidance, and assist with replacement parts when applicable. Our goal is to help reduce downtime and keep your equipment working properly.
Coverage Includes
- Manufacturing defects in materials or workmanship
- Technical support and troubleshooting assistance
- Replacement parts support for eligible claims
- Guidance from the Texlift support team
Coverage Does Not Include
- Normal wear items, consumable parts, wheels, rollers, brushes, or rubber parts
- Misuse, overloading, operator damage, accidents, or neglect
- Improper maintenance, improper charging, or unauthorized repairs
- Unauthorized modifications or use outside the intended application
Warranty claims are reviewed by the Texlift support team. Customers may be asked to provide photos, videos, serial number, order information, or maintenance details so we can evaluate the issue correctly.
Customer feedback Customer Reviews
Verified reviews
Real feedback from Texlift customers
Read customer feedback and product experiences from businesses using Texlift equipment for warehouses, loading docks, facilities, and commercial operations.
