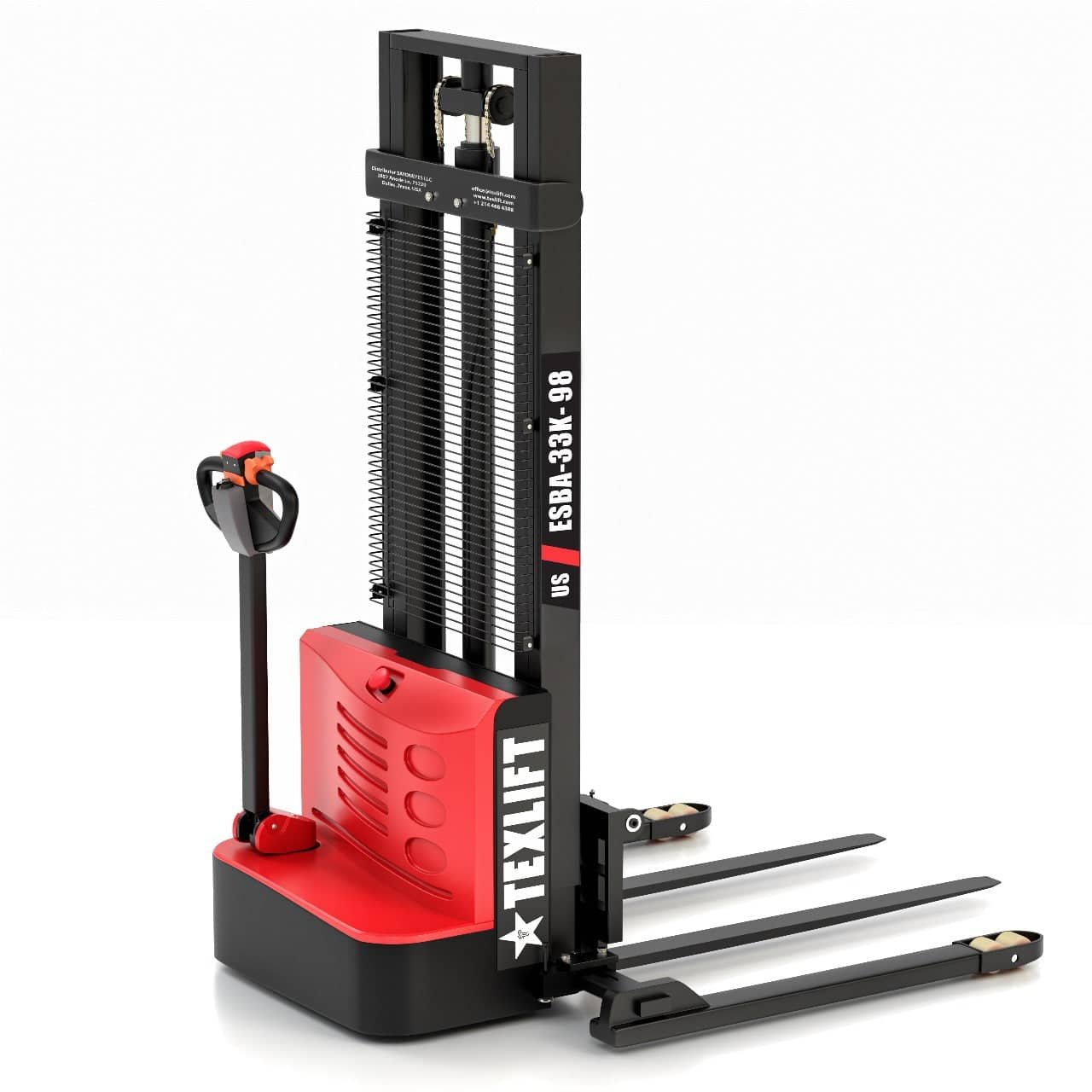

Built for flexible pallet handling across different pallet sizes, the US-ESBA33K 98 is an Adjustable Straddle Pallet Stacker combining a 3,300 lb rated load capacity with an 8 ft (98 in) maximum lift height. Its adjustable straddle-leg design provides greater flexibility than a fixed-leg stacker for warehouses and facilities handling different compatible pallet widths and load configurations.
The straddle legs adjust from approximately 45–61 in wide, while the adjustable fork spread reaches up to approximately 27.5 in. Full-electric travel, hydraulic lifting, Walkie operation, and a 24V / 100Ah lead-acid battery system make the US-ESBA33K 98 Adjustable Straddle Pallet Stacker a practical solution for pallet transportation, warehouse racking, stacking, staging, inventory movement, and professional indoor material handling.
The US-ESBA33K 98 provides a maximum rated load capacity of 3,300 lb for compatible palletized loads.
This capacity supports pallet transportation, positioning, lifting, stacking, staging, replenishment, and inventory movement throughout warehouses, distribution centers, manufacturing facilities, commercial storage operations, and other professional indoor material-handling environments.
The 8 ft (98 in) maximum fork lift height provides practical vertical reach for warehouse racking, pallet stacking, elevated storage, replenishment, and material positioning.
The combination of a 3,300 lb rated capacity and 98 in lift height makes this Adjustable Straddle Pallet Stacker suitable for everyday professional warehouse operations requiring powered pallet transportation and elevated stacking.

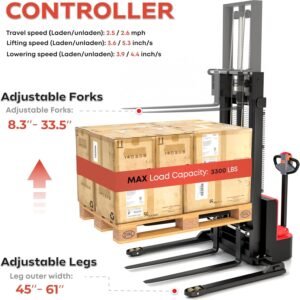

A major advantage of the US-ESBA33K 98 is its adjustable straddle-leg configuration. The straddle legs can be positioned from approximately 45–61 in wide to accommodate different compatible pallet widths and load configurations.
This adjustable design provides additional flexibility compared with a fixed-width straddle stacker, especially for facilities that regularly handle different compatible pallet configurations.
The fork spread can be adjusted up to approximately 27.5 in to accommodate different compatible pallet and load configurations.
Combined with the adjustable 45–61 in straddle legs, the adjustable forks allow the US-ESBA33K 98 to be configured for a wider variety of compatible pallet-handling applications.
The Adjustable Straddle Pallet Stacker is particularly useful for operations where different compatible pallet widths and load configurations are handled within the same facility.
Operators can adjust both the straddle-leg width and fork positioning while retaining full-electric travel and controlled hydraulic lifting for professional material handling.
An approximately 55 in turning radius provides practical maneuverability for pallet approach, transportation, turning, and positioning within compatible warehouse environments.
The compact Walkie configuration supports controlled operation throughout warehouse aisles, storage areas, receiving zones, staging areas, production facilities, and other indoor working environments.

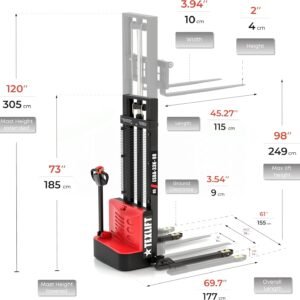

The mast measures approximately 73 in high when fully lowered, providing a practical travel profile for this 8 ft Adjustable Straddle Pallet Stacker configuration.
Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before moving or operating the stacker.
The US-ESBA33K 98 Adjustable Straddle Pallet Stacker uses a 24V / 100Ah lead-acid battery system with approximately 2.4 kWh of nominal battery energy.
The battery supplies power to electric travel and hydraulic lifting, providing full-electric material handling with no tailpipe exhaust emissions at the machine during operation.
Typical operating time for the US-ESBA33K 98 is approximately 4–5 hours per charge under suitable working conditions.
Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger.
Actual charging time may vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging conditions.

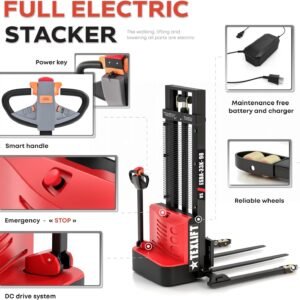

The US-ESBA33K 98 combines powered electric travel with electric hydraulic lifting to reduce manual effort during repetitive pallet-handling operations.
Walk-behind operation provides direct operator control during pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
A 0.75 kW electric traction motor provides powered travel for transporting and positioning compatible palletized loads throughout suitable indoor warehouse and industrial environments.
A 2.2 kW electric lift motor powers the hydraulic system for pallet pickup, lifting, lowering, elevated positioning, and stacking.
The 45–61 in adjustable straddle-leg width provides flexibility for different compatible pallet configurations and is a key advantage of the US-ESBA33K 98 Adjustable Straddle Pallet Stacker.
An adjustable fork spread of up to approximately 27.5 in provides additional flexibility when positioning the forks beneath different compatible palletized loads.
The US-ESBA33K 98 Adjustable Straddle Pallet Stacker is designed for warehouses, distribution centers, manufacturing facilities, commercial storage operations, retail stockrooms, receiving areas, staging zones, production environments, and other indoor material-handling locations with smooth, firm, level, and adequately supported floors.
Its 3,300 lb rated capacity, 8 ft lift height, adjustable straddle legs, adjustable forks, and full-electric operation make it particularly useful for facilities handling multiple compatible pallet widths and load configurations.
The US-ESBA33K 98 is ideal for warehouse racking, pallet stacking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, commercial storage, and positioning compatible palletized loads weighing up to 3,300 lb.
The adjustable straddle-leg and fork configuration provides additional flexibility for operations that need to handle different compatible pallet configurations with the same stacker.

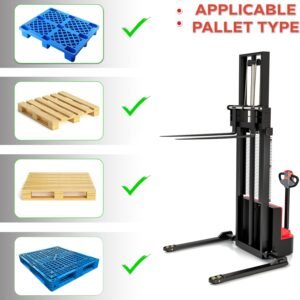

Facilities working with different compatible pallet dimensions can benefit from the adjustable design of the US-ESBA33K 98.
The approximately 45–61 in adjustable straddle-leg range and adjustable fork spread allow the machine to be configured for different compatible loads rather than restricting operation to one fixed-width setup.
The US-ESBA33K 98 Adjustable Straddle Pallet Stacker uses a 24V / 100Ah lead-acid battery system with approximately 2.4 kWh of nominal battery energy. Typical operating time is approximately 4–5 hours per charge, with an approximate 6–7 hour full recharge time under normal charging conditions.
A 0.75 kW electric drive motor provides powered travel, while a 2.2 kW electric lift motor powers the hydraulic lifting system for pallet transportation, lifting, lowering, positioning, and stacking.
Do not operate the US-ESBA33K 98 Adjustable Straddle Pallet Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.
Follow the operating manual for proper lead-acid battery charging, inspection, maintenance, and storage procedures.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-ESBA33K 98 | Full-electric Adjustable Straddle Pallet Stacker with Walkie operation |
| Load Capacity | 3,300 lb | Maximum rated lifting capacity for compatible palletized loads |
| Lift Height | 8 ft (98 in) | Maximum vertical fork lift height for pallet stacking, warehouse racking, and elevated storage |
| Lowered Mast Height | 73 in | Mast height with the mast fully lowered |
| Fork Spread | Up to 27.5 in Adjustable | Adjustable fork positioning for different compatible pallet and load configurations |
| Straddle Leg Width | 45–61 in Adjustable | Adjustable straddle-leg width for different compatible pallet widths and load configurations |
| Turning Radius | 55 in | Minimum turning radius for maneuvering, pallet approach, and load positioning |
| Battery | 24V / 100Ah Lead-Acid | Electric traction battery system supplying power to travel and hydraulic lifting |
| Battery Capacity | 2.4 kWh | Total nominal energy capacity of the 24V / 100Ah battery system |
| Runtime | Approx. 4–5 Hours | Typical operating time per charge depending on load, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions using the correct compatible lead-acid battery charger |
| Drive Motor | 0.75 kW | Electric traction motor providing powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lift motor for pallet lifting, lowering, positioning, and stacking |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation providing direct control during pallet transport, maneuvering, lifting, and positioning |
| Adjustable Configuration | Forks & Straddle Legs | Adjustable forks and 45–61 in straddle legs provide flexibility for different compatible pallet configurations |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed for firm, level, and adequately supported warehouse and industrial floors |
| Best Use | Flexible Indoor Pallet Handling | Designed for facilities handling different compatible pallet widths and load configurations |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for warehouse racking, pallet stacking, transport, staging, inventory movement, receiving, replenishment, production material handling, and multiple compatible pallet sizes |
| Warranty | 12-Month Warranty | Covers eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects; wheels and other normal wear or consumable components are excluded |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESBA33K 98 Adjustable Straddle Pallet Stacker has a maximum rated load capacity of 3,300 lb for compatible palletized loads. Actual allowable capacity may vary depending on lift height, load position, load distribution, pallet configuration, and operating conditions.
The US-ESBA33K 98 provides a maximum fork lift height of 8 ft (98 in), making it suitable for warehouse racking, pallet stacking, elevated storage, replenishment, and material positioning.
The US-ESBA33K 98 has an approximately 73 in lowered mast height. Always verify doorway, ceiling, and other overhead clearances before moving or operating the stacker.
The US-ESBA33K 98 features adjustable 45–61 in straddle legs combined with an adjustable fork spread of up to approximately 27.5 in, providing greater flexibility for different compatible pallet widths and load configurations.
The straddle legs can be adjusted from approximately 45–61 in wide to accommodate different compatible pallet and load configurations.
Yes. The US-ESBA33K 98 provides an adjustable fork spread of up to approximately 27.5 in for different compatible pallet and load configurations.
Yes, when the pallet dimensions and configuration are compatible with the machine. The adjustable forks and 45–61 in adjustable straddle legs provide greater flexibility for handling different pallet configurations than a comparable fixed-width straddle stacker.
Adjustable straddle legs allow the machine to be configured for different compatible pallet widths. This makes the Adjustable Straddle Pallet Stacker particularly useful for facilities that regularly handle more than one pallet configuration.
Adjustable forks allow the operator to change fork positioning for different compatible pallet and load configurations, providing additional flexibility for warehouse material handling.
The US-ESBA33K 98 has an approximately 55 in turning radius for warehouse maneuvering, pallet approach, turning, and load positioning.
The US-ESBA33K 98 uses a 24V / 100Ah lead-acid battery system that supplies power to electric travel and hydraulic lifting.
The 24V / 100Ah lead-acid battery system provides approximately 2.4 kWh of nominal battery energy.
Typical operating time is approximately 4–5 hours per charge. Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, battery condition, floor conditions, temperature, and operating intensity.
Approximate full recharge time is 6–7 hours under normal charging conditions using the correct compatible lead-acid battery charger. Actual charging time may vary depending on remaining charge, battery condition, temperature, charger performance, and charging conditions.
No. Stop operating the US-ESBA33K 98 when the battery reaches 20% charge or below. Recharge the battery using the correct compatible charger before returning the stacker to service, or replace it with a properly charged compatible battery when applicable.
The US-ESBA33K 98 uses a 0.75 kW electric traction motor to provide powered travel for indoor warehouse and industrial material handling.
A 2.2 kW electric hydraulic lift motor powers pallet pickup, lifting, lowering, elevated positioning, and stacking.
Yes. The US-ESBA33K 98 provides powered electric travel and electric hydraulic lifting for full-electric pallet handling.
Yes. The US-ESBA33K 98 is a Walkie Adjustable Straddle Pallet Stacker designed for walk-behind operation during pallet transportation, maneuvering, lifting, stacking, and positioning.
No ride-on operator platform is listed for the US-ESBA33K 98. This model is configured for Walkie, or walk-behind, operation.
No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.
The US-ESBA33K 98 is designed primarily for smooth, firm, level, and adequately supported indoor floors found in warehouses, distribution centers, manufacturing facilities, and commercial storage operations.
No. The US-ESBA33K 98 is designed primarily for indoor warehouse and industrial floors. It is not intended for rough terrain, loose gravel, deep mud, soft ground, or other unstable surfaces.
The US-ESBA33K 98 Adjustable Straddle Pallet Stacker is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage operations, retail stockrooms, receiving areas, staging zones, and other professional indoor material-handling environments.
Typical applications include warehouse racking, pallet stacking, pallet transportation, inventory movement, receiving and staging, replenishment, production material handling, commercial storage, and facilities handling different compatible pallet sizes.
The US-ESBA33K 98 includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Eligible replacement parts have 90-day warranty coverage for manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

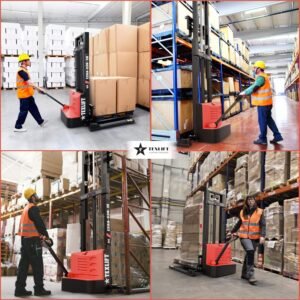

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The adjustable fork spread and 45–61 in adjustable straddle legs allow the US-ESBA33K 98 Adjustable Straddle Pallet Stacker to accommodate different compatible pallet widths and load configurations.
Adjustable forks and straddle legs provide greater flexibility for facilities that regularly handle different compatible pallet sizes instead of relying on a single fixed-width configuration.
The 8 ft (98 in) maximum lift height supports pallet stacking, warehouse racking, replenishment, elevated storage, and material positioning throughout compatible indoor facilities.
Position compatible palletized loads within warehouse racking using the 98 in lift height, adjustable straddle configuration, and controlled electric hydraulic lifting system.
Full-electric travel allows compatible palletized loads weighing up to 3,300 lb to be transported between receiving, staging, storage, production, and inventory areas.
Move palletized inventory between receiving, staging, storage, replenishment, picking, and shipping areas while accommodating different compatible pallet configurations.
Transport and position palletized raw materials, components, supplies, and finished products between production, storage, staging, and inventory areas.
Support routine inventory relocation, organization, replenishment, storage, retrieval, and pallet positioning throughout compatible warehouse and industrial environments.
Move incoming palletized materials between receiving areas, staging zones, warehouse storage, production areas, and other compatible indoor locations.
Transport compatible palletized materials, components, supplies, and finished products between production areas, warehouse storage, inventory locations, and staging zones.
Support pallet organization, stacking, transportation, replenishment, and material positioning throughout compatible commercial storage facilities.
Walk-behind operation provides direct operator control for pallet approach, transportation, maneuvering, lifting, lowering, stacking, and precise load positioning.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-ESBA33K 98 Adjustable Straddle Pallet Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.
Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.
Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.
Texlift provides technical assistance for equipment operation, troubleshooting, electric travel, hydraulic lifting, Walkie controls, adjustable straddle-leg operation, battery charging, and general product guidance.
Replacement-parts assistance is available to help identify compatible electrical, hydraulic, mast, fork, straddle-leg, battery, control, and other service components for the US-ESBA33K 98.
For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.
Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.
Texlift can provide guidance for proper 24V / 100Ah lead-acid battery charging, inspection, care, storage, and use of the correct compatible charging system.
Routine inspection and maintenance guidance is available for the adjustable forks, adjustable straddle legs, mast, hydraulic system, battery system, electric drive system, Walkie controls, and other service components.
Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
