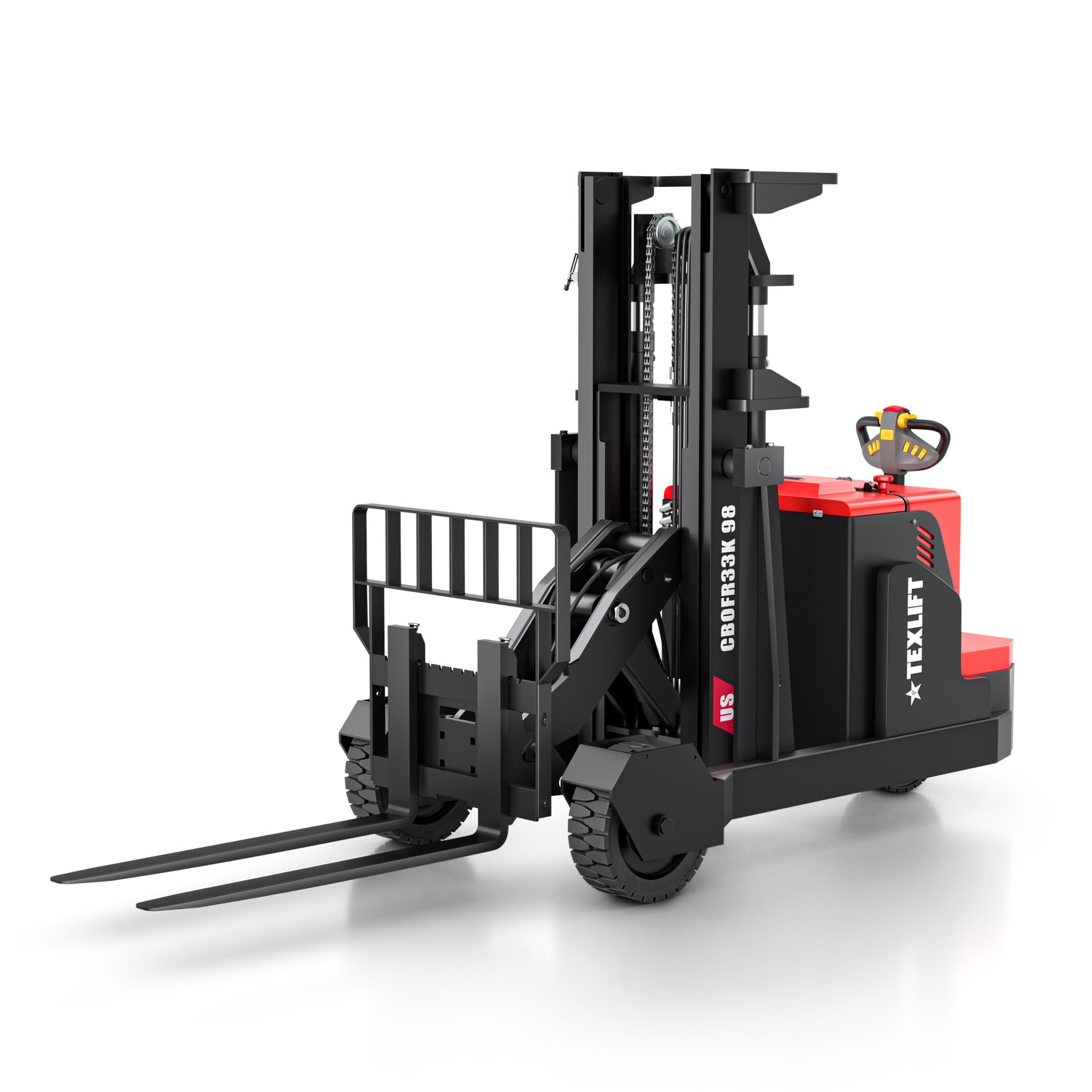

The US-CBOFR33K 98 Rough Terrain Electric Reach Stacker is a heavy-duty, full-electric material-handling machine designed for lifting, transporting, and stacking palletized loads. With a 3,300 lb rated lifting capacity and an 8 ft lift height class, this walk-behind reach stacker combines a counterbalanced chassis, hydraulic forward reach, and powered lifting for professional warehouse and industrial applications.
Built for versatile pallet handling, the US-CBOFR33K 98 features an actual maximum fork lift height of 98 in, approximately 18 in of hydraulic forward reach, adjustable 42 in steel forks, and hydraulic fork tilt. Its counterbalanced design eliminates conventional front straddle legs, allowing direct access to compatible pallets, loading platforms, and designated storage positions.
Powered by a rechargeable 24V / 135Ah lead-acid battery, the machine uses a 1.8 kW AC drive motor and a 3.0 kW hydraulic lift motor for powered travel and load handling. With approximately 6 in of ground clearance, up to 4 hours of working time, and a 12-Month Warranty, this Rough Terrain Electric Reach Stacker is designed for professional use on suitable indoor and outdoor industrial surfaces.
The US-CBOFR33K 98 provides a maximum rated lifting capacity of 3,300 lb at a 20 in load center, supporting compatible palletized materials, industrial supplies, manufacturing components, and commercial inventory.
Its heavy-duty counterbalanced construction supports pallet transportation, elevated stacking, and controlled load positioning in approved industrial environments.
Actual allowable capacity depends on the load center, lifting height, forward reach position, and load distribution. Operators must follow the manufacturer’s rated load chart and never exceed the approved capacity.
This Rough Terrain Electric Reach Stacker belongs to the 8 ft lift height class, with an actual maximum fork lifting height of 98 in for compatible elevated pallet stacking and retrieval.
The hydraulic mast supports controlled lifting and lowering for warehouses, distribution centers, manufacturing facilities, and industrial storage environments.
The mast measures approximately 76 in when lowered and 150 in when fully extended. Operators must verify doorway clearance, ceiling height, overhead obstacles, and load capacity before lifting.
The US-CBOFR33K 98 features approximately 18 in of hydraulic forward reach, allowing the fork carriage to extend and retract for flexible pallet positioning.
Its single-scissor hydraulic reach mechanism helps operators approach, retrieve, and place compatible loads without repeatedly repositioning the entire machine.
This feature is useful for loading platforms, storage locations, and industrial material handling. Extending the load changes its position and may reduce allowable lifting capacity.
The Rough Terrain Electric Reach Stacker uses a heavy-duty counterbalanced chassis instead of conventional front straddle legs extending beneath the pallet.
This design provides direct access to compatible pallets and allows operators to approach certain loading positions that may be difficult for conventional straddle-leg stackers.
The counterbalanced configuration supports flexible pallet handling in warehouses, industrial facilities, and loading areas. Proper load distribution and compliance with the rated load chart remain essential.
The US-CBOFR33K 98 is equipped with heavy-duty steel forks measuring approximately 42 in long, 5 in wide each, and 1.6 in thick.
Fork spacing can be adjusted from approximately 9–28 in to accommodate different compatible pallet widths and load configurations.
This adjustable design provides flexibility for pallet pickup, transportation, and elevated positioning. Both forks must properly support the load and maintain the required load center.
The Rough Terrain Electric Reach Stacker features hydraulic fork tilt with approximately 2° forward and 6° backward adjustment for controlled load positioning.
Forward and backward tilt provide additional flexibility when engaging, transporting, and placing compatible palletized materials.
Combined with the 18 in hydraulic forward reach, this function supports precise handling during loading and unloading. Fork tilt must always be used within the manufacturer’s stability limits.
The US-CBOFR33K 98 is powered by a rechargeable 24V / 135Ah lead-acid traction battery, providing approximately 3.24 kWh of nominal energy for electric travel and hydraulic operation.
Lead-acid batteries use lead-based electrodes and an electrolyte to store electrical energy. This established industrial battery technology provides dependable rechargeable power for electric material-handling equipment.
The battery supports up to approximately 4 hours of working time, with an estimated charging time of 8 hours. Actual performance varies with workload, temperature, and battery condition. Use a compatible lead-acid charger and follow the maintenance requirements for the installed battery.
The US-CBOFR33K 98 features full-electric Walkie operation, allowing the operator to control travel and hydraulic functions while walking behind the machine.
A 1.8 kW AC electric drive motor powers travel, while a 3.0 kW hydraulic motor supports lifting, forward reach, and compatible fork-positioning functions.
Travel speeds are approximately 2.7 mph loaded and 2.5 mph unloaded. Electric operation provides controlled material transportation without tailpipe exhaust emissions.
The Rough Terrain Electric Reach Stacker provides approximately 6 in of ground clearance for compatible industrial yards, loading areas, and suitable uneven operating surfaces.
Its heavy-duty construction and powered electric drive support material transportation on firm, stable, adequately supported ground where conventional low-clearance warehouse stackers may be unsuitable.
The machine is not intended for deep mud, loose gravel, unstable soil, severe potholes, or excessive slopes. Specified travel gradeability is 5% loaded and 8% unloaded; lifting and reaching must be performed on suitable level surfaces.
The US-CBOFR33K 98 features a counterbalanced industrial chassis measuring approximately 81 in long and 50 in wide, with a 64 in wheelbase.
An approximately 74 in turning radius provides maneuverability for compatible warehouses, industrial facilities, loading areas, and designated outdoor work environments.
The machine has an approximate listed operating weight of 4,440 lb, including the 200 lb battery. Facilities must verify floor capacity, access clearance, transportation requirements, and ground support before operation.
The US-CBOFR33K 98 Rough Terrain Electric Reach Stacker supports pallet transportation, elevated stacking, loading, unloading, and inventory positioning in compatible industrial environments.
Typical applications include warehouses, distribution centers, manufacturing facilities, agricultural supply operations, industrial yards, and commercial loading areas.
Its counterbalanced chassis, hydraulic forward reach, adjustable forks, and electric travel provide flexibility for handling compatible palletized goods. All applications must remain within the equipment’s rated capacity and operating limits.
The US-CBOFR33K 98 includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.
Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and compatible replacement parts identification.
Proper operation, routine inspections, correct charging procedures, and compliance with the manufacturer’s instructions help maintain equipment performance and reliability.
Stop operating the US-CBOFR33K 98 when the battery charge reaches 20% or below. Recharge the lead-acid battery using the correct compatible charger before returning the machine to service. Follow the manufacturer’s charging, inspection, and maintenance instructions.
Operate only on firm, stable, adequately supported surfaces. Avoid deep mud, loose gravel, severe potholes, unstable ground, unsupported edges, and conditions that could compromise traction or machine stability.
The specified 5% loaded and 8% unloaded gradeability ratings apply to travel only. Perform lifting, stacking, hydraulic forward reach, and fork-tilting operations on suitable level surfaces.
Always follow the manufacturer’s rated load chart, load-center requirements, reach-position restrictions, and operating instructions. Never exceed the allowable lifting capacity or operate outside the machine’s approved conditions.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-CBOFR33K 98 | Heavy-duty rough terrain electric reach stacker with counterbalanced design and hydraulic forward reach. |
| Equipment Type | Rough Terrain Electric Reach Stacker | Full-electric walk-behind equipment for professional pallet handling and stacking. |
| Load Capacity | 3,300 lb | Heavy-duty lifting capacity for compatible pallets, industrial materials, and commercial loads. |
| Load Center | 20 in | Rated load center for balanced and controlled material handling. |
| Maximum Lift Height | 98 in | Maximum fork height for elevated pallet stacking and storage applications. |
| Lift Height Class | 8 ft | Designed for pallet stacking and material positioning at heights up to 98 in. |
| Mast Type | Electric Hydraulic | Powered mast for smooth lifting and lowering. |
| Lowered Mast Height | 76 in | Compact mast height for storage, transportation, and suitable doorway access. |
| Extended Mast Height | 150 in | Overall mast height at maximum extension for elevated lifting operations. |
| Forward Reach | 18 in | Hydraulic forward reach for flexible pallet access and precise load positioning. |
| Fork Tilt | 2° Forward / 6° Backward | Hydraulic tilt adjustment for controlled pallet handling. |
| Fork Length | 42 in | Heavy-duty steel forks for compatible palletized loads. |
| Fork Width | 5 in Each | Durable steel forks designed for industrial material handling. |
| Fork Thickness | 1.6 in | Heavy-duty fork construction for professional applications. |
| Fork Spread | 9–28 in | Adjustable fork spacing for different compatible pallet sizes. |
| Overall Length | 81 in | Overall equipment length for planning workspace and storage. |
| Overall Width | 50 in | Overall machine width for evaluating access and maneuvering clearance. |
| Wheelbase | 64 in | Wheelbase supporting machine stability and controlled travel. |
| Front Overhang | 50 in | Front chassis dimension for equipment clearance planning. |
| Turning Radius | 74 in | Maneuverability for warehouses, loading areas, and industrial workspaces. |
| Ground Clearance | 6 in | Increased clearance for suitable uneven industrial surfaces. |
| Operating Weight | 4,440 lb | Total machine weight including the battery. |
| Battery | 24V / 135Ah | Rechargeable lead-acid traction battery powering electric travel and hydraulic functions. |
| Battery Type | Lead-Acid | Industrial rechargeable battery for electric material-handling operation. |
| Battery Capacity | 3.24 kWh | Nominal battery energy for powered travel and hydraulic operation. |
| Battery Weight | 200 lb | Battery weight included in the machine's operating weight. |
| Runtime | Up to 4 Hours | Estimated working time per charge, depending on workload and operating conditions. |
| Charging Time | Approx. 8 Hours | Battery charging time using compatible lead-acid charging equipment. |
| Drive Motor | 1.8 kW AC | Electric drive motor for powered travel and maneuvering. |
| Lift Motor | 3.0 kW | Electric hydraulic motor for lifting, forward reach, and fork positioning. |
| Travel Speed, Loaded | 2.7 mph | Travel speed while carrying a compatible load. |
| Travel Speed, Unloaded | 2.5 mph | Travel speed without a load. |
| Lifting Speed, Loaded | 2.8 in/sec | Fork lifting speed while carrying a compatible load. |
| Lifting Speed, Unloaded | 4.2 in/sec | Fork lifting speed without a load. |
| Lowering Speed, Loaded | 4.9 in/sec | Fork lowering speed while carrying a compatible load. |
| Lowering Speed, Unloaded | 2.1 in/sec | Fork lowering speed without a load. |
| Gradeability, Loaded | 5% | Travel capability on suitable inclines while carrying a compatible load. |
| Gradeability, Unloaded | 8% | Travel capability on suitable inclines without a load. |
| Operation | Walkie | Walk-behind electric operation with powered travel and hydraulic controls. |
| Power System | Full-Electric | Battery-powered travel, lifting, forward reach, and fork tilt. |
| Counterbalance Design | Yes | Counterweighted chassis allows pallet access without conventional front straddle legs. |
| Terrain Type | Rough Terrain | Designed for firm, stable, and adequately supported industrial surfaces. |
| Operating Environment | Indoor & Suitable Outdoor Areas | Suitable for warehouses, manufacturing facilities, loading areas, and approved industrial yards. |
| Primary Applications | Industrial Material Handling | Pallet transportation, stacking, loading, unloading, and material positioning. |
| Warranty | 12-Month Warranty | Coverage for eligible manufacturing defects in materials and workmanship. |
| Technical Support | Included | Assistance with equipment operation, troubleshooting, maintenance, and compatible parts. |
| Battery Protection Notice | Stop at 20% Charge | Stop operation at 20% battery charge or below and recharge before continued use. |
| Rough Terrain Safety Notice | Stable Surfaces Required | Operate on firm, stable surfaces and follow rated load and operating limits. |
Watch the equipment in operation and get a closer look at its design, controls, lifting performance, maneuverability, and real-world use.
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-CBOFR33K 98 counterbalance reach stacker has a maximum rated lifting capacity of 3,300 lb at a 20 in load center under the manufacturer's specified operating conditions. Allowable capacity may vary depending on lifting height, forward reach position, and load distribution.
The US-CBOFR33K 98 provides a maximum lift height of 98 in, approximately 8 ft 2 in. This 8 ft class counterbalance reach stacker supports compatible elevated pallet stacking, material positioning, and warehouse storage applications.
The US-CBOFR33K 98 is a full-electric rough terrain counterbalance reach stacker with powered travel, hydraulic lifting, single-scissor forward reach, adjustable forks, and hydraulic fork tilt.
The counterbalance design allows the reach stacker to approach compatible pallets without conventional front straddle legs extending beneath the load. This provides additional flexibility when handling materials near loading platforms, storage structures, and industrial equipment.
Yes. The US-CBOFR33K 98 features approximately 18 in of hydraulic forward reach, allowing operators to extend and retract the fork carriage for controlled pallet placement, retrieval, and positioning.
The single-scissor hydraulic mechanism provides controlled horizontal movement of the fork assembly. It allows the electric counterbalance reach stacker to extend and retract its forks without repositioning the entire machine for every adjustment.
Yes. Extending the load forward changes its position relative to the machine and may reduce allowable lifting capacity. Always follow the manufacturer's rated load chart for the selected lifting height, load center, and hydraulic reach position.
The US-CBOFR33K 98 counterbalance reach stacker features approximately 42 in long forks. Each fork measures approximately 5 in wide and 1.6 in thick.
Yes. The counterbalance reach stacker features an approximately 9–28 in adjustable fork-positioning range for handling compatible pallet dimensions and load configurations.
Yes. The electric counterbalance reach stacker provides approximately 2° forward tilt and 6° backward tilt for controlled pallet positioning and compatible material-handling applications.
The counterbalance reach stacker uses a rechargeable 24V / 135Ah industrial battery with approximately 3.24 kWh of nominal battery energy. Battery chemistry should be verified using the installed battery identification label.
The US-CBOFR33K 98 provides up to approximately 4 hours of working time per full charge under suitable conditions. Actual runtime depends on load weight, travel distance, lifting frequency, hydraulic reach use, terrain, temperature, and battery condition.
The counterbalance reach stacker has an approximate charging time of 8 hours using compatible charging equipment. Actual charging duration may vary depending on remaining battery charge, charger performance, temperature, and battery condition.
The rechargeable battery weighs approximately 200 lb and is included in the machine's total operating weight.
Stop operating the counterbalance reach stacker when the battery charge reaches 20% or below. Recharge using compatible charging equipment, or replace the battery with a properly charged compatible unit where replacement is supported.
Yes. The counterbalance reach stacker features powered electric travel and electrically powered hydraulic lifting, forward reach, and fork-tilting functions.
The US-CBOFR33K 98 features a 1.8 kW AC electric drive motor that provides powered travel and maneuverability during compatible warehouse and industrial operations.
The counterbalance reach stacker uses a 3.0 kW hydraulic motor to support lifting, lowering, hydraulic forward reach, and compatible load-positioning functions.
The US-CBOFR33K 98 has listed travel speeds of approximately 2.7 mph loaded and 2.5 mph unloaded, with a rounded maximum travel-speed designation of approximately 3 mph.
Approximate lifting speeds are 2.8 in/sec loaded and 4.2 in/sec unloaded. Approximate lowering speeds are 4.9 in/sec loaded and 2.1 in/sec unloaded. Actual speeds may vary with load and operating conditions.
The electric counterbalance reach stacker has an approximate turning radius of 74 in, supporting maneuverability in compatible warehouses, industrial yards, and loading areas.
The US-CBOFR33K 98 measures approximately 81 in long and 50 in wide, with a 64 in wheelbase and 50 in front overhang. Lowered and extended mast heights should be confirmed for the specific 98 in configuration.
The counterbalance reach stacker has an approximate operating weight of 4,440 lb, including the battery. Supporting floors, ramps, platforms, and transportation equipment must be suitable for the machine and its load.
The US-CBOFR33K 98 provides approximately 6 in of ground clearance, supporting operation on compatible uneven industrial surfaces where additional undercarriage clearance is beneficial.
Yes. The US-CBOFR33K 98 is designed for compatible outdoor material-handling applications on firm, stable, adequately supported surfaces. Operators must follow the manufacturer's traction, ground-condition, gradeability, and stability requirements.
This rough terrain counterbalance reach stacker is intended for compatible uneven industrial surfaces. Avoid deep potholes, unstable soil, excessive mud, loose gravel, steep slopes, and surfaces that cannot safely support the machine and its load.
The counterbalance reach stacker has listed travel gradeability values of approximately 5% loaded and 8% unloaded under suitable conditions. These ratings apply to travel only and do not authorize lifting or stacking on slopes.
Lifting, stacking, hydraulic forward reach, and elevated load positioning should be performed only on suitable level surfaces according to the manufacturer's instructions. Travel gradeability is not a lifting-on-slope rating.
Yes. The electric counterbalance reach stacker is suitable for compatible warehouses, manufacturing facilities, distribution centers, and commercial storage environments with adequate floor capacity, clearance, and appropriate operating conditions.
No. The full-electric travel and hydraulic power systems produce zero tailpipe exhaust emissions during operation.
The US-CBOFR33K 98 can handle compatible pallets and palletized loads that meet its fork dimensions, adjustable fork range, rated capacity, load-center requirements, and stability limits. Always verify pallet condition and proper fork engagement.
Yes. The counterbalance design, 18 in hydraulic forward reach, adjustable forks, and hydraulic tilt support compatible loading, unloading, pallet staging, and material-positioning applications.
Yes. The 98 in maximum lift height supports compatible elevated pallet placement and retrieval within the manufacturer's rated capacity and load-chart limits. Always verify storage structure suitability and available overhead clearance.
Common applications include warehouse pallet handling, manufacturing material transportation, distribution center operations, industrial yard material handling, pallet stacking, loading, unloading, inventory organization, and compatible outdoor pallet movement.
The counterbalance reach stacker includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.
Yes. Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and identifying compatible replacement parts.
Operate the counterbalance reach stacker only on firm, stable, adequately supported surfaces. Follow the manufacturer's rated load chart, load-center requirements, hydraulic reach restrictions, gradeability limits, and stability instructions. Keep loads properly positioned, avoid unsafe slopes, and stop operation when battery charge reaches 20% or below.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
The US-CBOFR33K 98 electric counterbalance reach stacker supports pallet lifting, transportation, stacking, and positioning in warehouses, commercial storage facilities, and industrial material-handling environments.
This counterbalance reach stacker supports pallet transportation, inventory organization, shipment staging, receiving, and shipping operations in distribution centers and logistics facilities.
With a 98 in maximum lift height, the US-CBOFR33K 98 supports compatible elevated pallet placement, retrieval, and storage organization within the manufacturer's rated load limits.
The rough terrain counterbalance reach stacker is designed for transporting and positioning compatible palletized loads on firm, stable, adequately supported industrial yard surfaces.
The counterbalance design, hydraulic lifting system, and 18 in forward reach support compatible loading, unloading, pallet staging, and material positioning in designated industrial loading areas.
The 18 in hydraulic forward reach allows controlled extension and retraction of the fork carriage for compatible pallet placement, retrieval, and positioning without repeatedly moving the entire machine.
The electric counterbalance reach stacker supports transportation of palletized raw materials, industrial components, production supplies, and finished goods between manufacturing departments and storage areas.
The single-scissor hydraulic reach mechanism, adjustable forks, and hydraulic tilt provide flexibility when aligning, retrieving, and positioning compatible palletized loads.
The US-CBOFR33K 98 rough terrain counterbalance reach stacker supports compatible outdoor pallet movement on approved paved loading areas and other firm, stable industrial surfaces.
This electric counterbalance reach stacker supports pallet organization, material transportation, and elevated load positioning in commercial storage environments with adequate floor capacity and operating clearance.
Transport compatible palletized tools, machinery components, packaged industrial supplies, and commercial materials within the machine's 3,300 lb rated capacity and approved load-center limits.
The counterbalance reach stacker helps operators move and organize palletized inventory between receiving departments, storage locations, production areas, and shipping zones.
Deliver compatible palletized raw materials, manufacturing components, and production supplies to designated assembly and manufacturing work areas.
The counterbalanced chassis allows operators to approach compatible palletized loads without conventional front straddle legs extending beneath the pallet.
The 98 in maximum lift height provides additional vertical reach compared with the 78 in configuration for compatible elevated storage and material-positioning applications.
The US-CBOFR33K 98 counterbalance reach stacker supports movement of compatible palletized loads weighing up to 3,300 lb at the specified 20 in load center, subject to the manufacturer's rated load chart.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-CBOFR33K 98 electric counterbalance reach stacker includes a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use, subject to applicable Texlift warranty terms and conditions.
Warranty coverage applies to qualifying manufacturing defects during the applicable warranty period, provided the counterbalance reach stacker has been operated, maintained, and serviced according to the manufacturer's instructions.
Damage caused by misuse, overloading, accidents, improper operation, inadequate maintenance, unauthorized modifications, normal wear, or operation outside the manufacturer's specified conditions is not covered.
The counterbalance reach stacker's 24V / 135Ah rechargeable battery must be charged, inspected, and maintained according to the manufacturer's instructions. Stop operation when battery charge reaches 20% or below and recharge using compatible charging equipment.
The counterbalance reach stacker must be operated on firm, stable, adequately supported surfaces. Damage caused by operation outside the manufacturer's ground-condition, gradeability, load-capacity, or stability limits is not covered.
Texlift provides technical assistance with equipment operation, troubleshooting, maintenance guidance, battery care, and identifying compatible replacement parts.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
Explore additional equipment selected to complement your material handling operation.
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
Reviews
There are no reviews yet
