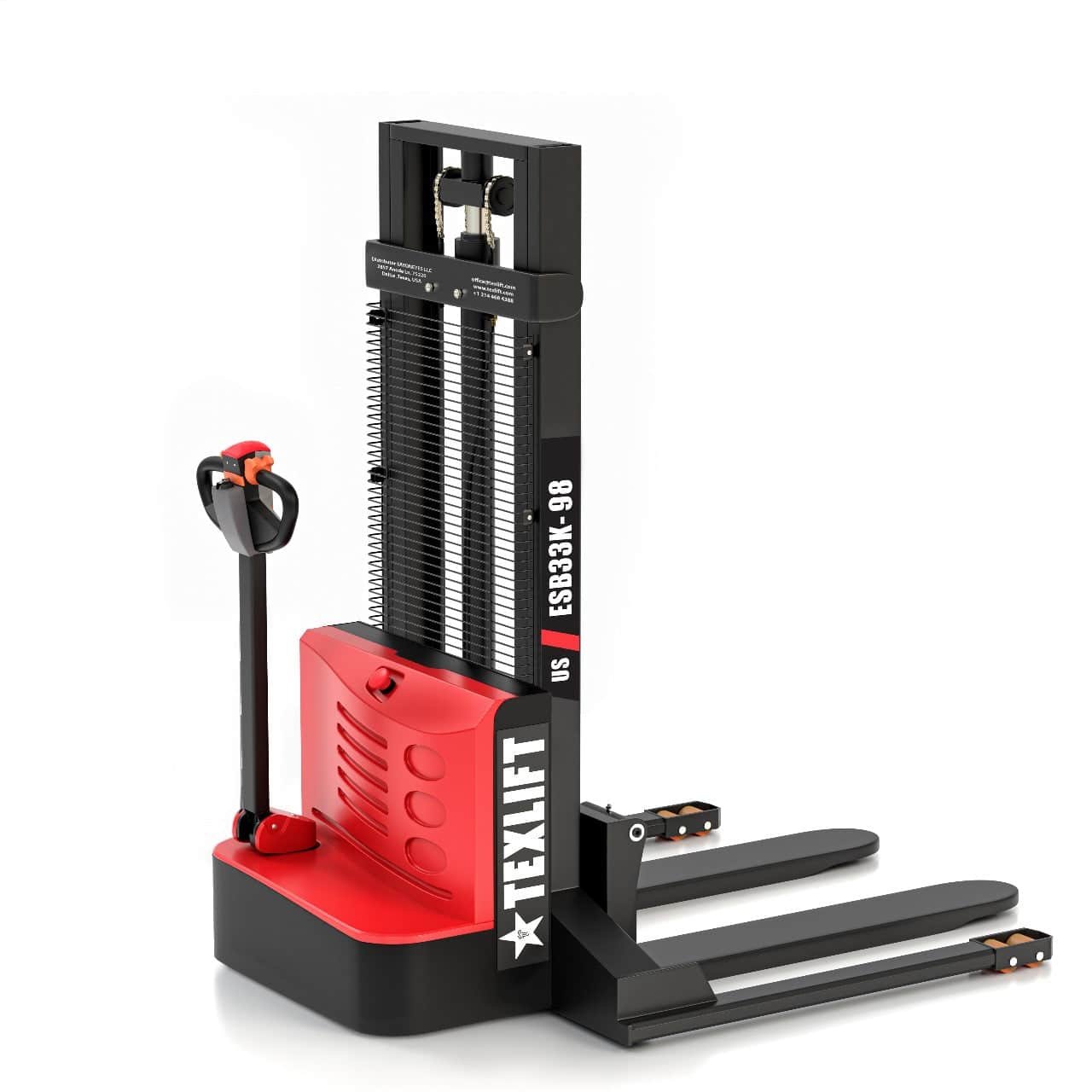

US-ESB33K 98 Electric Walkie Stacker – 3,300 lbs Capacity & 8ft (98 inch) Lift Height

$4,300.00
Product Availability Contact our team for availability.
Out of Stock

Want this product when it becomes available? Send us a request and our team will contact you with availability and estimated lead time.

SPECIAL SAVINGS

Save More on Your Order

Volume pricing and wire-transfer savings available on eligible orders.

2 Savings Options
%
Volume Pricing Save more when ordering multiple units
2–4 Units Save 2%
5–9 Units Save 3%
10+ Units Save 5%
Buy More & Save
DELIVERY & PICKUP

Order Fulfillment

Pickup and nationwide freight shipping available from our Texas warehouse.

🚚
Nationwide Delivery Ships from Texas. Estimated delivery: 3–14 business days. Shipping charges are calculated at checkout.
📍
Dallas Pickup Most in-stock equipment is ready for pickup within 24 hours. Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout Protected payment
Product Support Real equipment help
12-Month Warranty Equipment coverage
WIRE DISCOUNT REQUEST

3% Wire-Transfer Discount

US-ESB33K 98 Electric Walkie Stacker – 3,300 lbs Capacity & 8ft (98 inch) Lift Height

Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.

Requested Quantity *
PRE-ORDER REQUEST

Request Product Availability

US-ESB33K 98 Electric Walkie Stacker – 3,300 lbs Capacity & 8ft (98 inch) Lift Height

Submit your request and our team will contact you with availability, estimated lead time, and ordering information.

Requested Quantity *

Description

PRODUCT OVERVIEW

Built for Professional Material Handling

Electric Walkie Stacker designed for professional pallet transportation, positioning, and stacking in warehouses, distribution centers, manufacturing facilities, storage areas, and other indoor commercial environments. With a 3,300 lb rated load capacity and 8 ft (98 in) maximum lift height, the US-ESB33K 98 Electric Walkie Stacker combines dependable lifting performance, compact maneuverability, and full-electric operation.

Built for everyday indoor material handling, this Electric Walkie Stacker features fixed straddle legs, an adjustable 5.5–27 in fork spread, a compact 55 in turning radius, and a 48V / 32Ah sealed lead-acid battery system. Powered electric travel and hydraulic lifting reduce manual handling effort while providing controlled pallet movement and positioning throughout compatible warehouse and industrial environments.

⚖
3,300 lb
Load Capacity
↕
8 ft (98 in)
Max Lift Height
▣
48V / 32Ah Sealed Lead-Acid
Battery
◷
Approx. 3–4 Hours
Runtime
✓

3,300 lb Electric Walkie Stacker Capacity

Handle compatible palletized loads up to 3,300 lb at the rated 20 in load center. The US-ESB33K 98 provides dependable lifting capacity for pallet transportation, rack stacking, inventory movement, production material handling, receiving, and commercial warehouse operations.

Actual allowable capacity can vary with lift height, load center, load distribution, pallet configuration, and operating conditions.

↗

8 ft (98 in) Maximum Lift Height

Reach a maximum fork lift height of 8 ft (98 in) for pallet racking, elevated storage, inventory positioning, stacking, and retrieval.

The combination of a 3,300 lb rated capacity and 98 in maximum lift height gives this Electric Walkie Stacker practical vertical handling capability for warehouses, manufacturing facilities, distribution centers, and commercial storage operations.

✓

73 in Lowered Mast Height

The mast measures approximately 73 in high when fully lowered, providing a practical travel profile between lifting and stacking operations.

Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operating the Electric Walkie Stacker.

↔

Fixed Straddle-Leg Design

Fixed straddle legs provide a stable operating base around compatible palletized loads during transportation, lifting, positioning, and stacking.

The machine measures approximately 60 in overall width with approximately 50 in between the straddle legs. Always verify pallet and load dimensions for compatibility before operation.

↔

Adjustable 5.5–27 in Fork Spread

The forks can be adjusted from approximately 5.5–27 in to accommodate different compatible pallet and load configurations.

Adjustable fork positioning increases the versatility of this Electric Walkie Stacker for warehouse storage, manufacturing, distribution, receiving, staging, and general commercial material-handling applications.

✓

Compact 55 in Turning Radius

An approximately 55 in turning radius supports maneuverability when approaching pallets, navigating compatible warehouse aisles, positioning loads, and working around storage and production areas.

The compact turning radius helps the Electric Walkie Stacker operate efficiently in compatible indoor material-handling environments where maneuverability is important.

✓

70 in Overall Length

With an approximately 70 in overall length, the US-ESB33K 98 maintains a relatively compact footprint for a 3,300 lb capacity stacking machine.

Its compact dimensions help the Electric Walkie Stacker maneuver through compatible warehouse aisles, storage areas, production facilities, receiving areas, and material-handling zones.

✓

50 in Wheelbase

An approximately 50 in wheelbase contributes to a stable chassis configuration while maintaining practical maneuverability for professional indoor pallet-handling operations.

The wheelbase works together with the fixed straddle-leg design to provide controlled load handling on suitable smooth, firm, and adequately supported working surfaces.

✓

48V / 32Ah Sealed Lead-Acid Battery

The US-ESB33K 98 Electric Walkie Stacker uses a 48V / 32Ah sealed lead-acid traction battery system to power electric travel and hydraulic lifting.

The complete battery system provides approximately 1.54 kWh of nominal battery capacity for professional indoor material-handling operations.

✓

Approx. 3–4 Hours Runtime

Typical operating time is approximately 3–4 hours per charge under suitable working conditions.

Actual runtime varies depending on load weight, travel distance, lifting frequency, lift height, floor conditions, battery condition, temperature, and operating intensity.

↗

0.75 kW Electric Drive Motor

A 0.75 kW electric drive motor provides powered travel for transporting and positioning compatible palletized loads.

Powered electric travel reduces manual handling effort and allows the Electric Walkie Stacker to move materials efficiently throughout warehouses, storage areas, manufacturing facilities, and distribution operations.

↗

2.2 kW Hydraulic Lift Motor

A 2.2 kW electric lift motor powers the hydraulic lifting system for controlled pallet pickup, lifting, lowering, stacking, positioning, and retrieval.

Together, the electric drive and hydraulic lift systems provide full-electric material-handling performance for professional pallet stacking applications.

✓

Full-Electric Walkie Operation

The walk-behind configuration provides powered electric travel and hydraulic lifting without requiring an onboard operator platform.

The operator controls travel, steering, lifting, and lowering from the walkie controls, providing direct control of the Electric Walkie Stacker during pallet transportation and positioning. Battery-powered operation also produces no tailpipe exhaust emissions at the machine during use.

✓

Electromagnetic Braking

An electromagnetic braking system provides controlled stopping during operation and supports predictable machine handling while transporting and positioning compatible palletized loads.

The braking system complements the full-electric walkie configuration for warehouse, manufacturing, distribution, storage, and commercial material-handling operations.

✓

3.5 in Ground Clearance

Approximately 3.5 in of ground clearance makes this Electric Walkie Stacker primarily suitable for smooth, firm, level, and adequately supported indoor working surfaces.

The US-ESB33K 98 is designed for warehouse and industrial floors and is not intended to operate as a rough-terrain stacker.

✓

Support & 12-Month Warranty

The US-ESB33K 98 Electric Walkie Stacker is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.

Texlift provides technical support and replacement-parts assistance. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

▦

Where It Works Best

This Electric Walkie Stacker is designed primarily for warehouses, distribution centers, manufacturing facilities, commercial storage buildings, workshops, receiving departments, production facilities, and other professional indoor material-handling environments with smooth, firm, level, and adequately supported floors.

The compact walkie configuration, fixed straddle legs, adjustable forks, and 55 in turning radius make the US-ESB33K 98 practical for everyday indoor pallet transportation and stacking.

◎

Best Applications

Ideal for pallet transportation, rack stacking, inventory positioning, production-line material movement, receiving and staging, warehouse organization, elevated storage, and general commercial pallet handling.

The combination of a 3,300 lb rated capacity, 8 ft (98 in) lift height, adjustable 5.5–27 in fork spread, and full-electric operation makes this Electric Walkie Stacker a versatile solution for professional indoor material handling.

⚡

Power & Charging

Powered by a 48V / 32Ah sealed lead-acid battery system with approximately 1.54 kWh of nominal battery capacity. Typical runtime is approximately 3–4 hours per charge depending on load, travel distance, lifting frequency, battery condition, and operating intensity.

Approximate charging time is 6–7 hours under suitable charging conditions. A 0.75 kW electric drive motor and 2.2 kW lift motor provide powered travel and hydraulic lifting for full-electric walkie operation.

!

Important Battery Notice

Do not operate the US-ESB33K 98 Electric Walkie Stacker when the battery reaches 20% charge or below. Stop operation and recharge the battery using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.

Proper charging and routine battery care are important for dependable performance and battery service life. Follow the operating manual for battery charging, inspection, maintenance, and storage procedures.

EQUIPMENT SUPPORT

Need Help Choosing the Right Equipment?

Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

✓ Product Selection ✓ Application Support ✓ Shipping Assistance
SPEAK WITH OUR TEAM
Get Expert Equipment Guidance
Contact Our Team
⚙
PRODUCT SPECIFICATIONS

Technical Specifications

Review the key dimensions, performance data, power information, fitment details, and product configuration.

Specification Value Description
Model US-ESB33K 98 Full-electric walkie pallet stacker with fixed straddle legs designed for professional indoor pallet handling and stacking.
Load Capacity 3,300 lb Rated load capacity at a 20 in load center for compatible palletized loads. Actual allowable capacity may vary with lift height, load center, load distribution, and operating conditions.
Load Center 20 in Rated load center used for the stated 3,300 lb capacity.
Lift Height 8 ft (98 in) Maximum fork lift height for pallet stacking, elevated storage, rack positioning, and retrieval.
Lowered Mast Height 73 in Approximate overall mast height with the mast fully lowered.
Fork Spread 5.5–27 in Adjustable Adjustable fork positioning accommodates different compatible pallet and load configurations.
Straddle Leg Type Fixed Fixed straddle-leg configuration provides a stable base around compatible palletized loads.
Overall Width 60 in Approximate overall machine width including the fixed straddle-leg configuration.
Inside Straddle Width 50 in Approximate clear width between the fixed straddle legs.
Overall Length 70 in Approximate overall machine length.
Wheelbase 50 in Approximate distance between the front and rear wheel centers.
Turning Radius 55 in Approximate turning radius for maneuvering in compatible warehouse and industrial environments.
Ground Clearance 3.5 in Designed primarily for smooth, firm, level, and adequately supported indoor working surfaces.
Battery 48V / 32Ah Sealed Lead-Acid Sealed lead-acid traction battery system supplying power to the electric travel and hydraulic lifting systems.
Battery Capacity 1.54 kWh Approximate nominal battery energy based on the complete 48V / 32Ah battery system.
Runtime Approx. 3–4 Hours Typical operating time per charge. Actual runtime varies with load weight, travel distance, lifting frequency, floor conditions, battery condition, temperature, and operating intensity.
Charging Time Approx. 6–7 Hours Approximate recharge time under suitable conditions using the correct compatible charger.
Drive Motor 0.75 kW Electric drive motor provides powered travel for professional indoor material-handling operations.
Lift Motor 2.2 kW Electric hydraulic lift motor powers lifting, lowering, stacking, and load-positioning functions.
Brake Type Electromagnetic Electromagnetic braking provides controlled stopping during travel and load-positioning operations.
Operation Walkie Walk-behind operator configuration with powered electric travel and hydraulic lifting.
Power Type Full Electric Battery-powered travel and hydraulic lifting reduce manual handling effort and produce no tailpipe exhaust emissions at the machine during operation.
Terrain Type Indoor / Smooth Surface Designed primarily for smooth, firm, level, and adequately supported warehouse and industrial floors.
Best Use Indoor Pallet Handling & Stacking Designed for pallet transportation, rack stacking, inventory positioning, receiving, staging, and general warehouse material handling.
Typical Applications Warehouses, Distribution Centers, Manufacturing & Storage Facilities Suitable for professional indoor commercial and industrial pallet-handling operations.
Warranty 12-Month Warranty Covers eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects; wheels and other normal wear or consumable components are excluded.
FREQUENTLY ASKED QUESTIONS

Product Questions & Answers

Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.

23 Product FAQs Quick answers to help you evaluate and operate this equipment.
01 What is the maximum load capacity of the US-ESB33K 98?

The US-ESB33K 98 Electric Walkie Stacker has a rated load capacity of 3,300 lb at a 20 in load center. Actual allowable capacity may vary with lift height, load center, load distribution, and operating conditions.

02 What is the maximum lift height?

The US-ESB33K 98 provides a maximum fork lift height of 8 ft (98 in), making it suitable for pallet stacking, elevated storage, rack positioning, and retrieval in compatible indoor material-handling environments.

03 What is the lowered mast height?

The mast measures approximately 73 in high when fully lowered. Always verify doorway, ceiling, rack, sprinkler, lighting, and other overhead clearances before operation.

04 Is the US-ESB33K 98 a walkie stacker?

Yes. This Electric Walkie Stacker uses a walk-behind operator configuration with powered electric travel and hydraulic lifting. The operator controls travel, steering, lifting, and lowering from the walkie controls.

05 Does the US-ESB33K 98 have fixed or adjustable straddle legs?

The US-ESB33K 98 has fixed straddle legs. The machine is approximately 60 in wide overall with approximately 50 in of clear space between the straddle legs.

06 What is the adjustable fork spread?

The forks provide an adjustable spread of approximately 5.5–27 in, allowing the operator to position them for different compatible pallet and load configurations.

07 What is the turning radius?

The US-ESB33K 98 has an approximately 55 in turning radius, supporting maneuverability in compatible warehouse aisles, storage areas, production facilities, and material-handling zones.

08 What is the overall length?

The Electric Walkie Stacker measures approximately 70 in in overall length, providing a relatively compact footprint for professional indoor pallet handling and stacking.

09 What is the wheelbase?

The US-ESB33K 98 has an approximately 50 in wheelbase.

10 What is the ground clearance?

The stacker provides approximately 3.5 in of ground clearance and is designed primarily for smooth, firm, level, and adequately supported indoor working surfaces.

11 What battery does the US-ESB33K 98 use?

The US-ESB33K 98 uses a 48V / 32Ah sealed lead-acid traction battery system that supplies power to the electric travel and hydraulic lifting systems.

12 What is the battery capacity?

The complete 48V / 32Ah battery system provides approximately 1.54 kWh of nominal battery energy.

13 How long does the battery last per charge?

Typical operating time is approximately 3–4 hours per charge. Actual runtime varies with load weight, travel distance, lifting frequency, lift height, floor conditions, battery condition, temperature, and operating intensity.

14 How long does the battery take to recharge?

Approximate charging time is 6–7 hours under suitable conditions using the correct compatible charger. Actual charging time may vary with remaining battery charge, battery condition, temperature, and charger performance.

15 Should the US-ESB33K 98 be operated when the battery reaches 20% charge?

No. Stop operating the US-ESB33K 98 when the battery reaches 20% charge or below and recharge it using the correct compatible charger before returning the machine to service, or replace it with a properly charged compatible battery when applicable.

16 What drive motor does the US-ESB33K 98 use?

A 0.75 kW electric drive motor provides powered travel for transporting and positioning compatible palletized loads.

17 What lift motor does the stacker use?

A 2.2 kW electric lift motor powers the hydraulic lifting system for pallet pickup, lifting, lowering, stacking, positioning, and retrieval.

18 What type of braking system does the US-ESB33K 98 use?

The Electric Walkie Stacker uses an electromagnetic braking system to provide controlled stopping during travel and load-positioning operations.

19 Is the US-ESB33K 98 designed for rough terrain?

No. The US-ESB33K 98 is designed primarily for smooth, firm, level, and adequately supported indoor warehouse and industrial floors. It is not a rough-terrain stacker.

20 Where is the US-ESB33K 98 best used?

This Electric Walkie Stacker is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage buildings, workshops, receiving departments, and other professional indoor material-handling environments.

21 What applications is this stacker designed for?

The US-ESB33K 98 is designed for compatible pallet transportation, rack stacking, inventory positioning, production-line material movement, receiving and staging, elevated storage, and general warehouse material handling.

22 Does the US-ESB33K 98 produce tailpipe exhaust emissions during operation?

No. Battery-powered electric travel and hydraulic lifting produce no tailpipe exhaust emissions at the machine during operation.

23 What warranty is included with the US-ESB33K 98?

The US-ESB33K 98 Electric Walkie Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts have 90-day warranty coverage for eligible manufacturing defects. Wheels and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

NEED MORE INFORMATION? Still have a product question?

Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.

Contact Our Team
MODEL COMPARISON

Compare Similar Equipment

Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

Compare up to 4 models The current product is highlighted for easier side-by-side comparison.
Swipe left or right to compare models
⇄
Compare Models Review key differences side by side
Load Capacity
3,300 lb
3,300 lbs
3,300 lbs
3,300 lbs
Lift Height
8 ft (98 in)
18 ft (216 in)
7 ft (78 in)
8 ft (98 in)
Lowered Mast Height
73 in
96 in
76 in
76 in
Fork Spread
5.5–27 in Adjustable
8–27 in
8–37 in
8–37 in
Battery
48V / 32Ah Sealed Lead-Acid
24V / 208Ah Lithium
24V / 90Ah LiFePO₄ Lithium
24V / 90Ah LiFePO₄ Lithium
Battery Capacity
1.54 kWh
4.99 kWh
2.16 kWh
2.16 kWh
Runtime
Approx. 3–4 Hours
Up to 5 Hours
Approx. 3–4 Hours
Approx. 3–4 Hours
Charging Time
Approx. 6–7 Hours
Approx. 5 Hours
Approx. 6 Hours
Approx. 6 Hours
Turning Radius
55 in
69 in
54 in
54 in
Drive Motor
0.75 kW
1.5 kW DC
1.2 kW AC
1.2 kW AC
Lift Motor
2.2 kW
2.2 kW DC
2.2 kW DC
2.2 kW DC
Operation
Walkie
Rider
Walkie
Walkie
Availability
Out of Stock
In Stock
In Stock
In Stock
Product
✓ Selected Model
Need help choosing the right model? Tell us your required load capacity, lift height, application, and working environment. Our equipment team can help you compare the available options.
Contact Our Team
PRODUCT APPLICATIONS

Built for Demanding Material Handling Applications

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.

01

Warehouse Pallet Handling

Transport, position, and stack compatible palletized loads across smooth, firm, level, and adequately supported warehouse floors.

02

Distribution Centers

Support pallet movement, inventory positioning, staging, storage, and order-handling operations in professional distribution facilities.

03

Manufacturing Facilities

Move compatible palletized materials, components, supplies, and finished products between production, storage, and staging areas.

04

Pallet Rack Stacking

The 8 ft (98 in) maximum lift height supports positioning and retrieving compatible palletized loads from suitable warehouse racking.

05

Inventory Positioning

Transport and position palletized inventory within compatible storage locations, warehouse aisles, and material-handling areas.

06

Receiving & Staging

Move incoming palletized goods between receiving areas, inspection zones, staging locations, and compatible storage positions.

07

Production Material Handling

Supply compatible palletized materials and components to production areas while supporting movement of finished products and supplies.

08

Commercial Storage Facilities

Handle and organize compatible palletized inventory in commercial storage buildings with smooth, firm, and adequately supported floors.

09

Shipping Operations

Position compatible palletized loads for shipping preparation, staging, internal transportation, and outbound material-handling operations.

10

Indoor Pallet Transport

Full-electric walkie operation provides powered travel for moving compatible palletized loads throughout indoor commercial and industrial facilities.

11

Elevated Storage

The 8 ft (98 in) lift height provides vertical positioning capability for compatible palletized loads in suitable elevated storage applications.

12

General Material Handling

A 3,300 lb rated capacity, adjustable 5.5–27 in fork spread, and full-electric operation provide versatility for everyday professional pallet-handling tasks.

✓
Not sure if this model fits your application? Contact our equipment team with your load, lift height, pallet, and operating requirements and we can help you evaluate the right model.
Contact Our Team

Reviews

There are no reviews yet

Add a review
US-ESB33K 98 Electric Walkie Stacker – 3,300 lbs Capacity & 8ft (98 inch) Lift Height US-ESB33K 98 Electric Walkie Stacker – 3,300 lbs Capacity & 8ft (98 inch) Lift Height
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
* Please tick the checkbox to proceed
WARRANTY & SUPPORT

Confidence Beyond the Purchase

Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.

Product-Specific Coverage The warranty and support information below applies specifically to this product.
01

12-Month Warranty

The US-ESB33K 98 Electric Walkie Stacker includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use.

02

90-Day Replacement Parts Warranty

Eligible replacement parts are covered by a 90-day warranty against manufacturing defects. Wheels and other normal wear or consumable components are excluded.

03

Electrical & Hydraulic Coverage

Eligible factory-installed electrical, hydraulic, and structural components may be covered when a failure is determined to result from a qualifying manufacturing defect.

04

Technical Support

Texlift provides technical assistance for equipment operation, troubleshooting, maintenance questions, electrical systems, hydraulic functions, and general product guidance.

05

Replacement Parts Support

Replacement-parts assistance is available to help identify compatible electrical, hydraulic, structural, and other service components for the US-ESB33K 98.

06

Warranty Claim Assistance

For warranty assistance, provide the product model, order information, serial or identification details when available, and clear photos or videos showing the reported issue.

07

Video Troubleshooting Support

Photos and videos may be used to help Texlift evaluate equipment issues, identify components, troubleshoot problems, and determine appropriate service or warranty steps.

08

Battery & Charging Guidance

Texlift can provide guidance for proper charging, battery care, inspection, storage, and use of the compatible charging system.

09

Maintenance Guidance

Routine inspection and maintenance guidance is available for the forks, mast, hydraulic system, wheels, battery system, and other service components.

10

Customer Support

Texlift support is available for product questions, troubleshooting, replacement-parts assistance, maintenance guidance, and eligible warranty claims.

CUSTOMER SUPPORT Need warranty, parts, or technical support?

Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.

Contact Support

TEXLIFT IN NUMBERS

Equipment That Keeps Business Moving

From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.

4,200+

Equipment Orders Delivered Nationwide

50+

Equipment Models

12-Month

Warranty Coverage

Nationwide

Continental U.S. Shipping

Dallas, TX

Operations & Pickup

✓ Financing Available

✓ Fast Parts Support

✓ Commercial Equipment Experts

✓ Secure Online Ordering
