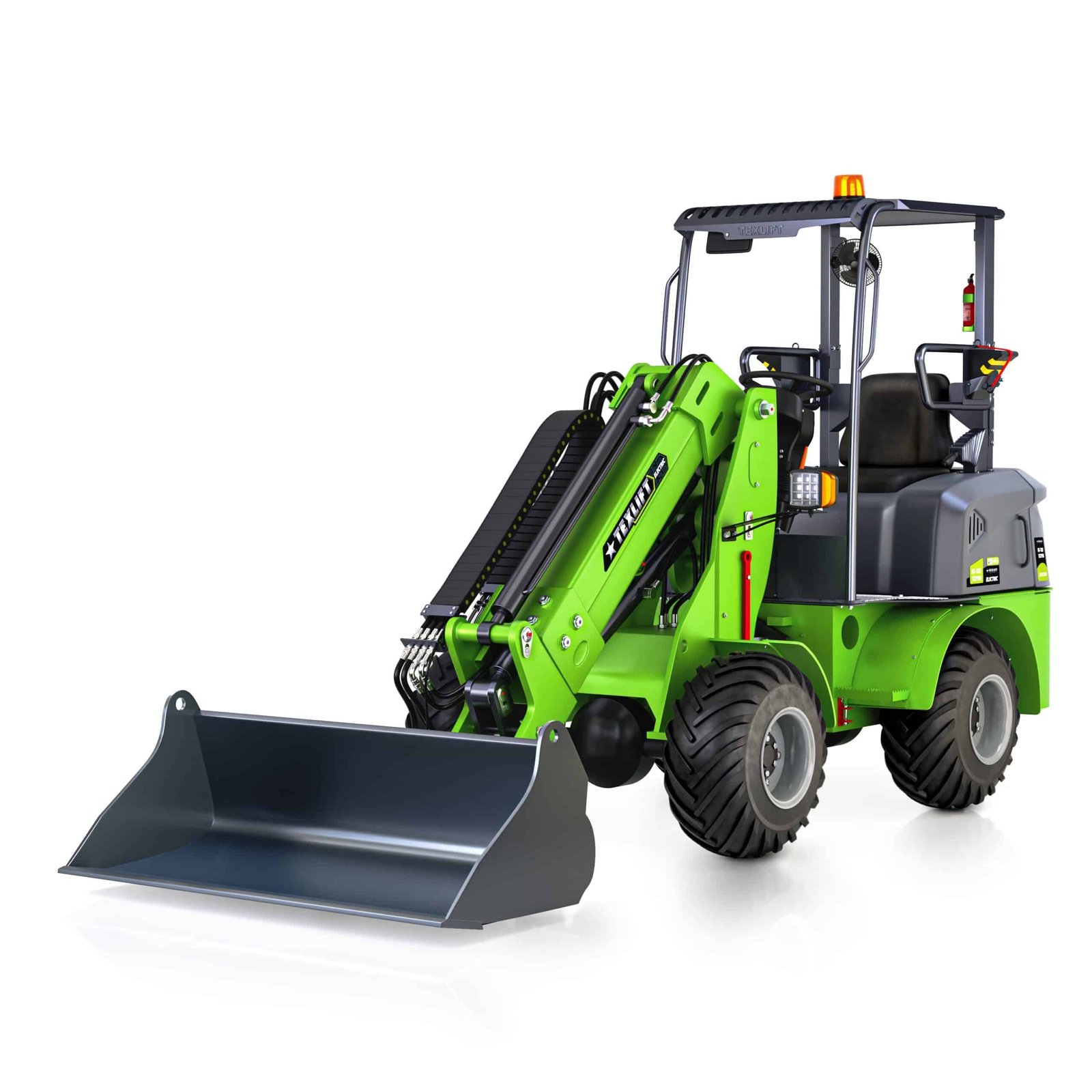

Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift - TEXLIFT

Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift

Original price was: $29,990.00.Current price is: $25,890.00.
Product Availability Contact our team for availability.
Out of Stock

Want this product when it becomes available? Send us a request and our team will contact you with availability and estimated lead time.

SPECIAL SAVINGS

Save More on Your Order

Volume pricing and wire-transfer savings available on eligible orders.

2 Savings Options
%
Volume Pricing Save more when ordering multiple units
2–4 Units Save 2%
5–9 Units Save 3%
10+ Units Save 5%
Buy More & Save
DELIVERY & PICKUP

Order Fulfillment

Pickup and nationwide freight shipping available from our Texas warehouse.

🚚
Nationwide Delivery Ships from Texas. Estimated delivery: 3–14 business days. Shipping charges are calculated at checkout.
📍
Dallas Pickup Most in-stock equipment is ready for pickup within 24 hours. Dallas Distribution Center: 2857 Anode Ln, Dallas, TX 75220.
Secure Checkout Protected payment
Product Support Real equipment help
12-Month Warranty Equipment coverage
WIRE DISCOUNT REQUEST

3% Wire-Transfer Discount

Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift

Complete the form and our team will email you a proforma invoice, confirm availability, apply your wire discount, and provide payment instructions.

Requested Quantity *
PRE-ORDER REQUEST

Request Product Availability

Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift

Submit your request and our team will contact you with availability, estimated lead time, and ordering information.

Requested Quantity *

Description

PRODUCT OVERVIEW

Built for Professional Loading

Built for professional applications requiring greater vertical reach and flexible material placement, the US-TXLT132 PRO Telescopic Wheel Loader combines a 1,320 lb rated load capacity, telescopic boom, 155 in maximum extended lift height, up to 135 in maximum dump height, and 9 cu. ft. bucket in a compact full-electric platform. This Telescopic Wheel Loader provides the extended reach, maneuverability, and loading capability required for construction, agriculture, landscaping, material yards, commercial properties, and professional material-handling operations.

Powered by a high-capacity 73.6V / 240Ah lithium battery with approximately 17.7 kWh of nominal energy, the US-TXLT132 PRO Telescopic Wheel Loader provides up to approximately 8 hours of operation per charge. Dual 4.5 kW electric drive motors provide 9 kW of combined travel power, while a dedicated 4.5 kW hydraulic motor delivers up to 2,320 PSI hydraulic pressure and approximately 10.6 GPM hydraulic flow for responsive lifting, telescoping, bucket operation, dumping, and compatible hydraulic attachments.

⚖
1,320 lbs
Rated Capacity
↕
13 ft (155 in)
Max Lift Height
↕
11.25 ft (135 in)
Dump Height
▣
73.6V / 240Ah Lithium
Battery
✓

1,320 lb Rated Load Capacity

The US-TXLT132 PRO Telescopic Wheel Loader provides a 1,320 lb rated load capacity for professional loading, transporting, lifting, and material-handling applications.

It is designed to handle compatible materials such as soil, gravel, sand, mulch, feed, compost, landscaping materials, construction supplies, and other compatible loads within the machine’s specified operating limits.

↗

155 in Maximum Extended Lift Height

The telescopic boom reaches a maximum extended lift height of approximately 155 in, providing substantially greater vertical reach than a conventional compact wheel loader.

The lifting-height range is approximately 122–155 in depending on boom extension, allowing the operator to adapt the Telescopic Wheel Loader to applications requiring different working heights.

✓

135 in Maximum Dump Height

With the telescopic boom extended, the US-TXLT132 PRO provides a maximum dump height of approximately 135 in.

The dump-height range is approximately 103–135 in, providing flexibility for loading compatible trucks, trailers, high-sided containers, hoppers, bins, and other elevated receiving areas.

✓

9 Cu. Ft. Bucket

The standard 9 cu. ft. bucket provides useful material capacity for handling soil, gravel, sand, mulch, compost, feed, landscaping materials, construction supplies, and other compatible bulk materials.

Combined with the telescopic boom and hydraulic system, the bucket provides an effective solution for loading, carrying, positioning, and dumping materials in professional applications.

⚡

73.6V / 240Ah Lithium Battery

The US-TXLT132 PRO Telescopic Wheel Loader is powered by a high-capacity 73.6V / 240Ah lithium battery with approximately 17.7 kWh of nominal battery energy.

The battery supplies power to the electric travel and hydraulic systems while eliminating operating exhaust emissions at the machine and reducing operating noise compared with conventional fuel-powered equipment.

✓

Up to 8 Hours Runtime

The US-TXLT132 PRO provides up to approximately 8 hours of operating time per charge under suitable operating conditions.

Actual runtime varies depending on payload, terrain, travel distance, hydraulic demand, telescopic-boom use, attachment use, temperature, battery condition, and overall operating intensity.

✓

Approximately 5-Hour Charging Time

A full battery recharge requires approximately 5 hours under suitable charging conditions when using the correct compatible charger.

Actual charging time can vary depending on remaining battery charge, battery temperature, battery condition, charger performance, and environmental conditions.

✓

Telescopic Boom System

The telescopic boom is one of the primary advantages of the US-TXLT132 PRO Telescopic Wheel Loader, providing an approximately 122–155 in lifting-height range for applications requiring additional vertical reach.

The operator can extend the boom when greater loading or material-placement height is required, making the machine particularly useful for elevated loading and high-reach material handling.

↗

Dual 4.5 kW Electric Drive Motors

Two 4.5 kW electric drive motors provide a combined 9 kW of electric travel power for smooth powered movement, responsive operation, and dependable traction.

The dual-motor drivetrain supports loading, material transport, agricultural work, landscaping, construction, property maintenance, and other professional Telescopic Wheel Loader applications.

✓

4.5 kW Hydraulic Motor

A dedicated 4.5 kW electric hydraulic motor powers the loader’s lifting, telescoping, bucket, dumping, and compatible hydraulic attachment functions.

The dedicated hydraulic power system provides responsive performance while allowing the US-TXLT132 PRO to maintain a fully electric drivetrain.

✓

2,320 PSI / 10.6 GPM Hydraulic System

The US-TXLT132 PRO Telescopic Wheel Loader delivers up to approximately 2,320 PSI of hydraulic pressure with approximately 10.6 GPM of hydraulic flow.

Combined with the dedicated 4.5 kW hydraulic motor, the system provides responsive boom extension, lifting, bucket positioning, dumping, and operation of compatible hydraulic attachments.

✓

Heavy-Duty 26 × 12.00-12 Tires

The US-TXLT132 PRO is equipped with 26 × 12.00-12 tires, providing a substantial footprint, useful traction, and stability across compatible commercial working surfaces.

The tire configuration supports operation across construction sites, farms, landscaping properties, material yards, commercial facilities, and other suitable indoor and outdoor environments.

✓

Extended-Reach Telescopic Wheel Loader

The combination of a telescopic boom and compact electric loader platform gives the US-TXLT132 PRO increased versatility for applications where a conventional wheel loader does not provide sufficient vertical reach.

The approximately 122–155 in lifting-height range allows operators to adapt this Telescopic Wheel Loader to standard loading operations as well as applications requiring elevated material placement.

✓

Compact & Maneuverable Design

Despite its extended lifting capability, the US-TXLT132 PRO maintains practical maneuverability with an approximately 80 in turning radius and 45° maximum steering angle.

Its compact configuration makes this Telescopic Wheel Loader practical for commercial yards, farms, construction sites, landscaping operations, material-handling facilities, and other areas where working space may be restricted.

✓

Full Electric Commercial Operation

The US-TXLT132 PRO uses electric power for both machine travel and hydraulic operation, eliminating operating exhaust emissions at the machine and reducing operating noise compared with conventional fuel-powered loaders.

The full-electric configuration makes this Telescopic Wheel Loader suitable for demanding outdoor work as well as compatible indoor commercial and industrial applications where electric operation provides an advantage.

✓

Elevated Loading & Material Placement

The telescopic boom makes the US-TXLT132 PRO particularly useful for elevated material placement, high-sided truck and trailer loading, agricultural operations, container loading, hopper loading, and applications requiring additional vertical reach.

Operators can extend the boom when additional working height is required while retaining the maneuverability and compact footprint of the loader platform.

✓

Where This Telescopic Wheel Loader Works Best

The US-TXLT132 PRO Telescopic Wheel Loader is well suited for construction sites, farms and agricultural operations, landscaping and hardscaping businesses, material yards, warehouses, municipalities, commercial properties, and industrial facilities.

Its telescopic boom is particularly valuable in applications where a conventional compact wheel loader does not provide sufficient lift or dump height.

✓

Best Telescopic Wheel Loader Applications

Use the US-TXLT132 PRO for loading and transporting soil, gravel, sand, mulch, compost, feed, landscaping materials, construction supplies, and other compatible materials.

The telescopic boom makes this Telescopic Wheel Loader especially effective for elevated loading, high-sided truck and container loading, agricultural material handling, material placement at height, and applications requiring additional reach.

✓

Professional Telescopic Material Handling

The US-TXLT132 PRO Telescopic Wheel Loader combines the maneuverability of a compact electric loader with the increased vertical reach of a telescopic boom.

Its 1,320 lb rated load capacity, 9 cu. ft. bucket, 155 in extended lift height, 135 in maximum dump height, 10.6 GPM hydraulic flow, and lithium power system provide a versatile solution for demanding commercial material-handling operations.

✓

Telescopic Wheel Loader Support & 12-Month Warranty

The US-TXLT132 PRO Telescopic Wheel Loader is backed by a 12-Month Warranty covering eligible manufacturing defects under normal intended use.

Technical support and replacement-parts assistance are available to help customers maintain and service their equipment. Replacement parts are covered by a 90-day warranty for eligible manufacturing defects. Wheels, tires, and other normal wear or consumable components are not covered under the replacement-parts warranty.

Proper operation, routine inspections, battery maintenance, charging practices, hydraulic-system maintenance, and scheduled service are important for dependable Telescopic Wheel Loader performance and long equipment service life.

⚡

Electric Power & Charging

The US-TXLT132 PRO Telescopic Wheel Loader uses a 73.6V / 240Ah lithium battery with approximately 17.7 kWh of nominal energy.

It provides up to approximately 8 hours of operation per charge and requires approximately 5 hours for a full recharge under suitable conditions. The electric system powers dual 4.5 kW drive motors and a dedicated 4.5 kW hydraulic motor.

!

Important Lithium Battery Notice

Do not continue operating the US-TXLT132 PRO Telescopic Wheel Loader when the battery charge reaches 20% or below. Stop operation and recharge the 73.6V / 240Ah lithium battery, or replace it with a properly charged compatible battery before returning the equipment to service.

Operating lithium-powered equipment at excessively low charge levels can reduce battery performance and service life. Always use the correct compatible charger and follow proper battery charging and maintenance procedures.

EQUIPMENT SUPPORT

Need Help Choosing the Right Equipment?

Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.

✓ Product Selection ✓ Application Support ✓ Shipping Assistance
SPEAK WITH OUR TEAM
Get Expert Equipment Guidance
Contact Our Team
⚙
PRODUCT SPECIFICATIONS

Technical Specifications

Review the key dimensions, performance data, power information, fitment details, and product configuration.

Specification Value Description
Model US-TXLT132 PRO Full-electric telescopic wheel loader designed for elevated loading and professional material handling
Load Capacity 1,320 lbs Rated load capacity for lifting, loading, transporting, and handling compatible materials
Bucket Capacity 8.8 cu. ft. Standard bucket capacity for soil, gravel, mulch, sand, feed, and other compatible bulk materials
Bucket Width 44 in Standard bucket width for commercial loading and material-handling applications
Max. Extended Lift Height 13 ft (155 in) Maximum lift height with the telescopic boom fully extended
Lift Height Range 122–155 in Telescopic boom provides adjustable vertical reach depending on boom extension
Max. Dump Height 11.25 ft (135 in) Maximum dumping height with the telescopic boom extended
Dump Height Range 103–135 in Available dumping-height range depending on telescopic boom position
Dumping Distance 30–50 in Forward dumping reach varies depending on boom position
Dumping Angle 35° Maximum bucket dumping angle
Power Type Full Electric Battery-powered drivetrain provides quiet operation with no tailpipe exhaust emissions
Battery 73.6V / 240Ah Lithium High-capacity lithium battery designed for extended commercial operation
Battery Voltage 73.6V Electrical system voltage
Battery Capacity 240Ah Battery capacity for extended working cycles
Battery Energy Approx. 17.7 kWh Nominal energy capacity of the 73.6V / 240Ah battery system
Runtime Up to 8 Hours Actual operating time varies with payload, terrain, travel, hydraulic demand, and telescopic-boom use
Charging Time Approx. 5 Hours Typical full recharge time under normal charging conditions
Drive Motor Dual 4.5 kW Two electric drive motors provide smooth powered travel and dependable traction
Total Drive Power 9 kW Combined rated power of the dual 4.5 kW electric drive motors
Hydraulic Motor 4.5 kW Dedicated electric motor powers lifting, telescoping, bucket positioning, and dumping functions
Hydraulic Pressure 2,320 PSI Hydraulic system provides strong and responsive loader performance
Travel Speed 6 mph Low / 12.5 mph High Two-speed travel system supports controlled working and faster site movement
Turning Radius 80 in Compact turning radius supports maneuverability in commercial working areas
Maximum Steering Angle 45° Steering system provides responsive maneuverability
Tire Size 26 × 12.00-12 Industrial tires provide traction and stability across compatible working surfaces
Ground Clearance 8 in Clearance beneath the machine for compatible uneven working surfaces
Wheelbase 55 in Wheelbase supports machine stability and maneuverability
Track Width 37 in Wheel track contributes to machine stability during operation
Overall Length 150 in Total machine length
Overall Width 50 in Overall machine width
Overall Height 89 in Overall machine height
Machine Weight 4,880 lbs Approximate operating weight of the loader
Braking System Drum Oil Brake + Drum Parking Brake Service and parking brake systems for controlled machine operation
Standard Equipment Bucket & Quick Hitch Standard configuration supports common loading and material-handling applications
Operator Controls Electric Joystick & Digital Display Operator controls provide convenient management of machine and hydraulic functions
Recommended Environment Indoor & Outdoor Commercial Suitable for compatible construction, agriculture, landscaping, material-yard, warehouse, and commercial applications
Best Use Elevated Loading & Material Placement Telescopic boom provides additional reach for loading and positioning materials at height
Warranty 12 Months Limited warranty coverage for eligible manufacturing defects subject to applicable Texlift warranty terms
FREQUENTLY ASKED QUESTIONS

Product Questions & Answers

Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.

28 Product FAQs Quick answers to help you evaluate and operate this equipment.
01 What is the load capacity of the US-TXLT132 PRO?

The US-TXLT132 PRO Telescopic Wheel Loader has a 1,320 lb rated load capacity for professional lifting, loading, transporting, and material-handling applications. Actual load capability depends on boom extension, load position, attachment configuration, terrain, and operating conditions.

02 What is the bucket capacity?

The US-TXLT132 PRO comes with a 9 cu. ft. bucket for handling soil, gravel, sand, mulch, feed, compost, landscaping materials, construction supplies, and other compatible bulk materials.

03 How wide is the standard bucket?

The standard bucket is approximately 44 in wide, providing useful material capacity while maintaining practical maneuverability for commercial loading operations.

04 What is the maximum lift height?

The telescopic boom provides a maximum extended lift height of approximately 13 ft (155 in), giving the US-TXLT132 PRO additional vertical reach for elevated loading and material placement.

05 What is the lift height range?

The US-TXLT132 PRO provides an approximate lift-height range of 122–155 in depending on telescopic-boom extension, allowing the operator to adapt the working height to different applications.

06 What is the maximum dump height?

The Telescopic Wheel Loader provides a maximum dump height of approximately 11 ft (135 in) with the boom extended, making it suitable for compatible high-sided trucks, trailers, containers, hoppers, and elevated receiving areas.

07 What is the dump height range?

The dump-height range is approximately 103–135 in depending on telescopic-boom position, providing flexibility for different loading and material-placement requirements.

08 What is the dumping distance?

The US-TXLT132 PRO provides approximately 30–50 in of forward dumping distance depending on boom position, helping position materials over compatible receiving areas.

09 What is the maximum dumping angle?

The bucket provides a maximum dumping angle of approximately 35° for controlled discharge of compatible bulk materials.

10 What is the advantage of the telescopic boom?

The telescopic boom increases the loader's vertical reach beyond that of a conventional compact wheel loader, making the US-TXLT132 PRO particularly useful for elevated loading, high-sided truck and container loading, agricultural work, and material placement at height.

11 What battery does the US-TXLT132 PRO use?

The Telescopic Wheel Loader uses a 73.6V / 240Ah lithium battery with approximately 17.7 kWh of nominal energy to power the electric drive and hydraulic systems.

12 How long can the US-TXLT132 PRO operate per charge?

The US-TXLT132 PRO provides up to approximately 8 hours of operation per charge under suitable conditions. Actual runtime varies with payload, terrain, travel, hydraulic demand, telescopic-boom use, temperature, battery condition, and operating intensity.

13 How long does the battery take to recharge?

A full battery recharge takes approximately 5 hours under suitable charging conditions using the correct compatible charger. Actual charging time may vary depending on remaining charge, battery condition, temperature, and charger performance.

14 What drive motors does the US-TXLT132 PRO use?

The loader uses dual 4.5 kW electric drive motors, providing a combined 9 kW of rated electric travel power for smooth movement, responsive operation, and dependable traction.

15 What hydraulic motor does the loader use?

A dedicated 4.5 kW electric hydraulic motor powers the lifting, telescopic-boom extension, bucket positioning, dumping, and compatible hydraulic functions.

16 What are the hydraulic pressure and flow rate?

The US-TXLT132 PRO hydraulic system provides up to approximately 2,320 PSI of pressure and 10.6 GPM of hydraulic flow for responsive lifting, telescoping, bucket operation, dumping, and compatible hydraulic attachment functions.

17 How fast does the US-TXLT132 PRO travel?

The Telescopic Wheel Loader has a two-speed travel system rated at approximately 6 mph in low range and up to 12.5 mph in high range for controlled working and movement between compatible work areas.

18 What tire size does the US-TXLT132 PRO use?

The US-TXLT132 PRO is equipped with 26 × 12.00-12 tires designed to provide useful traction, stability, and a substantial footprint across compatible working surfaces.

19 What is the turning radius?

The US-TXLT132 PRO has an approximately 80 in turning radius and a maximum steering angle of approximately 45°, supporting maneuverability in commercial yards, farms, construction sites, and other working areas.

20 What is the ground clearance?

The Telescopic Wheel Loader provides approximately 8 in of ground clearance for operation across compatible outdoor and uneven working surfaces.

21 What are the overall dimensions?

The US-TXLT132 PRO measures approximately 150 in long, 50 in wide, and 89 in high, with an approximately 55 in wheelbase and 37 in track width.

22 How much does the US-TXLT132 PRO weigh?

The US-TXLT132 PRO has an approximate machine weight of 4,880 lb, providing a substantial platform for professional loading, lifting, and telescopic material-handling operations.

23 What equipment comes standard with the loader?

The standard configuration includes a bucket and quick hitch, supporting common loading applications and convenient use of compatible attachments.

24 What operator controls does the US-TXLT132 PRO have?

The loader is equipped with an electric joystick and digital display for convenient control and monitoring of machine, boom, bucket, and hydraulic functions.

25 Where can the US-TXLT132 PRO be used?

The Telescopic Wheel Loader is suitable for compatible construction sites, farms and agricultural facilities, landscaping operations, material yards, warehouses, municipalities, commercial properties, and industrial applications.

26 What applications is the US-TXLT132 PRO best suited for?

The telescopic boom makes the loader particularly useful for elevated loading, high-sided truck and trailer loading, material placement at height, agriculture, landscaping, construction, bulk-material handling, and applications requiring additional vertical reach.

27 What warranty comes with the US-TXLT132 PRO?

The US-TXLT132 PRO includes a 12-Month Warranty covering eligible manufacturing defects under normal intended use. Replacement parts include 90-day warranty coverage for eligible manufacturing defects, while wheels, tires, and other normal wear or consumable components are excluded from replacement-parts warranty coverage.

28 When should I recharge the lithium battery?

Do not continue operating the US-TXLT132 PRO when the battery charge reaches 20% or below. Stop operation and recharge the 73.6V / 240Ah lithium battery, or replace it with a properly charged compatible battery before returning the loader to service.

NEED MORE INFORMATION? Still have a product question?

Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.

Contact Our Team
MODEL COMPARISON

Compare Similar Equipment

Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.

Compare up to 4 models The current product is highlighted for easier side-by-side comparison.
Swipe left or right to compare models
⇄
Compare Models Review key differences side by side
CURRENT MODEL
Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift - TEXLIFT
Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift
Original price was: $29,990.00.Current price is: $25,890.00.
Lithium-Ion Battery Electric Wheel Loader | US-TXL140PRO | 1400 LBS Capacity | 11ft (132 inch) Lift - TEXLIFT
Lithium-Ion Battery Electric Wheel Loader | US-TXL140PRO | 1400 LBS Capacity | 11ft (132 inch) Lift
Original price was: $27,000.00.Current price is: $23,990.00.
US-TXL176 PRO Full Electric Wheel Loader – 1,760 lb Capacity | 132" Lift Height - TEXLIFT
US-TXL176 PRO Full Electric Wheel Loader – 1,760 lb Capacity | 132" Lift Height
Original price was: $27,990.00.Current price is: $24,890.00.
Lithium-Ion Electric Wheel Loader US-TXL88PRO – 880 LBS Capacity | 7ft (85 inch) Lift Height | Heavy-Duty Performance - TEXLIFT
Compact Electric Wheel Loader – 880 lb Capacity, Lithium, 7 ft Lift | US-TXL88PRO
Original price was: $17,000.00.Current price is: $14,190.00.
Rated Capacity
1,320 lbs
1,400 lbs
1,760 lbs
880 lbs
Lift Height
13 ft (155 in)
11 ft (132 in)
11 ft (132 in)
7 ft (85 in)
Dump Height
11.25 ft (135 in)
7.2 ft (86 in)
7.2 ft (86 in)
5 ft (55 in)
Bucket Capacity
8.8 cu. ft.
9 cu. ft.
9 cu. ft.
7 cu. ft.
Battery
73.6V / 240Ah Lithium
73.6V / 240Ah
73.6V / 240Ah
60.8V / 160Ah LiFePO4
Runtime
Up to 8 Hours
Up to 8 Hours
Up to 8 Hours
Up to 6 Hours
Charging Time
Approx. 5 Hours
Approx. 5 Hours
Approx. 5 Hours
—
Drive Motor
Dual 4.5 kW
Dual 4.5 kW
Dual 4.5 kW
Dual 2.5 kW
Hydraulic Motor
4.5 kW
4.5 kW
4.5 kW
3 kW
Hydraulic Pressure
2,320 PSI
2,320 PSI
2,320 PSI (16 MPa)
2,320 PSI
Tires
26 × 12.00-12
26 × 12.00-12
29 × 12.5-15
23 × 8.5-12
Availability
Out of Stock
In Stock
In Stock
In Stock
Product
✓ Selected Model
View Product
View Product
View Product
Need help choosing the right model? Tell us your required load capacity, lift height, application, and working environment. Our equipment team can help you compare the available options.
Contact Our Team
FULL-ELECTRIC POWER

Powered by Electricity. Not Diesel.

Texlift full-electric equipment uses a rechargeable battery system to power machine travel and hydraulic operation. Instead of purchasing diesel for operation, the machine can be recharged using electricity.

EXAMPLE WORK SCHEDULE 6 Hours / Day
WORKING DAYS 5 Days / Week
ESTIMATED YEARLY USE 1,560 Hours
⚡
POWER SOURCE Rechargeable
Electric Battery

Plug in, recharge and return to work.

No Diesel
OPERATING COST COMPARISON

Estimated Annual Energy & Fuel Cost

Compare estimated annual electric energy cost with diesel using the same example work schedule.

ELECTRIC
⚡
POWER SOURCE

Electric

ESTIMATED ANNUAL COST
$518 / Year*

Estimated electric energy cost based on battery capacity, runtime and electricity at $0.15/kWh

✓ Powered by electricity
D
POWER SOURCE

Diesel

ESTIMATED ANNUAL COST
$4,680 / Year*

Example based on 0.75 gal/hour and diesel at $4.00 per gallon

$
POTENTIAL ENERGY / FUEL SAVINGS
$4,162 / YEAR*

Estimated difference between the electric energy cost and the highest fuel-cost example shown above.

APPROX. MONTHLY $347 potential savings
APPROX. WEEKLY $80 potential savings
COMPARED WITH Diesel highest example above
WHY ELECTRIC?

Electric vs. Diesel

Full-electric equipment can reduce recurring fuel expenses and remove several routine combustion-engine maintenance requirements.

⚡
FULL ELECTRIC

Texlift Electric Equipment

Rechargeable battery power for everyday operation.

✓
Rechargeable Battery Power

Recharge using electricity instead of purchasing diesel.

✓
No Engine Oil Changes

No combustion engine means no routine engine oil and engine oil filter service.

✓
No Fuel-System Service

No conventional diesel fuel system to maintain.

✓
No Tailpipe Exhaust

Full-electric operation produces no tailpipe exhaust emissions during use.

✓
Convenient Charging

Recharge overnight, during scheduled downtime or between working periods.

⛽
CONVENTIONAL POWER

Diesel

Combustion-powered equipment requires ongoing fuel.

×
Recurring Fuel Purchases

Diesel expense continues while the machine is operated.

×
Engine Oil & Filters

Combustion engines require scheduled engine oil and filter replacement.

×
Fuel-System Maintenance

Fuel-system components may require periodic inspection, maintenance and service.

×
Exhaust-System Components

Combustion-powered equipment can require additional exhaust-system maintenance.

×
Refueling & Fuel Handling

Fuel must be purchased and supplied to the machine, with handling requirements depending on the fuel type.

ADDITIONAL SAVINGS POTENTIAL

More Than Just Fuel Savings

The annual comparison above focuses on energy and fuel costs. Full-electric equipment can also reduce routine maintenance by eliminating several combustion-engine service items.

✓ No Engine Oil Changes
✓ No Engine Oil Filters
✓ No Fuel Filters
✓ No Fuel-System Service
✓ No Routine Engine Tune-Ups
✓ No Fuel Storage Required
✓ No Combustion Exhaust Service
✓ Fewer Combustion-Engine Service Items
*Illustrative operating-cost comparison: Electricity rates, fuel prices, fuel consumption, comparable machine size, workload, terrain, operator behavior and actual operating hours vary. Figures shown are estimates for comparison purposes only and are not guaranteed operating costs. Maintenance savings are not included in the annual energy/fuel comparison.
PRODUCT APPLICATIONS

Built for Demanding Material Handling Applications

Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.

01

Elevated Loading

Use the telescopic boom and up to 155 in lift height for loading and positioning compatible materials at elevated working heights.

02

Truck & Trailer Loading

The up to 135 in dump height provides extended reach for loading compatible high-sided trucks, trailers, containers, hoppers, and receiving areas.

03

Construction Sites

Load and transport soil, gravel, sand, construction materials, supplies, and other compatible loads across professional construction and job-site environments.

04

Agriculture & Farm Operations

Handle feed, soil, compost, bulk materials, supplies, and other compatible loads around farms, ranches, barns, and agricultural facilities.

05

Landscaping & Hardscaping

Move mulch, soil, gravel, compost, stone, landscaping materials, and supplies while using the telescopic boom when additional reach is required.

06

Material Yards & Supply Facilities

Load, transport, position, and stack compatible materials around landscape supply yards, nurseries, construction-material facilities, and commercial material yards.

07

Warehouses & Industrial Facilities

Support material transport, elevated placement, loading, facility maintenance, and general handling in compatible indoor and outdoor commercial environments.

08

Municipal & Property Maintenance

Support grounds maintenance, material transport, cleanup, loading, and property-maintenance operations where the additional reach of a Telescopic Wheel Loader is beneficial.

✓
Not sure if this model fits your application? Contact our equipment team with your load, lift height, pallet, and operating requirements and we can help you evaluate the right model.
Contact Our Team
WARRANTY & SUPPORT

Confidence Beyond the Purchase

Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.

Product-Specific Coverage The warranty and support information below applies specifically to this product.
01

12-Month Warranty

The US-TXLT132 PRO Telescopic Wheel Loader is backed by a 12-Month Warranty covering eligible manufacturing defects in materials and workmanship under normal intended operating conditions.

02

Technical Support

Texlift provides troubleshooting and technical assistance to help diagnose operational, electrical, hydraulic, telescopic-boom, control-system, and equipment-related issues.

03

Battery & Charging Support

Technical assistance is available for the 73.6V / 240Ah lithium battery system, compatible charger operation, proper charging procedures, battery care, and battery-related troubleshooting.

04

Electric Drive System Support

Technical assistance is available for the dual 4.5 kW electric drive motors, drive controls, electrical components, and related electric drivetrain systems.

05

Hydraulic & Telescopic Boom Support

Support is available for the 4.5 kW hydraulic motor, 2,320 PSI hydraulic system, 10.6 GPM hydraulic flow, telescopic-boom operation, hydraulic controls, and related components.

06

Bucket & Lift System Support

Assistance is available for troubleshooting lifting, lowering, telescopic extension, bucket positioning, dumping, and other loader-function concerns.

07

Replacement Parts Support

Texlift provides replacement-parts assistance to help identify and obtain compatible components for maintenance and eligible repairs. Replacement parts include 90-day warranty coverage for eligible manufacturing defects.

08

Pre-Delivery Inspection

Each US-TXLT132 PRO is inspected and tested before shipment to help verify proper machine, drive, hydraulic, boom, and control-system operation before delivery.

09

Warranty Claim Assistance

For warranty evaluation, customers may be asked to provide the machine serial number, order information, photos, videos, maintenance information, and other relevant details so the issue can be properly reviewed.

10

Warranty Exclusions

Coverage does not include wheels, tires, normal wear items, consumable components, misuse, overloading, accidents, operator damage, improper maintenance or charging, unauthorized repairs or modifications, or operation outside the machine's intended application.

CUSTOMER SUPPORT Need warranty, parts, or technical support?

Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.

Contact Support

Reviews

There are no reviews yet

Add a review
Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift
Rating*
0/5
* Rating is required
Your review
* Review is required
Name
* Name is required
Add photos or video to your review
* Please tick the checkbox to proceed

TEXLIFT IN NUMBERS

Equipment That Keeps Business Moving

From warehouses and distribution centers to construction sites and industrial facilities, Texlift delivers reliable equipment across the continental United States.

4,200+

Equipment Orders Delivered Nationwide

50+

Equipment Models

12-Month

Warranty Coverage

Nationwide

Continental U.S. Shipping

Dallas, TX

Operations & Pickup

✓ Financing Available

✓ Fast Parts Support

✓ Commercial Equipment Experts

✓ Secure Online Ordering
