High-Reach Electric Walkie Stacker US-ESB33K 138 – 3,300 lb Capacity | 138″ Lift Height
Shipping costs are calculated at checkout!

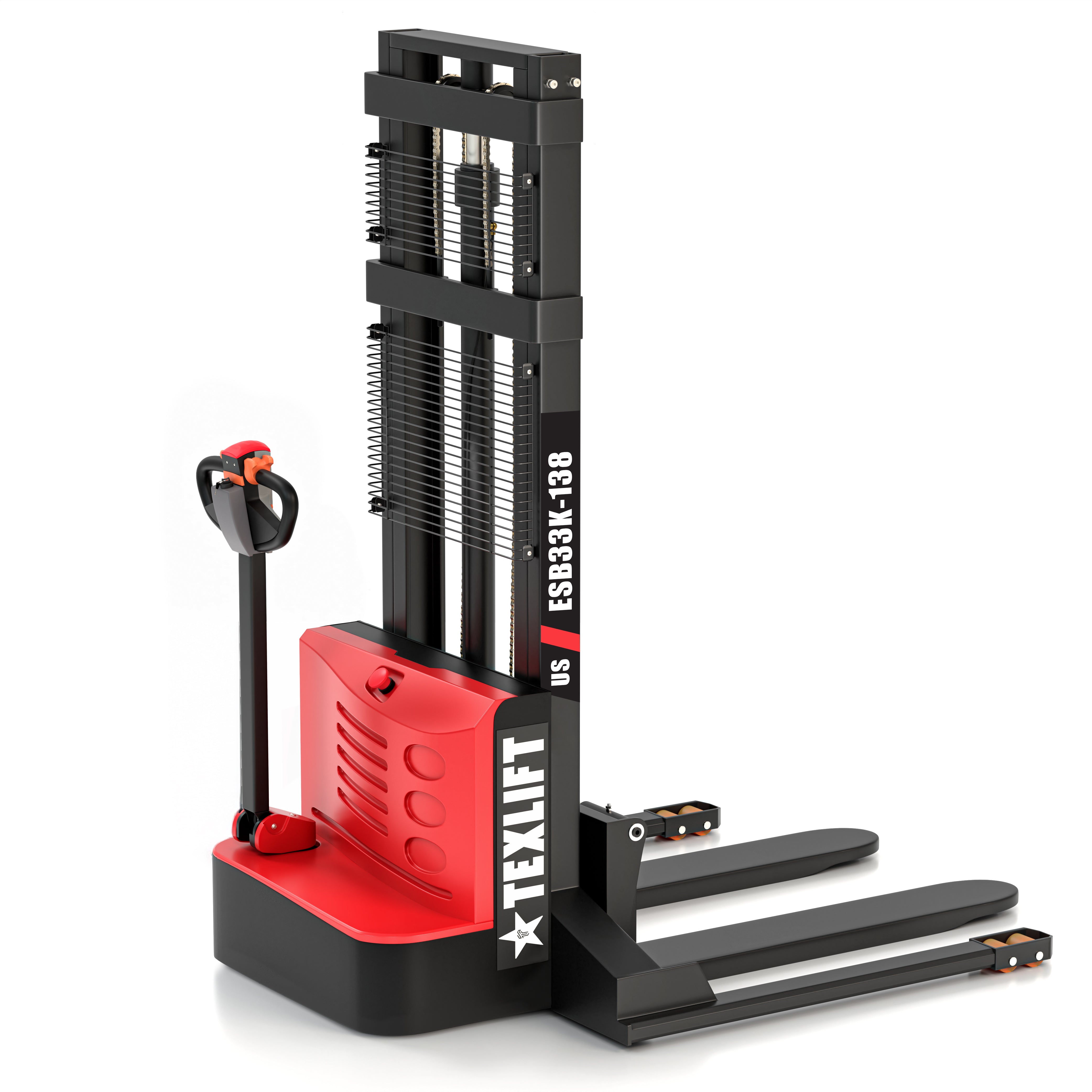

⚡ High-Reach Electric Walkie Stacker US-ESB33K 138
- Load Capacity: 3,300 lbs
- Max Lift Height: 138″ (11.5 ft)
- Load Center: 20″
- Fork Width: Adjustable from 5.5″ to 27″
- Leg Width (Outer/Inner): 60″ / 50″
- Overall Dimensions (L × W × H): 70″ × 60″ × 89″ (lowered)
- Wheelbase: 50″ | Turning Radius: 55″
- Ground Clearance: 3.5″
- Drive System: 24V Electric (DC)
- Truck Weight: ~1,220 lbs (with battery)
- 🏗️ Extended lift height: Ideal for high racking and tall storage systems.
- ⚡ Efficient 24V power: DC motor provides smooth lift and travel.
- 🔋 Long battery runtime: Engineered for continuous warehouse shifts.
- 🧭 Compact and stable: Easy to maneuver even in narrow aisles.
- 🚚 Nationwide U.S. Shipping Available
- ❌ No Sales Tax outside TX
-
📞 Talk to a Specialist Anytime: +1 (214) 468-4388
- 🎖️ Military Discount: Save 3% for veterans
-
💲 Want a Better Price? Pay by wire and save 2% Get Discount Quote
Get to know the product
PRODUCT SPECIFICATIONS
Texlift US-ESB33K 138 Full Electric Pallet Stacker – 3,300 lb Capacity, 138 in Lift Height.
Engineered for maximum reach and performance — compact, efficient, and built for reliable indoor material handling.
US-ESB33K 138
High-lift electric walkie stacker for warehouse applications.
3,300 lbs
3,300 lb capacity ideal for heavy pallet loads.
20 in
20 in load center ensures balance and stability.
Adjustable from 5.5″ to 27″
Adjustable fork width (5.5″–27″) suits various pallets.
Outer 60 in / Inner 50 in
Outer 60 / Inner 50 in leg width for secure handling.
138 in
138 in lift height ideal for taller racking systems.
70 in
70 in overall length enables easy maneuvering.
85 in
85 in lowered mast height clears most indoor spaces.
60 in
60 in overall width for compact stability.
3.5 in
3.5 in ground clearance designed for smooth floors.
50 in
50 in wheelbase for balanced movement.
1,200 lbs
Approx. 1,200 lbs with battery.
2.2 / 2.5 mph
2.2 / 2.5 mph driving speed (full / no load).
4.5 / 3.1 in per sec
4.5 / 3.1 in/s lifting speed for efficient operation.
5.1 / 4.3 in per sec
5.1 / 4.3 in/s lowering speed for precision handling.
5 / 3 %
5 / 3 % gradeability for ramp use.
Walkie
Walkie operation for precise maneuvering.
Electric (24 V DC)
24 V DC electric drive with low maintenance.
2.2 kW
2.2 kW lift motor with consistent performance.
Electromagnetic
Electromagnetic brake system for safe stops.
Recommended for you!
FAQs
Your guide to the Texlift US-ESB33K 138 Electric Pallet Stacker
Is the US-ESB33K 138 suitable for tall warehouse storage?
Yes. With a 138 in lift height, it’s ideal for high racking and mezzanine levels.
Can it handle standard pallets?
Yes. Adjustable forks (5.5″–27″) easily fit standard 40×48″ pallets.
How high does the mast reach?
The US-ESB33K 138 reaches up to 138 in (11.5 ft).
What’s the charging time?
Full charge typically takes 6–8 hours using the standard charger.
What safety features are included?
Includes emergency stop, overload protection, and electromagnetic brake for safe use.
Recommended maintenance schedule?
Perform inspections every 12 months or more often under daily use.
