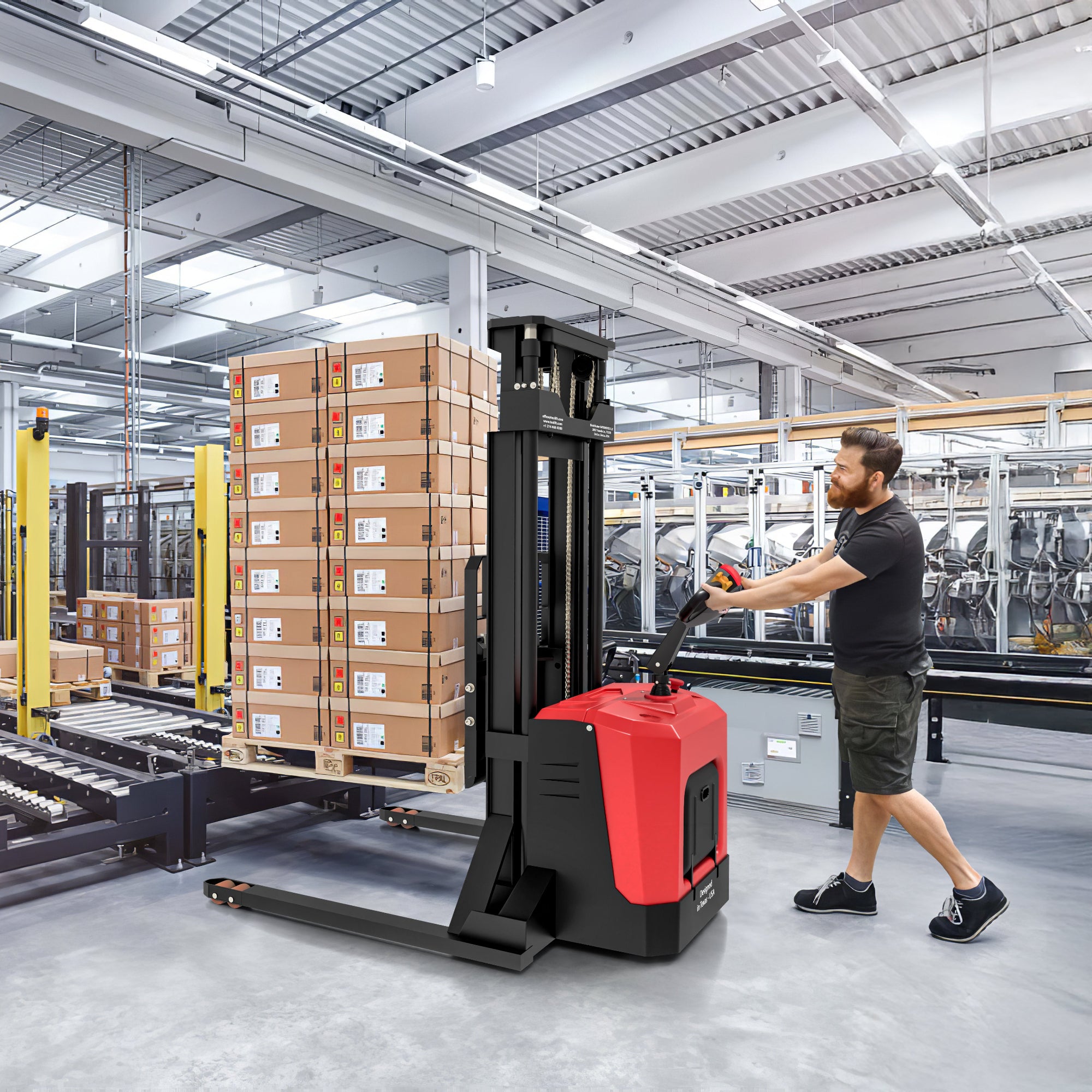

Electric Pallet Stacker Rider Type – 18ft (216 inch) Lift, 3300 lbs, Model US-AS35 216
Shipping costs are calculated at checkout!

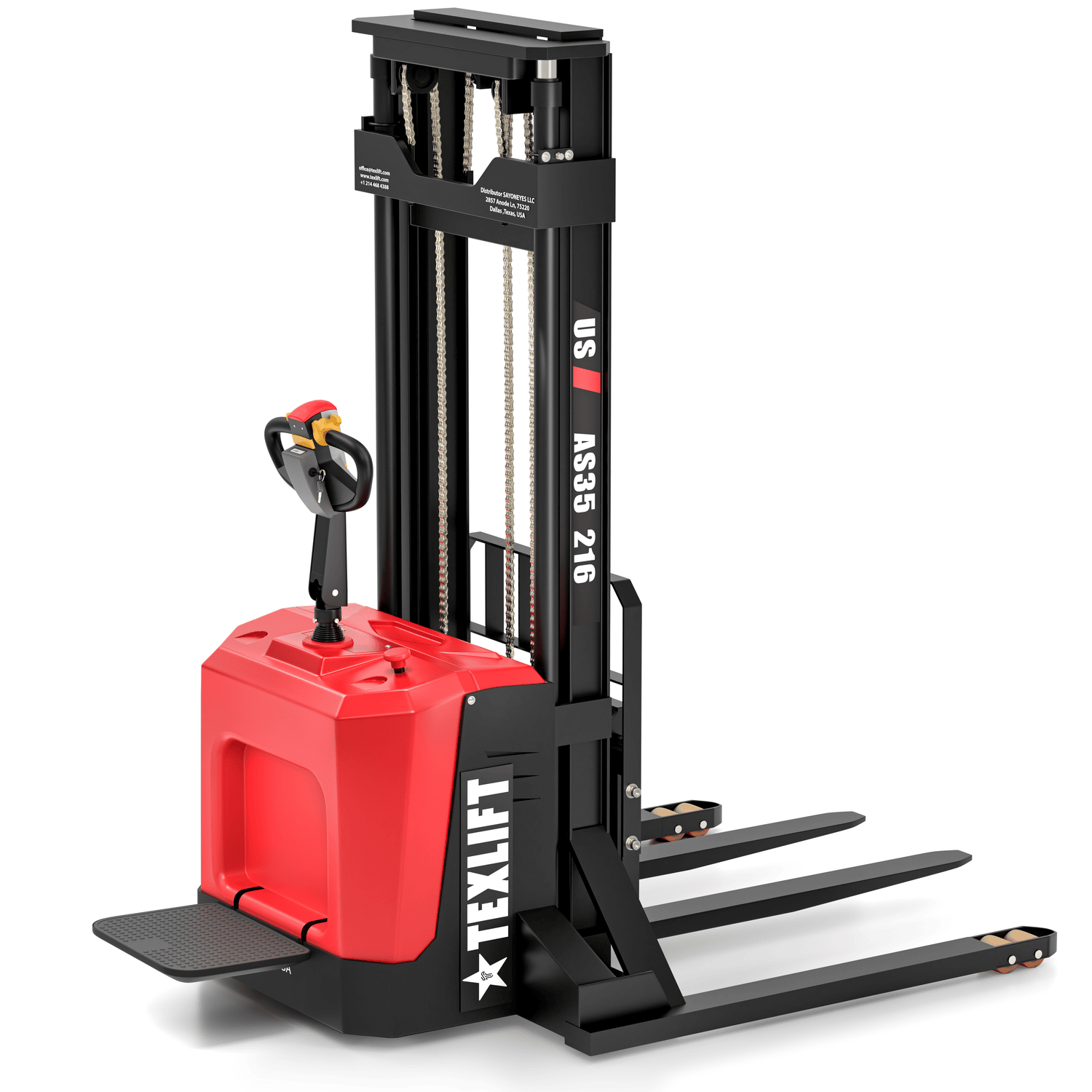

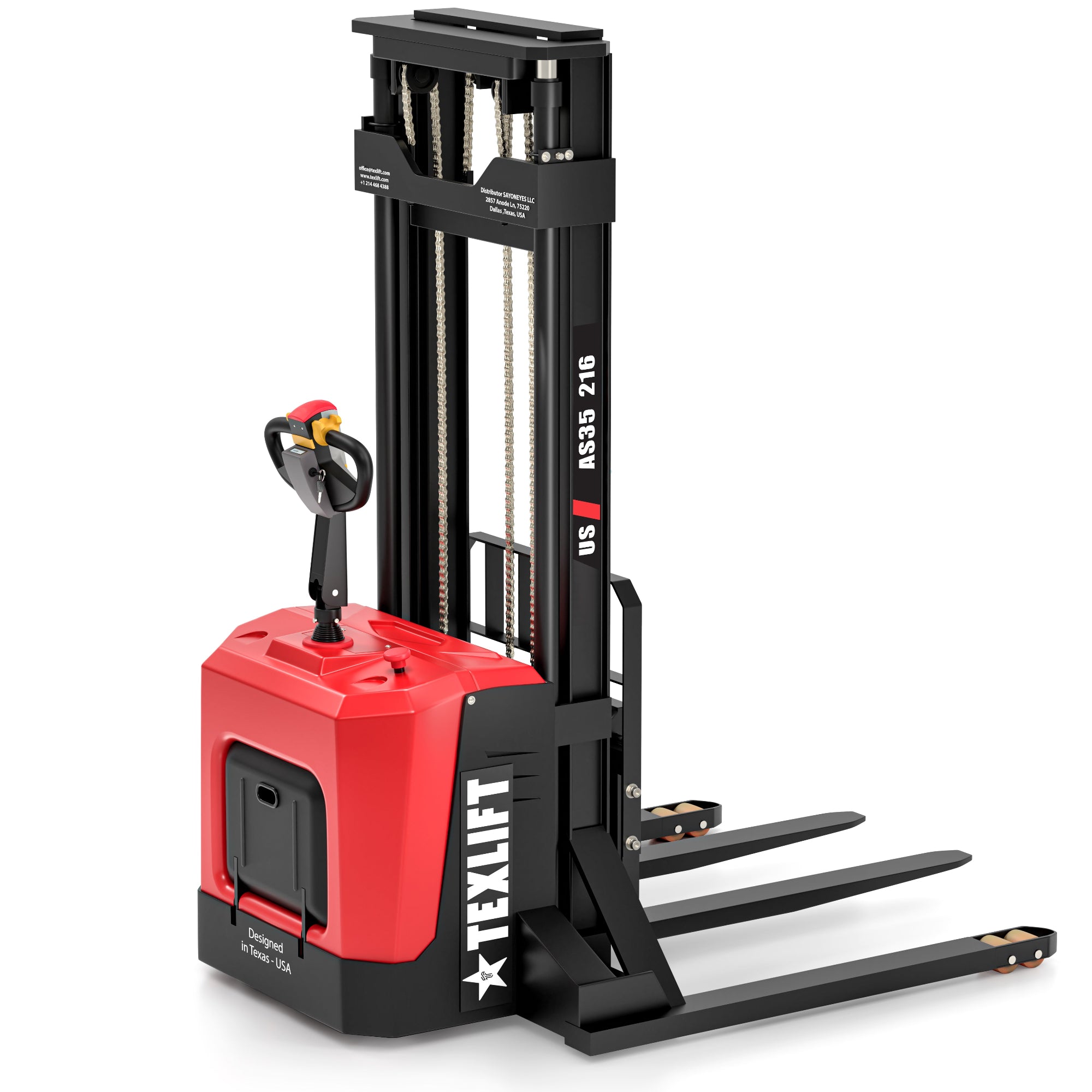

Electric Rider Pallet Stacker with Stand – 3,300 lbs, 18 ft Lift – Model US-AS35 216
- Model: US-AS35 216
- Lift Height: 18 ft (216″)
- Load Capacity: 3,300 lbs
- Operation Type: Rider with stand-on platform
- Fork Width: Adjustable from 8″ to 27″
- Product Dimensions: 79″ L × 58″ W × 96″ H (lowered mast)
- Turning Radius: 69″
- Battery: 24V / 210Ah Lead-Acid
- 🔋 Battery Performance: about 4–5 hours of non-stop operation, with a 4–5 hour recharge time.
- Motors: 1.5 kW Drive / 2.2 kW Lift
- Braking System: Electromagnetic for safety

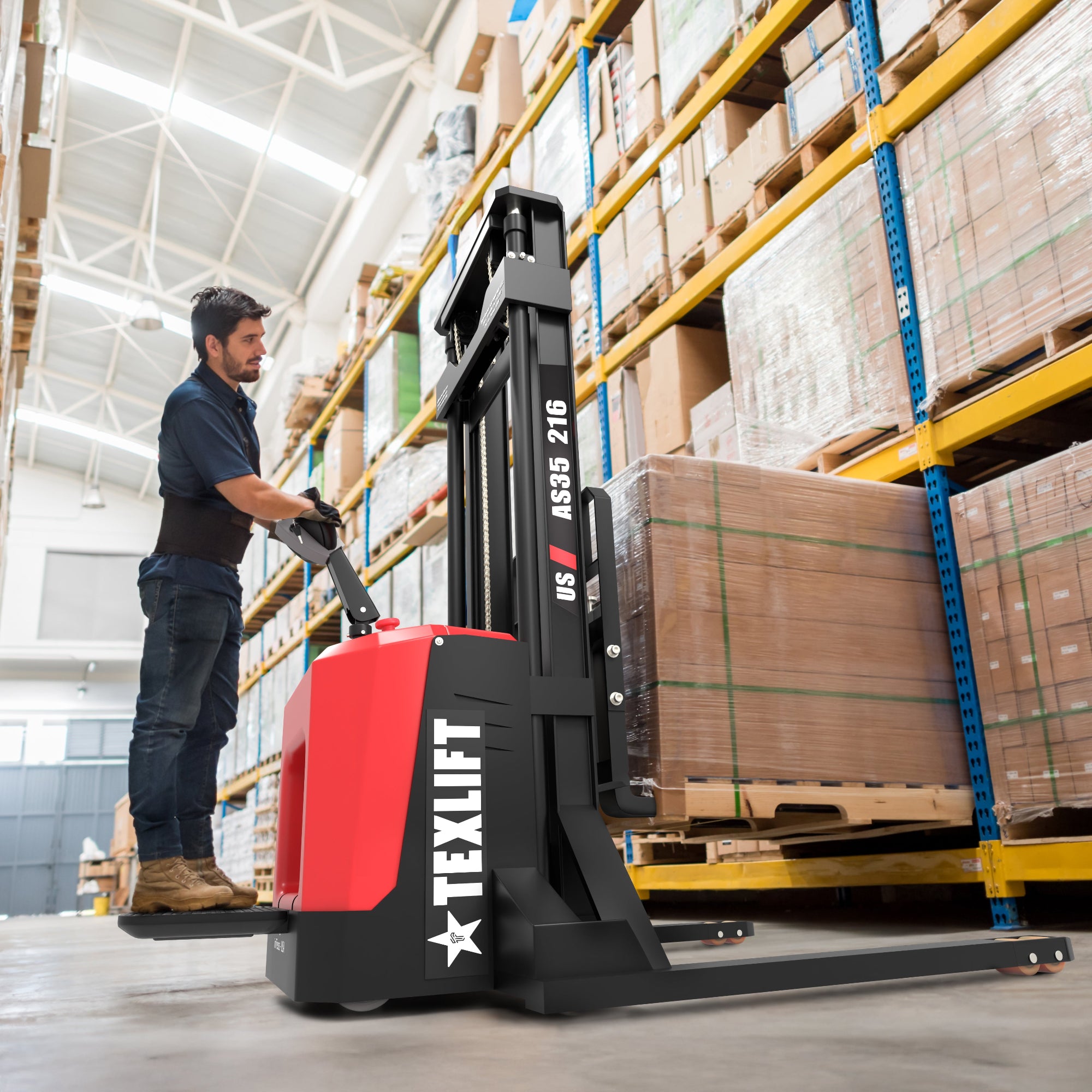

- ⚙️ Rider platform: Ideal for long warehouse runs and frequent loading/unloading.

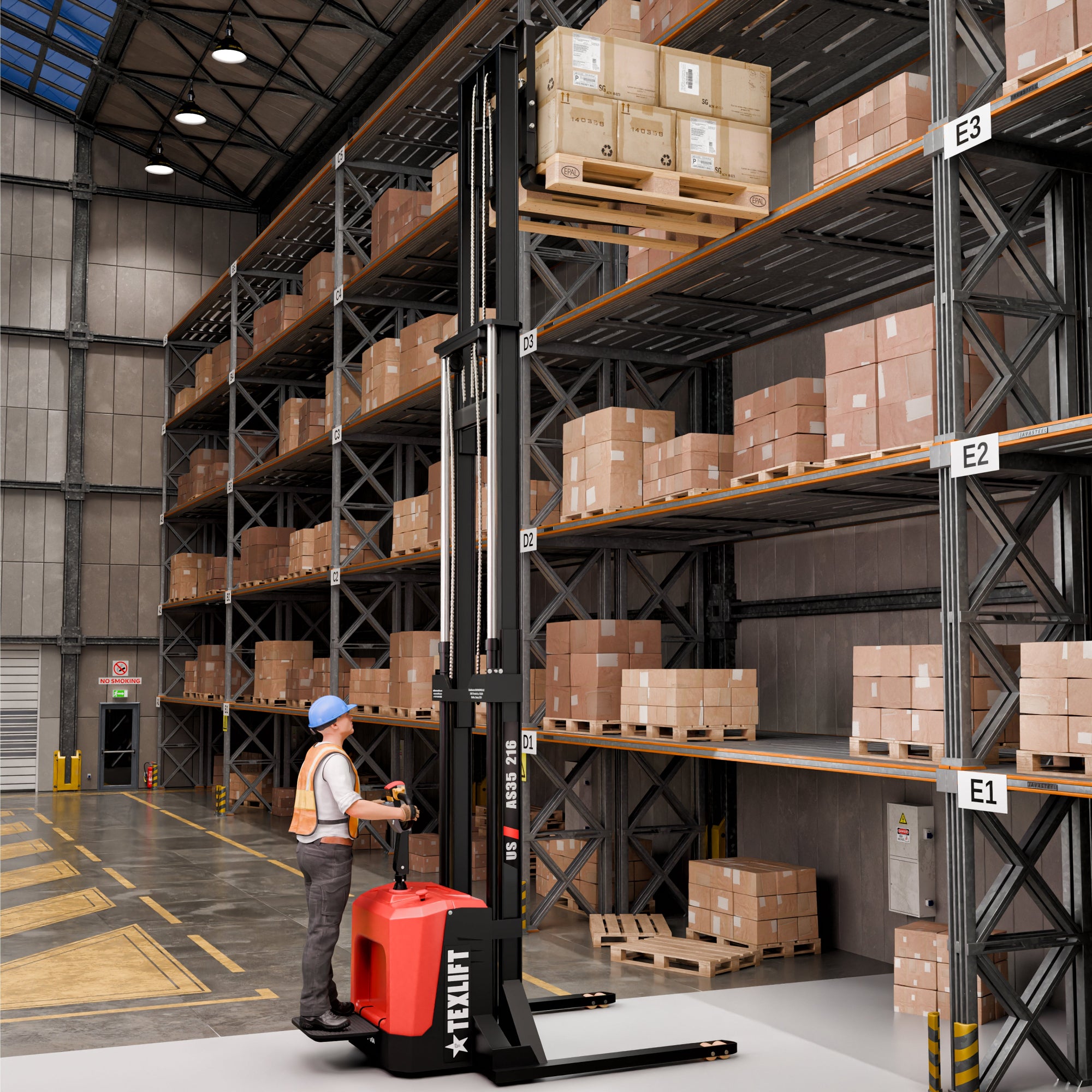

- 🏢 High lifting capability: Perfect for warehouse racking up to 18 ft.

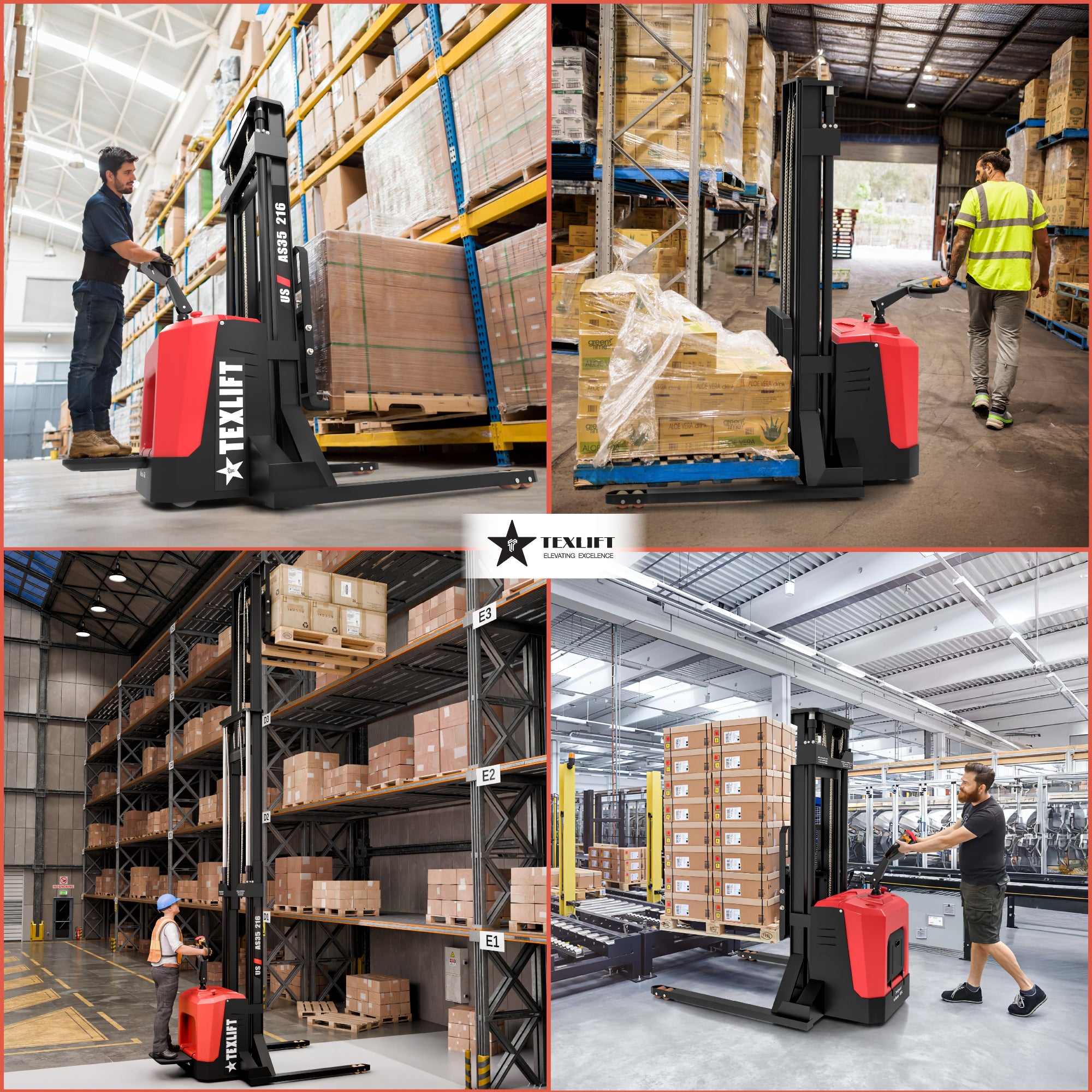

- 📦 Designed for distribution centers, large warehouses, and manufacturing facilities.
- 🚚 Nationwide U.S. Shipping available
- ❌ No Sales Tax outside TX
- 📞 Talk to a Specialist Anytime:
- +1 (214) 468-4388
- 🎖️ Military Discount available
- 💲 3% Wire-Transfer Discount: Save 3% when paying by wire transfer.
- Request 3% Wire Discount
Get to know the product
PRODUCT SPECIFICATIONS
The specification chart for the Texlift US-AS35 216 Electric Stacker provides a comprehensive overview of its performance features. Designed for rider operation and heavy-duty use, this stacker combines long lift height, compact maneuverability, and solid power in one dependable machine.
US-AS35 216
Heavy-duty rider stacker for industrial use.
3300 lbs
Handles up to 3300 lbs for heavy pallets.
2750 lbs
Weighs 2750 lbs with battery included.
20 inches
20-inch load center for stability.

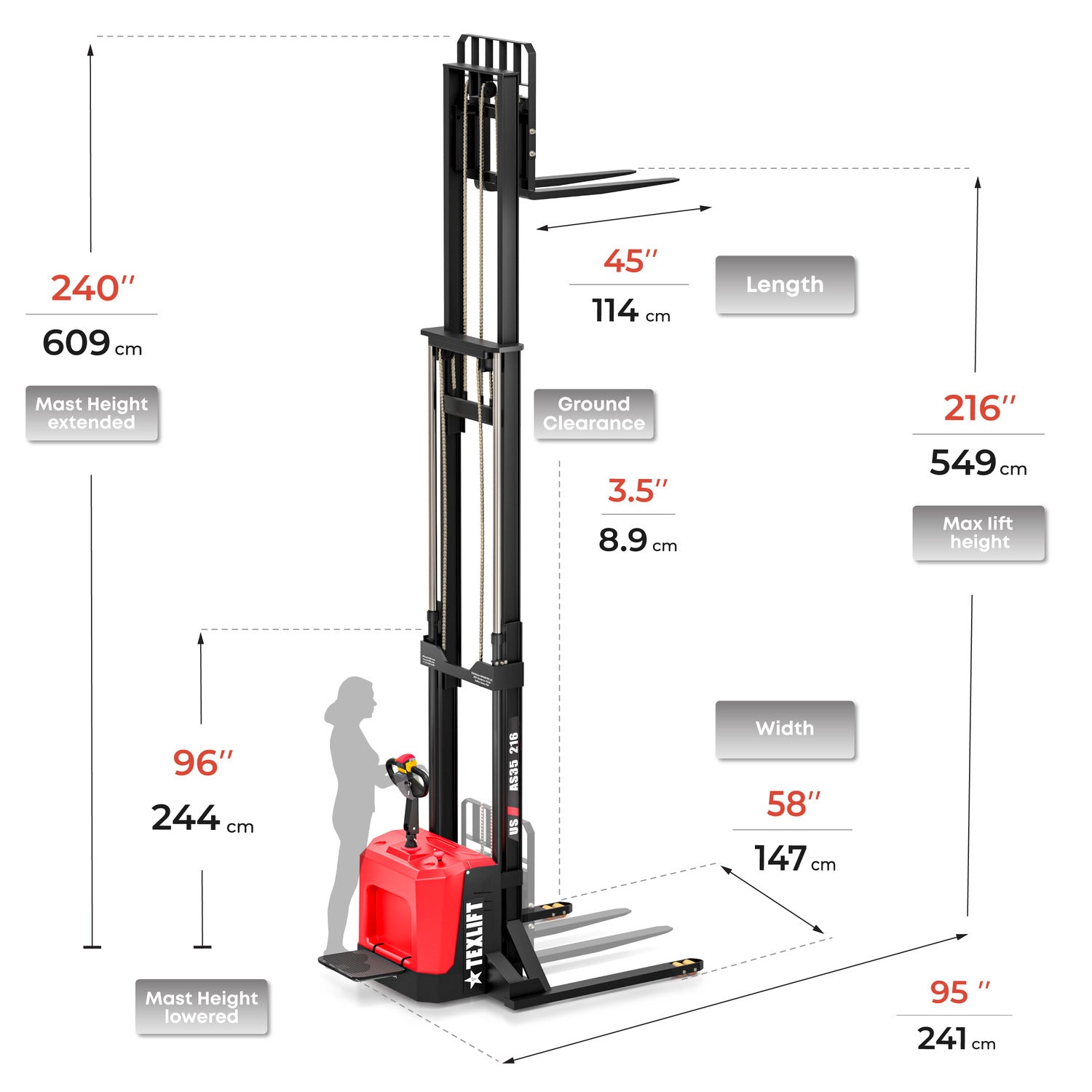

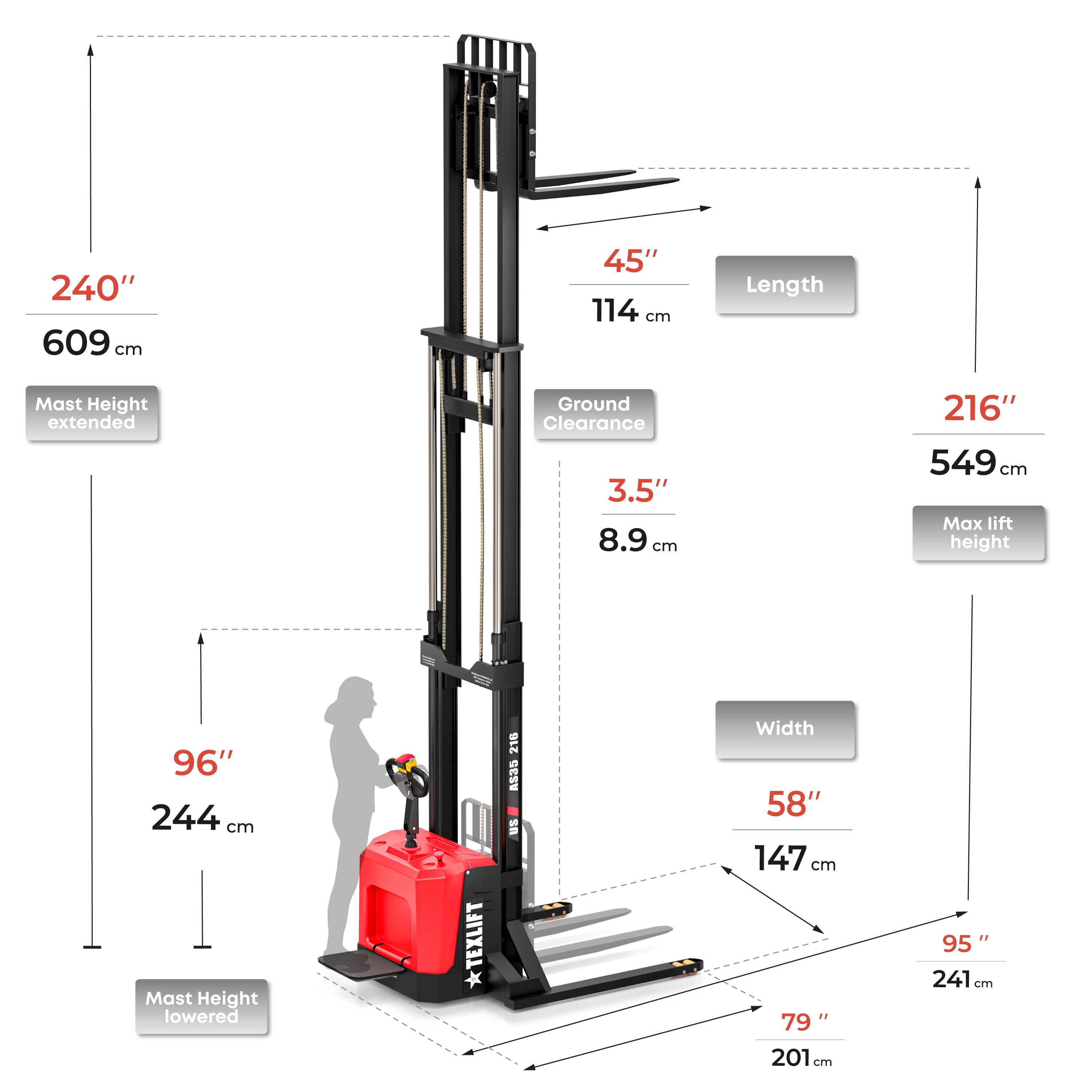

96 inches
Lowered mast height of 96 inches for clearance.
216 inches
216-inch lift height for tall shelving.
240 inches
Max mast height of 240 inches.
79 inches
79-inch total length for maneuverability.
58 inches
Wide 58-inch frame ensures load balance.
44 inches
44-inch wheelbase provides support.
2.5 / 3.1 mph
Drives at 2.5/3.1 mph.
5.5 / 5.3 in/s
Lifts at 5.5/5.3 in/s speeds.
5.9 / 6.1 in/s
Descends at 5.9/6.1 in/s speeds.
8% / 5%
Can climb 8%/5% grades.
Electromagnetic
Safe electromagnetic braking system.
DC Motor - 1.5 kW
1.5 kW DC drive motor.
DC Motor - 2.2 kW
2.2 kW DC lift motor.
Lead Acid
Powered by lead-acid battery.
24V / 210AH
210Ah at 24V capacity.
69 inches
Turning radius of 69 inches.
BUILT FOR PERFORMANCE
Rely on the Texlift US-AS35 216 for heavy lifting and rugged reliability. Designed to meet the highest standards in warehouse and industrial operations, it excels in power, safety, and durability.
TOUGH BUILD QUALITY
The US-AS35 216 is engineered with durable materials to withstand demanding industrial environments. It offers a robust chassis and high-resistance components ideal for long-term operation.
POWERFUL & PRECISE
With a 1.5 kW drive and 2.2 kW lift motor, the US-AS35 216 delivers smooth and responsive operation, ensuring accurate positioning and efficient load handling every time.
ADVANCED SAFETY
Equipped with electromagnetic braking and ergonomic controls, the US-AS35 216 prioritizes operator safety during lift, transport, and maneuvering tasks.
Support Center
FAQs
Learn how to get the most out of your Texlift US-AS35 216 Electric Stacker. This FAQ covers usage, maintenance, and best practices for optimal performance.
How can I extend the battery life of the US-AS35 216? +
Keep your battery healthy by avoiding full discharges, charging regularly, and storing the unit in environments with stable temperatures. Routine inspections of the battery terminals are also recommended.
Can I operate the US-AS35 216 outdoors? +
The US-AS35 216 is primarily designed for indoor use. However, it can be used outdoors on flat, dry surfaces. Avoid rough or wet conditions to maintain performance and safety.
What maintenance does the US-AS35 216 require? +
Inspect the lift chains, battery, and braking system regularly. Ensure all electrical connections are secure and that the wheels and forks are free of damage or excessive wear.
Does the US-AS35 216 support non-standard pallets? +
Yes. The adjustable fork width (8–27 inches) allows the AS35 216 to handle various pallet sizes. Always verify the load is within the stacker's 3300 lbs capacity.
