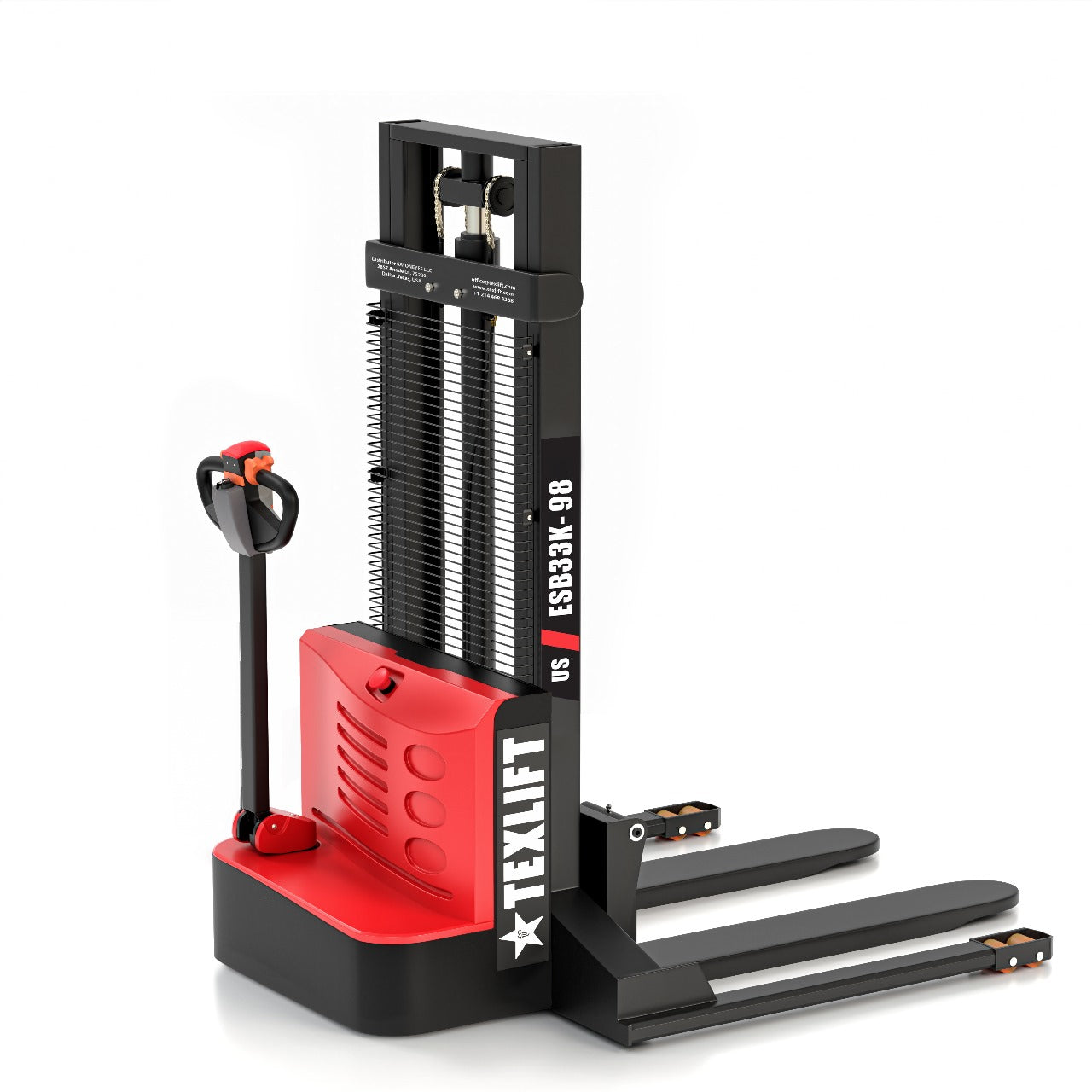

US-ESB33K 98 Electric Walkie Stacker – 3,300 lbs Capacity & 98″ Lift Height
Shipping costs are calculated at checkout!
⚡ Texlift US-ESB33K 98 Electric Walkie Stacker – 3,300 lb Capacity
- Load Capacity: 3,300 lbs
- Max Lift Height: 98″ (8.2 ft)
- Load Center: 20″
- Fork Width: Adjustable from 5.5″ to 27″
- Overall Dimensions (L × W × H): 70″ × 60″ × 73″ (lowered)
- Wheelbase: 50″ | Turning Radius: 55″
- Ground Clearance: 3.5″
- Travel Speed (Full / No Load): 2.2 / 2.5 mph
- Truck Weight: ~1,120 lbs (with battery)
- 🏗️ Compact and Powerful: Ideal for warehouses, logistics centers, and manufacturing lines.
- ⚡ Electric Power System: 24 V DC drive for efficient, low-noise operation.
- 🔋 High-Performance Motors: 0.75 kW drive motor & 2.2 kW lift motor for reliable lifting power.
- 📏 Precision Handling: 55″ turning radius enables maneuvering in tight spaces.
- 🧱 Durable Construction: Heavy-duty steel mast for smooth and stable lifting.
- 🚚 Nationwide U.S. Shipping Available
- ❌ No Sales Tax outside TX
-
📞 Talk to a Specialist Anytime: +1 (214) 468-4388
- 🎖️ Military Discount: Save 3% for veterans
-
💲 Want a Better Price? Pay by wire and save 2% Get Discount Quote
Get to know the product
PRODUCT SPECIFICATIONS
Texlift US-ESB33K 98 Full Electric Pallet Stacker – 3,300 lb Capacity, 98 in Lift Height.
Built for efficient indoor handling — compact, quiet, and reliable with precise electric drive and smooth performance.
US-ESB33K 98
Compact electric walkie stacker for indoor use.
3,300 lbs
3,300 lb rated load for warehouse pallets.
20 in
20 in load center provides balanced stability.
Adjustable from 5.5″ to 27″
Fork width adjustable from 5.5″ to 27″ fits different pallets.
Outer 60 in / Inner 50 in
60 in outer / 50 in inner leg width suits standard pallets.
98 in
98 in lift height for mid-level racking.
70 in
Compact 70 in length for narrow aisles.
73 in
73 in lowered mast height fits under standard doors.
60 in
60 in overall width ensures stability.
3.5 in
3.5 in ground clearance for smooth floors.
50 in
50 in wheelbase for perfect balance.
1,120 lbs
Approx. 1,120 lbs with battery.
2.2 / 2.5 mph
2.2 / 2.5 mph driving speed (full / no load).
4.5 / 3.1 in per sec
4.5 / 3.1 in/s lifting speed for efficient operation.
5.1 / 4.3 in per sec
5.1 / 4.3 in/s lowering speed for controlled descent.
5 / 3 %
5 / 3 % gradeability for ramp movement.
Walkie
Walkie operation for precision handling.
Electric (24 V DC)
24 V DC electric drive for quiet performance.
2.2 kW
2.2 kW lift motor with strong lifting power.
Electromagnetic
Electromagnetic brake system for safe stops.
Recommended for you!
FAQs
Your guide to the Texlift US-ESB33K 98 Full Electric Pallet Stacker
Is the US-ESB33K 98 suitable for indoor warehouse use?
Yes, it’s designed for smooth floors and tight aisles with a compact turning radius.
Can it handle standard pallets?
Yes. The adjustable fork width (5.5″ – 27″) fits standard pallet sizes used in U.S. warehouses.
How long is charging time?
Typically 6–8 hours to fully charge using the standard charger.
What is its lifting motor power?
The US-ESB33K 98 uses a 2.2 kW DC lift motor for smooth and consistent performance.
What safety features are included?
Emergency stop, overload protection, and electromagnetic braking ensure safe operation.
Recommended maintenance schedule?
Inspect and service at least once per year or more often for daily use environments.
