Lithium-Ion Battery Electric Wheel Loader | US-TXL140PRO | 1400 LBS Capacity | 132" Lift
Shipping costs are calculated at checkout!
Electric Wheel Loader
Model: US-TXL140PRO
Load Capacity: 1400Lbs
Lifting Height: 132 inches
Dumping Height: 86 inches at 36°
Hydraulic System: Full hydraulic steering, 2320 psi pressure
Battery: 73.6V/240AH Lithium-Ion (17.664 kWh), up to 6-hour runtime
Braking: Drum braking system with parking handbrake
Ground Clearance: 8 inches

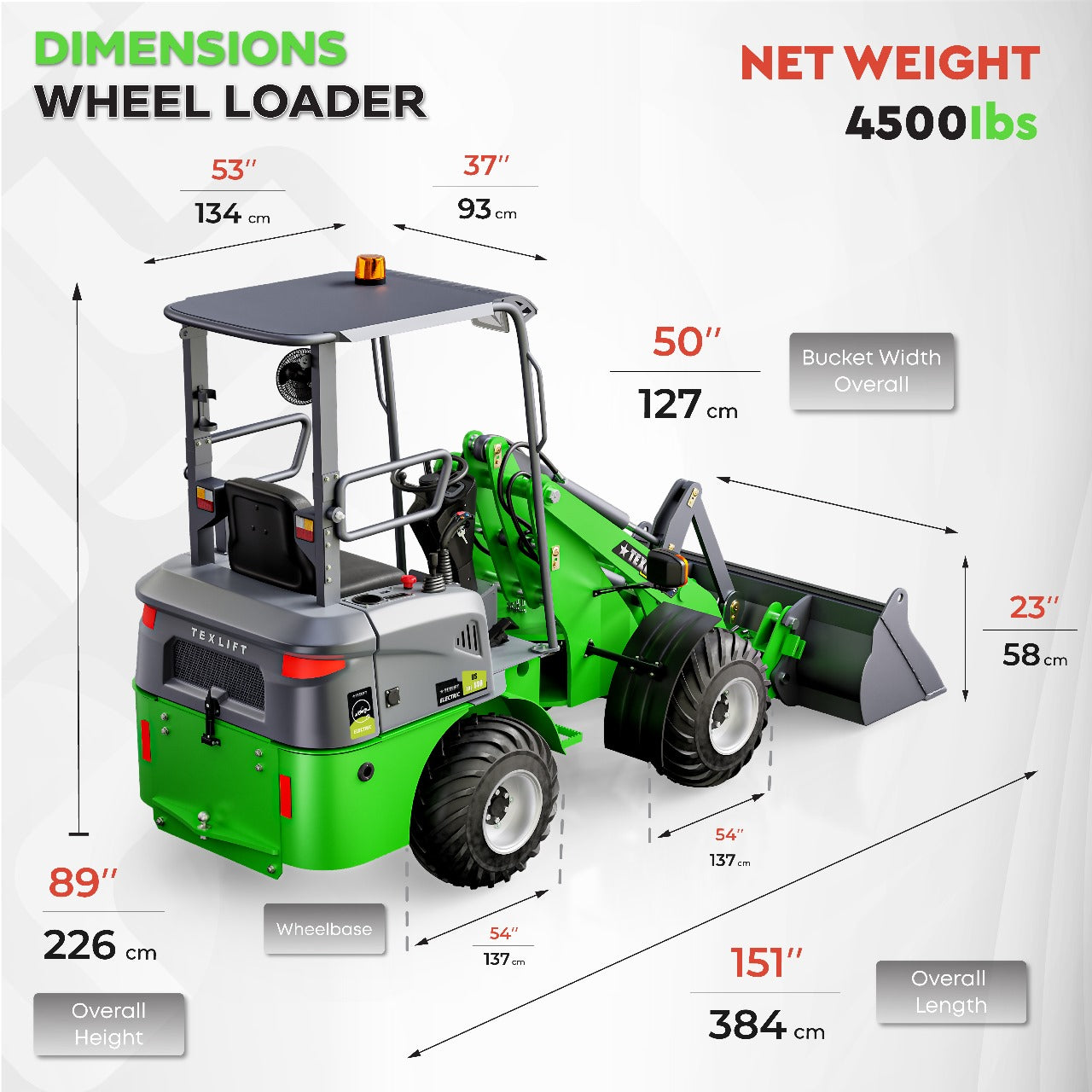

Overall Dimensions: 151” L x 50” W x 89" H
Weight: 4500Lbs
Get to know the product
PRODUCT SPECIFICATIONS
The Electric Wheel Loader US-TXL140PRO is powered by a high-capacity lithium-ion battery, delivering strong performance, zero emissions, and extended runtime. Designed for heavy-duty lifting and efficient operation, it's the ideal solution for modern industrial and construction needs.
1400 lbs
Heavy-duty capacity for industrial-grade lifting.
9 cu. ft.
Spacious bucket ensures efficient material handling.
86 inches
High dumping height for improved load placement.
73.6V
High voltage for superior power efficiency.
132 inches
Extended lifting height for versatile applications.
5 kW
Powerful motor ensures reliable performance.
16 inches
Optimized reach for easy load handling.
1400 lbs
Handles substantial weight with ease.
45° ±1
Enhanced turning angle for maneuverability.
8.19 gallons
Large hydraulic tank for smooth operation.
0.21 gallons
Minimal brake fluid needed for efficient braking.
151 inches
Extended length provides stability.
50 inches
Wide bucket accommodates varied materials.
89 inches
Tall design for improved workflow.
54 inches
Optimized wheelbase for stability.
8 inches
Adequate ground clearance for all terrains.
4500 lbs
Heavy-duty construction for demanding use.
Full Hydraulic Steering System
Hydraulic steering ensures smooth control.
Lithium-Ion
Advanced Lithium-Ion battery for high efficiency, fast charging, and long service life.
73.6V/240Ah
With a total capacity of 17.664kWh, this power system delivers up to 6 hours of continuous operation and fully recharges in approximately 8 hours—ideal for heavy-duty industrial performance with reduced downtime.
WORK SMARTER, LOAD FASTER
Elevate your efficiency and performance with the Texlift US-TXL140PRO Electric Wheel Loader—a powerful, eco-friendly, and versatile machine designed to tackle demanding tasks with ease.
ROBUST BUILD & DURABILITY
Constructed with high-quality steel and reinforced components, the US-TXL140PRO is engineered to withstand heavy-duty operations in construction, agriculture, and industrial environments, ensuring long-term reliability.
SAFETY & OPERATOR COMFORT
Designed with advanced safety features, including an automatic braking system, an emergency stop, and an ergonomic operator’s cabin, ensuring maximum protection and ease of use in all conditions.
ECO-FRIENDLY POWER
Powered by a high-performance electric motor, this loader offers a zero-emission alternative to traditional fuel-powered machines, reducing environmental impact while lowering operating costs.
FAQs
Get acquainted with the ins and outs of your Texlift US-TXL140PRO Electric Wheel Loader. Here, we've compiled a list of frequently asked questions to help you optimize performance, maintain efficiency, and ensure safety in every operation.
How can I optimize the battery life of the US-TXL140PRO?
To maximize battery life:
- Fully charge the battery before first use.
- Avoid deep discharges; recharge when the battery reaches around 20%.
- Store the loader in a dry, temperature-controlled environment.
- Perform regular battery maintenance and check for any signs of wear.
Is the US-TXL140PRO suitable for outdoor use?
Yes, the US-TXL140PRO is designed for outdoor operations. It can handle various terrains, but for best performance, avoid excessively wet or muddy conditions unless the loader is equipped with proper tires.
What maintenance checks should be performed regularly?
Routine maintenance includes:
- Checking battery connections and voltage levels.
- Inspecting hydraulic systems for leaks or damage.
- Lubricating moving parts as per the manufacturer’s guidelines.
- Ensuring tires are in good condition and properly inflated.
- Cleaning dirt and debris from key components to prevent buildup.
What is the maximum load capacity of the US-TXL140PRO?
The US-TXL140PRO has a maximum lifting capacity of 1400 lbs. Always refer to the user manual for specific load distribution guidelines.
