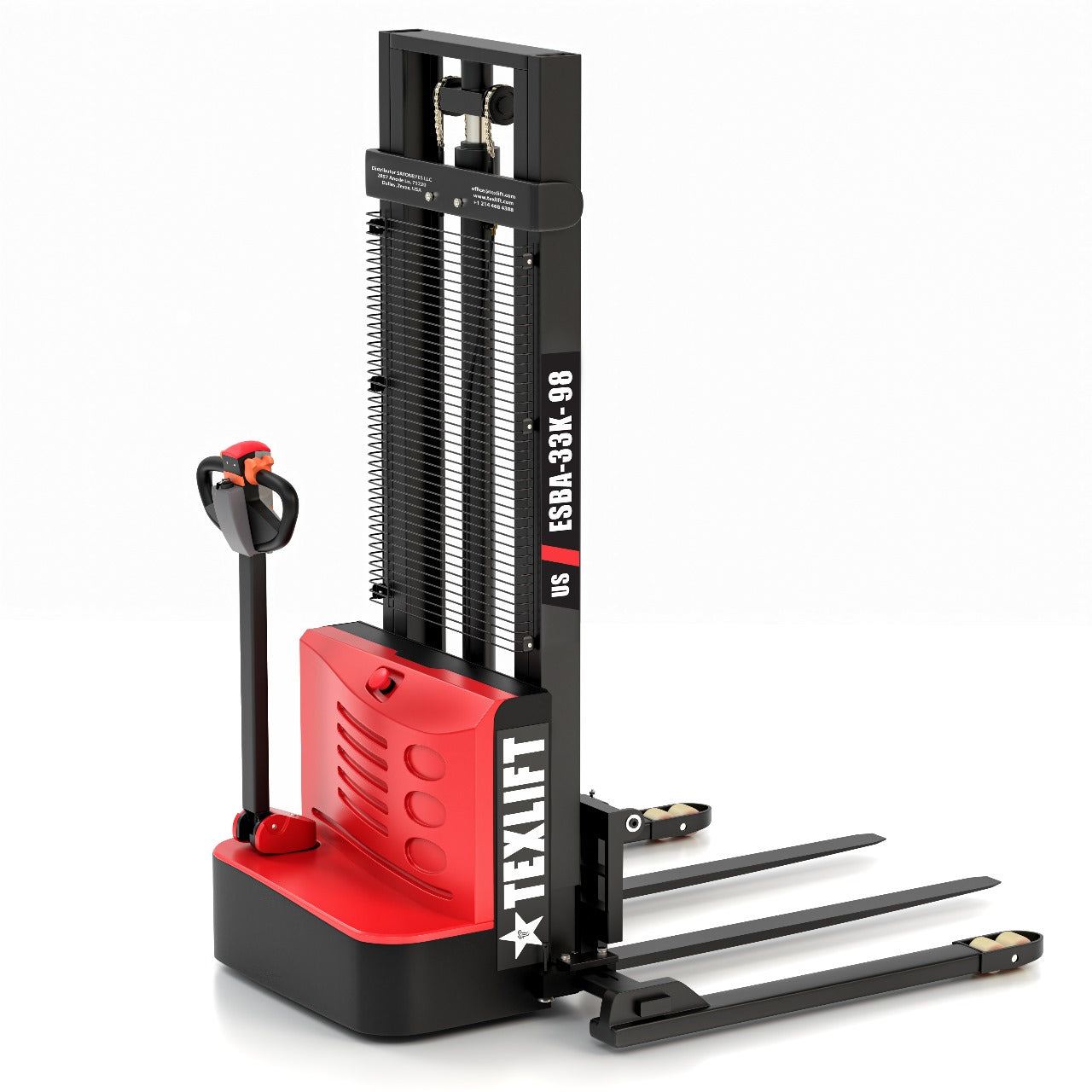

The Texlift US-ESBA33K98 is a full-electric adjustable pallet stacker designed for pallet transport, lifting, positioning, and stacking in warehouses, distribution centers, manufacturing facilities, and commercial storage operations. With a 3,300 lb rated load capacity and an 8 ft (98 in) maximum lift height, it provides a practical combination of lifting capacity, maneuverability, and pallet-handling flexibility.
Its adjustable straddle legs can be positioned from approximately 45 to 61 in wide, while the adjustable fork spread accommodates different compatible pallet and load configurations. This adjustable design makes the US-ESBA33K98 especially useful for facilities handling multiple pallet sizes and load types.
The US-ESBA33K98 provides a maximum rated load capacity of 3,300 lbs for compatible palletized loads. It is designed for routine pallet transport, positioning, lifting, and stacking in warehouse and industrial material-handling environments.
The 98 in maximum fork lift height provides approximately 8 ft of vertical reach for warehouse racking, pallet stacking, staging, and elevated storage applications.
The adjustable straddle-leg configuration provides approximately 45–61 in of adjustment, allowing the machine to accommodate different compatible pallet widths and load configurations while maintaining stable material handling.
The forks can be adjusted up to approximately 27.5 in apart to accommodate different compatible pallet and load configurations. Combined with the adjustable straddle legs, this provides substantially more pallet-handling flexibility than a fixed-leg stacker.
A compact electric design and approximately 55 in turning radius provide practical maneuverability for warehouse aisles, storage areas, staging zones, production facilities, and other indoor material-handling environments.
The 24V / 100Ah lead-acid battery system powers electric travel and hydraulic lifting. A 0.75 kW drive motor provides powered movement, while a 2.2 kW lift motor supplies the lifting power required for pallet positioning and stacking.
The combination of adjustable forks and adjustable straddle legs allows the stacker to work with a wider variety of compatible pallet sizes and load configurations.
Powered travel reduces the manual effort required to move palletized loads and provides controlled movement for repetitive warehouse material-handling operations.
The 2.2 kW lift motor powers the hydraulic lifting system, providing controlled pallet lifting and positioning for warehouse racking and elevated storage.
Walk-behind controls allow the operator to maneuver the stacker and precisely position compatible palletized loads during transport, lifting, and stacking operations.
The US-ESBA33K98 is best suited for warehouses, distribution centers, manufacturing facilities, retail stockrooms, commercial storage facilities, receiving areas, and other indoor material-handling environments with smooth, firm, and adequately supported floors.
Ideal applications include pallet transport, warehouse racking, elevated pallet stacking, inventory movement, receiving and staging operations, production-line material handling, and facilities that handle multiple compatible pallet sizes requiring adjustable forks and straddle legs.
The US-ESBA33K98 uses a 24V / 100Ah lead-acid battery system with approximately 2.4 kWh of nominal energy capacity. The electric power system supplies both powered travel and hydraulic lifting for routine warehouse material-handling operations.
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.

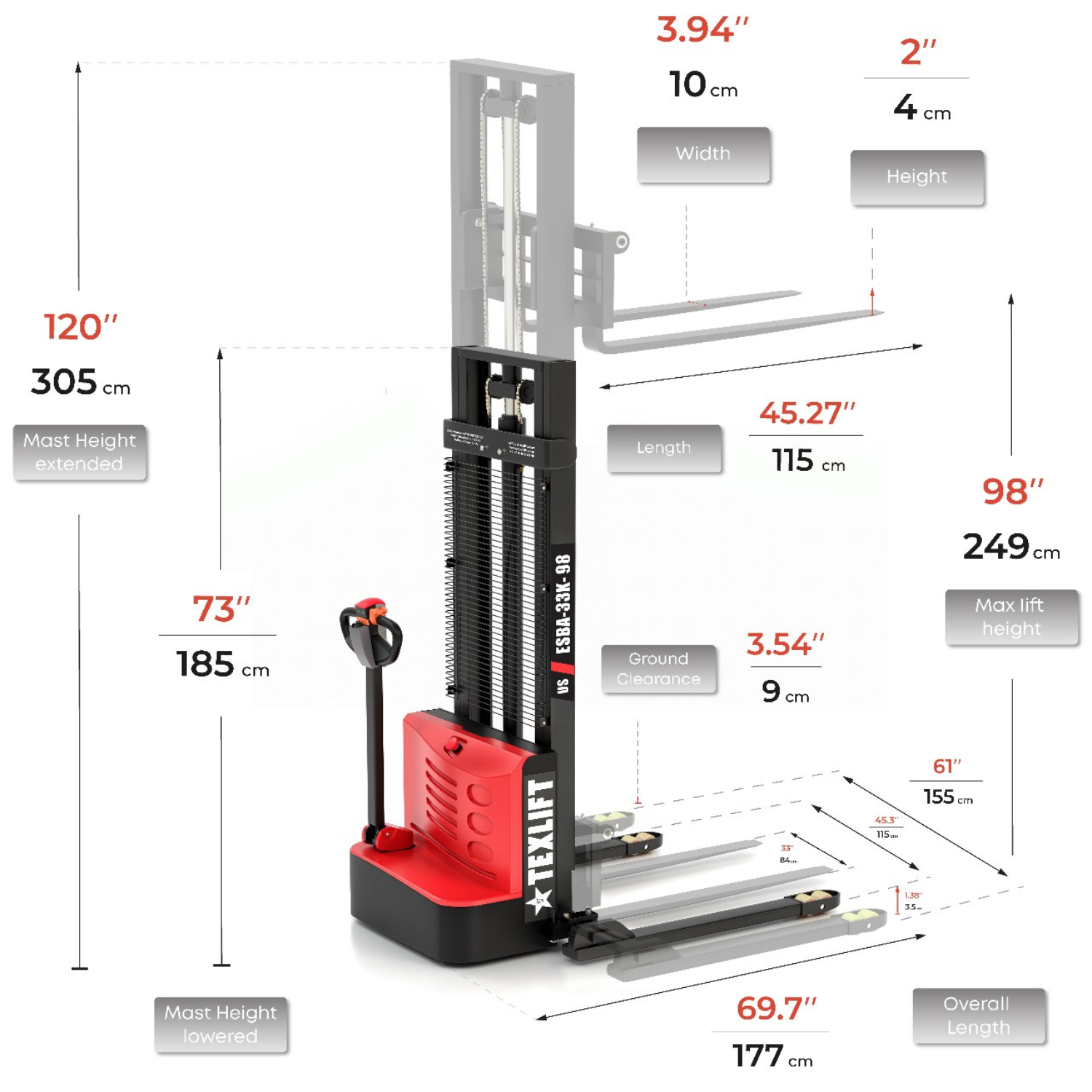

| Specification | Value | Description |
|---|---|---|
| Model | US-ESBA33K98 | Full-electric adjustable Walkie pallet stacker with adjustable straddle legs |
| Load Capacity | 3,300 lbs | Maximum rated lifting capacity |
| Lift Height | 8 ft (98 in) | Maximum vertical fork lift height |
| Lowered Mast Height | 73 in | Mast height with the mast fully lowered |
| Fork Spread | Up to 27.5 in | Adjustable distance between forks for compatible pallet sizes |
| Straddle Leg Width | 45–61 in | Adjustable straddle-leg width for different compatible pallet configurations |
| Battery | 24V / 100Ah Lead-Acid | Heavy-duty electric traction battery system |
| Battery Capacity | 2.4 kWh | Total nominal energy capacity of the 24V / 100Ah battery system |
| Runtime | Approx. 4–5 Hours | Typical operating time per charge depending on load, travel, lifting frequency, battery condition, and working conditions |
| Charging Time | Approx. 6–7 Hours | Approximate full recharge time under normal charging conditions |
| Turning Radius | 55 in | Minimum turning radius for maneuvering and pallet positioning |
| Drive Motor | 0.75 kW | Electric traction motor for powered travel |
| Lift Motor | 2.2 kW | Electric hydraulic lifting motor |
| Drive Type | Full Electric | Electric travel and electric hydraulic lifting |
| Operation | Walkie | Walk-behind operation for controlled pallet transport and positioning |
| Recommended Surface | Smooth, Firm Indoor Floors | Designed primarily for warehouses and adequately supported industrial floors |
| Typical Applications | Warehouses, Distribution Centers & Manufacturing | Suitable for pallet transport, stacking, staging, inventory movement, and handling different compatible pallet sizes |
| Warranty | 12-Month Texlift Warranty | Covers eligible manufacturing defects in materials and workmanship, including qualifying factory-installed, electrical, hydraulic, and structural components under normal intended use. Texlift technical and warranty support is available throughout the coverage period. |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-ESBA33K98 has a maximum rated load capacity of 3,300 lbs for compatible palletized loads.
The maximum fork lift height is 8 ft (98 in), making it suitable for pallet stacking and warehouse racking applications.
Yes. The straddle legs can be adjusted from approximately 45 to 61 in to accommodate different compatible pallet and load configurations.
Yes. The fork spread can be adjusted up to approximately 27.5 in for different compatible pallet sizes and load configurations.
The US-ESBA33K98 has an approximately 55 in turning radius for maneuvering and pallet positioning in warehouse environments.
Yes. Both travel and hydraulic lifting are electrically powered, providing efficient material handling with no tailpipe exhaust emissions during operation.
The US-ESBA33K98 is a Walkie stacker designed for walk-behind operation and controlled pallet positioning.
The stacker uses a 24V / 100Ah lead-acid battery system for electric travel and hydraulic lifting.
The 24V / 100Ah battery system provides approximately 2.4 kWh of nominal energy capacity.
The US-ESBA33K98 uses a 0.75 kW electric drive motor for powered travel and a 2.2 kW lift motor for hydraulic lifting.
Adjustable straddle legs provide greater flexibility when working with different compatible pallet widths and load configurations compared with a fixed-leg stacker.
Yes. The combination of adjustable straddle legs and adjustable fork spread allows the machine to accommodate a range of compatible pallet and load configurations.
No. This model is designed primarily for smooth, firm, level, and adequately supported warehouse and industrial floors. It is not a rough-terrain stacker.
It is well suited for warehouses, distribution centers, manufacturing facilities, commercial storage operations, receiving areas, and other indoor material-handling environments.
The US-ESBA33K98 includes a 12-month Texlift limited warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Move, position, and stack palletized inventory throughout warehouse aisles, storage areas, receiving zones, and distribution operations.
Adjustable 45–61 in straddle legs and adjustable fork spread provide additional flexibility for handling different compatible pallet sizes and load configurations.
The 8 ft (98 in) maximum lift height provides practical vertical reach for compatible warehouse racking and elevated pallet-storage applications.
Transport palletized raw materials, components, supplies, and finished goods between production, staging, and storage areas.
Move incoming and outgoing palletized loads between receiving, staging, storage, loading dock, and shipping areas.
Reposition and organize palletized inventory efficiently throughout warehouse and commercial storage environments.
Supply palletized materials and components to production areas and move finished goods to staging or storage locations.
Handle compatible palletized inventory weighing up to 3,300 lbs in commercial storage and warehouse environments.
The combination of adjustable straddle legs and adjustable forks makes this model especially useful for operations handling different compatible pallet dimensions.
Walk-behind operation provides controlled maneuvering and precise positioning when entering pallets, transporting loads, and stacking inventory.
Full-electric travel and hydraulic lifting provide efficient material handling with no tailpipe exhaust emissions during operation.
Designed primarily for smooth, firm, level, and adequately supported warehouse and industrial floors.
This model is not designed for rough-terrain operation and should not be used on mud, loose gravel, soft ground, or severely uneven surfaces.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
12-Month Texlift Limited Warranty covering eligible manufacturing defects in materials and workmanship under normal intended use.
Texlift provides technical assistance and troubleshooting support throughout the warranty period.
Replacement-parts assistance is available for compatible electrical, hydraulic, structural, and other service components.
For warranty assistance, provide the order number, product model, serial number when applicable, and clear photos or videos showing the reported issue.
Normal wear, consumable parts, misuse, overloading, accidents, improper operation, unauthorized modifications or repairs, and damage caused by improper storage, transportation, or environmental conditions are not covered.
Texlift support is available to assist with product operation, troubleshooting, maintenance questions, replacement parts, and eligible warranty claims.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
