Adjustable Electric Walkie Stacker – 3300Lbs Capacity, 138" Lift Height
Adjustable Electric Walkie Stacker:
- Model: US-ESBA33K138
- Lift Height: 138"
- Load Capacity: 3300Lbs
- Straddle Legs: Adjustable from 45" to 61" for enhanced stability
- Fork Width: Adjustable from 0" to 27.5" to handle various pallet sizes
- Product Dimensions: 70"L x 45"W x 93"H
Get to know the product

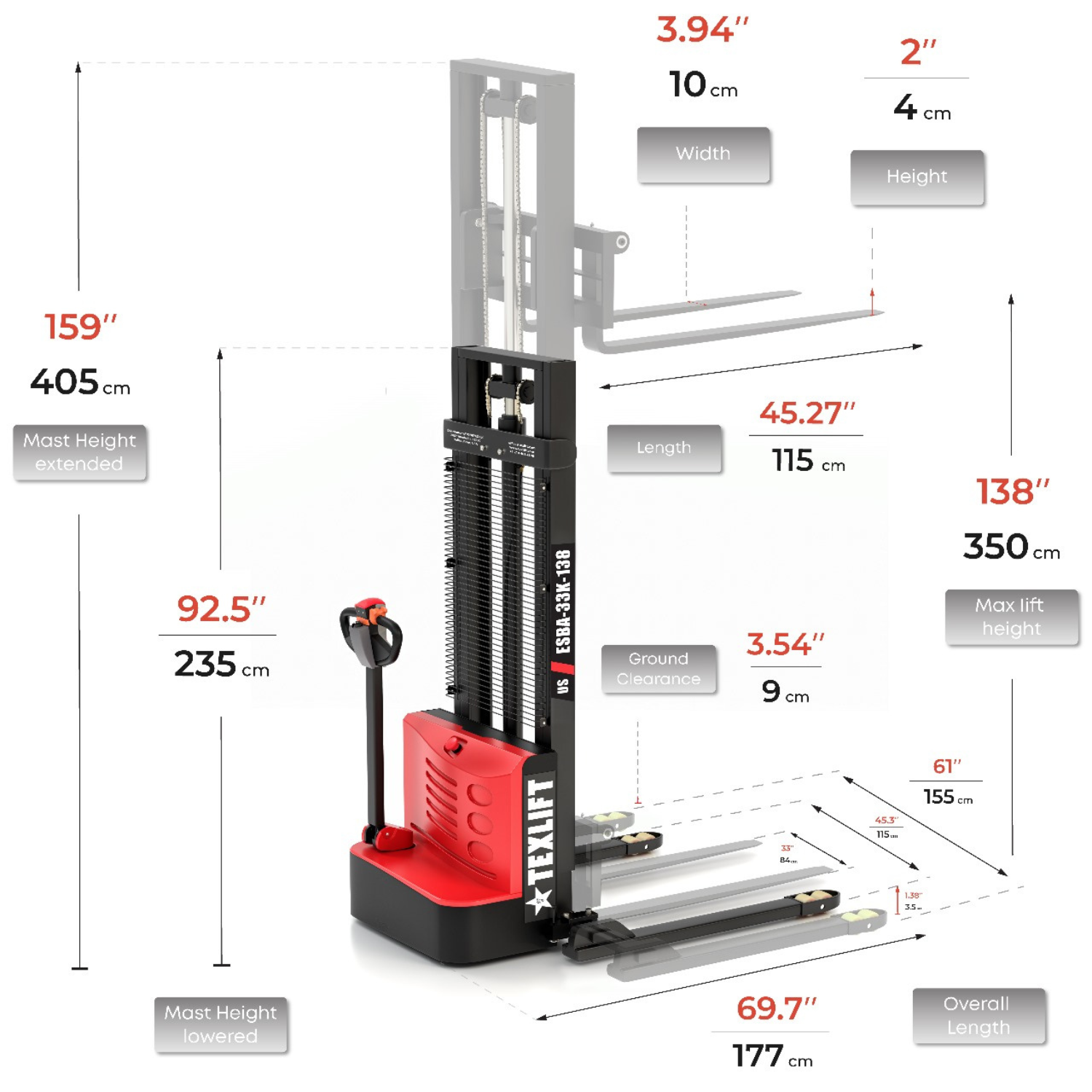

PRODUCT SPECIFICATIONS
The specification chart for the Texlift US-ESBA33K138 Electric Stacker details its extended lift height, solid construction, and versatile functionality. Featuring adjustable legs and forks, it can easily adapt to various pallet sizes and operational requirements. The US-ESBA33K138 is engineered for high-reach, efficient material handling, making it a reliable choice for warehouses and industrial environments.
This stacker is designed for smooth, level warehouse floors. For outdoor use or uneven terrain, please visit our store for other suitable models.
US-ESBA33K138
Reliable and robust model for warehouse applications.
3300 lbs
Supports up to 3300 lbs, ideal for heavy-duty lifting.
1488Lbs
Lightweight yet sturdy with a service weight of 1488Lbs.
24 inches
Standard 24-inch load center for stability and balance.
93 inches
Lowered mast height of 93 inches for compact storage.
138 inches
Lift height of 138 inches allows for efficient stacking.
160 inches
Extended mast reaches up to 160 inches for maximum stacking.
70 inches
Overall length of 70 inches, making it compact for small spaces.
45/61 inches
Overall width of 45/61 inches ensures stability while operating.
46 inches
46-inch wheelbase enhances smooth and controlled movement.
2.5/2.6 mph
Speeds up to 2.6 mph for efficient warehouse operation.
3.6/5.3 in/s
Lifting speed of 3.6/5.3 in/s for quick load handling.
Electromagnetic brake
Electromagnetic brake system ensures safety during operations.
0.75 kW
0.75 kW drive motor provides strong and reliable power.
2.2 kW
2.2 kW lift motor delivers efficient lifting performance.
Lead Acid
Lead-acid battery provides reliable power with easy maintenance.
2×12/100 V/Ah
Battery voltage of 2×12/100 V/Ah for long-lasting use.
0-27.5 inches
Fork width adjustable between 0-27.5 inches for versatility.
1.4/4/45 inches
1.4/4/45 inch fork size, designed for multiple pallet types.
Walkie type
Walkie-type operation allows for easy maneuverability in tight spaces.
LIFT SMARTER, NOT HARDER
Elevate your productivity and safety standards with the US-ESBA33K138 Full Electric Stacker designed for heavy-duty performance, precision, and adaptability in demanding work environments.
DURABLE CONSTRUCTION
Built with high-quality materials, the US-ESBA33K138 is engineered to handle tough working conditions. Its adjustable straddle legs and fork width provide enhanced versatility, ensuring long-term reliability and strength.
PRECISE PERFORMANCE
The US-ESBA33K138 offers smooth and precise lifting with a high-performance electric motor. The adjustable forks (0" to 27.5") and legs (45" to 61") make it ideal for handling a wide range of pallet sizes with ease.
SAFETY-ORIENTED DESIGN
Equipped with automatic brakes and an emergency stop, the US-ESBA33K138 ensures safe, responsive, and stable operation, providing operators with confidence and control when handling heavy loads.
Recommended for you!
FAQs
Get acquainted with the ins and outs of your Texlift US-ESBA33K138 Electric Stacker. Here, we've compiled a list of frequently asked questions to help you optimize usage, maintain peak performance, and ensure safety in every operation.
How can I optimize the battery life of the US-ESBA33K138?
Optimize battery life by following a regular charging schedule, avoiding complete discharge, and maintaining the battery at recommended temperatures. Regular maintenance checks are also crucial.
Is the US-ESBA33K138 suitable for outdoor use?
While primarily designed for indoor use, the US-ESBA33K138 can be used outdoors in dry, stable conditions. Avoid using it in wet or uneven terrains to prevent damage and ensure safety.
What maintenance checks should be performed regularly?
Regular checks should include inspecting the lifting mechanism, checking the battery and electrical components, and ensuring that all safety features are functioning correctly.
Can the US-ESBA33K138 handle non-standard pallet sizes?
Yes, the adjustable fork width accommodates various pallet sizes, making it versatile for different load types. However, always ensure the load is within the capacity limits and securely positioned.
