Warehouses & Distribution Centers
Transport and stack palletized loads efficiently while reaching high warehouse racking up to 18 ft (216 in).

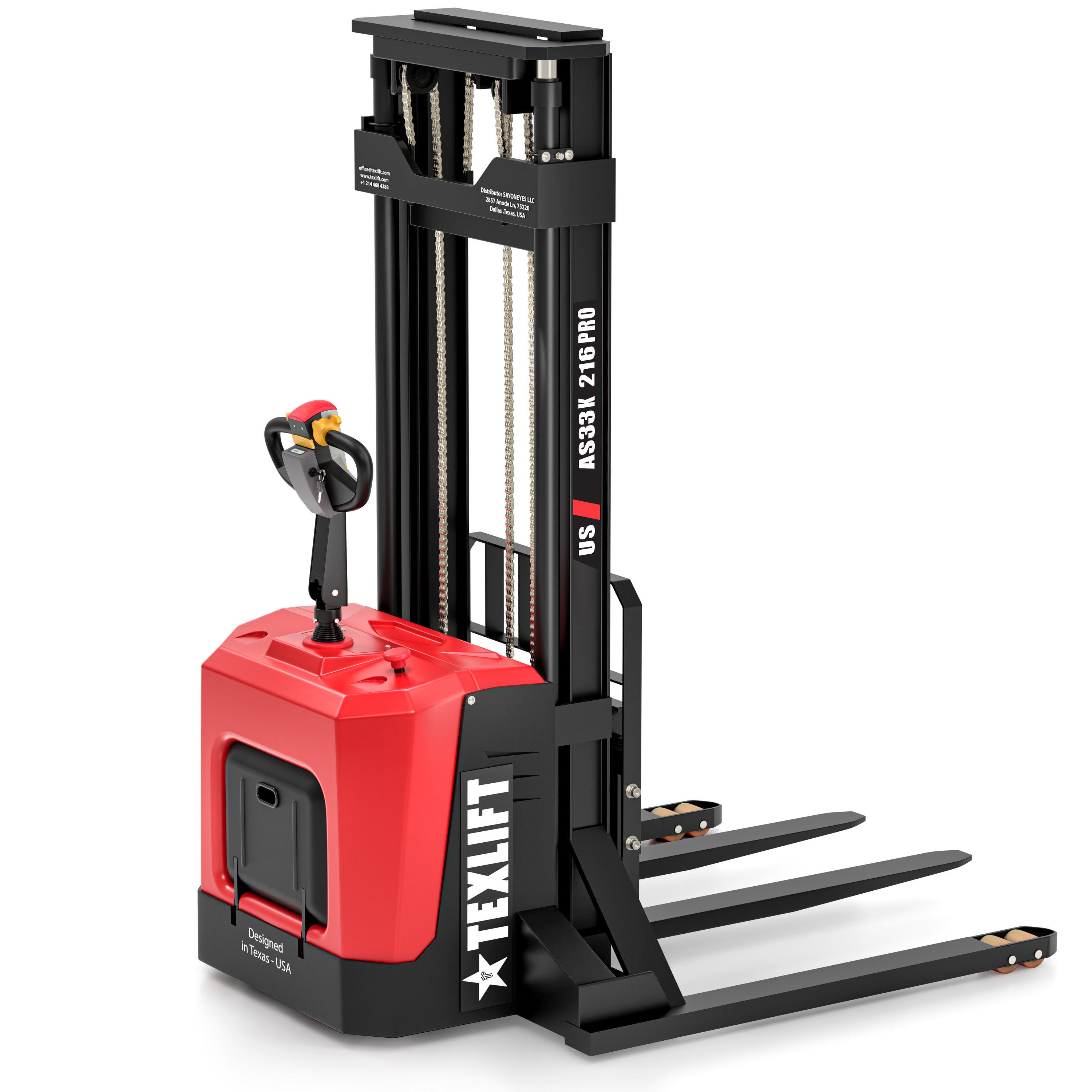

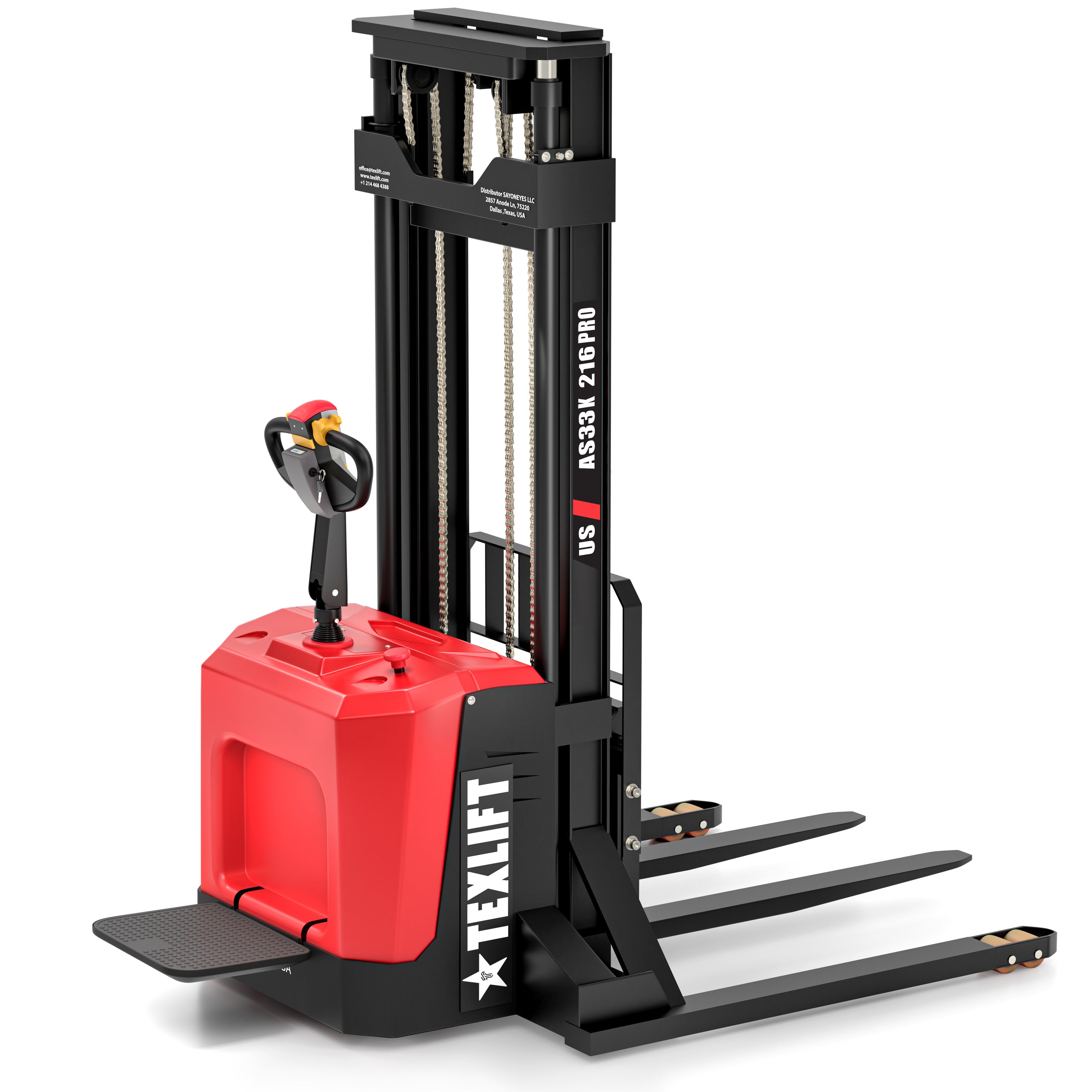

3,300 lb Full Electric Rider Stacker 18 ft Lift | Lithium | US-AS33K 216 PRO
$10,900.00
3,300 lb Full Electric Rider Stacker 18 ft Lift | Lithium | US-AS33K 216 PRO
Lithium Full Electric Rider Stacker
The Texlift US-AS33K 216 PRO is a heavy-duty full electric rider stacker featuring a 3,300 lb load capacity and an 18 ft (216 in) maximum lift height. Powered by a high-performance 24V / 208Ah lithium battery, it delivers up to 5 hours of runtime and fully recharges in approximately 5 hours using the included 24V / 50A charger. Equipped with a 1.5 kW electric drive motor, 2.2 kW lift motor, adjustable forks, straddle legs, rider platform, and electromagnetic braking system, the US-AS33K 216 PRO is engineered for efficient high-level pallet stacking in warehouses, distribution centers, manufacturing facilities, and commercial material handling operations.
3,300 lb Capacity
18 ft Lift Height
24V / 208Ah Lithium
Up to 5 Hour Runtime
5 Hour Recharge
Full Electric Rider
Order Fulfillment
Pickup and nationwide freight shipping available from our Texas warehouse.
Fast Nationwide Delivery
Ships from Texas. Estimated delivery: 3–14 business days.
Freight shipping charges are calculated at checkout.
Local Pickup Available
Usually ready within 24 hours at our Dallas Distribution Center.
2857 Anode Ln, Dallas, TX 75220
Quantity Discounts
Automatic volume pricing for bulk orders.
Buy 2–4 Units
Save 2%
Buy 5–9 Units
Save 3%
Best Value
Buy 10+ Units
Save 5%
✓ Volume discounts are automatically applied at checkout.
3,300 lb Full Electric Rider Stacker 18 ft Lift | Lithium | US-AS33K 216 PRO
Sale price$10,900.00
PRODUCT DETAILS
Product Overview
Product Overview
3,300 lb Full Electric Rider Stacker 18 ft Lift | Lithium | US-AS33K 216 PRO
The Texlift US-AS33K 216 PRO combines high-level lifting capability with full electric rider operation for demanding warehouse and industrial material handling. Designed for warehouses, distribution centers, manufacturing facilities, logistics operations, and commercial storage environments, this heavy-duty stacker provides electric travel and electric lifting for efficient pallet transport and stacking throughout the workday. Featuring a 3,300 lb load capacity, 18 ft (216 in) maximum lift height, straddle-leg design, adjustable forks, and rider platform, the US-AS33K 216 PRO is engineered for efficient handling of palletized loads and tall warehouse racking. Its upgraded 24V / 208Ah lithium battery delivers up to 5 hours of runtime and recharges in approximately 5 hours using the included 24V / 50A charger, providing dependable zero-emission performance for professional material handling operations.
Performance Features
3,300 lb Maximum Load Capacity
18 ft (216 in) Maximum Lift Height
Full Electric Travel
Full Electric Lifting
Rider Platform
Heavy-Duty Straddle Legs
Adjustable Forks
1.5 kW Electric Drive Motor
2.2 kW Electric Lift Motor
24V / 208Ah Lithium Battery
4.99 kWh Battery Capacity
Up to 5 Hours Runtime
Approximately 5 Hours Recharge Time
24V / 50A Charger Included
Electromagnetic Braking System
Zero-Emission Operation
Commercial-Grade Construction
18 ft (216 in) Maximum Lift Height
Full Electric Travel
Full Electric Lifting
Rider Platform
Heavy-Duty Straddle Legs
Adjustable Forks
1.5 kW Electric Drive Motor
2.2 kW Electric Lift Motor
24V / 208Ah Lithium Battery
4.99 kWh Battery Capacity
Up to 5 Hours Runtime
Approximately 5 Hours Recharge Time
24V / 50A Charger Included
Electromagnetic Braking System
Zero-Emission Operation
Commercial-Grade Construction
Power System
24V / 208Ah Lithium Battery
4.99 kWh Battery Capacity
Up to 5 Hours Runtime
Approximately 5 Hours Recharge Time
24V / 50A Charger Included
1.5 kW Electric Drive Motor
2.2 kW Electric Lift Motor
Full Electric Travel
Full Electric Hydraulic Lifting
Electromagnetic Braking System
Maintenance-Friendly Lithium Power
Zero-Emission Operation
Low-Noise Indoor Operation
Energy-Efficient Power System
Commercial-Grade Electrical Components
4.99 kWh Battery Capacity
Up to 5 Hours Runtime
Approximately 5 Hours Recharge Time
24V / 50A Charger Included
1.5 kW Electric Drive Motor
2.2 kW Electric Lift Motor
Full Electric Travel
Full Electric Hydraulic Lifting
Electromagnetic Braking System
Maintenance-Friendly Lithium Power
Zero-Emission Operation
Low-Noise Indoor Operation
Energy-Efficient Power System
Commercial-Grade Electrical Components
Best Applications
Warehouses & Distribution Centers
High-Rack Warehouse Storage
Manufacturing Facilities
Industrial Plants
Logistics & Fulfillment Centers
Wholesale & Distribution Operations
Retail Distribution Centers
Shipping & Receiving Areas
Palletized Inventory Handling
High-Level Pallet Stacking
Loading & Unloading Operations
Production & Assembly Facilities
Commercial Storage Facilities
Indoor Material Handling Operations
High-Density Warehouse & Racking Applications
High-Rack Warehouse Storage
Manufacturing Facilities
Industrial Plants
Logistics & Fulfillment Centers
Wholesale & Distribution Operations
Retail Distribution Centers
Shipping & Receiving Areas
Palletized Inventory Handling
High-Level Pallet Stacking
Loading & Unloading Operations
Production & Assembly Facilities
Commercial Storage Facilities
Indoor Material Handling Operations
High-Density Warehouse & Racking Applications
Support & Warranty
The Texlift US-AS33K 216 PRO is engineered for dependable performance in demanding warehouse, commercial, and industrial material handling environments. Every machine is thoroughly inspected and tested before shipment to ensure reliable operation, maximum durability, and long-term performance.
Your purchase includes a 24V / 208Ah lithium battery, 24V / 50A charger, and is backed by a 12-month limited warranty covering manufacturing defects. To maximize equipment life and ensure safe operation, regularly inspect the forks, mast, straddle legs, hydraulic system, drive system, wheels, braking system, battery, and electrical components, and follow the recommended maintenance schedule outlined in the operator's manual.
Your purchase includes a 24V / 208Ah lithium battery, 24V / 50A charger, and is backed by a 12-month limited warranty covering manufacturing defects. To maximize equipment life and ensure safe operation, regularly inspect the forks, mast, straddle legs, hydraulic system, drive system, wheels, braking system, battery, and electrical components, and follow the recommended maintenance schedule outlined in the operator's manual.
Additional Product Details
The Texlift US-AS33K 216 PRO is a heavy-duty 3,300 lb full electric rider stacker engineered for high-level pallet handling and demanding warehouse operations. Featuring an impressive 18 ft (216 in) maximum lift height, the machine provides the vertical reach required for tall warehouse racking while combining electric travel, electric lifting, and a rider platform for efficient material handling.
The straddle-leg design provides excellent stability when handling palletized loads, while the adjustable forks offer flexibility for different pallet sizes and material handling applications. Powered by a 1.5 kW electric drive motor and 2.2 kW lift motor, the US-AS33K 216 PRO delivers dependable travel and lifting performance for warehouses, distribution centers, manufacturing facilities, logistics operations, and industrial environments.
The upgraded PRO power system features a high-capacity 24V / 208Ah lithium battery (4.99 kWh), providing up to 5 hours of runtime and approximately 5 hours of recharge time using the included 24V / 50A charger. Combined with its electromagnetic braking system, rider configuration, zero-emission operation, and 18 ft lifting capability, the US-AS33K 216 PRO is designed to improve productivity in demanding commercial material handling operations.
The straddle-leg design provides excellent stability when handling palletized loads, while the adjustable forks offer flexibility for different pallet sizes and material handling applications. Powered by a 1.5 kW electric drive motor and 2.2 kW lift motor, the US-AS33K 216 PRO delivers dependable travel and lifting performance for warehouses, distribution centers, manufacturing facilities, logistics operations, and industrial environments.
The upgraded PRO power system features a high-capacity 24V / 208Ah lithium battery (4.99 kWh), providing up to 5 hours of runtime and approximately 5 hours of recharge time using the included 24V / 50A charger. Combined with its electromagnetic braking system, rider configuration, zero-emission operation, and 18 ft lifting capability, the US-AS33K 216 PRO is designed to improve productivity in demanding commercial material handling operations.
Technical details Product Specifications
Review the main specifications, dimensions, power system, and working details for this Texlift product.
Specification
Value
Description
Model
US-AS33K 216 PRO
Full Electric Lithium Rider Stacker
Load Capacity
3,300 lbs
Maximum rated load capacity
Truck Weight
2,750 lbs
Operating weight with battery

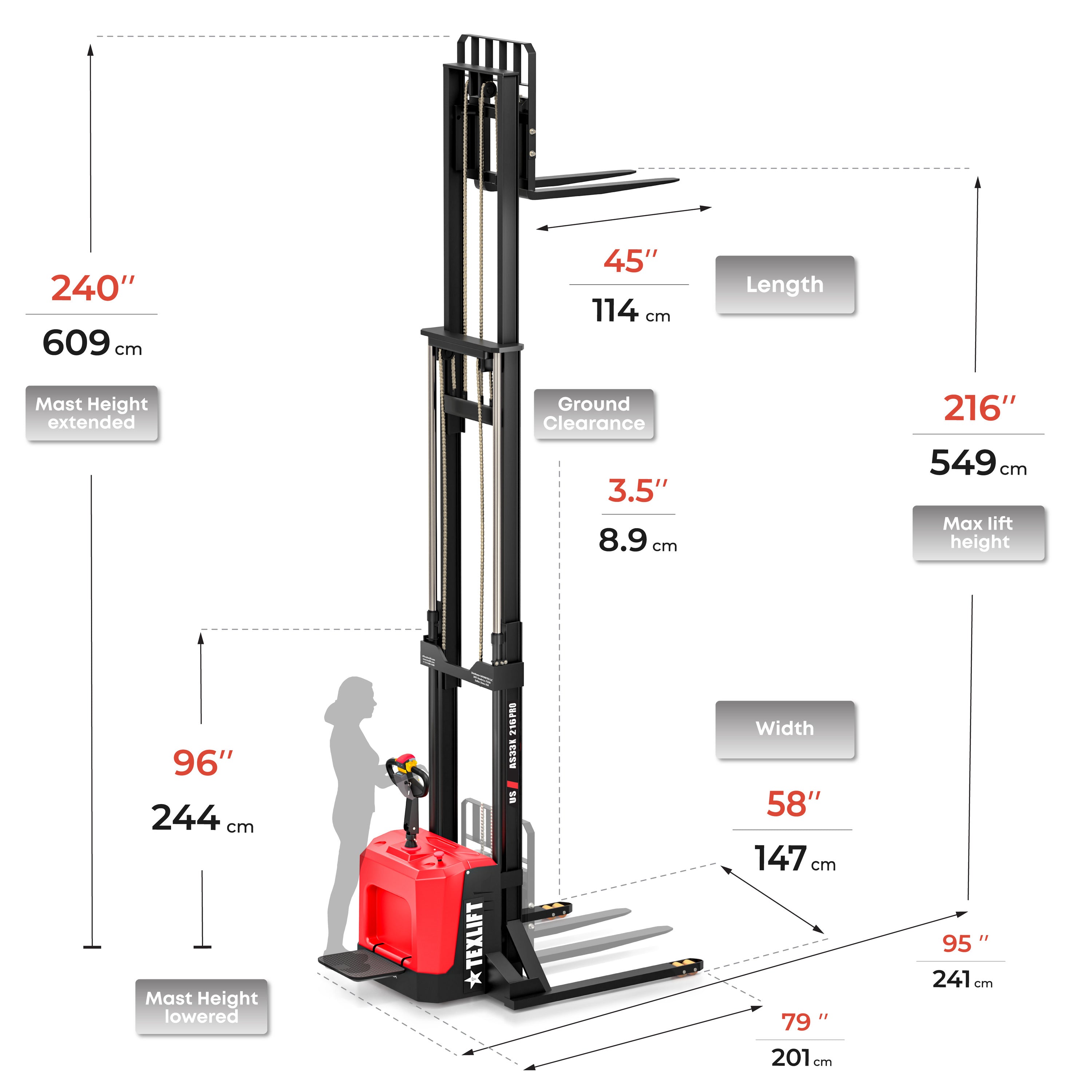

Load Center
20 in
Standard load center
Lift Height
18 ft (216 in)
Maximum fork lift height
Lowered Mast Height
96 in
Mast height when fully lowered
Extended Mast Height
240 in
Maximum extended mast height
Fork Width
Adjustable 8–27 in
Adjustable fork spacing
Overall Length
79 in
Overall machine length
Overall Width
58 in
Overall machine width
Wheelbase
44 in
Wheelbase
Turning Radius
69 in
Minimum turning radius
Driving Speed
2.5 / 3.1 mph
Loaded / unloaded
Lifting Speed
5.5 / 5.3 in/s
Loaded / unloaded
Descending Speed
5.9 / 6.1 in/s
Loaded / unloaded
Gradeability
8% / 5%
Rated climbing capability
Drive Motor
1.5 kW DC
Electric traction motor
Lift Motor
2.2 kW DC
Electric hydraulic lift motor
Brake Type
Electromagnetic
Electromagnetic braking system
Operation Type
Rider
Stand-on rider platform
Power Source
Full Electric
Electric travel and electric lifting
Battery Type
Lithium
PRO lithium power system
Battery
24V / 208Ah Lithium
High-capacity lithium battery
Battery Capacity
4.99 kWh
24V × 208Ah
Runtime
Up to 5 Hours
Typical operating time per charge
Recharge Time
Approximately 5 Hours
Full recharge time
Charger
24V / 50A
Included lithium battery charger
Operating Environment
Indoor
Flat, dry commercial and industrial surfaces
Warranty
12 Months Limited
Covers manufacturing defects
Best used for Product Applications
Texlift equipment is designed for practical commercial use across warehouses, loading docks, retail spaces, distribution centers, and industrial facilities.
High-Rack Warehouse Storage
Handle palletized inventory at elevated storage positions with a 3,300 lb capacity and high-lift mast designed for demanding warehouse operations.
Manufacturing Facilities
Move raw materials, components, finished products, and palletized supplies between production, storage, and shipping areas.
Logistics & Fulfillment Centers
Improve productivity when transporting, positioning, and stacking pallets throughout busy fulfillment and distribution operations.
Shipping & Receiving Operations
Support pallet movement between receiving areas, staging zones, storage racks, and outbound shipping locations.
Industrial Plants
Handle palletized materials and production supplies with full electric travel, electric lifting, and dependable lithium-powered performance.
Wholesale & Distribution Operations
Organize and move palletized inventory efficiently while utilizing vertical warehouse space and high storage racks.
Commercial Storage Facilities
Maximize available storage capacity by placing palletized goods at elevated rack positions up to 18 ft.
High-Level Pallet Stacking
Utilize the 18 ft lift height, adjustable forks, straddle-leg design, and full electric operation for demanding high-level stacking applications.
Indoor Commercial Material Handling
A versatile 3,300 lb full electric rider stacker designed for high-rack storage, pallet transportation, inventory movement, and professional indoor material handling operations.
Compare models Product Comparison
Compare this Texlift model with similar products to choose the right equipment for your operation.
| Specification |
Full Electric Walkie Stacker with Straddle Legs | 3300 Lbs Capacity, 12ft (138 inch) Lift Height
View product
|
Electric Walkie Pallet Stacker – 10ft (118 inch) Lift, 3300 lbs Capacity, Fixed Straddle Legs
View product
|

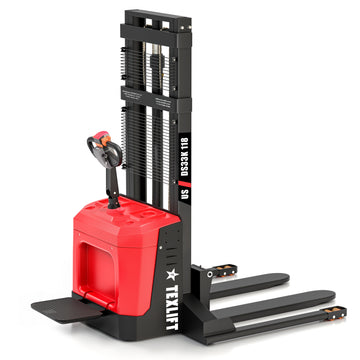

Full Electric Rider Stacker – 10ft (118 inch) Lift Height, 3300 lb Load, Fixed Straddle Legs
View product
|
|
|---|---|---|---|---|
| Model | US-AS33K 216 PRO | US-ES33K 138 | US-ES33K 118 | — |
| Load Capacity | 3,300 lbs | 3,300 lbs | 3,300 lbs | — |
| Lift Height | 18 ft (216 in) | 13 ft (138") | 10 ft (118") | — |
| Load Center | 20 in | 20 in | 20 in | — |
| Fork Length | — | 45 in | 45 in | — |
| Fork Width | Adjustable 8–27 in | Adjustable 5.5–27 in | Adjustable 5.5–27 in | — |
| Overall Length | 79 in | 70 in | 70 in | — |
| Overall Width | 58 in | 60 in | 60 in | — |
| Turning Radius | 69 in | 55 in | 55 in | — |
| Battery | 24V / 208Ah Lithium | 48V Lead-Acid | 48V Lead-Acid | — |
| Drive Motor | 1.5 kW DC | 0.8 kW | 0.8 kW | — |
| Lift Motor | 2.2 kW DC | 2.2 kW | 2.2 kW | — |
| Truck Weight | 2,750 lbs | 1,260 lbs | 1,240 lbs | — |
| Warranty | 12 Months Limited | 12 Months | 12 Months | — |
