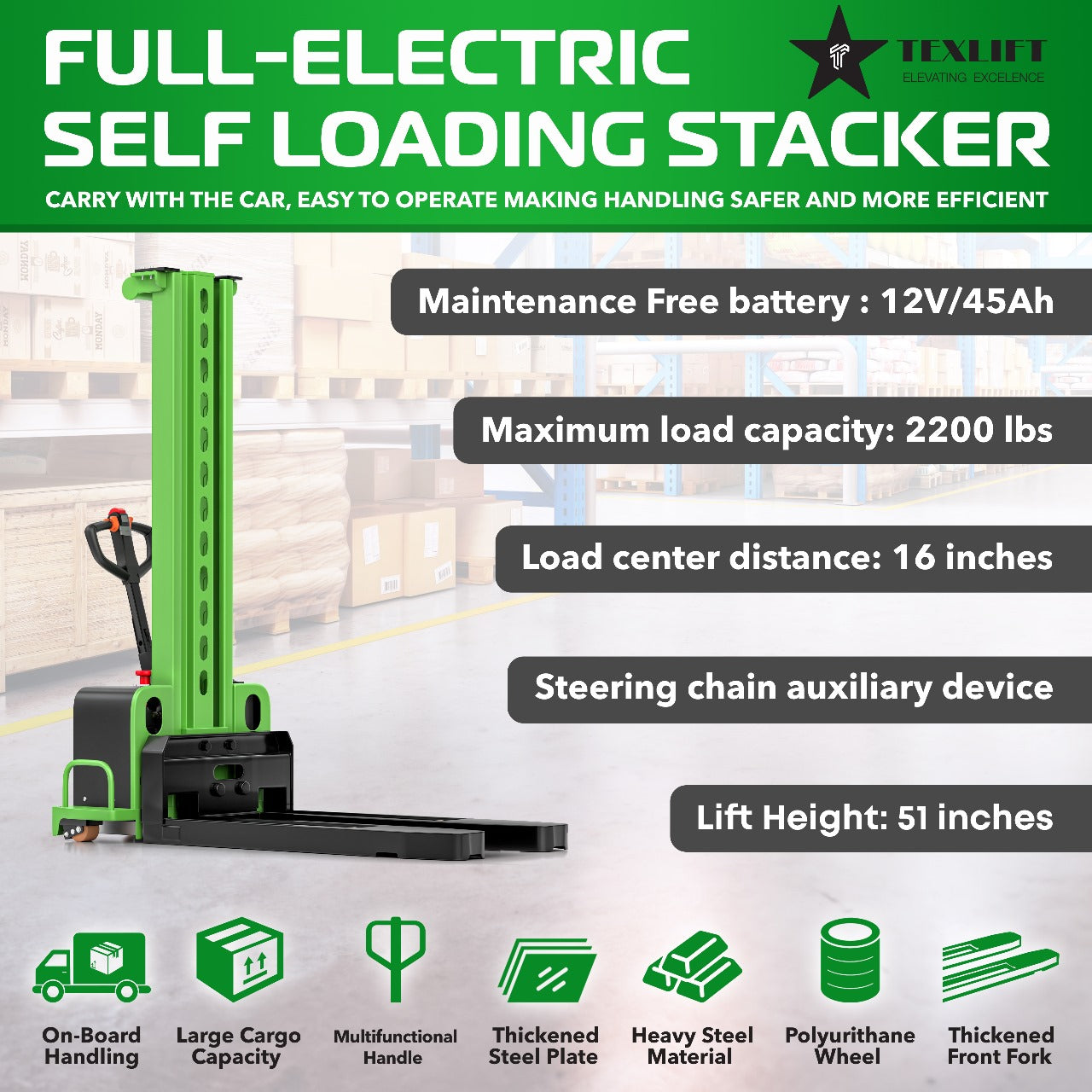

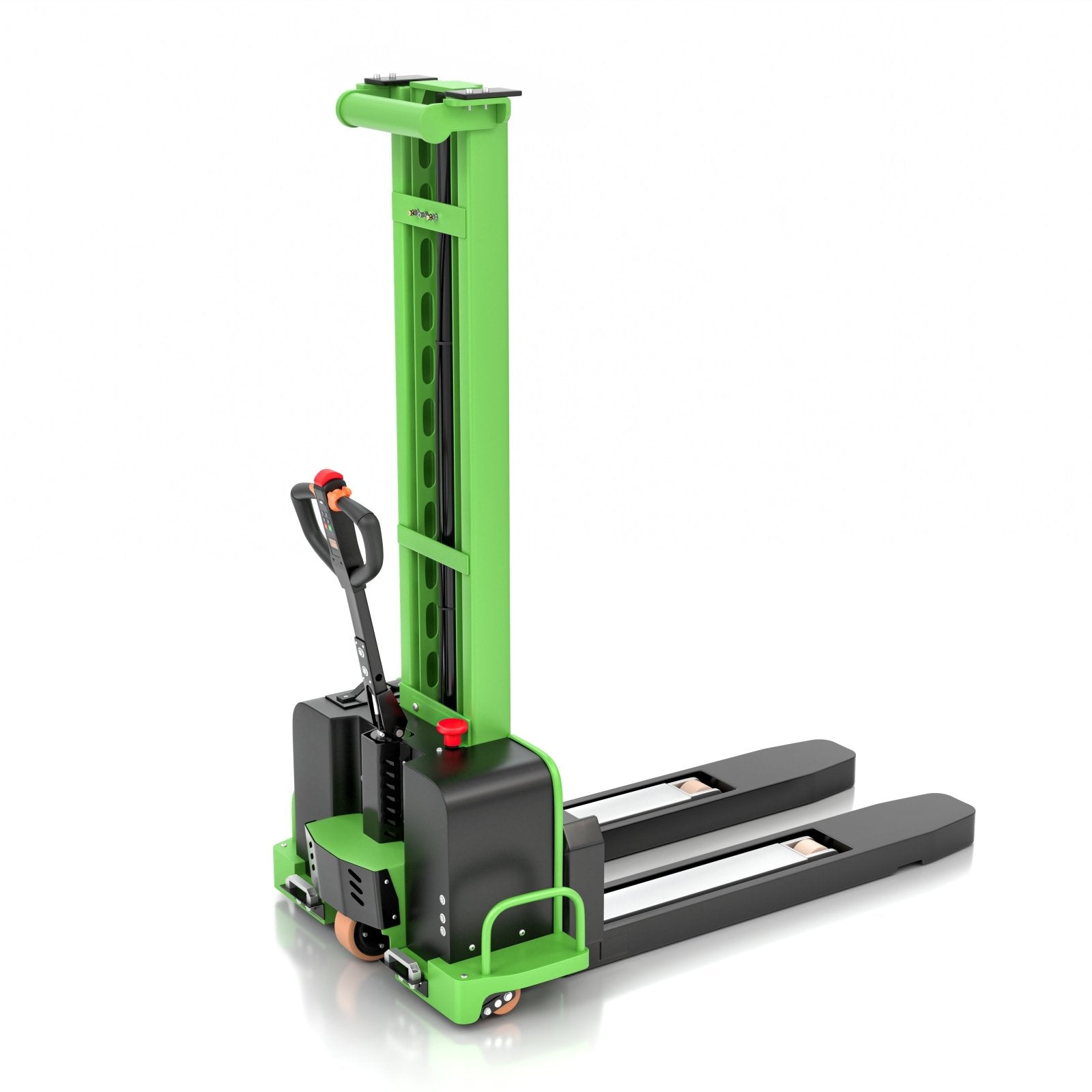

Fully Electric Self-Stacker, 2200 Lbs Capacity – Streamline Your Material Handling
Shipping costs are calculated at checkout!

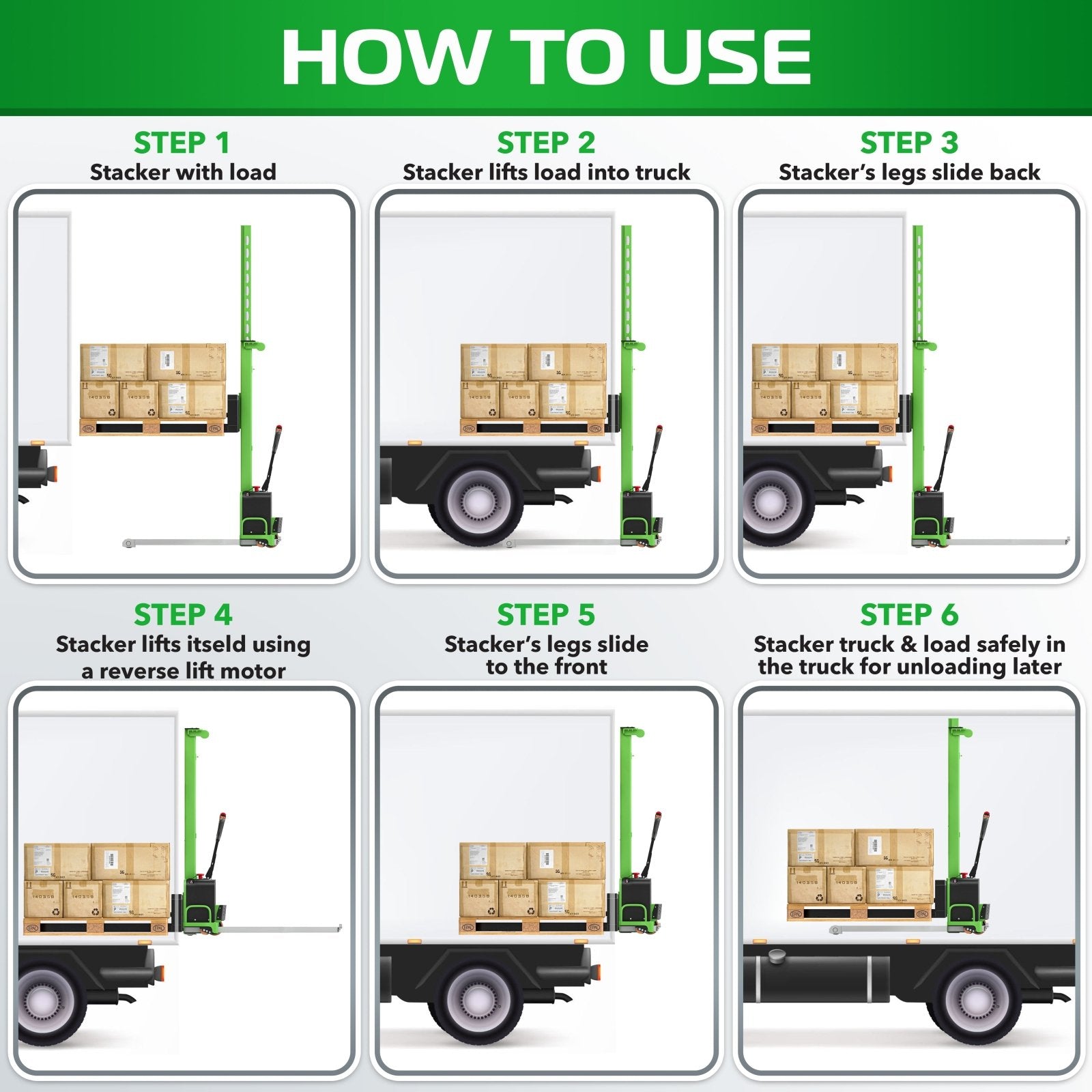

Self-Loading Lifting Stacker
- Model: US-ZTS-22K-FE
- Loading Capacity: 2200Lbs
- Maximum Lifting Height: 51 inches
- Load Center: 16 inches for enhanced stability and weight distribution
- Weight (with battery): 805Lbs
- Lift Mechanism: Powerful hydraulic system for efficient lifting and lowering
- Wheels: High-quality polyurethane wheels for a smooth, low-noise operation
- Battery: 12V/45Ah lithium battery, low maintenance with extended lifespan
-
Rear Plate – Recommended for: Cargo vans with step bumpers for a stable 90-degree loading platform.
Get to know the product

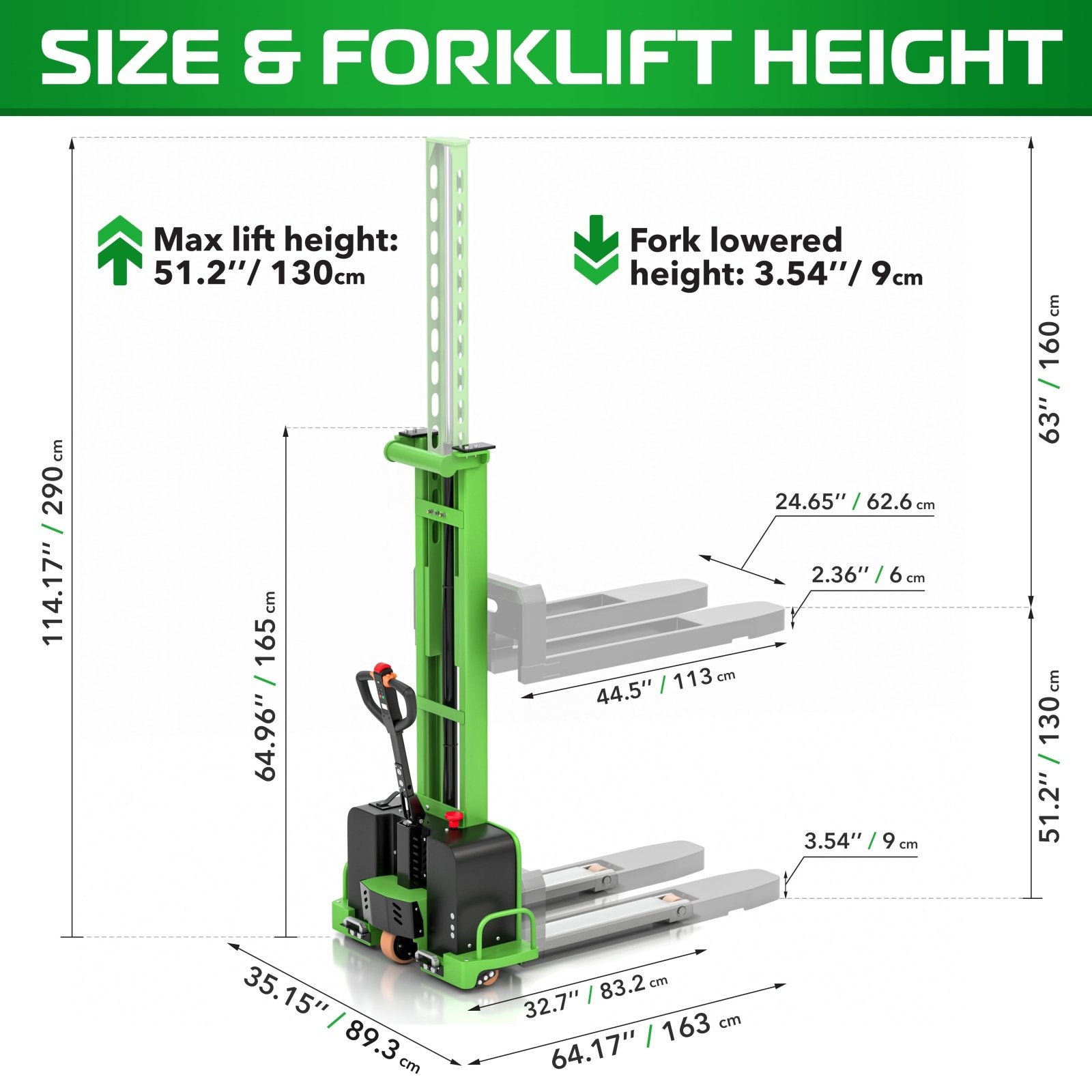

PRODUCT SPECIFICATIONS
Explore key insights and practical advice for the Texlift US-ZTS-22K-FE Self Electric Stacker Full Electric. These FAQs are designed to help you understand its features, optimize its use, and maintain peak performance, ensuring a safe and efficient workplace.
US-ZTS-22K-FE
High-performance full-electric stacker for heavy-duty material handling.
2200 lbs
Handles up to 2200 lbs, making it ideal for warehouse operations.
16 inches
16-inch load center ensures excellent stability and weight distribution.
805 lbs
805 lbs total weight with battery for improved handling.
51 inches
51-inch lift height for efficient stacking and warehouse storage.
2.5 inches/s
2.5 inches/s lifting speed without load for quick operation.
1.4 inches/s
1.4 inches/s lifting speed with load for controlled lifting.
2.5 inches/s
2.5 inches/s lowering speed without load for fast material handling.
1.4 inches/s
1.4 inches/s lowering speed with load for safe operations.
31 inches/s
31 inches/s walking speed for efficient warehouse movement.
64 inches
64-inch compact frame design allows easy maneuverability.
35 inches
35-inch width fits through narrow aisles.
65 inches
65-inch mast lowered height for compact storage.
115 inches
115-inch max mast height for high stacking.
45 inches

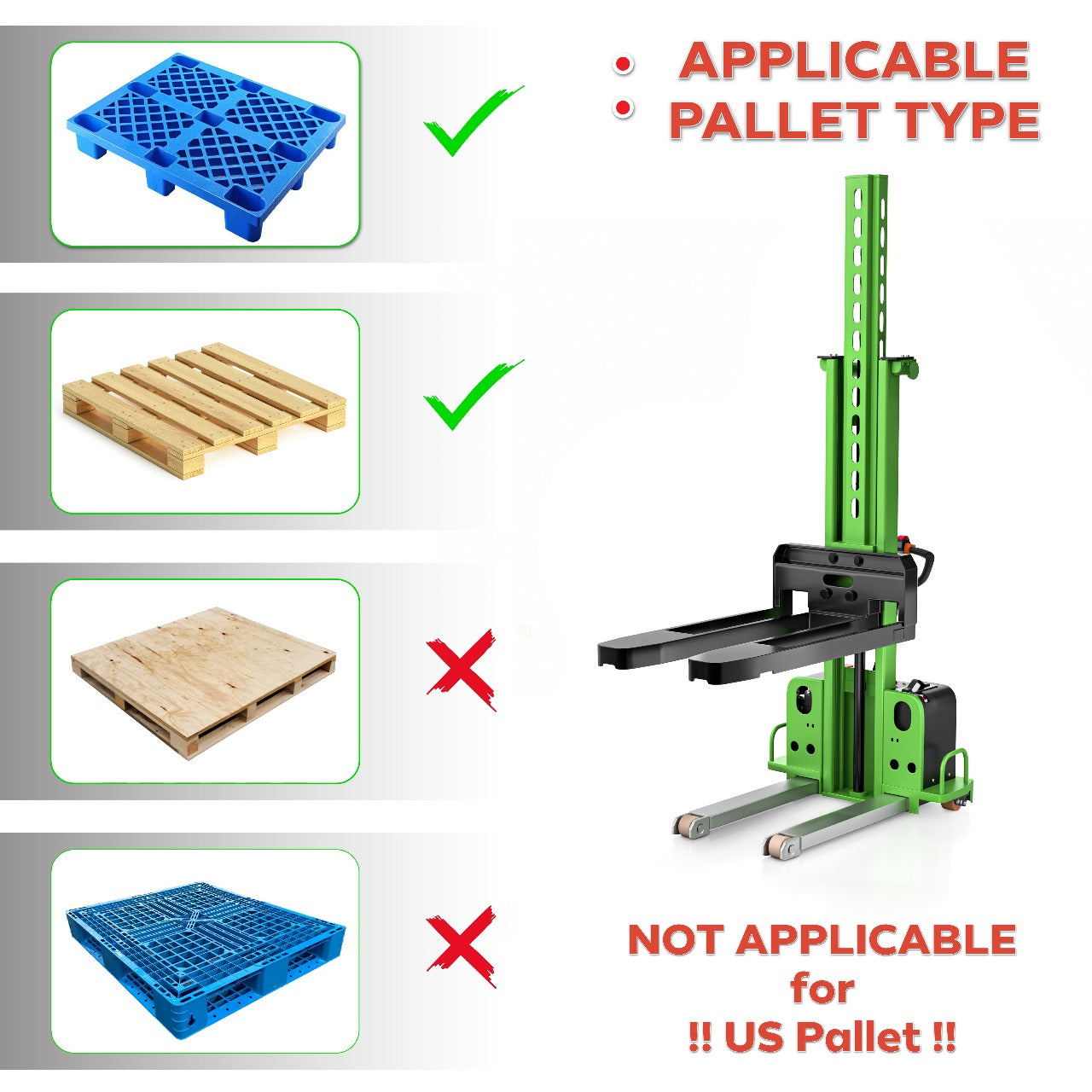

45-inch fork length accommodates various pallet sizes.
22/24 inches
22/24-inch fork outside width for flexible load handling.
7 inches
7-inch fork inside width for better stability.
51 inches
51-inch turning radius enhances maneuverability.
48V
Powerful 48V battery for long-lasting operation.
20 Ah
20Ah battery capacity for extended runtime.
POWER LIFTING, MADE EASY
Experience unmatched lifting efficiency with the Texlift US-ZTS-22K-FE, where power meets simplicity in full electric form.
DURABLE BUILD QUALITY
Constructed to withstand the demands of rigorous industrial environments, ensuring reliability and longevity.
ADVANCED BATTERY TECHNOLOGY
Equipped with a 48V battery, it delivers extended operation times and consistent power for all-day performance.
COMPACT AND MANEUVERABLE
Features a design that combines compactness with agility, allowing for easy navigation in tight spaces.
FAQs
Dive into the essential aspects of leveraging the Texlift US-ZTS-22K-FE Self Electric Stacker Full Electric to its fullest potential.
How can I maximize the battery life of the US-ZTS-22K-FE?
Optimize battery longevity by following a regular charging schedule, avoiding deep discharges, and keeping the battery at a moderate temperature. Periodic maintenance checks are also recommended to ensure battery health.
Is special training required to operate the US-ZTS-22K-FE?
While the US-ZTS-22K-FE is designed for ease of use, basic training on its operation, safety features, and maintenance is beneficial for all operators to ensure efficient and safe use.
Can the US-ZTS-22K-FE be used in outdoor environments?
The US-ZTS-22K-FE is primarily designed for indoor use, considering its electric nature. However, it can be used outdoors in dry conditions. Avoid using it in wet or excessively dusty environments to protect its electrical components.
What routine maintenance should be performed on the US-ZTS-22K-FE?
Routine maintenance includes checking the electrical system, ensuring the forks and lifting mechanism are in good condition, and verifying the integrity of safety features. Refer to the user manual for a detailed maintenance schedule.
