Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift
Texlift US-TXLT132 PRO Electric Telescopic Wheel Loader – 1,320 lb Capacity, 155″ Lift
Shipping costs are calculated at checkout!
⚡ Electric Telescopic Wheel Loader – US-TXLT132 PRO
- Rated Load: 1,320 lbs
- Total Weight: 4,880 lbs

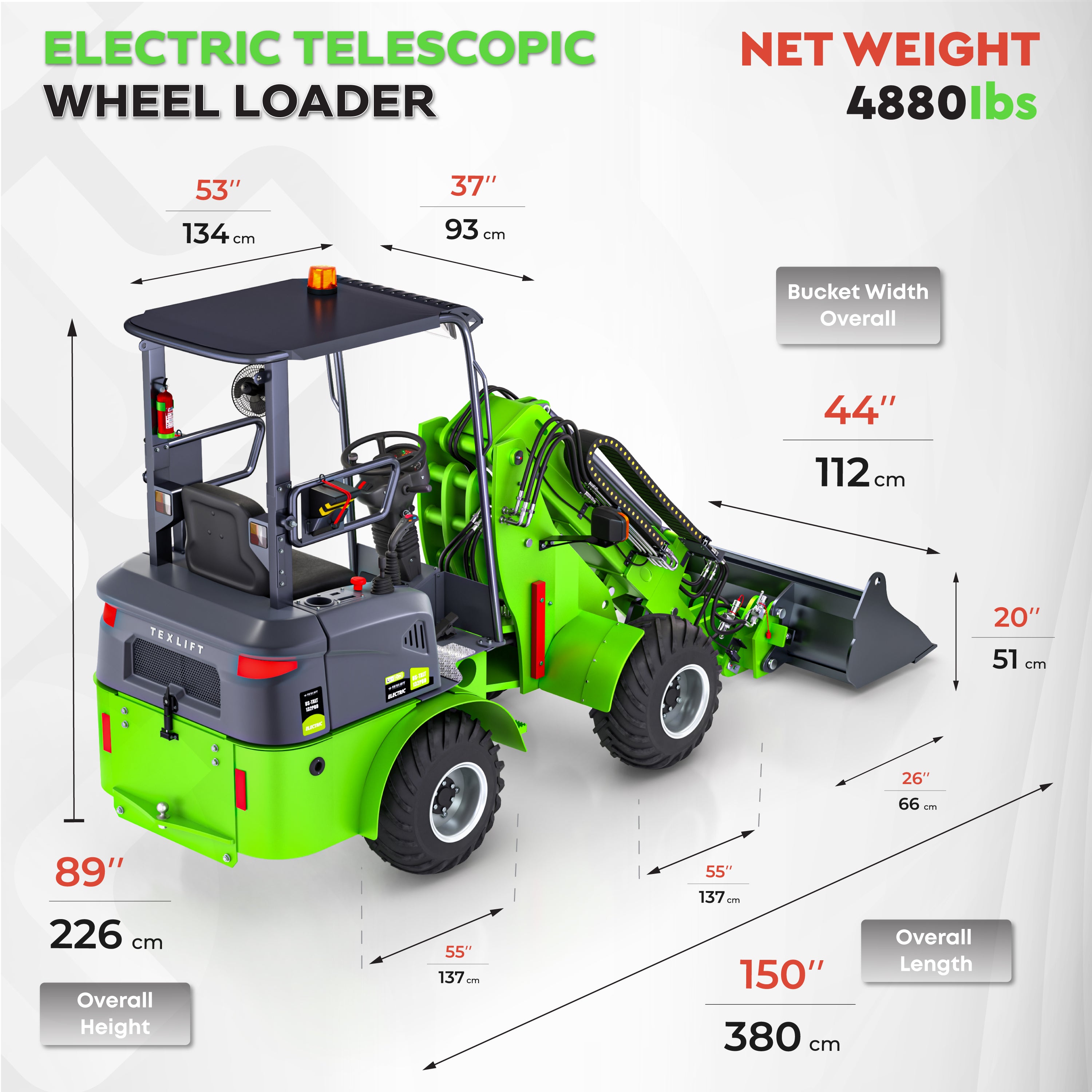

- Dimensions (L × W × H): 150″ × 50″ × 89″
- Minimum Ground Clearance: 8″
- Wheelbase: 55″
- Track Width: 37″
- Maximum Turning Radius: 80″
- Travel Speed: Low 6 mph / High 12.5 mph
- Bucket Capacity: 8.8 ft³
- Bucket Width: 44″
- Dumping Height (Min/Max): 103″ / 135″
- Dumping Distance (Min/Max): 30″ / 50″
- Lifting Height (Min/Max): 122″ / 155″
- Maximum Steering Angle: 45°
- Dumping Angle: 35°
- Battery Type: Lithium-Ion (1 pack)
- Total Battery Capacity: 17.7 kWh
- Battery Specification: 73.6V / 240Ah (Electrical system: 12V)
- Charging Time: ~5 hours
- Working Duration: up to 8 hours
- Drive Motor: 2 × 4.5 kW (9 kW total)
- Hydraulic Motor: 4.5 kW • 16 MPa • 23 ml/r
- Steering System: Hydraulic • 14 MPa
- Brakes: Drum oil brake + drum handbrake (parking)
- Tires: 26×12.00-12 (4 pcs) • Tire pressure 0.25 MPa
- Certification: CE
- 🦾 Telescopic Lift Advantage: Reach up to 155″ for loading, stacking, and higher placement.
- ⚡ High-Performance Powertrain: 9 kW dual drive motors + 4.5 kW hydraulic motor deliver strong traction and smooth lifting.
- 🔋 Up to 8 Hours Runtime: Full workday operation with fast ~5h recharge time for minimal downtime.

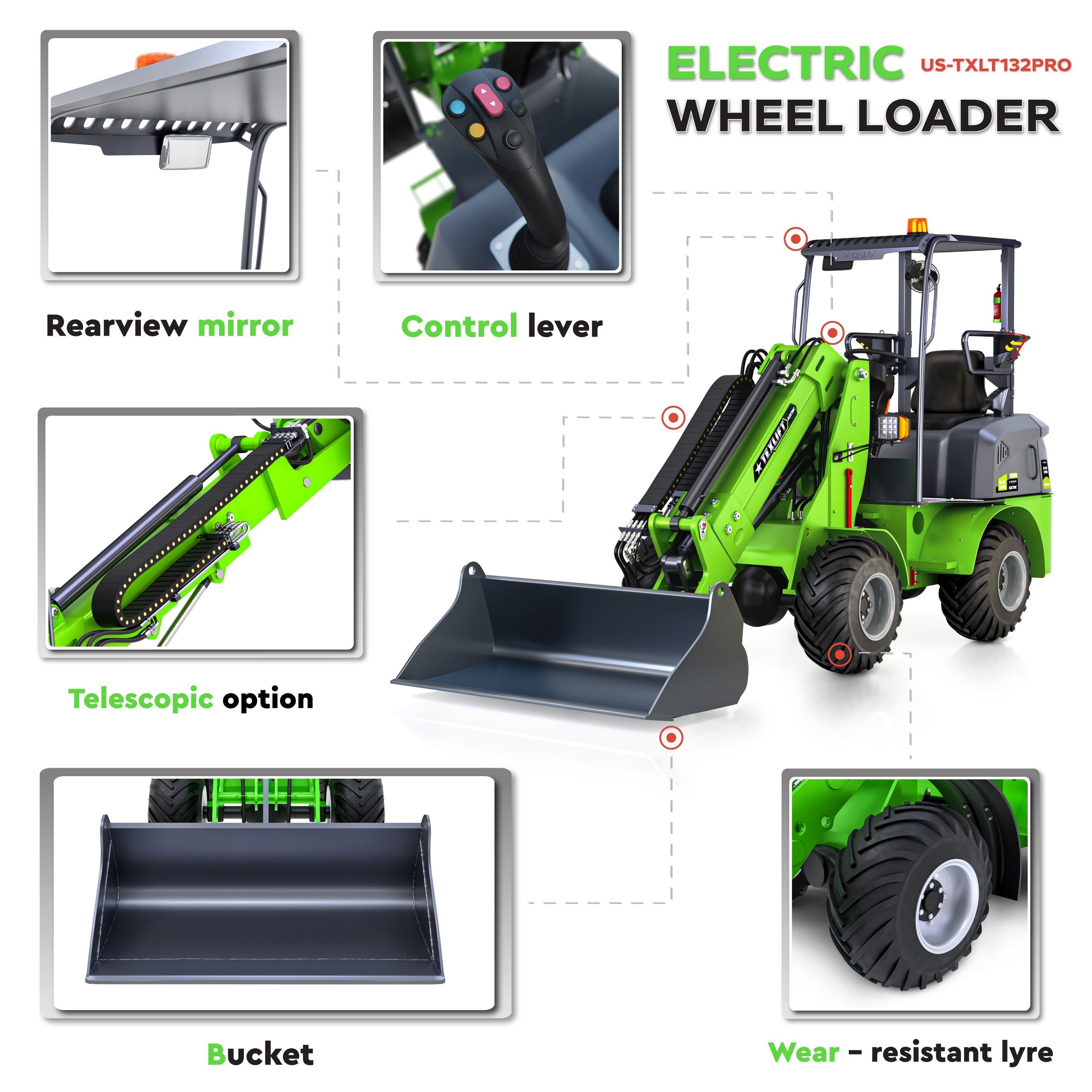

- 🏗️ Standard Equipment Included: Standard bucket, quick hitch, electric joystick, warning lights, and digital display.
- 🔌 USB Charger Included: Built-in USB charging port for phone or tablet.
- 📱 Phone Holder: Secure mount for smartphone.
- 🥤 Cup Holder: Convenient holder for drinks inside the operator station.
- 🧭 Maneuverable: 80″ turning radius + 45° steering angle for tight spaces.
- ♻️ Clean & Quiet: All-electric drive for low noise and zero exhaust.
- 🚚 Nationwide U.S. Shipping Available
- ❌ No Sales Tax outside TX
-
📞 Talk to a Specialist Anytime: +1 (214) 468-4388
- 🎖️ Military Discount: Save 2% for veterans
-
💲 3% Wire-Transfer Discount:
Get 3% off your order when you pay by wire transfer.
Request 3% Wire Discount
Get to know the product
PRODUCT SPECIFICATIONS
The Texlift US-TXL132 PRO Electric Telescopic Wheel Loader delivers powerful, zero-emission performance with telescopic reach for more flexible loading and placement. With a 1320 lb rated load, a high-efficiency 17.7 kWh lithium system, and smooth hydraulic control, it’s built for construction, farm, and industrial work.
1320 lbs
Strong lift capacity for loading, moving, and material handling tasks.
8.8 ft³
Efficient bucket volume for fast cycles and improved productivity.
103 / 135 in
High dump clearance helps place loads precisely.
2 × 4.5 kW (9 kW total)
Dual drive motors (2 × 4.5 kW) provide a combined 9 kW for powerful traction and consistent performance.
4.5 kW
Dedicated 4.5 kW hydraulic motor ensures smooth lifting, dumping, and precise control.
122 / 155 in
Telescopic lift range for flexible handling and reach.
30 / 50 in
Optimized dump reach for easier load placement.
4880 lbs
Stable build for confident operation on job sites.
45°
Great maneuverability for tight work areas.
80 in
Compact turning radius for efficient navigation.
Low 6 mph / High 12.5 mph
Two-speed travel supports both control and efficiency.
150 × 50 × 89 in
Compact footprint ideal for daily operations.
44 in
Wide bucket supports versatile material handling.
55 in
Balanced wheelbase improves stability.
8 in
Ground clearance supports uneven terrain.
Lithium-Ion
Lithium-ion battery for high efficiency and long lifespan.
17.7 kWh
High-capacity battery enables extended work cycles.
Charge: 5h • Runtime: up to 8h
Up to 8 hours runtime with ~ 5-hour recharge.
16 MPa
Stable hydraulic pressure ensures consistent performance.
26×12.00-12
Durable tires for traction and jobsite stability.
Support Center
FAQs
Quick answers about the Texlift US-TXL132 PRO Electric Telescopic Wheel Loader—battery, charging, capacity, and daily operation.
How long does the battery last on a full charge? +
The US-TXL132 PRO is rated for up to 6 hours of working duration depending on load weight, terrain, and operating habits.
How long does it take to fully charge? +
Typical full charging time is about 5 hours.
Is it suitable for outdoor work? +
Yes. The loader is designed for outdoor use and can handle typical jobsite terrain. For best performance, avoid extreme mud/water conditions unless equipped for that environment.
What is the rated load capacity? +
The rated load is 1320 lbs. Always follow safe load distribution and operating guidelines.
