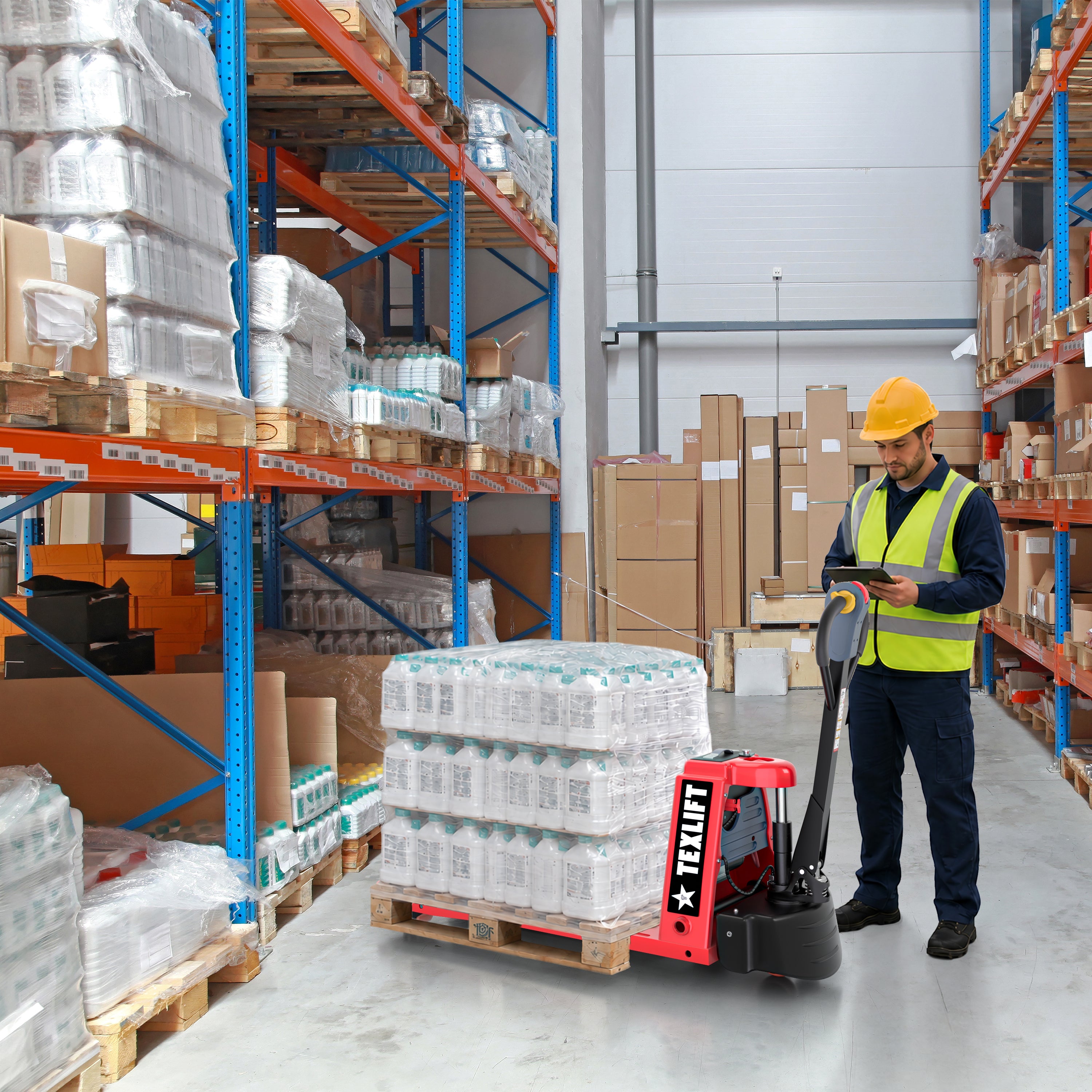

US-EPT33K NR Narrow Electric Pallet Jack – 21.5" Wide, 3,300 lb Full Electric Lithium Pallet Truck
US-EPT33K NR Narrow Electric Pallet Jack – 21.5" Wide, 3,300 lb Full Electric Lithium Pallet Truck
Shipping costs are calculated at checkout!
⚡ Narrow Full Electric Pallet Jack – US-EPT33KNR
Designed for tight warehouse aisles, compact pallets, trailers, retail stockrooms, and narrow workspaces, the Texlift US-EPT33KNR combines full electric drive & lift performance with a compact narrow-fork design for maximum maneuverability and operator comfort.
📋 Quick Specifications
- ✔️ Load Capacity: 3,300 lbs
- ✔️ Max Lift Height: 8″
- ✔️ Fork Size: 45″ L × 21.5″ W
- ✔️ Inside Fork Width: 9″
- ✔️ Battery: 48V Lithium, 15Ah
- ✔️ Compact Narrow Design: Perfect for tight aisles & narrow pallets
- ✔️ Charging Time: Approx. 3 hours
- ✔️ Runtime: Approx. 4–5 hours
🚀 Main Features
- ⚙️ Full Electric Drive & Lift: Smooth powered operation with no manual pumping required.
- 🧭 Narrow Aisle Performance: Compact 21.5″ fork width allows easy maneuvering in tight warehouse environments.
- 🔋 High-Efficiency Lithium Battery: Maintenance-free 48V lithium battery delivers reliable power for demanding daily use.
- 🏬 Ideal for Tight Workspaces: Excellent for trailers, stockrooms, loading docks, compact warehouses, and retail storage areas.
- 🖐️ Ergonomic Smart Handle: Comfortable controls designed to reduce operator fatigue during long shifts.
- 🔇 Quiet & Smooth Operation: Low-noise electric system suitable for indoor use.
- 🛡️ Built-In Safety Features: Emergency stop button, low battery protection, and stable driving performance.
- ❌ No Sales Tax outside Texas
- 🚚 Shipping Available Across the U.S.
- 🎖️ Military Discount Available for veterans
-
📞 Talk to a Texlift Specialist: +1 (214) 468-4388
- 💲 3% Wire-Transfer Discount: Save 3% when paying by wire transfer.
Request 3% Wire Discount
EASY TO USE
Designed with space optimization in mind, the US-EPT33KNR narrow electric pallet jack ensures smooth navigation through narrow aisles and tight corners where larger equipment can’t operate. Its compact 21.5-inch outside fork width and 9-inch inside fork width improve maneuverability, reduce downtime, and increase overall efficiency, making it the perfect solution for warehouses, retail stores, trailers, and other environments with limited working space.
Get to know the product
PRODUCT SPECIFICATIONS
Maximize your warehouse efficiency with the Texlift US-EPT33KNR Narrow Electric Pallet Jack, designed for tight spaces, narrow aisles, trailers, retail stockrooms, and compact pallet handling. With a 3300 lb load capacity, 21.5-inch outside fork width, 9-inch inside fork width, and 48V lithium battery power, this narrow electric pallet jack delivers reliable full-electric drive and lift performance for modern material handling operations.
US-EPT33KNR
Compact narrow electric pallet jack for tight warehouse spaces.
3300 lbs
Handles up to 3300 lbs for heavy-duty pallet movement.
24 inches
Standard 24-inch load center ensures optimal balance.
21.5 inches
Narrow 21.5-inch outside fork width is ideal for compact pallets and tight aisles.
45 inches
45-inch fork length accommodates a variety of loads.
65 inches
65-inch overall length ensures maneuverability.
3 inches
3-inch ground clearance for smooth operation.
50 inches
Overall height of 50 inches for ergonomic use.
21.5 inches
21.5-inch overall width allows excellent access in narrow warehouse environments.
56 inches
56-inch turning radius enhances maneuverability in tight spaces.
2.5 / 3.1 mph
Drives at 2.5 mph under load, 3.1 mph without load.
6% / 20%
Handles 6% incline with load, 20% without load.
0.75 kW
0.75 kW walking power for efficient operation.
0.5 kW
0.5 kW lift power for quick pallet handling.
48V
48V battery ensures long-lasting use.
15 Ah
Battery capacity of 15 Ah for extended runtime.
Lithium Battery
Advanced lithium battery for higher efficiency and longer life.
Regenerative & Electromagnetic Brake
Regenerative braking for energy efficiency.
B1501
Advanced B1501 controller for precise handling.
310 lbs
310 lbs total weight with battery included.
COMPACT POWER FOR TIGHT SPACES
Improve your material handling operation with the Texlift US-EPT33KNR, a compact narrow electric pallet jack built for tight aisles, retail stockrooms, trailers, and narrow warehouse environments.
NARROW AISLE DESIGN
The US-EPT33KNR features a compact 21.5-inch outside fork width and 9-inch inside fork width, making it ideal for narrow aisles, trailers, compact pallets, and tight warehouse work areas.
ERGONOMIC OPERATION

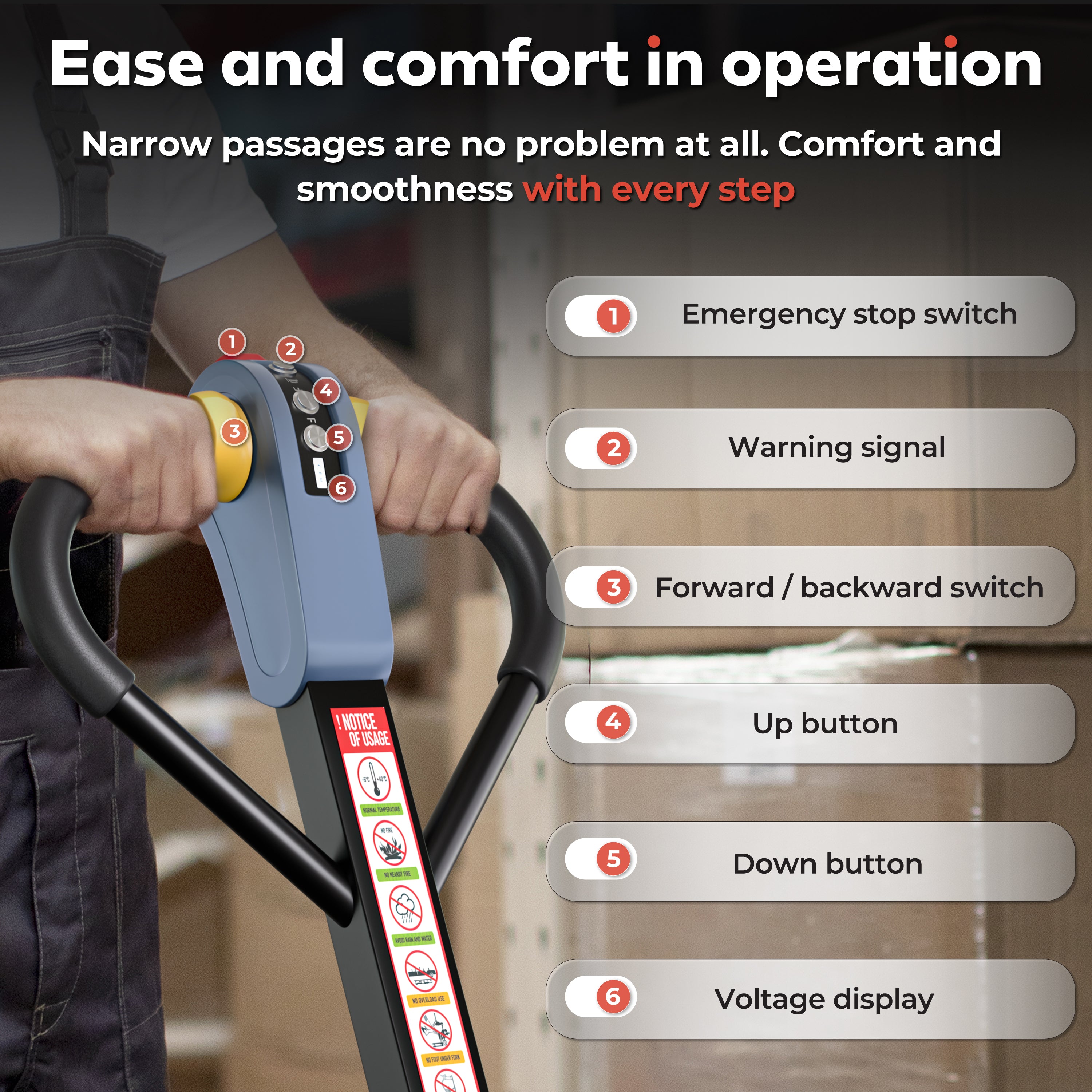

This narrow electric pallet jack is engineered with operator comfort in mind, featuring an ergonomic handle and intuitive controls for smooth, fatigue-reducing operation during daily pallet movement.
ADVANCED SAFETY FEATURES
Built-in safety features, including emergency stop functions and a low battery indicator, help the US-EPT33KNR support safer and more efficient warehouse operation.
Support Center
FAQs
Your guide to the Texlift US-EPT33KNR Narrow Electric Pallet Jack.
Where can the US-EPT33KNR narrow electric pallet jack be used? +
The US-EPT33KNR is ideal for narrow warehouse aisles, retail stockrooms, trailers, loading docks, compact storage areas, and other tight workspaces where standard pallet jacks may be difficult to maneuver.
What is the outside and inside fork width? +
The US-EPT33KNR has a 21.5-inch outside fork width and a 9-inch inside fork width, making it a good choice for compact pallets and narrow work areas.
What types of floors is this narrow electric pallet jack suitable for? +
It is designed for smooth, level indoor surfaces commonly found in warehouses, retail stockrooms, manufacturing areas, and loading docks. Avoid operating on very uneven, soft, or damaged surfaces.
How often should the US-EPT33KNR undergo maintenance? +
Regular maintenance helps improve reliability and lifespan. We recommend routine inspection and service at least once a year or based on usage frequency. Always refer to the user manual for specific maintenance procedures.
