Narrow Electric Stacker – 3,300 lb – 8 ft Lift – Single-Deck & EU Pallets – US-ESN33K 98
⚡ Electric Stacker – 3,300 lbs Capacity – Model US-ESN33K 98
- Load Capacity: 3,300 lbs
- Max Lift Height: 8 ft (98″)
- Gantry Lowered Height: 6 ft (73″)
- Max Height During Operation: 11 ft (127″)
- Load Center: 20″
- Fork Length: 45″
- Fork Width Range: 5.5″ – 27″ adjustable
- Overall Length: 70″
- Overall Width: 33″
- Wheelbase: 49″
- Turning Radius: 55″
- Drive System: Electric battery powered
- Battery: 48V / 32AH
- 🔋 Battery Performance: approx. 5–6 hours continuous work per charge.
- 🏗️ Warehouse-ready: Perfect for pallet stacking, loading docks, and inventory operations.
- ⚡ Electric power drive: Quiet, clean, and efficient indoor operation.
- 📦 Mid-height stacking specialist: Ideal for racking up to 8 ft lift.
- 🛡️ Stable lifting: 20″ load center ensures balanced performance.
- 🚚 Nationwide U.S. Shipping available
- ❌ No Sales Tax outside TX
- 📞 Talk to a Specialist Anytime:
- +1 (214) 468-4388
- 🎖️ Military Discount available
- 💲 3% Wire-Transfer Discount: Save 3% when paying by wire transfer.
- Request 3% Wire Discount
- Deliveries are only possible by road transport within the continental U.S.
Get to know the product

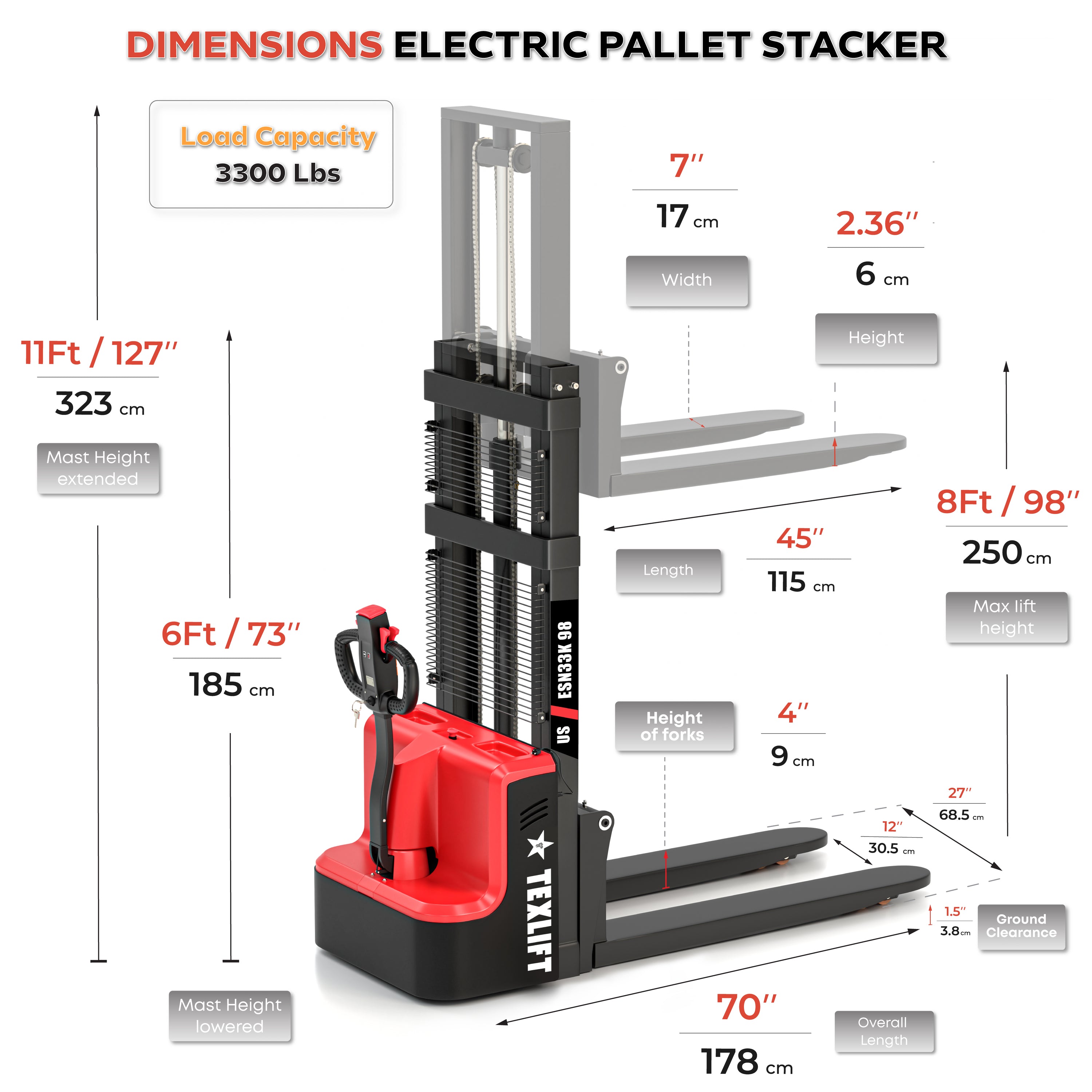

PRODUCT SPECIFICATIONS
The specification chart for the Texlift US-ESN33K 98 Electric Stacker presents a detailed overview of its key features and capabilities. This chart is designed to offer potential users and decision-makers a clear, concise snapshot of what makes the US-ESN33K 98 a standout choice for material handling needs.
3300 lbs
3300 lbs load capacity, ideal for heavy-duty tasks, ensuring robust performance in various settings.
20 Inch
Load center distance of 20 inches, optimizing stability during lifting and handling.
Polyurethane Wheels
Polyurethane wheels, offering smooth movement and durability on various surfaces.
49 Inch
49-inch wheelbase, providing excellent stability and maneuverability.
70 Inch
70-inch total vehicle length, making it compact and ideal for confined spaces.
33 Inch
33-inch overall vehicle width, designed for efficient use of narrow spaces in warehouses.
98 Inch
98-inch maximum lifting height, perfect for maximizing vertical storage capacity.
73 Inch
73-inch height when the gantry is lowered, enabling easy access to pallets.
127 Inch
127-inch maximum height during operation, allowing for high stacking in tight environments.
45 Inch
45-inch length of the fork, offering ample support for various pallet sizes.
27 Inch
27-inch max fork width, accommodating large pallets and loads securely.
5.5 Inch
5.50-inch min fork width, offering flexibility for handling different pallet types.
55 Inch
55-inch minimum turning radius, ideal for maneuvering in narrow aisles.
Electromagnetic Brake
Electromagnetic brake for reliable stopping power and safety during operation.
DC Motor
DC motor for the driving system, ensuring efficient movement and energy savings.
0.8 kw
0.8 kW power output from the driving motor, providing ample power for typical warehouse tasks.
DC Motor
DC motor for lifting system, delivering efficient lifting power when needed.
2.2 kw
2.2 kW power output from the lifting motor, ensuring strong and reliable lifting capacity.
Electric (battery)
Electric (battery) drive method, ensuring quiet, clean operation with zero emissions.
48V/32AH
48V/32AH battery type, designed for long-lasting performance and efficiency in demanding environments.
LIFT SMARTER, NOT HARDER
Elevate your operational efficiency and safety standards effortlessly with the Texlift US-ESN33K 98 Electric Stacker, where innovative design meets unmatched performance.

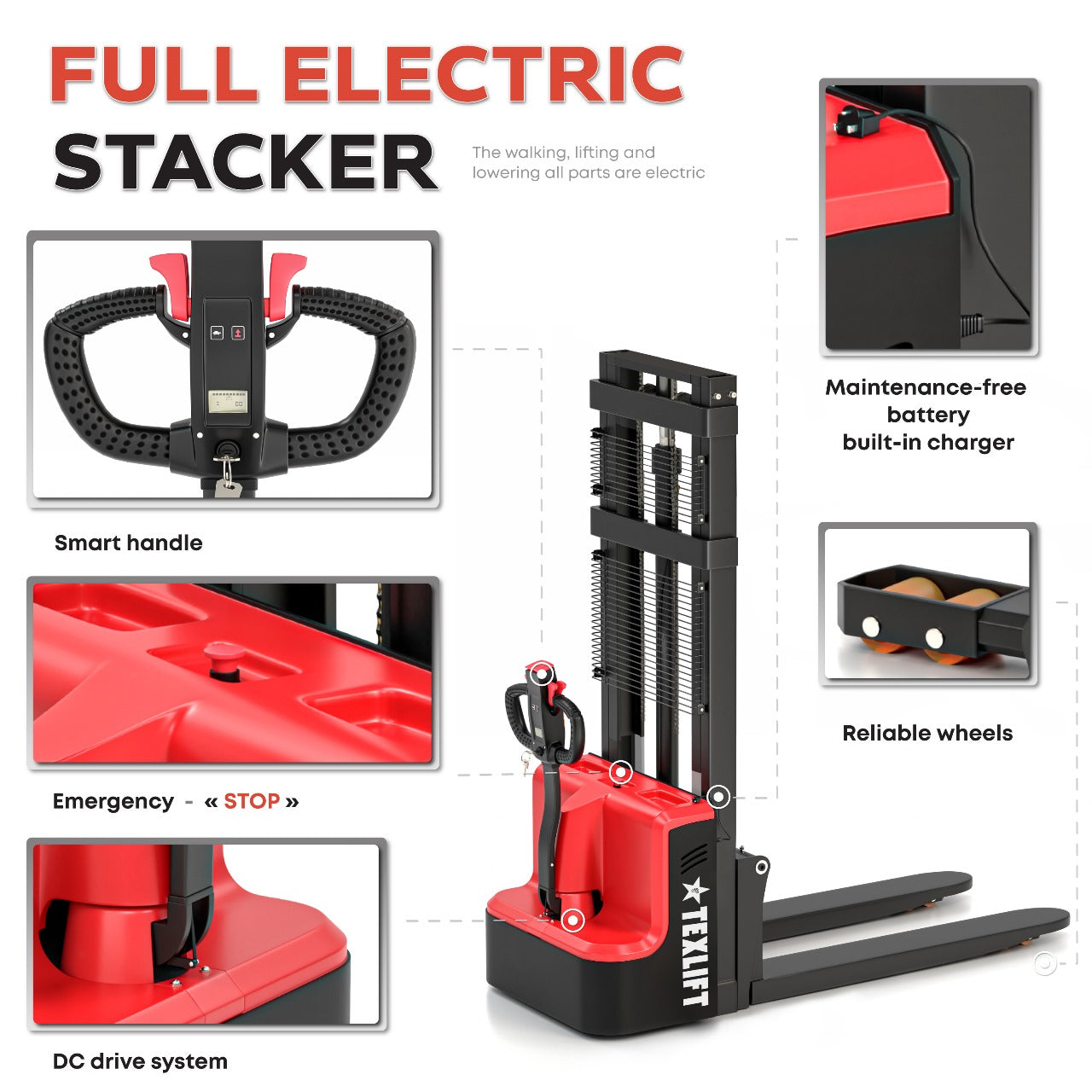

DURABLE CONSTRUCTION
Built with high-quality materials, the US-ESN33K 98 withstands the rigors of daily use in challenging industrial environments, ensuring longevity and reliability.
ECO-FRIENDLY OPERATION
Powered by an efficient electric motor, it offers a greener alternative to traditional fuel-powered equipment, reducing emissions and noise in the workplace.
SAFETY-ORIENTED DESIGN
Equipped with safety features including an emergency stop button and automatic braking system, it prioritizes operator safety without compromising on performance.
Support Center
FAQs
Get acquainted with the ins and outs of your Texlift US-ESN-33K Electric Stacker. Here, we've compiled a list of frequently asked questions to help you optimize usage, maintain peak performance, and ensure safety in every operation.
How can I optimize the battery life of the US-ESN33K 98? +
Optimize battery life by following a regular charging schedule, avoiding complete discharge, and maintaining the battery at recommended temperatures. Regular maintenance checks are also crucial.
Is the US-ESN33K 98 suitable for outdoor use? +
While primarily designed for indoor use, the US-ESN33K 98 can be used outdoors in dry, stable conditions. Avoid using it in wet or uneven terrains to prevent damage and ensure safety.
What maintenance checks should be performed regularly? +
Regular checks should include inspecting the lifting mechanism, checking the battery and electrical components, and ensuring that all safety features are functioning correctly.
Can the US-ESN33K 98 handle non-standard pallet sizes? +
Yes, the adjustable fork width accommodates various pallet sizes, making it versatile for different load types. However, always ensure the load is within the capacity limits and securely positioned.
