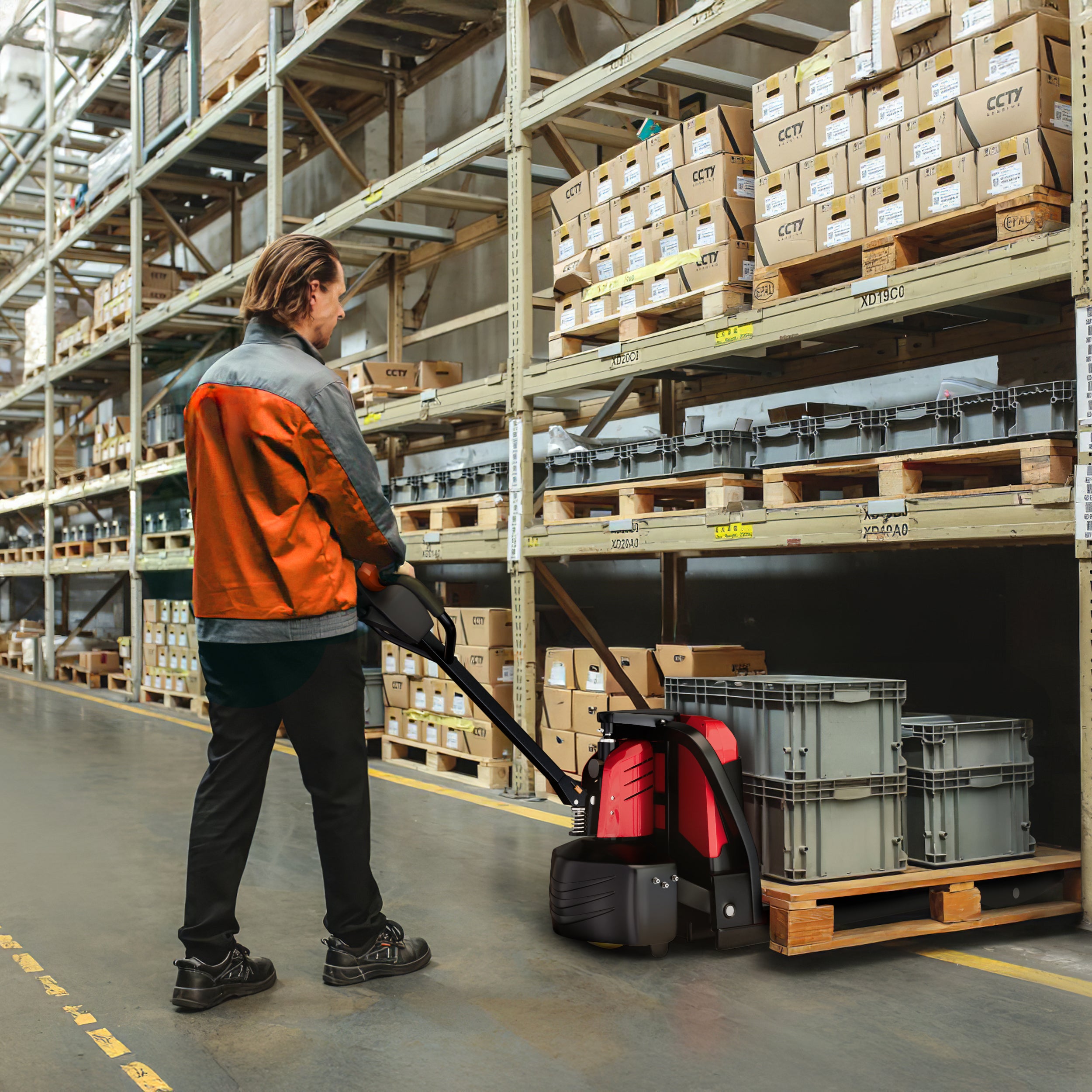

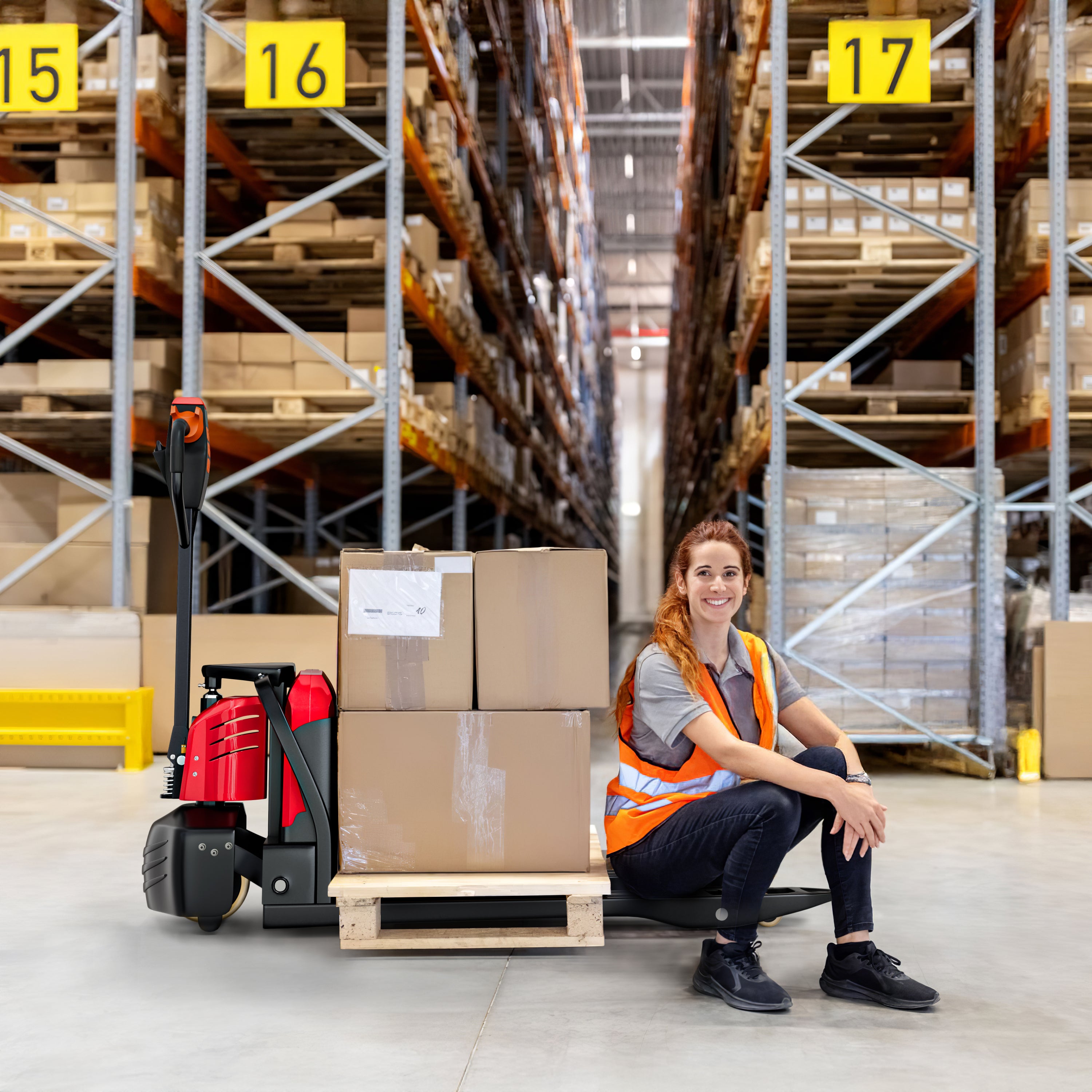

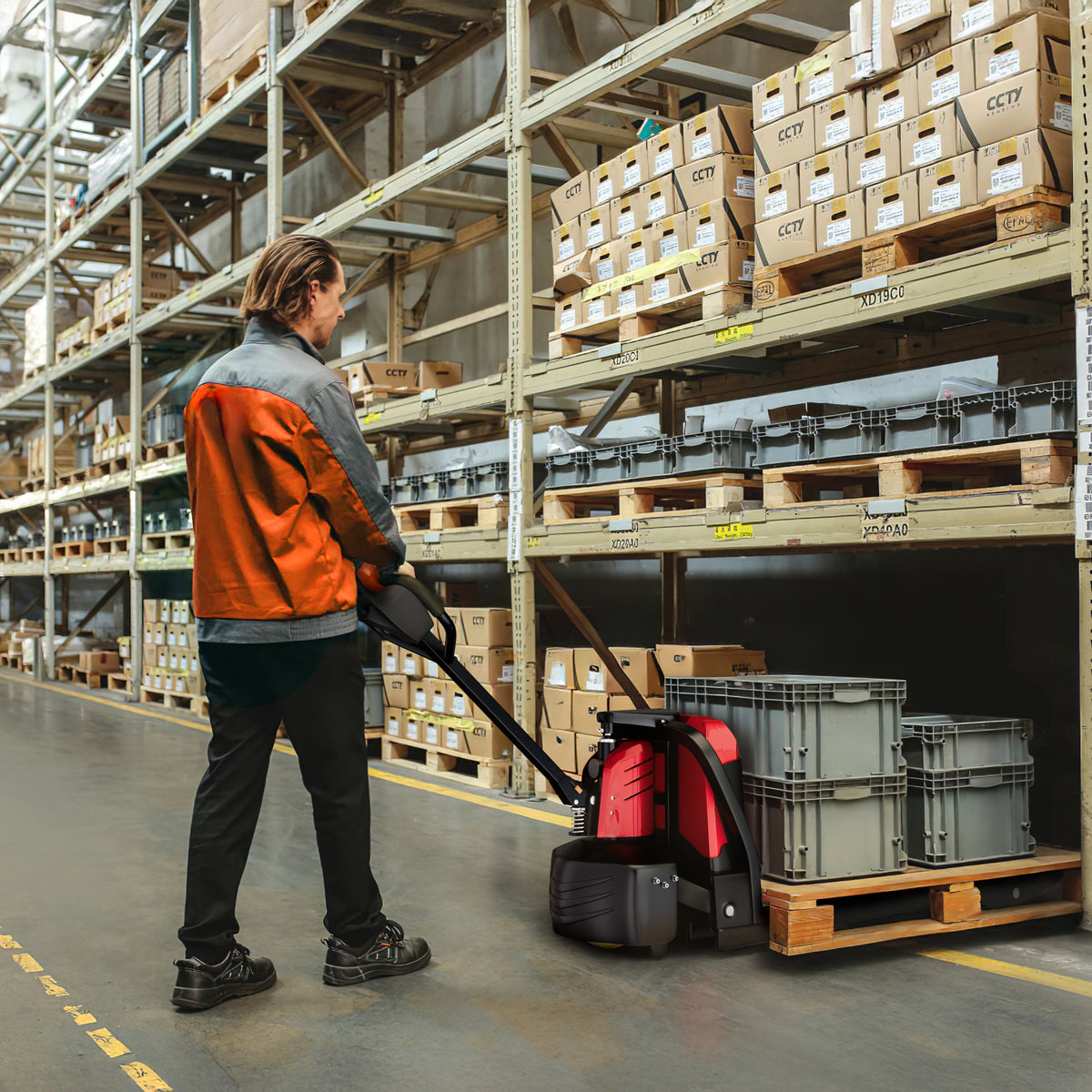

Full Electric Pallet Jack – 3300Lbs Capacity, 24V/30Ah Lithium Battery
Shipping costs are calculated at checkout!
Full Electric Pallet Jack
Model: US-EPT-33D
Load Capacity: 3300Lbs
Max Lift Height: 8"
Fork Size: 48” L x 27” W
Smart Handle: Ergonomic grip with intuitive controls for smooth and precise operation
Battery: 24V Lithium, 30Ah capacity, fast-charging, long-lasting, and low maintenance
Get to know the product

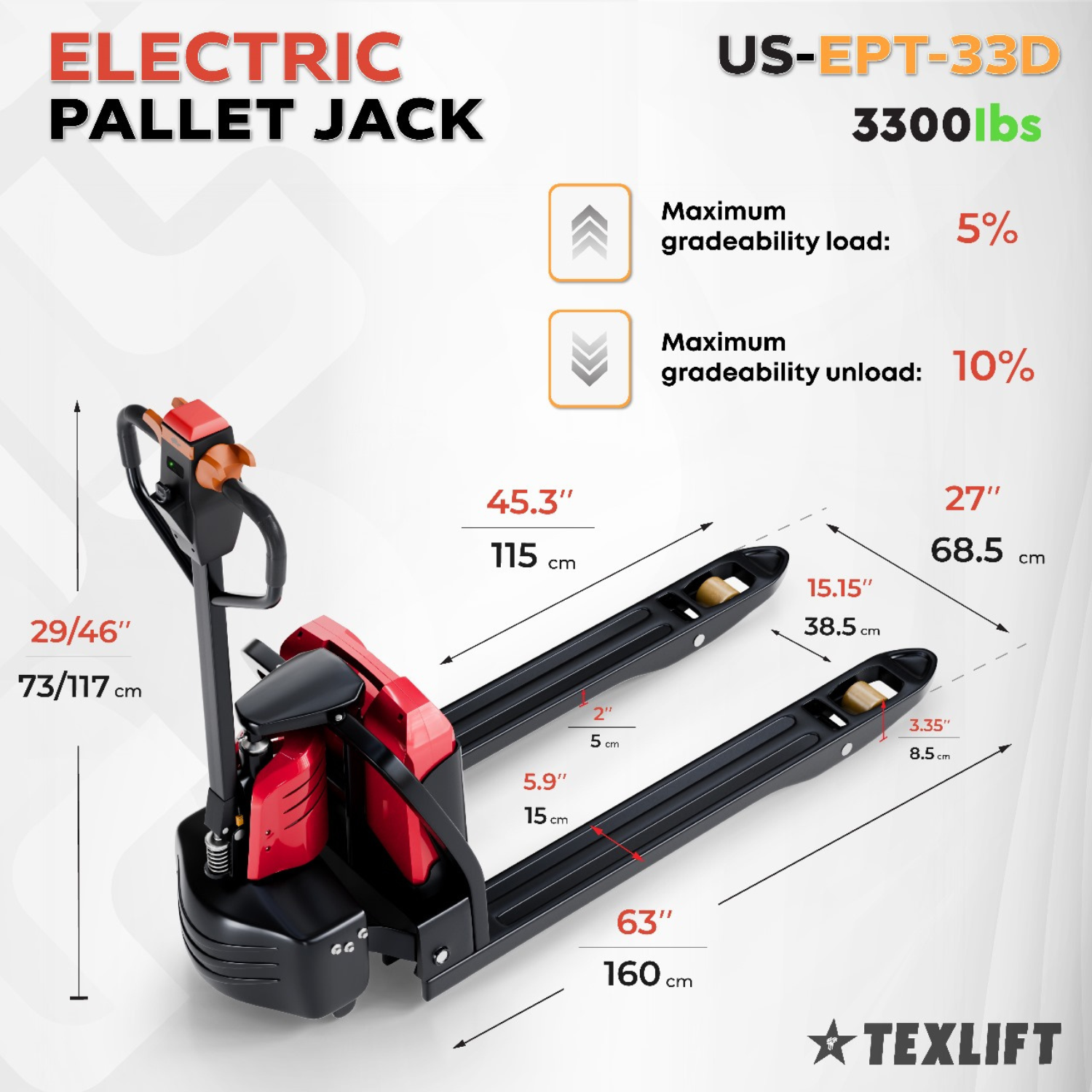

PRODUCT SPECIFICATIONS
Maximize your warehouse efficiency with the Texlift US-EPT-33D Electric Jack Pallet, meticulously designed to cater to the rigorous demands of modern material handling environments. This premier electric jack pallet is your go-to solution, boasting an impressive load capacity of 3300 lbs, making it perfect for a wide array of applications from light-duty tasks to more demanding operations.
US-EPT-33D
Efficient lithium-powered electric pallet jack with 3300 lbs capacity.
3300 lbs
Designed to lift up to 3300 lbs with ease.
23.6 inches
23.6-inch load center optimizes weight balance and safety.
21 / 27 inches
Adjustable fork width from 21 to 27 inches to handle different pallet sizes.
45 inches
45-inch fork length accommodates standard pallet depths.
63 inches
63-inch overall length for streamlined warehouse navigation.
1.4 inches
1.4-inch ground clearance allows for safe operation on uneven surfaces.
29 - 46 inches
Handle height up to 46 inches supports ergonomic control.
22 / 27 inches
22–27 inch overall width is perfect for tight aisles.
55 inches
55-inch turning radius ensures maneuverability in narrow spaces.
2.6 / 2.8 mph
Top speeds of 2.6 mph loaded and 2.8 mph unloaded.
5% / 10%
Climbs inclines of 5% with a load and 10% without.
0.75 kW
Powered by a 0.75 kW drive motor for consistent performance.
0.8 kW
Lift motor rated at 0.8 kW for smooth raising and lowering.
24V
24V battery system offers reliable power output.
30 Ah
30Ah lithium battery delivers longer run time and fast charging.
Lithium Battery
Durable lithium battery ensures longer lifespan and minimal maintenance.
Electromagnetic Brake
Equipped with electromagnetic braking for reliable stopping power.
DC Drive Control
DC control system delivers responsive and precise handling.
320 lbs
Total weight of 320 lbs including battery.
ELEVATE EFFICIENCY, ELEVATE SAFETY
Propel your operational standards to new peaks with the Texlift US-EPT-33D, where cutting-edge efficiency meets uncompromised safety.
HIGH ENERGY EFFICIENCY
The US-EPT-33D is powered by a 24V 30Ah lithium-ion battery, delivering long runtime, quick charging, and low maintenance - perfect for demanding warehouse environments.
ERGONOMIC OPERATION
Designed for comfort and ease, the US-EPT-33D features an ergonomic handle and smooth controls, reducing operator fatigue during long shifts and tight maneuvers.
ADVANCED SAFETY FEATURES
Equipped with an emergency stop and battery alert, the US-EPT-33D prioritizes operator safety while ensuring reliable and efficient performance every day.
FAQs
Your Guide to Mastering the Texlift US-EPT-33D Electric Jack Pallet
What should I do if the battery doesn't hold a charge as long as it used to?
Over time, batteries can experience a decrease in performance. Consider scheduling a battery check-up with authorized service personnel. Regular maintenance and, if necessary, a battery replacement can restore optimal performance.
Can the US-EPT-33D operate in cold storage environments?
Yes, the US-EPT-33D is designed to perform in various environments, including cold storage. However, extreme cold can affect battery performance, so additional precautions and more frequent battery checks might be required.
What types of floors is the electric jack pallet suitable for?
It's ideal for smooth, level surfaces commonly found in warehouses and manufacturing facilities. The US-EPT-33D can navigate over minor imperfections, but it's best to avoid operation on significantly uneven or soft surfaces to prevent damage or instability.
How often should the US-EPT-33D undergo maintenance?
Regular maintenance is key to longevity and reliability. We recommend a thorough inspection and service at least once a year or according to the usage frequency. Always refer to the user manual for specific maintenance schedules and procedures.
